Model No.: # 355-0782
PAGE: 1 / 10
240220
12
11
13
14
15
5
6
8
7
10
9
3
4

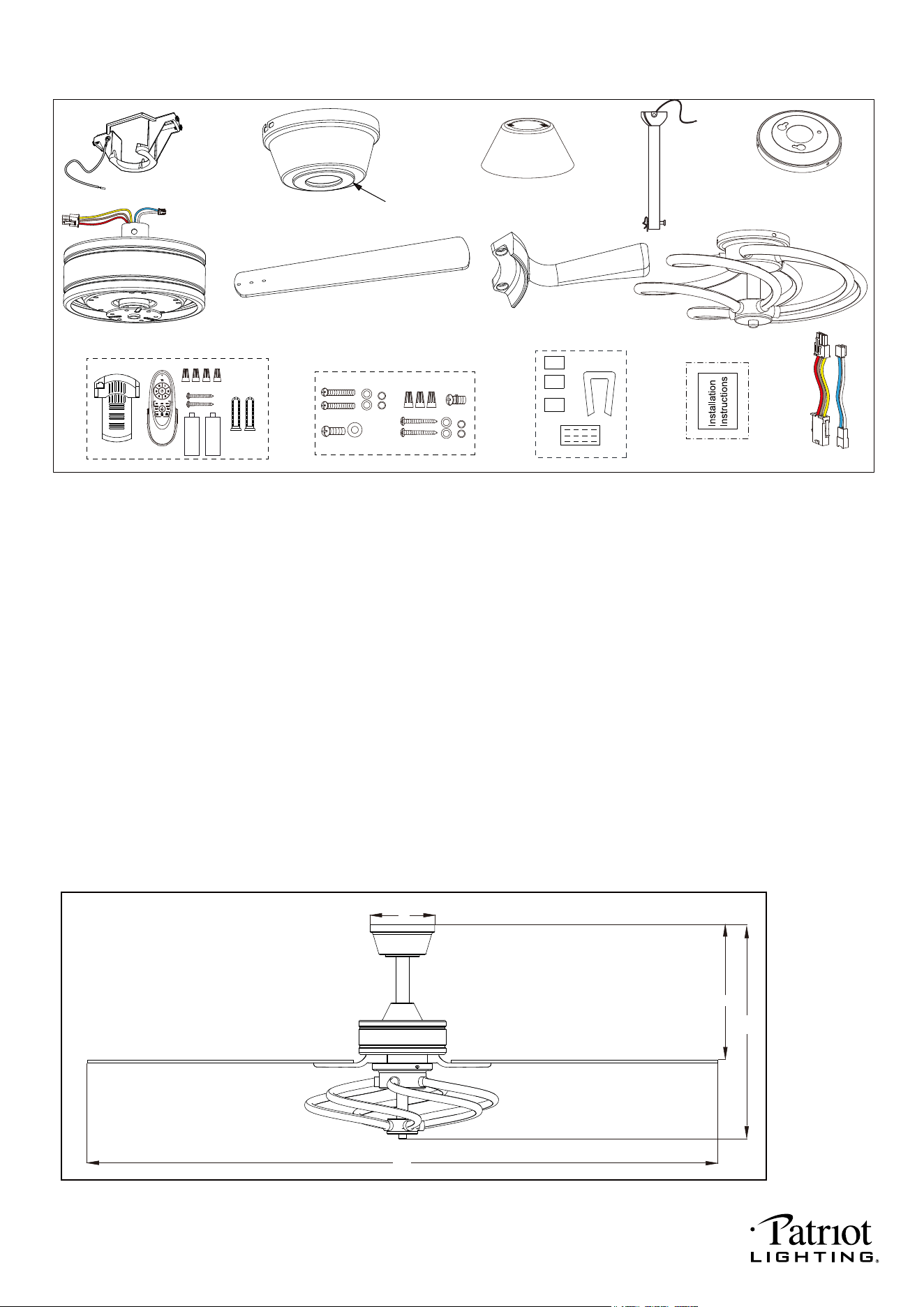

Unpack your fan and check the contents. You should have the following items.
1.) Hanger Bracket
2.) Canopy
3.) Canopy Cover (Remove the Preassembled Canopy Cover from the Canopy Before Installation.)
4.) Downrod Stand Cover
5.) Downrod Set (Includes Hanger Ball, 6” Downrod, Hanger Pin & Lock Pin)
6.) Connect Plate of Light Kit
7.) Fan Motor Assembly
8.) Fan Blades (5PCS)
9.) Blade Brackets (5PCS)
10.) Fan Light Kit
11.) Remote Control Set (Includes Receiver & Transmitter & Wire Connectors & Batteries & Screws)
12.) Assembly Kit
13.) Blade Balancing Kit
14.) Installation Instructions
15.) Lead Wires
Package Contents:
2
1
Dimension Reference (Installed with 6" Downrod):
A. 17" B. 10-3/4" C. 52" D. 5"
1.5V
1.5V
X 16
B
C
A
D
PAGE: 2 / 10
240220
Ceiling Mount
Downrod Mount
Sloped Ceiling Mount (Up to 23 degrees)

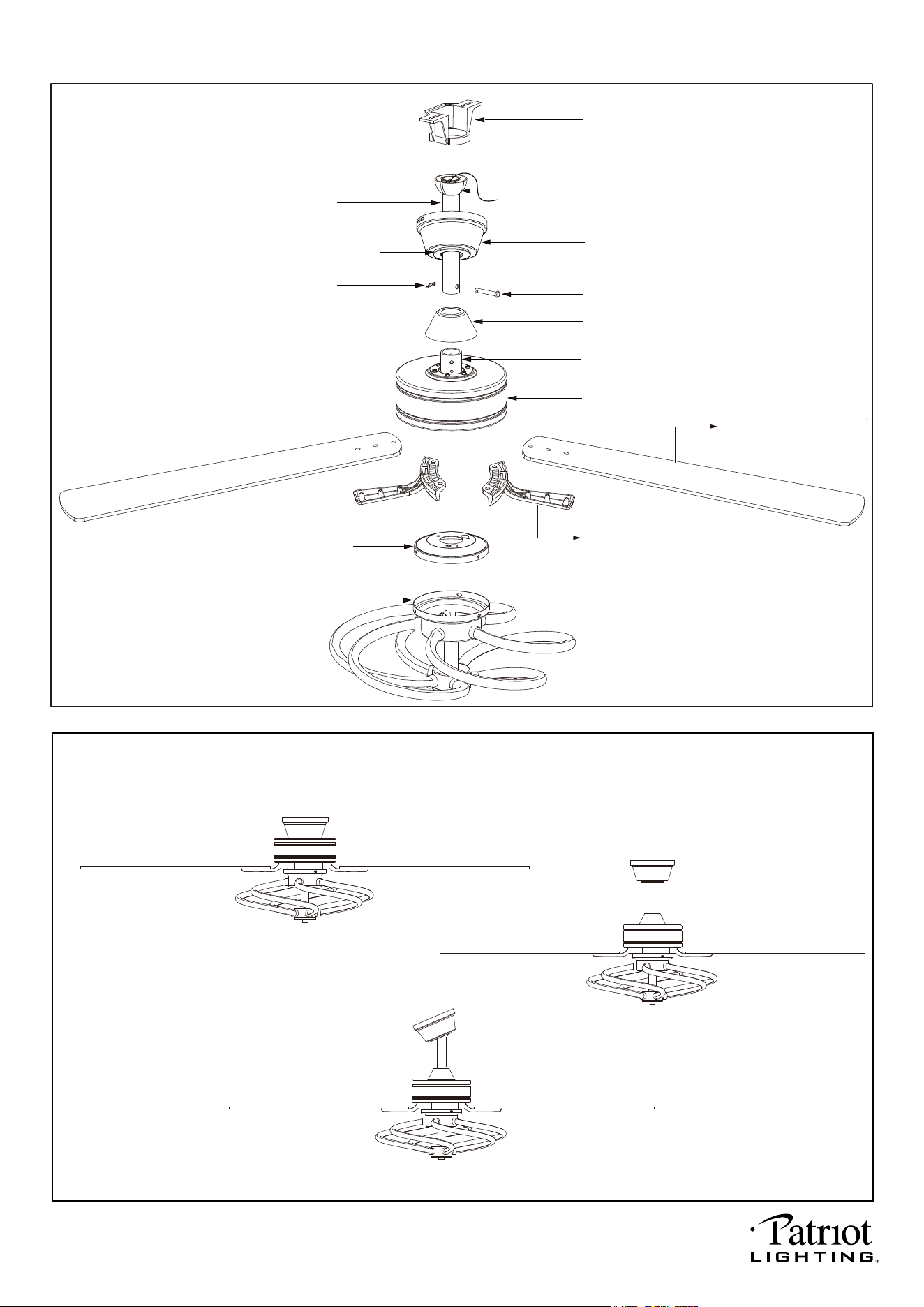

Exploded View Detail
Triple Mount Drawing
Collar
Fan Motor Assembly
Fan Blade
Hanger Bracket
Canopy
Hanger Pin
Downrod Stand Cover
Hanger Ball
Lock Pin
Downrod
Canopy Cover
Blade Bracket
Connect Plate of Light Kit
Fan Light Kit
PAGE: 3 / 10
240220
Safety Instructions
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN TO
INSTALL THE FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets,
balancing the blades or cleaning the fan. Do not insert foreign objects between rotating fan blades.
Before changing the fan direction, turn off the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation
instructions are not meant to cover all possible conditions and situations that may occur. It must be
understood that common sense, caution and care are factors which can not be built into this product.
These factors must be supplied by the person(s) installing, caring for and operating the fan.
TO AVOID RISK OF ELECTRIC SHOCK, BE SURE TO SHUT OFF POWER AT THE MAIN
FUSE OR CIRCUIT BREAKER BOX BEFORE INSTALLING OR SERVICING THIS
FIXTURE. TURNING OFF THE ELECTRICAL POWER BY USING THE LIGHT SWITCH
IS NOT SUFFICIENT TO PREVENT ELECTRICAL SHOCK.
TO REDUCE THE RISK OF INJURY, INSTALL THE FAN SO THAT THE BLADES ARE
AT LEAST 7 FEET (2.1 METERS) ABOVE THE FLOOR AND AT LEAST 18 INCHES
(0.5 METERS) FROM THE TIP OF THE BLADES TO THE WALL.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED "ACCEPTABLE FOR FAN SUPPORT" AND USE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
THE INSTALLATION HAS TO BE IN ACCORDANCE WITH THE NATIONAL ELECTRICAL
CODE, ANSI/NFPA 70-1999 AND LOCAL CODES. IF YOU ARE UNFAMILIAR WITH THE
METHODS OF INSTALLING ELECTRICAL WIRING, SEEK THE SERVICES OF A
QUALIFIED LICENSED ELECTRICIAN.
WARNING
PAGE: 4 / 10
240220

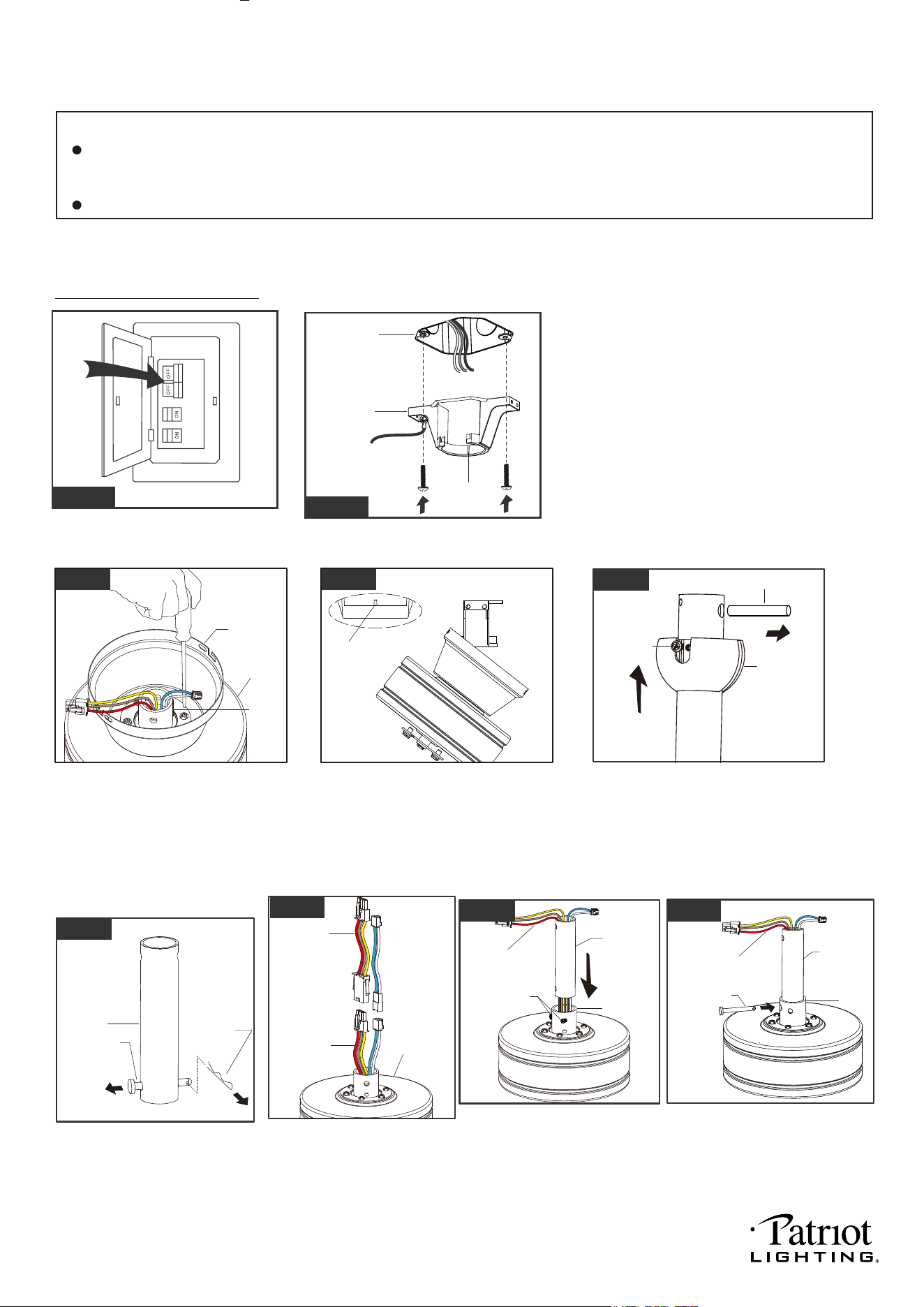

Installation Steps :
Fig.1
Turn OFF the electric circuit at the
main fuse or circuit breaker box.
(
For downrod mount only):
Slide hanger pin through
holes of collar and downrod.
(For downrod mount only):
Remove the lock pin from
hanger pin and remove the
hanger pin from the downrod.
(For downrod mount only):
Please connect the lead
wires when using over 6"
downrod.
(
For downrod mount only):
a. Slide the motor wires
through the top of the
downrod.
b. Loosen the collar screws
outpart way. Insert the
dowrod into the collar.
Tighten the hanger bracket to the outlet
box with two mounting screws. (To reduce
the risk of fire, electric shock, or personal
injury, mount to an outlet box marked
"Acceptable for fan support" and use
mounting screws provided with the outlet
box.)
Note: For sloped ceiling installation, make
sure that the chip of the hanger bracket
is toward the floor.
Hanger
Bracket
Fig.2
Outlet Box
NOTE: The fan weight is 12.13 lbs (5.5 kgs). Be sure the outlet box you are using is securely attached to the building
structure and can support the full weight of the fan. Failing to do so can result in serious injury.
INSTALLATION INSTRUCTIONS
IMPORTANT:
BEFORE YOU BEGIN INSTALLING THE FAN, CAREFULLY READ ALL INFORMATION IN
SAVE ALL INSTRUCTIONS.
Chip
THE SAFETY
INSTRUCTIONS AND INSTALLATION INSTRUCTIONS. IF IN DOUBT, CONSULT A QUALIFIED
ELECTRICIAN.
Fig.6
Hanger Pin
Downrod
Lock Pin
Fig.3
Canopy
Collar
Fan Motor
Assemly
Fig.4
Hanger Bracket
Hook
(For ceiling mount only):
Raise the fan and place the
canopy on the hanger bracket
hook for wiring. Go to Fig.14
for the next steps.
PAGE: 5 / 10
(For ceiling mount only):
Remove the canopy cover from the
canopy.
Remove three of six screws (every
other one screw) securing the collar.
Attach the canopy to the fan motor
assembly with three screws.
(For downrod mount only):
a. Remove the set screw with a Phillips
screwdriver and save the set screw
for later use.
b. Remove the hanger ball and the support
pin from the downrod for later use.
Fig.5
Support Pin
Hanger ball
Set Screw
Motor Wire
Downrod
Collar
Collar Screw
Downrod
Collar
Fig.9
Hanger Pin
Motor Wire
Fig.7
Lead Wire
Motor Wire
Fan Motor
Assemly
Fig.8
240220
(For downrod mount only):
Tighten the two collar screws.
Slide lock pin into hanger pin
until it is locked into position.
Fig.13
Chip
Slot
Hanger Bracket
Fig.10
Motor Wires
Downrod
Lock Pin
Collar Screws
PAGE: 6 / 10
(
For downrod mount only):
Slide downrod stand cover,
canopy cover, canopy and
hanger ball over motor wires
onto downrod.
Slide the support pin into hanger ball until it is through
the downrod then push the hanger ball upwards and
rotate it until the pin locks in the slot of hanger ball.
Finally, secure the hanger ball to downrod with
previous set screw which was removed.
(
For downrod mount only):
Note: The fan light operates at a
reduced voltage of 18V and MUST
only connect to the receiver. DO NOT
connect the light kit directly to the
120V power from junction box.
Move ground wires (a), outlet box
wires (b), and motor wires (c) away from
the center of the hanger bracket as shown.
Thread the antenna through the hanger
bracket first, then thread the receiver
through the hanger bracket until it is
placed in the center.
Motor Wires
Hanger Ball
Fig.11
Downrod
Canopy
Downrod Stand
Cover
Fig.12
Hanger Ball
Set Screw
(
For downrod mount only):
Hang the fan on hanger bracket, and make sure the slot of hanger ball is
snapped into the chip of hanger bracket exactly.
Note: For sloped ceiling installation, make sure the slot of hanger ball
and the chip of hanger bracket face down.
Fig.14
Receiver
Hanger Bracket
Antenna
Fig.15

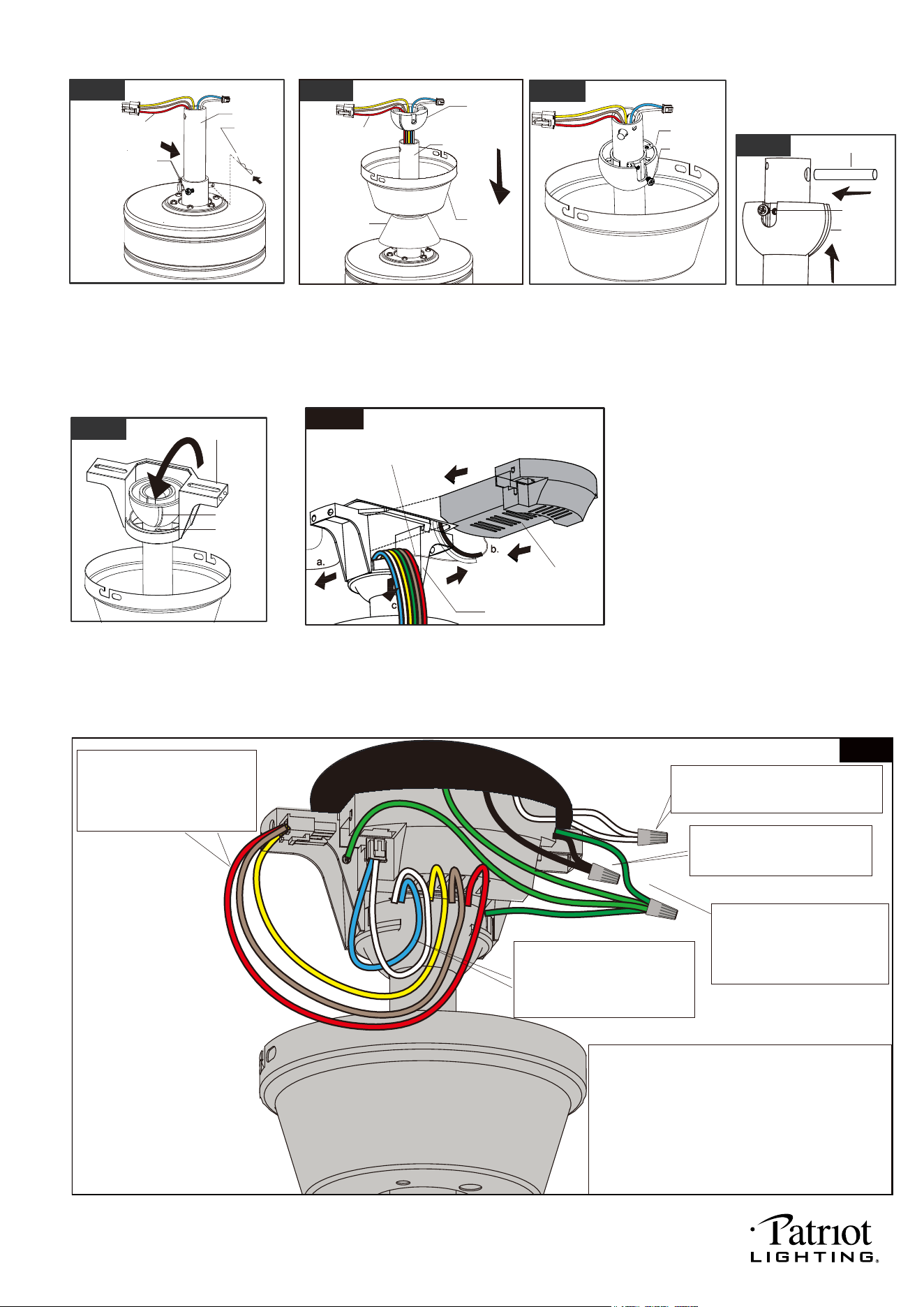

Connect the black wire from
receiver to the black wire from
outlet box with a wire connector.
Connect four ground wires
(Green or bare copper) coming
from outlet box, downrod,
receiver and hanging bracket
with a wire connector.
Connect the white wire from receiver
to the white wire from outlet box with
a wire connector.
*** After making the wire connections, the wires
should be spread apart. The white (neutral)
conductor from receiver and outlet box with green
(grounding) conductor on one side; the black (hot)
conductor from receiver and outlet box with the
white, yellow, blue, brown and red conductor from
receiver and motor on the other side of the outlet
box.
*** The wire connection points should be turned
upward and pushed carefully up into outlet box.
Connect the male terminal
with two wires from fan motor
assembly to the female terminal
in receiver (This is for light
control).
White
White
Black
Black
Green
Green
Green
Green
Blue
White
Yellow
Brown
Red
Connect the male terminal with
three wires from fan motor
assembly to the female terminal
in receiver (This is for motor
control)
Fig.12a
Support Pin
Hanger ball
Set Screw
240220
Fig.16
Hanger Bracket
Canopy
There are four hanger bracket screws and
lock washers. Remove two screws and lock
washers from the hanger bracket (one from
each side) and loosen the other two
remaining screws. Align the “L shaped” slots
of the canopy with the two remaining screws
on the hanger bracket and push the canopy
upwards to engage the slots and turn
clockwise to lock in place. Tighten the
screws and install the other two hanger
bracket screws and lock washers into the
remaining holes of the canopy and tighten.
Insert the blade bracket into the slots
on the fan blade. Align holes and fasten
blade to the blade bracket with blade
screws and washers. Repeat for
remaining blades.

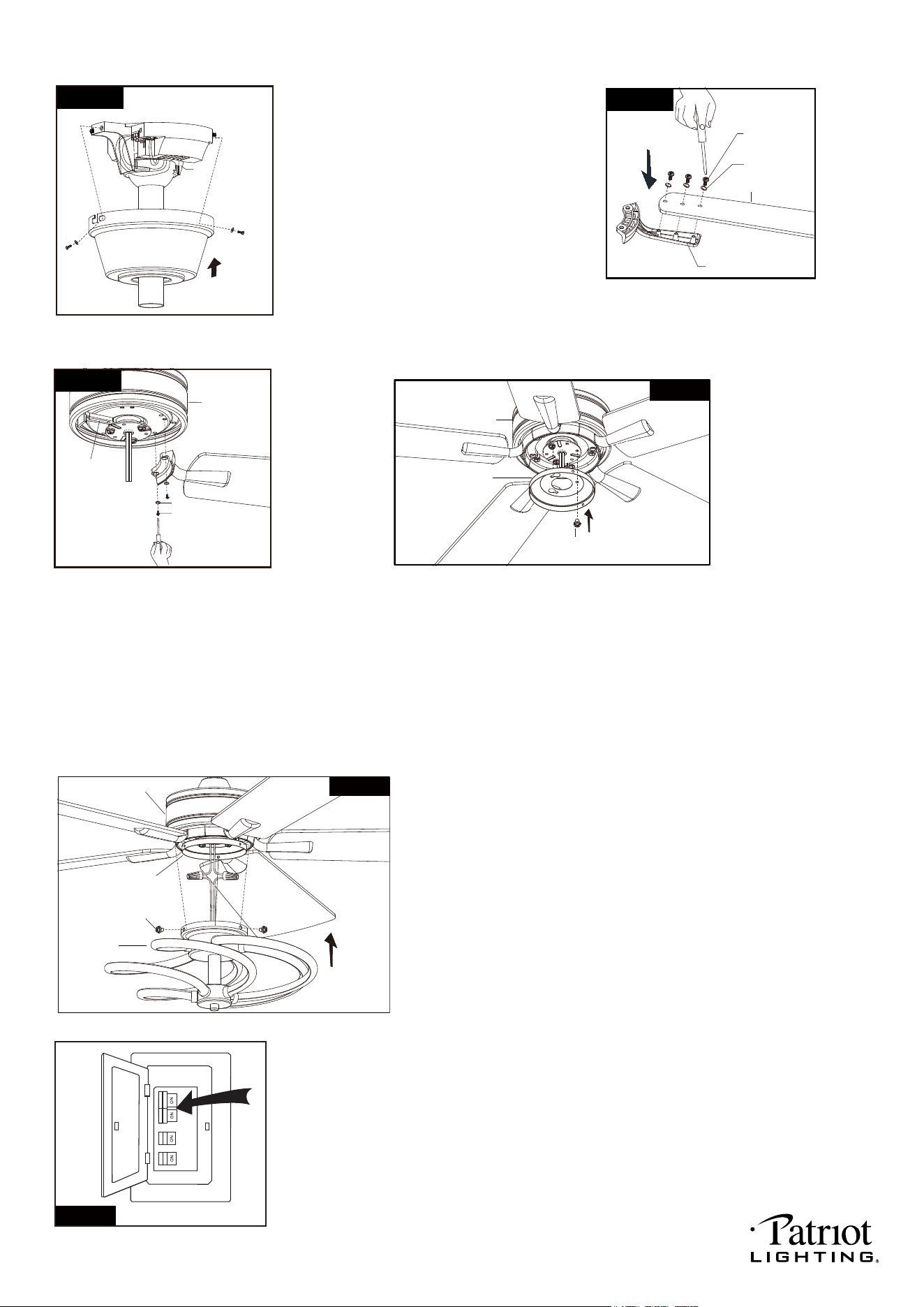

Remove the motor screws, plastic
inserts and washers from the fan
motor assembly. Secure blade
brackets to the fan motor assembly
with washers and motor screws.
Note: Before installing the blade
brackets to the fan motor assembly,
please remove the plastic inserts.
Fig.18
Washer
Motor Screw
Plastic Insert
Fan Motor
Assembly
Remove one screw and loosen another two screws from fan motor
assembly first, thread the fan motor assembly wires through
connect plate of light kit, then push the connect plate of light kit
upwards until the fan motor assembly screws insert into the key
hole slots of connect plate of light kit, then rotate the connect
plate of light kit until it’s fixed on the fan motor assembly bottom.
Finally, secure the connect plate of light kit to the fan motor
assembly bottom with previous screw which was removed.
Tighten the other two fan motor assembly screws.
Remove three connect plate screws from connect
plate of light kit first. Then connect the white (neutral)
wire from the light kit to white (neutral) wire from fan
motor assembly with a wire connector; connect the blue
(hot) wire from light kit to blue (hot) wire from fan motor
assembly with a wire connector. Carefully put the wires
into the connect plate of light kit, then attach the light kit
onto the connect plate of light kit with the connect plate
screws.
Fan Motor
Assembly Screw
Fan Motor Assembly
Connect Plate of
Light Kit
Fig.19
Light Kit
Connect Plate Screw
Fig.20
Connect Plate
of Light Kit
Fan Motor
Assembly
Fig.21
Turn ON the electric power at the
main fuse or circuit breaker box.
PAGE: 7 / 10
Fig.17
Blade Bracket
Blade
Blade Screw
Washer
240220

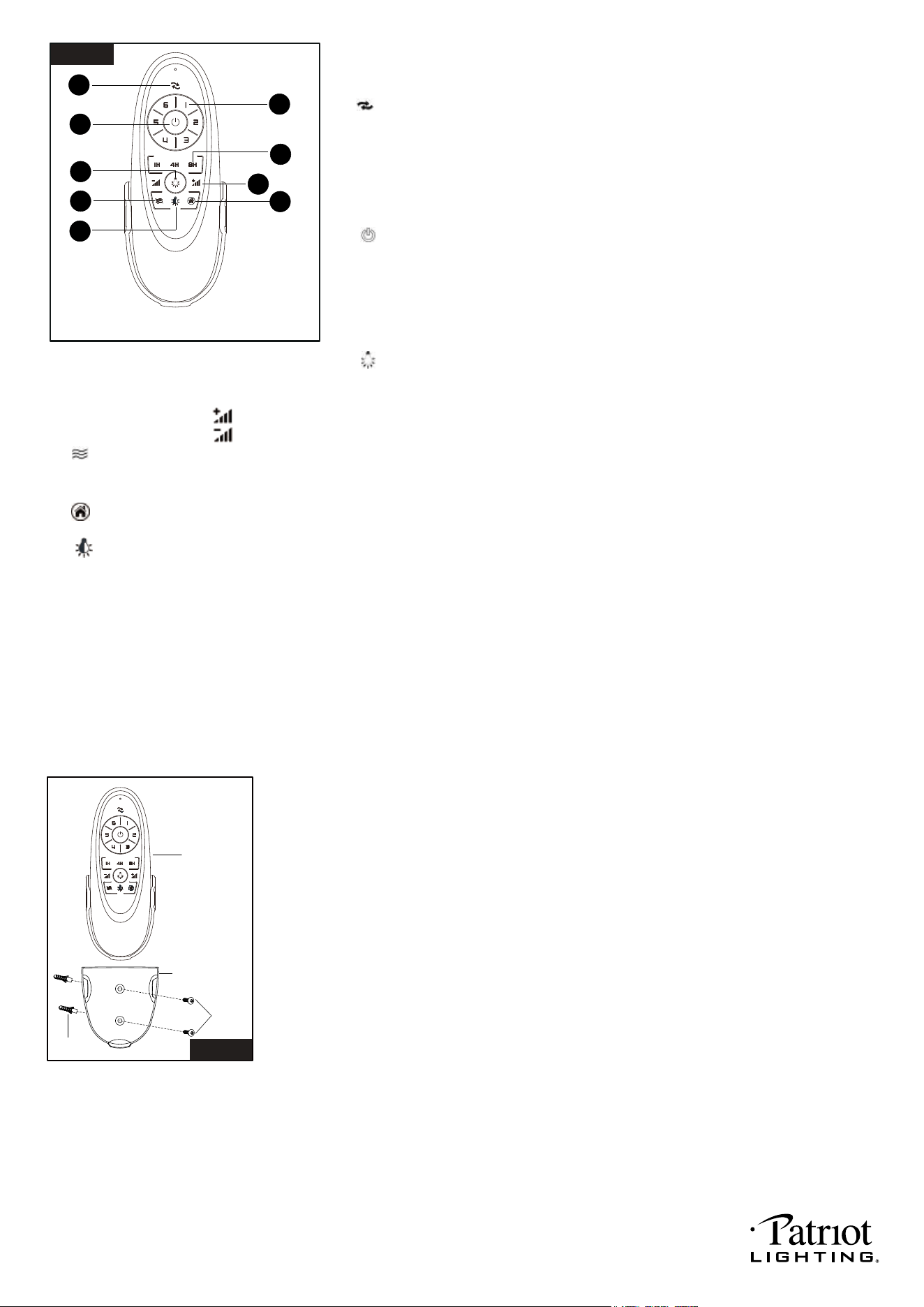

6. Dimmer Function
Press and hold the " " button to increases light to the desired level.
Press and hold the " " button to decrease light to the desired level.
7. " " Breese button:
Press breese button to control the fan speeds automatic cycle between 1 to 6 speeds with a 20-second frequency.
And any other fan speed button can be stop this function.
8. " " Vacation mode button: Press vacation mode button to turn on the light 5 minutes each 2 hours, any other button
can be stop this function.
9. " " Light Off button.
Press this button quickly to turn off the light.
Note:
1. This remote controller has a memory function setting. The fan will operate at the same speed and the fan
light will stay at the same brightness-level as the last time the power supply was turned off.
2. One transmitter can be compatible with 4 ceiling fans and every ceiling fan can be compatible with
new transmitter by pressing and holding the fan off button for 5 seconds until you hear the indicator sound
of swoosh from the transmitter. This step should be done within 30 seconds time frame after the main power
is turned on.
3. Compatible with on/off function wall switch only.
Transmitter
Wall Bracket
Anchor
Screw
Fig.23
Install the transmitter wall bracket on the wall with two anchors and two screws
and place transmitter in it carefully.
(See Fig.23)
PAGE: 8 / 10
Remote controller
Install two 1.5 volt batteries (type AAA, included) into the remote controller.
The remote buttons instruct as below:
1. " " Reverse button:
Press this button to control fan direction.
The lateness of reverse function is normal, please wait for a moment.
2. Fan speed:
1 = minimum speed 2 = low speed
3 = medium low speed 4 = medium speed
5 = medium high speed 6 = high speed
3. " " Button:
Press this button to turn the fan off.
4. Timer Control:
Press "1H","4H" or "8H" button to stop the fan speed and light after that period.
Press fan off button to stop the fan speed timer control, and fan also will be turn off.
Press light off button to stop the lighting timer control, and light also will be turn off.
Turn OFF the electric circuit at the main fuse or circuit breaker box to stop timer control.
5. " " Light On button:
Press this button quickly to turn on the light.
1
3
7
5
2
4
6
8
9
Fig.22
Remote Control Transmitter
240220
PAGE: 9 / 10
Troubleshooting Guide
If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation
or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any
faults, please check this Troubleshooting Guide. If a problem cannot be remedied or you are
experiencing difficulty in installation, please call our Customer Service Department (1-800-887-6326).
PROBLEM
1. If fan does not start:
2. If fan sounds noisy:
3. If fan wobbles:
4. If light does not work:
5. If fan and light kit do
not work:
1. Check main and branch circuit fuses or circuit breakers.
2. Check line wire connections to fan and switch wire connections in switch
housing.
CAUTION: Make sure main power is turned off.
3. Make sure that the wall control is turned "ON".
1. Make sure all screws in motor housing are snug. (not too tight)
2. Make sure the screws which attach the fan blade bracket to the motor are tight.
3. Make sure wire connectors in switch housing are not rattling against each
other or against the interior wall of the switch housing.
CAUTION: Make sure main power is turned off before accessing switch
housing.
4. Some fan motors are sensitive to signals from Solid State variable speed
controls. DO NOT USE a Solid State variable speed control.
5. Allow "break-in" period of 24 hours. Most noises associated with a new fan will
disappear after this period.
All blades are weighed and grouped by weight. Natural woods vary in density
which could cause the fan to wobble even though all blades are weight-matched.
The following procedures should eliminate most of the wobble. Check for wobble
after each step.
1. Check that all blades are screwed firmly into blade brackets.
2. Check that all blade brackets are tightened securely to motor.
3. Make sure that canopy and mounting bracket are tightened securely to ceiling
junction box and junction box is mounted firmly to ceiling joist.
4. Most fan wobble problems are caused when blades are not equally level. To
check the blade levels, select a point on the ceiling above the tip of any blade.
Measure the distance from the ceiling to the blade tip, to an accuracy of 1/8
inch. Rotate the blades until the next blade is in the measuring position. Repeat
measurement for each blade. If all blade levels are not equal, you can adjust
blade levels by the following procedure. To adjust a blade tip down, insert a
washer (not supplied) between the blade and blade bracket at the screw
closest to the motor. To adjust a blade tip up, insert washer (not supplied)
between the blade and blade bracket at the two screws farthest from the motor.
5. If blade wobble is still noticeable, interchanging two adjacent (side by side)
blades can redistribute the weight and possibly result in smoother operation.
1. Check blue wire from fan to make sure it is connected to hot wire from house.
2. Check for loose or disconnected wires in fan switch housing.
3. Check for loose or disconnected wires in light kit.
4. Check for faulty the LED module.
CAUTION: Make sure main power is turned off before accessing switch
housing.
SUGGESTED REMEDY
1. Replace the battery of transmitter.
2. Re-pair the transmitter and receiver by holding the "FAN OFF" button on the
transmitter according to the manual.
240220
DYNAMIC BLADE BALANCING KIT
PREFACE
Your ceiling fan may sometimes have wobbling problems when operating due to irregularity in the
blades or the blade brackets. Improper assembly in the mounting system may cause some additional
problems. This balancing kit can be used to fix wobbling problems.
DYNAMIC BLADE BALANCING KIT FOR CEILING FANS
1. Make sure that all blades are firmly screwed into the blade brackets.
2. Make sure that all blade brackets are firmly secured to the motor housing.
3. By looking up at the fan from below, check and be certain that none of the blade brackets are bent
and that none of the blades are out of position.
4. Use a yardstick to check the blade tracking. Put the yardstick up against the ceiling vertically and
against the outside leading edge of a blade. Note the distance of the edge of blade to the ceiling.
Carefully turn the blades slowly by hand to check the remaining blades. All distances should be
the same.
Operate the fan ten minutes. After following all the steps and if the wobbling problem is not solved, a
dynamic balancing needs to be done with balancing kit. Follow the procedure listed below:
● Turn the fan off. Select one blade and place the plastic clip on it, with the plastic clip located
halfway between the blade bracket and the blade tip on the edge of the blade.
Caution: The plastic clip should be placed on the windward edge of the blade for fear of
clip flying off.
● Turn the fan on (set the speed that causes the wobble most). Observe if the wobble is better or
worse. Turn the fan off and move the clip to the next blade. Do the same for all blades and note
on which blade the clip reduces the wobble most. Place the clip on the blade which showed the
most improvement. Move the clip inward and outward on this blade and operte the fan to find
the position where the clip gives the most improvement.
Caution: Stay clear of the blades. If the clip, for any reason, is not secure, injury could result.
● Once the exact position is determined, place a weight on the top of the blade, on its centerline and
as close as possible to the clip. Peel the paper off of the back of the weight and press firmly to
ensure that it is securely attached to the blade. Remove the clip.
Caution: Clean the surface of fan blade before placing the balancing weight so that the
balancing weight will be firmly attached to it.

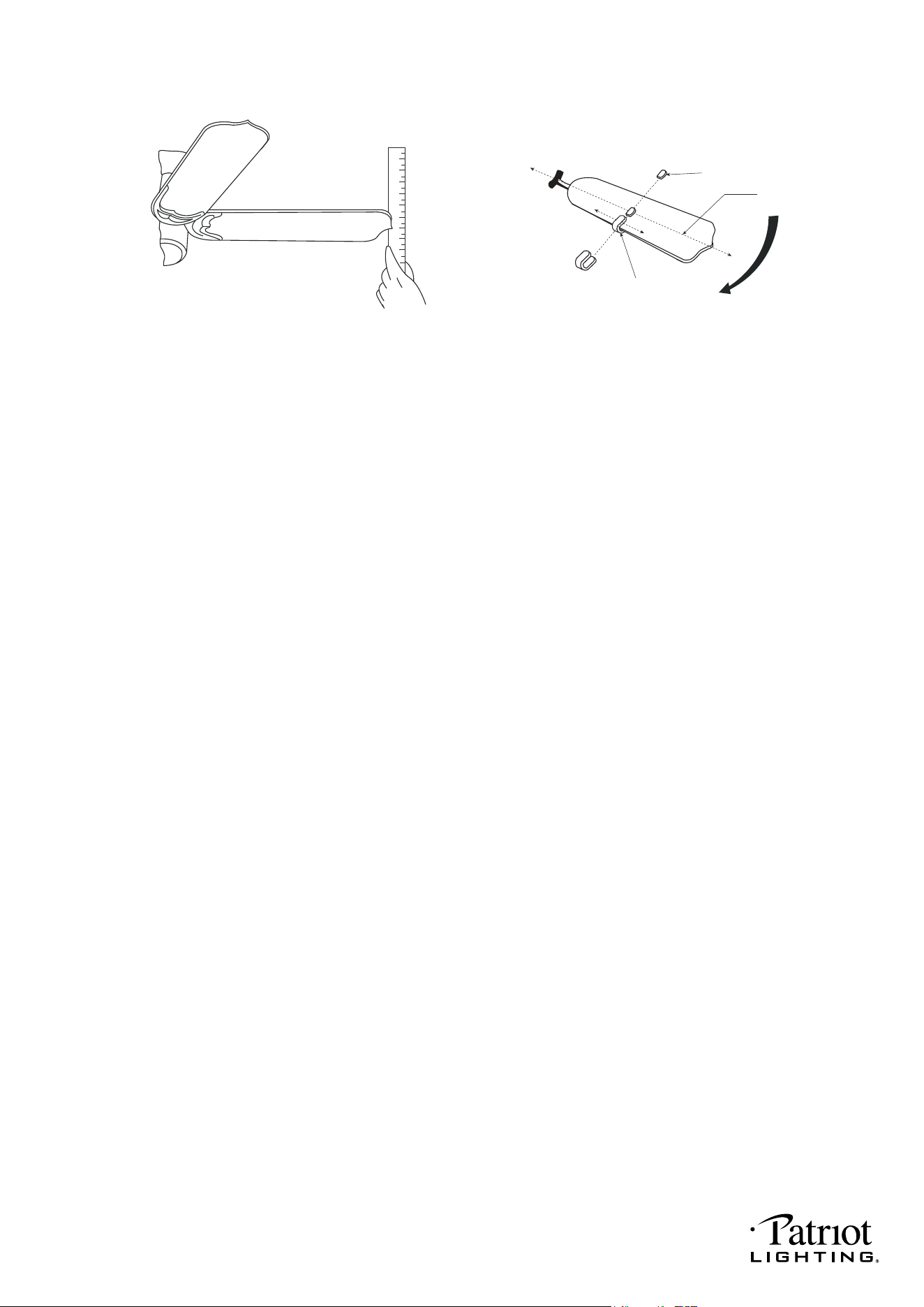

BALANCING WEIGHT
MEASURING
POINT
YARDSTICK
PLASTIC CLIP
CENTERLINE
COUNTER-
CLOCKWISE
1
2
3
4
5
6
7
8
9
240220
PAGE: 10 / 10
