Model No.: F0116 F0117
ORIGINAL VAXCEL CEILING FAN LIMITED LIFETIME WARRANTY*
*for full limited lifetime warranty details please see final page of these instructions.
Safety Instructions
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN TO
INSTALL THE FAN AND SAVE INSTRUCTIONS.
•
All set screws of the fan must be checked and retightened where necessary before installation.
•
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets,
balancing the blades or cleaning the fan. Do not insert foreign objects between rotating fan blades.
•
Before changing the fan direction, turn off the fan and wait for the fan blades to stop completely.
•
The safeguards provided by these safety instructions and by the separate installation instructions
are not meant to cover all possible conditions and situations that may occur. It must be understood
that common sense, caution and care are factors which can not be built into this product. These
factors must be supplied by the person(s) installing, caring for and operating the fan.
WARNING
• TO AVOID RISK OF ELECTRIC SHOCK, BE SURE TO SHUT OFF POWER AT THE MAIN
FUSE OR CIRCUIT BREAKER BOX BEFORE INSTALLING OR SERVICING THIS
FIXTURE. TURNING OFF THE ELECTRICAL POWER BY USING THE LIGHT SWITCH
IS NOT SUFFICIENT TO PREVENT ELECTRICAL SHOCK.
•
TO REDUCE THE RISK OF INJURY, INSTALL THE FAN SO THAT THE BLADES ARE
AT LEAST 7 FEET (2.1 METERS) ABOVE THE FLOOR AND AT LEAST 18 INCHES
(0.5 METERS) FROM THE TIP OF THE BLADES TO THE WALL.
•
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED "ACCEPTABLE FOR FAN SUPPORT" AND USE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
•
THE INSTALLATION HAS TO BE IN ACCORDANCE WITH THE NATIONAL ELECTRICAL
CODE, ANSI/NFPA 70-1999 AND LOCAL CODES. IF YOU ARE UNFAMILIAR WITH THE
METHODS OF INSTALLING ELECTRICAL WIRING, SEEK THE SERVICES OF A
QUALIFIED LICENSED ELECTRICIAN.
231101
PAGE: 1 / 9
A. 14" B. 6" C. 10" D. 52"

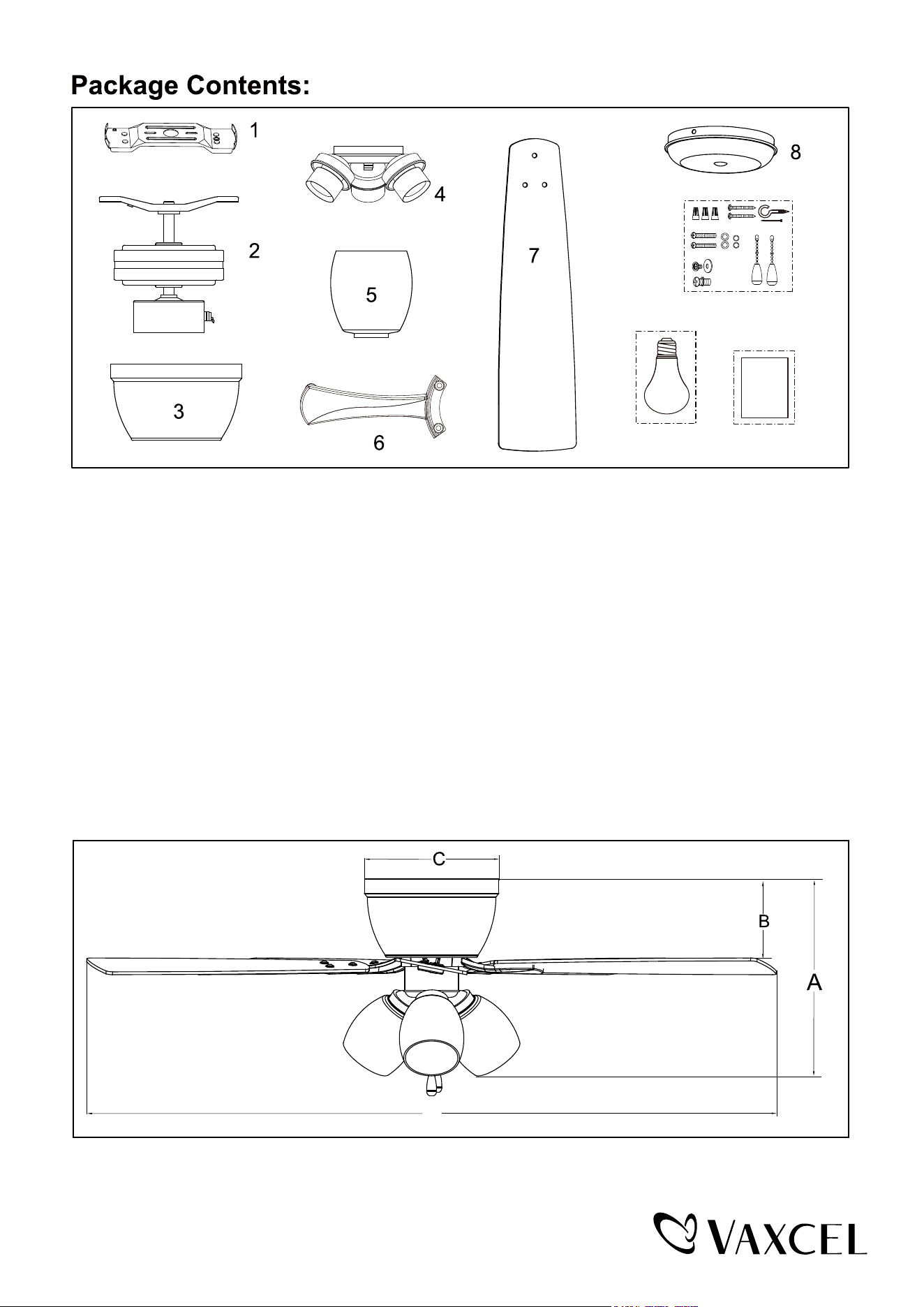

Unpack your fan and check the contents. You should have the following items.
Dimension Reference:
D
1.) Mounting Bracket
2.) Hang Motor Assembly
3.) Housing
4.) Fan Light Kit
5.) Glass Shades (3 PCS)
6.) Blade Brackets (5 PCS)
7.) Fan Blades (5 PCS)
8.) Switch Box Cover
9.) Assembly Kit
10.) 6W E26 (M) Base A19 Type LED Bulb (3 PCS)
11.) Installation Instructions
10
9
11
Installation
Instructions
X16
231101
PAGE: 2 / 9

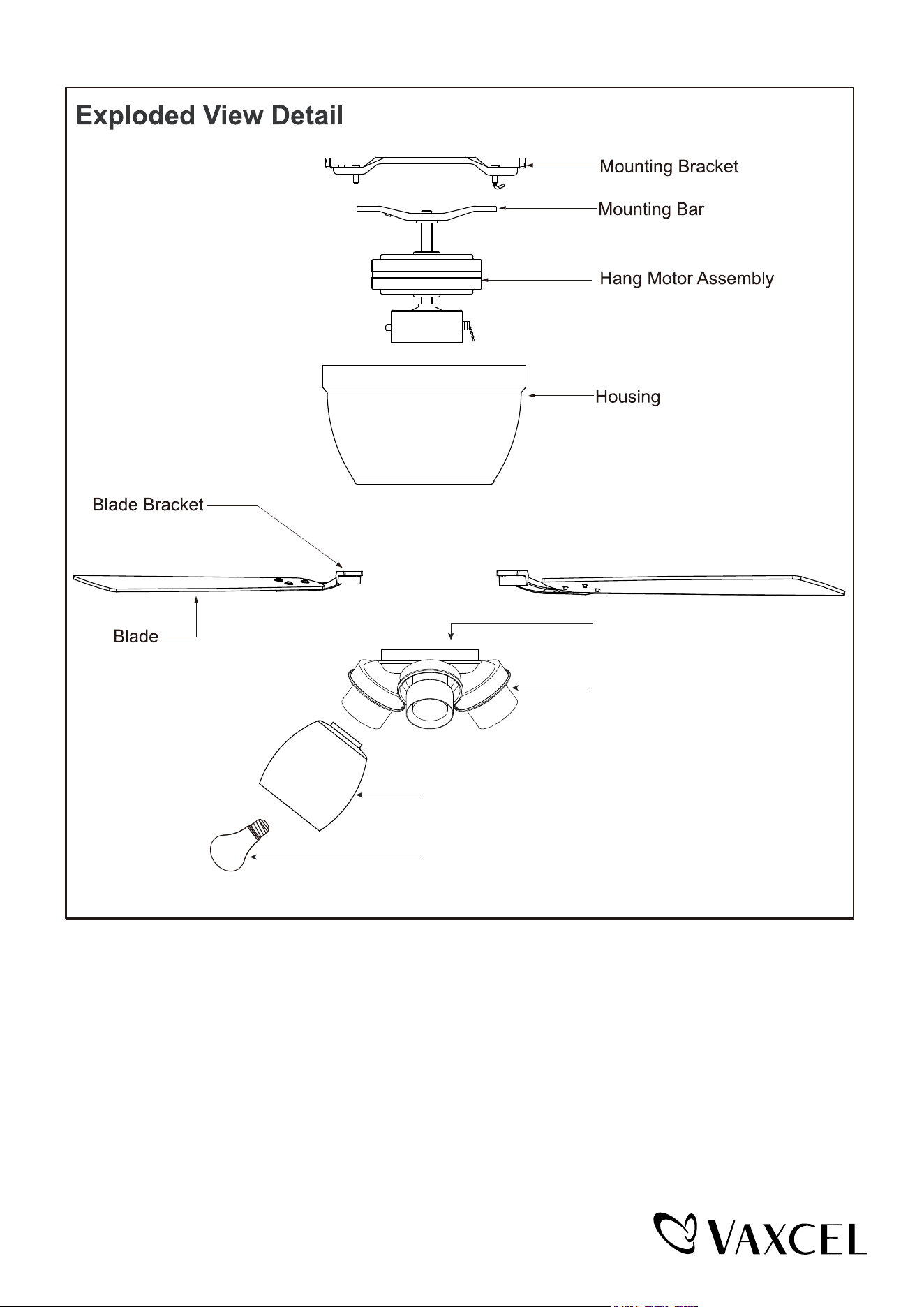

LED Bulb
Glass Shade
Socket Ring
Fan Light Kit
231101
PAGE: 3 / 9

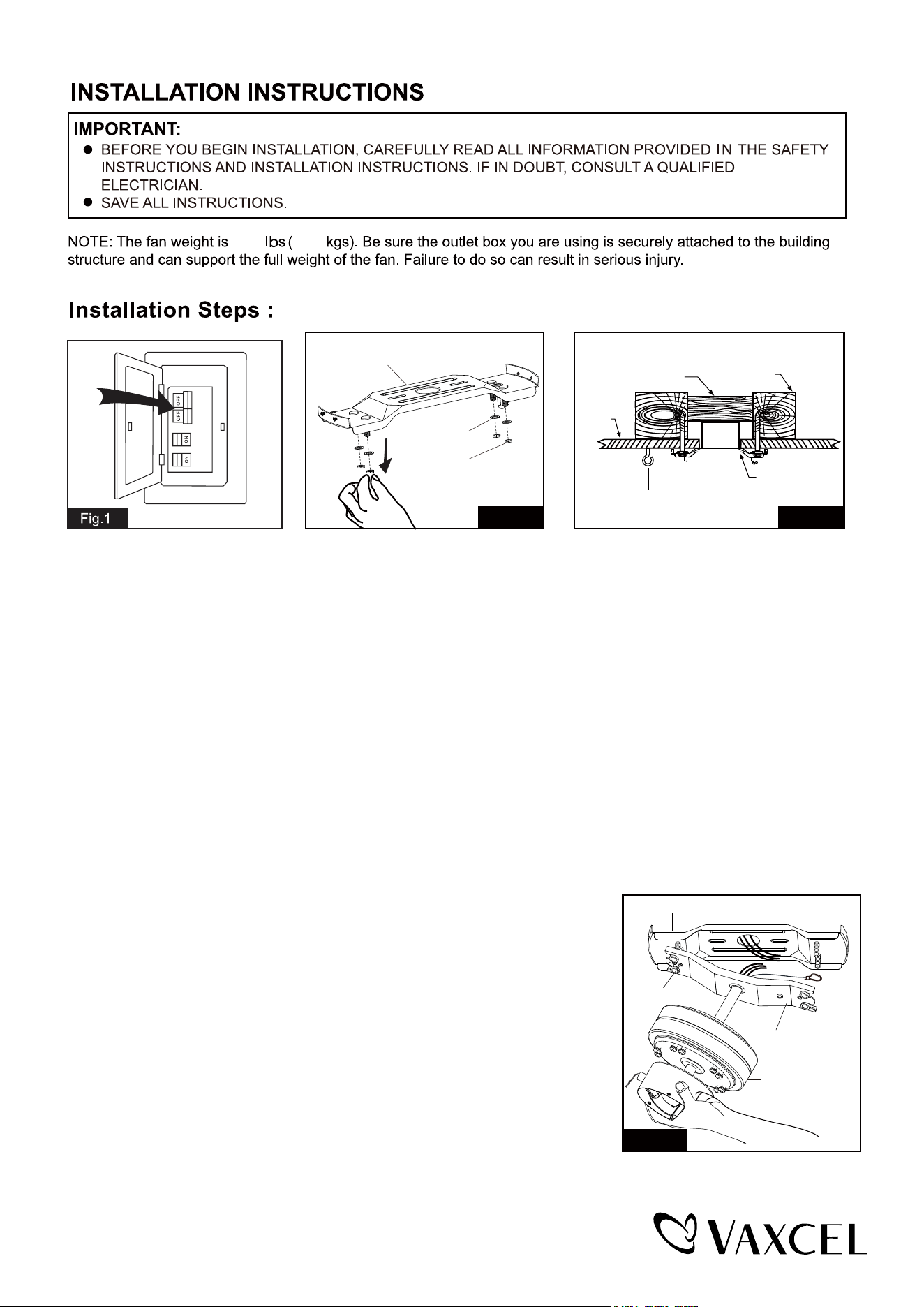

Mounting Bracket
Metal Washer
Hex Nut
Unscrew the metal washers and
hex nuts from mounting bracket.
Please save the metal washers
and hex nuts for Fig.8 step use.
Attach hang motor assembly onto mounting bracket. Insert the long loop
hole of mounting bar to the poth hook for hands-free wiring. (See Fig.4)
Turn OFF the electric circuit at
the main fuse or circuit breaker
box.
15.1
6.85
Fig.5.Fig.2 Fig.5.Fig.3
Safety Cable Hook
Ceiling
Hanger Bracket
Ceiling Joist
Wood Member
(2" x 4" Approx.)
Tighten the hanger bracket to the outlet
box with two mounting screws.
(Make sure the outlet box is securely
installed so that it will be able to
support at least the fan weight.)
Attach the safety cable hook to the
ceiling and make sure the safety
cable hook is covered by the fan
canopy. Pull the electrical wires from
the outlet box through the center hole
of the mounting bracket for motor wiring
installation.
WARNING: MOUNT ONLY TO AN
OUTLET BOX MARKED
"ACCEPTABLE FOR FAN SUPPORT"!
Long Loop Hole
Mounting Bar
Hang Motor
Assembly
Mounting Bracket
Fig.5.Fig.4
PAGE: 4 / 9
231101
Fig.5.Fig.5

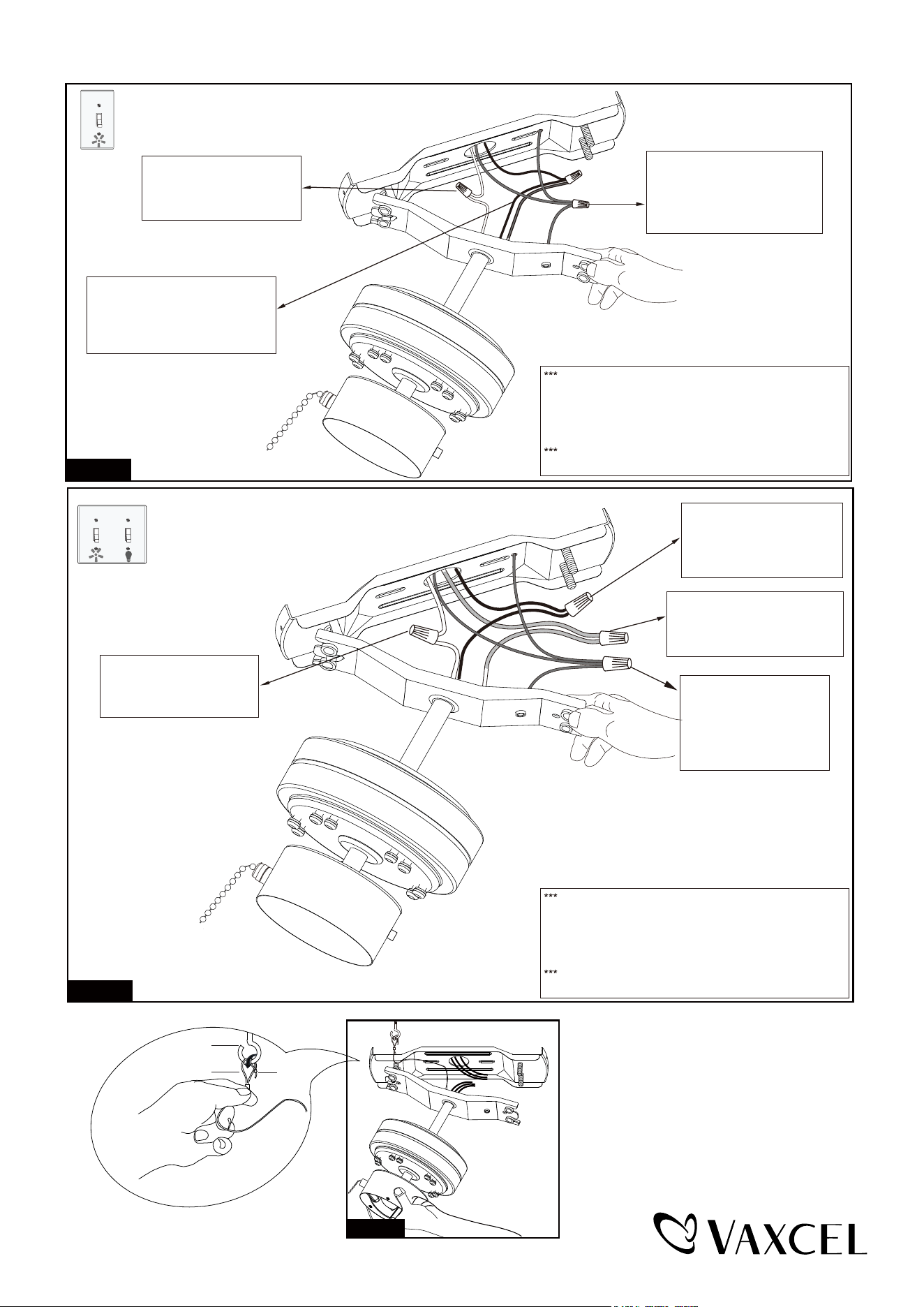

Connect the ground wires
(Green or bare copper) coming
from outlet box, mounting
bracket and mounting bar with
a wire connector.
For a single switch
Follow these steps:
Connect the white (neutral)
wire from motor to the white
(neutral) wire from the outlet
box with a wire connector.
Connect the black (hot) wire
(This is for fan control) and blue
wire (This is for light control) from
motor to the black (hot) wire from
outlet box with a wire connector.
After making the wire connections, the wires should
be spread apart. The white (neutral) conductor and
green (grounding) conductor on one side and the
black (hot) conductor and blue (light) conductor on
the other side of the outlet box.
The wire connection points should be turned upward
and pushed carefully up into outlet box.
Connect the ground wires
(Green or bare copper)
coming from outlet box,
mounting bracket and
mounting bar with a wire
connector.
For dual switch
Follow these steps:
Fig.5.Fig.6
Connect the black (hot) wire
from motor (This is for fan
control) to the black (hot)
wire from outlet box with a
wire connector.
Connect the blue wire (This is
for fan light control) from motor
to the blue wire from outlet box
with a wire connector.
Connect the white (neutral)
wire from motor to the white
(neutral) wire from the outlet
box with a wire connector.
After making the wire connections, the wires should
be spread apart. The white (neutral) conductor and
green (grounding) conductor on one side and the
black (hot) conductor and blue (light) conductor on
the other side of the outlet box.
The wire connection points should be turned upward
and pushed carefully up into outlet box.
PAGE: 5 / 9
231101
Hang the safety cable into the safety cable
hook, tighten the safety cable to the safety
cable hook by using the zip-tie.
Fig.5.Fig.7
Safety Cable Hook
Safety Cable
Zip-tie

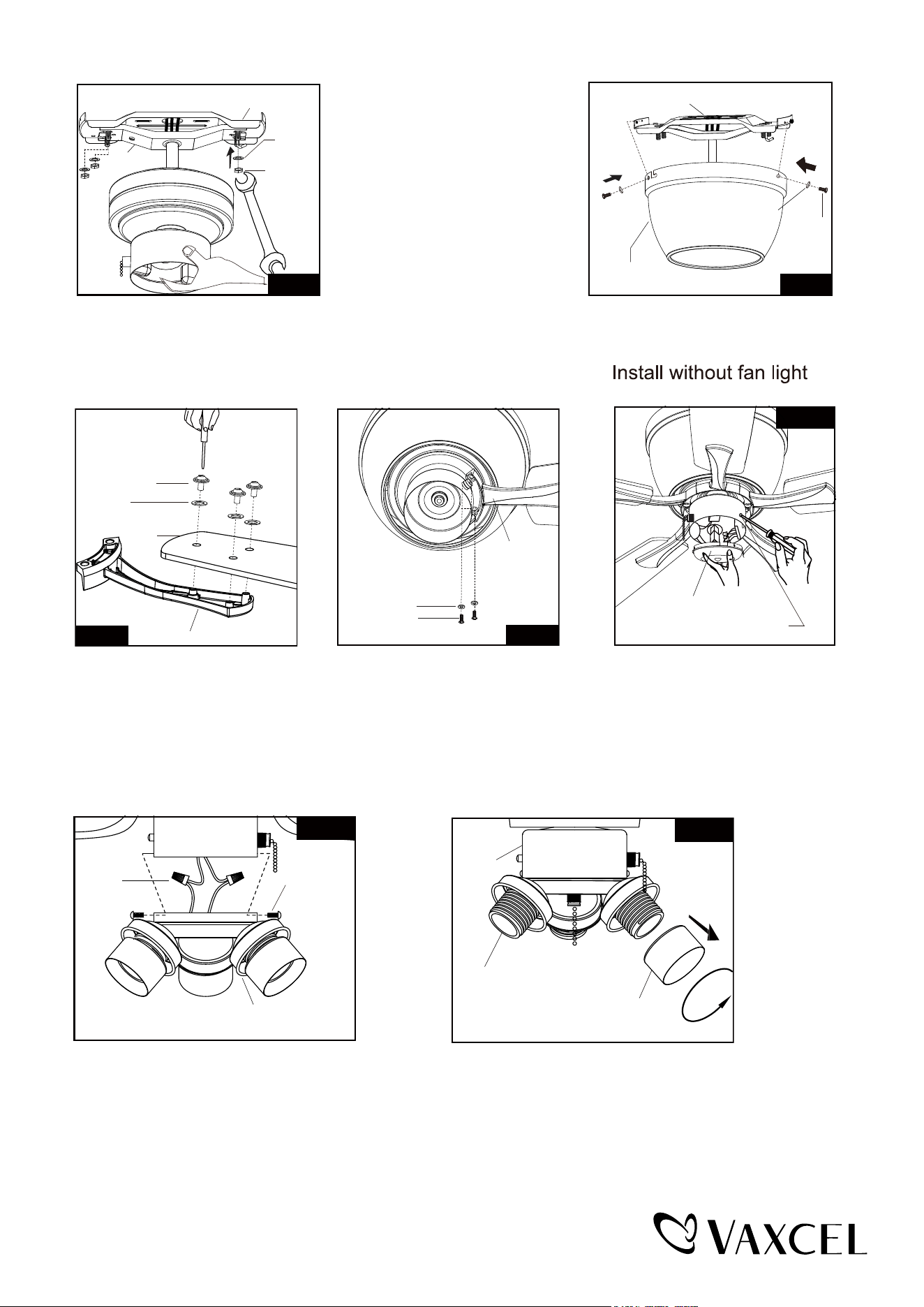

Tighten blades to blade brackets
by using blade screws and
washers.
Make sure the wires of the fan light
in the switch box are capped with
wire connector. Secure the switch
box cover into switch box with the
switch box cover screws.
To install the fan light, skip this
step and proceed to Fig.13.
Remove the motor screws and
washers from hang motor assembly
first. Secure the blade brackets to
the motor with motor screws and
washers.
Attach the mounting bar to mounting
bracket with metal washers and hex
nuts by hand and then free your hands
to secure the hex nuts by spanner.
There are four mounting bracket
screws and lock washers. Remove
two screws and lock washers from
the mounting bracket (one from
each side) and loosen the other
two remaining screws. Align the
"L shaped" slots of the housing
with the two remaining screws
on the mounting bracket and push
the housing upwards to engage the
slots and turn clockwise to lock in
place. Tighten the screws and
install the other two mounting
bracket screws and lock washers which were removed
before into the remaining holes of the housing and tighten.
Washer
Blade Bracket
Motor Screw
Fig.11
Blade Bracket
Washer
Blade
Blade Screw
Switch Box Cover
Switch Box Cover Screw
Metal
Washer
Hex Nut
Fig.8
Mounting Bracket
Mounting
Bar
Remove screws from fan light first, then connect
the white (neutral) wire from the fan light to white
(neutral) wire from switch box with a wire connector,
connect the black (hot) wire from fan light to blue
(hot) wire from switch box with a wire connector.
Carefully put the wires into the switch box, then attach
the fan light into the switch box with the fan light screws.
Remove three socket rings from the fan light for later use.
Fan Light
Fig.13
Fan Light
Screw
Wire
Connector
Switch Box
Fan Light
Socket Ring
Switch Box
Fig.14
Fig.9
Mounting Bracket
Screw
Lock Washer
Housing
Fig.10
Fig.12
PAGE: 6 / 9
231101

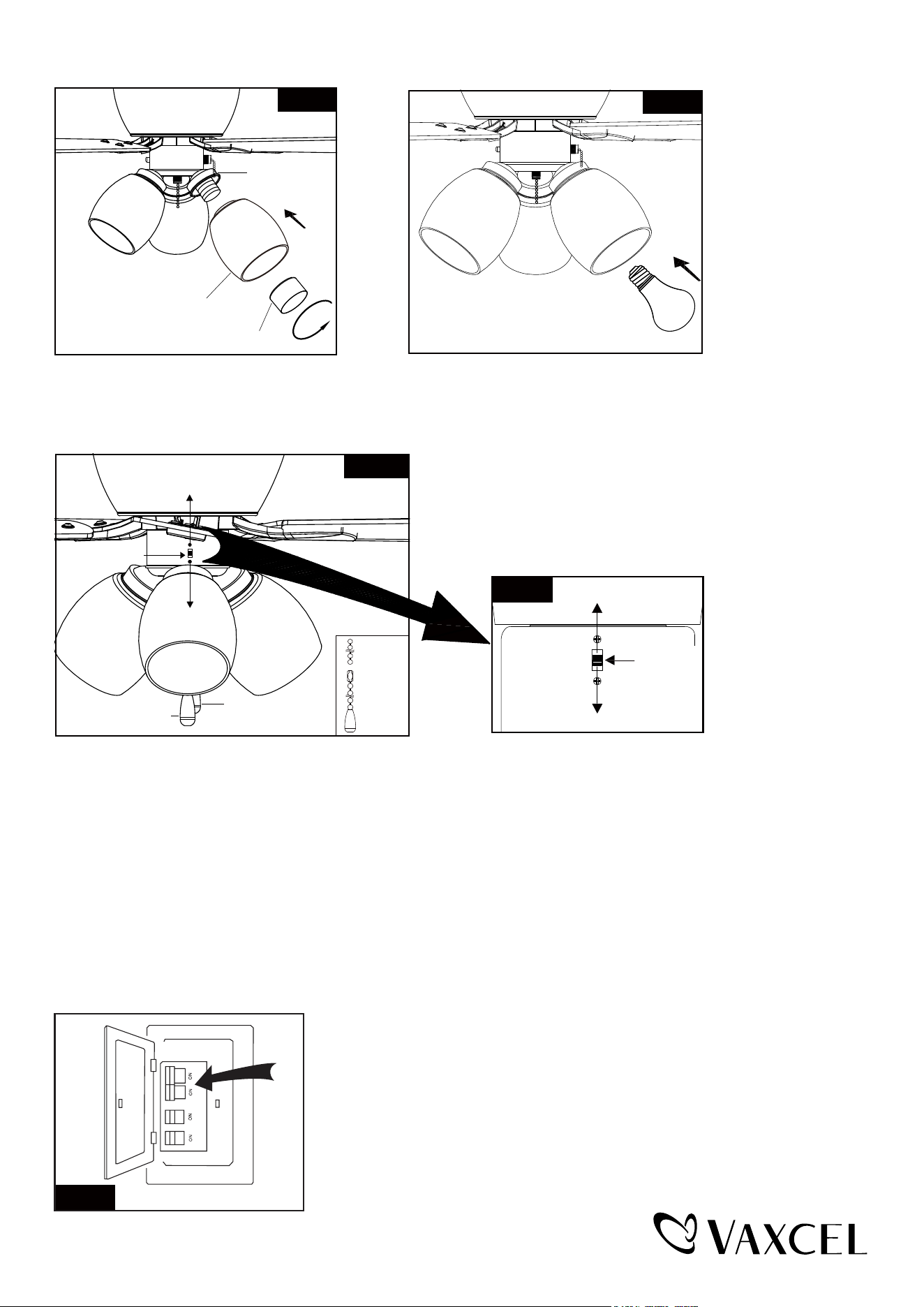

Install fan light
Fig.18
Turn ON the electric power at the main fuse or circuit breaker box.
The slide switch on switch box sets direction of fan rotation. Select the desired direction of fan rotation.
Push the slide switch down for " Forward" and up for "Reverse".
Note: Wait for fan to stop before reversing the direction of blade rotation.
Install two pull chains and drops onto the pull chains located in the switch box and light kit.
The pull chain controls the fan speed as follows:
1 pull – High, 2 pull – Medium, 3 pull – Low, and 4 pull – Off.
To turn the light kit “ON” or “OFF”, pull the chain that is attached to the light kit.
Caution:
1. If you install a wall control for this fan, pull the pull chains to "high speed" of the fan motor and "on" of
the fan light.
2. Compatible wall switch model No.: Lutron SKU# S2-LFSQH-WH / Hunter SKU# 27183.
Forward
Reverse
Fan Speed
Pull Chain
Fan Light Pull Chain
Reverse Switch
Fig.17
Install pull
chains and
drops
Fig.15
Socket Ring
Glass Shade
Glass Holder
3-6W E26 A19 LED
Bulbs (included)
E26 A19 bulb Max. 60W
Fig.16
Attach the glass shades onto the glass
holders, secure them with socket rings.
Install LED bulbs (included).
See relamping label at socket area or packaging for
maximum wattage allowed.
Side Switch
Forward
Reverse
Fig.17a
PAGE: 7 / 9
231101
Troubleshooting Guide
If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation
or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any
faults, please check this Troubleshooting Guide. If a problem cannot be remedied or you are
experiencing difficulty in installation, please call our Customer Service Department (1-800-482-9235).
PROBLEM
1. If fan does not start:
2. If fan sounds noisy:
3. If fan wobbles:
4. If light does not work:
1. Make sure all screws in motor housing are snug. (not too tight)
2. Make sure the screws which attach the fan blade bracket to the motor are tight.
3. Make sure wire connectors in switch housing are not rattling against each
other or against the interior wall of the switch housing.
CAUTION: Make sure main power is turned off before accessing switch
housing.
4. If using an optional ceiling fan light kit, check to be sure the screws securing
the glassware are finger tight. Check to be sure light bulb is tight in socket and
not touching glass shade(s). If vibration persists from glass, remove glass and
install a 1/4 in. wide rubber band on glass neck to act as an insulator. Replace
glass and tighten screws against rubber band.
5. Some fan motors are sensitive to signals from Solid State variable speed
controls. DO NOT USE a Solid State variable speed control.
6. Allow "break-in" period of 24 hours. Most noises associated with a new fan will
disappear after this period.
All blades are weighed and grouped by weight. Natural woods vary in density
which could cause the fan to wobble even though all blades are weight-matched.
The following procedures should eliminate most of the wobble. Check for wobble
after each step.
1. Check that all blades are screwed firmly into blade brackets.
2. Check that all blade brackets are tightened securely to motor.
3. Make sure that canopy and mounting bracket are tightened securely to ceiling
junction box and junction box is mounted firmly to ceiling joist.
4. Most fan wobble problems are caused when blades are not equally level. To
check the blade levels, select a point on the ceiling above the tip of any blade.
Measure the distance from the ceiling to the blade tip, to an accuracy of 1/8
inch. Rotate the blades until the next blade is in the measuring position. Repeat
measurement for each blade. If all blade levels are not equal, you can adjust
blade levels by the following procedure. To adjust a blade tip down, insert a
washer (not supplied) between the blade and blade bracket at the screw
closest to the motor. To adjust a blade tip up, insert washer (not supplied)
between the blade and blade bracket at the two screws farthest from the motor.
5. If blade wobble is still noticeable, interchanging two adjacent (side by side)
blades can redistribute the weight and possibly result in smoother operation.
1. Check blue wire from fan to make sure it is connected to hot wire from house.
2. Check for loose or disconnected wires in fan switch housing.
3. Check for loose or disconnected wires in light kit.
4. Check for faulty light bulbs.
CAUTION: Make sure main power is turned off before accessing switch housing.
SUGGESTED REMEDY
1. Check main and branch circuit fuses or circuit breakers.
2. Make sure forward/reverse switch is firmly in bottom or top position. Fan will not
operate when switch is in the middle.
3. Make sure that the wall control is turned "ON".
4. Check line wire connections to fan and switch wire connections in switch
housing.
CAUTION: Make sure main power is turned off.
PAGE: 8 / 9
231101
PAGE: 9 / 9
231101
The limited lifetime warranty covers this fan, for residential use by the original purchaser, against defects
in material or workmanship as follows:
If your fan motor fails at any time during the lifetime of the original purchaser due to defects in material or
workmanship, we will provide a replacement part free of charge.
If your fan motor fails at any time within one year after the original date of sale to the original purchaser
due to defects in material or workmanship, we will provide labor to repair the defect, with the exception
of take down/reinstallation, free of charge. The original purchaser will be responsible for all labor costs
after this one year period.
If no replacement parts are provided for any part of your fan motor that fails at any time during your
lifetime due to defects in material or workmanship, we will refund the original purchase price of your fan.
If your fan includes any integrated LED modules, the LED functionality is covered by a 5-year warranty.
If your fan blades, or any accessory, except glass globes and light bulbs, fails at any time within one year
after the original date of purchase due to a defect in material and workmanship, we will repair or replace
the defective blades, switch, or accessory free of charge, with the exception of take down/reinstallation
services.
If the original purchaser ceases to own the fan, this warranty and any implied warranty, including but not
limited to any implied warranty of merchantability or fitness for a particular purpose, become void. This
warranty and any implied warranty, including but not limited to any implied warranty of merchantability or
fitness for a particular purpose, does not cover glass globes, light bulbs, or finish on any metal portions of
the fan.
This warranty is in lieu of express warranties. The duration of any implied warranty of merchantability or
fitness for a particular purpose, with respect to any fan motor, blades, switch, or accessories, is expressly
limited to the period of the express warranty set forth above for such motor, LED modules, blades, switch,
or accessories.
This warranty excludes defects, malfunctions, or failures of any fan that are caused by repairs by persons
not authorized by us, use of parts or accessories not authorized by us, mishandling, improper installation,
modifications or damage to the fan while in your possession, or unreasonable use, including failure to
provide necessary maintenance. This warranty does not include the failure of products from extreme acts
of nature; environmental conditions not suited for the products intended use; operation in temperatures
outside of the range specified in the instruction manual; usage with improper power supply, power surges
or dips. For coastal locations, some corrosion is considered normal for the environment.
In no event shall VAXCEL be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in which case
the above limitation or exclusion may not apply. This warranty gives you specific legal rights and you may
also have other rights which vary from state to state.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided
it is returned per RMA instruction. This warranty is limited to the cost of the product only and does not
extend to transportation, installation or replacement costs.
ORIGINAL VAXCEL CEILING FAN LIMITED LIFETIME WARRANTY*
How can warranty service be obtained for your ceiling fan?
1-800-482-9235
