Model No.: F0126
ORIGINAL VAXCEL CEILING FAN LIMITED LIFETIME WARRANTY*
*for full limited lifetime warranty details please see final page of these instructions.
Safety Instructions
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN TO
INSTALL THE FAN AND SAVE INSTRUCTIONS.
•
All set screws of the fan must be checked and retightened where necessary before installation.
•
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets,
balancing the blades or cleaning the fan. Do not insert foreign objects between rotating fan blades.
•
Before changing the fan direction, turn off the fan and wait for the fan blades to stop completely.
•
The safeguards provided by these safety instructions and by the separate installation instructions
are not meant to cover all possible conditions and situations that may occur. It must be understood
that common sense, caution and care are factors which can not be built into this product.
•
These factors must be supplied by the person(s) installing, caring for and operating the fan.
WARNING
• TO AVOID RISK OF ELECTRIC SHOCK, BE SURE TO SHUT OFF POWER AT THE MAIN
FUSE OR CIRCUIT BREAKER BOX BEFORE INSTALLING OR SERVICING THIS
FIXTURE. TURNING OFF THE ELECTRICAL POWER BY USING THE LIGHT SWITCH
IS NOT SUFFICIENT TO PREVENT ELECTRICAL SHOCK.
•
TO REDUCE THE RISK OF INJURY, INSTALL THE FAN SO THAT THE BLADES ARE
AT LEAST 7 FEET (2.1 METERS) ABOVE THE FLOOR AND AT LEAST 18 INCHES
(0.5 METERS) FROM THE TIP OF THE BLADES TO THE WALL.
•
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED "ACCEPTABLE FOR FAN SUPPORT" AND USE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
•
THE INSTALLATION HAS TO BE IN ACCORDANCE WITH THE NATIONAL ELECTRICAL
CODE, ANSI/NFPA 70-1999 AND LOCAL CODES. IF YOU ARE UNFAMILIAR WITH THE
METHODS OF INSTALLING ELECTRICAL WIRING, SEEK THE SERVICES OF A
QUALIFIED LICENSED ELECTRICIAN.
PAGE: 1 / 12
240312
15
2
12
13
14
7
6
5
8
9
10
11
3
4

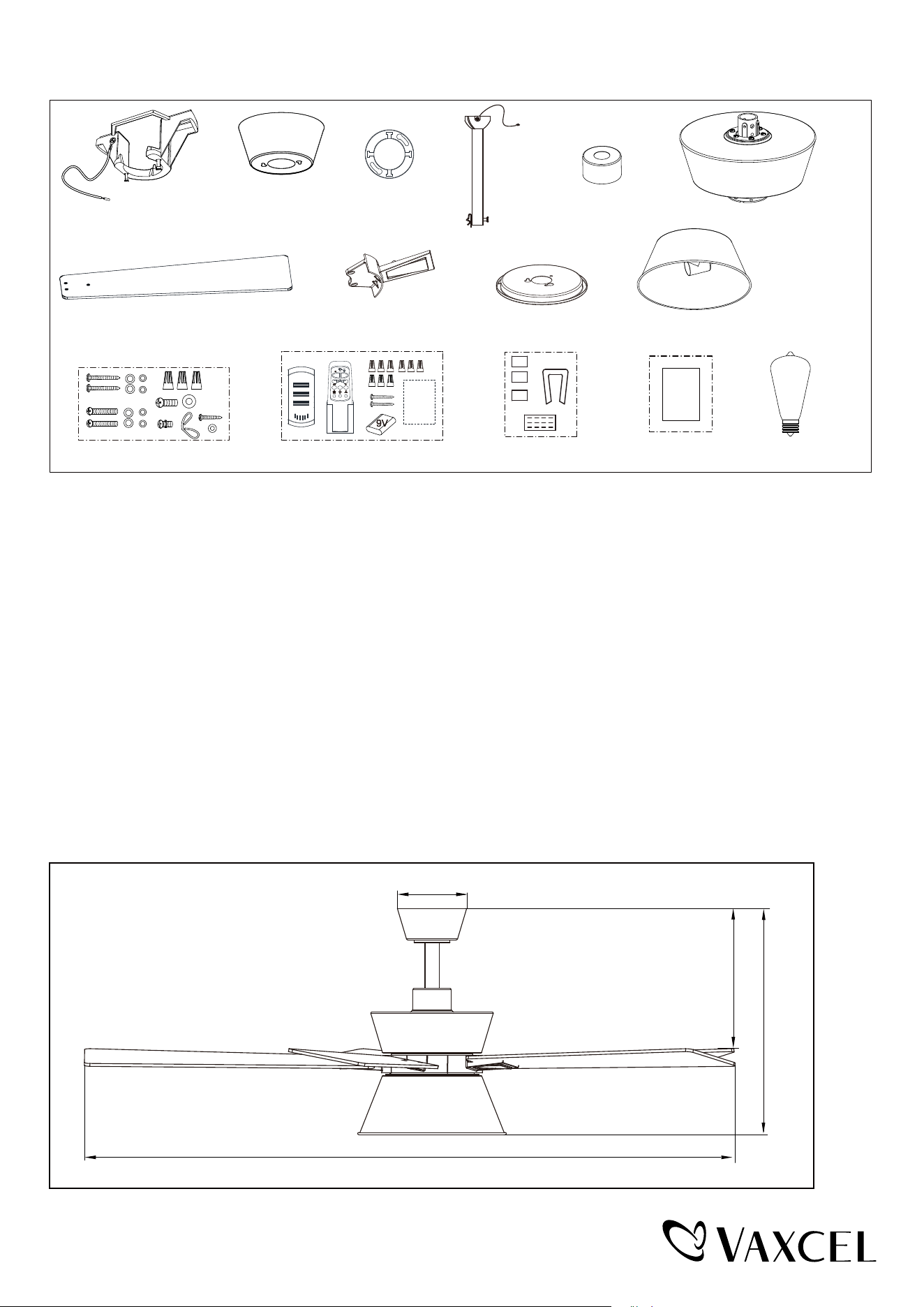

Unpack your fan and check the contents. You should have the following items.
1.) Hanger Bracket
2.) Canopy
3.) Canopy Cover (Comes in a Separate Bag)
4.) Downrod Set (Includes Hanger Ball, 6” Downrod, Hanger Pin & Lock Pin)
5.) Downrod Stand Cover
6.) Fan Motor Assembly
7.) Fan Blades (5 PCS)
8.) Blade Brackets (5 PCS)
9.) Connect Plate of Light Kit
10.) Light Kit
11.) Assembly Kit
12.) Remote Control Set (Includes Receiver & Transmitter & Wire Connectors & Battery
& Screws & Remote Control Instructions)
13.) Blade Balancing Kit
14.) Installation Instructions
15.) 6W E26 (M) Base ST19 Type LED Bulb (2pcs)
Package Contents:
1
Installation
Instructions
X 16
Dimension Reference (Installed with 6" Downrod):
A. 17" B. 11" C.52" D. 5"
Remote
Control
Instructions
2H 4H 8H
PAGE: 2 / 12
C
A
B
D
240312

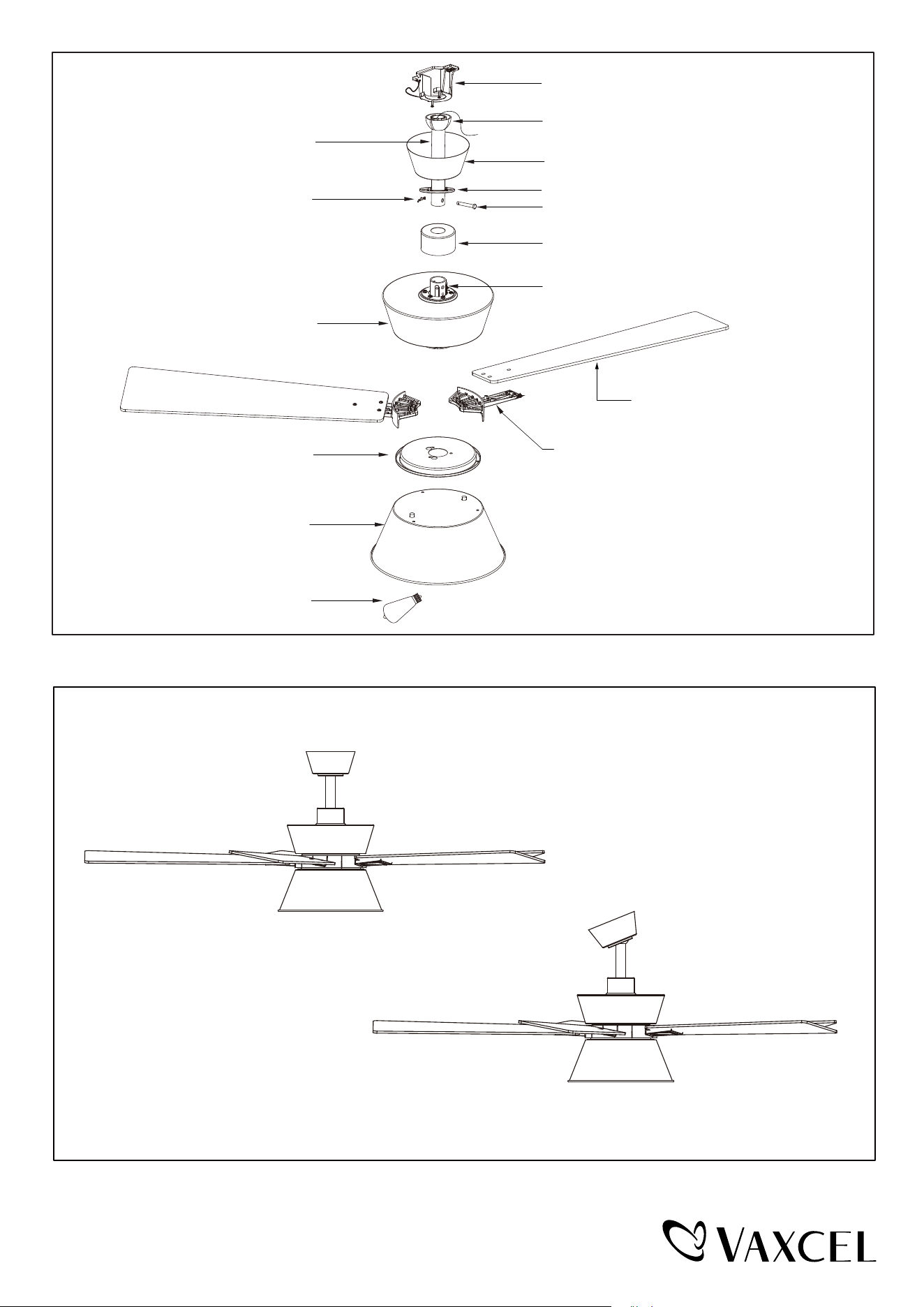

Exploded View Detail
Hanger Bracket
Dual Mount Drawing
Downrod Mount
Sloped Ceiling Mount ( Up to 23 degrees)
PAGE: 3 / 12
Hanger Ball
Canopy
Canopy Cover
Lock Pin
Hang Pin
Downrod Stand Cover
Collar
Fan Motor Assembly
Fan Blade
Blade Bracket
Connect Plate of Light Kit
Light Kit
LED Bulb
Downrod
240312
NOTE: The fan weight is 14.99 lbs (6.8 kg). Be sure the outlet box you are using is securely attached to the building
structure and can support the full weight of the fan. Failing to do so can result in serious injury.
INSTALLATION INSTRUCTIONS
IMPORTANT:
BEFORE YOU BEGIN INSTALLING THE FAN, CAREFULLY READ ALL INFORMATION IN
SAVE ALL INSTRUCTIONS.
Installation Steps :

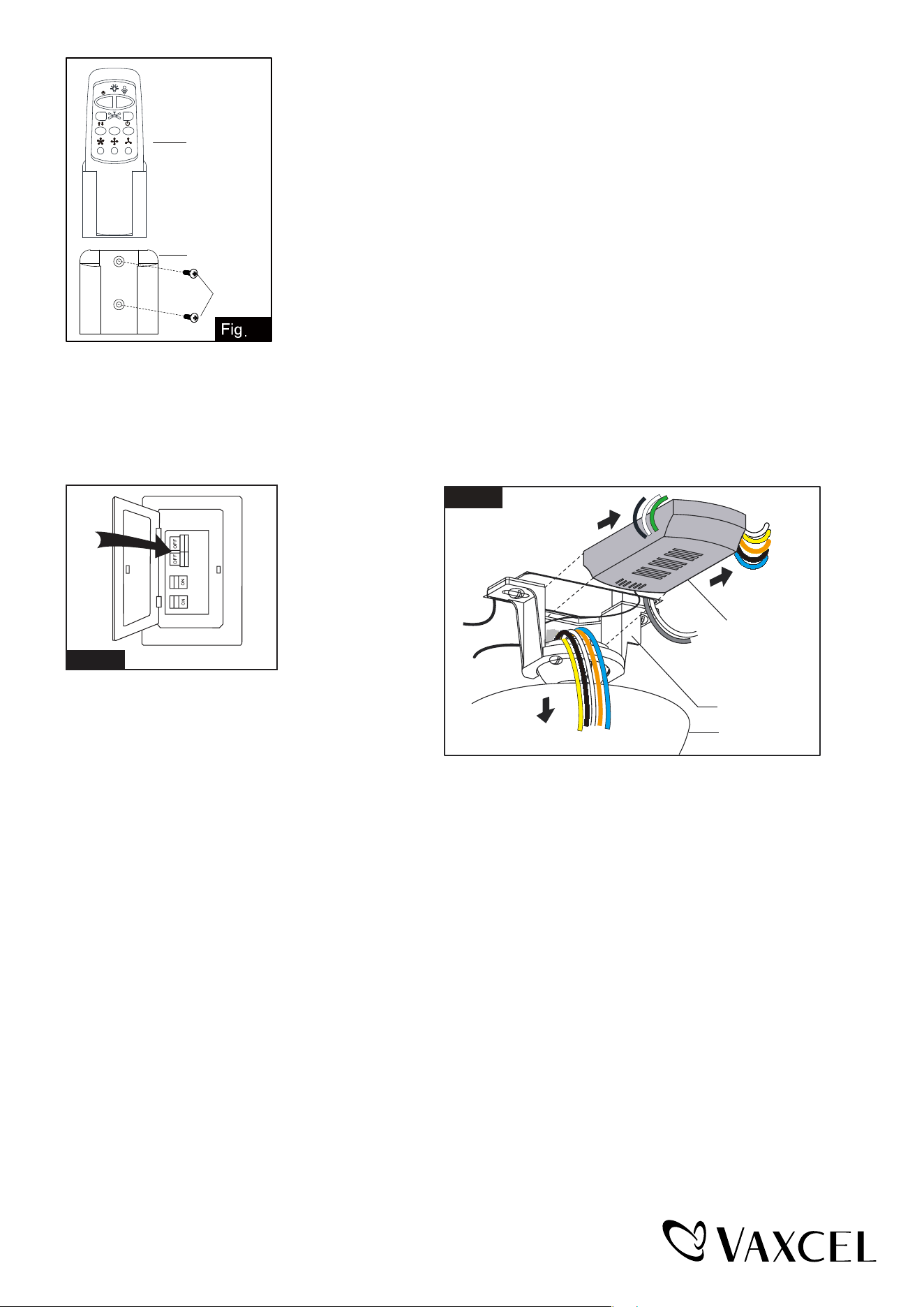

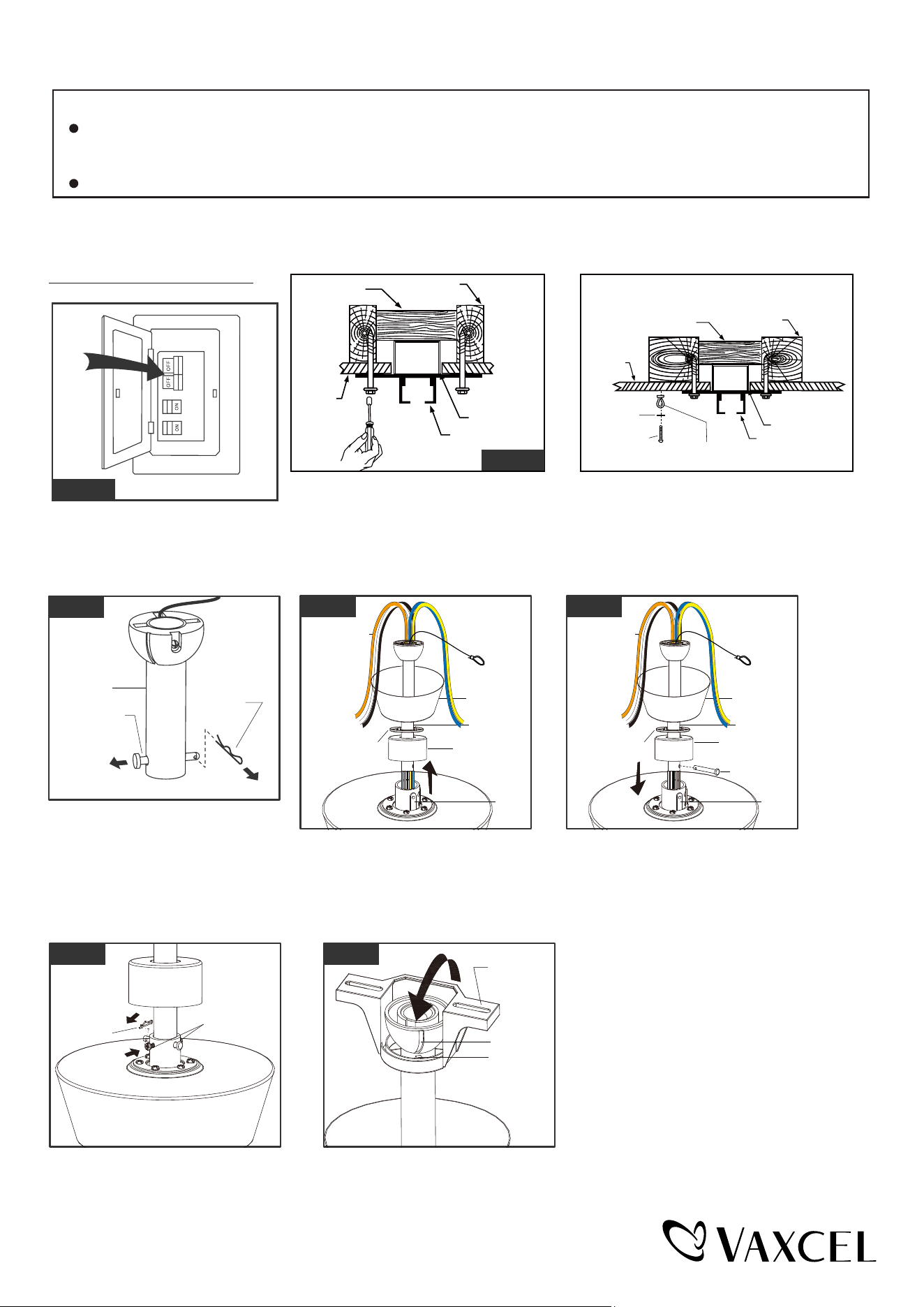

Fig.1
Turn OFF the electric circuit at the
main fuse or circuit breaker box.
THE SAFETY
INSTRUCTIONS AND INSTALLATION INSTRUCTIONS. IF IN DOUBT, CONSULT A QUALIFIED
ELECTRICIAN.
Remove the lock pin from hanger
pin and remove the hanger pin
from the downrod.
Thread the motor wires through the
downrod stand cover, canopy cover
(Making sure the smooth side of
canopy cover is facing downward.),
canopy and downrod.
Loosen the collar screws out part way.
Insert the downrod into the collar.
Slide hanger pin through holes of
collar and downrod.
Hanger Pin
Downrod
Lock Pin
Fig.3
Tighten the hanger bracket to the outlet box with two mounting screws.(Make sure
the outlet box is securely installed so that it will be able to support at least
the fan weight.) Attach the safety cable hook to the ceiling with the drywall screw
and washer, and make sure the safety cable hook is covered by the fan canopy.
WARNING: MOUNT ONLY TO AN OUTLET BOX MARKED "ACCEPTABLE FOR
FAN SUPPORT"!
Washer
Safety Cable Hook
Drywall Screw
Ceiling
Hanger Bracket
Ceiling Joist
Wood Member
(2" x 4" Approx.)
Junction Box
Fig.5.
Ceiling
Hanger Bracket
Ceiling Joist
Wood Member
(2" x 4" Approx.)
Junction Box
Fig.2
PAGE: 4 / 12
Downrod
Downrod
Stand Cover
Canopy Cover
Collar
Fig.4
Motor Wires
Canopy
Downrod
Downrod
Stand Cover
Canopy Cover
Collar
Fig.5
Motor Wires
Canopy
Hanger Pin
Collar Screw
Lock Pin
Fig.6 Fig.7
Hanger
Bracket
Slot
Chip
Tighten the two collar screws.
Slide lock pin into hanger pin
until it is locked into position.
Hang the fan on hanger bracket, and
make sure the slot of hanger ball is
snapped into the chip of hanger bracket
exactly.
Note: For sloped ceiling installation,
make sure the slot of hanger ball and
the chip of hanger bracket face down.
240312

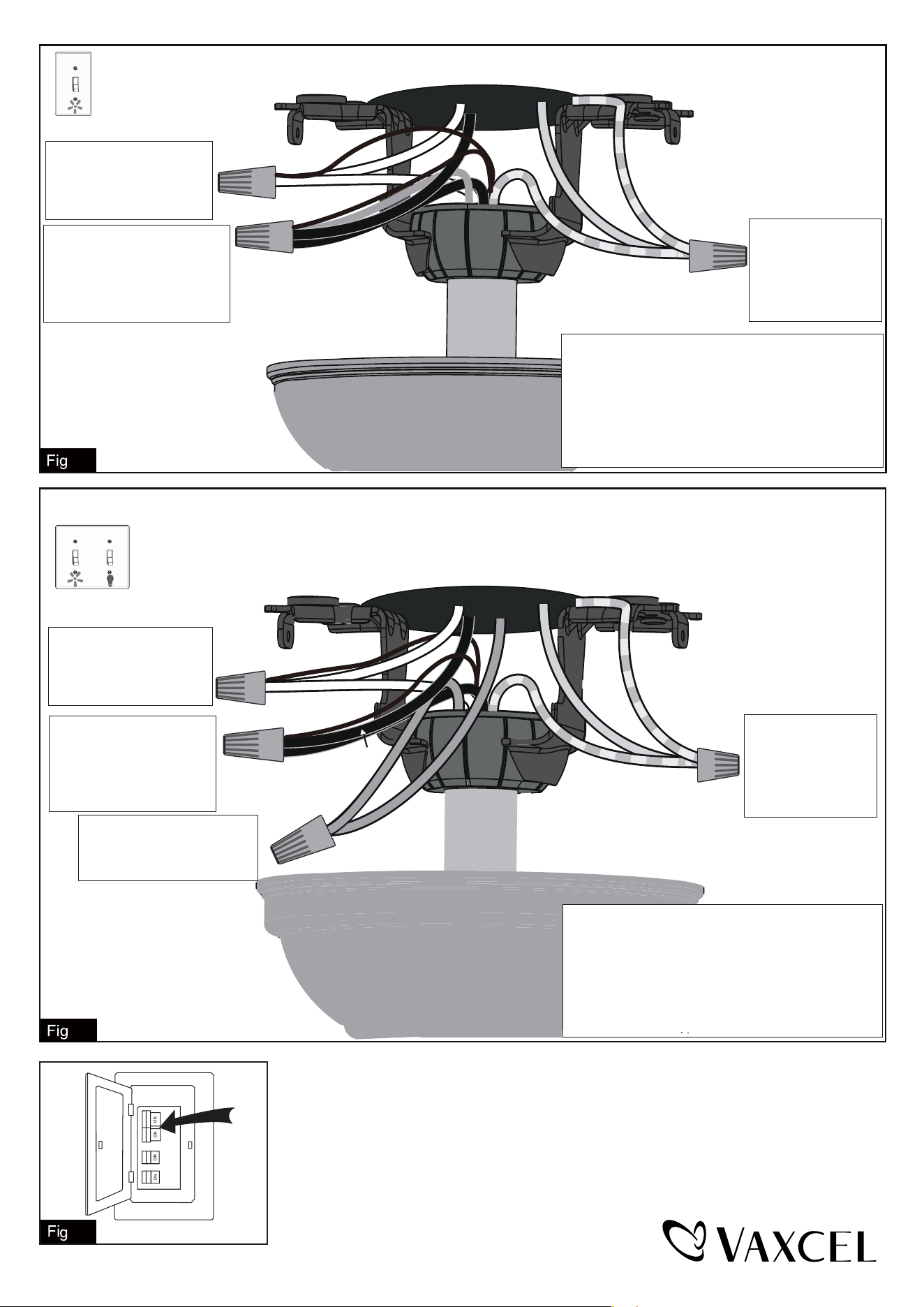

Move ground wires (a), outlet box wires (b), and motor
wires (c) away from the center of the hanger bracket as
shown. Thread the antenna through the hanger bracket
first, then thread the receiver through the hanger bracket
until it is placed in the center. Finally, cut motor wires (c) to
length needed for connections.

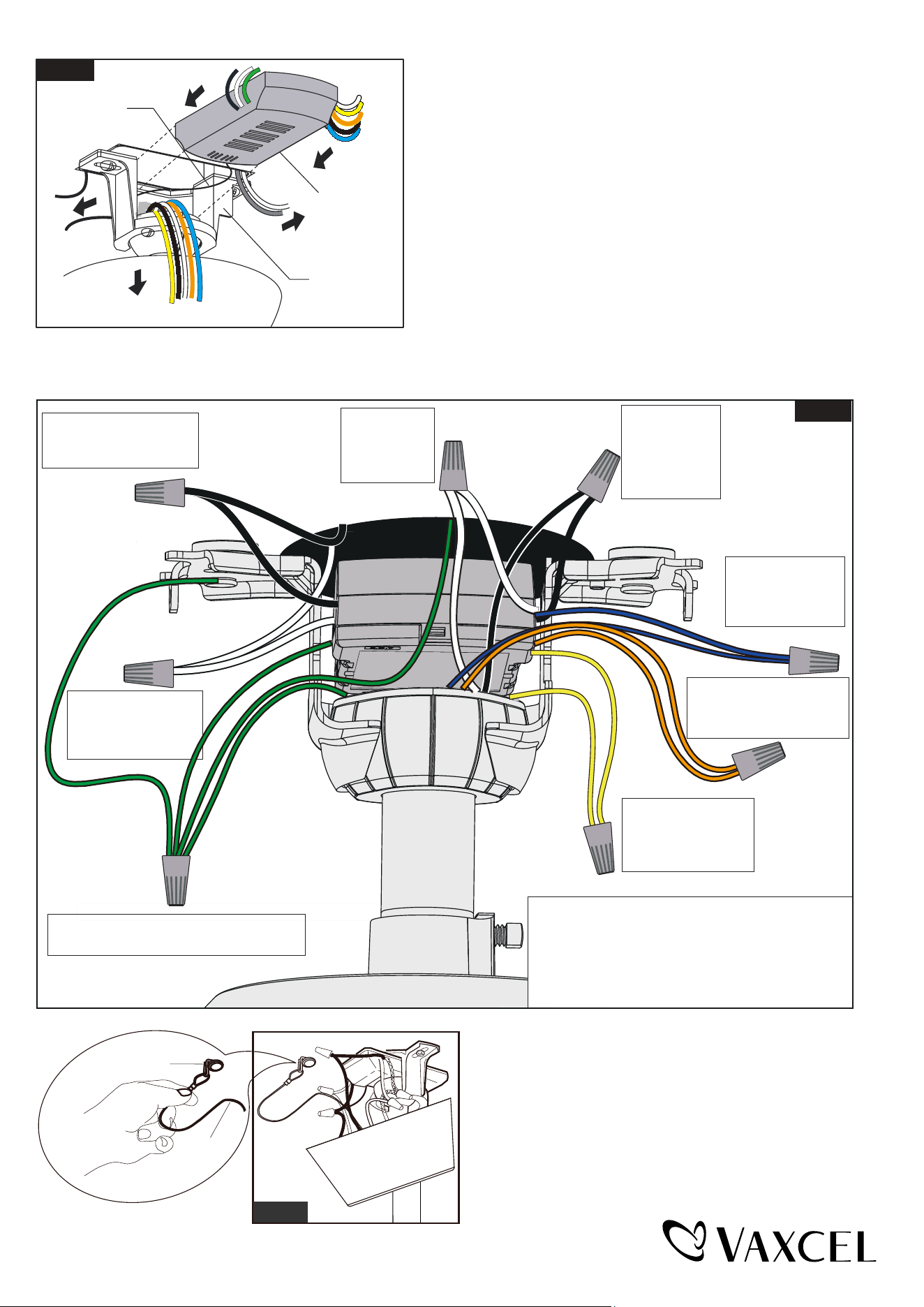

Fig.8
Antenna
Receiver
Hanger Bracket
a.
c.
b.
Black
Black
Black
Black
Connect the white
wire from receiver
to the white wire
from motor with a
wire connector
Connect the black
wire from receiver
to the black wire
from motor (This is
for fan control) with
a wire connector.
White
White
White
White
Connect the blue wire
from receiver to the
blue wire from motor
(This is for light control)
with a wire connector.
Connect the orange wire from
receiver to the orange wire from
motor (This is for reversible
function) with a wire connector.
Connect the yellow wire
from receiver to the yellow
wire from motor (This is
for reversible function)
with a wire connector.
Connect four ground wires (Green or bare copper)
coming from outlet box, downrod, hanging bracket
and receiver of remote control with a wire connector.
Connect the white (neutral)
wire from receiver to the
white (neutral) wire from
the outlet box with a
wire connector.
Connect the black (hot) wire
from receiver to the black (hot)
wire from outlet box with a wire
connector.
*** After making the wire connections, the wires should be spread
apart. The white (neutral) conductor from receiver and outlet
box with green (grounding) conductor on one side; the black
(hot) conductor from receiver and outlet box with the white,
black, blue, orange and yellow conductor from receiver and
motor on the other side of the outlet box.
*** The wire connection points should be turned upward and
pushed carefully up into outlet box.
Fig.9
Green
Green
Blue
Blue
Orange
Yellow
Yellow
Hang the safety cable into the safety
cable hook. (See Fig.10)
Safety Cable Hook
Safety
Cable
1
Fig.10
PAGE: 5 / 12
240312
Tighten blades to blade brackets by
using washers and blade screws.
Remove the motor screws and washers from the fan motor assembly.
Secure blade brackets to the motor with washers and motor screws.
Remove one screw and loosen another two screws from fan motor
assembly first, thread the fan motor assembly wires through connect
plate of light kit, then push the connect plate of light kit upwards until
the fan motor assembly screws insert into the key hole slots of connect
plate of light kit, then rotate the connect plate of light kit until it’s fixed
on the fan motor assembly bottom. Finally, secure the connect plate
of light kit to the fan motor assembly bottom with previous screw
which was removed. Tighten the other two fan motor assembly screws.
Slide the canopy up to ceiling and over the two
canopy screws on hanger bracket. Rotate canopy
clockwise, next, while holding the canopy with one
hand, slide the decorative cap over the screws
and rotate clockwise until tight.
Note: Adjust the canopy screws as necessary
until the canopy and canopy cover are snug.
Install fan light
Remove three fix screws from connect plate of light kit (for later use).
Connect the blue wire from fan motor assembly to the black wire from light kit
with a wire connector and connect the white wire from fan motor assembly
to the white wire from light kit with a wire connector. Carefully put the wires
into the connect plate of light kit, then attach the light kit onto the connect
plate of light kit with previous three fix screws.
PAGE: 6 / 12

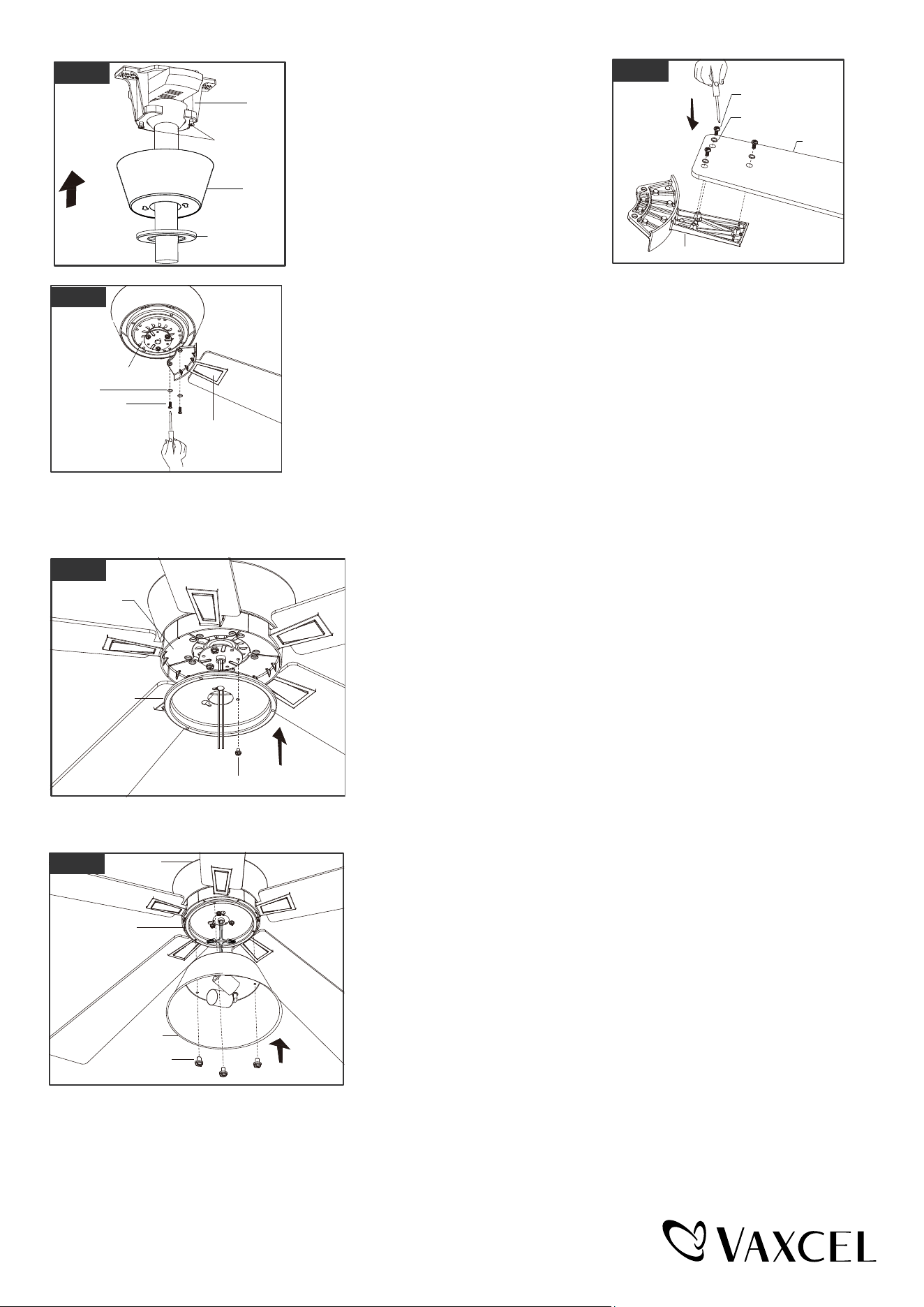

Fig.11
Hang
Bracket
Canopy Screw
Canopy
Decorative Cap
Blade Screw
Washer
Blade
Blade Bracket
Fig.12
Blade Bracket
Fan Motor Assembly
Motor Screw
Washer
Fig.13
Connect Plate
of Light Kit
Fig.14
Fan Motor Assembly Screw
Fan Motor
Assembly
Fix Screw
Light Kit
Connect Plate
of Light Kit
Fan Motor
Assembly
Fig.15
240312

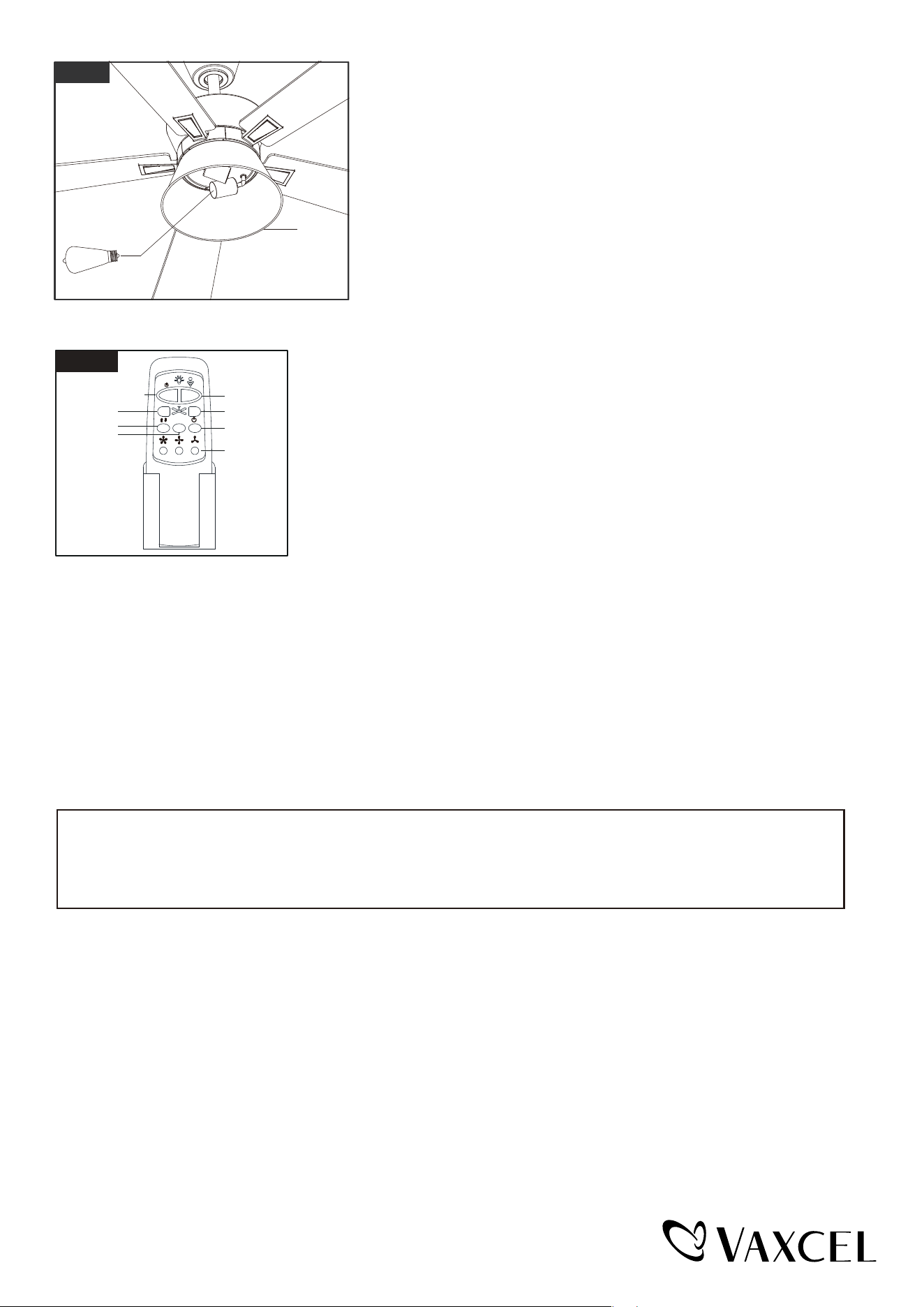

Fig.17
HI
MED
LIGHT ON/OFF
REVERSE
DIMMER
FAN OFF
LOW
TIMER
2H 4H 8H
* Press "HI" button to turn on the fan at high speed.
* Press "MED" button to turn the fan in medium speed.
* Press "LOW" button to turn the fan in low speed.
* Press "FAN OFF" button to turn off the fan.
* Press "REVERSE" button to set direction of fan rotation.
The fan speed will slow down until the fan is turned off and it will restart by spinning
in the reverse direction and resume the previously selected speed setting.
Operating transmitter:
lnstall bulbs (included). See relamping label at socket area or packaging for
maximum wattage, and attach the bulbs to the light kit.
* Press "LIGHT ON /OFF" button to turn on or turn off the light.
* Press and hold the "DIMMER" button to dim or brighten lights to the desired level and
release, and the brightness level will be memorized. Turn on the light again, then fan
light will be restored to the brightness-level at which it was dimmed last time.
* Timer Control:
Press "2H","4H" or "8H" timer button to turn off the fan and light for the selected duration.
If the light is off and the fan in on, the timer can automatically turn the fan off after the
selected timer time. (Same goes for the light.)
Press light off or fan off button to stop the timer control.
Note:
1. This remote control has a memory function setting. The fan will operate at the same speed and the fan light will
stay at the same brightness-level as the last time the power supply was turned off.
2. Compatible Wall Switches: Lutron SKU# S2-LFSQH-WH / Hunter SKU# 27183 / Legrand SKU# LSCLDC163PWCCV4.
a. The direction of fan rotation can’t be set without remote control.
b. Please use wall control to adjust the speed and the brightness-level which you need. To proceed with installation
without remote control, please start from Fig.19.
3. Compatible with E26 (M) base dimmable LED bulb: Sylvania SKU# 40772.
Pair the remote if not connected：
Within the 10 second time frame after the main power is turned on, press and hold FAN OFF button for more than 3 seconds.
The LED light will begin to flash. Once the remote is set successfully, the fan will turn off and the light will turn on.
Note: The included transmitter was paired with the receiver at the factory with default settings, so you should not
need to pair the remote unless the connection with the fan is lost.
PAGE: 7 / 12
Fig.16
2-6W E26 ST19
LED Blubs
Included E26
ST19 Blubs Max.60W
Light Kit
Install the battery (9V, included) into the transmitter.
240312
Install the transmitter wall bracket on the wall with two screws
and place transmitter in it carefully.
Transmitter
Wall Bracket
Screw
18
2H 4H 8H
Note: Remote control can not be used along with a solid-state speed control at the same time.
Install Without Remote Control
Turn OFF the electric circuit at the
main fuse or circuit breaker box. (See Fig.19)
Unscrew the canopy. Remove the wire connectors from the fan
to ceiling wire connection. The receiver should be removed from
the hanger bracket. (See Fig.20)
Fig.19
Fig.20
Receiver
Canopy
Hanger Bracket
PAGE: 8 / 12
240312
.23
Connect the white (neutral)
wire and orange reversible
wire from motor to the white
(neutral) wire from the outlet
box with a wire connector.
Connect the black (hot) wire
(This is for fan control), blue wire
(This is for light control) and
yellow reversible wire from motor
to the black (hot) wire from outlet
box with a wire connector.
Bla
Black
ck
Blue
Green
White
White
Orange
Yellow
Grounding
Green
Connect three
ground wires (Green
or bare copper) coming
from outlet box,
downrod and hanging
bracket with a wire
connector.
For a single switch
Follow these steps:
Connect three
ground wires (Green
or bare copper) coming
from outlet box,
downrod and hanging
bracket with a wire
connector.
Green
Black
Black
Blue
Green
White
Orange
Yellow
Blue
(light)
White
Grounding
Connect the black (hot) wire
(This is for fan control) and
yellow reversible wire from
motor to the black (hot) wire
from outlet box with a wire
connector.
Connect the white (neutral)
wire and orange reversible
wire from motor to the white
(neutral) wire from the outlet
box with a wire connector.
Connect the blue wire (This
is for light control) from motor
to the blue wire from outlet box
with a wire connector.
*** The wire connection points should be turned
upward and pushed carefully up into outlet box.
For dual switches
Follow these steps:
*** After making the wire connections, the wires should
be spread apart. The white (neutral) conductor from
motor and outlet box, orange conductor from motor
with green (grounding) conductor on one side; the
black (hot) and blue conductor from motor and outlet
box with the black, blue, yellow conductor from motor
on the other side of the outlet box.
*** After making the wire connections, the wires should
be spread apart. The white (neutral) conductor from
motor and outlet box, orange conductor from motor
with green (grounding) conductor on one side; the
black (hot) conductor from motor and outlet box
with the black, blue, yellow conductor from motor
on the other side of the outlet box.
*** The wire connection points should be turned upward
and pushed carefully up into outlet box.
.21
Turn ON the electric circuit at the main fuse or circuit breaker box.
.22
PAGE: 9 / 12
240312
If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation
or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any
faults, please check this Troubleshooting Guide. If a problem cannot be remedied or you are
experiencing difficulty in installation, please call our Customer Service Department (1-800-482-9235).
PAGE: 10 / 12
PROBLEM
1. If fan does not start:
2. If fan sounds noisy:
3. If fan wobbles:
4. If light does not work:
5. If fan and light kit do
not work:
1. Check main and branch circuit fuses or circuit breakers.
2. Make sure that the wall control is turned "ON".
3. Check line wire connections to fan and switch wire connections in switch
housing.
CAUTION: Make sure main power is turned off.
1. Make sure all screws in motor housing are snug. (not too tight)
2. Make sure the screws which attach the fan blade bracket to the motor are tight.
3. Make sure wire connectors in switch housing are not rattling against each
other or against the interior wall of the switch housing.
CAUTION: Make sure main power is turned off before accessing switch
housing.
4. Allow "break-in" period of 24 hours. Most noises associated with a new fan will
disappear after this period.
All blades are weighed and grouped by weight. Natural woods vary in density
which could cause the fan to wobble even though all blades are weight-matched.
The following procedures should eliminate most of the wobble. Check for wobble
after each step.
1. Check that all blades are screwed firmly into blade brackets.
2. Check that all blade brackets are tightened securely to motor.
3. Make sure that canopy and mounting bracket are tightened securely to ceiling
junction box and junction box is mounted firmly to ceiling joist.
4. Most fan wobble problems are caused when blades are not equally level. To
check the blade levels, select a point on the ceiling above the tip of any blade.
Measure the distance from the ceiling to the blade tip, to an accuracy of 1/8
inch. Rotate the blades until the next blade is in the measuring position. Repeat
measurement for each blade. If all blade levels are not equal, you can adjust
blade levels by the following procedure. To adjust a blade tip down, insert a
washer (not supplied) between the blade and blade bracket at the screw
closest to the motor. To adjust a blade tip up, insert washer (not supplied)
between the blade and blade bracket at the two screws farthest from the motor.
5. If blade wobble is still noticeable, interchanging two adjacent (side by side)
blades can redistribute the weight and possibly result in smoother operation.
1. Check blue wire from fan to make sure it is connected to hot wire from house.
2. Check for loose or disconnected wires in fan switch housing.
3. Check for loose or disconnected wires in light kit.
4. Check for faulty the LED module.
CAUTION: Make sure main power is turned off before accessing switch
housing.
SUGGESTED REMEDY
1. Replace the battery of transmitter.
2. Re-pair the transmitter and receiver by holding the "FAN OFF" button on the
transmitter according to the manual.
240312
PAGE: 11 / 12
240312
PREFACE
Your ceiling fan may sometimes have wobbling problems when operating due to irregularity in the
blades or the blade brackets. Improper assembly in the mounting system may cause some additional
problems. This balancing kit can be used to fix wobbling problems.

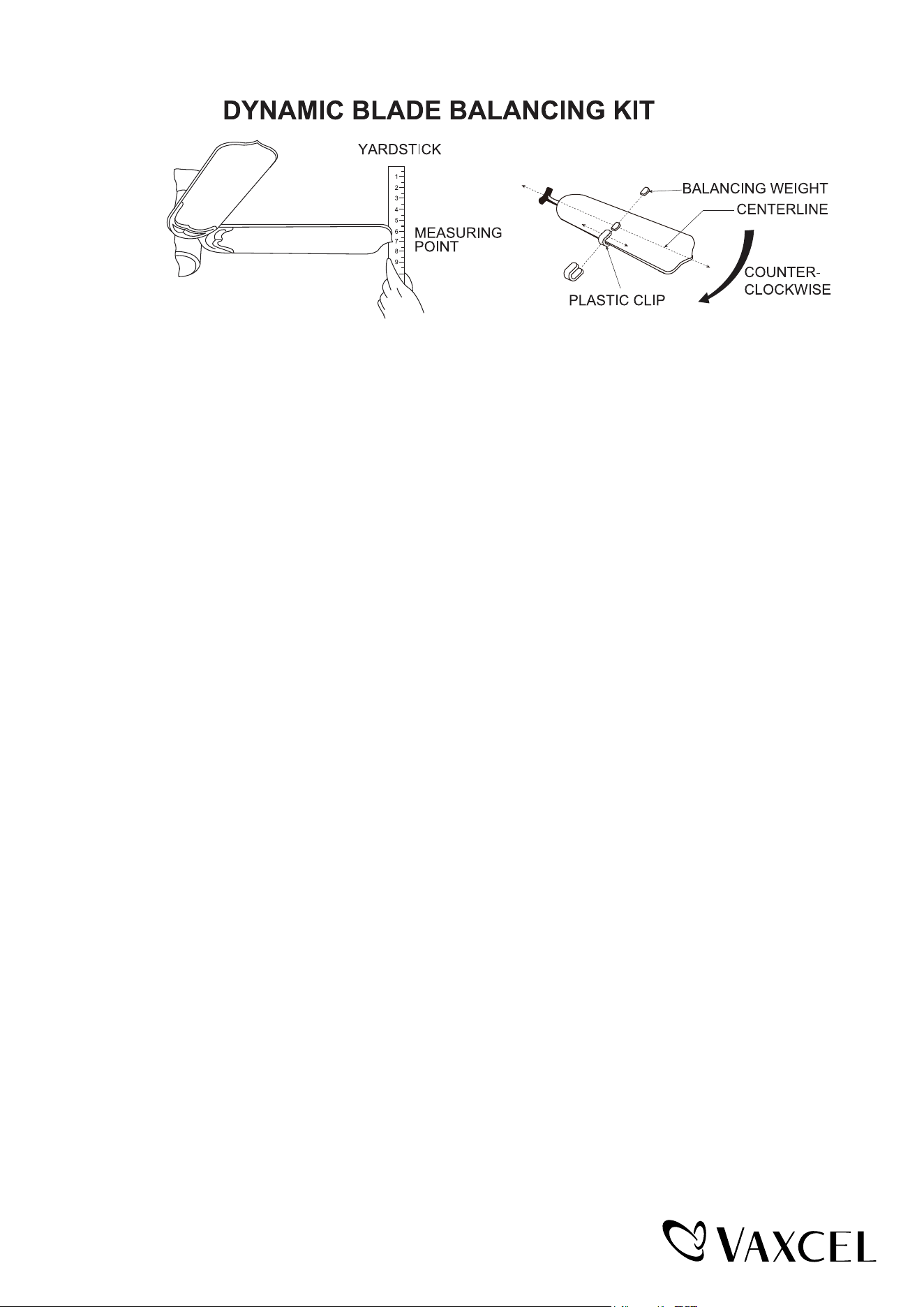

DYNAMIC BLADE BALANCING KIT FOR CEILING FANS
1. Make sure that all blades are firmly screwed into the blade brackets.
2. Make sure that all blade brackets are firmly secured to the motor housing.
3. By looking up at the fan from below, check and be certain that none of the blade brackets are bent
and that none of the blades are out of position.
4. Use a yardstick to check the blade tracking. Put the yardstick up against the ceiling vertically and
against the outside leading edge of a blade. Note the distance of the edge of blade to the ceiling.
Carefully turn the blades slowly by hand to check the remaining blades. All distances should be
the same.
Operate the fan ten minutes. After following all the steps and if the wobbling problem is not solved, a
dynamic balancing needs to be done with balancing kit. Follow the procedure listed below:
● Turn the fan off. Select one blade and place the plastic clip on it, with the plastic clip located
halfway between the blade bracket and the blade tip on the edge of the blade.
Caution: The plastic clip should be placed on the windward edge of the blade for fear of
clip flying off.
● Turn the fan on (set the speed that causes the wobble most). Observe if the wobble is better or
worse. Turn the fan off and move the clip to the next blade. Do the same for all blades and note
on which blade the clip reduces the wobble most. Place the clip on the blade which showed the
most improvement. Move the clip inward and outward on this blade and operte the fan to find
the position where the clip gives the most improvement.
Caution: Stay clear of the blades. If the clip, for any reason, is not secure, injury could result.
● Once the exact position is determined, place a weight on the top of the blade, on its centerline and
as close as possible to the clip. Peel the paper off of the back of the weight and press firmly to
ensure that it is securely attached to the blade. Remove the clip.
Caution: Clean the surface of fan blade before placing the balancing weight so that the
balancing weight will be firmly attached to it.
PAGE: 12 / 12
The limited lifetime warranty covers this fan, for residential use by the original purchaser, against defects
in material or workmanship as follows:
If your fan motor fails at any time during the lifetime of the original purchaser due to defects in material or
workmanship, we will provide a replacement part free of charge.
If your fan motor fails at any time within one year after the original date of sale to the original purchaser
due to defects in material or workmanship, we will provide labor to repair the defect, with the exception
of take down/reinstallation, free of charge. The original purchaser will be responsible for all labor costs
after this one year period.
If no replacement parts are provided for any part of your fan motor that fails at any time during your
lifetime due to defects in material or workmanship, we will refund the original purchase price of your fan.
If your fan includes any integrated LED modules, the LED functionality is covered by a 5-year warranty.
If your fan blades, or any accessory, except glass globes and light bulbs, fails at any time within one year
after the original date of purchase due to a defect in material and workmanship, we will repair or replace
the defective blades, switch, or accessory free of charge, with the exception of take down/reinstallation
services.
If the original purchaser ceases to own the fan, this warranty and any implied warranty, including but not
limited to any implied warranty of merchantability or fitness for a particular purpose, become void. This
warranty and any implied warranty, including but not limited to any implied warranty of merchantability or
fitness for a particular purpose, does not cover glass globes, light bulbs, or finish on any metal portions of
the fan.
This warranty is in lieu of express warranties. The duration of any implied warranty of merchantability or
fitness for a particular purpose, with respect to any fan motor, blades, switch, or accessories, is expressly
limited to the period of the express warranty set forth above for such motor, LED modules, blades, switch,
or accessories.
This warranty excludes defects, malfunctions, or failures of any fan that are caused by repairs by persons
not authorized by us, use of parts or accessories not authorized by us, mishandling, improper installation,
modifications or damage to the fan while in your possession, or unreasonable use, including failure to
provide necessary maintenance. This warranty does not include the failure of products from extreme acts
of nature; environmental conditions not suited for the products intended use; operation in temperatures
outside of the range specified in the instruction manual; usage with improper power supply, power surges
or dips. For coastal locations, some corrosion is considered normal for the environment.
In no event shall VAXCEL be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in which case
the above limitation or exclusion may not apply. This warranty gives you specific legal rights and you may
also have other rights which vary from state to state.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided
it is returned per RMA instruction. This warranty is limited to the cost of the product only and does not
extend to transportation, installation or replacement costs.
ORIGINAL VAXCEL CEILING FAN LIMITED LIFETIME WARRANTY*
How can warranty service be obtained for your ceiling fan?
1-800-482-9235
240312
