Model No.: F0132
ORIGINAL VAXCEL CEILING FAN LIMITED LIFETIME WARRANTY*
*for full limited lifetime warranty details please see final page of these instructions.
Safety Instructions
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN TO
INSTALL THE FAN AND SAVE INSTRUCTIONS.
•
All set screws of the fan must be checked and retightened where necessary before installation.
•
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets,
balancing the blades or cleaning the fan. Do not insert foreign objects between rotating fan blades.
•
Before changing the fan direction, turn off the fan and wait for the fan blades to stop completely.
•
The safeguards provided by these safety instructions and by the separate installation instructions
are not meant to cover all possible conditions and situations that may occur. It must be understood
that common sense, caution and care are factors which can not be built into this product.
•
These factors must be supplied by the person(s) installing, caring for and operating the fan.
WARNING
• TO AVOID RISK OF ELECTRIC SHOCK, BE SURE TO SHUT OFF POWER AT THE MAIN
FUSE OR CIRCUIT BREAKER BOX BEFORE INSTALLING OR SERVICING THIS
FIXTURE. TURNING OFF THE ELECTRICAL POWER BY USING THE LIGHT SWITCH
IS NOT SUFFICIENT TO PREVENT ELECTRICAL SHOCK.
•
TO REDUCE THE RISK OF INJURY, INSTALL THE FAN SO THAT THE BLADES ARE
AT LEAST 10 FEET (3.05 METERS) ABOVE THE FLOOR AND AT LEAST 18 INCHES
(0.5 METERS) FROM THE TIP OF THE BLADES TO THE WALL.
•
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED "ACCEPTABLE FOR FAN SUPPORT" AND USE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
•
THE INSTALLATION HAS TO BE IN ACCORDANCE WITH THE NATIONAL ELECTRICAL
CODE, ANSI/NFPA 70-1999 AND LOCAL CODES. IF YOU ARE UNFAMILIAR WITH THE
METHODS OF INSTALLING ELECTRICAL WIRING, SEEK THE SERVICES OF A
QUALIFIED LICENSED ELECTRICIAN.
PAGE: 1 / 8
241212
Unpack your fan and check the contents. You should have the following items.
1.) Hanger Bracket
2.) Canopy
3.) Canopy Cover (Comes in a Separate Bag)
4.) Downrod Stand Cover
5.) Downrod Set (Includes Hanger Ball, 6˝ Downrod, Hanger Pin & Lock Pin)
6.) Fan Motor Assembly
7.) 5W E12 (C) Base ST15 Type LED Bulb (4PCS)
8.) Assembly Kit
9.) Installation Instructions
10.) Remote Control Set (Included Receiver & Transmitter & Batteries & Screws & Wire Connectors)

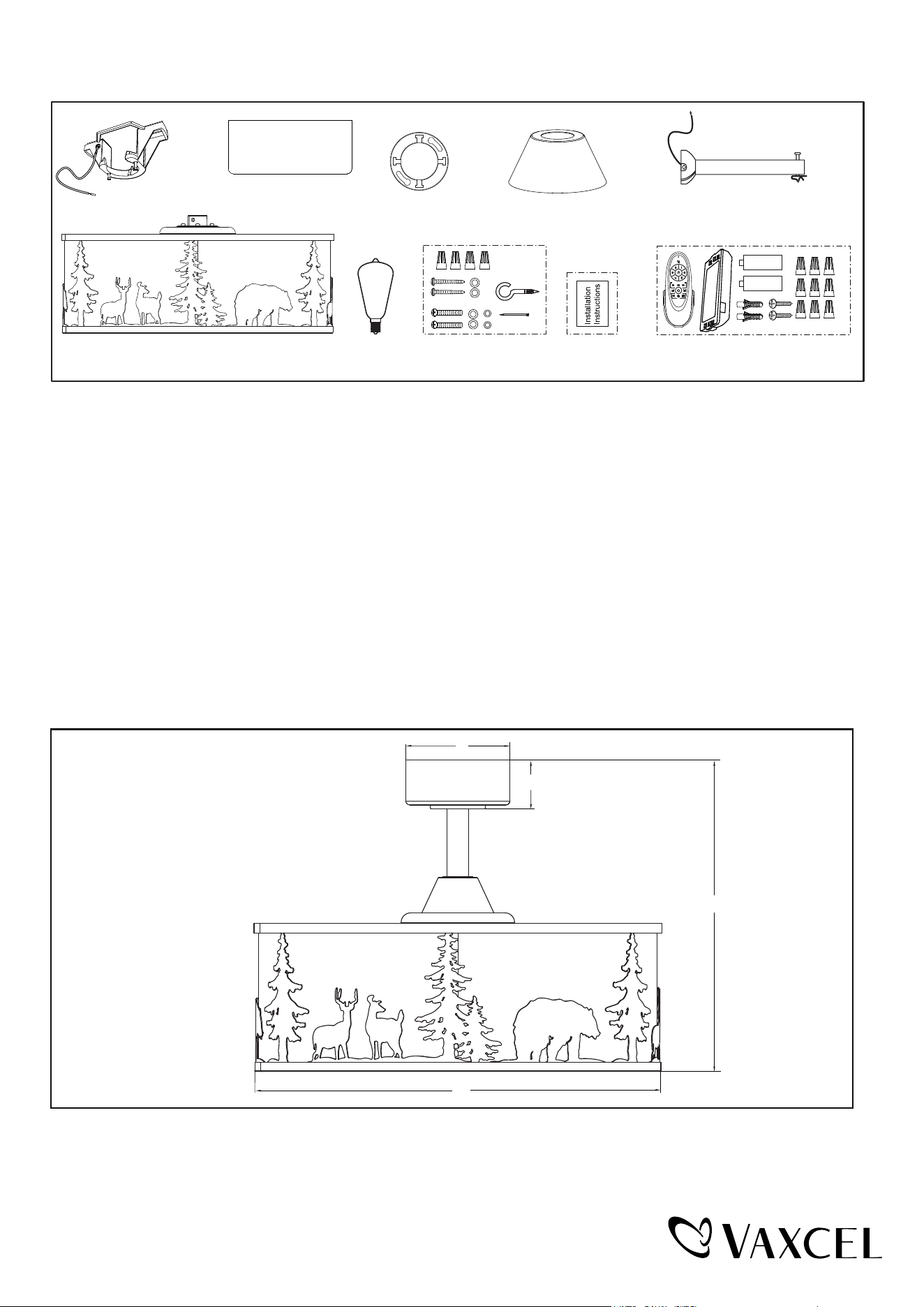

Dimension Reference:
B
C
A
D
1
2
3
4
5
6 7 98 10
A. 15-1/4˝ B. 5˝ C. 20˝ D. 2-1/2˝
1.5V
1.5V
PAGE: 2 / 8
Package Contents:
241212
Downrod Mount
Sloped Ceiling Mount (Up to 23 degrees)
Dual Mount Drawing

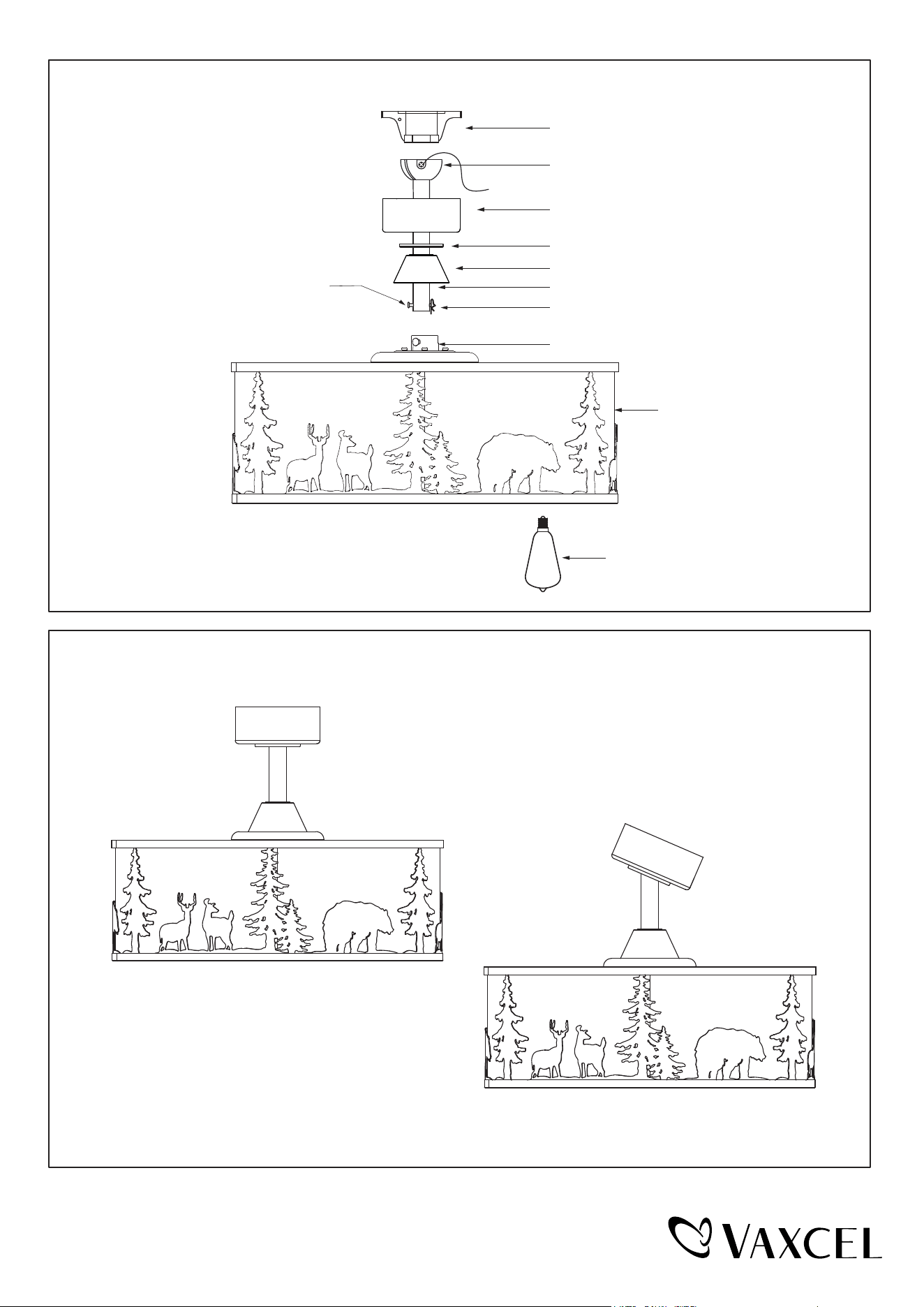

Exploded View Detail
Hanger Bracket
Canopy
Canopy Cover
Downrod Stand Cover
Downrod
Hanger Ball
Collar
Lock Pin
Fan Motor Assembly
LED Blub
Hanger Pin
PAGE: 3 / 8
241212

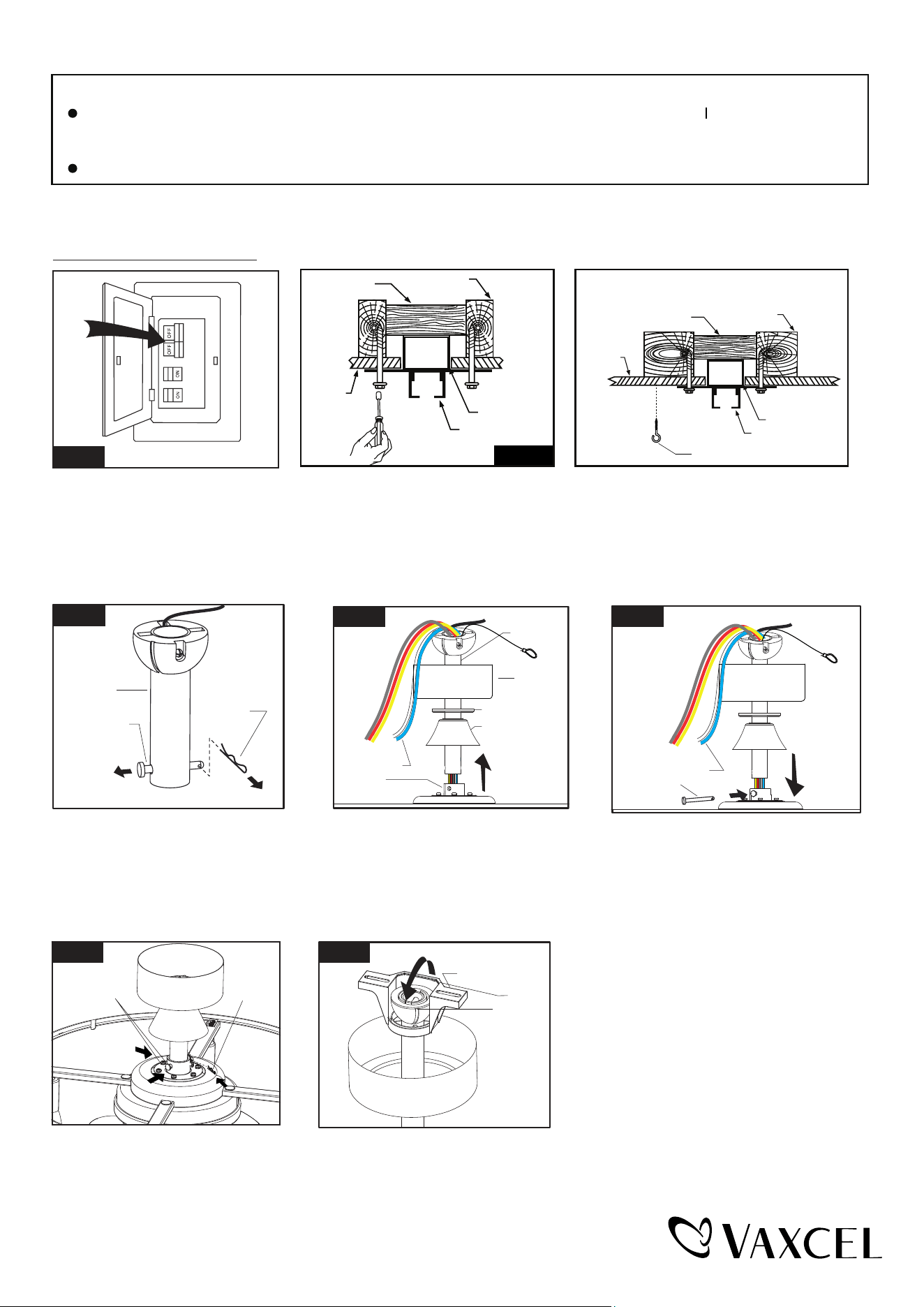

Installation Steps :
INSTALLATION INSTRUCTIONS
NOTE: The fan weight is 9.93 lbs (4.5 kg). Be sure the outlet box you are using is securely attached to the building
structure and can support the full weight of the fan. Failure to do so can result in serious injury.
Hanger Pin
Downrod
Lock Pin
Fig.3
Loosen the collar screws out part way.
Insert the downrod into the collar.
Slide hanger pin through holes of
collar and downrod.
Tighten the two collar screws.
Slide lock pin into hanger pin until
it is locked into position.
Slide canopy, canopy cover (Making
sure the smooth side of canopy
cover is facing downward.) and
downrod stand cover onto downrod
as shown, then thread motor wires
through downrod.
Hang the fan on hanger bracket, and rotate
the downrod until the chip on the hanger
bracket snaps into the slot on the hanger ball.
Note: For sloped ceiling installation, make
sure the slot of hanger ball and the chip of
hanger bracket face down.
Slot
Chip
Hanger Bracket
Fig.7
Fig.1
Turn OFF the electric circuit at the
main fuse or circuit breaker box.
Remove the lock pin from hanger
pin and remove the hanger pin
from the downrod.
Fig.4
Motor Wires
Collar
Downrod
Canopy
Canopy Cover
Downrod Stand
Cover
Fig.5
Hanger Pin
Motor Wires
Collar Screws
Lock Pin
Fig.6
IMPORTANT:
BEFORE YOU BEGIN INSTALLING THE FAN, CAREFULLY READ ALL INFORMATION N THE SEPARATE
SHEET "SAFETY INSTRUCTIONS" AS WELL AS THE FOLLOWING "INSTALLATION INSTRUCTIONS". IF IN
DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
SAVE ALL INSTRUCTIONS.
Tighten the hanger bracket to the outlet box with two mounting screws and washers.
(Make sure the outlet box is securely installed so that it will be able to support
the fan weight.) Attach the safety cable hook to the ceiling, and make sure the safety
cable hook is covered by the fan canopy.
WARNING: MOUNT ONLY TO AN OUTLET BOX MARKED "ACCEPTABLE
FOR FAN SUPPORT"!
Ceiling
Hanger Bracket
Ceiling Joist
Wood Member
(2" x 4" Approx.)
Outlet Box
Safety Cable Hook
Ceiling
Hanger Bracket
Ceiling Joist
Wood Member
(2" x 4" Approx.)
Outlet Box
Fig.2
PAGE: 4 / 8
241212
Install LED bulbs (included). See relamping label at
socket area or packaging for maximum wattage allowed.
Slide the canopy up to ceiling and over the two canopy
screws on hanger bracket. Rotate canopy clockwise, next,
while holding the canopy with one hand slide the canopy
cover over the screws and rotate clockwise until tight.
Note:Adjust the canopy screws as necessary until the
canopy and canopy cover are snug.
Fig.11
Canopy Screw
Hanger Bracket
Canopy
Canopy Cover

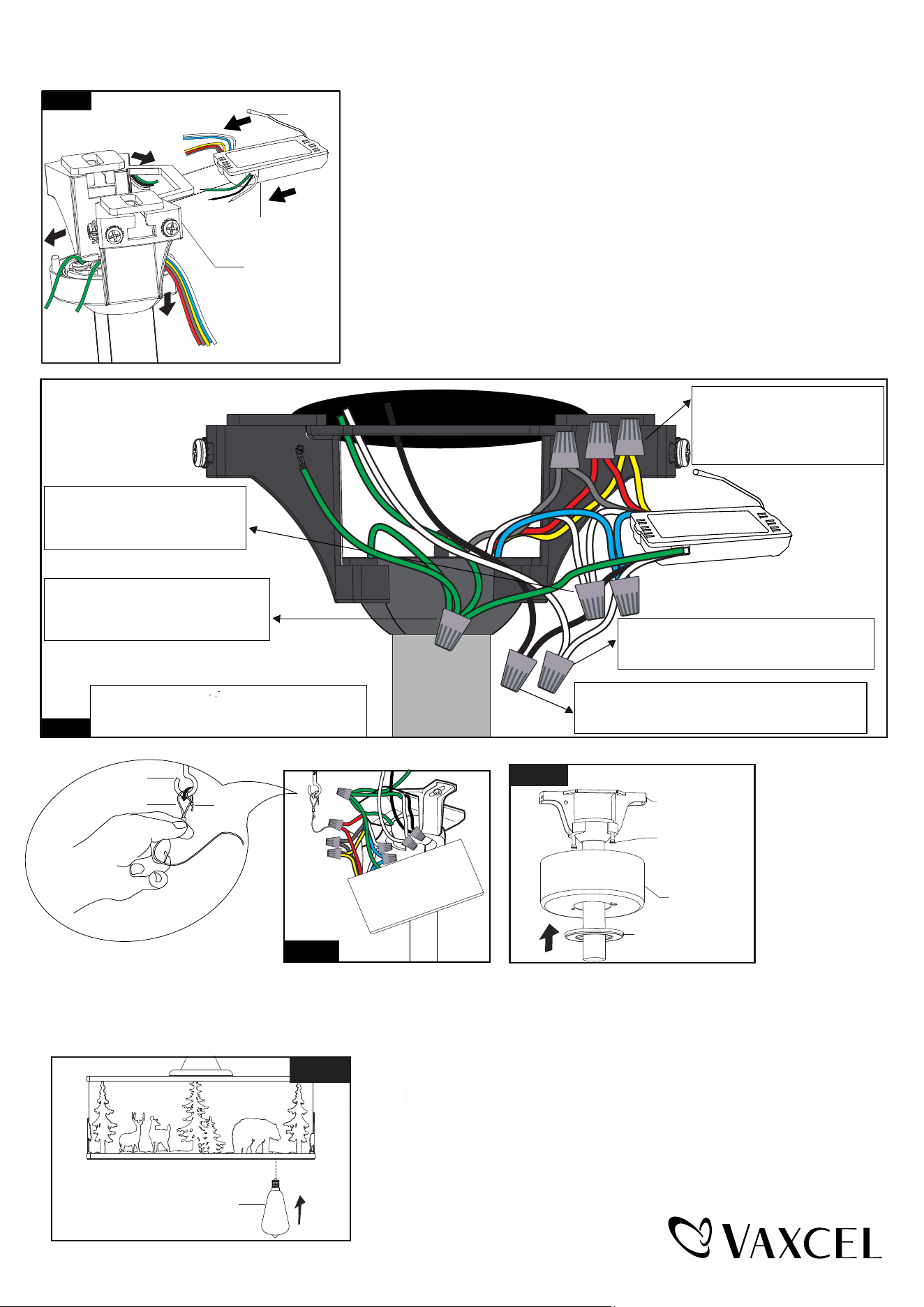

Move ground wires (a), outlet box wires (b), and motor wires (c)
away from the center of the hanger bracket as shown.
Thread the antenna through the hanger bracket first, then thread
the receiver through the hanger bracket until it is placed in the center.
Finally, cut motor wires (c) to length needed for connections.
Connect the white (neutral) wire from receiver
to the white (neutral) wire from the outlet box
with a wire connector.
Connect the black (hot) wire (This is for fan and light
control) from receiver to the black (hot) wire from
outlet box with a wire connector.
Fig.9
*** The wire connection points should be turned
upward and pushed carefully up into outlet
box.
Connect the four ground wires (green or
bare copper) coming from outlet box,
receiver, downrod and hanging bracket
with a wire connector.
Connect the blue and white wires
from the fan motor assembly to the
blue and white wires on the receiver
(This is for light control).
Connect the red, gray, and yellow
wires from the fan motor assembly
to the corresponding red, gray,
and yellow wires on the receiver
(This is for motor control).
Hang the safety cable into the safety
cable hook, tighten the safety cable
to the safety cable hook by using
the zip-tie.
Fig.12
4-5W ST15 LED Bulbs (included)
E12 ST15 LED Bulb Max.10W
PAGE: 5 / 8
1
Safety Cable Hook
Safety Cable
Zip-tie
Fig.10
Receiver
a
c
b
Hanger Bracket
Antenna
Fig.8
241212

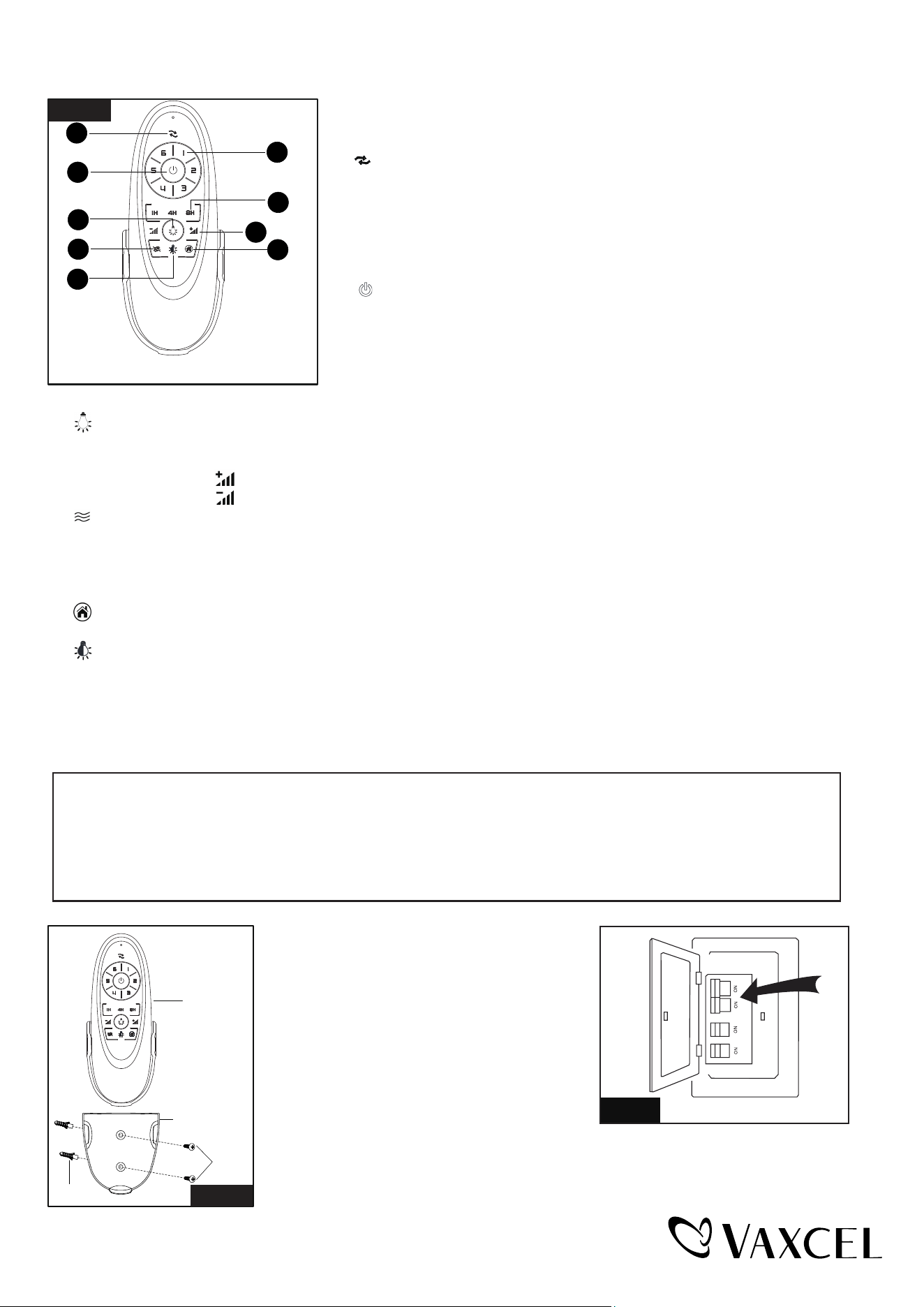

Remote control
Install two 1.5 volt batteries (type AAA, included) into the remote control.
The remote buttons function as below,
1. " " Reverse button:
Press this button to control fan direction.
Please wait, as the reverse function takes time to adjust.
2. Fan speed:
1 = minimum speed 2 = low speed
3 = medium low speed 4 = medium speed
5 = medium high speed 6 = high speed
3. " " Button:
Press this button to turn the fan off.
4. Timer Control:
Press the "1H", "4H" or "8H" timer button to turn off the fan and light for the selected
duration.
Press fan off button to stop the fan speed timer control. The fan will also turn off.
Press light off button to stop the lighting timer control. The light will also turn off.
Turn OFF the electric circuit at the main fuse or circuit breaker box to stop timer control.
1
3
7
5
2
4
6
8
9
Fig.13
Remote Control Transmitter
Note:
1. This remote control has a memory function setting. The fan will operate at the same speed and the fan
light will stay at the same brightness-level as the last time the power supply was turned off.
2. Compatible with on/off function wall switch only.
6. Dimmer Function
Press and hold the " " button to increase light to the desired level.
Press and hold the " " button to decrease light to the desired level.
7. " " Breeze button:
Press the breeze button to cycle the fan speed. The fan will cycle through all 6 speeds in 20 seconds. If the fan is off
the cycle will start at minimum "1" speed and increase until high speed "6" is reached, then cycle slowly back down to
minimum speed "1". Again, then repeat. If the fan is on then the breeze cycle will start at that speed. To stop this
function press any other fan speed or fan off button.
8. " " Vacation mode button:
Press the vacation mode button to turn on the light for 5 minutes every 2 hours. Any other button will turn off this function.
9. " " Light Off button.
Press this button quickly to turn off the light.
5. " " Light On button:
Press this button quickly to turn on the light.
Set the code:
Within the 10 second time frame after the main power is turned on, press and hold FAN OFF button for more than 3 seconds,
you will hear the indicator sound of swoosh from the receiver. Once the code is set successfully, the fan will turn off and the
light will turn on.
Note: The included transmitter was paired with the receiver at the factory with default settings, so no need to set
the code again. Go through these setup steps if you found your transmitter can’t communicate with the
receiver.
Transmitter
Wall Bracket
Anchor
Screw
Fig.14
Install the transmitter wall bracket on
the wall with two anchors and two screws
and place transmitter in it carefully.
Fig.15
Turn ON the electric power at the
main fuse or circuit breaker box.
PAGE: 6 / 8
241212
Troubleshooting Guide
If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation
or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any
faults, please check this Troubleshooting Guide. If a problem cannot be remedied or you are
experiencing difficulty in installation, please call our Customer Service Department (1-800-482-9235).
PROBLEM
1. If fan does not start:
2. If fan sounds noisy:
3. If light does not work:
1. Check main and branch circuit fuses or circuit breakers.
2. Check line wire connections to fan and switch wire connections in switch
housing.
CAUTION: Make sure main power is turned off.
3. Make sure that the wall control is turned "ON".
1. Make sure all screws in motor housing are snug. (not too tight)
2. Make sure wire connectors in switch housing are not rattling against each
other or against the interior wall of the switch housing.
CAUTION: Make sure main power is turned off before accessing switch
housing.
3. Some fan motors are sensitive to signals from Solid State variable speed
controls. DO NOT USE a Solid State variable speed control.
4. Allow "break-in" period of 24 hours. Most noises associated with a new fan will
disappear after this period.
Check for faulty the LED light bulbs.
CAUTION: Make sure main power is turned off before accessing switch
housing.
SUGGESTED REMEDY
4. If fan and light kit do
not work:
1. Replace the battery of transmitter.
2. Re-pair the transmitter and receiver by holding the "FAN OFF" button on the
transmitter according to the manual.
PAGE: 7 / 8
241212
The limited lifetime warranty covers this fan, for residential use by the original purchaser, against defects
in material or workmanship as follows:
If your fan motor fails at any time during the lifetime of the original purchaser due to defects in material or
workmanship, we will provide a replacement part free of charge.
If your fan motor fails at any time within one year after the original date of sale to the original purchaser
due to defects in material or workmanship, we will provide labor to repair the defect, with the exception
of take down/reinstallation, free of charge. The original purchaser will be responsible for all labor costs
after this one year period.
If no replacement parts are provided for any part of your fan motor that fails at any time during your
lifetime due to defects in material or workmanship, we will refund the original purchase price of your fan.
If your fan blades, or any accessory, except glass globes and light bulbs, fails at any time within one year
after the original date of purchase due to a defect in material and workmanship, we will repair or replace
the defective blades, switch, or accessory free of charge, with the exception of take down/reinstallation
services.
If your fan includes any integrated LED modules, the LED functionality is covered by a 5-year warranty.
If the original purchaser ceases to own the fan, this warranty and any implied warranty, including but not
limited to any implied warranty of merchantability or fitness for a particular purpose, become void. This
warranty and any implied warranty, including but not limited to any implied warranty of merchantability or
fitness for a particular purpose, does not cover glass globes, light bulbs, or finish on any metal portions of
the fan.
This warranty is in lieu of express warranties. The duration of any implied warranty of merchantability or
fitness for a particular purpose, with respect to any fan motor, blades, switch, or accessories, is expressly
limited to the period of the express warranty set forth above for such motor, LED modules, blades, switch,
or accessories.
This warranty excludes defects, malfunctions, or failures of any fan that are caused by repairs by persons
not authorized by us, use of parts or accessories not authorized by us, mishandling, improper installation,
modifications or damage to the fan while in your possession, or unreasonable use, including failure to
provide necessary maintenance. This warranty does not include the failure of products from extreme acts
of nature; environmental conditions not suited for the products intended use; operation in temperatures
outside of the range specified in the instruction manual; usage with improper power supply, power surges
or dips. For coastal locations, some corrosion is considered normal for the environment.
In no event shall VAXCEL be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in which case
the above limitation or exclusion may not apply. This warranty gives you specific legal rights and you may
also have other rights which vary from state to state.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided
it is returned per RMA instruction. This warranty is limited to the cost of the product only and does not
extend to transportation, installation or replacement costs.
ORIGINAL VAXCEL CEILING FAN LIMITED LIFETIME WARRANTY*
How can warranty service be obtained for your ceiling fan?
1-800-482-9235
241212
PAGE: 8 / 8
