ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
161006
Green Grounding
Screw (E)
Hex Nut (F)
Fixture Mounting
Screw(D)
Mounting Screw (B)
Wire Nut (C)
Mounting Strap (A)
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
T0290
Decorative Cap (I)
Finial (J)
Rubber Pad (H)
Thumb Nut (G)

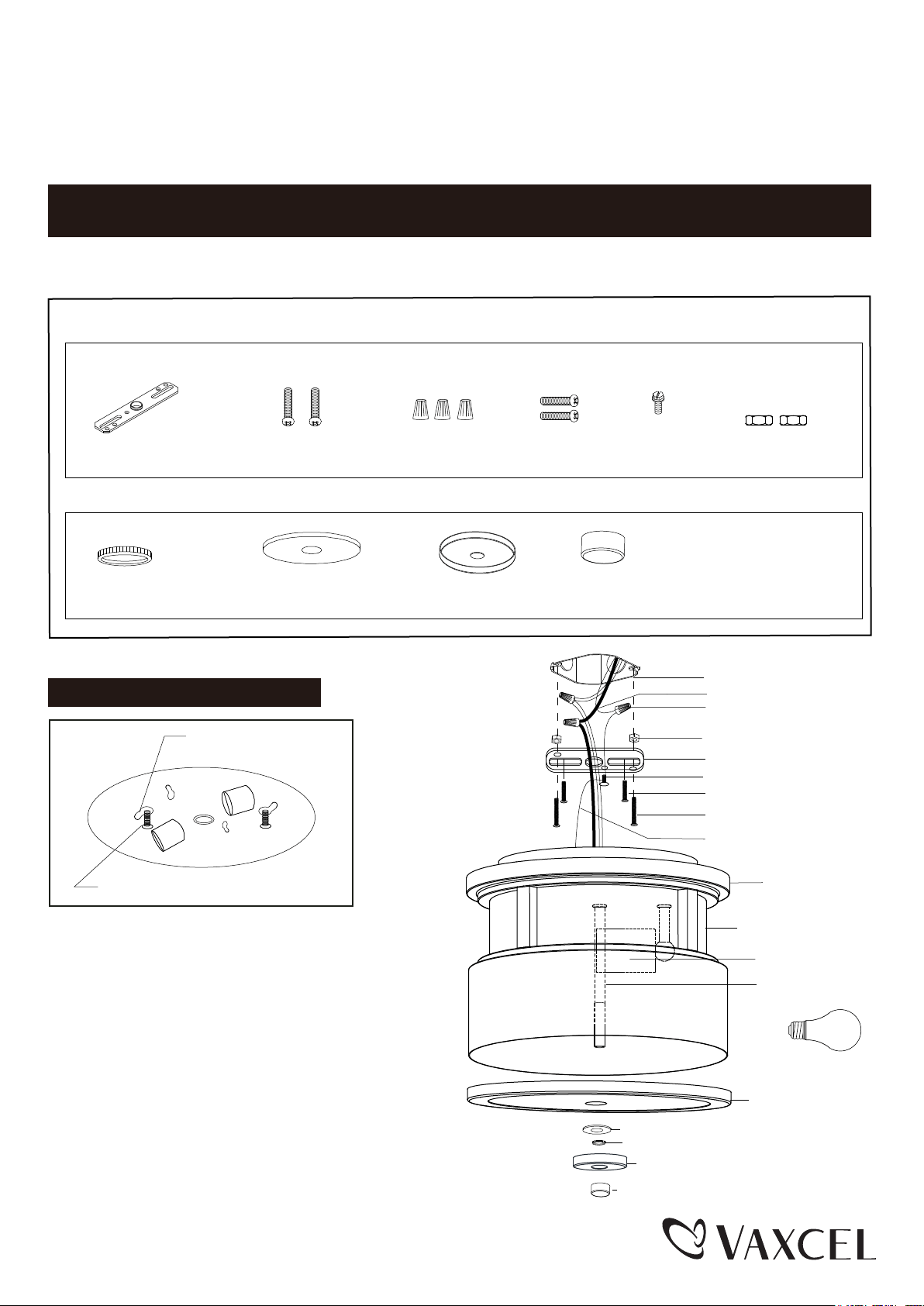

Fig.1
Fixture Mounting Screw
Keyhole Slot
Pan
Fixture body
Socket
Threaded Pipe (F)
Glass Assembly (L)
House Grounding Wire
Outlet Box
Wire Nut (C)
Hex Nut (F)
Mounting Strap (A)
Green Grounding Screw (E)
Mounting Screw (B)
Fixture Mounting Screw (D)
Fixture Grounding Wire
Bulb Type A Max. 60W
(not included)
Thumb Nut (G)
Finial (J)
Rubber Pad (H)
Decorative Cap (I)
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (inculded):
Turn off the power at fuse or circuit
box.
Installation Steps
1. Attach two fixture mounting screws to the mounting
strap, and then secure it with two lock nuts. Adjust
the length of the fixture mounting screws if necessary.
2. Attach the mounting strap to the outlet box
using two mounting screws.
161006
Green Grounding
Screw (E)
Fixture Mounting
Screw(D)
Mounting Screw (B) Wire Nut (C)
Mounting Strap (A)

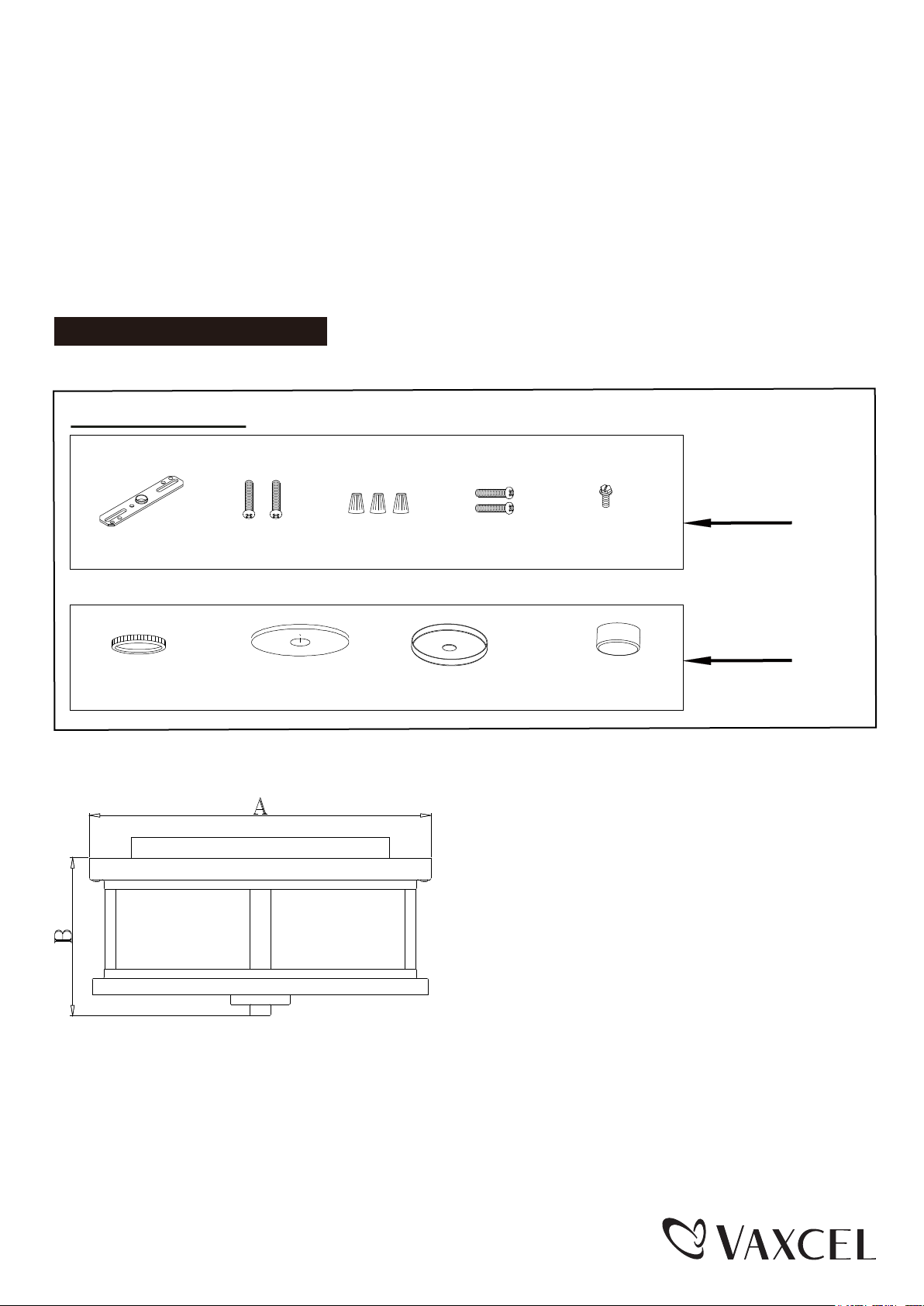

A: 13"
B: 5"
The following parts are available for re-order if damaged or missing.
Turn off the power at fuse or circuit
box.
3. Pull out the outlet wires and the house grounding wire from the outlet box. Make wire connections using the wire nuts:
---The black (hot) wire from the fixture to the black (hot) wire from the power source.
---The white (neutral) wire from the fixture to the white (neutral) wire from the power source.
---Attach the fixture grounding wire to the mounting strap with the green grounding screw. Then connect it to the house
grounding wire with the wire nut.
Carefully put the wires back into the outlet box.
4. Attach the pan to the mounting strap by inserting two fixture mounting screw heads into the key holes, and rotate the
pan until it locks in place. Then secure the screws tightly. (See Fig.1)
5. Install bulbs (not included). See relamping label at socket area or packaging for maximum allowed wattage.
6. Slip the glass assembly up through threaded pipe and secure it with a rubber pad and thumb nut. Slide the decorative
cap up to glass assembly, and secure it with the finial.
Decorative Cap (H)
Finial (I)
Rubber Pad (G)
Thumb Nut (F)
Spare Parts List:
Mounting Hardware
5606MM(1 SET)
Hardware Package
5607MM(1 SET)
