Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
Sku Number: 356-9809
OUTDOOR WALL LIGHT
Model Number: E9307
PACKAGE CONTENTS
Page 1 of 4
200422
HARDWARE CONTENTS Note: Hardware not shown actual size.
Access Cover Mounting Screw
X2
AA
BB
CC
EE
Access Cover
X1
Wire Connector
X3
Pole Mounting Clamp
X1
DD
Mounting Screw
X3
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
● Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or
switching off circuit breaker).
● Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires to contact
any surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury
or death from electric shock.
CAUTION
● All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).
Contact your municipal building department to learn about your local codes, permits and/or inspections.
● Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified electrician
before installation.
● Do not connect this fixture to an electrical system that does not provide a means for equipment grounding. Never use
a fixture in a two-wire system that is not grounded. If you are not sure your lighting system has a grounding means,
do not attempt to install this fixture. Contact a qualified, licensed electrician for information with regards to proper
grounding methods as required by the local electrical code in your area.
Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape, Wire Cutters,
Safety Glasses, Ladder, Wire Stripper, Wrench, Electric Drill.
Page 2 of 4
200422

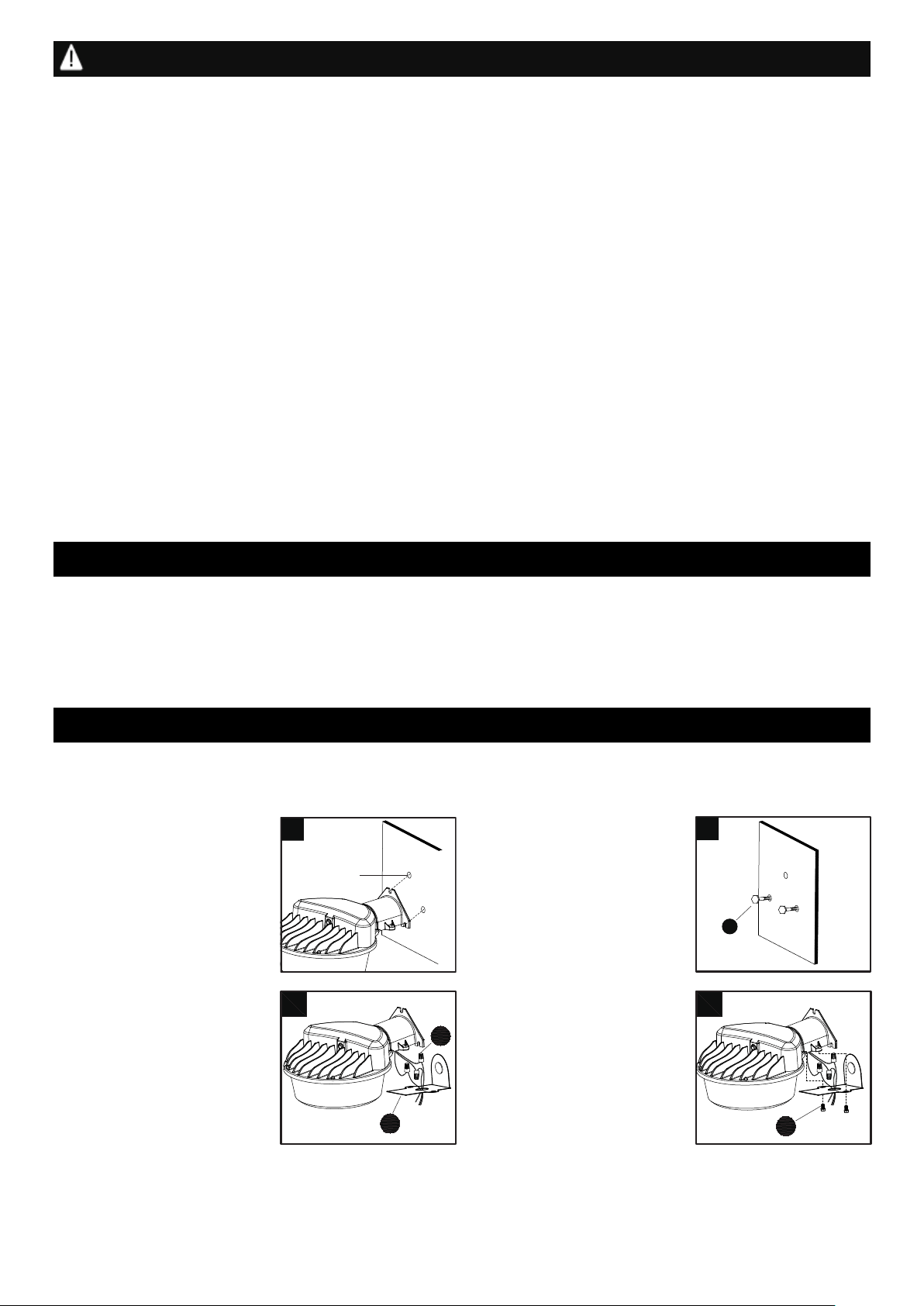

ASSEMBLY INSTRUCTIONS
PREPARATION
Turn off the power at fuse or circuit box
1. Select a location on a secure
wall or pole. Place mounting
section of fixture onto desired
mounting surface, mark and
drill holes for mounting.
Steps for install fixture to the wall or plank：
3. Pull out the source wires from
the access cover (AA). Make
wire connections using wire
connectors (CC) as follows:
---Connect the black wire
from the fixture to the
“hot” wire from the power
source (usually black).
---Connect the white wire from
the fixture to the neutral wire
from the power source (usually white).
---Connect the grounding wire from the fixture to the
grounding wire from the power source (usually
green / yellow insulation).
Carefully tuck the wires back into the access cover (AA).
4. Attach access cover to the
light fixture using the two
access cover mounting
screws (BB) provided.
NOTE: make sure all wiring
is placed into the arm prior
to tightening the access
cover screws.
3
CC
AA
Maximum Wattage: 75W
Work Temperature: - 4°F~113°F
2. Install the two bottom
mounting screws (DD) first,
leaving enough room between
the mounting screws and
the mounting surface to
accommodate mounting
the fixture.
2
DD
1
BB
1
4
1
Hole
Page 3 of 4
200422
Turn on the power at fuse or circuit box
Turn off the power at fuse or circuit box
Turn on the power at fuse or circuit box

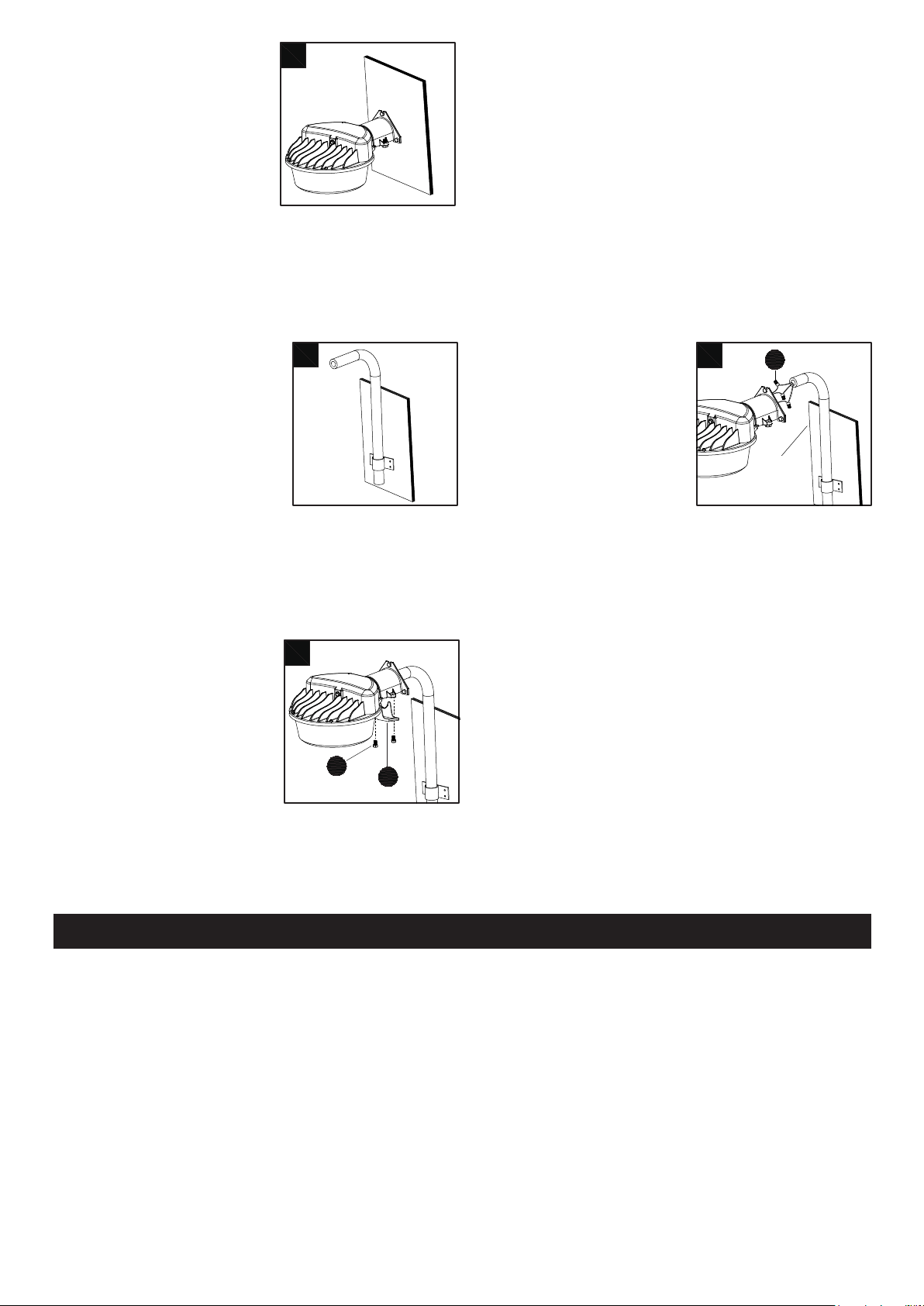

Steps for install fixture to the pole
2. Pull out the source wires from
the extension arms. Make
wire connections using wire
connectors (CC) as follows:
---Connect the black wire
from the fixture to the
“hot” wire from the power
source (usually black).
---Connect the white wire from
the fixture to the neutral wire
from the power source (usually white).
---Connect the grounding wire from the fixture to the
grounding wire from the power source (usually
green / yellow insulation).
Carefully tuck the wires back into the extension arms.
Introduction of dusk to dawn function:
Light will turn on at evening when the area brightness intensity is less than 5lux.
Light will switch off during day time when the brightness intensity is between 35 to 400lux.
1
1
5
5. Place the fixture on the two
lower mounting screws and
install the upper mounting
screw. Tighten all mounting
screws to secure the fixture.
1
1. This fixture can be mounted on
1-5/8 or 2-3/8 in. diameter
extension pole (sold separately).
3. Place the fixture on the
extension pole, use the pole
mounting clamp (EE) to clamp
the pole and install the two
access cover mounting screws
(BB). Make sure the fixture is
tighten to the pole.
Note: There are two side of
the mounting clamp (EE),
one side is for mounting
1-5/8" and another is for 2-3/8".
CC
2
Extension
Arms
1
3
BB
EE
ASSEMBLY INSTRUCTIONS (continued)
ASSEMBLY INSTRUCTIONS (continued)
FUNCTION AND OPERATION
Page 4 of 4
200422
● To clean, turn off and wipe with a damp, non-abrasive cloth.
1) The light does not come on at all:
a) Make sure the wall switch and circuit breaker are on.
b) Make sure the wiring is correct.
2) Fuse blows or circuit trips when light is turned on.
Check for crossed wires, ensure wiring is correct.
If unable to fix any of the above issues, please consult a certified electrician.
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
CARE AND MAINTENANCE
TROUBLESHOOTING
FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails
due to a defect in material workmanship within five (5) years from the date of original purchase, simply bring this
lighting fixture with the original sales receipt back to your nearest MENARDS retail store. At its discretion, PATRIOT
LIGHTING agrees to have the product or any defective part(s) repaired or replaced with the same or similar PATRIOT
LIGHTING product or part free of charge, within the stated warranty period, when returned by the original purchaser
with original sales receipt. This warranty; (1) excludes expendable parts including but not limited to light bulbs; (2) does
not cover damage that has resulted from abuse or misuse; and (3) does not cover any losses, labor, injuries to
persons/property or costs. This warranty does give you specific legal rights and you may have other rights, which vary
from state to state.
