LED CANOPY LIGHT
Model Number: E9405BZ
PACKAGE CONTENTS
Page 1 of 4
210322
HARDWARE CONTENTS Note: Hardware not shown actual size.
Mounting Screw
X4
Wire Connector
X5
AA BB
CC
Rubber Pad
X1
A
B

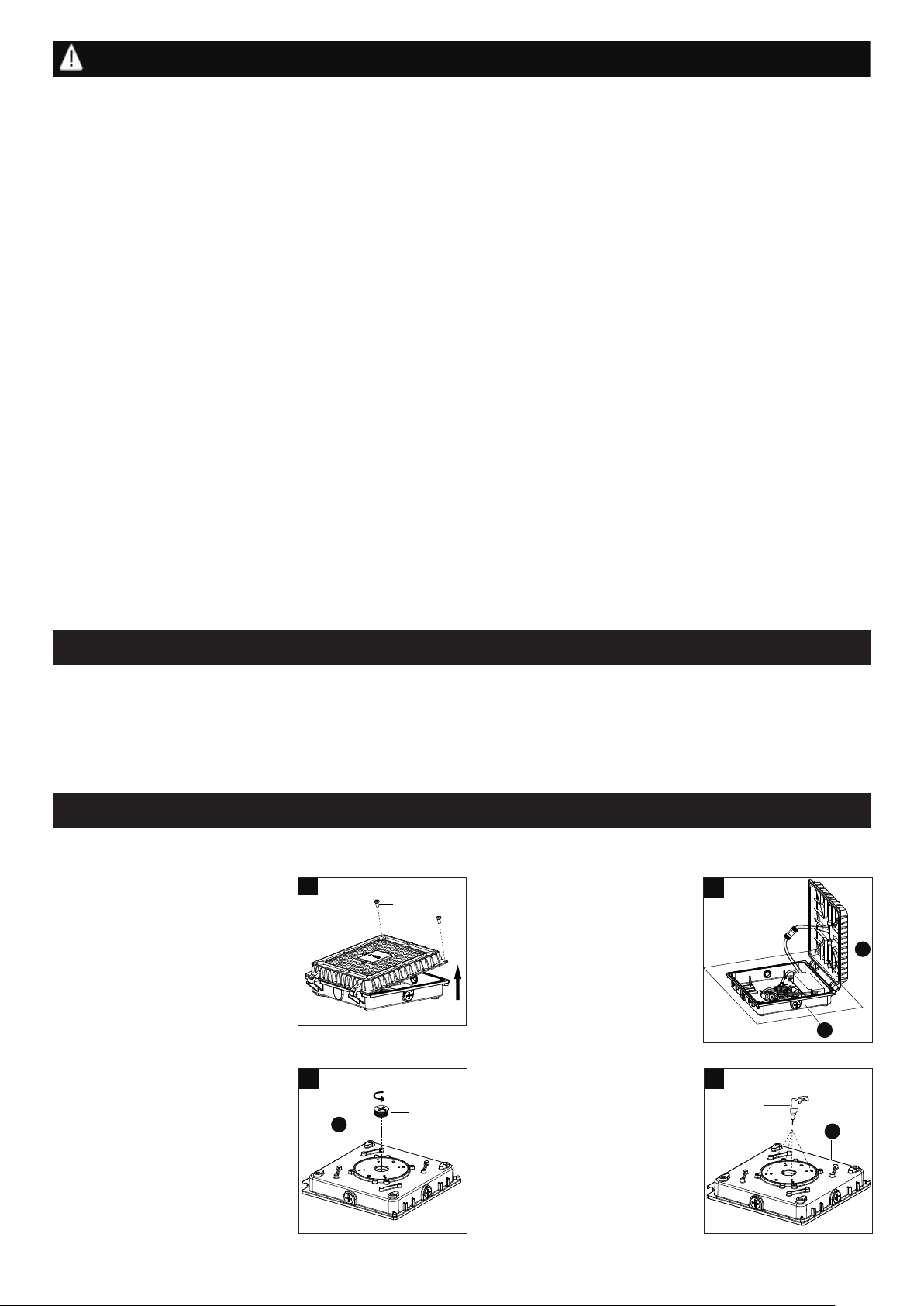

Page 2 of 4
210322
Turn off the power at fuse or circuit box.
4.
Drill holes on the bottom of
the lamp tray (A) according to
the place where it will be
mounted on ceiling.
1. Detach the two screws and keep
it for step 9 of the assembly
instruction.
2. Open the front cover (B) and
disconnect the wire terminal.
Then remove front cover from
lamp tray (A).
3.
Unscrew the grub screw from
the lamp tray (A).
1
Screws
3
Grub Screw
A
4
Electric Drill
A
2
B
A
Disconnect the
wire terminals
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
● Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or
switching off circuit breaker).
● Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires to contact
any surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury
or death from electric shock.
● LED electronics can be damaged by electro static discharge (ESD)shock. Before installation, discharge yourself
by touching a grounded bare metal surface to remove this hazard. To avoid damage, do not touch the LED module.
CAUTION
● All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).
Contact your municipal building department to learn about your local codes, permits and/or inspections.
● Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified electrician
before installation.
● Do not connect this fixture to an electrical system that does not provide a means for equipment grounding. Never use
a fixture in a two-wire system that is not grounded. If you are not sure your lighting system has a grounding means,
do not attempt to install this fixture. Contact a qualified, licensed electrician for information with regards to proper
grounding methods as required by the local electrical code in your area.
● If a dimmer control switch is used with this fixture, obtain professional advice to determine the correct type and
electrical rating required.
Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Slotted Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape, Wire
Cutters, Safety Glasses, Ladder, Wire Stripper, Electrical Drill.
ASSEMBLY INSTRUCTIONS
PREPARATION
Rated Wattage: 60W
Work Temperature: -30°F~113°F
Page 3 of 4
210322
Turn on the power at fuse or circuit box.
ASSEMBLY INSTRUCTIONS (continued)
5.
Paste the rubber pad (AA) on
the bottom of the lamp tray (A)
and align the set hole of the lamp
tray (A).
5
AA
A
8. Attach the front cover (B)
back to the lamp tray (A) and
connect the wire terminals.
7. Please refer to the following
"wiring connection" instructions
to connect the wires using the
wire connectors (CC).
9. Close the front cover (B) and
fasten the screws tightly to finish
the installation.
6
Wires
BB
A
7
CC
8
B
Connect the
wire terminals
9
Screw
B
6. Thread the wires from outlet
box through the center of the
lamp tray (A). Install the lamp
tray (A) to the ceiling by
attaching the mounting
screws (BB) through the lamp
tray (A) into the outlet box.
Lutron
Leviton
Ltmate
Enerlites
DVSTV / DVTV-WH
DD710-BDZ / DS710-10Z / IP710-LFZ
Ltmate 0-10V
51300L
Brand
Compatible dimmer list
Model Number
Wiring Connection
Turn off the power, connect AC wire, black wire to L , white wire to N, and green wire to .
Dimmer connection(With dimmable driver)
1. Compatible with 1-10V dimming.
2. Connect wires as below, purple wire is D+, gray wire is D-.
Power
White
Black
Lamp shell
N
AC IN
Green
L
1-10V
Dimming
Gray
Purple
Dim+
Dim-
Page 4 of 4
210322
● To clean, turn off and wipe with a damp, non-abrasive cloth.
1) The light does not work:
a) Make sure the wall switch and circuit breaker are on.
b) Make sure the wiring is correct.
2) Fuse blows or circuit trips when light is turned on.
Check for crossed wires, ensure wiring is correct.
If unable to fix any of the above issues, please consult a certified electrician.
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
CARE AND MAINTENANCE
TROUBLESHOOTING
FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails
due to a defect in material workmanship within five (5) years from the date of original purchase, simply bring this
lighting fixture with the original sales receipt back to your nearest MENARDS retail store. At its discretion, PATRIOT
LIGHTING agrees to have the product or any defective part(s) repaired or replaced with the same or similar PATRIOT
LIGHTING product or part free of charge, within the stated warranty period, when returned by the original purchaser
with original sales receipt. This warranty; (1) excludes expendable parts including but not limited to light bulbs; (2) does
not cover damage that has resulted from abuse or misuse; and (3) does not cover any losses, labor, injuries to
persons/property or costs. This warranty does give you specific legal rights and you may have other rights, which vary
from state to state.
R
R
R
R
The following parts are available for reorder if damaged or missing. Call our toll free at 1-800-887-6326.
Spare Parts List:
Assembly Kit
6274MM( 1 SET)
Mounting Screw
X4
Wire Connector
X5
AA BB CC
Rubber Pad
X1
