Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
PACKAGE CONTENTS
SKU Number: 356-9430
356-9431
2-LIGHT OUTDOOR SECURITY LIGHT
Model Number: E9200-2BZ
E9200-1WH
Wire Connector
X3
Gasket
X1
HARDWARE CONTENTS Note: Hardware not shown actual size.
AA CCBB
DD
Decorative Cover
X1
EE
Mounting Screw
X2
Mounting Strap Unit
X1
Ring and Screw
X1
Page 1 of 8
201029
FF
A
C
B
Wall Wash Light
Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Slotted Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape, Wire
Cutters, Safety Glasses, Ladder, Wire Stripper.
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
● Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or switching
off circuit breaker).
● Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires to contact
any surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury or
death from electric shock.
● LED electronics can be damaged by electro static discharge (ESD)shock. Before installation, discharge yourself by
touching a grounded bare metal surface to remove this hazard. To avoid damage, do not touch the LED module.
CAUTION
● All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).
Contact your municipal building department to learn about your local codes, permits and/or inspections.
● Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified electrician
before installation.
● Do not connect this fixture to an electrical system that does not provide a means for equipment grounding. Never use
a fixture in a two-wire system that is not grounded. If you are not sure your lighting system has a grounding means, do
not attempt to install this fixture. Contact a qualified, licensed electrician for information with regards to proper
grounding methods as required by the local electrical code in your area.
● Only general ON/OFF wall switch applies for this fixture, the dimmable wall switch shouldn’t be required.
Rated Wattage: 30 W
Working Temperature Range: -4ºF ~ 113ºF
PREPARATION
SAFETY INFORMATION
ASSEMBLY INSTRUCTIONS
Important to Know
1. This fixture requires a 120 VAC, 60 Hz power source.
2. For general safety and to avoid any possible damage to the sensor, be sure the power is switched "OFF" before
adjustment.
3. Motion sensor: turns light ON automatically when motion is detected and turns light OFF automatically when motion
stops.
4. Photocell keeps the light OFF during daylight hours.
Note: Fixture can be wall mounted or eave mounted.
Wall Mounted
Eave Mounted
Light fixture and sensor should be mounted as shown above when installed (depending upon type of installation)
Before installing the light fixture under an eave, the sensor head must be rotated as shown in the next two steps for
proper operation and to avoid the risk of electrical shock.
Wall Wash Accent Light, turns on at dusk and turns off at dawn.
Page 2 of 8
201029
Adjusting the Sensor Head (C):
1. Aim sensor head toward desired detection area, maintaining a
5° - 40° downward angle to allow moisture to drain.
Note: Make sure sensor head is positioned with controls facing
toward the ground.
2. You can rotate the sensor head up and down to change the coverage
area. (See Fig. 1)
Note: Range set too high may increase false triggering.
(See Fig. 2 and Fig. 3)
Fig. 1
C
Wall Wash Light
Wall Wash Light:
At dusk,the wall wash light will be on automactically and turns off automactically at dawn. (See Fig. 1)
ASSEMBLY INSTRUCTIONS (continued)
5. With silicone caulking compound
(not included), caulk completely
around where the backplate of the
fixture (A) meets the wall surface.
CAUTION: Be sure to caulk
completely where the backplate
meets the wall surface to
prevent water from seeping into
the light fixture (A) and outlet box.
Controls
Backplate
For eave mounted only:
Swing the sensor head towards the mounting bracket.
Rotate the sensor head clockwise 180˚ so the controls face down.
Turn off the power at fuse or circuit box.
Installation Steps
1. Install the mounting strap unit (BB)
to the outlet box with the screw bolt
toward out, using two mounting
screws (AA) that best fit the outlet
box.
5
3. Connect the house grounding wire
and the fixture grounding wire
(yellow / green) using the wire
connector (DD).
Connect the fixture black wire to
the house black wire and the fixture
white wire to the house white wire
using wire connector (DD) provided.
Carefully tuck the wires back into the outlet box.
2. Remove the protective paper
barrier from the adhesive gasket
(EE), and thread the fixture wires
through gasket (EE),then adhere
the gasket (EE) to mounting strap
unit(BB) and outer edge of surface
outlet box.
Ensure that the screw on the mounting strap unit (BB)
is threading the hole of gasket (EE).
4. Attach the backplate of the light
fixture (A) to the mounting strap
unit (BB), then secure it with the
ring and screw (CC). Push the
decorative cover (FF) firmly into
the fixture mounting screw hole
on the light fixture (A).
A
Controls
Controls
1
AA
BB
Outlet Box
4
CC
FF
BB
A
Page 3 of 8
201029
3
DD
2
EE
BB
Page 4 of 8
201029

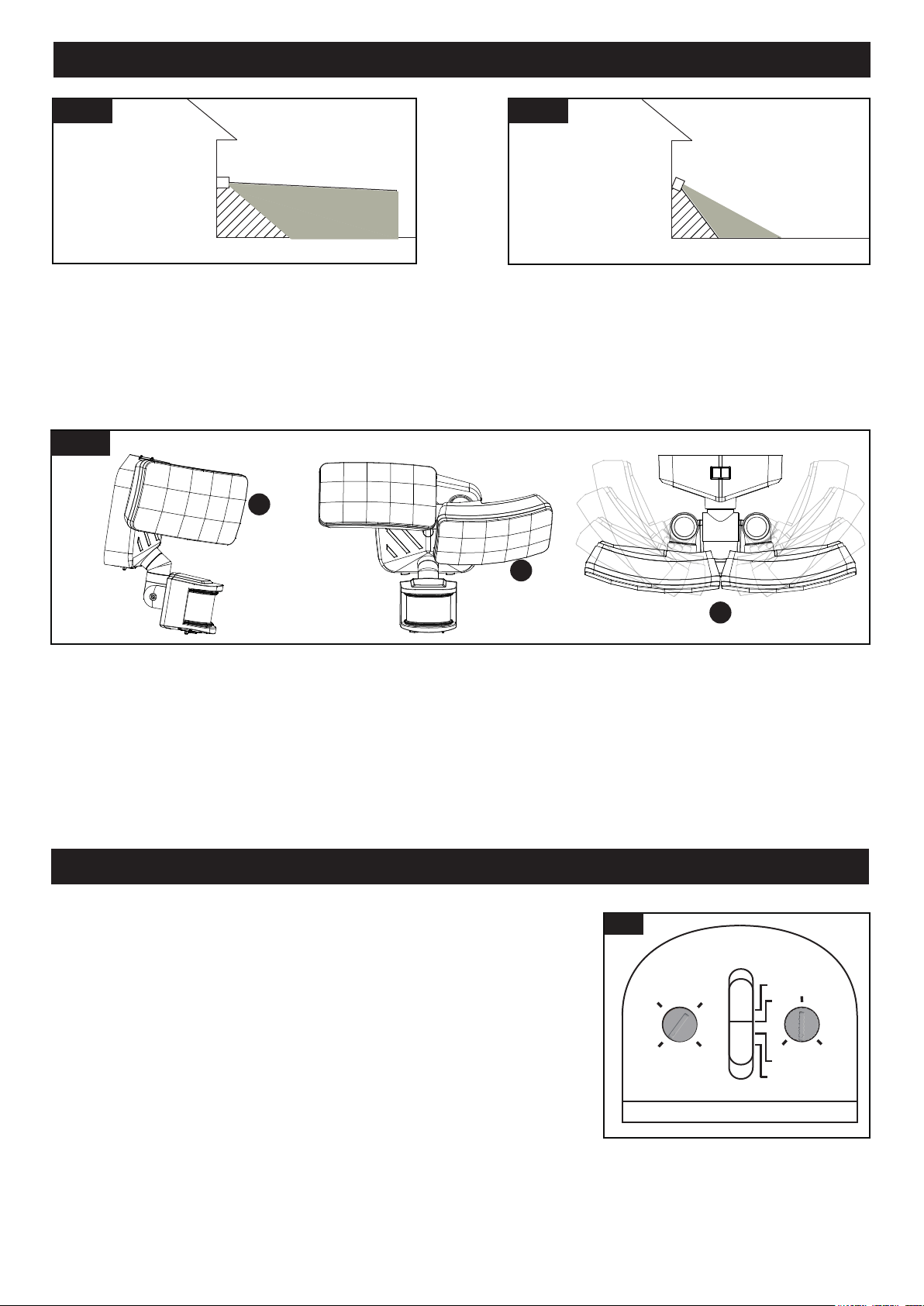

ASSEMBLY INSTRUCTIONS (continued)
Sensor Adjustment Lower For Short Coverage
Sensor Adjustment Higher For Long Coverage
Fig. 4
Fig. 2
Fig. 3
Adjusting the Light Head (B):
1. Adjust the light head up or down, left or right for desired area. Keep the light heads at least 1˝ (25mm) away from
the sensor.(See Fig. 4)
2. Keep the light heads (B) face down around 30 degrees angle to avoid water damage and electrical shock.
B
B
B
FUNCTION AND OPERATION
Fig.5
Custom Setting
Test 3min
30s 1min
3H
PC
Auto
MODE
SENSTIME
M
L
H
Choose a mode by sliding the switch on the bottom of the sensor head.
(See Fig.5)
Note: When power is first applied, the light will be on and warm up lasts
30 seconds.
1. TEST MODE (daytime and nighttime operation.)
● Rotate Time knob arrow on the left side of the sensor head to the “TEST”
position. (See Fig. 5)
● The light turns to high-level brightness (5000K) when motion is detected,
and stays on as long as the motion continues. Then it reverts back to
low-level brightness (2700K) about 5 seconds after motion is no longer
detected.
Sensitivity of Motion Sensor
● You can adjust the sensitivity of the motion sensor by using the “SENS” selector located on the right side of the
sensor head. (See Fig. 5)
● Adjust motion sensor sensitivity to HIGH (H), MEDIUM (M), or LOW (L) to achieve desired performance.
● Approximate range for each setting: 70 ft. (H), 40 ft. (M), 20 ft. (L).
Low Level
0% 50%
Fig.6
2. AUTO MODE (nighttime operation only)
● In "AUTO" mode, rotate Time Delay knob to the desired time setting
(30s/1min/3min). At dusk, the light turns on to pre-selected low-level
brightness and CCT color. When motion is detected, the light turns
to full brightness (5000K) and stays on as long as motion continues.
When the motion is no longer detected, the light at full brightness (5000K),
remains on for predetermined time you set (30s/1min/3min), and then
switch back to the set low level brightness and CCT color automatically.
● The light turns off automatically at dawn.
Note: You can adjust the low-level brightness (0~50%) and CCT color (2700K~5000K) by using the
low-level brightness (0~50%) knob and CCT color (2700K~5000K) knob on the backplate (See Fig.6)
3. PC MODE (nighttime operation only)
● In "PC" mode, the light turns on at full brightness at dusk and remains on until dawn.
Note: You can adjust the CCT color (2700K~5000K) by using the CCT color (2700K ~5000K) knob on the
backplate. (See Fig.6)
4. 3 HOURS (3H) MODE (nighttime operation only)
● In “3H” mode, the light turns to high-level brightness (100%) at dusk, and stays "ON" for 3 hours, then it turns to
low-level brightness. It turns to high-level brightness (100%) when motion is detected, and stays on as long as
motion continues. When motion is no longer detected, it remains on for the predetermined shut-off delay time you
set (30s/1min/3min), then returns to the predetermined low level brightness and CCT color automatically.
● The light turns off automatically at dawn.
Note: You can adjust the low-level brightness (0~50%) and CCT color (2700K~5000K) by using the
low-level brightness (0~50%) knob and CCT color (2700K~5000K) knob on the backplate (See Fig.6)
5. CUSTOM SETTING MODE (nighttime operation only):
● In "CUSTOM SETTING" mode, the light turn on at dusk and off at dawn automatically.
● Instead of "3H", the motion sensor operation can be set to start at a specific time. Turn the wall switch “OFF”, and
turn it “ON” twice within 3 seconds. The light will go into motion-sensor operation at the specified time every night.
The light turns off automatically at dawn.
For example, a homeowner wants to have the light stay on high-level brightness from dusk to 8pm, and would like
the light to go into "AUTO motion sensor mode. To achieve this, the homeowner will turn the wall switch “OFF”,
and turn it “ON” twice within 3 seconds. This sets the time the light goes into "AUTO" mode every day, the light
will behave the same way.
To revert back to Default, turn the wall switch “OFF” and then turn it “ON” after 5 seconds.
Note: You can adjust the low-level brightness (0~50%)
and CCT color (2700K~5000K) by using the low-level
brightness (0~50%) knob and CCT color (2700K~5000K)
knob on the backplate (See Fig.6)
6. Manual Override (nighttime operation only)
● To temporarily override the settings in “AUTO” or “3H” mode
for on-demand continuous high-level brightness at night, turn
the wall switch “OFF” then turn it “ON” twice within 3 seconds,
the light remains on all night long. To shift back to “AUTO” or
“3H” mode, turn the wall switch “OFF” then turn it “ON” twice
within 3 seconds again. (See Fig.7)
● The light turns off automatically at dawn.
7. CCT Color Switching
● CCT Color adjustable function apply to low level brightness, 3H, PC and Custom Setting mode.
Fig. 7
“AUTO” or
“3H” Mode
Manual
Override
Manual Override Operation Diagram
Turn wall switch OFF-ON-OFF-ON
in 0.5~3 Seconds
Turn wall switch OFF-ON-OFF-ON
in 0.5~3 Seconds
Note: To make sure the above functions operate properly, always keep the wall switch in the “ON” position
(including the daytime).
ASSEMBLY INSTRUCTIONS (continued)
ASSEMBLY INSTRUCTIONS (continued)
FUNCTION AND OPERATION (continued)
Page 5 of 8
201029
ASSEMBLY INSTRUCTIONS (continued)
ASSEMBLY INSTRUCTIONS (continued)
FUNCTION AND OPERATION (continued)
Page 6 of 8
201029
Spare Parts List:
Assembly Kit
6298MM (1 SET) for 356-9430
6325MM (1 SET) for 356-9431

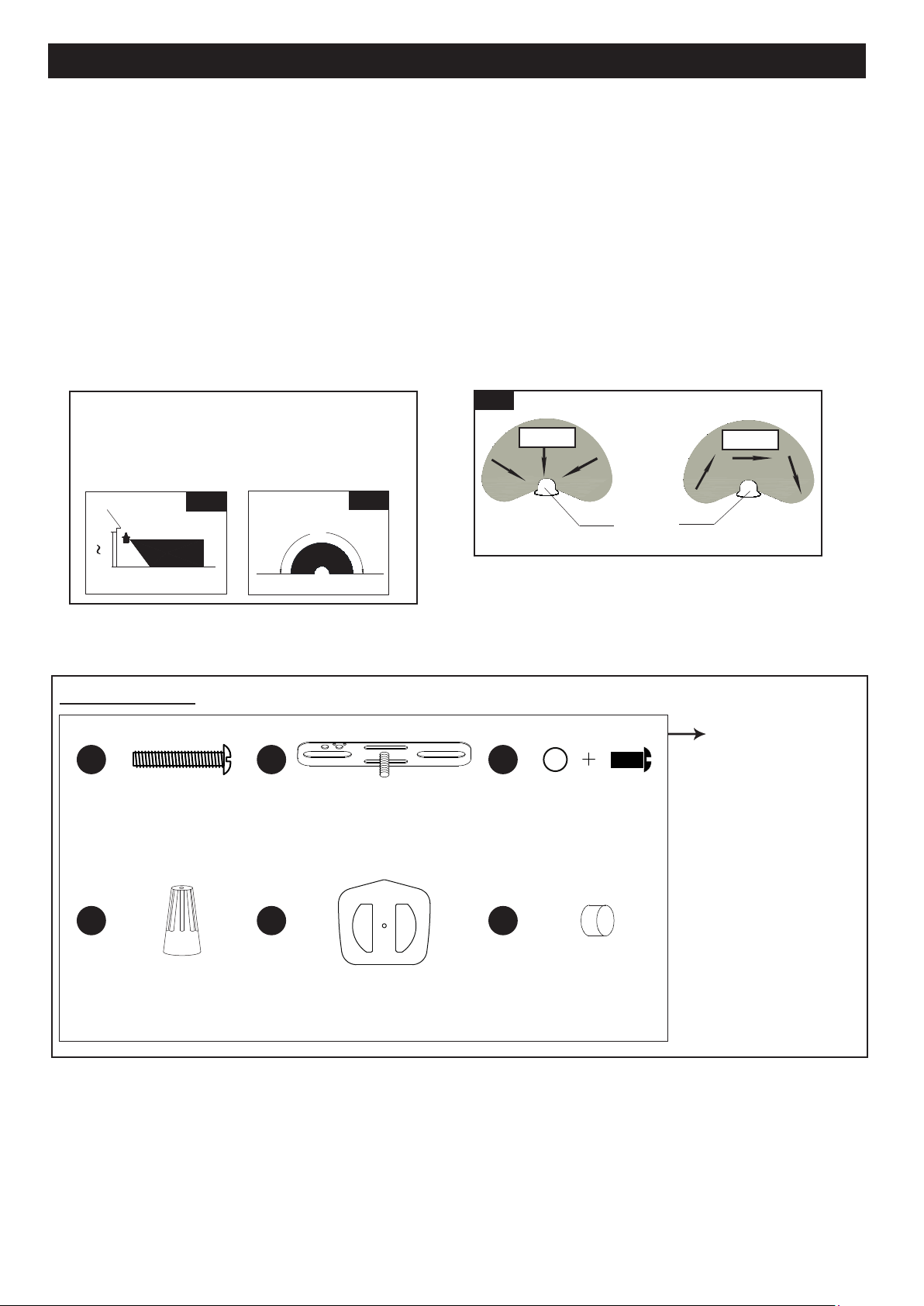

Fig. 8
Fig. 9
Fig.10
Motion
Least sensitive
Motion
Most sensitive
Sensor
10'
8.0'
12.0'
70'
Where you install your fixture is important:
Be sure the light is mounted straight on the wall
or eave; otherwise, the detection distance may
be limited.
180˚
Customization Options:
Shut-off Delay
● The shut-off delay is the length of time the light will stay at brightness after motion is detected.
● You can set the shut-off delay by rotating the Time knob arrow so it points to the desired time setting
(30s/1min/3min) (See Fig.5).
Notes:
1. The sensitivity of the motion sensor will increase as the environmental temperature gets cooler. For best
performance, gently clean the lens with a soft cloth every 1 or 2 months to ensure maximum sensitivity.
2. For best performance, install fixture at least 8 feet above the ground. At such a height, the fixture will provide a
detection distance of up to 70 feet at 77 degrees Fahrenheit. (See Fig.8)
3. The sensor detects movement across a detection range of 180 degrees. (See Fig.9)
4. The sensor will be more sensitive to motion across its detection path than motion directly towards it. (See Fig.10)
5. To reduce possible nuisances, do not mount the fixture near a heat source like an air conditioner, vent or furnace
exhaust, or in a direction facing any reflective object or other nearby light source.
The following parts are available for reorder if damaged or missing. Call our toll free at 1-800-887-6326.
Wire Connector
X3
Gasket
X1
AA CCBB
DD
Decorative Cover
X1
EE
Mounting Screw
X2
Mounting Strap Unit
X1
Ring and Screw
X1
FF
TROUBLE SHOOTING
Problem
The light will not come on.
The light comes on during the
day.
The light comes on for no
apparent reason.
The lights turn off too late in
the PC setting.
The lights stay on continuously.
The light fixture may be installed in a
relatively dark location.
Relocate the light fixture or use the
3 hour setting.
The light switch is turned off.
Possible Cause Solution
The fuse is blown or the circuit
breaker is turned off.
Turn the light switch on.
Replace the fuse or turn the circuit
breaker on.
Recheck after dark.
Verify the wiring is correct.
Re-aim the motion sensor to cover
the desired area.
Increase the “SENS” setting.
Daylight turn-off (photocell) is in
effect.
The circuit wiring is incorrect (if this
is a new installation).
The motion sensor is aimed in the
wrong direction.
The outside air temperature is close
to the same as a person’s body heat.
The motion sensor may be installed in
a relatively dark location.
The light fixture is operating
normally under these circumstances
Set the “TIME” switch to the 30s,
1min,3min setting.
The “TIME” switch is in the “TEST”
position.
The motion sensor may be sensing
small animals or automobile traffic.
Decrease the “SENS” setting or
reposition the motion sensor.
Decrease the “SENS” setting.
Decrease the “SENS” setting.
Do not use a dimmer or timer to
control the light fixture. Replace the
dimmer or timer with a standard
on/off wall switch.
The “SENS” switch is set too high.
The outside temperature is much
warmer or cooler than a person’s body
heat (summer or winter).
The light fixture is wired through a
dimmer or timer.
The motion sensor may be picking up
a heat source, such as an air vent,
dryer vent, or brightly painted,
heat-reflective surface.
Decrease the “SENS” setting or
reposition the motion sensor.
Switch the motion sensor to auto.
See Using manual mode on page 5.
Do not use a dimmer or timer to
control the light fixture. Replace the
dimmer or timer with a standard
on/off wall switch.
Install the light fixture on a circuit
without motors, transformers, or
fluorescent bulbs.
The motion sensor is in manual mode.
The light fixture is wired through a
dimmer or timer.
The light fixture is on the same circuit
as a motor, transformer, or fluorescent
bulb.
Page 7 of 8
201029
CARE AND MAINTENANCE
● To prolong the original appearance, clean the light fixture with clear water and a soft, damp cloth only.
● Do not use paints, solvents, or other chemicals on this light fixture. They could cause a premature deterioration of the
finish. This is not a defect in the finish and will not be covered by the warranty.
Page 8 of 8
201029
FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails
due to a defect in material workmanship within five (5) years from the date of original purchase, simply bring this
lighting fixture with the original sales receipt back to your nearest MENARDS retail store. At its discretion, PATRIOT
LIGHTING agrees to have the product or any defective part(s) repaired or replaced with the same or similar PATRIOT
LIGHTING product or part free of charge, within the stated warranty period, when returned by the original purchaser
with original sales receipt. This warranty; (1) excludes expendable parts including but not limited to light bulbs; (2) does
not cover damage that has resulted from abuse or misuse; and (3) does not cover any losses, labor, injuries to
persons/property or costs. This warranty does give you specific legal rights and you may have other rights, which vary
from state to state.
R
R
R
R
The lights flash once then
stay off in manual mode.
The lights flash on and off.
Problem Possible Cause Solution
The motion sensor is detecting light from
the lamp heads.
Reposition the lamp heads to keep
the
area below the motion sensor
relatively dark.
Heat or light from the lamp heads may
be turning the motion sensor on and off.
Heat is being reflected from other objects
and may be turning the motion sensor on
and off.
The motion sensor is in “TEST” mode
and warming up.
Reposition the lamp heads away
from the motion sensor.
Decrease the “SENS” setting
or reposition the motion sensor.
While in “TEST” mode, the light only
stays on for 30 seconds. Set the
“TIME” switch to 30s,1min,3min.
TROUBLE SHOOTING (CONTINUED)
If unable to fix any of the above issues, please consult a certified electrician.
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
