PAGE: 1 / 10
220104

PAGE: 2 / 10
X 16
F

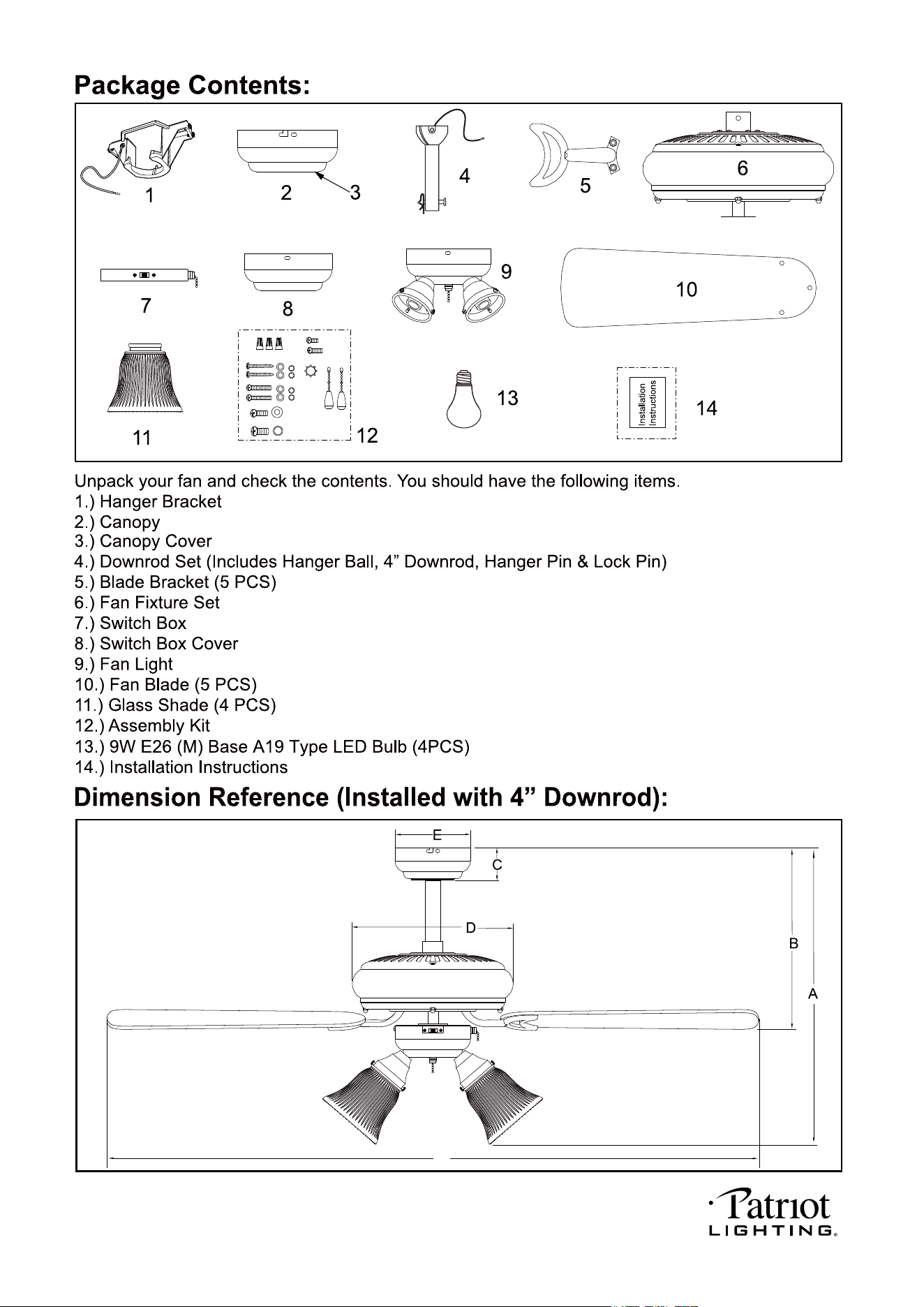

A. 18-1/2" B: 11-1/2" C. 2-1/8" D. 11" E. 5-1/4" F. 44"
(Remove the Preassembled Canopy Cover from the Canopy Before Installation.)
220104

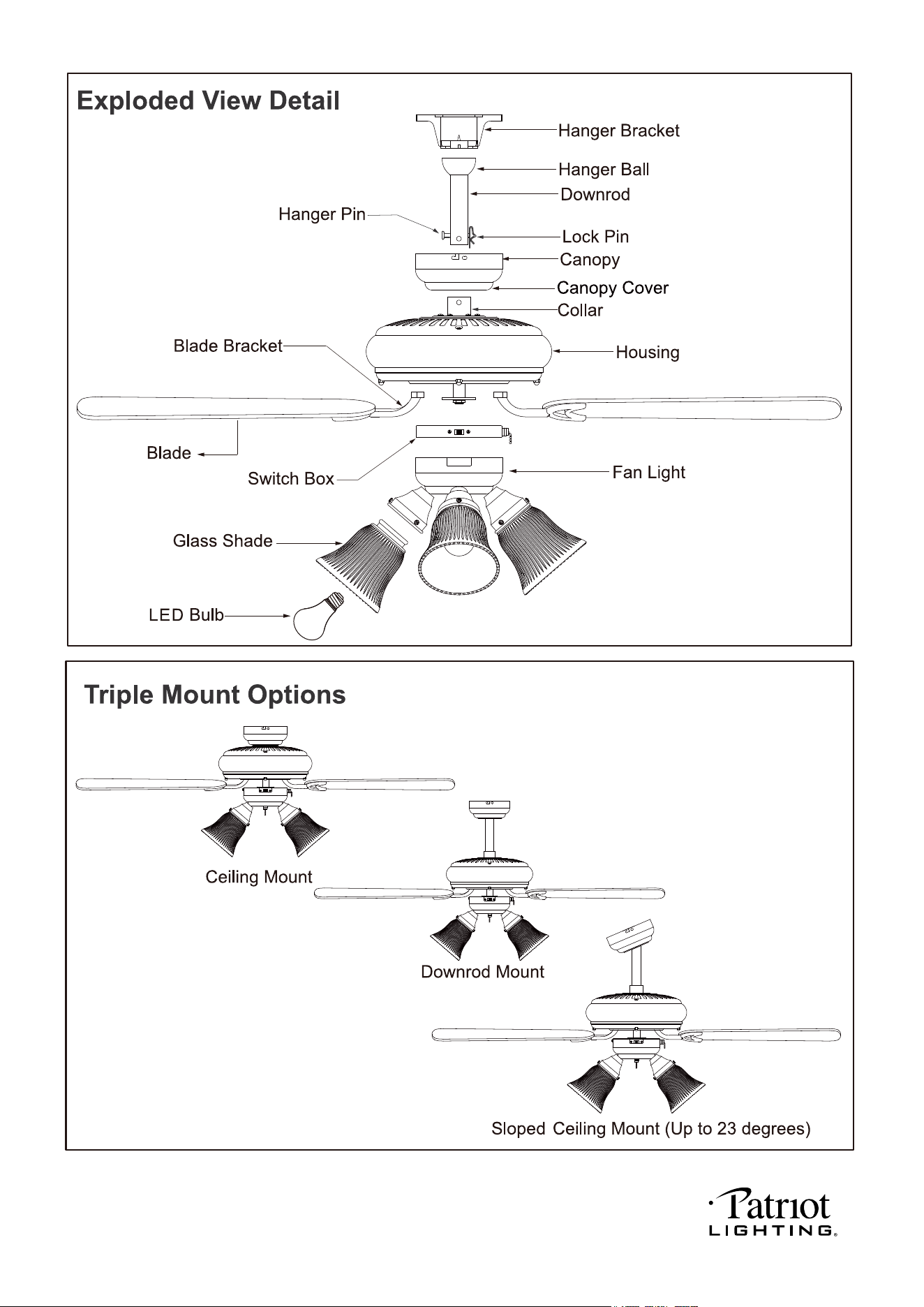

PAGE: 3 / 10
220104

PAGE: 4 / 10
220104

PAGE: 5 / 10

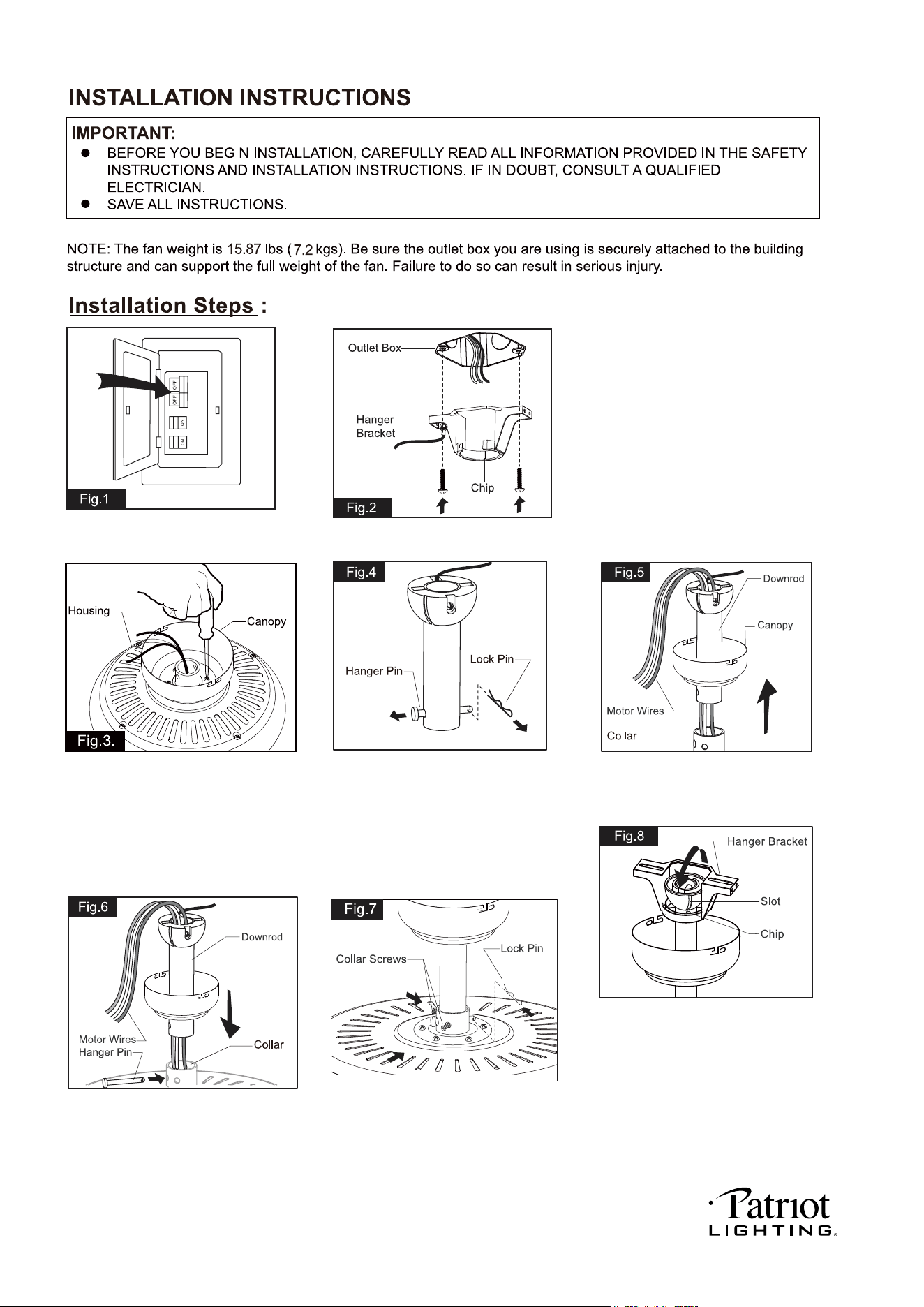

Tighten the hanger bracket to the outlet box
with two mounting screws. (To reduce the

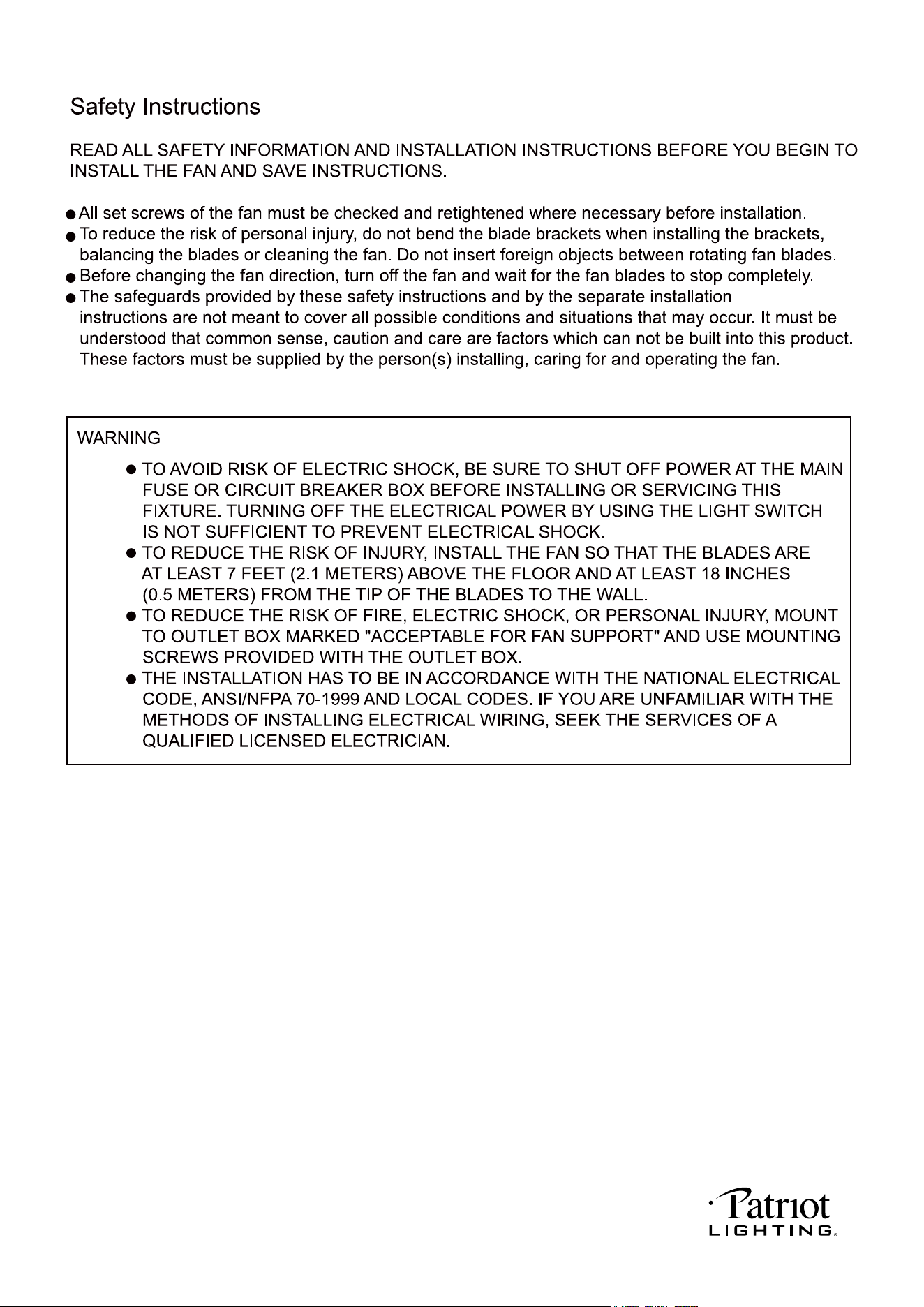

risk of fire, electric shock, or personal injury,
mount to an outlet box marked "Acceptable
for fan support" and use mounting screws
provided with the outlet box.)
Note: For sloped ceiling installation, make
sure that the chip of the hanger bracket
is toward the floor.
(For ceiling mount only)
Remove the canopy cover from the canopy.
Remove three of six screws (every
other one screw) securing the motor
collar to the top of the fan motor housing.
Attach the canopy to the housing with three
screws.

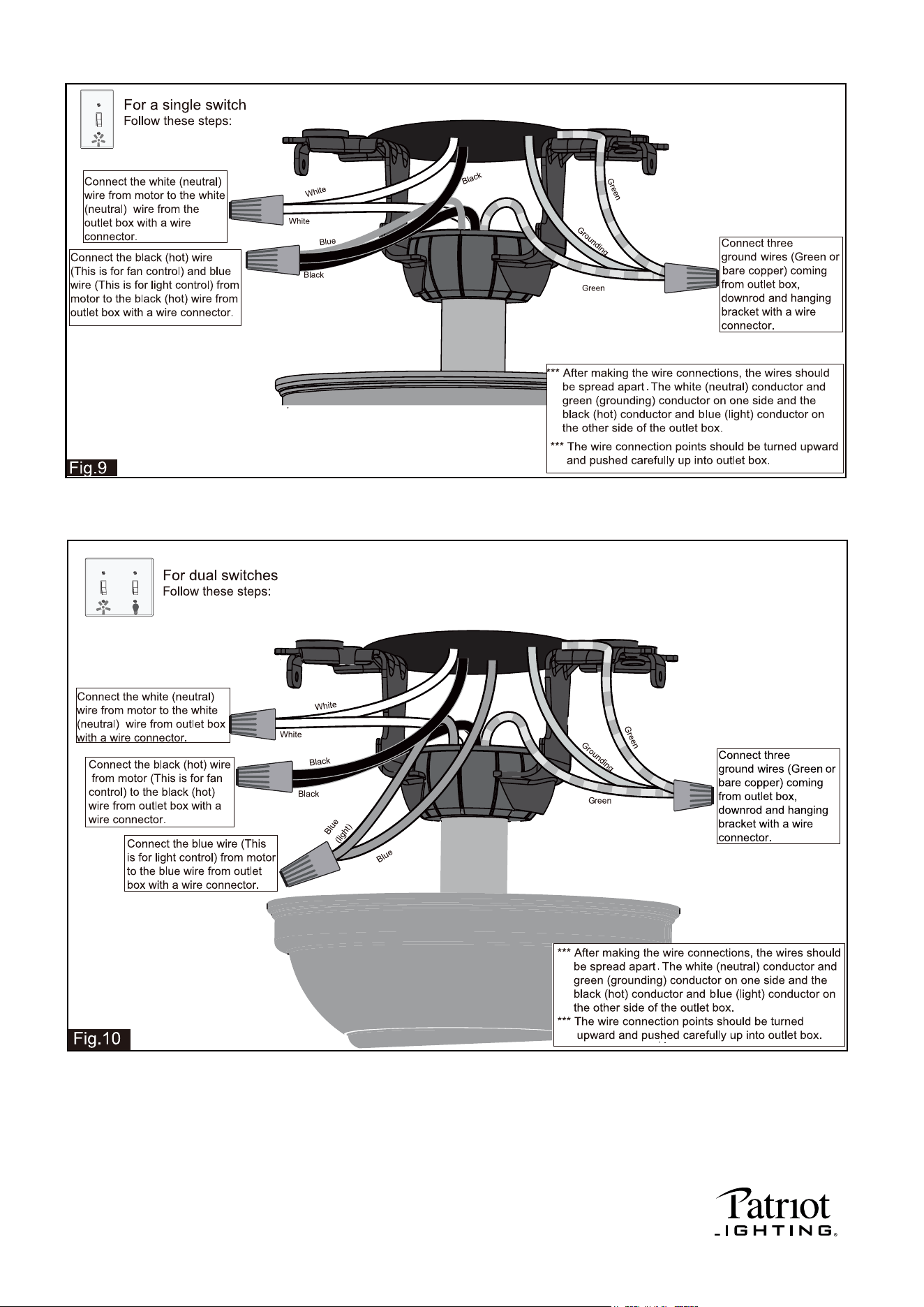

Go to Fig.9 for the next step.
(For downrod mount only)
Remove the lock pin and take off the
hanger pin.
(For downrod mount only)
Loosen the collar screws out part way.
Insert the downrod into the collar.
Slide hanger pin through holes of collar
and downrod.
(For downrod mount only)
Tighten the two collar screws. Slide lock
pin into hanger pin until it is locked into
position.
(For downrod mount only)
Thread the motor wires through the
canopy and downrod.
Turn OFF the electric circuit at the
main fuse or circuit breaker box.
(For downrod mount only)
Hang the fan on hanger bracket, and
make sure the slot of hanger ball is
snapped into the chip of hanger bracket
exactly.
Note: For sloped ceiling installation
make sure the slot of hanger ball
and the chip of hanger bracket
face down.
220104

220104
PAGE: 6 / 10

PAGE: 7 / 10
Switch
Box
box box
Remove screws from switch box,
Remove screws from switch box first,
box
box

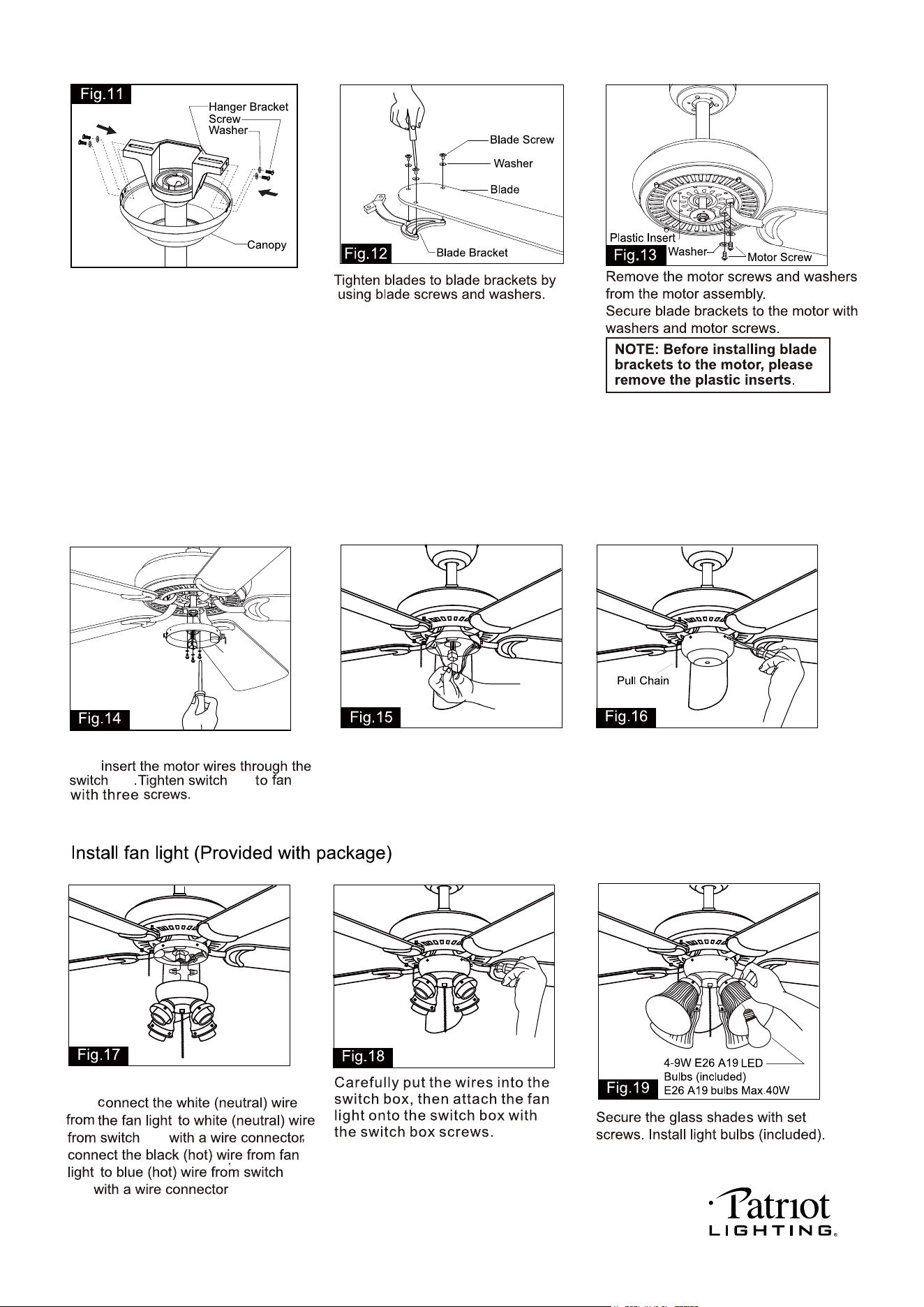

There are four hanger bracket screws
and lock washers.
Remove two screws and lock washers
from the hanger bracket (one from
each side) and loosen the other two
remaining screws. Align the "L shaped"
slots of the canopy with the two
remaining screws on the hanger bracket
and push the canopy upwards to engage
the slots and turn clockwise to lock in
place. Tighten the screws and install
the other two hanger bracket screws
and lock washers into the remaining
holes of the canopy and tighten.
then
then
Connect the male terminal from
motor and female terminal from the
switch box.
Assembly without fan light
Remove screws from switch box first,
then secure the switch cover with the
switch box screws.
Use pull chain to control the fan speed.
Note: To install the fan light, skip this
step and proceed to Fig.17.
220104

PAGE: 8 / 10
2. Compatible Wall Switches: Menards SKU# 363-2615 / 363-5815.

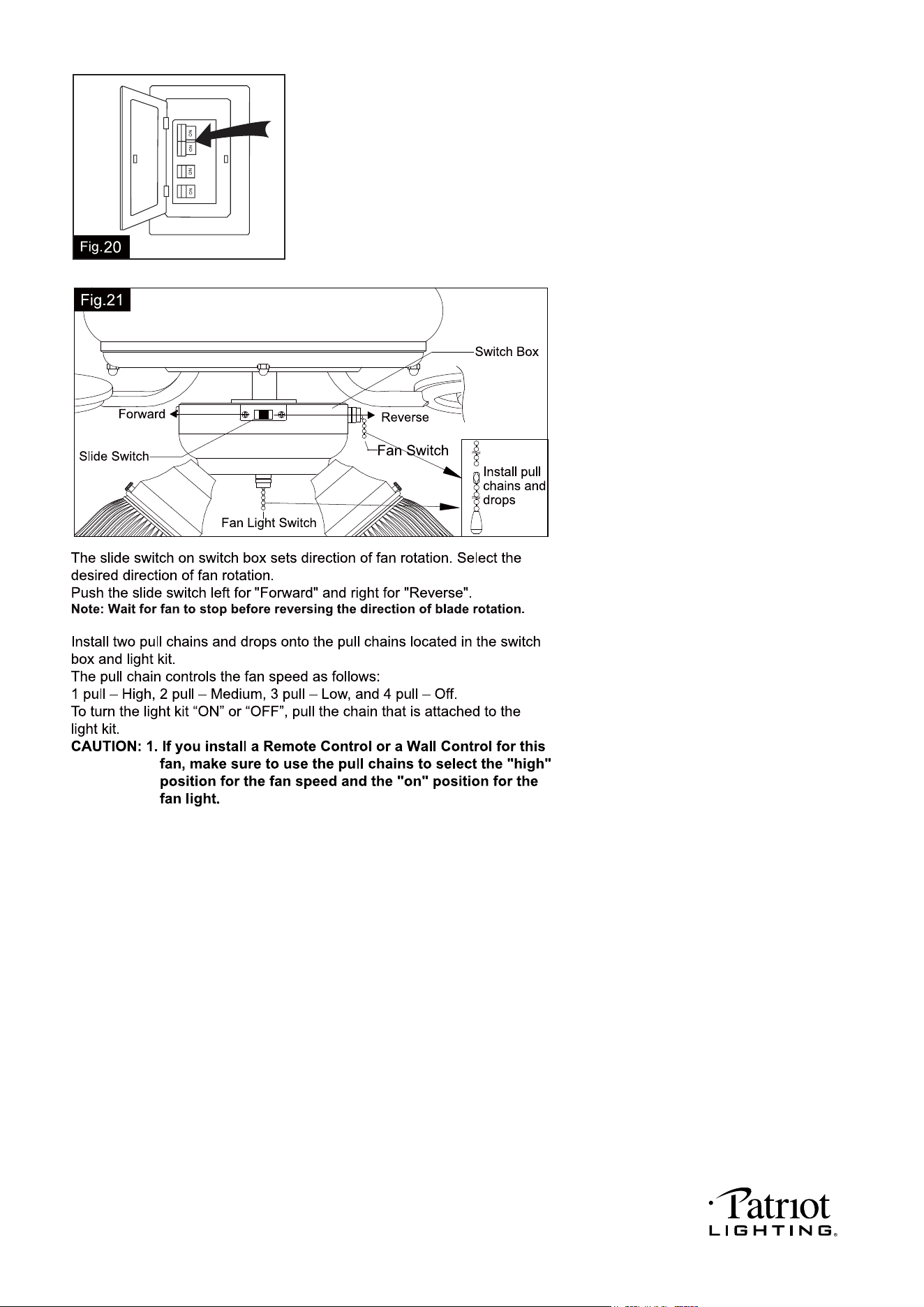

Turn ON the electric circuit at the main fuse or circuit breaker box.
220104

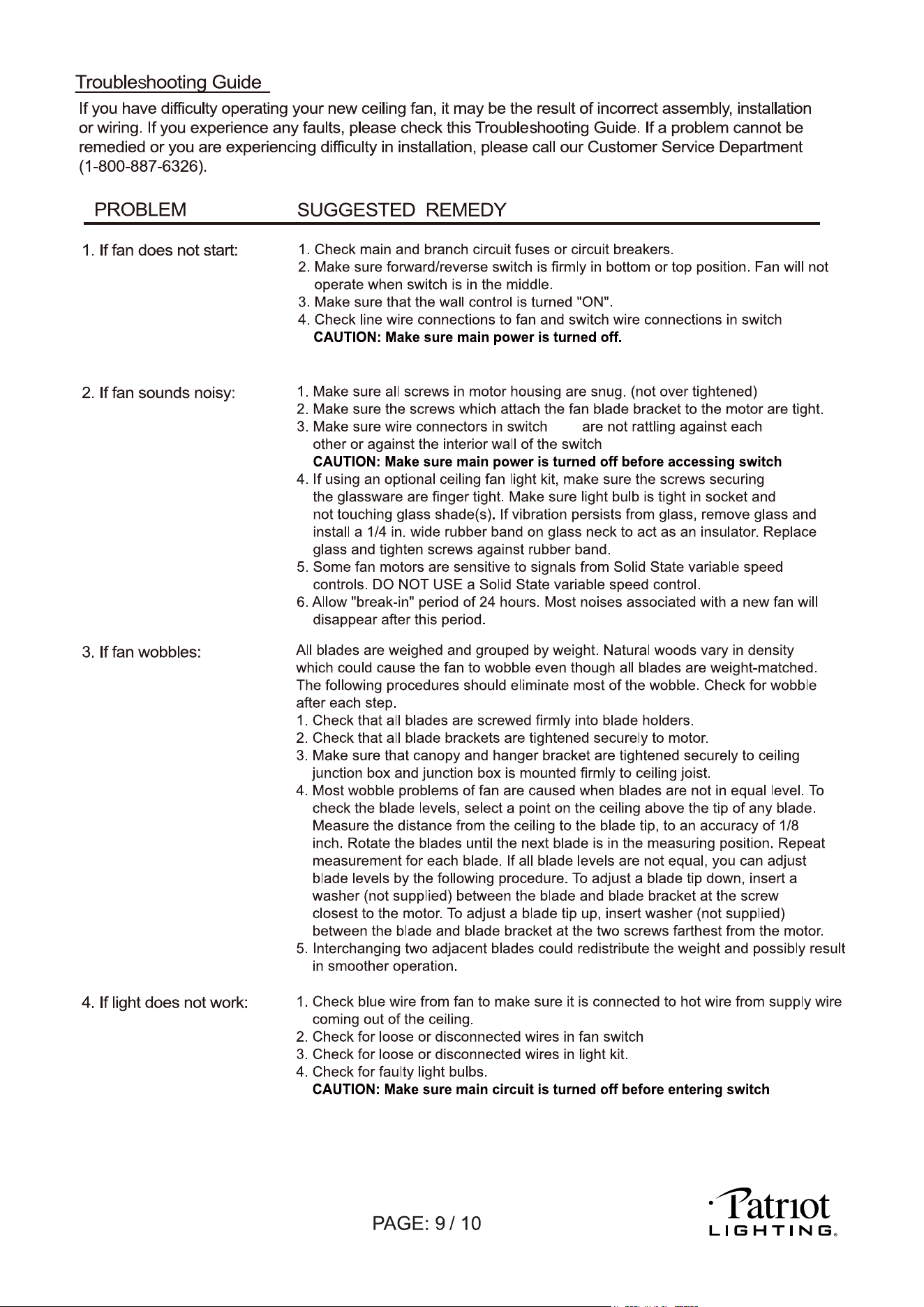

box.
box
box.
box.
box.
box.
220104

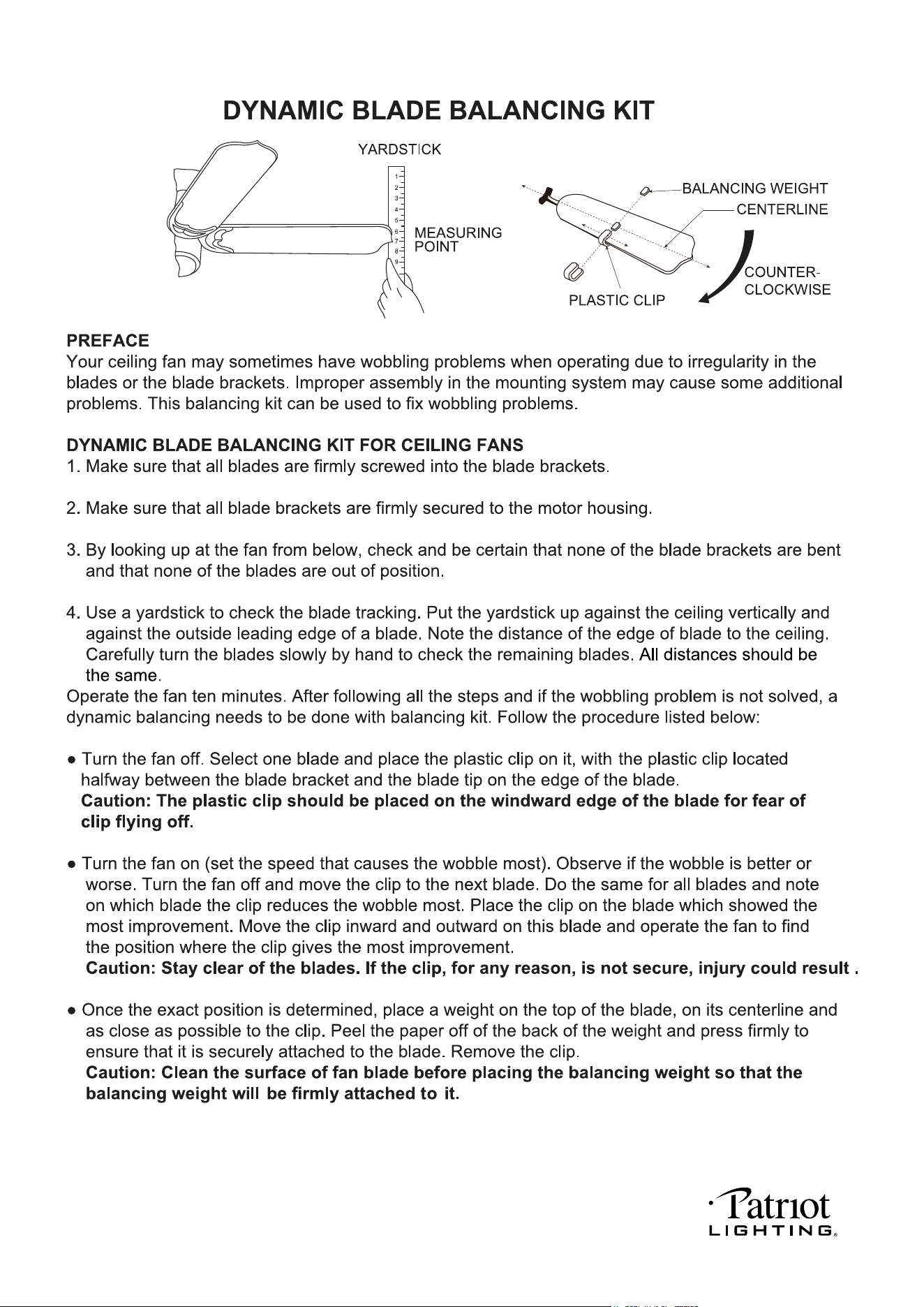

PAGE: 10 / 10
220104
