52” Voyager
Indoor Ceiling Fan
Owner’s Manual
Model #25008
SKU # 355-1604
SAFETY INSTRUCTIONS
1
WARNING:
• To avoid risk of electrical shock, be sure to shut off power at the main fuse or circuit breaker
panel box before installing or servicing this fixture. Turning off the electrical power by using the
light switch only is not sufficient to prevent electrical shock hazard.
• To reduce the risk of fire, electric shock, or personal injury, mount fan to an outlet box marked
“acceptable for fan support up to 35 lbs. (16 kg)” and use mounting screws provided with the
outlet box. The total weight of this fan is approximately 18 lbs. (8.2 kg).
• All wiring must be in accordance with the National Electrical Code ANSI/NFPA 70 and any
applicable local codes. Electrical installation should be performed by a qualified licensed
electrician.
• To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control
device.
• Do not bend the blade iron brackets when installing the brackets, balancing the blades, or
cleaning the fan. Do not insert foreign objects in between rotating fan blades.
CAUTION:
• To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 meters)
above the floor and at least 30 inches (0.76 meters) from the tip of the blades to the wall.
• Check and retighten all screws, nuts, and bolts to ensure they are secured prior to operating the
fan.
• Be sure the outlet box is properly grounded and that a ground wire (green or bare) is present.
• When changing (reversing) the blade direction, turn off the fan and wait for the fan blades to
stop completely.
• To reduce the risk of serious bodily injury, do not use power tools to assemble any part of the
fan, including the blades.
• To reduce the risk of personal injury, use only parts provided with this fan. The use of parts
other than those provided with this fan will void the warranty.
• Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly
dampened cloth is recommended to prevent scratching and will be suitable for most cleaning.
• In case this fan needs to be returned to the factory for repairs, it must be shipped in its original
carton and foam inserts to ensure proper protection against shipping damage that may exceed
the initial cause for return.
• Please read and understand these safety instructions and the installation guide before
attempting to assemble, install, or operate the fan.
2

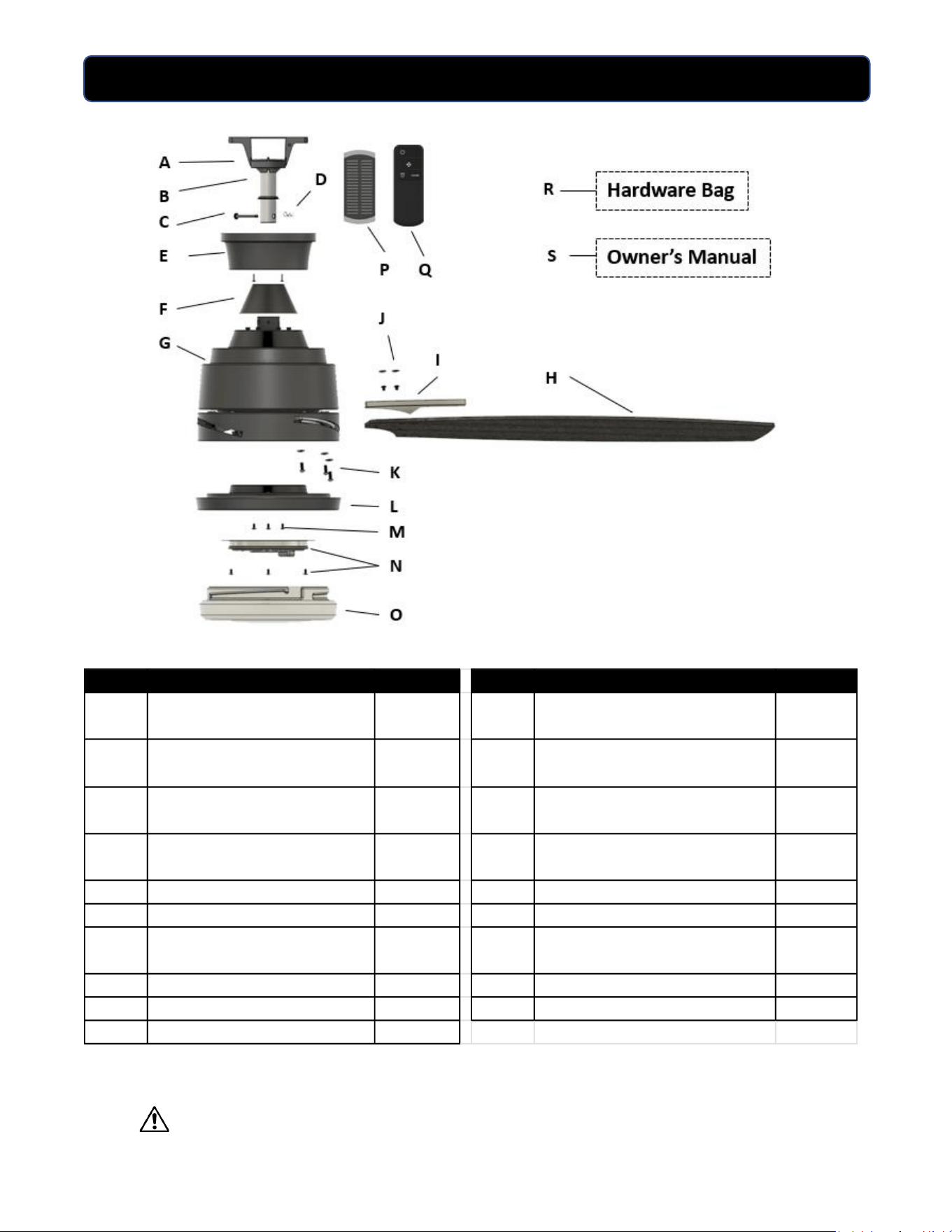

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY
A
Mounting Bracket and (2)
canopy screws
1 K Blade Screws and Washers 9 each
B Downrod and Downrod Ball 1 L
Light Kit Plate 1
C Downrod Pin (pre-installed) 1 M
Light Kit Screws (pre-installed
on motor shaft ring)
3
D Downrod Clip (pre-installed) 1 N
LED Lighting Board and (Screws
pre-installed on light kit plate)
1
E Canopy 1 O Light Kit Glass 1
F
Yoke Cover 1 P Remote Receiver 1
G Motor Housing 1 Q
Handheld Remote Control and
(2) AAA batteries
1
H Blades 3 R
Hardware Bag and Balancing Kit 1
I Blade Medallion 3 S Owner's Manual 1
J Blade Medallion Screws 6
IMPORTANT REMINDER: You must use the parts provided with
this fan for proper installation and safety.
3

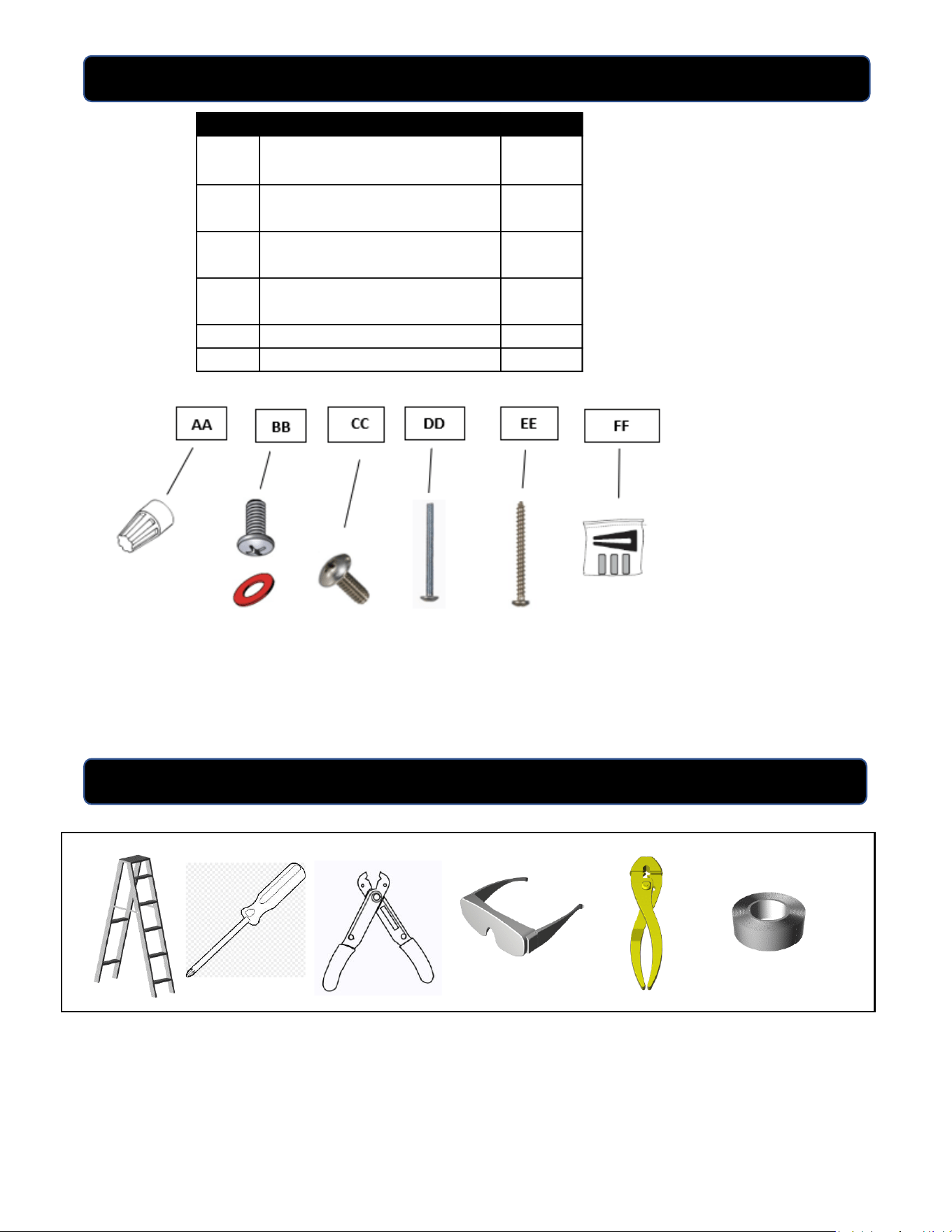

HARDWARE KIT CONTENTS
NOTE: For your convenience some extra hardware may be included. The quantity listed
above is the number required for installation.
Tools required for assembly: Step Ladder, Phillips Screwdriver, Wire Strippers, Safety
Glasses, Pliers, and Electrical Tape.
Helpful Tools: AC Tester Light/Multimeter, Tape Measure, and Wiring Handbook.
PART DESCRIPTION QUANTITY
AA
Wire Connectors: 6 for remote
receiver, 3 for house wiring
9
BB
Blade Screws and Fabric
Washers 9 each
CC
Blade Medallion Screws (small) 6
DD
Machine Screws and Lock
Washers
2 each
EE Wood Screws and Washers 2 each
FF Balance Kit 1
TOOLS REQUIRED (not included)
4

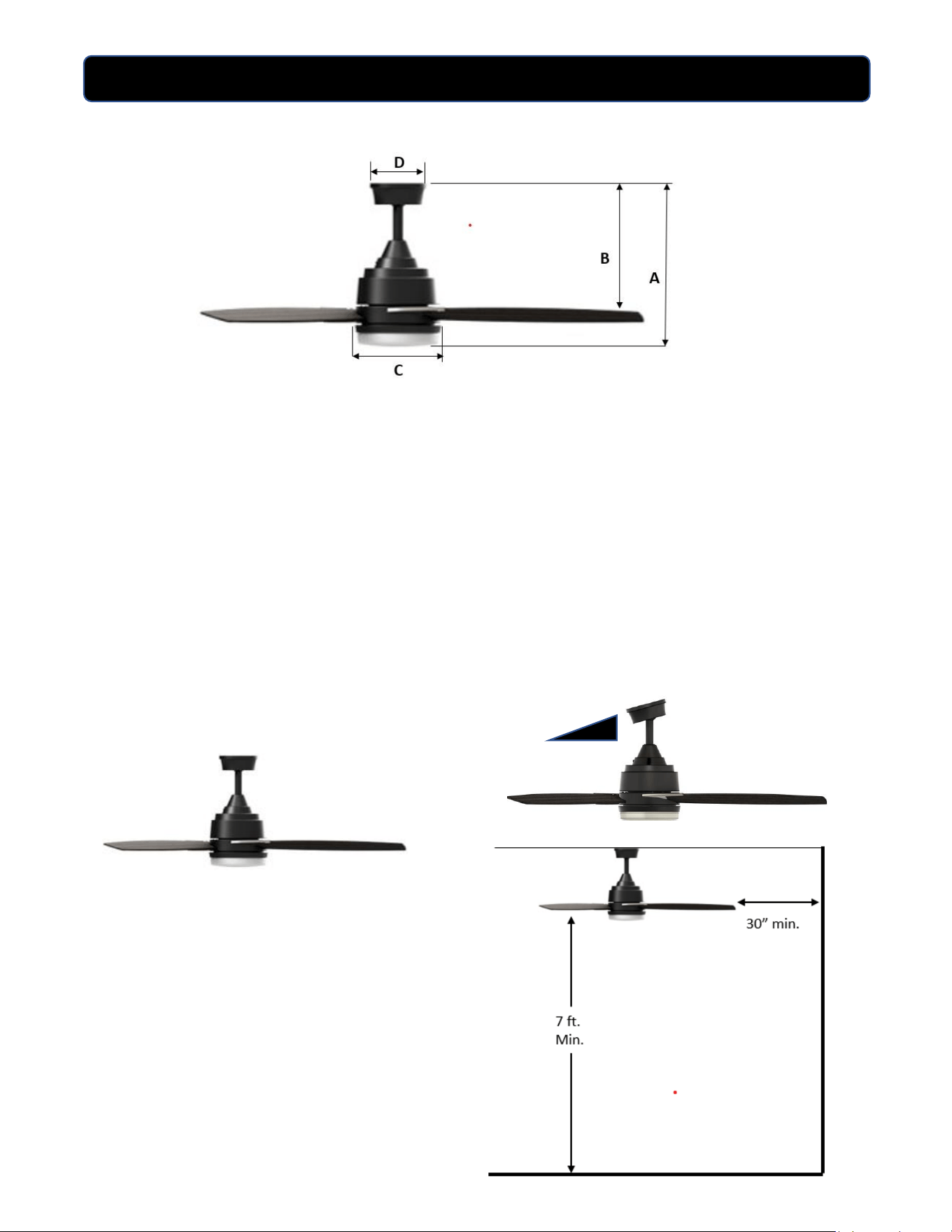

DIMENSION REFERENCE
A: 16.5 in. B: 14.1 in. C: 8.5 in. D: 5.7 in. (Note: Dimensions with 6” downrod)
Choose one of the following mounting options:
Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may
want to use a longer downrod (sold separately).
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade clearance from the ceiling. If using the
angled mount, check to ensure that the ceiling angle is not steeper than 18 degrees.
NOTE: Make sure blades are at least 30
inches from any wall or obstruction and
at least 7 feet above the floor.
Downrod Mount
Angled Mount
18⁰ Max.
5
ASSEMBLY INSTRUCTIONS

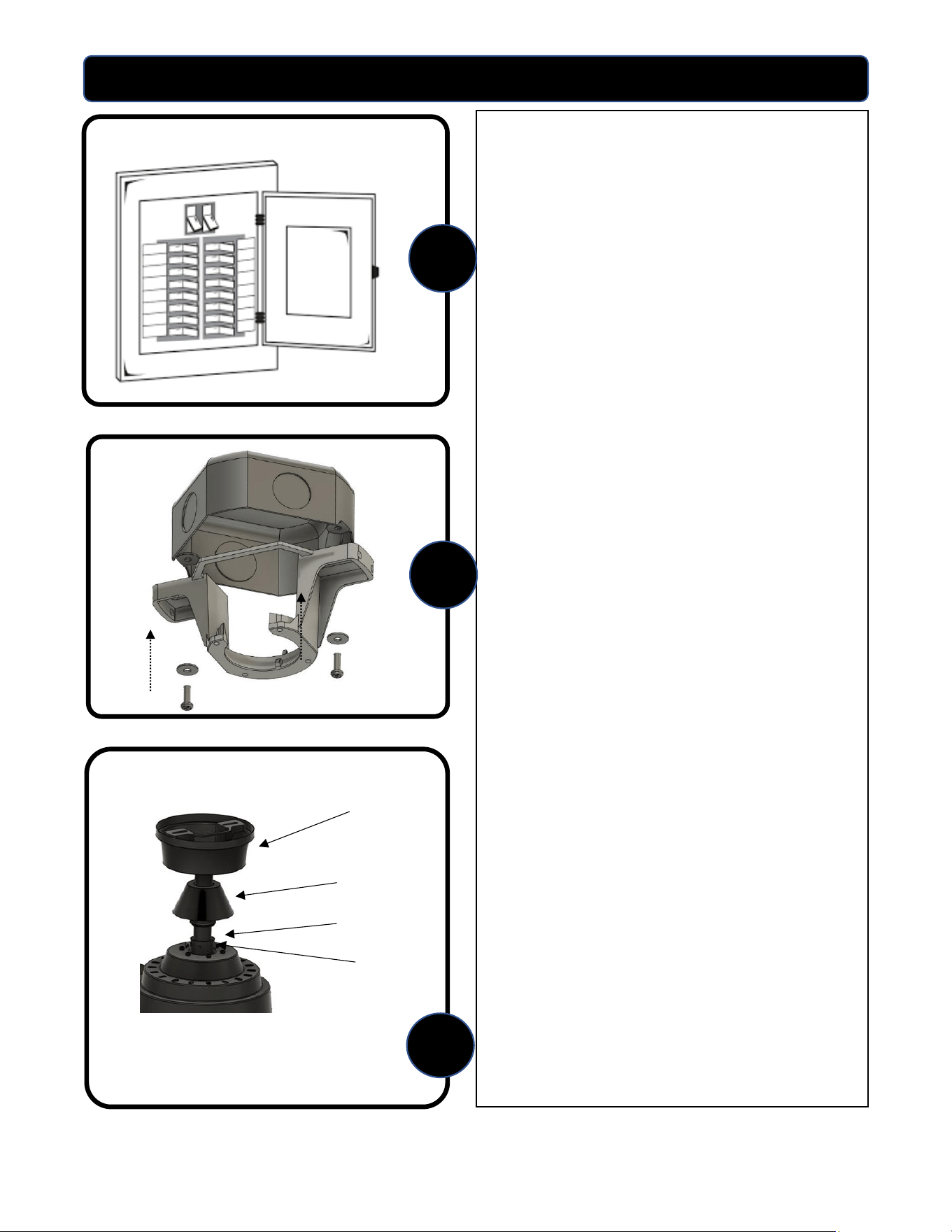

1. Turn OFF the electrical power at the
main fuse or circuit breakers.
NOTE: Before continuing installation,
confirm that the power is still turned off
at the main circuit breaker or by
removing the correct fuse. Turning the
power off using a wall switch is not
sufficient to prevent electrical shock.
2. The mounting bracket is shipped inside
the canopy. Loosen the two canopy
mounting screws and separate the
bracket from the canopy. Secure the
mounting bracket to the outlet box (not
included) using the screws and washers
provided with the outlet box.
WARNING: To reduce the risk of fire
electrical shock, or personal injury,
mount to the outlet box marked
“acceptable for fan support” using the
mounting screws and washers provided
with the outlet box.
3. DOWNROD ASSEMBLY & MOUNT for 6”
DOWNROD – Remove the downrod pin
and downrod clip from the downrod.
Slide the canopy onto the downrod with
the open end facing up toward the ball.
Then slide the yoke cover onto the
downrod with the flat end toward the
canopy and downrod ball.
1
2
3
Canopy
Yoke Cover
Pin and Clip
Yoke
6
ASSEMBLY INSTRUCTIONS

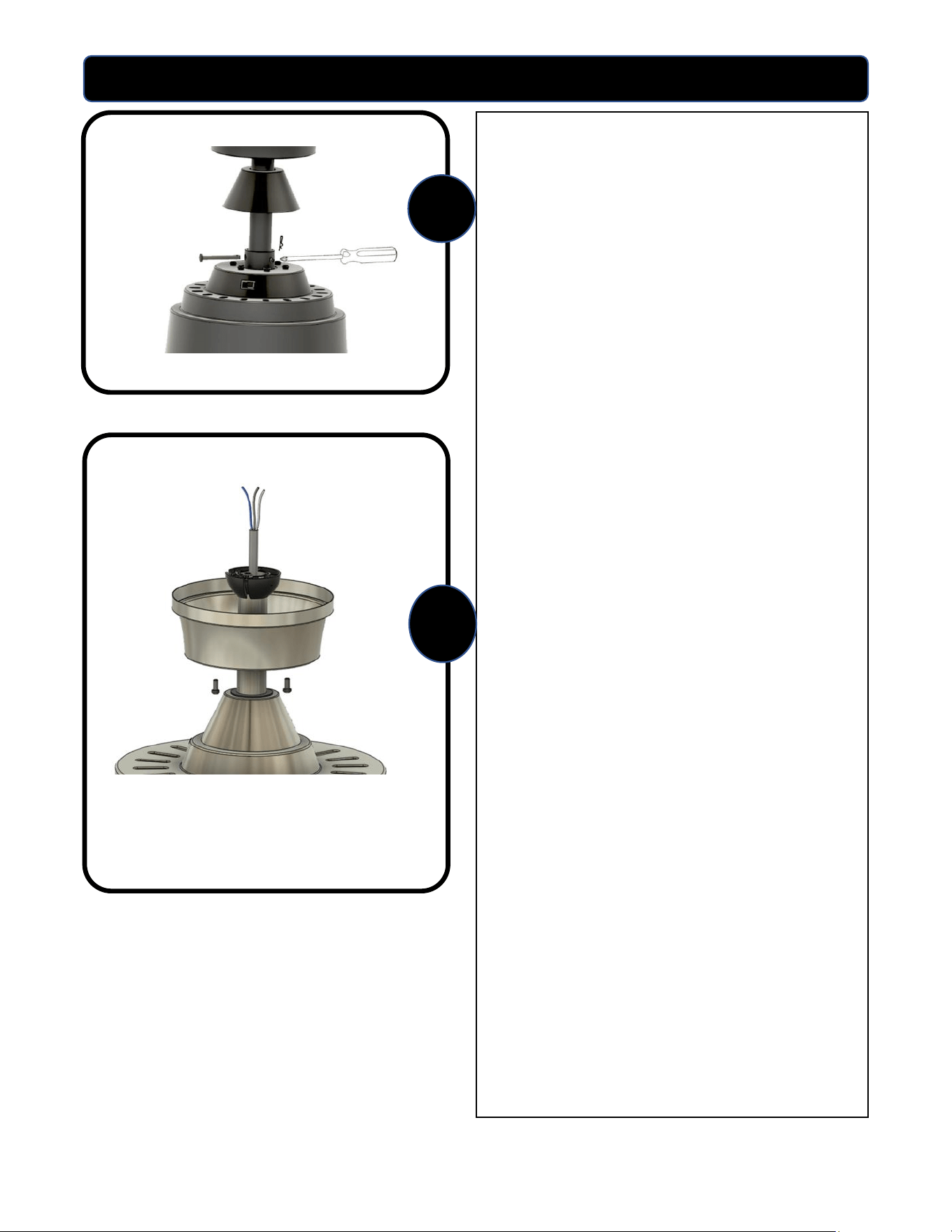

4. Loosen but do not remove the two set
screws in the yoke. Set screws need
to be loosened enough to fully insert
the downrod.
5. Feed the entire length of the 3 wires
coming from the fan through the
bottom of the downrod and out the
top of the downrod ball. Insert the
downrod into the yoke and reinstall
the downrod pin and downrod clip.
Then re-tighten the two set screws.
NOTE: With wiring extending out the
top of the downrod ball, measure 10 -
12 inches of lead wire and cut the
excess wire with wire cutters if using
the 6” downrod. Then strip ½” of
insulation from the end of each wire.
For extension downrods measure as
needed.
4
5
7
ASSEMBLY INSTRUCTIONS

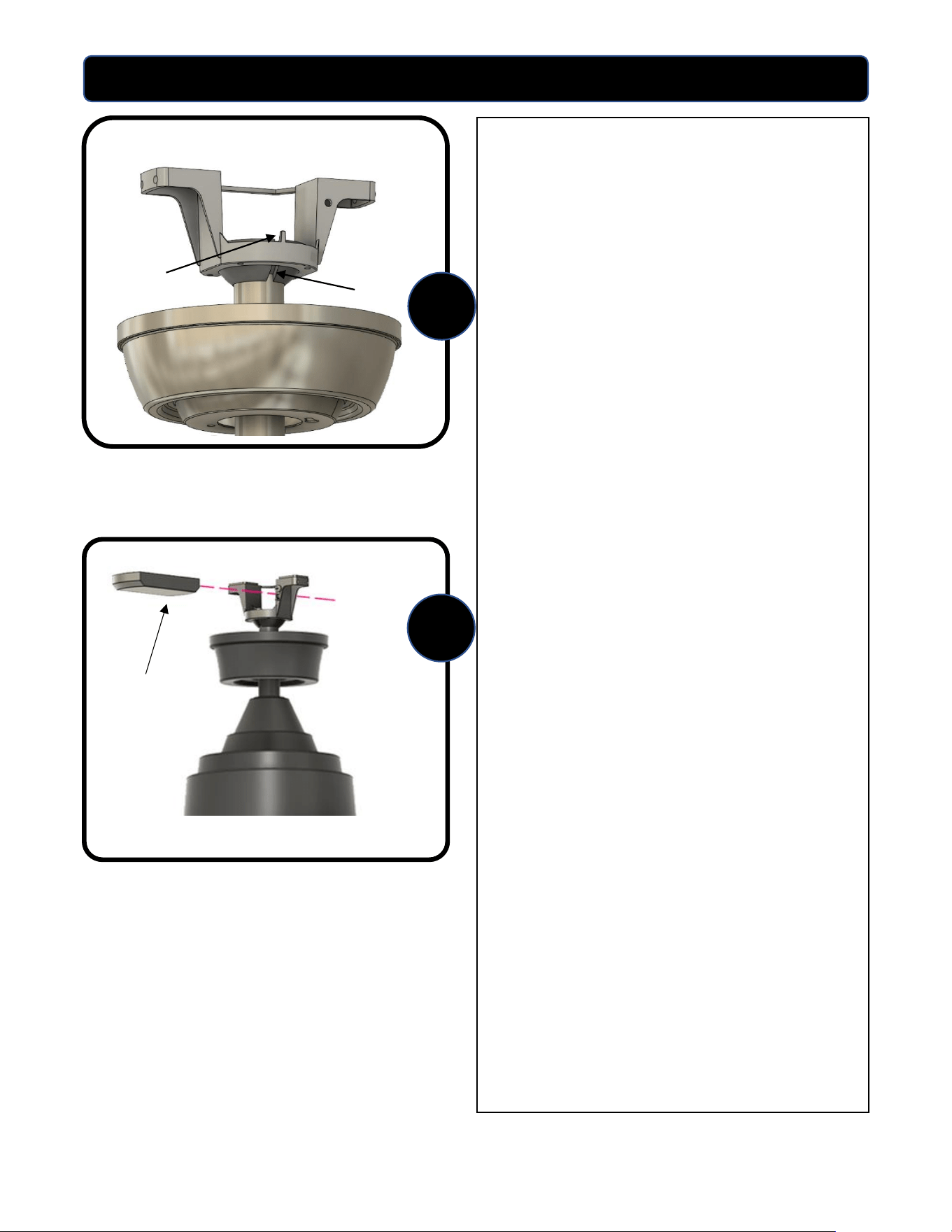

6. Lift the downrod into the mounting
bracket. Rotate the downrod until
the tab in the mounting bracket is
seated in the slot in the downrod ball.
WARNING: The fan and/or downrod
should not rotate in the mounting
bracket if installed correctly. Failure to
align the slot in the downrod ball with
the tab may result in fan falling causing
serious injury or death.
Canopy as pictured for illustration
purposes only – canopy shape in your
specific fan may be slightly different.
7. WIRING THE FAN AND REMOTE
RECEIVER-- Slide the remote receiver
into the mounting bracket with the
slotted side facing down toward the
downrod ball and the flat side of the
receiver facing up toward the ceiling.
7
Slot
Tab
6
Receiver
8
ASSEMBLY INSTRUCTIONS

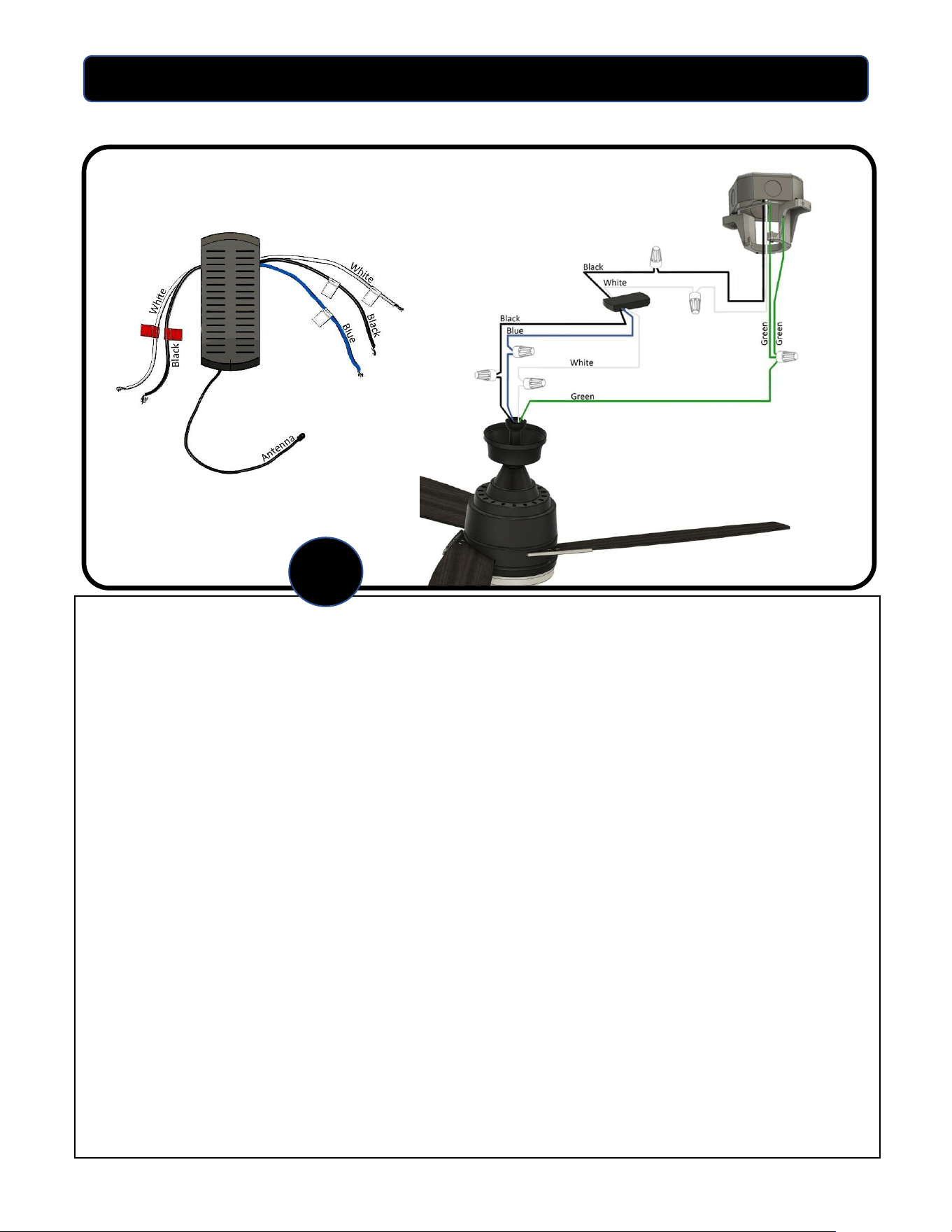

8. Use the supplied wire connectors to connect the fan wires to the remote receiver and then the
receiver to the power supply wires according to the wiring diagram and following instructions:
Connecting the fan to the remote receiver:
• Connect the white wire from the fan to the white (common) wire from the 3-wire side of the
receiver.
• Connect the black wire from the fan to the black wire from the 3-wire side of the receiver.
• Connect the blue wire from the fan to the blue wire from the 3-wire side of the receiver.
Connecting the remote receiver to the power supply:
• Connect the white wire from the 2-wire side of the receiver to the white wire coming from the
ceiling.
• Connect the black wire from the 2-wire side of the receiver to the black wire coming from the
ceiling.
• Connect all green (ground) wires together: Connect the green wire from the downrod to the green
wire from the mounting bracket and the green wire from the ceiling.
• IMPORTANT: Make sure all connections are secure and the wires do not come loose from the wire
nuts. Carefully turn the splices upward through the hanger bracket and push them back up into the
outlet box. Place the black and blue wire connections on one side of the outlet box and place the
white and green wire connections on the other side of the outlet box. Be sure to tuck the antenna
wire inside the canopy but not up inside the outlet box.
8
9
ASSEMBLY INSTRUCTIONS

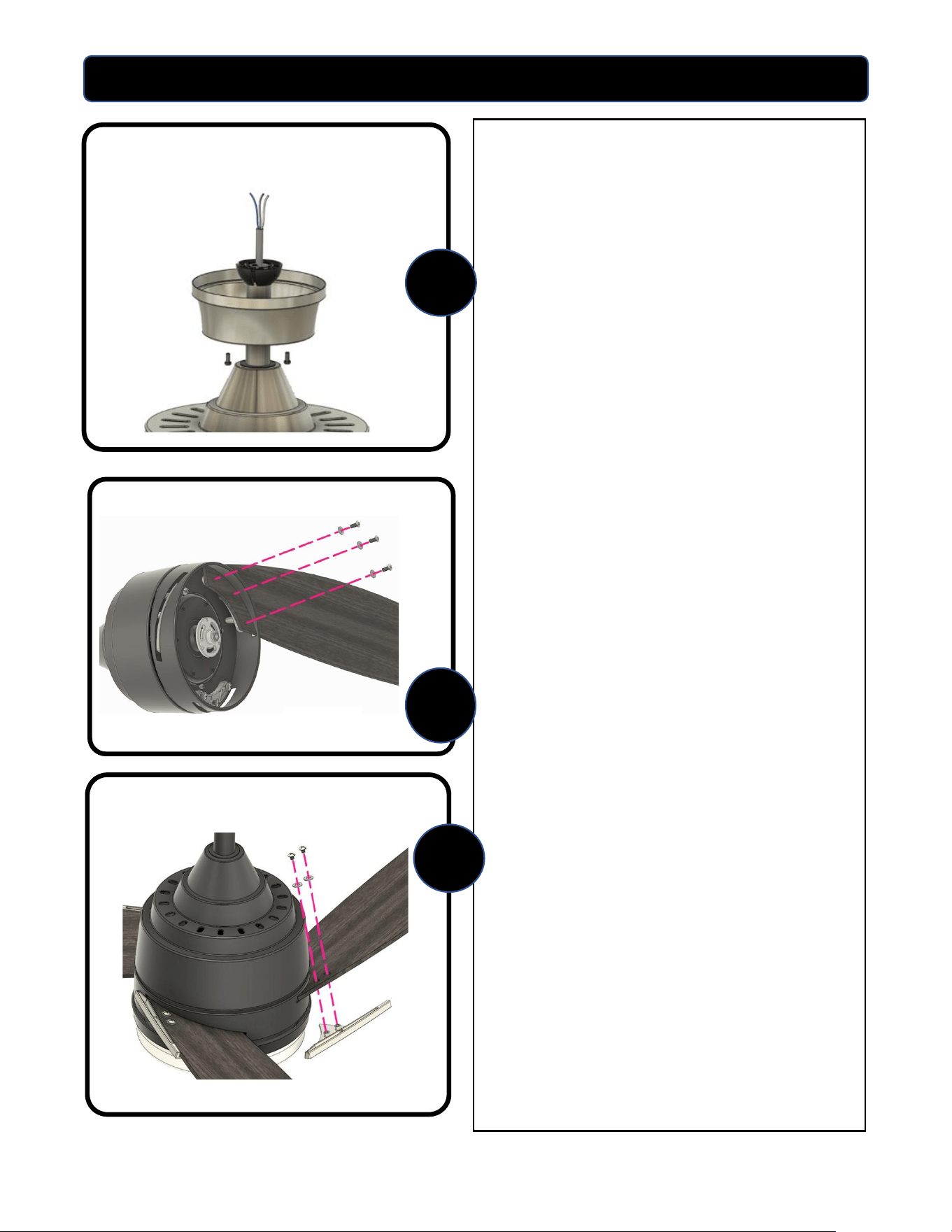

9. Locate the (2) previously loosened
screws on underside of hanging
bracket. Place rounded part of slotted
hole in canopy over the loosened
screws in hanging bracket and push
up. Make sure all wires are tucked
into the canopy and will not be
pinched, including the black antenna
wire. Twist canopy to lock. Tighten
screws securely.
INSTALLING THE BLADES
10. Insert the blade into one of the blade
slots around the motor housing and
line up the (3) holes at the end of the
blade with the (3) holes on the
bottom of the motor housing. Secure
the blade to the fan using (3) blade
screws and fabric washers.
Repeat for the remaining (2) blades..
INSTALLING THE BLADE MEDALLIONS
11. Place the medallion on the bottom of
the blade next to the motor housing
and line up the two screw holders
with the two holes in the blade.
Secure the medallion to the blade by
inserting (2) medallion screws from
the top side of the blade and
tightening down the screws.
Repeat for the other two blades.
PRO TIP: Install the blade medallions
onto each blade first, then install the
blades onto the fan.
9
10
11
10
ASSEMBLY INSTRUCTIONS

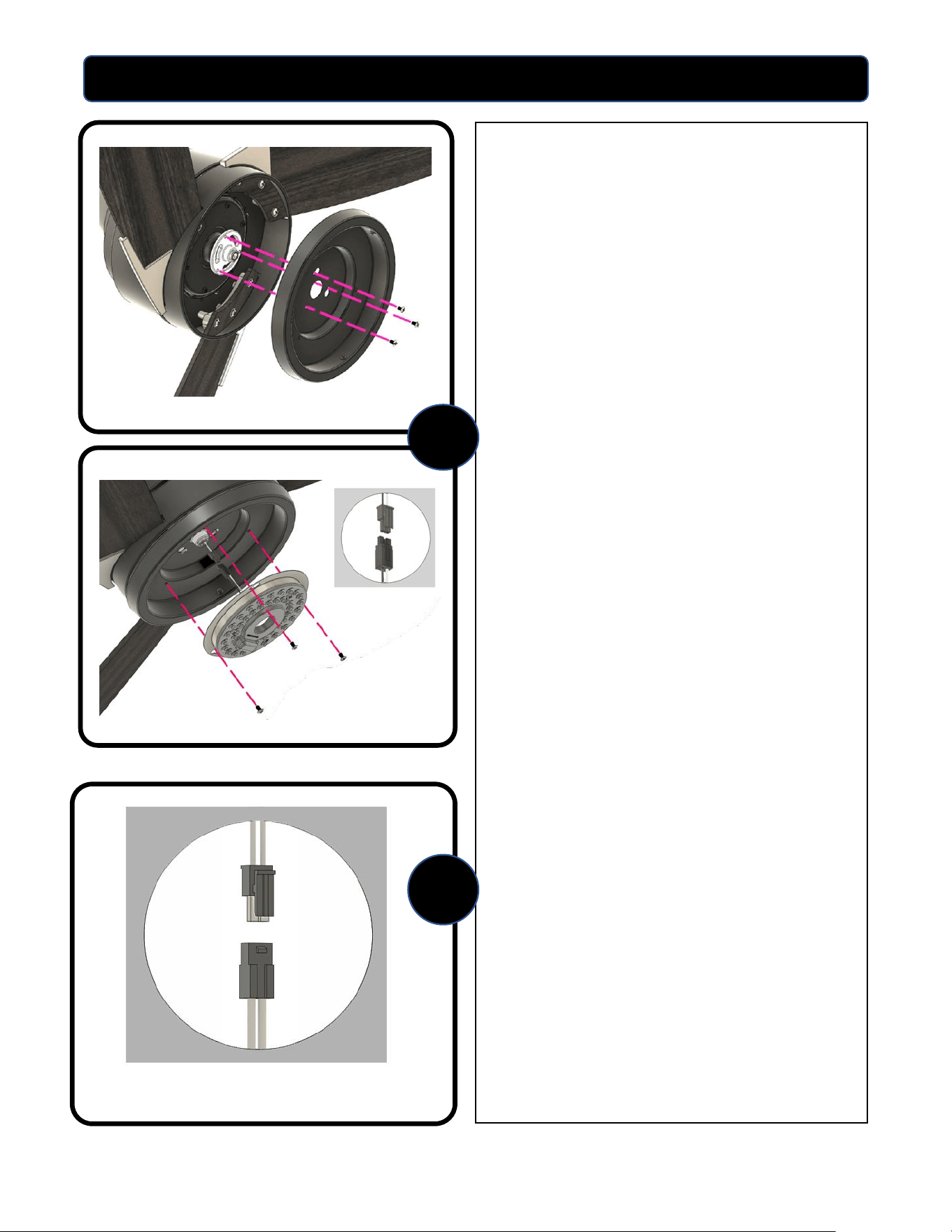

INSTALLING THE LIGHT KIT
12. Remove one (1) of the pre-installed
screws on the motor shaft ring and
loosen the other two (2) screws.
Position the light kit plate under the
fan and feed the light kit wire through
the cut out in the center of the light
kit plate. Line up the two keyhole
slots on the light kit plate with the
two loosened screws and lock into
place and tighten down. Install the
remaining screw in the remaining
hole.
Remove (1) of the pre-installed
screws on the light kit plate and
loosen the other (2) screws. Line up
the two keyhole slots on the LED
lighting board with the two loosened
screws, lock the screws into place,
and tighten down. Install and tighten
down the remaining screw.
CONNECTING THE LIGHT KIT
13. Connect the wiring from the LED
lighting board to the fan wiring by
connecting the two ends of the push-
pin wiring harness. Note the clip on
the outside of the one connector
should engage and snap together
with the catch on the other
connector. Push the connectors and
excess wire back up into the center
hole so that it will not block any of
the light output.
12
13
11
ASSEMBLY INSTRUCTIONS

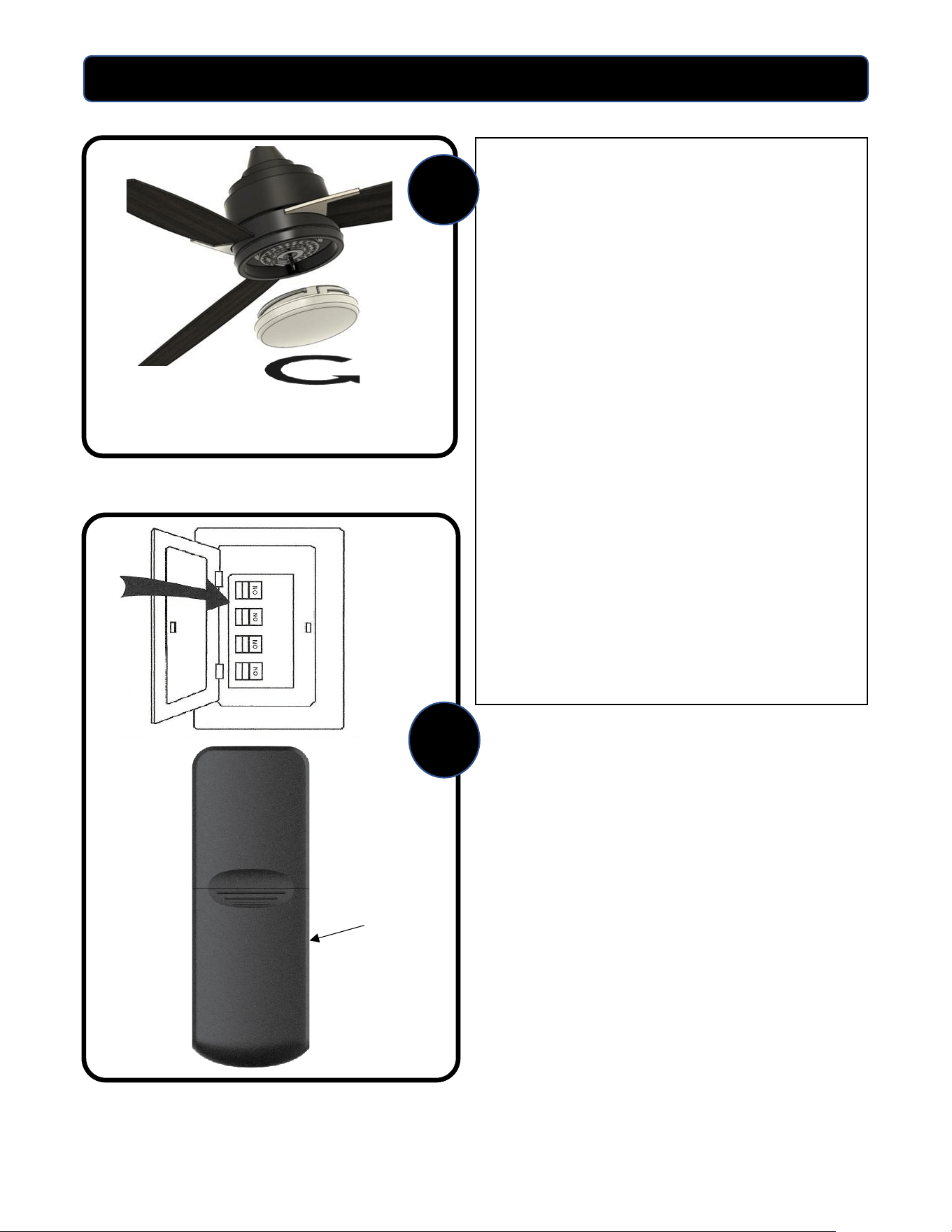

14. INSTALLING THE LIGHT KIT GLASS
Position the glass bowl to line up with
the bottom of the light kit. While
holding the glass up to the bottom of
the light kit, turn the glass clockwise
until the notch in the glass slips into
the light kit channel. Continue to turn
clockwise until snug and tight. DO
NOT OVERTIGHTEN.
Assembly complete.
15. Restore the power to the main fuse
or circuit breaker. Install the batteries
into the battery compartment on the
back of the handheld remote control.
14
15
Battery
compartment
12
OPERATING INSTRUCTIONS

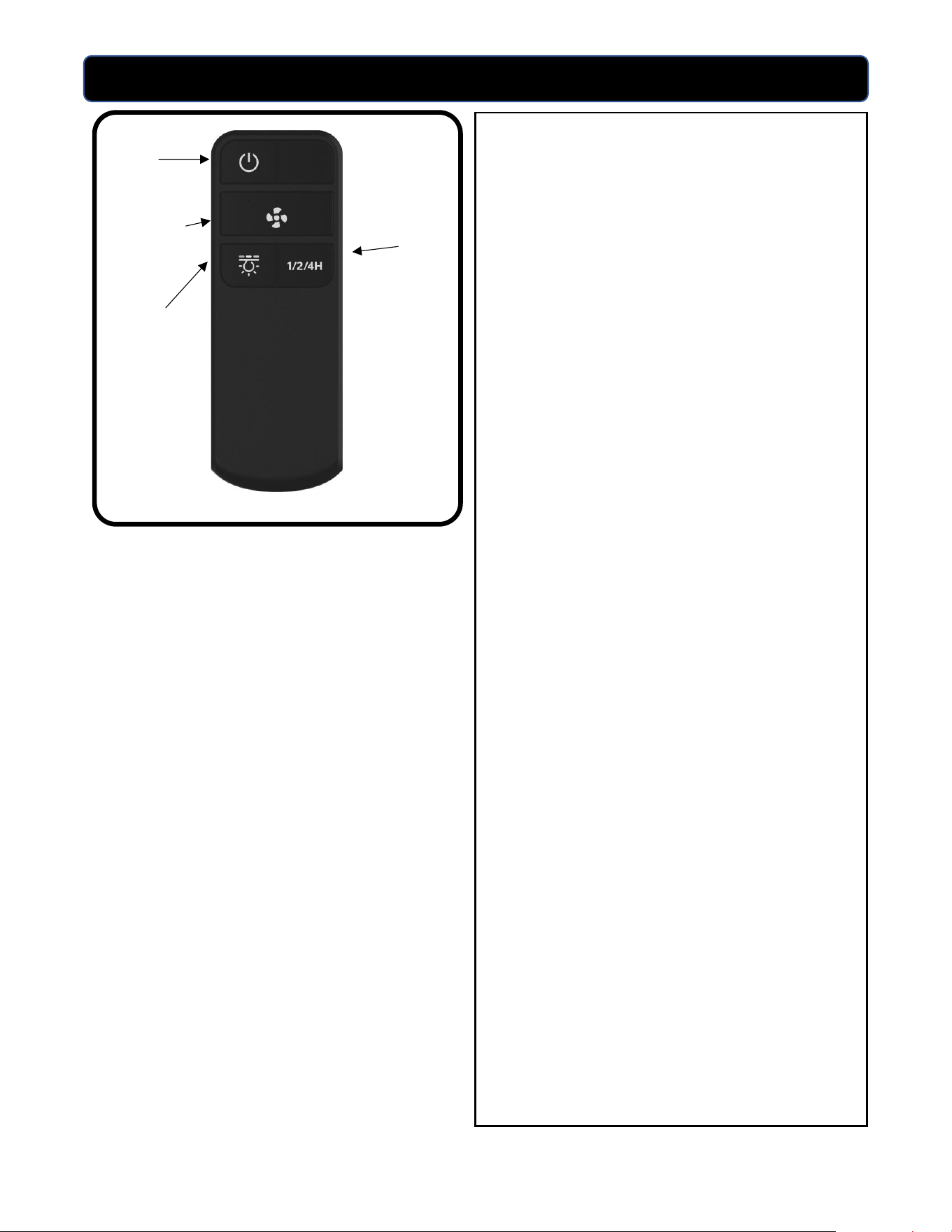

USING THE REMOTE CONTROL
• Power button: Turns fan ON/OFF. The remote
has built-in memory: the fan and light will
come on at the same settings as the last time
the power supply was turned off.
• Fan Speed button: Controls the 3 speeds of
the fan. With the fan on, push once and
release for next speed setting. The cycle is
HIGH>MED>LOW and OFF.
• Light Dimming and Color Changing button (fan
must be on):
o For adjusting light brightness level, push
and hold the button. Light will adjust in
brightness from full brightness or down to
fully dimmed until button is released.
o For color changing: with the LED light on,
push this button once to turn the light off
and then push again within 8 seconds to
adjust the color. Repeat the cycle until
desired color temperature is obtained.
Cycle is Soft White (3000K), Bright White
(4000K), and Daylight (6000K).
• Timer (OFF) button: Offers 1-, 2-, or 4-hour
delay. With fan on, press once for 1 hour
(LEDs flash 1X), press again for 2 hours (LEDs
flash 2X), and press again for 4 hours (LEDs
flash 3X). Pressing one last time or pressing
the power button OFF will cancel the timer
setting.
• Using the “Safe Exit” feature: Your remote
features our Safe Exit mode which allows
extra time to safely exit the room with the
light still on:
o Press and hold the fan OFF button for
5 seconds and then release it to
initiate the Safe Exit mode.
o The light will briefly flash and remain
on, and the fan will be off.
o The light will stay on for approximately
60 seconds and then turn off
automatically.
Power
Fan Speed
Light
Dimming
and Color
Changing
Timer
13
OPERATING INSTRUCTIONS
OPTIMIZING YOUR FAN’S PERFORMANCE

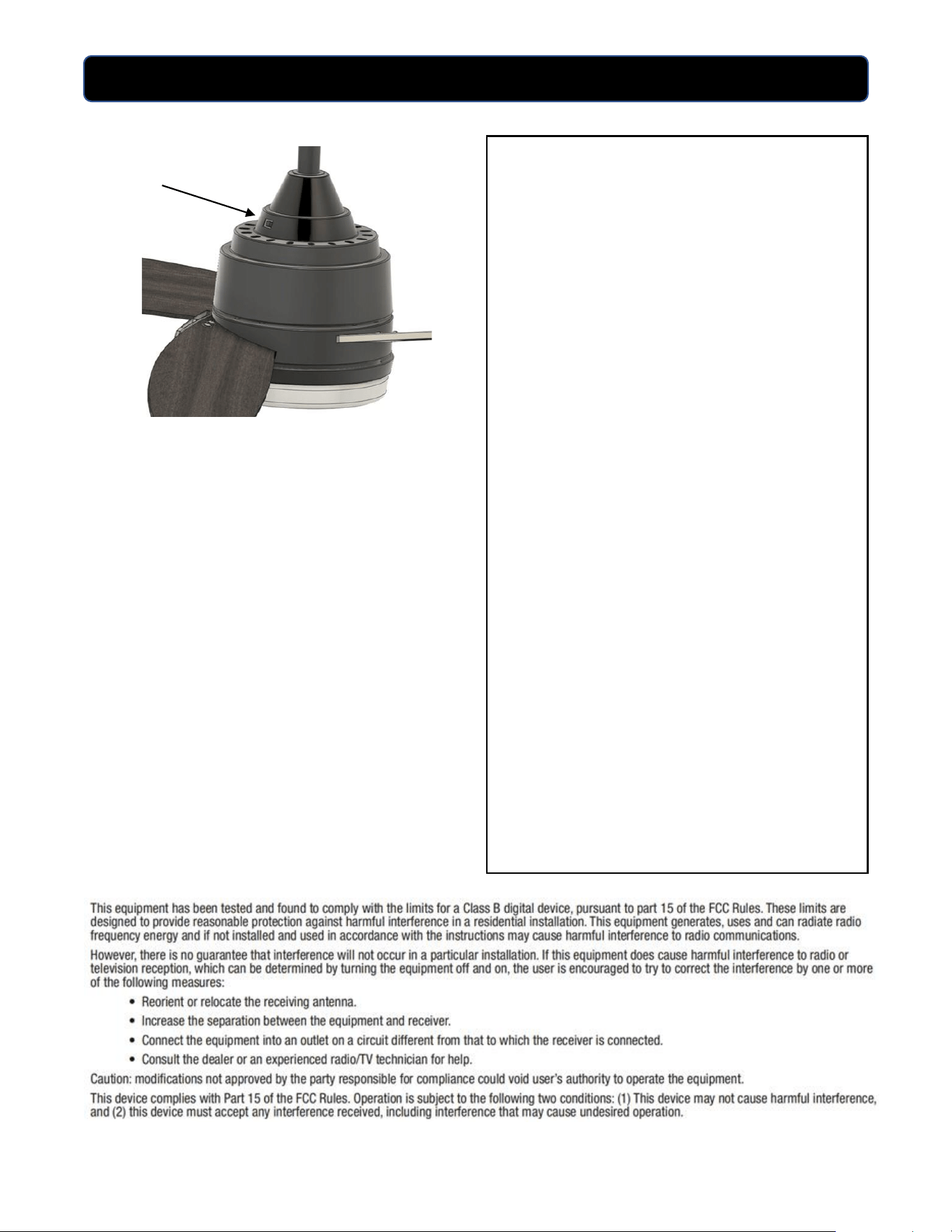

USING THE REVERSE SWITCH
Use the fan reverse switch, located on the
top of the motor housing underneath the
yoke cover, to optimize your fan for
seasonal performance. Using a ceiling fan
will allow you to raise your thermostat
setting in summer and lower your
thermostat setting in winter without
sacrificing your comfort.
In warmer weather, change the fan blade
rotation to a counterclockwise direction
which will result in downward airflow
creating a cooling wind chill effect.
In cooler weather, reverse the fan blade
rotation to a clockwise direction which will
result in upward flow that can help move
stagnant, hot air off the ceiling area and
back down into the room.
IMPORTANT: Wait for fan to stop before
moving the reverse switch. The reverse
switch must be set either completely to
the left or right for the fan to function
correctly. If the reverse switch is set in the
middle position, the fan will not operate.
Reverse
Switch
14
TROUBLESHOOTING
FAN DOES NOT START:
• Check the circuit breaker and confirm the power is ON.
• Make sure the wall switch is ON.
• Confirm the battery is installed correctly in the handheld remote; install fresh batteries.
• Make sure you are in the normal range for the remote control of 10’ – 20’ (3m – 6m).
• Check that the motor reversing switch is correctly engaged and set to left or right position. The
reverse switch will either be on the top of the motor housing or in the remote battery
compartment (varies by model). Fan will not run if switch is in the middle.
• Confirm that the blades spin freely and that there are no obstructions between the blades or
into the motor housing. Turn off power at circuit breaker and at wall switch, loosen the canopy,
and check that all wiring connections from the household supply wires to the remote receiver
and to the fan wires are secure.
FAN IS NOISY:
• Make sure all screws are snug and secure including blade screws, blade iron screws (if
applicable), light kit screws, and screws on canopy and switch housing cover.
• Make sure all blades and blade irons are properly installed.
• Some ceiling fan motors are sensitive to solid state variable speed wall controls. If the fan is
controlled by these types of controls remove the control and replace it with a standard wall
switch to enable the remote control to operate the fan and light.
FAN WOBBLES:
• Make sure the fan mounting bracket is securely tightened to the ceiling outlet box and the
ceiling box is securely fastened to the ceiling joist or other adequate support structure.
• Confirm that the hanger ball is properly seated in the mounting bracket. The tab in the
mounting bracket should be seated in the slot in the downrod ball.
• Make sure all blades are installed correctly and all screws are secure. Also confirm that the two
set screws in the downrod are tight in the yoke.
• Balance the fan blades using the blade balancing kit included with the fan.
WARNING: Before beginning any troubleshooting or maintenance work always shut off the
power supply to avoid electrical shock hazard.
LIMITED LIFETIME WARRANTY
Model Name: 52” Voyager Ceiling Fan
Model No: 25008 (SKU 355-1604) Matte Black
15
The limited lifetime warranty covers this ceiling fan, for residential use by the original purchaser, against defects
in material or workmanship as follows:
If your Patriot Lighting Ceiling Fan motor fails at any time during the lifetime of the original purchaser due to
defects in material or workmanship, we will provide a replacement part free of charge.
If your fan motor fails at any time within one year after the original date of sale to the original purchaser due to
defects in material or workmanship, we will provide labor to repair the defect, with the exception of take
down/reinstallation, free of charge. The original purchaser will be responsible for all labor costs after this one-
year period.
If no replacement parts are provided for any part of your fan motor that fails at any time during your lifetime
due to defects in material or workmanship, we will refund the original purchase price of your fan.
If your fan blades, pull chain switch, reverse switch, or any accessory, except glass globes and light bulbs, fails at
any time within one year after the original date of purchase due to a defect in material and workmanship, we
will repair or, if we choose, replace the defective blades, switch, or accessory free of charge, with the exception
of take down/reinstallation services.
If the original purchaser ceases to own the fan, this warranty, and any implied warranty, including but not
limited to any implied warranty of merchantability or fitness for a particular purpose, become void. This
warranty and any implied warranty, including but not limited to any implied warranty of merchantability or
fitness for a particular purpose, do not cover glass globes, light bulbs, or finish on any metal portions of the fan.
This warranty is in lieu of express warranties. The duration of any implied warranty of merchantability or fitness
for a particular purpose, with respect to any Patriot Lighting Ceiling Fan motor, blades, switch, or accessories, is
expressly limited to the period of the express warranty set forth above for such motor, blades, switch, or
accessories.
This warranty excludes defects, malfunctions, or failures of any Patriot Lighting Fan that are caused by repairs by
persons not authorized by us, use of parts or accessories not authorized by us, mishandling, improper
installation, modifications, or damage to the fan while in your possession, or unreasonable use, including failure
to provide necessary maintenance.
To obtain service, contact the service department. You will be responsible for all insurance and freight or other
transportation charges to our factory or service center. A copy of the sales receipt is required in order to obtain
service. We will return your fan freight prepaid. Your fan should be properly packed to avoid damage in transit,
for we will not be responsible for any such damage.
In no event shall Patriot Lighting Fan be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in which case the
above limitation or exclusion may not apply.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
To obtain Service, please contact the Service Department: 1-877-459-3257, 8 a.m. – 5 p.m. Central Time.
16
