52” LINCOLN PARK III
CEILING FAN
Owner’s Manual
Model #20852
SKU # 355-2112
If a problem cannot be remedied or you are experiencing diculty in installation, please
contact the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.

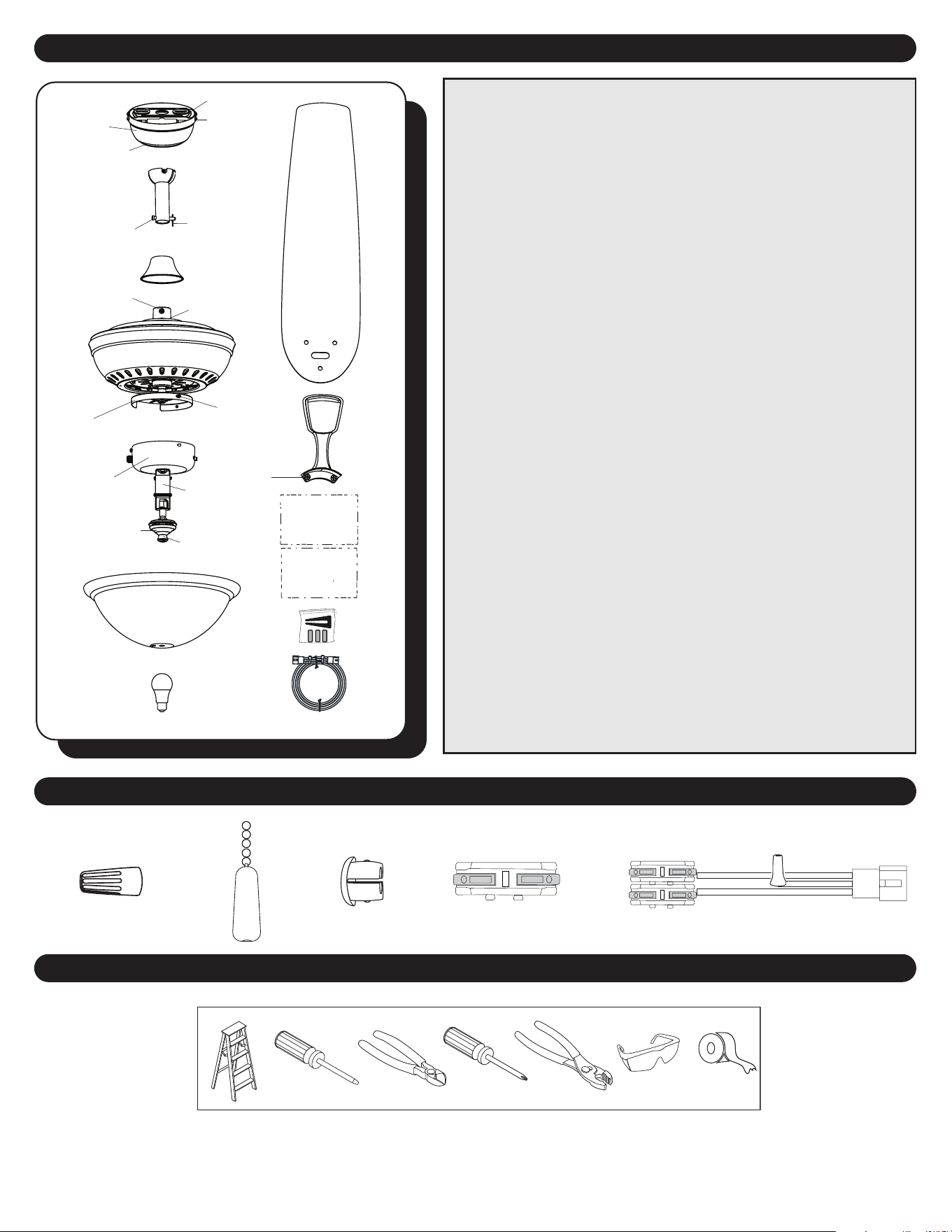

PACKAGE CONTENTS
2
HARDWARE CONTENTS
AA EE FF AIDD
1. Canopy
2. Canopy Cover
3. Mounting Bracket
4. Mounting Bracket Screw
(x4)
5. Downrod
6. Downrod Pin
7. Downrod Clip
8. Yoke Cover
9. Set Screw (x2)
10. Closemount Screw (x3)
11. Motor Assembly
12. Fitter Plate
13. Fitter Plate Screw (x3)
14. Switch Housing
15. Light Kit
16. Finial Cap
17. Finial
18. Glass Bowl
19. E26-Base LED Bulb (x2)
20. Blade (x5)
21. Blade Arm (x5)
22. Motor Screw (x10)
23. Hardware Kit
24. Owner’s Manual
25. Blade Balancing Kit
26. 36 inch-Lead Wire
AA. Wire Connector
DD. Pull Chain Extension (x2)
EE. Plug Button
FF. Push-In Connector
AI. Lead Wire
Unpack your fan and check the contents. You should
have the following items:
PACKAGE CONTENTS
HARDWARE CONTENTS
Note: Some extra hardware has been included. The quantity
listed above is the number required for installation.
TOOLS REQUIRED (not included)
Tools required for assembly: Electrical tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, Wire Cutters
and Wire Strippers
Helpful Tools: AC Tester Light, Tape Measure, and Wiring Handbook
Owner’s
Manual
Hardware Kit
1
2
3
4
5
6
7
8
9
10
11
13
12
14
15
16
17
18
19
20
21
22
23
24
25
26

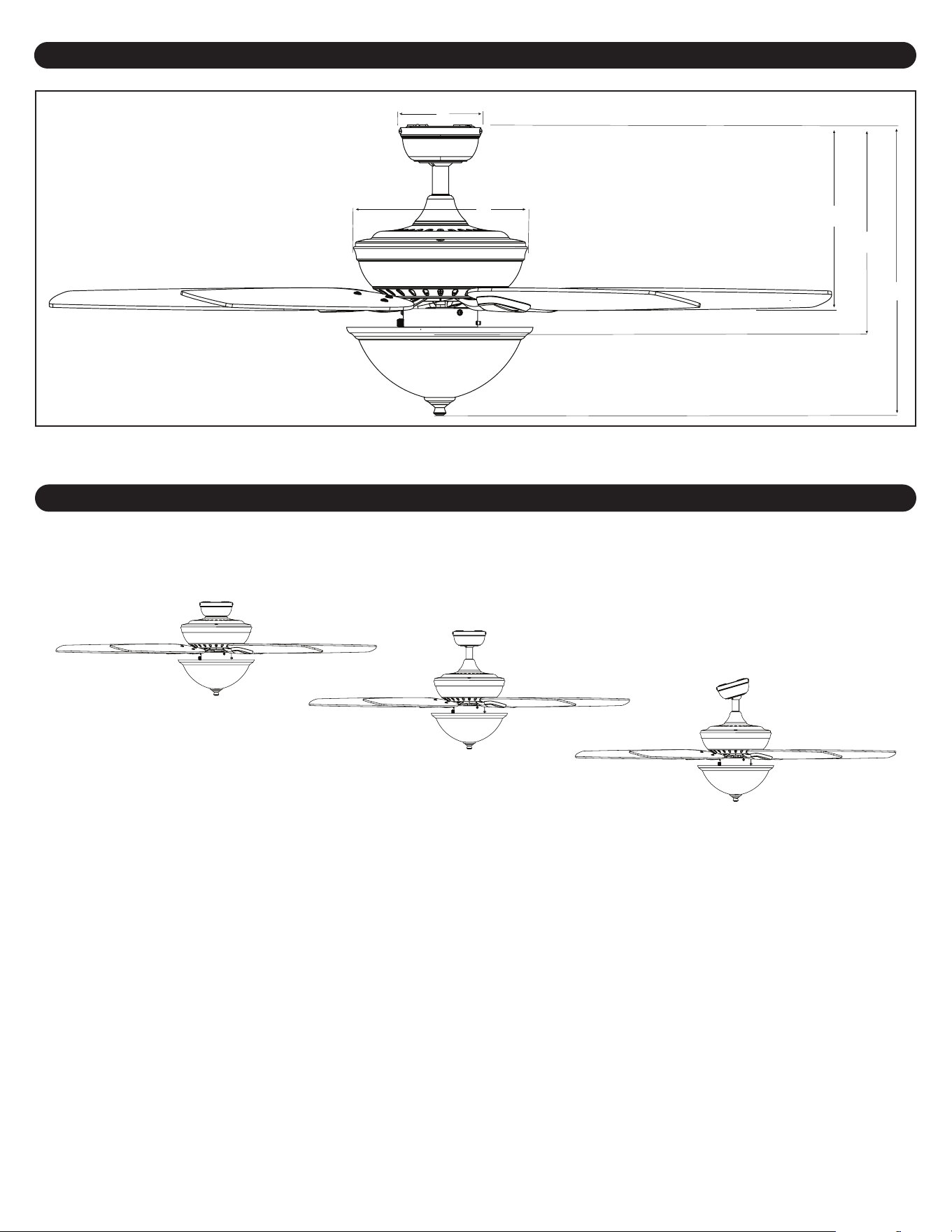

MOUNTING OPTIONS
3
Downrod Mount
Closemount
Angled Ceiling Mount (Up to 16 degrees)
Three Mounting Options
A. 18.88 in. B. 13.27 in. C. 11.62 in. D. 11.18 in. E. 5.12 in.
DIMENSION REFERENCE
E
D
C
A
B
Choose one of the following mounting options:
Closemount is best suited for ceilings lower than 8 feet. It does not utilize the downrod.
Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer
downrod (sold separately).
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to
ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle is not
steeper than 16°.
4
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
This fan is not suitable for damp or outdoor locations.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing
the blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are not
meant to cover all possible conditions and situations that may occur. It must be understood that common
sense, caution and care are factors which can not be built into this product. These factors must be supplied
by the person(s) installing, caring for and operating the fan.
The fan weight is Net Weight: 17.57 lb (7,97 kg). Be sure the outlet box (not included) is securely attached
to the building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious
injury.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
HKC-US
3350 Players Club Pkwy. #225
Memphis, TN 38125
1-877-459-3267
SAFETY INSTRUCTIONS
CAUTION:
WARNING:
To avoid risk of electric shock, be sure to shut o power at the main fuse or circuit breaker box before
installing or servicing this xture. Turning o the electrical power by using the light switch is not
sucient to prevent electrical shock.
To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the
oor and at least 18 inches (0.5 Meters) from the tip of the blades to the wall.
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for
fan support” and use mounting screws provided with the outlet box.
The installation has to be in accordance with the national electrical code, ANSI/NFPA 70-1999 and
local codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a
qualied licensed electrician.
Using a full-range dimmer switch to control fan speed will cause a loud humming noise from the fan. To
reduce the risk of re or electric shock, do NOT use a full-range dimmer switch to control the fan speed.
SAFETY INSTRUCTIONS
CARE AND MAINTENANCE
At least twice each year, lower the canopy to check the downrod assembly, and then tighten all screws on the fan.
Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching the nish. Clean the blades
with a lint-free cloth.
Important: Shut o the main power supply before you begin any maintenance tasks. Do not use water or a damp
cloth to clean the ceiling fan.
Bulb Replacement: Use 60 watt max. E26-base LED, CFL or incandescent bulbs. Halogen bulbs are not
recommended for this item.
5
6

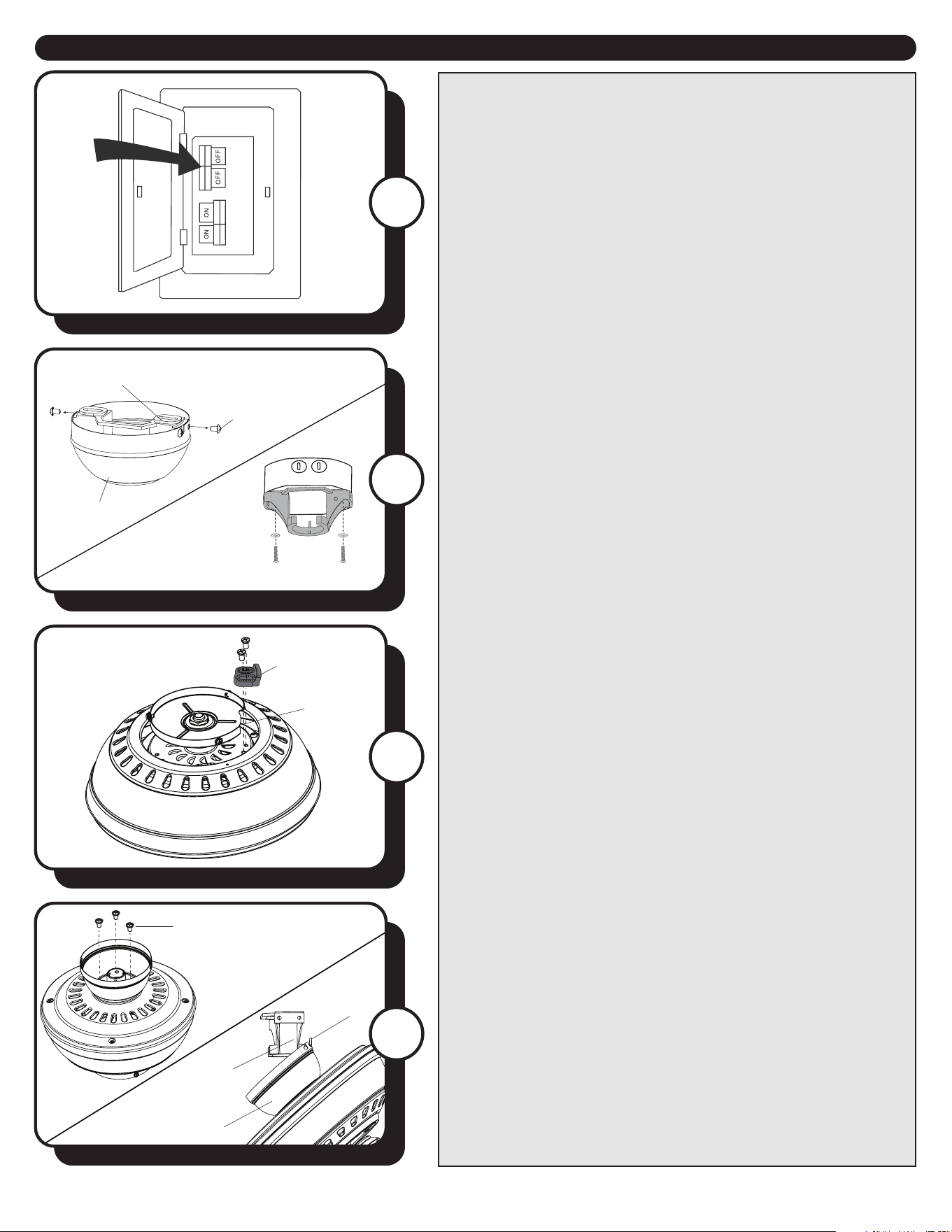

ASSEMBLY INSTRUCTIONS
1
Notch
Motor Block
3
4
4. CLOSEMOUNT INSTALLATION (OPTIONAL)
a. Remove the canopy cover from the bottom of the
canopy.
b. Remove the three Phillips-head closemount screws
from the top of the motor assembly.
c. Align the holes in the bottom of the canopy with the
screw holes in the top of the motor housing. The larger
holes in the canopy will encompass the three pre-
installed screws.
d. Secure the canopy to the top of the motor housing
with the closemount screws.
e. Hang the fan on the hook of the mounting bracket.
Proceed to Step 9.
2
Mounting
Bracket Screw
Canopy
Mounting
Bracket
3. Remove the ten screws and ve motor blocks from the
underside of the motor. Discard the motor blocks and the
10 screws holding them in place.
Note: The notch in the tter plate allows a Phillips
screwdriver access to the motor screws.
Closemount
Screw
Hook
Canopy
Mounting
Bracket
2. Loosen all four mounting bracket screws and
completely remove the two screws from the round
holes in the canopy. Save the screws for later. Remove
the canopy from the mounting bracket. Then, install the
mounting bracket to the outlet box (sold separately)
using the screws and washers provided with the outlet
box.
WARNING: To reduce the risk of re, electric shock,
or personal injury, mount to the outlet box marked
“acceptable for fan support” and use the mounting
screws and washers provided with the outlet box.
If you wish to use the Downrod Mount (as shown on
page 3), proceed to Step 5.
1. Turn OFF the electrical power at the main fuse or circuit
breaker.
DANGER: Failure to disconnect the power supply prior to
installation may result in serious injury or death.
7
ASSEMBLY INSTRUCTIONS
7
5
6
DOWNROD MOUNT

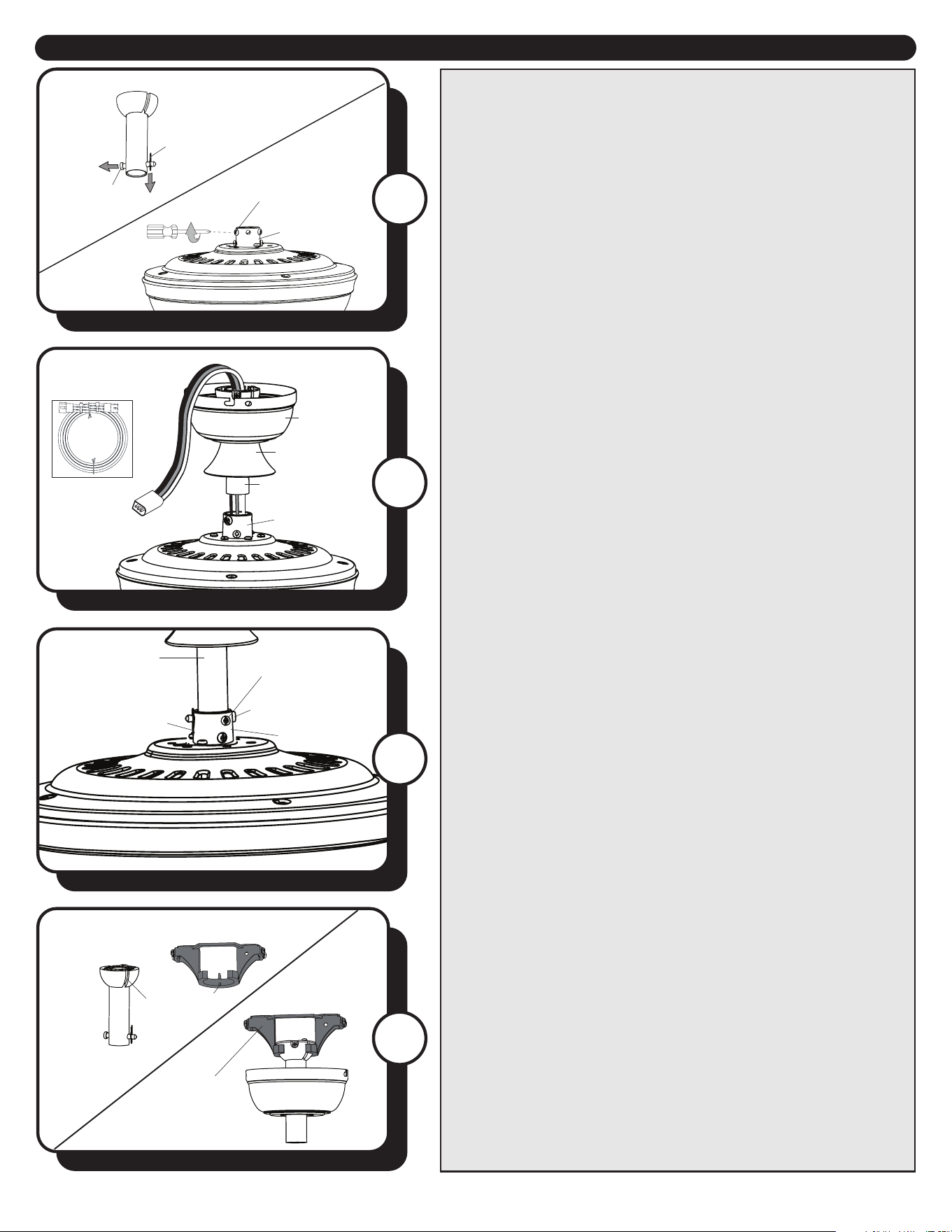

5. Remove the downrod clip and downrod pin from the
downrod. Then, loosen but don’t remove the two set
screws in the yoke of the motor assembly.
6. Insert the downrod -- or a longer downrod (not
included), if required -- through the canopy and yoke
cover. Feed the wires from the fan through the downrod.
Depending on the length of downrod you use, you may
need to use the 36-inch lead wire to accommodate a 36
or 48-inch downrod (sold separately). When necessary,
connect the 3-pin connector extending from the center
of the downrod to one end of the 36-inch lead wire.
Note: The downrod included with this fan will not utilize
the 36-inch lead wire.
7. Slide the downrod into the yoke of the motor
assembly, align the holes, then re-install the downrod
pin and downrod clip. Secure with the two set screws
and slide the yoke cover down until it rests on top of the
motor assembly.
Note: With wiring extending out of the downrod,
measure 8 inches of lead wire and cut the excess wire
with wire cutters (not included). Then strip 1/2” of
insulation from the end of each wire.
Downrod
Clip
Downrod
Yoke
Set Screw
Canopy
Yoke Cover
Downrod Pin
Set Screw
Yoke
Downrod
Downrod Clip
Yoke
Downrod
Pin
8
8. Install the ball end of the downrod into the opening
of the mounting bracket. Rotate the downrod until the
tab in the mounting bracket is seated in the slot in the
downrod ball.
WARNING: The fan and/or downrod should not rotate
in the mounting bracket, if installed correctly. Failure
to align the slot in the downrod ball with the tab on
the mounting bracket may result in fan falling causing
serious injury or death.
Tab
Slot
Downrod
Mounting
Bracket
36-Inch
Lead Wire
8

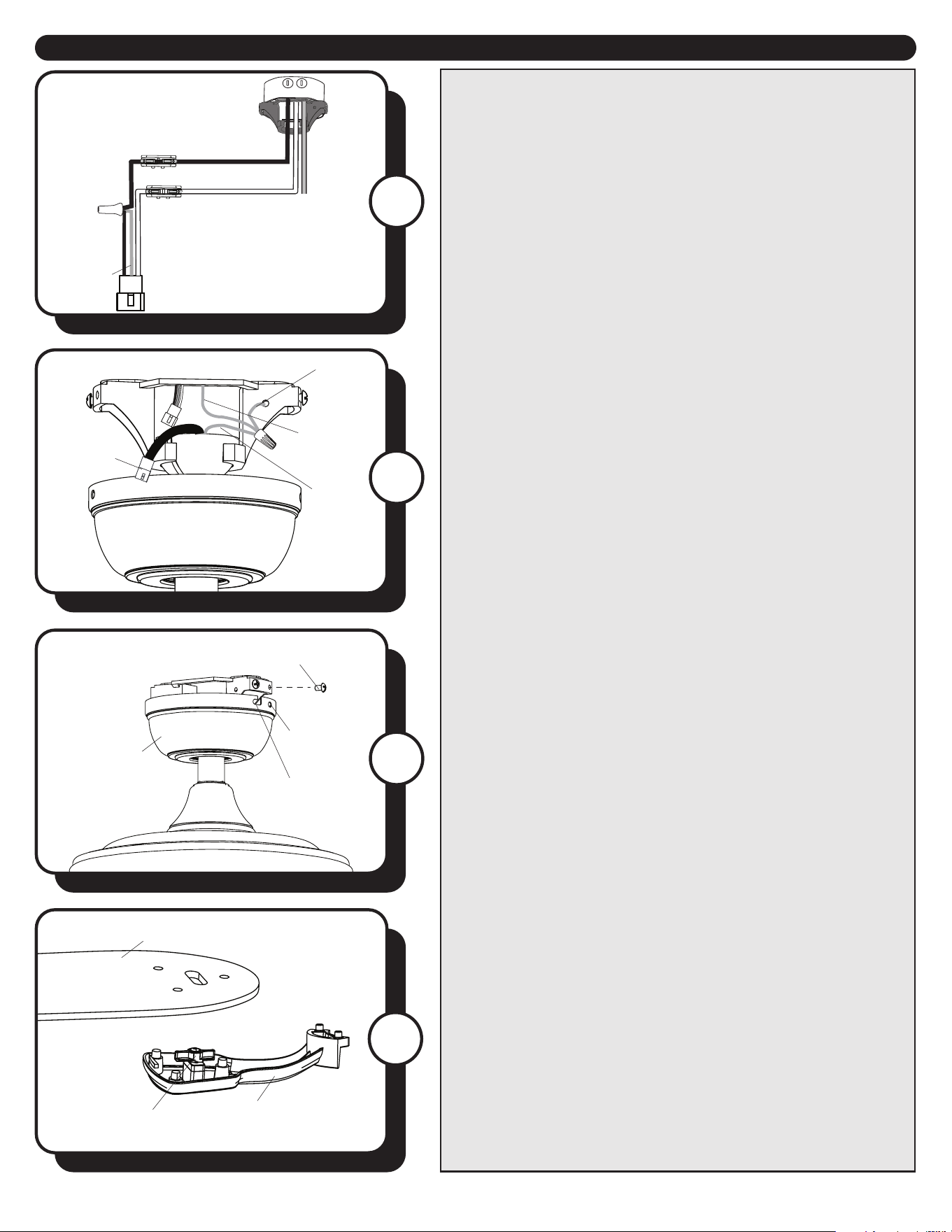

ASSEMBLY INSTRUCTIONS
Black (hot)
Bare (ground)
White (neutral)
White
Blue
Black
Black
11
10
11. Raise the canopy, ensuring the two mounting
bracket screws are aligned with the J-shaped slots in
the canopy. Then turn the canopy clockwise until the
mounting bracket screws are completely engaged in
the J-shaped slots. Install the two previously removed
mounting bracket screws in the round holes.
Securely tighten all four mounting bracket screws.
12. Align the twist lock connector in the direction of its
corresponding hole in the blade. Place the blade over the
twist lock connector. Rotate the twist lock connector so
that it is perpendicular to the hole in the blade. Repeat
for the remaining blades.
9. Make the following wire connections according to the
diagram and these steps:
• Lift the lever and then push the White (neutral) supply
wire into the empty hole of the push-in connector
preassembled to the white wire of lead wire and then
lower the lever to secure wire.
• Lift the lever and then push the Black (hot) supply
wire into the empty hole of the push-in connector
preassembled to the black wire of lead wire (AI) and then
lower the lever to secure wire.
Note: The lead wire and ground wire will be connected
later.
Important: If household supply wires are dierent
colors than referred to above, a professional electrician
should determine proper wiring.
9
Canopy
J-shaped Slot
Bare/Green
(ground)
3-Pin
Connector
Green
Green
Round
Hole
Blade ArmTwist-Lock
Connector
Blade
Mounting Bracket Screw
12
10. Connect the 3-pin connector extending from the
downrod to the 3-pin connector on lead wire. Then,
connect the green/bare (ground) supply wire to the
green wires from the downrod and the mounting
bracket.
WARNING: Do NOT
wire the fan motor to a
variable-speed (dimmer)
wall control.
9

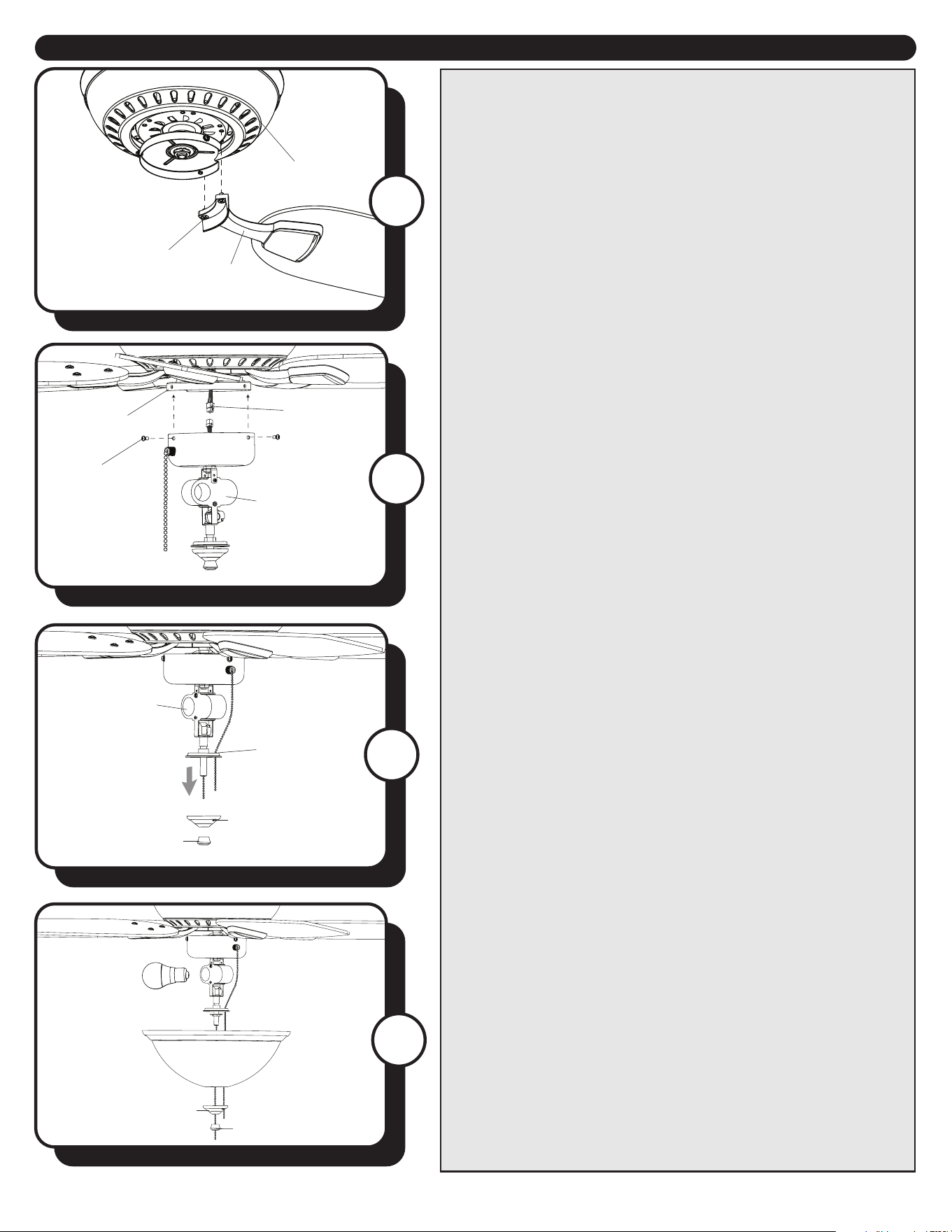

ASSEMBLY INSTRUCTIONS
14
14. Remove the three tter plate screws preassembled to
the tter plate. Then, connect the 9-pin connector from
fan to the 9-pin connector from the light kit. Secure the
light kit with the tter plate screws.
15. Remove the nial, nial cap from the threaded rod at
the bottom of the light kit. Feed the o-center pull chain
in the light kit through the preassembled grommet in the
lower part of the light kit.
Fitter Plate
Screw
Fitter Plate
9-pin
Connector
Light Kit
Light Kit
Grommet
15
16. Feed the pull chains in the light kit through the
preassembled grommets in the lower part of the light kit
and into the appropriate holes in the glass bowl. Lift the
center hole in the glass bowl over the threaded rod and
secure with nial cap and nial.
Install the E26-base LED bulbs into the sockets of the
light kit.
Important: Make sure you allow the bulbs and light kit to
cool before you replace the bulbs.
Skip to Step 19.
Finial Cap
Finial
Bulb
Finial
Finial Cap
Glass Bowl
16
Blade Arm
Motor Screw
Motor Assembly
13. Install the blade arm to the underside of the motor
assembly with preinstalled motor screws. Tighten each
blade arm completely before moving to the next.
Note: The notch in the tter plate allows a Phillips
screwdriver access to the motor screws.
To install the fan without the light kit, skip to step 17.
13
10
Pull Chain Extension
ASSEMBLY INSTRUCTIONS
20. Turn ON the electrical power at the main fuse or circuit
breaker and the wall switch.
Assembly is complete.

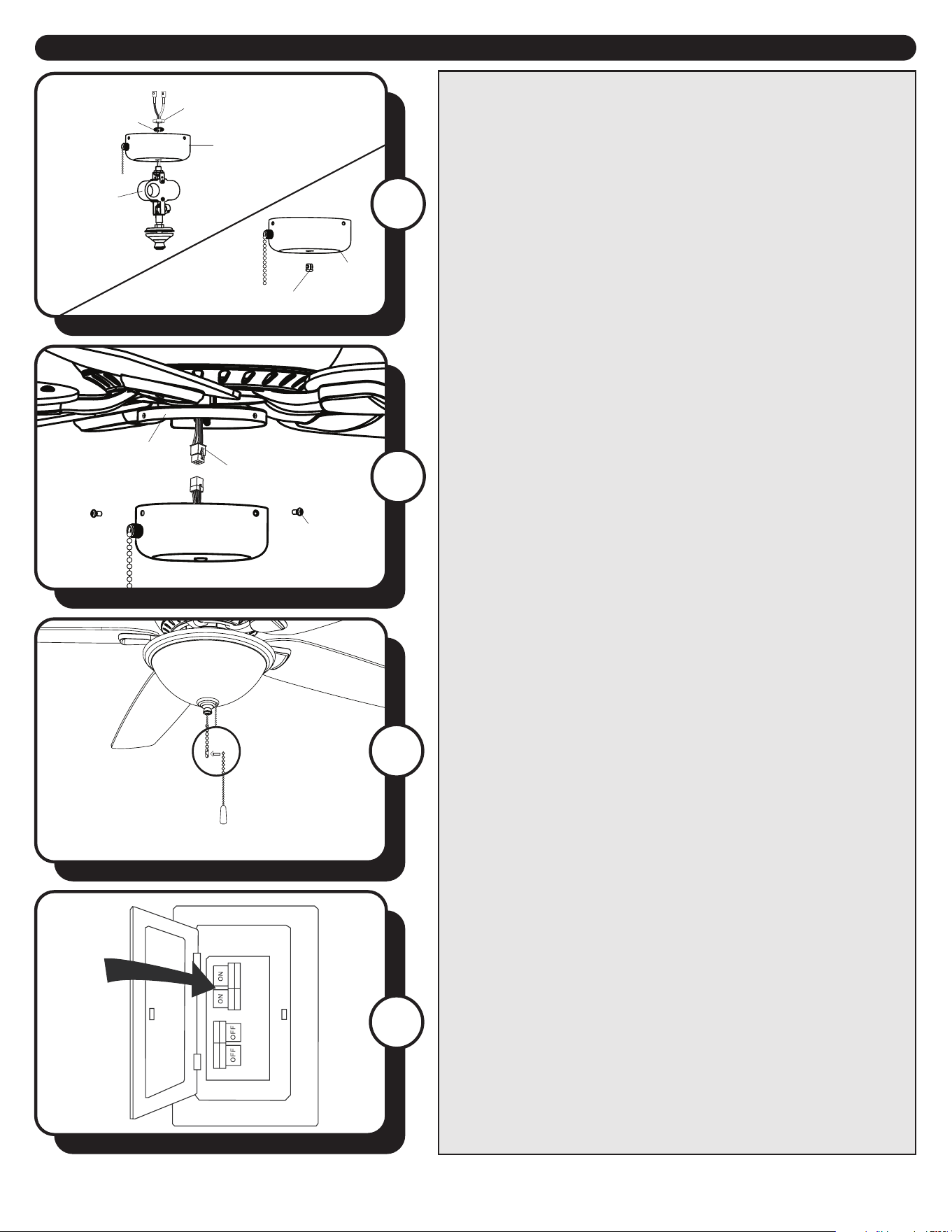

18. NO LIGHT KIT INSTALLATION (CONT’D)
a. Remove the three tter plate screws from the tter
plate.
b. Connect the 9-pin connector from the fan to the 9-pin
connector from the switch housing.
c. Install the switch housing to the tter plate with the
three tter plate screws.
Switch Housing
Fitter Plate
Fitter Plate
Screw
9-Pin Connector
18
19
20
19. Attach pull chain extensions to the pull chains.
Note: The pull chain in the center of the light kit controls
the light.
Switch
Housing
Plug Button
Switch
Housing
Light Kit
Lock Washer
Hex Nut
17. NO LIGHT KIT INSTALLATION (OPTIONAL)
To install the fan without the light kit, remove the
preassembled hex nut and lock washer from the
threaded rod inside the switch housing. Disconnect the
single-pin connectors from inside the switch housing.
Then detach the light kit from the switch housing. Insert
the plug button from the hardware bag into the center
hole of the switch housing.
17
11

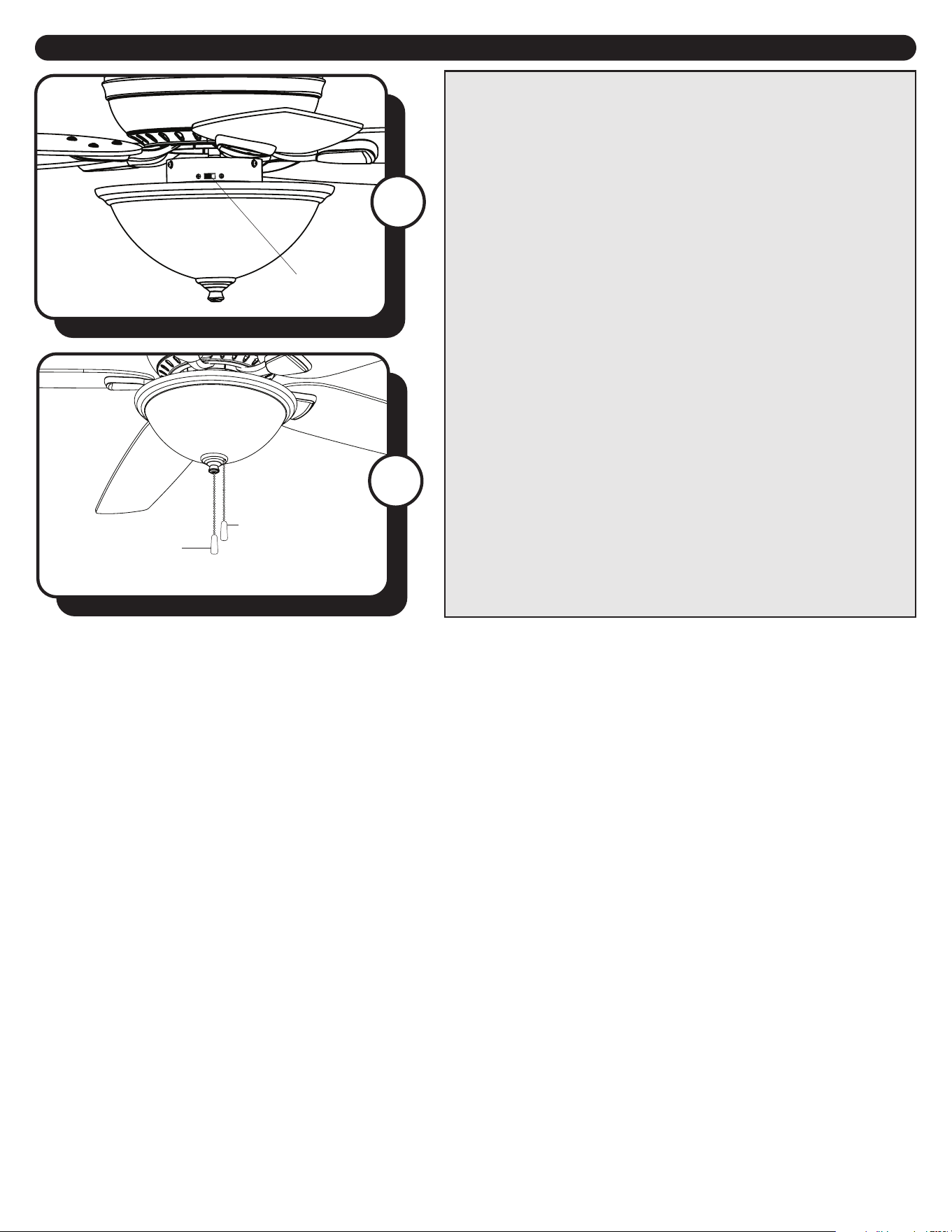

OPERATING INSTRUCTIONS
1
1. Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your
thermostat setting in winter without feeling a dierence
in your comfort.
In warmer weather, push the reverse switch to the left
for downward airow creating a wind chill eect.
In cooler weather, push the reverse switch to the right
for upward airow that can help move stagnant, hot air
o the ceiling area.
Important: Wait for the fan to stop before moving the
reverse switch. The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate.
2. The fan pull chain has four positions to control fan
speed. One pull is HIGH, two is MEDIUM, three is LOW
and four turns the fan OFF. The light pull chain has two
positions -- OFF and ON.
2
Fan Pull
Chain
Reverse Switch
Light Pull
Chain
12
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
TROUBLESHOOTING
PROBLEM SUGGESTED REMEDY
WARNING: To reduce the risk of re, electrical shock or personal injury, shut o the power supply to fan before
you begin any maintenance tasks.
1. Fan does not start:
1. Make sure that the wall switch is turned ON.
2. Check main and branch circuit fuses or circuit breakers.
3. Check all wire connections from household supply wires to the fan.
4. Make sure forward/reverse switch is pushed completely left/right. Fan will not operate
when switch is in the middle.
1. Make sure all screws in motor assembly are snug, but not overtightened.
2. Make sure the screws that attach the blade arms to the motor are tight.
3. Make sure wire connectors are not rattling against each other or against the interior wall
of the canopy.
4. Some fan motors are sensitive to signals from Solid State variable speed controls. DO NOT
USE a Solid State variable speed control.
5. Ensure fan does not wobble excessively (see Fan wobbles solutions below).
1. Ensure the mounting bracket is tightened securely to outlet box and outlet box is
mounted rmly to ceiling joist.
2. Ensure all blades are screwed rmly into blade arms.
3. Ensure all blade arms are tightened securely to motor.
4. Switch one blade with a blade from the opposite side. Or balance the fan using the blade
balancing kit.
5. If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
1. Check for loose or disconnected 9-pin connectors in switch housing or light kit.
2. Ensure the blue wire from fan is connected to hot power supply wire.
3. Check for faulty light bulbs.
4. Ensure total wattage of bulbs does not exceed 180 watts (for incandescent bulbs only).
2. Fan is noisy:
3. Fan wobbles:
4. Light does not work:
LIMITED LIFETIME WARRANTY
To obtain Service, please contact the Service Department:
1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
Model Name: 52” Lincoln Park III Ceiling Fan
Model No: 20852 Oil-Rubbed Bronze (SKU: 355-2112)
13
Set forth below, the manufacturer warrants the fan motor for this Patriot Lighting ceiling fan to be free
from defects in workmanship and material for the life of the product. Also, subject to the limitations
below, the manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts
made in whole or in part with glass) to be free from defects in workmanship and material for a period of
one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser from an authorized dealer, whether such purchaser
purchased the product through a store or contractor. Ceiling fan part defects must be reported within the
rst year from the date of purchase. Parts made in whole or in part with glass and the nishes of metal
and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by
this warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the
terms stated above. The manufacturer shall not be liable for any loss or damage of any kind, including any
incidental or consequential damages resulting directly or indirectly, from any breach of warranty, express
or implied, or any other failure of this product. Some states do not allow the exclusion or limitation of
incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior
model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of tness for a particular purpose and the implied warranty of merchantability is disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
