21” ROCHESTER
CEILING FAN
Owner’s Manual
9995 • 120523
Model #20816
SKU # 355-2012
If a problem cannot be remedied or you are experiencing diculty in installation,
please contact the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time.

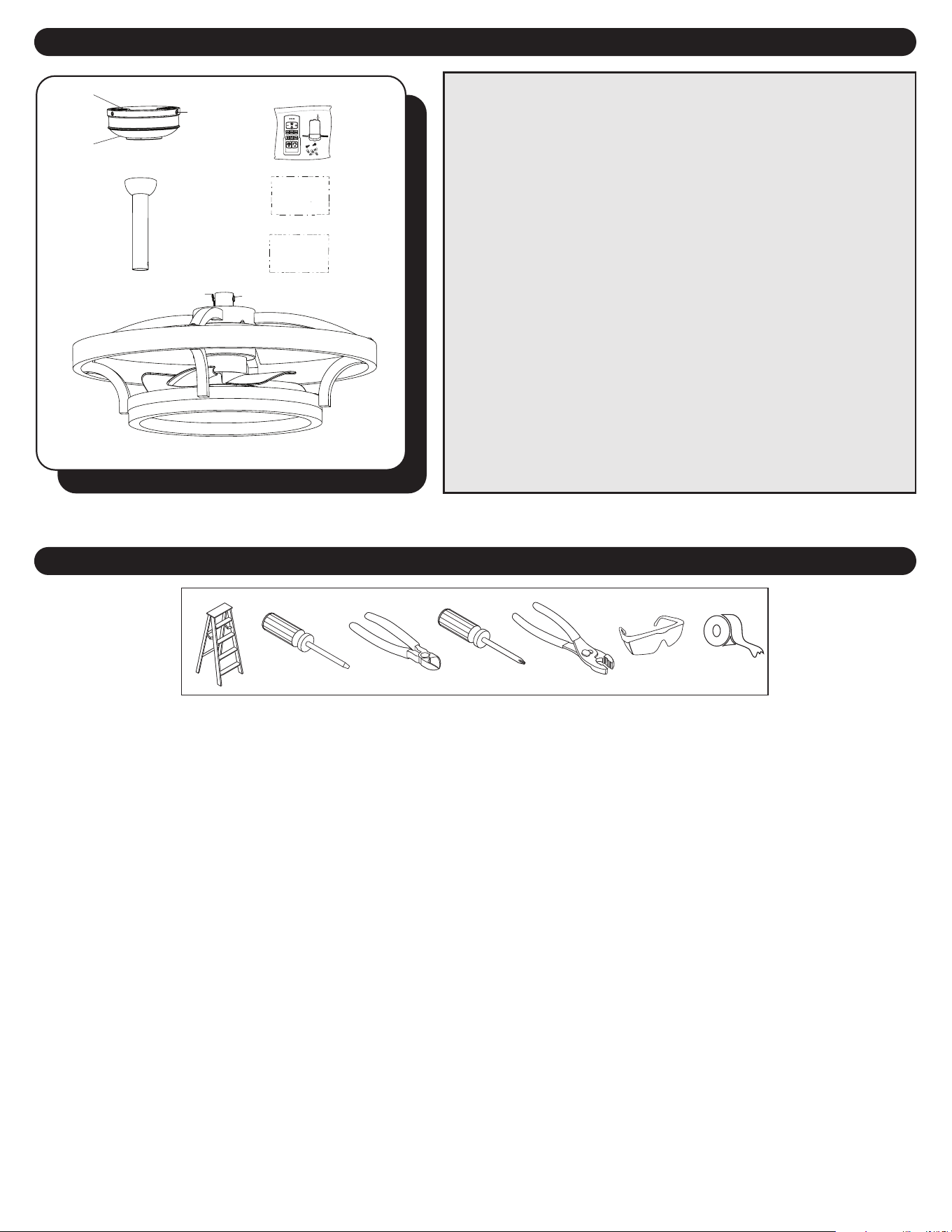

PACKAGE CONTENTS
2
1. Mounting Bracket
2. Canopy
3. Mounting Bracket Screw
(x4)
4. Downrod
5. Downrod Clip
6. Downrod Pin
7. Motor Assembly
8. Remote Pack
9. Owner’s Manual
10. Hardware Kit
Unpack your fan and check the contents. You should
have the following items:
PACKAGE CONTENTS
TOOLS REQUIRED (not included)
Tools required for assembly: Electrical tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, Wire Cutters
and Wire Strippers
Helpful Tools: AC Tester Light, Tape Measure, and Wiring Handbook
Owner’s
Manual
Hardware Kit
1
2
3
5
6
9
7
8
10
11
4

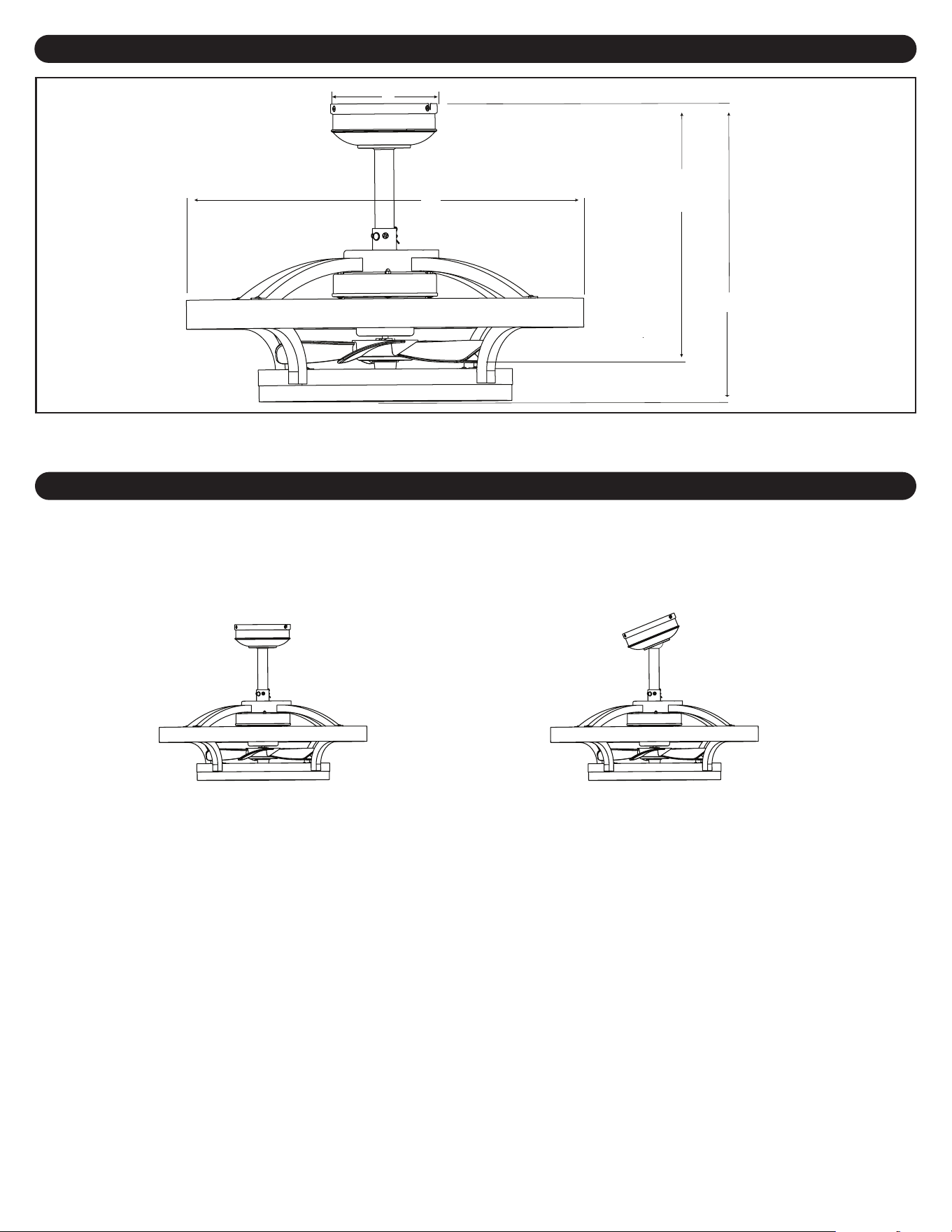

MOUNTING OPTIONS
3
Two Mounting Options
Downrod Mount
Angled Ceiling Mount (Up to 10 degrees)
A. 15.83 in. B. 13.15 in. C. 21.65 in. D. 5.83 in.
DIMENSION REFERENCE
C
D
B
A
Choose one of the following mounting options:
Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer downrod
(not included).
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to
ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle is not
steeper than 10°.
4
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
RATED FOR INDOOR USE. This fan is not suitable for damp or outdoor locations.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing
the blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are not
meant to cover all possible conditions and situations that may occur. It must be understood that common
sense, caution and care are factors which can not be built into this product. These factors must be supplied
by the person(s) installing, caring for and operating the fan.
The fan weight is Net Weight: 13.62 lb (6.19 kg). Be sure the outlet box (not included) is securely attached
to the building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious
injury.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
HKC-US
3350 Players Club Pkwy. #225
Memphis, TN 38125
1-877-459-3267
SAFETY INSTRUCTIONS
CAUTION:
5
WARNING:
To avoid risk of electric shock, be sure to shut o power at the main fuse or circuit breaker box before
installing or servicing this xture. Turning o the electrical power by using the light switch is not
sucient to prevent electrical shock.
To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the
oor and at least 18 inches (0.5 Meters) from the tip of the blades to the wall.
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for
fan support” and use mounting screws provided with the outlet box.
The installation has to be in accordance with the national electrical code, ANSI/NFPA 70-1999 and
local codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a
qualied licensed electrician.
Using a full-range dimmer switch to control fan speed will cause a loud humming noise from the fan. To
reduce the risk of re or electric shock, do NOT use a full-range dimmer switch to control the fan speed.
SAFETY INSTRUCTIONS
CARE AND MAINTENANCE
Important: Shut o the main power supply before you begin any maintenance tasks. Do not use water or a damp
cloth to clean the ceiling fan.
At least twice each year, lower the canopy to check the downrod assembly, and then tighten all screws on the fan.
Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching the nish. Clean the blades
with a lint-free cloth.
Bulb Replacement: Total xture wattage is xx watts; do not attempt to replace LED.
Battery Replacement: Use CR2032 lithium batteries. WARNING: Keep batteries out of reach of children. May
be fatal if swallowed. In the event that a battery is swallowed, immediately consult a doctor. Non-rechargeable
batteries are not to be recharged. Do not mix dierent types of batteries such as alkaline, carbon-zinc, or
rechargeable batteries. Do not mix old and new batteries. Batteries are to be inserted with the correct polarity.
Exhausted batteries are to be removed from the product. Do not dispose of batteries in re, as they may explode
or leak.
Downrod
Canopy
D
D
6
ASSEMBLY INSTRUCTIONS
1

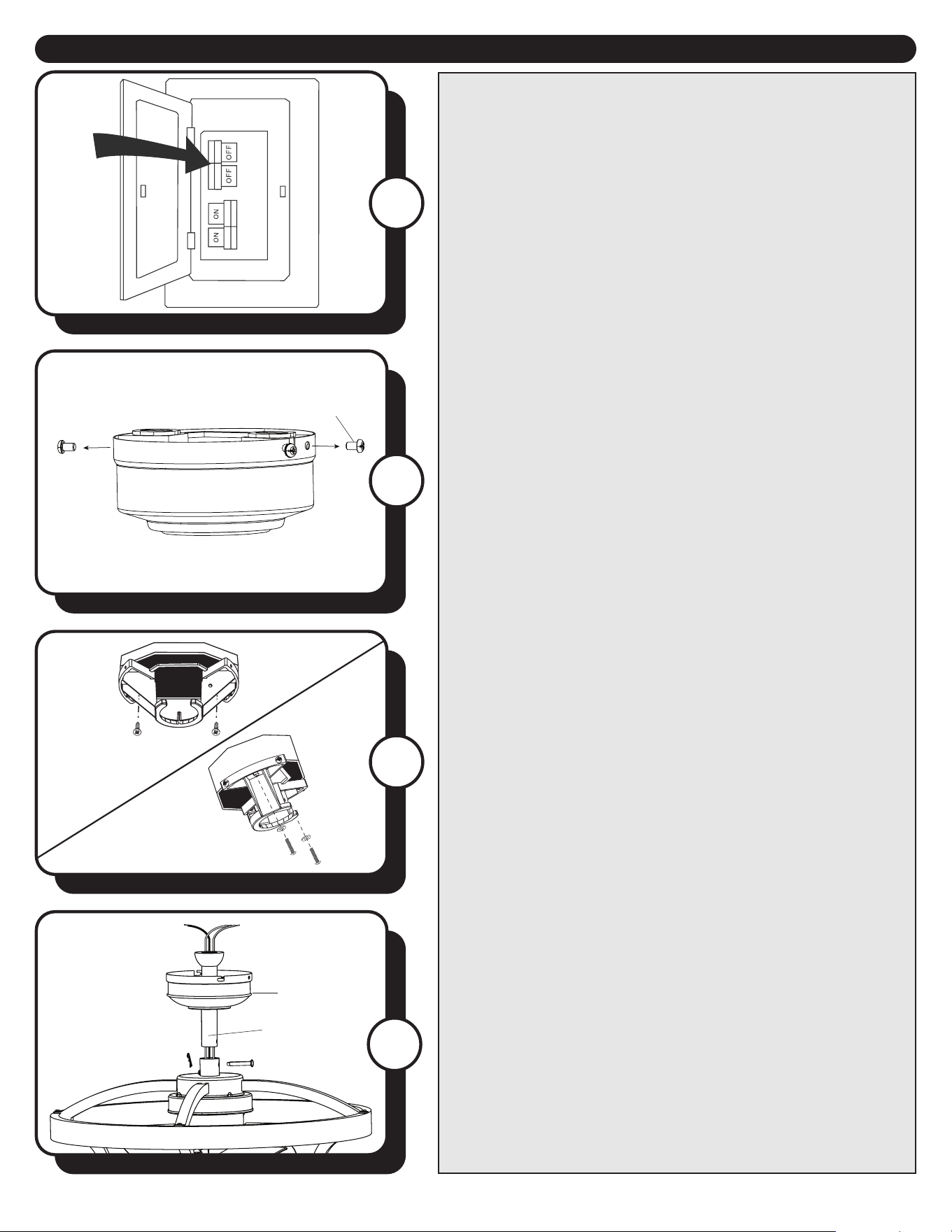

1. Turn OFF the electrical power at the main fuse or
circuit breaker.
DANGER: Failure to disconnect the power supply prior
to installation may result in serious injury or death.
4
3
2. Loosen all four mounting bracket screws located on
the mounting bracket and completely remove the two
screws from the round holes in the canopy. Save the
screws for later. Remove the canopy from the mounting
bracket.
3. Install the mounting bracket to the outlet box (sold
separately) using the screws and washers provided with
the outlet box.
WARNING: To reduce the risk of re, electric shock,
or personal injury, mount to the outlet box marked
“acceptable for fan support” and use the mounting
screws and washers provided with the outlet box.
Mounting Bracket Screw
Angled Mount
Downrod Mount
2

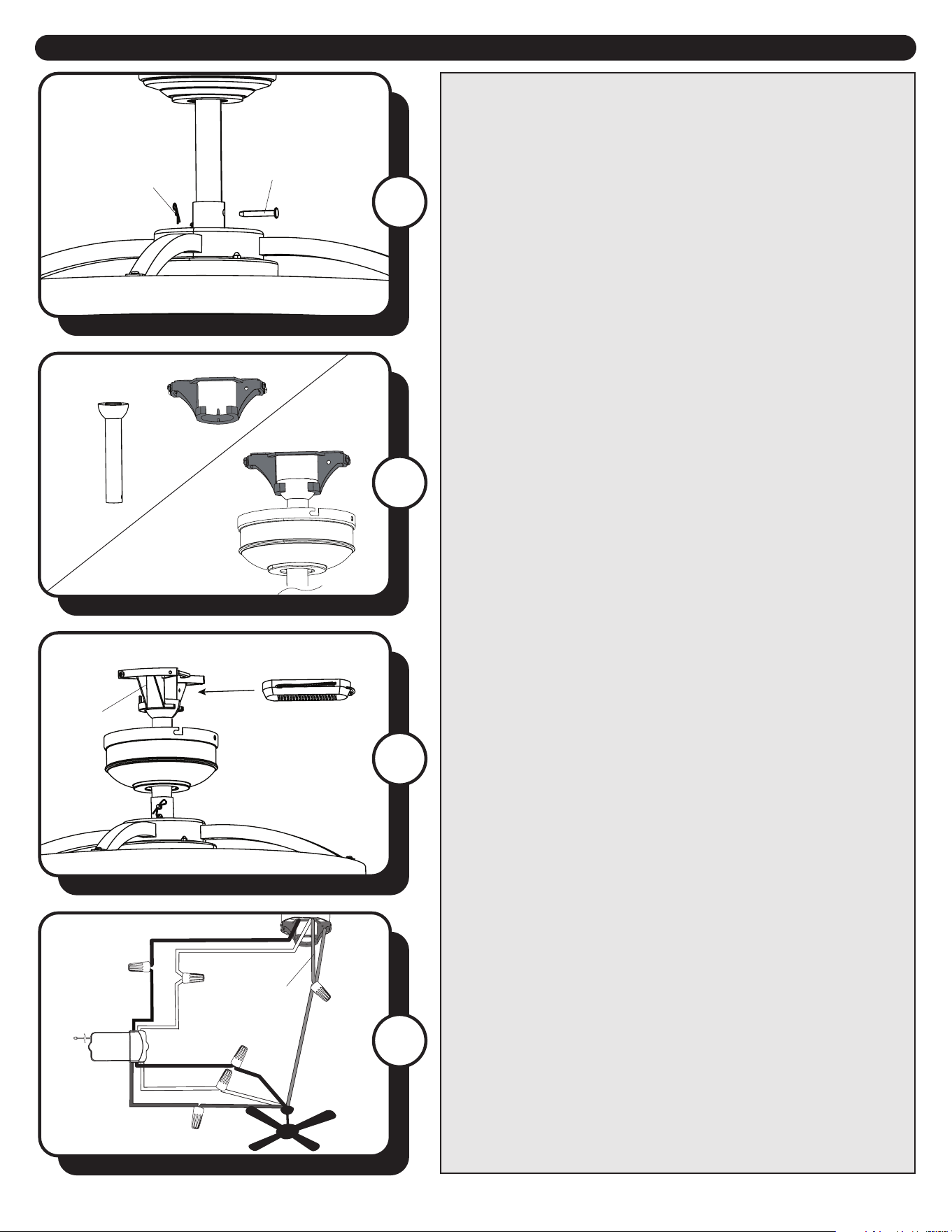

4. Remove the downrod clip and downrod pin from the
yoke. Insert the downrod through the canopy. Feed the
wires from the motor assembly through the downrod.
7
Downrod
Mounting Bracket
Black (hot/power)
White (neutral)
Bare/Green
(ground)
White
White
Black
Blue
Blue
Black
Green
Green
Receiver
Red
White
Mounting
Bracket
Receiver
ASSEMBLY INSTRUCTIONS
5
6
7
8
5. Slide the downrod into the yoke of the motor assembly,
align the holes, then re-install the downrod pin and
downrod clip.
Downrod Clip
Downrod Pin
7. Insert the receiver in the mounting bracket with
antenna end rst and at side facing up. Note: The
receiver rests directly on the downrod.
6. Install the ball end of the downrod into the opening
of the mounting bracket. Rotate the downrod until the
tab in the mounting bracket is seated in the slot in the
downrod ball.
WARNING: The fan and/or downrod should not rotate
in the mounting bracket, if installed correctly. Failure
to align the slot in the downrod ball with the tab on
the mounting bracket may result in fan falling causing
serious injury or death.
Note: With wiring extending out of the downrod,
measure 8 inches of lead wire from the top of the
downrod and cut the excess wire with wire cutters (not
included). Then strip 1/2” of insulation from the end of
each wire.
8. Secure all wiring connections together with wire
connectorrs from remote pack according to the diagram
and these steps:
• Connect the green wires from the downrod and
mounting bracket to the bare/green (ground) supply
wire.
• Connect the Blue wire (TO LIGHT) from the receiver to
the Blue fan wire.
• Connect the Black wire (TO MOTOR L) from the receiver
to the Black fan wire.
• Connect the White wire (TO MOTOR N) from the
receiver to the White fan wire.
• Connect the Red wire (AC IN L) from the receiver to the
Black (hot/power) supply wire.
• Connect the White (AC IN N) from the receiver to the
White (neutral) supply wire.
Important: After the connections have been made, the
connected wires should be turned upward and pushed
carefully up into the outlet box. Place the black and
white wire connections on opposite sides of the outlet
box.
8
Mounting Bracket Screw
L-Shaped Slot
Round Hole
Plastic Tab
Small Plate
Wall Bracket
Screw
Wall Bracket
ASSEMBLY INSTRUCTIONS
10
11
12
9
9. Raise the canopy, ensure the two mounting bracket
screws are aligned with the L-shaped slots in the canopy.
Then turn the canopy in a counterclockwise direction
until the mounting bracket screws are completely
engaged in the J-shaped slots. Install the two previously
removed mounting bracket screws in the round holes.
Securely tighten all mounting bracket screws.
10. Batteries were preinstalled in the battery
compartment of the remote. Pull the plastic lm in the
direction of the arrow to remove, which will activate the
batteries.
11. Remote control comes equipped with a wall bracket.
If you wish to install the wall bracket, remove the small
plate to expose the screw holes. Insert wall brackets
screws through holes and into wall, then cover with
the previously removed small plate. The remote can be
stored in the wall bracket for easy access.

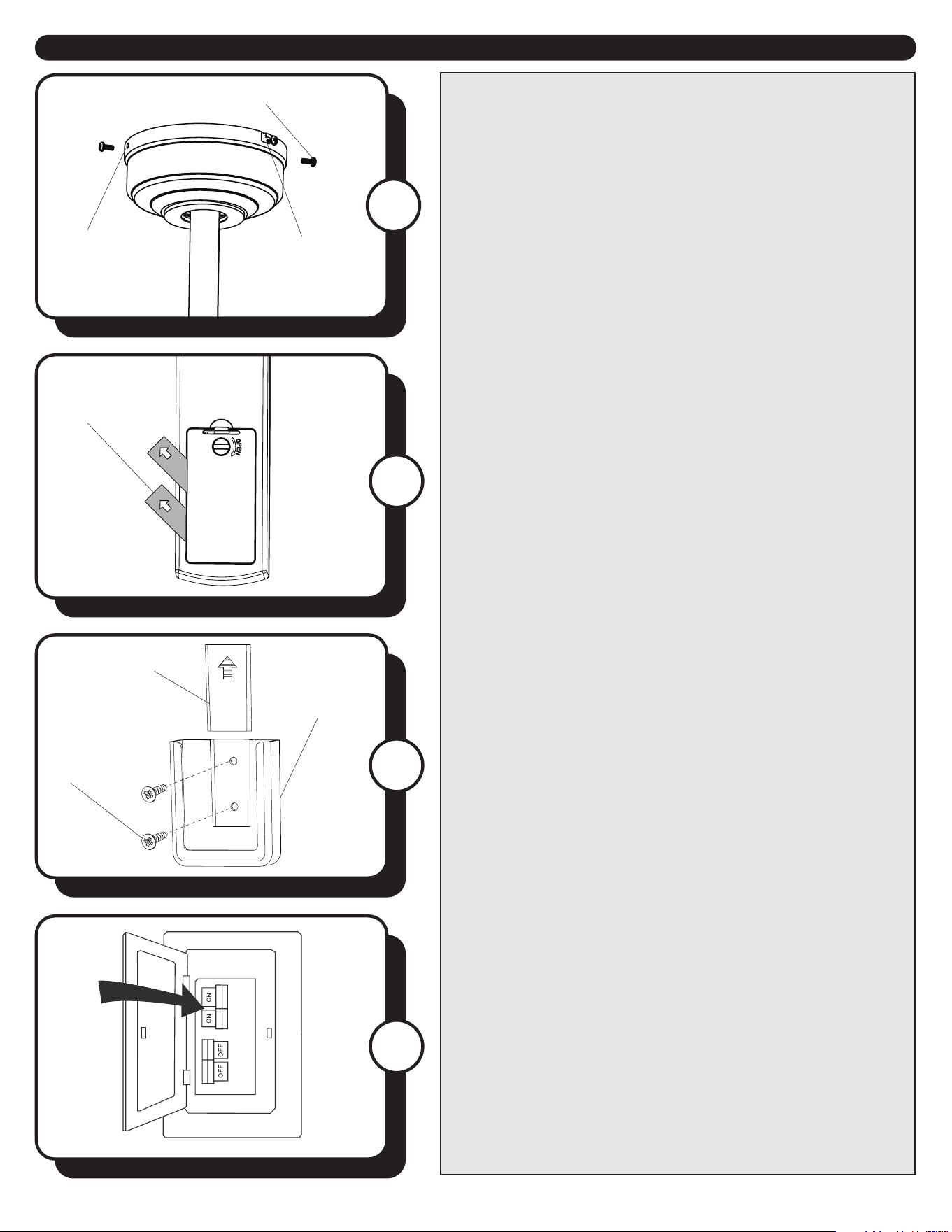

12. Turn ON the electrical power at the main fuse or
circuit breaker and the wall switch.
Assembly is complete.
9
OPERATING INSTRUCTIONS

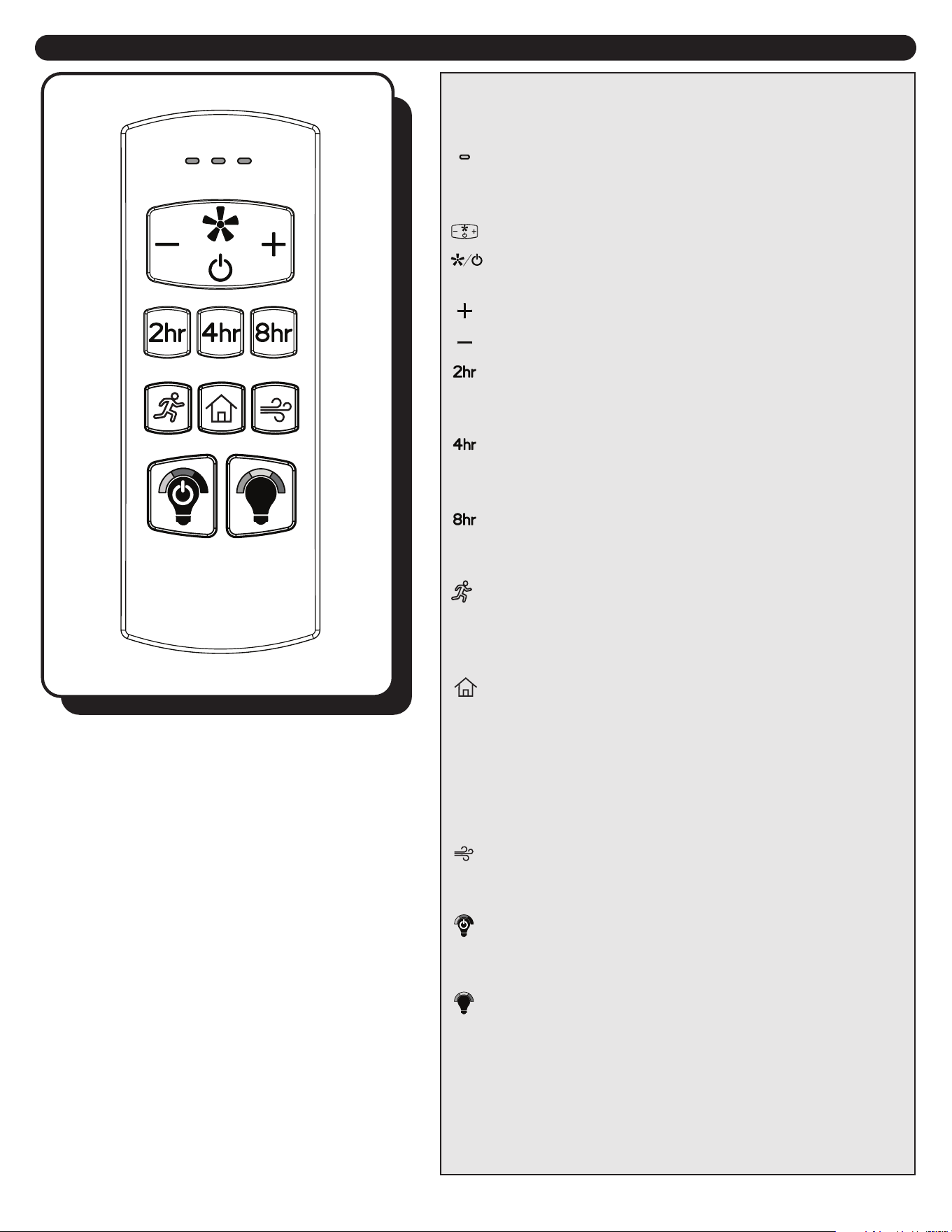

To operate the fan using the remote, press and
release the following buttons:
LED Indicator - Indicates the three speeds of the
fan. It should illuminate when any remote button is
pressed. If not, replace the DC3V, CR2032 batteries.
Fan Power button has three options:
Turns the fan o or turns fan on at previously
selected speed.
Increase fan speed
Lower fan speed
Sleep Timer - Turn o fan after 2 hours (2hr). Light
dims to conrm function is active. Press Fan Power
button to deactivate.
Sleep Timer - Turn o fan after 4 hours (4hr). Light
dims to conrm function is active. Press Fan Power
button to deactivate.
Sleep Timer - Turn o fan after 8 hours (8hr). Light
dims to conrm function is active. Press Fan Power
button to deactivate.
Light Delay - Delays turning o light for one minute
which allows safe exit from room. Light blinks to
conrm function is active. Press Light Control button
to deactivate and turn the light o.
Home Shield™ - Simulates occupancy while away
from home. Fan remains o and the light randomly
turns on for a minimum of ve minutes and a
maximum of 20 minutes. The light remains o for 60
minutes between events. Press and hold button to
activate. Light will blink to conrm Home Shield is
active. Press any button to cancel.
Variable Breeze - Simulates a breeze in nature. Press
and hold button to activate. Press any fan speed
button to cancel.
Light Control - Tap button to turn the light o and
on. Press and hold button to dim or brighten the
lights.
Light Color - Press and hold button to cycle through
the color temperatures from 2700K (warm white) to
6500K (daylight).
10
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time.
TROUBLESHOOTING
PROBLEM SUGGESTED REMEDY
WARNING: To reduce the risk of re, electrical shock or personal injury, shut o the power supply to fan before
you begin any maintenance tasks.
1. Fandelier does not
start:
1. Make sure that the wall switch is turned ON.
2. Check main and branch circuit fuses or circuit breakers.
3. Check all wire connections from household supply wires to the fan.
1. Make sure wire connectors are not rattling against each other or against the interior wall
of the light kit.
2. Make sure wire connectors are not rattling against each other or against the interior wall
of the canopy.
3. Some fan motors are sensitive to signals from Solid State variable speed controls. DO
NOT USE a Solid State variable speed control.
1. Check for loose or disconnected 9-pin and/or single-pin connectors in switch housing or
light kit.
2. Ensure the blue wire from fan is connected to hot power supply wire.
3. Check for faulty light bulbs.
4. Ensure total wattage of bulbs does not exceed 180 watts (for incandescent bulbs only).
1. Power surge may have cleared the memory and remote needs to be resynced to the
receiver. Syncing instructions: Turn o the power at the breaker box for at least 10
seconds and then turn the power back on. Within 30 seconds, press and hold the
“LEARN” button (Figure 6.1) on the back of the remote for 5 seconds. The fan will
turn on at high speed and light will blink twice and stay on, signaling a successful
synchronization.
2. Insert new CR2032 batteries in battery compartment of the wall control.
3. If there are several remote fans in proximity, turn the power o to those fans and re-sync
the fan.
2. Fandelier is noisy:
3. Light does not work:
4. Remote does not work:
Model Name: 21” Rochester Ceiling Fan
Model No: 20816 - (SKU: 355-2012) Matte Black
11
LIMITED LIFETIME WARRANTY
To obtain Service, please contact the Service Department:
1-877-459-3267, 8 a.m. - 5 p.m. Central Time.
Set forth below, the manufacturer warrants the fan motor for this Patriot Lighting ceiling fan to be free
from defects in workmanship and material for the life of the product. Also, subject to the limitations
below, the manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts
made in whole or in part with glass) to be free from defects in workmanship and material for a period of
one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser from an authorized dealer, whether such purchaser
purchased the product through a store or contractor. Ceiling fan part defects must be reported within the
rst year from the date of purchase. Parts made in whole or in part with glass and the nishes of metal
and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by
this warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the
terms stated above. The manufacturer shall not be liable for any loss or damage of any kind, including any
incidental or consequential damages resulting directly or indirectly, from any breach of warranty, express
or implied, or any other failure of this product. Some states do not allow the exclusion or limitation of
incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior
model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of tness for a particular purpose and the implied warranty of merchantability is disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
