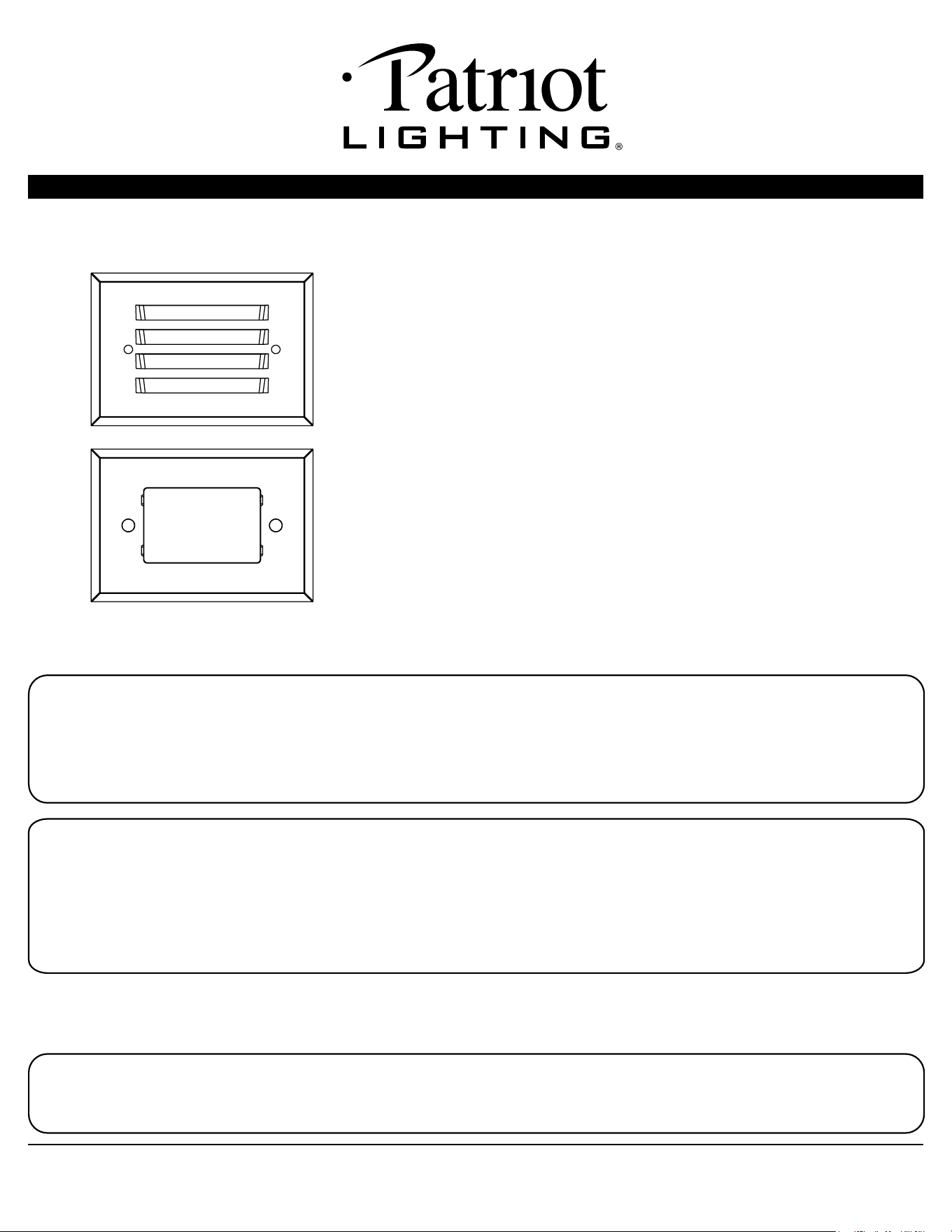

READ AND SAVE THESE INSTRUCTIONS
Low Voltage LED
GARDEN
LIGHT FIXTURE
DEAR CUSTOMER,
Congratulations on your purchase of a Patriot
®
lighting product. Our products will help to enhance the beauty of your home and provide
many years of enjoyment. Patriot
®
offers a wide selection of lighting products of the highest professional quality. Ask your dealer about
the many other Patriot
®
products that will help to create your own paradise.
To ensure the maximum performance of your garden light, please read and save these instructions.
Replacement parts may be ordered by using the fixture model number and the part’s name.
1-888-867-6095
CUSTOMER SERVICE
5004-343-4173-EN_111417
FOR LANDSCAPE LIGHTING SYSTEMS ONLY. OUTDOOR USE ONLY.
THE DEVICE IS ACCEPTED AS A COMPONENT OF A LANDSCAPE LIGHTING SYSTEM WHERE THE SUITABILITY OF THE COMBINATION SHALL
BE DETERMINED BY CSA OR LOCAL INSPECTION AUTHORITIES HAVING JURISDICTION.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS
IMPORTANT SAFETY INSTRUCTIONS
Lighted lamp is HOT!
WARNING - To reduce the risk of FIRE OR INJURY TO PERSONS:
• Do not operate the luminaire fitting with a missing or damaged lens.
• WARNING - Risk of Electric Shock. Install all luminaires 10 feet (3.05 m) or more from a pool, spa or fountain.
• Install in accordance with all local codes and ordinances.
Only for use with low voltage power units with a maximum output rating of 15V, Class 2 only.
MODEL # 343-4173
CATALOG # : U000-4194
Note: The wiring access hole on the back of the fixture has been sized to allow for a 1/2 inch conduit connection provision
once the flexible grommet has been removed.
2
3/8
2
3/8
3
3/4
3
3/4
Connector
With diffuser plate

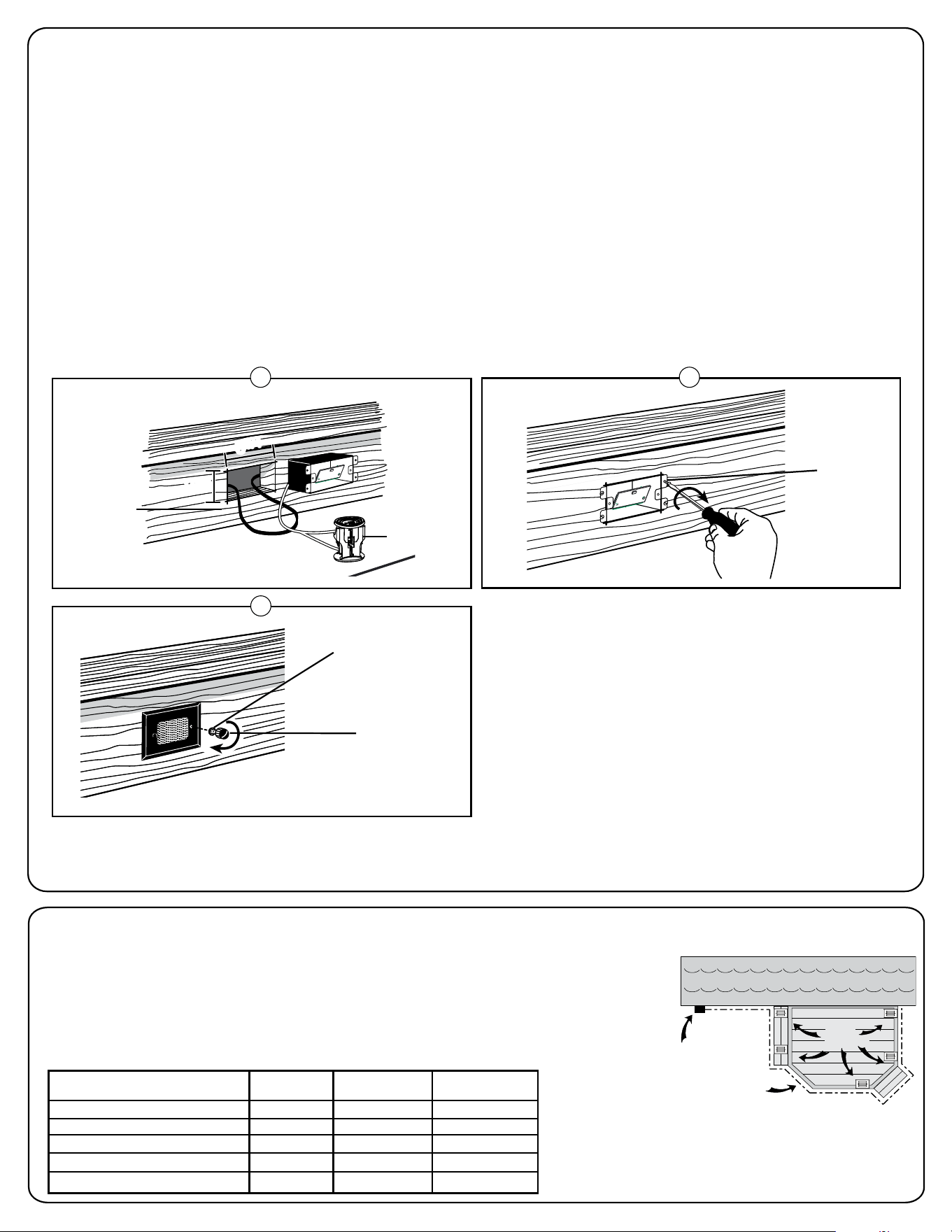

1.1 Cut 2 3/8” x 3 3/4” opening in mounting surface.
1.2 Secure the fixture onto the suface using the 4 screws included.
1.3 Install diffuser plate with two (2) provided thumbscrews.
Make sure the O-ring stays on the thumbscrews.
2
3/8
2
3/8
3
3/4
3
3/4
1
1. Assembly of the Light Fixture
2. Run the Landscape Wire (Not Included)
The landscape wire should run from the power pack to each light without being cut. Do not run the landscape
wire within 10 feet (3m) of a pool, spa or fountain. If the landscape wire is too long, cut it with a cable cutter.
The landscape wire should be protected by routing it close to proximity of the light fixture or next to a
building, deck or fence. Use cable suitable for low voltage landscape lighting.
See chart below for recommended cable gauges.
*Suitable cable should be sized in accordance to the table, should be Type SPT-2W. If you cannot find this cable at your local hardware or home improvement store then
please call customer service at 1-888-867-6095 or e-mail at [email protected] to order the cable needed.
Combined wattage of all fixtures on line (in
Watts)
Wire Gage (0-75')Wire Gage (75'-150')Wire Gage (150'-250')
0-60 18 16 14
60-120 16 14 12
120-180 14 12 12
180-240 12 12 Not recommended
240-300 12
Not recommended Not recommended
* llustration of xture is for example only.
There are two ways of installing this deck light:
With louver plate
1.1 Cut 2 3/8” x 3 3/4” opening in mounting surface.
1.2
Secure the fixture onto the surface using the four (4) screws included
.
1.3 Install louver plate with the two (2) provided thumbscrews.
Make sure the O-ring stays on the thumbscrews.
Fixtures
Cable
Power Pack
1
3/4
” (4.5 cm)
2
3/8
2
3/8
3
3/4
3
3/4
Screw
O-Ring
Thumbscrew
2
3
Landscape
cable
CUSTOMER SERVICE
1-888-867-6095
All of the lights fail to
work
Only some lights work
• To clean, wash with a damp soft cloth.
• Replacement parts may be ordered by using the fixture model
number and the part’s name.
• Check that the power is on.
• Check if there is a loose
connection at the power pack
screw terminal.
• Check that the power switch is not
in the OFF setting.
• The problem here is with the
fixture's connector or LED.
• Check the connector to make
sure the wire stabs have pierced
the landscape wire.
5. Troubleshooting
6. Maintenance
6 ’’ (15,24cm) max.6 ’’ (15,24cm) max.
* llustration of xture is for example only.
The landscape wire and connector can also be hidden under stone or
buried under grass at a maximum depth of 6” (15,24cm).
4. Bury the landscape wire
CAUTION
BE CAREFUL!
THE WIRE STABS
ARE VERY
SHARP!

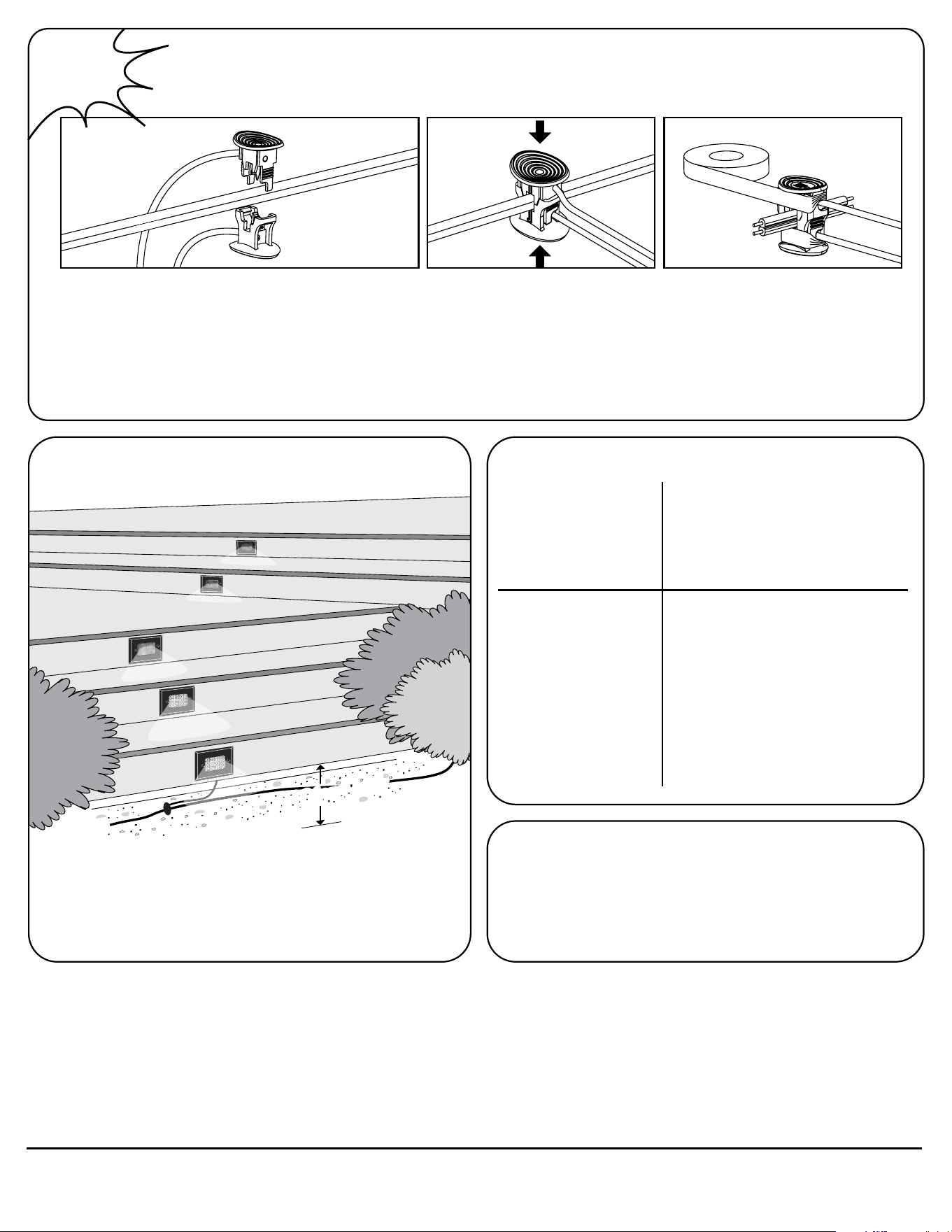

3.2 Align and fit the main low
voltage cable vertically to
the slot of wire connector as
shown.
3.3 Press the wire connector together
until fully seated and locked around
the cable. Pre-set prongs will pierce
the cable insulation and establish
contact. Turn on the power unit. If the
light fixture does not turn on, repeat
operations 3.2 and 3.3.
3.4 Once the clip-on connector is in
place, wrap it with electrical tape for
additional protection.
3. Connect the fixture wire to the landscape wire
3.1 Place the wire connector
on opposite sides of the
low voltage cable where the
fixture will be located.
PATRIOT LIGHTING
®
(Garden Light) WARRANTY 5-YEAR LIMITED WARRANTY:
This PATRIOT LIGHTING
®
brand light fixture carries a five (5) Year Limited Warranty to the original purchaser. If, during normal use, this PATRIOT LIGHTING
®
light fixture fails due to a defect in material
and workmanship within five (5) years from the date of purchase, simply bring this light fixture with your original sales receipt back to your nearest MENARDS
®
retail store. At its discretion, PATRIOT
LIGHTING
®
agrees to have the lighting fixture replaced with the same or similar PATRIOT LIGHTING
®
product free of charge, within the stated warranty period, when returned by the original purchaser
with original sales receipt. Notwithstanding the foregoing, this limited warranty does not cover damage or failure caused by misuse or abuse including but not limited to improper installation, accident,
unauthorized repair, maintenance, or modifications of the merchandise. This warranty: (1) excludes expendable parts including but not limited to light bulbs, batteries; (2) carries a 2-year finish warranty
protecting finish against tarnishing, flaking, and discoloration; (3) shall be void if this lighting fixture is not installed in the U.S.A; (4) does not cover products installed within three miles of saltwater
coastline or any area prone to salt spray; and (5) does not cover any losses, labor, injuries to persons/property or costs. This warranty does give you specific legal rights and you may have other rights,
which vary from state to state. Be careful, it is recommended that installation be done by a qualified professional; the purchaser has sole responsibility for proper installation in compliance with all state and
local code requirements. Seller’s employees are not qualified to advise you on the use of this Merchandise. Any oral representation(s) made will not be binding on seller or its employees. The rights under
this limited warranty are to the original purchaser of the Merchandise and may not be transferred to any subsequent owner. This limited warranty is in lieu of all warranties, expressed or implied including
warranties or merchantability and fitness for a particular purpose. Seller shall not be liable for any special, incidental, or consequential damages. The sole exclusive remedy against the seller will be for the
replacement of any defects as provided herein, as long as the seller is willing or able to replace this product or is willing to refund the purchase price as provided above. For questions / comments, technical
assistance or repair parts – Please call toll free at: 1-888-867-6095 - SAVE YOUR RECEIPTS. THIS WARRANTY IS VOID WITHOUT THEM.
