52” ALSTON II
CEILING FAN
Owner’s Manual
Model #20850, 20851
SKU #355-2108, 355-2110
If a problem cannot be remedied or you are experiencing diculty in installation, please contact
the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
PACKAGE CONTENTS
2
HARDWARE CONTENTS
AA. Wire Connector
DD. Pull Chain Extension (x2)
EE. Plug Button
FF. Push-In Connector

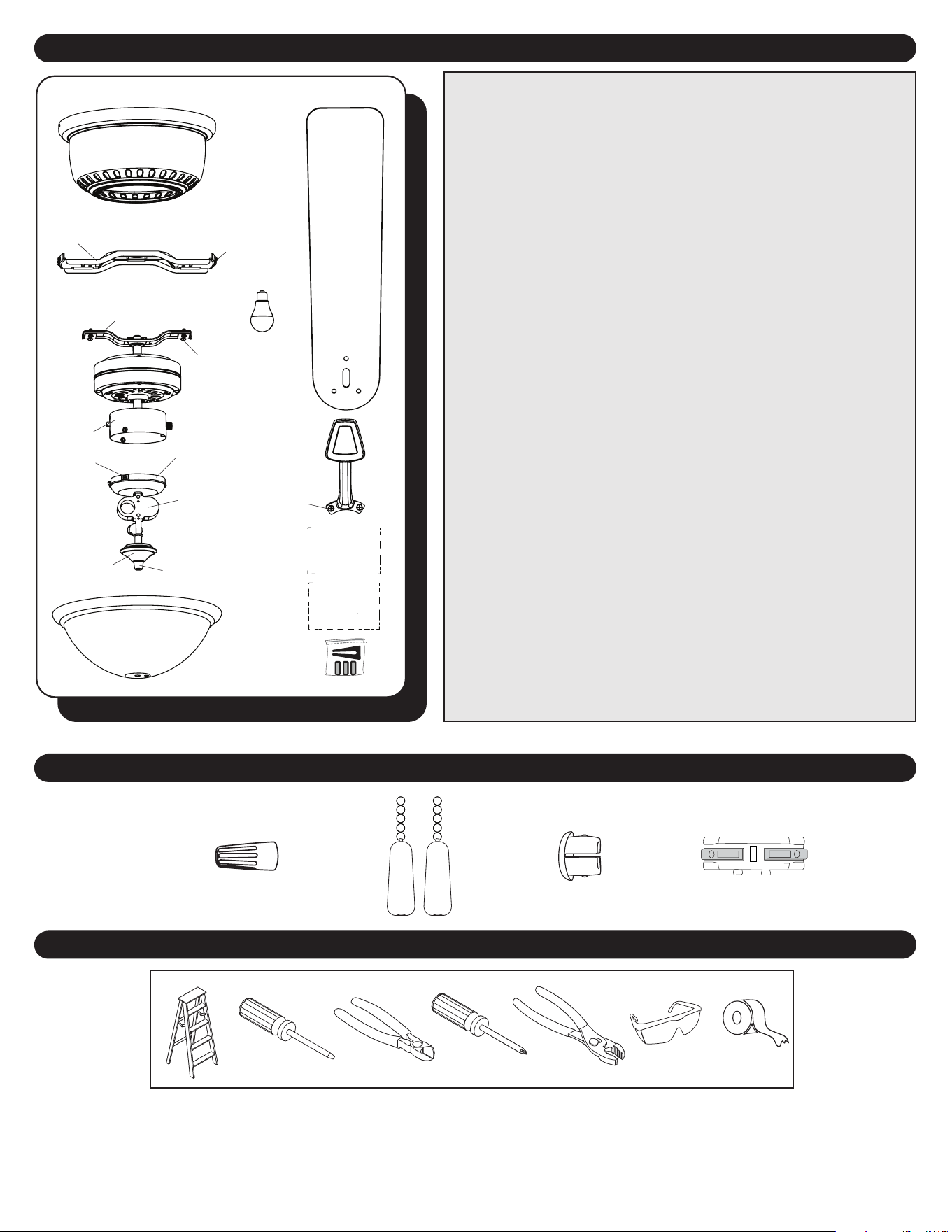

Unpack your fan and check the contents. You should
have the following items:
PACKAGE CONTENTS
HARDWARE CONTENTS
AA EEDD
Note: Some extra hardware has been included. The quantity
listed above is the number required for installation.
TOOLS REQUIRED (not included)
Tools required for assembly: Electrical tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, Wire Cutters
and Wire Strippers
Helpful Tools: AC Tester Light, Tape Measure, and Wiring Handbook
1. Motor Housing
2. Upper Mounting Bracket
3. Motor Housing Screw (x4)
4. Lower Mounting Bracket
5. Mounting Bracket Screw
(x4)
6. Motor
7. Switch Housing
8. Switch Housing Cap
9. Switch Housing Screw (x3)
10. Light Kit
11. Finial Cap
12. Finial
13. Glass Bowl
14. E26-base LED Bulb (x2)
15. Blade (x5)
16. Blade Arm (x5)
17. Motor Screw (x10)
18. Hardware Kit
19. Owner’s Manual
20. Blade Balancing Kit
FF
Owner’s
Manual
Hardware Kit
1
2
3
15
4
16
5
6
7
8
17
9
10
11
12
14
19
20
18
13
3

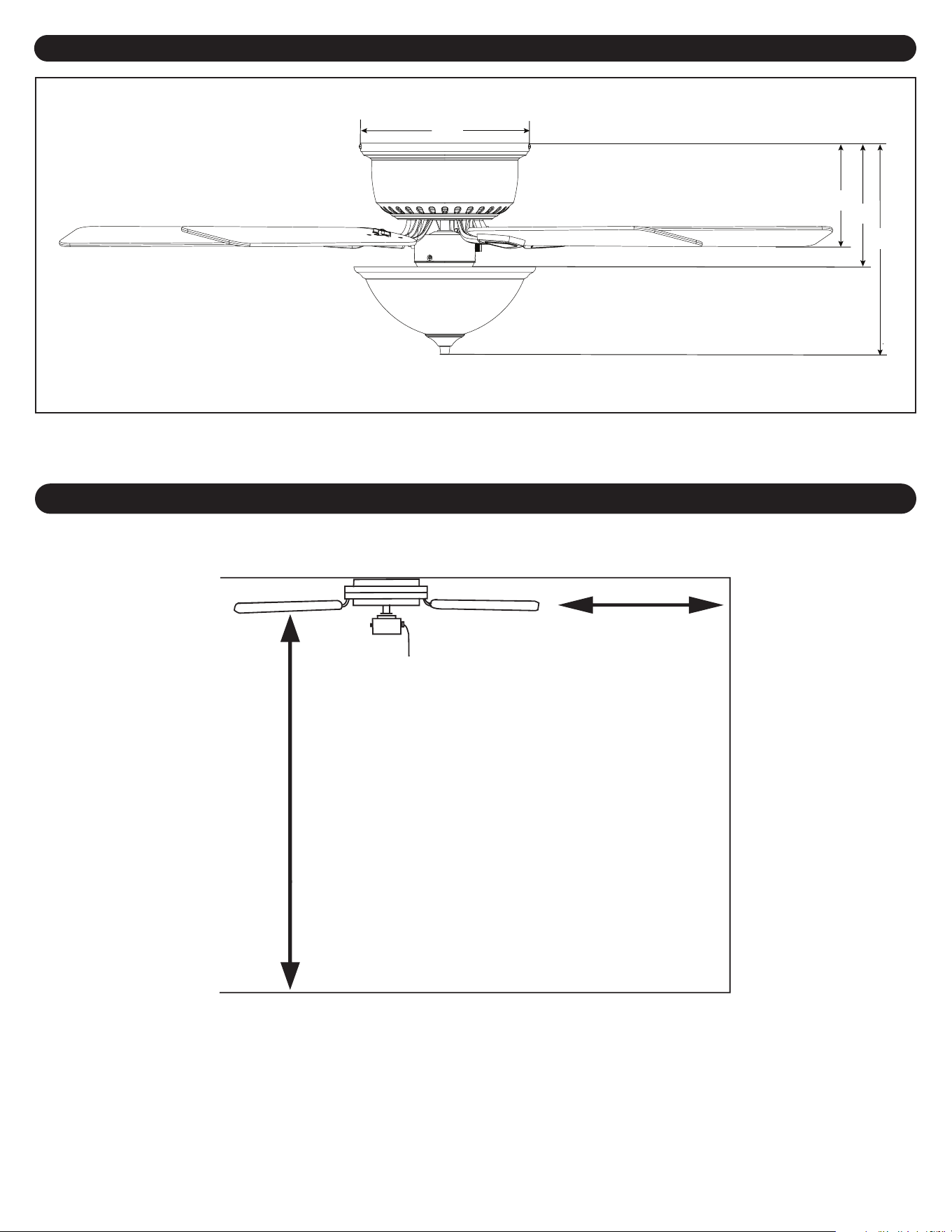

A. 13.65 in. B. 7.9 in. C. 5.72 in. D. 11.05 in.
DIMENSION REFERENCE
D
B
A
C
LOCATION FOR INSTALLATION
When selecting a location for installation, ensure the blades will be at least 30 inches from any wall or obstruction
and at least 7 feet above the oor.
7 ft. Min
30 in. Min
Wall
Ceiling
Floor
4
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
This fan is not suitable for damp or outdoor locations.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing
the blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are not
meant to cover all possible conditions and situations that may occur. It must be understood that common
sense, caution and care are factors which can not be built into this product. These factors must be supplied
by the person(s) installing, caring for and operating the fan.
The fan weight is Net Weight: 15.81 lb (7,17 kg). Be sure the outlet box (not included) is securely attached
to the building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious
injury.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
HKC-US
3350 Players Club Pkwy. #225
Memphis, TN 38125
1-877-459-3267
SAFETY INSTRUCTIONS
CAUTION:
5
WARNING:
To avoid risk of electric shock, be sure to shut o power at the main fuse or circuit breaker box before
installing or servicing this xture. Turning o the electrical power by using the light switch is not
sucient to prevent electrical shock.
To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the
oor and at least 18 inches (0.5 Meters) from the tip of the blades to the wall.
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for
fan support” and use mounting screws provided with the outlet box.
The installation has to be in accordance with the national electrical code, ANSI/NFPA 70-1999 and
local codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a
qualied licensed electrician.
Using a full-range dimmer switch to control fan speed will cause a loud humming noise from the fan. To
reduce the risk of re or electric shock, do NOT use a full-range dimmer switch to control the fan speed.
SAFETY INSTRUCTIONS
CARE AND MAINTENANCE
At least twice each year and then tighten all screws on the fan. Clean the motor housing with only a soft brush or
lint-free cloth to avoid scratching the nish. Clean the blades with a lint-free cloth.
Important: Shut o the main power supply before you begin any maintenance tasks. Do not use water or a damp
cloth to clean the ceiling fan.
Bulb Replacement: Use 60 watt max. E26-base LED, CFL or incandescent bulbs. Halogen bulbs are not
recommended for this item.
6
ASSEMBLY INSTRUCTIONS
3
2
1
4
Upper
Mounting
Bracket
Outlet Box

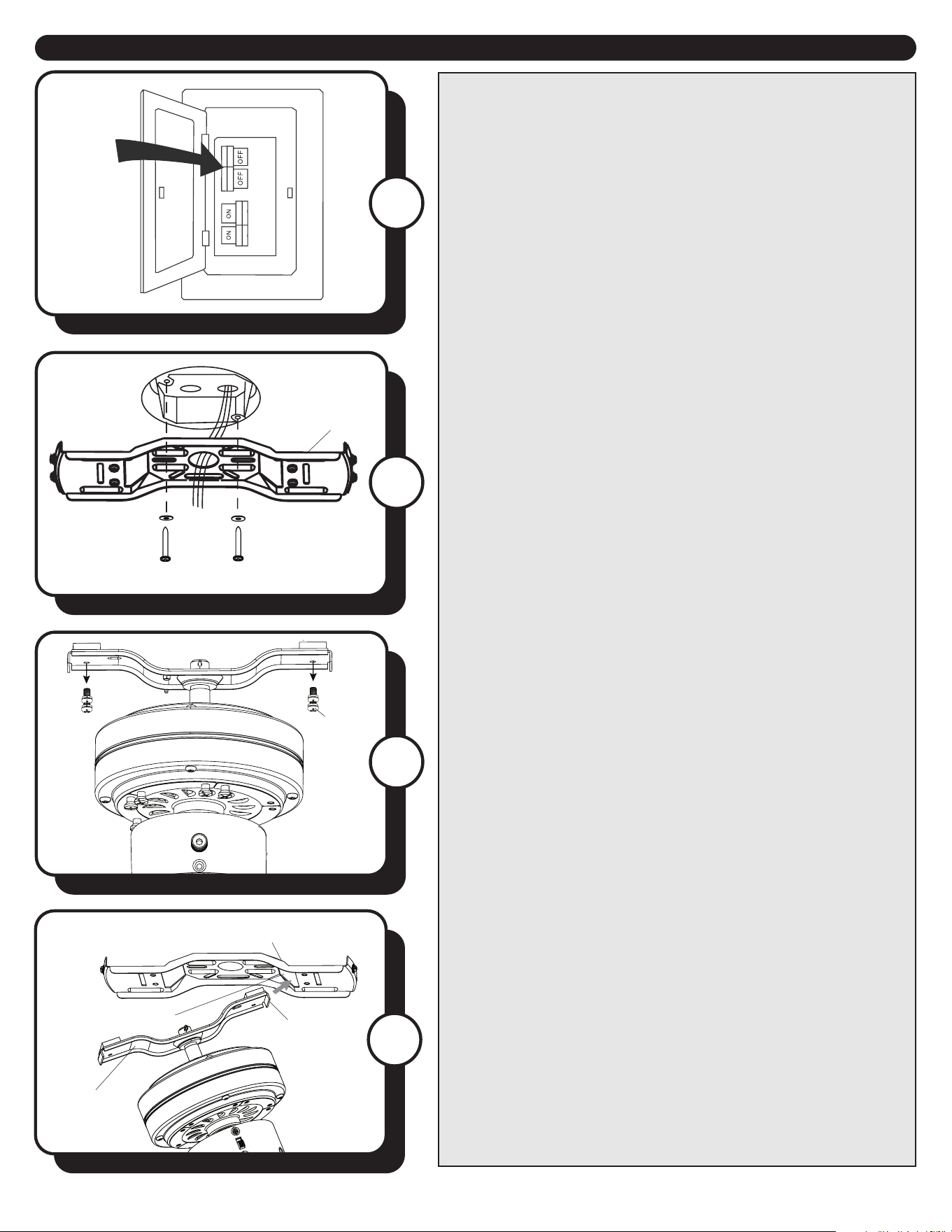

1. Turn OFF the electrical power at the main fuse or
circuit.
DANGER: Failure to disconnect the power supply prior to
installation may result in serious injury or death.
Motor
Mounting
Bracket
Screw
Large Slot
Lower
Mounting
Bracket
Tab
Upper Mounting Bracket
2. Secure the upper mounting bracket to the outlet box
using screws, spring washers, provided with the outlet
box (not included).
WARNING: To reduce the risk of re, electric shock,
or personal injury, mount to the outlet box marked
“acceptable for fan support” and use the mounting
screws and washers provided with the outlet box.
4. Place one tab of the lower bracket into a large slot in
the upper mounting bracket. Then slide the second tab
of the lower mounting bracket into the second large slot
on the upper mounting bracket until all four holes are in
alignment.
3. Remove the mounting bracket screws from
underneath the lower mounting bracket.
Note: Remove the wire restraint from the wires on top of
the lower bracket.
7
ASSEMBLY INSTRUCTIONS
Black (Hot)
White (Neutral)
Bare/Green (Ground)
Black
Blue
White
Green
7
6
8. Align the twist lock connector in the direction of its
corresponding hole in the blade. Place the blade over
the twist lock connector. Rotate the twist lock connector
so that it is perpendicular to the hole in the blade.
Repeat for the remaining blades.
8
Blade
Blade Arm
Twist-Lock
Connector
Wire Connector
Slotted Hole
Motor
Housing
Mounting
Bracket
Screw
Upper Mounting Bracket
Lower
Mounting
Bracket

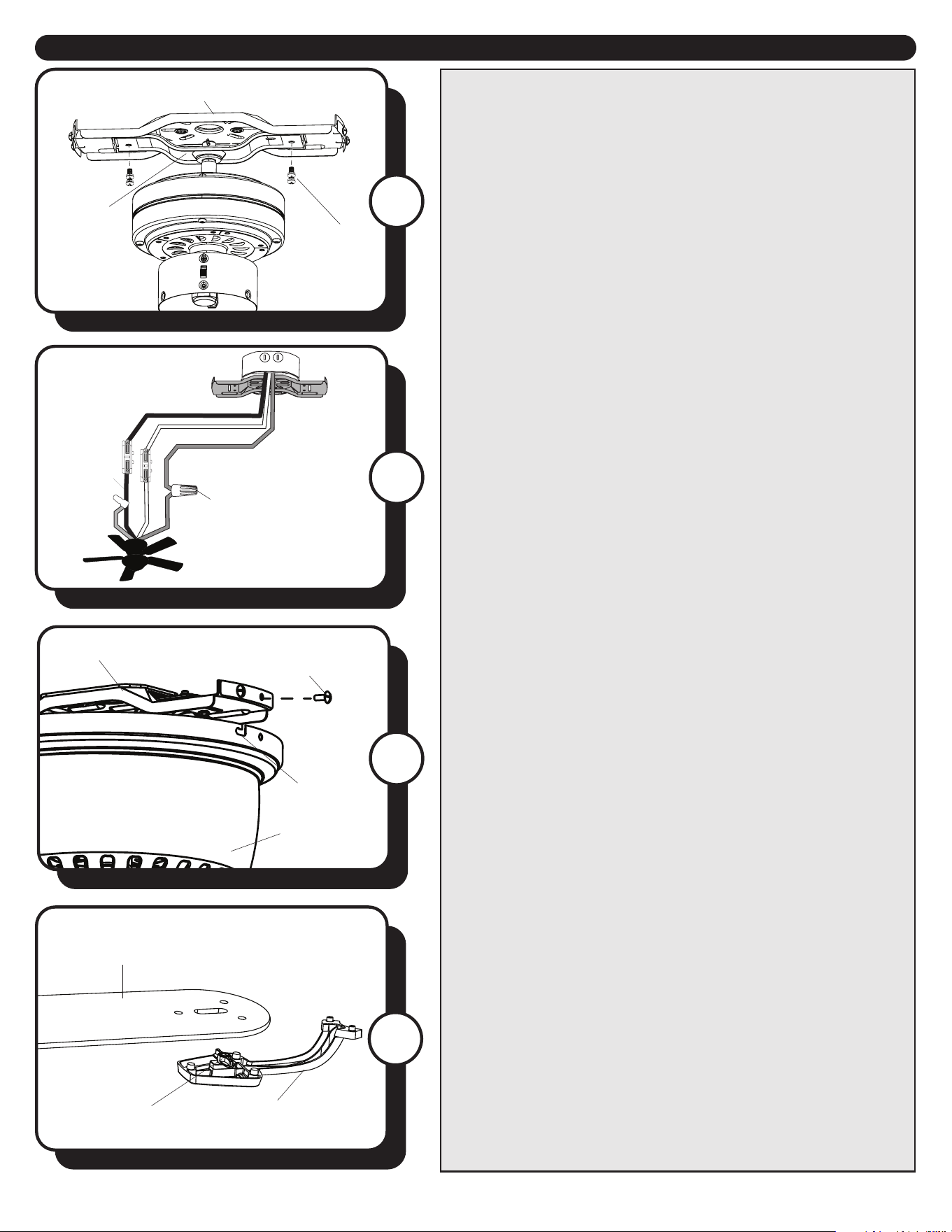

5. Reinstall the previously removed mounting bracket
screws to secure the lower mounting bracket to upper
mounting bracket. Securely tighten the screws.
5
7. Temporarily lift the motor housing to the upper
mounting bracket to determine which two motor
housing screws in the sides of the upper mounting
bracket align with the slotted holes in the top edge
of the motor housing. Partially loosen the two motor
housing screws that align with the slotted holes.
Remove the other two motor housing screws from
opposite sides of the upper mounting bracket. Slide
the motor housing over the motor, aligning the slotted
holes in the motor housing with the loosened motor
housing screws in the upper mounting bracket. Twist
the motor housing to lock. Then re-insert the two
previously removed motor housing screws and securely
tighten all screws.
6. Connect household supply and fan wires according to
the diagram and these steps:
• Use wire connector to connect the green wires from
the lower mounting bracket to the bare/green (ground)
supply wire.
• Lift the lever and then push the White (neutral)
supply wire into the empty hole of the wire connector
preassembled to the white wire from motor and then
lower the lever to secure wire.
• Lift the lever and then push the Black (hot) supply wire
into the empty hole of the wire connector preassembled
to the black wire from the motor and then lower the
lever to secure wire.
Note: If there is a second hot/power wire coming from
the outlet box, connect it to the blue (light power) fan
wire for separate light and fan control.
Note: If household supply wires are dierent colors than
referred to above, it is recommended a professional
electrician determines the proper wiring.
Motor Housing
Screw
Upper Mounting Bracket
8
ASSEMBLY INSTRUCTIONS
11
10
10. Remove the three switch housing screws from the
top edge of the switch housing cap. Then, connect the
single-pin connectors from the switch housing to the
single-pin connectors from the light kit -- blue to black
and white to white. Then, using the three previously
removed switch housing screws, secure the light kit to
the switch housing.
Note: Align the notch in the switch housing cap with the
reverse switch.
11. Install the E26-base LED bulbs into the sockets of the
light kit.
Important: Make sure you allow the bulbs and light kit
to cool before you replace the bulbs.
12. Remove the preassembled nial and nial cap
from threaded rod on the light kit. Feed the o-center
pull chain in the light kit through the preassembled
grommet in the lower part of the light kit.
12
Single-pin
Connector
Switch
Housing Cap
Switch Housing
Switch
Housing
Screw
Bulb

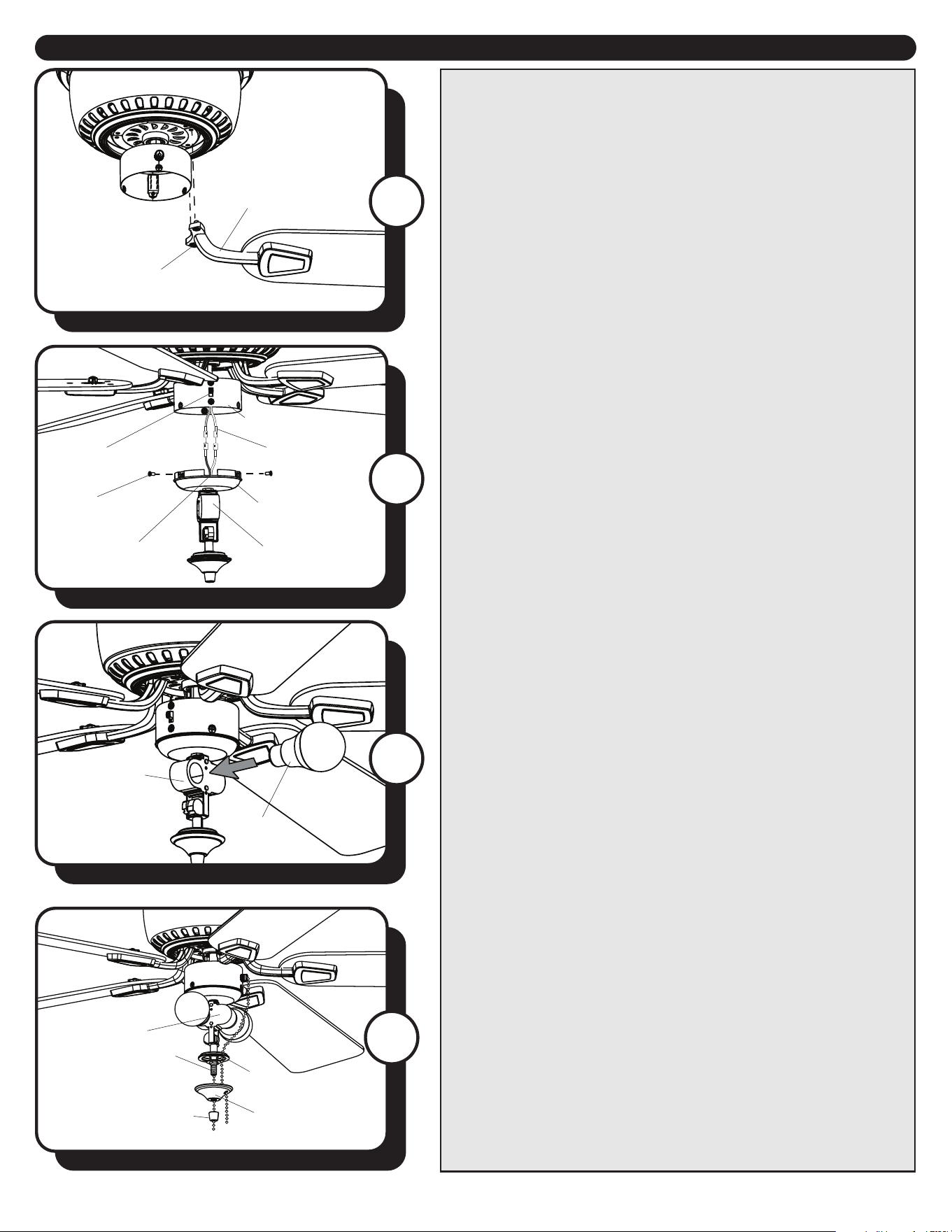

9. Install the blade arm to the underside of the motor
assembly with preinstalled motor screws. Tighten each
blade arm completely before moving to the next.
To install the fan without the light kit, skip to Step 16.
Motor Screw
Blade
Arm
9
Notch
Light Kit
Reverse
Switch
Threaded Rod
Light Kit
Light Kit
Finial
Finial Cap
Grommet
9
ASSEMBLY INSTRUCTIONS

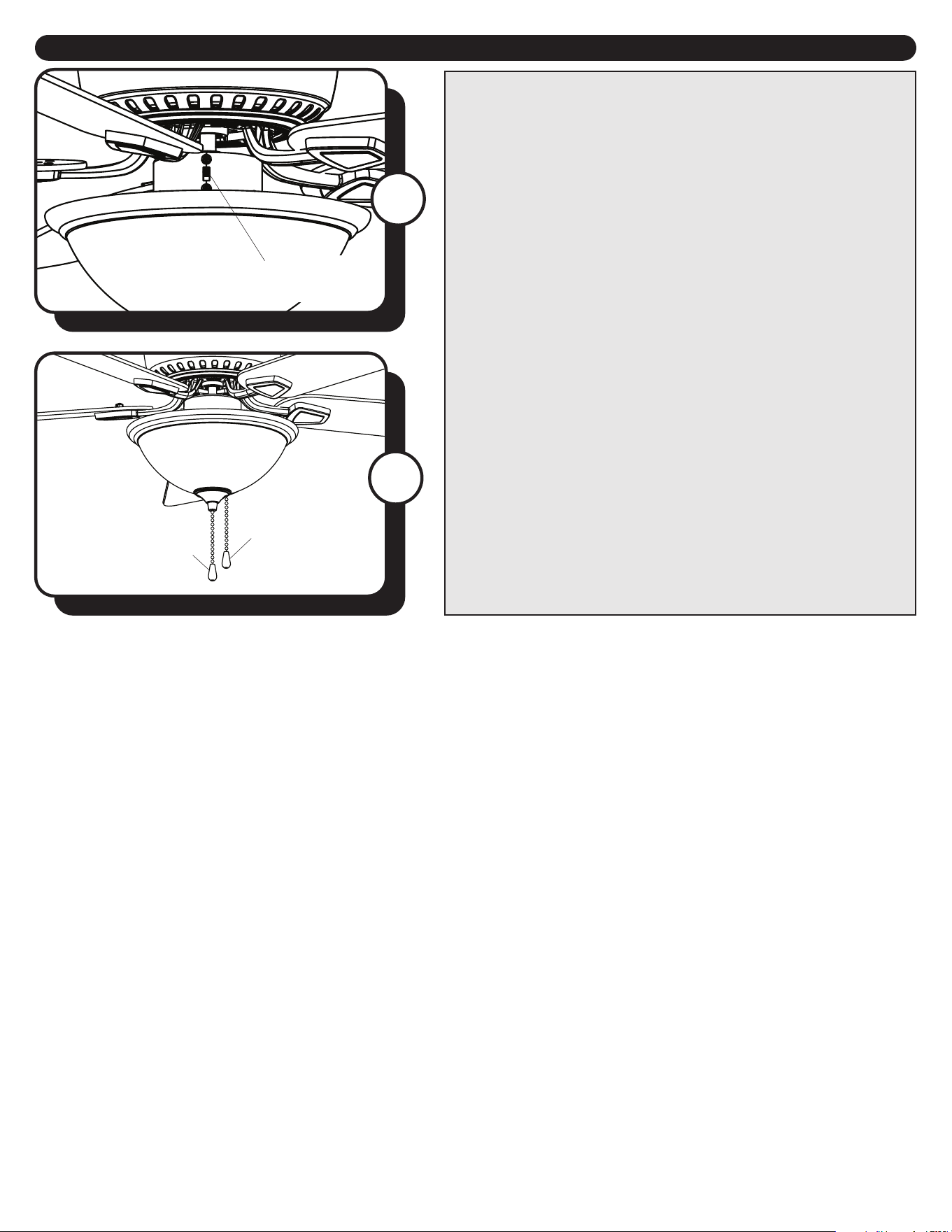

15. Attach pull chain extensions to the pull chains.
Note: The pull chain in the center of the light kit controls
the light.
Restore the power at the main fuse or circuit breaker and
wall switch.
Assembly is complete.
14. Lift the glass bowl onto the threaded rod at the
bottom of the light kit. Lift the nial cap until it is ush
with the glass bowl and secure with the nial.
Note: Ensure the pull chain from the switch housing is
aligned with the o-center hole in the glass bowl and
the o-center hole in the nial cap to ensure smooth pull
chain operation.
Finial Cap
Pull Chain Extension
Finial
15
Switch
Housing Cap
Switch
Housing
Screw
Plug Button
Switch Housing
16

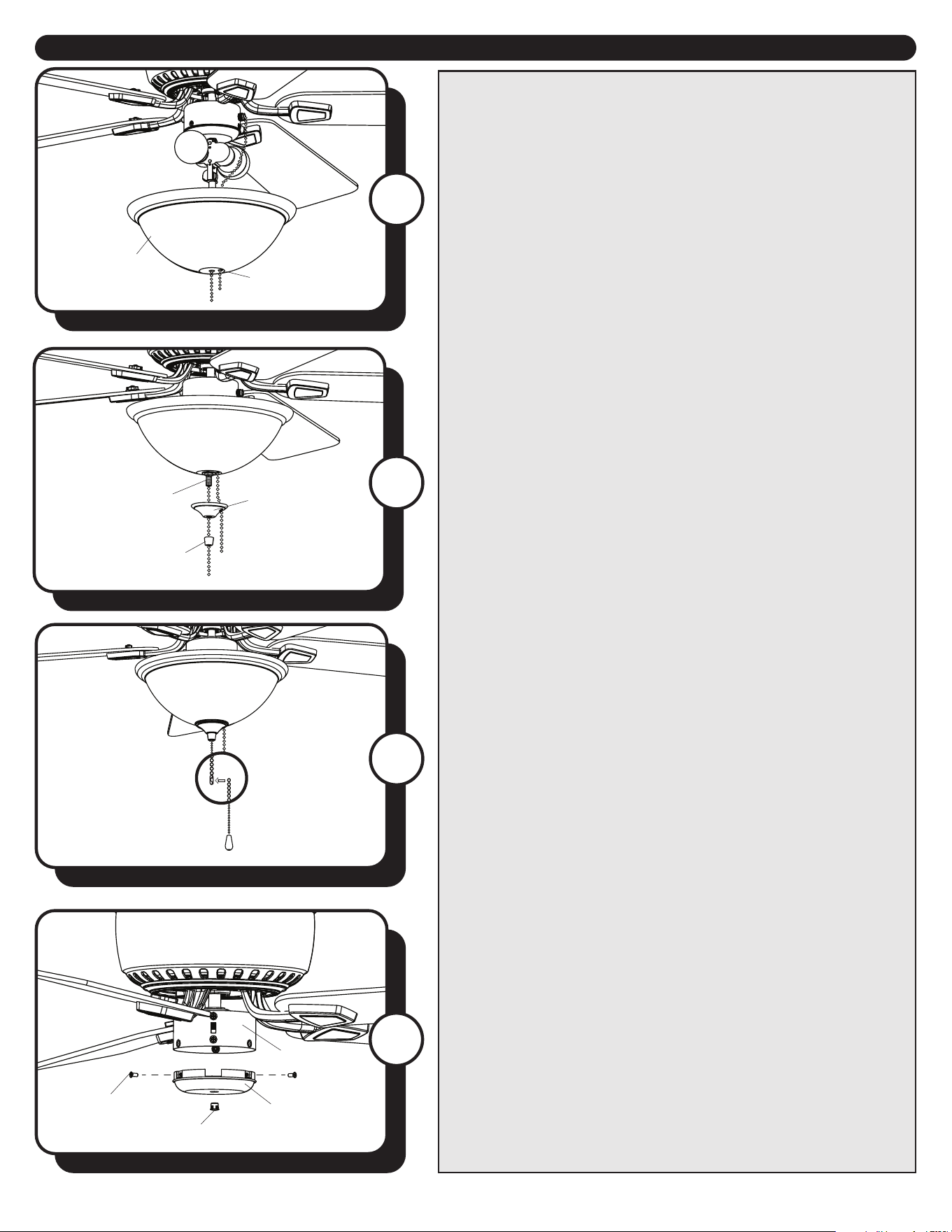

16. NO LIGHT KIT OPTION (OPTIONAL)
a. Remove the three switch housing screws from the top
edge of the light kit.
b. Remove the light kit from the switch housing cap by
removing the hex nut and washer from inside the switch
housing cap.
c. Insert plug button into center of switch housing cap.
d. Install the switch housing cap to the bottom of the
switch housing with the three switch housing screws.
e. Attach the pull chains extension (Step 15).
14
13. Feed the pull chain coming from the grommet in the
light kit through the o-center hole in the glass bowl.
Feed the pull chain coming from the center of the light
kit through the center hole in the glass bowl.
13
Glass Bowl
O-Center Hole
Threaded Rod
10
OPERATING INSTRUCTIONS
1
2. The fan pull chain has four positions to control fan
speed. One pull is HIGH, two is MEDIUM, three is LOW
and four turns the fan OFF. The light pull chain has two
positions -- OFF and ON.
2
1. Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your
thermostat setting in winter without feeling a dierence
in your comfort.
In warmer weather, push the reverse switch to the
down for downward airow creating a wind chill eect.
In cooler weather, push the reverse switch to the up for
upward airow that can help move stagnant, hot air o
the ceiling area.
Important: Wait for the fan to stop before moving the
reverse switch. The reverse switch must be set either
completely up or down in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate.
Reverse
Switch
Fan Pull
Chain
Light Pull
Chain
11
PROBLEM SUGGESTED REMEDY
TROUBLESHOOTING
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central, Monday - Friday.
WARNING: To reduce the risk of re, electrical shock or personal injury, shut o the power supply to fan before
you begin any maintenance tasks.
1. Fan does not start:
1. Make sure that the wall switch is turned ON.
2. Check main and branch circuit fuses or circuit breakers.
3. Check all wire connections from household supply wires to the fan.
4. Make sure forward/reverse switch is pushed completely up or down. Fan will not operate
when switch is in the middle.
1. Make sure all screws in motor housing are snug, but not overtightened.
2. Make sure the screws that attach the blade arms to the motor are tight.
3. Make sure wire connectors are not rattling against each other or against the interior wall
of the switch housing.
4. Some fan motors are sensitive to signals from Solid State variable speed controls. DO NOT
USE a Solid State variable speed control.
5. Ensure fan does not wobble excessively (see Fan wobbles solutions below).
1. Ensure the mounting bracket is tightened securely to outlet box and outlet box is
mounted rmly to ceiling joist.
2. Ensure all blades are screwed rmly into blade arms.
3. Ensure all blade arms are tightened securely to motor.
4. Switch one blade with a blade from the opposite side. Or balance the fan using the blade
balancing kit.
5. If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
1. Check for loose or disconnected 9-pin and/or single-pin connectors in switch housing or
light kit.
2. Ensure the blue wire from fan is connected to hot power supply wire.
3. Check for faulty light bulbs.
4. Ensure total wattage of bulbs does not exceed 180 watts (for incandescent bulbs only).
2. Fan is noisy:
3. Fan wobbles:
4. Light does not work:
LIMITED LIFETIME WARRANTY
To obtain Service, please contact the Service Department:
1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
Model Name: 52” Alston II Ceiling Fan
Model No: 20850 - (SKU: 355-2108) Bronze
20851 - (SKU: 355-2110) Matte White
12
Set forth below, the manufacturer warrants the fan motor for this Patriot Lighting ceiling fan to be free
from defects in workmanship and material for the life of the product. Also, subject to the limitations
below, the manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts
made in whole or in part with glass) to be free from defects in workmanship and material for a period of
one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser from an authorized dealer, whether such purchaser
purchased the product through a store or contractor. Ceiling fan part defects must be reported within the
rst year from the date of purchase. Parts made in whole or in part with glass and the nishes of metal
and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by
this warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the
terms stated above. The manufacturer shall not be liable for any loss or damage of any kind, including any
incidental or consequential damages resulting directly or indirectly, from any breach of warranty, express
or implied, or any other failure of this product. Some states do not allow the exclusion or limitation of
incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior
model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of tness for a particular purpose and the implied warranty of merchantability is disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
