PAGE: 1 / 14
LIMITED LIFETIME WARRANTY
1-800-267-4427, 8am to 5pm Eastern Time.
PAGE: 2 / 14
Package Contents:
To obtain Service, please contact or call Patriot Lighting Service Department:
11-23
The limited lifetime warranty covers this ceiling fan, for residential use by the original purchaser, against defects in
material or workmanship as follows:
If your Patriot Lighting Ceiling Fan motor fails at any time during the lifetime of the original purchaser due to defects in
material or workmanship, we will provide a replacement part free of charge.
If your Fan motor fails at any time within one year after the original date of sale to the original purchaser due to defects
in material or workmanship, we will provide labor to repair the defect, with the exception of take down/reinstallation,
free of charge. The original purchaser will be responsible for all labor costs after this one year period.
If no replacement parts are provided for any part of your Fan motor that fails at any time during your lifetime due to
defects in material or workmanship, we will refund the original purchase price of your Fan.
If your Fan blades, remote controller / pull chain switch, reverse switch, or any accessory, except glass globes and light
bulbs, fails at any time within one year after the original date of purchase due to a defect in material and workmanship,
we will repair or, if we choose, replace the defective blades, switch, or accessory free of charge, with the exception of
take down/reinstallation services.
If the original purchaser ceases to own the Fan, this warranty and any implied warranty, including but not limited to any
implied warranty of merchantability or fitness for a particular purpose, become void. This warranty and any implied
warranty, including but not limited to any implied warranty of merchantability or fitness for a particular purpose, do not
cover glass globes, light bulbs, or finish on any metal portions of the Fan.
This warranty is in lieu of express warranties. The duration of any implied warranty of merchantability or fitness for a
particular purpose, with respect to any Patriot Lighting Ceiling Fan motor, blades, switch, or accessories, is expressly
limited to the period of the express warranty set forth above for such motor, blades, switch, or accessories.
This warranty excludes defects, malfunctions, or failures of any Patriot Lighting Fan that are caused by repairs by
persons not authorized by us, use of parts or accessories not authorized by us, mishandling, improper installation,
modifications or damage to the Fan while in your possession, or unreasonable use, including failure to provide
necessary maintenance.
To obtain service, contact Patriot Lighting Service Department at 1-800-887-6326, 9AM-5PM CST. You will be responsible
for all insurance and freight or other transportation charges to our factory or service center. A copy of sales
receipt is required in order to obtain service. We will return your Fan freight prepaid. Your Fan should be properly
packed to avoid damage in transit, for we will not be responsible for any such damages.
In no event shall Patriot Lighting Fan be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in which case the above
limitation or exclusion may not apply.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
Dimension Reference (Installed with 6” Downrod):
A. 14 3/4 in. B. 9 1/8 in. C. 42 in. D. 5 7/8 in.
A
D
B
C
11
12
5
6 8
13
14 15
9
3
4
2
1
10
16
7
17 18

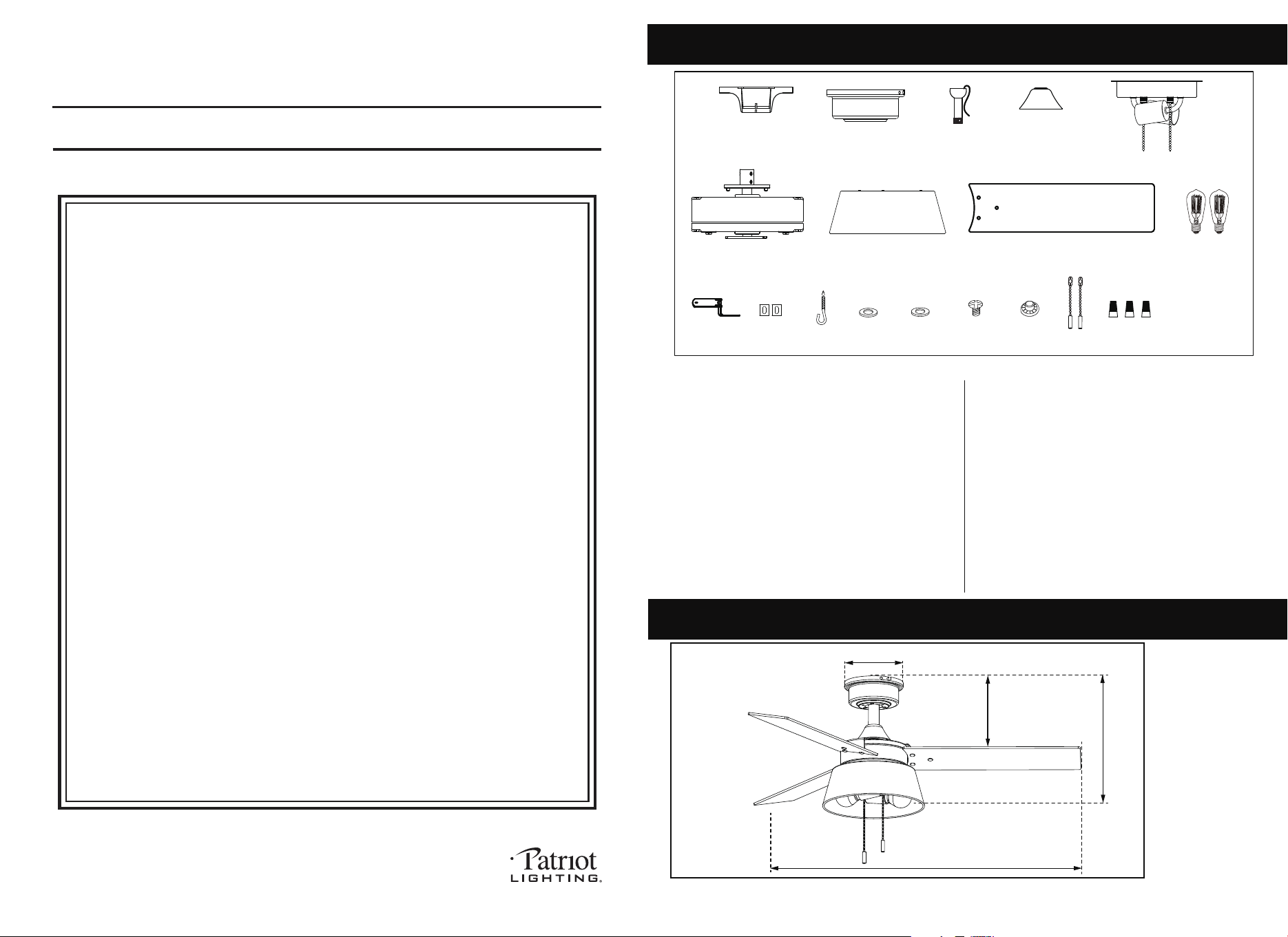

Unpack your fan and check the contents. You should have the following items.
1.) Mounting Bracket
2.) Canopy
3.) Downrod Assembly (Includes
Hanger Ball, 6” Downrod, Hanger Pin
4.) Yoke Cover
5.) Light Kit
& Lock Pin)
6.) Fan Motor Assembly
7.) Light Kit Shade
8.) Fan Blades (3 pcs)
9.) Bulbs (2 pcs)
10.) Blade Bracket (3 pcs)
13.) Fiber Washer
14.) Metal Washer
15.) Blade Bracket Screw
16.) Hex Nut
12.) J-Hook
11.) Rubber Gasket
17.) Chain (2 pcs)
18.) Wire Nuts (3 pcs)
SKU # 355-0900
Model No.: # CF42EAS3
PAGE: 3 / 14 PAGE: 4 / 14
NOTE: FOR OPTIMUM QUIETNESS, FULLY ASSEMBLE FAN AND RUN 24 HOURS
TOOLS AND MATERIALS REQUIRED
-
-
- Step Ladder
- Wire Cutters
- Wiring supplies as required by electrical code.
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
INSTALLATION AND WIRING TO BE IN ACCORDANCE WITH CEC,
NEC, LOCAL ELECTRICAL CODES and ANSI/NFPA 70.
Consult a qualied electrician if you are not familiar with wiring.
IMPORTANT SAFETY INSTRUCTIONS
WARNING

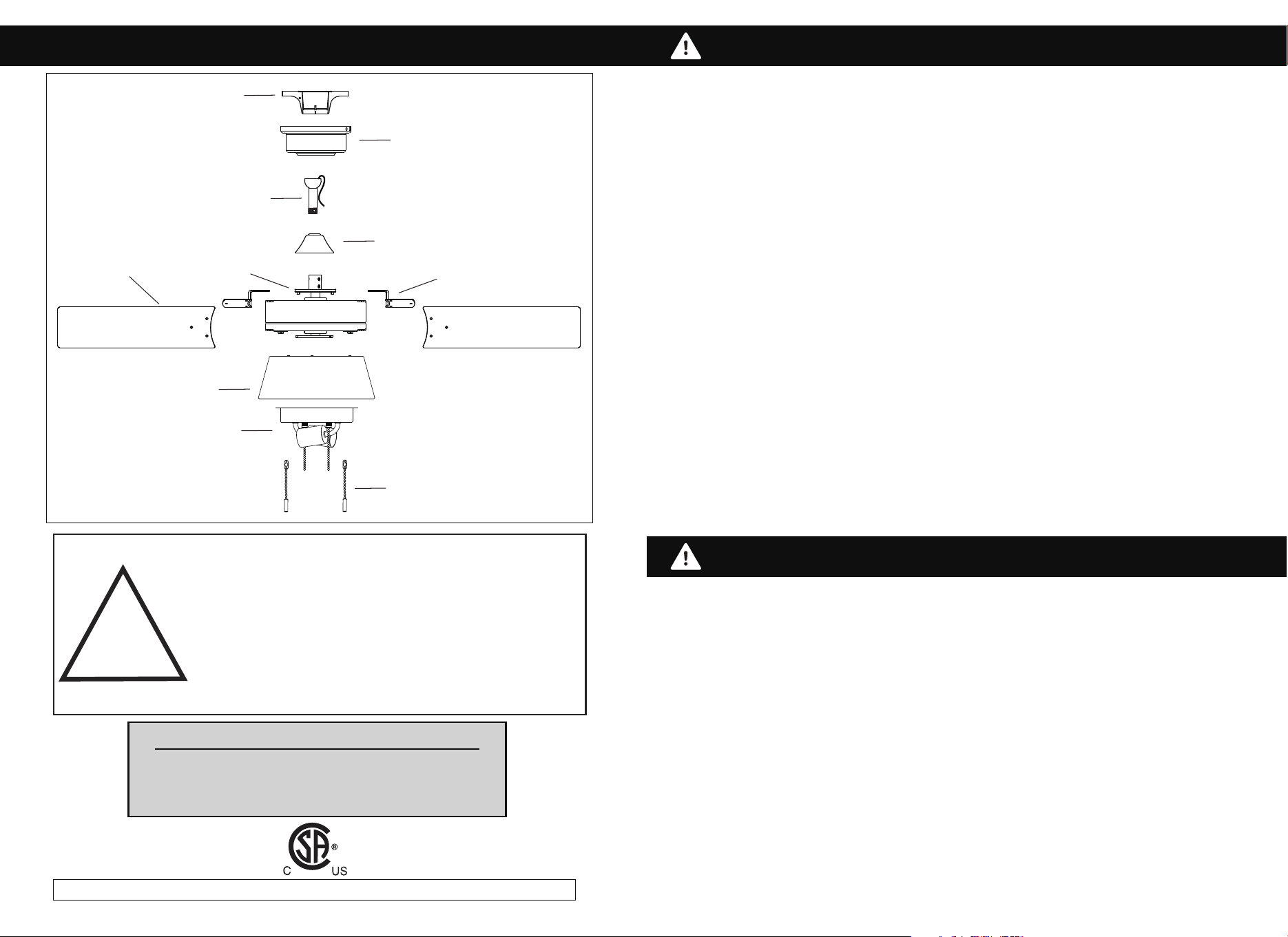

Exploded View Detail
PhillipsScrewdriver
Blade Screwdriver
1. Turn off power at main electrical service box before starting installation. 14
2. Electrical connections must comply with local code ordinances, national electrical
codes, CEC, NEC and ANSI/NFPA 70. 13
3. Make sure the installation site you choose allows the fan blades to rotate freely
without any obstructions.
4. When mounting the fan on a ceiling outlet box, Use an approved (CSA for Canada and
UL for U.S.) ceiling fan box marked "FOR FAN SUPPORT". Ensure the outlet box is
securely installed in place such that it is able to support at least the fan weight.
5. WARNING: To reduce the risk of fire, electric shock, or other personal injury, mount
fan only on an outlet box or supporting system marked acceptable for fan support of
35 lbs (15,9 kg) or less and use the mounting screws provided with the outlet box.
Most outlet boxes commonly used for the support of lighting fixtures are not
acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt.
6. The fixing means for attachment to the ceiling such as hooks or other devices shall
be fixed with a sufficient strength to withstand 4 times the weight of the ceiling fan. 7
7. The mounting of the suspension system shall be performed by the manufacturer,
its service agent or suitably qualified persons. 8
8. This ceiling fan is pre-built with luminaire. Do not use any other luminaire for this fan. 9
9. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. 1
10. Children should be supervised to ensure that they do not play with the appliance. 2
11. Total Fan Weight For Reference: 42"approximate 5.2 kgs (11.46 lbs). 5
1. To reduce the risk of personal injury, DO NOT bend the blade brackets when installing
the brackets, balancing the blades or cleaning the fan. Also. DO NOT insert foreign
objects in between rotating fan blades. 10
2. WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL
INJURY, MOUNT TO OUTLET BOX MARKED ACCEPTABLE FOR FAN SUPPORT
AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX. 11
3. Mount with the lowest moving parts at least 2.10 Meters (7 Feet) above floor or grade
level.
4. DO NOT operate reversing switch while fan blades are in motion. Fan must be turn
off and rotating blades stopped completely, operate reverse switch and then operate
speed switch for the opposite direction.
Mounting Bracket
Canopy
Downrod
Yoke Cover
Fan Motor
Fan Blades
Light Kit
Chain
Blade Bracket
Light Kit Shade
PAGE: 5 / 14 PAGE: 6 / 14

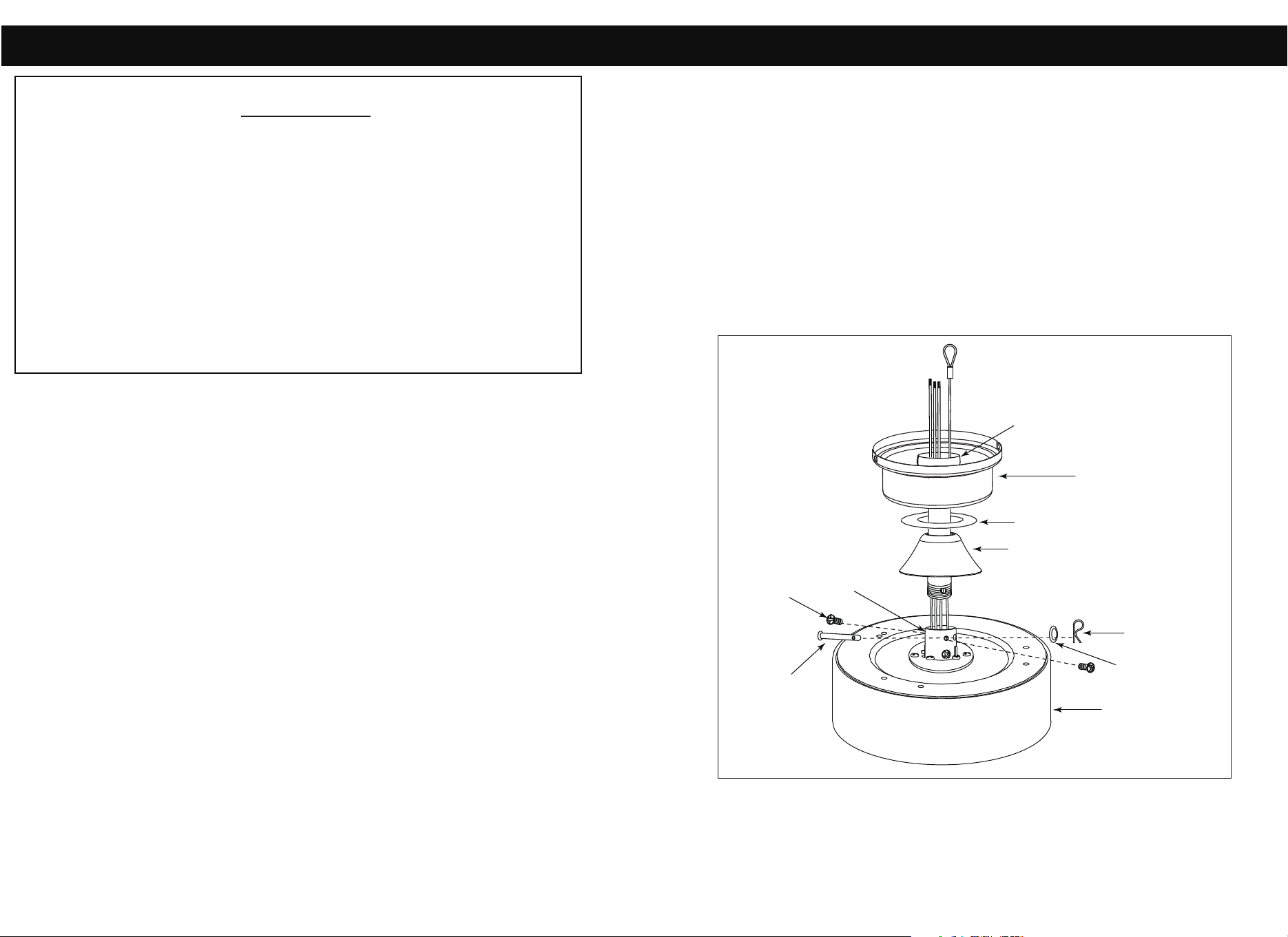

ASSEMBLY INSTRUCTIONS
1. ASSEMBLE
- Separate mounting bracket from Canopy by removing 4 screws (if shipped assembled),
save screws for installation.
- Remove cotter pin and bolt from yoke.
- Loosen jam screws in yoke until they are flush with the inside surface.
- Obtain downrod, canopy and yoke cover.
- Place downrod inside canopy and yoke cover.
- Route wires exiting motor through yoke cover, canopy and downrod.
- Screw the downrod into the yoke and align holes in the yoke and downrod.
- Insert bolt through holes in yoke and downrod, (be careful not to damage or cut the
fan wires) add flat washer, and secure with Cotter pin through hole in end of bolt as shown.
- Secure downrod in position by tightening jam screws. Slide yoke cover down
to cover yoke assembly.
INSTRUCTIONS
1st Pull will give fan High Speed
2nd Pull will give fan Medium Speed
3rd Pull will give fan Low Speed
4th Pull will Shut Fan Off
A ceiling fan has a completely internal switching system for total
operation by way of pull chains. On a fan/light combination, two pull chains
will exist: One for light on and off. The second is for fan speeds. This will
be marked (SPEED) on the fan switch housing
Fan comes with a slide switch for forward / reverse. This setting would
usually be changed twice per year. Downdraft in summer to create a wind
chill to give a cooling effect. Up draft in winter to circulate the hot stratifies
air off the ceiling and back down to the floor without creating a wind chill.
Downrod
Yoke Cover
Canopy
Motor
Jam Screw
Yoke
Rubber Ring
Cotter Pin
Flat Washer
Bolt
PAGE: 7 / 14 PAGE: 8 / 14
ASSEMBLY INSTRUCTIONS (continued) ASSEMBLY INSTRUCTIONS (continued)
- Install J-Hook through center of outlet box and into the wooden joist.
- Secure mounting bracket and rubber gaskets to outlet box.
- Hang downrod mount, fan on mounting bracket by aligning tab on mounting bracket
with groove in hanger ball on downrod.
- Hang the safety cable onto the J-hook.
- Take out hardware package containing blade bracket screws, flat washers
and fiber washers.
- Place blade bracket screw through flat washer, fiber washer and blade bracket.
- Align with corresponding hole in blade and hex nut.
- Repeat with (2) remaining screws and tighten.
- Repeat the same steps for other blades.
- Remove the motor screws. Position blade bracket over holes.
- Insert screws into blade bracket and secure to motor.
- Slightly turn the blade after installation and repeat the same step for the other blades.

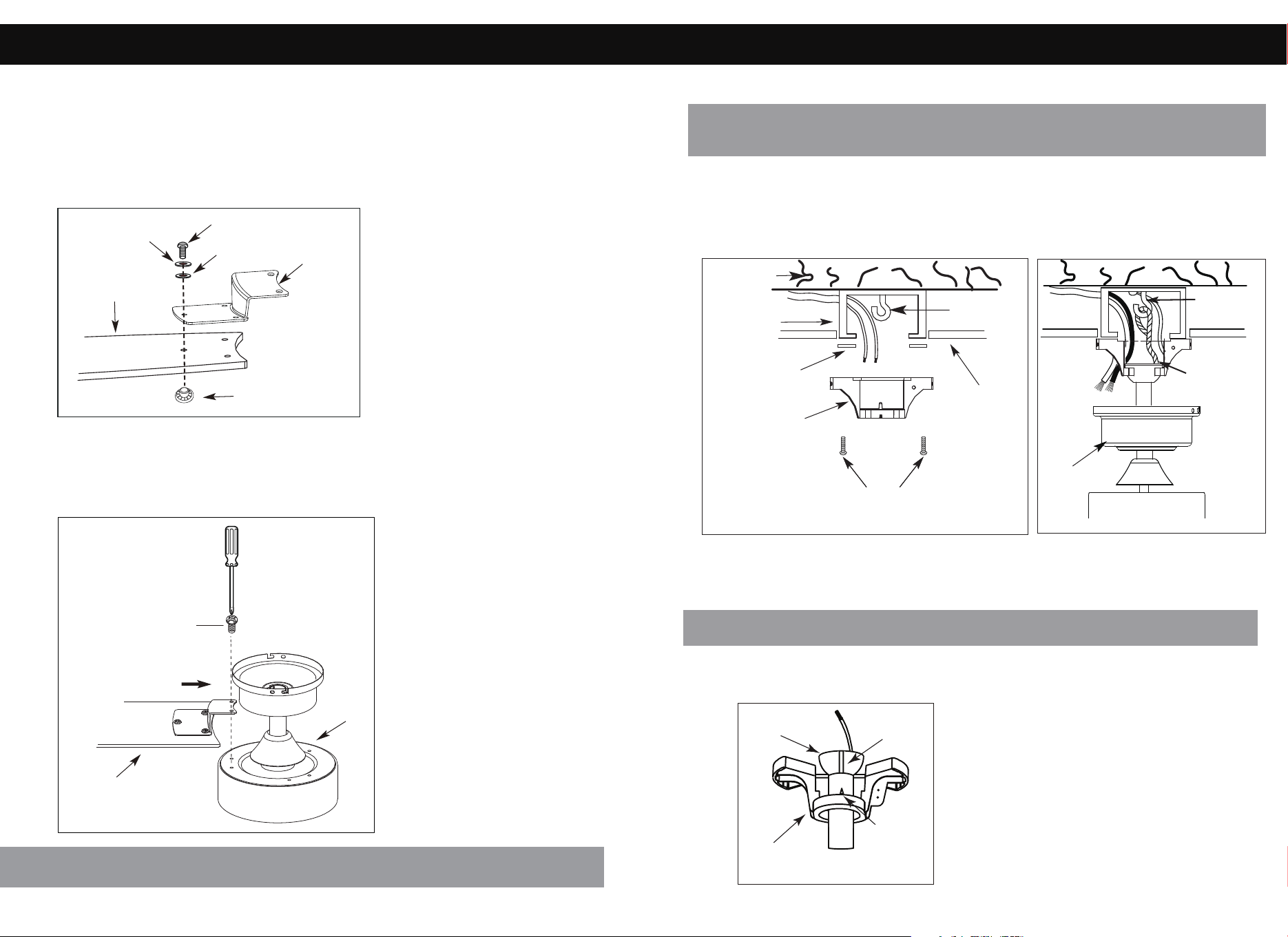

4.1. INSTALL MOUNTING BRACKET2. ATTACH BLADE BRACKETS TO BLADES
3. ATTACH BLADES TO MOTOR
NOTE: All set screws must be checked and retightened where necessary,
before and after installation.
WARNING: To Reduce The Risk Of Fire, Electric Shock, Or Personal Injury, Mount
To UL/CSA Listed Outlet Box Marked Acceptable For Fan Support And Use Mounting
Screws Provided With The Outlet Box.
Outlet box Screws
(not provided)
Safety
Cable
Wood
Joist
Outlet
Box
Rubber
Gasket
Mounting
Bracket
Ceiling
J-Hook
Canopy
J-Hook
12
Hex Nut
Blade
Blade
Bracket
Fiber Washer
Flat Washer
Blade Bracket Screw
Screw
Blade
Motor
4.2. ENGAGE HEMISPHERE (Downrod Mount Only)
- Carefully rotate fan assembly until groove in hemisphere locks over tab of canopy assembly.
NOTE: When installing fan on sloped ceiling, make sure tab on hanger bracket faces towards
the top of the slope. Depending on the slope, a longer downrod may be required to prevent
fan blades from hitting the ceiling.
WARNING: Failure to seat tab in groove could cause damage to electrical wires and
possible shock or fire hazard.
Hemisphere
Mounting
Bracket
Tab
Groove
PAGE: 9 / 14 PAGE: 10 / 14
ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS (continued) ASSEMBLY INSTRUCTIONS (continued)

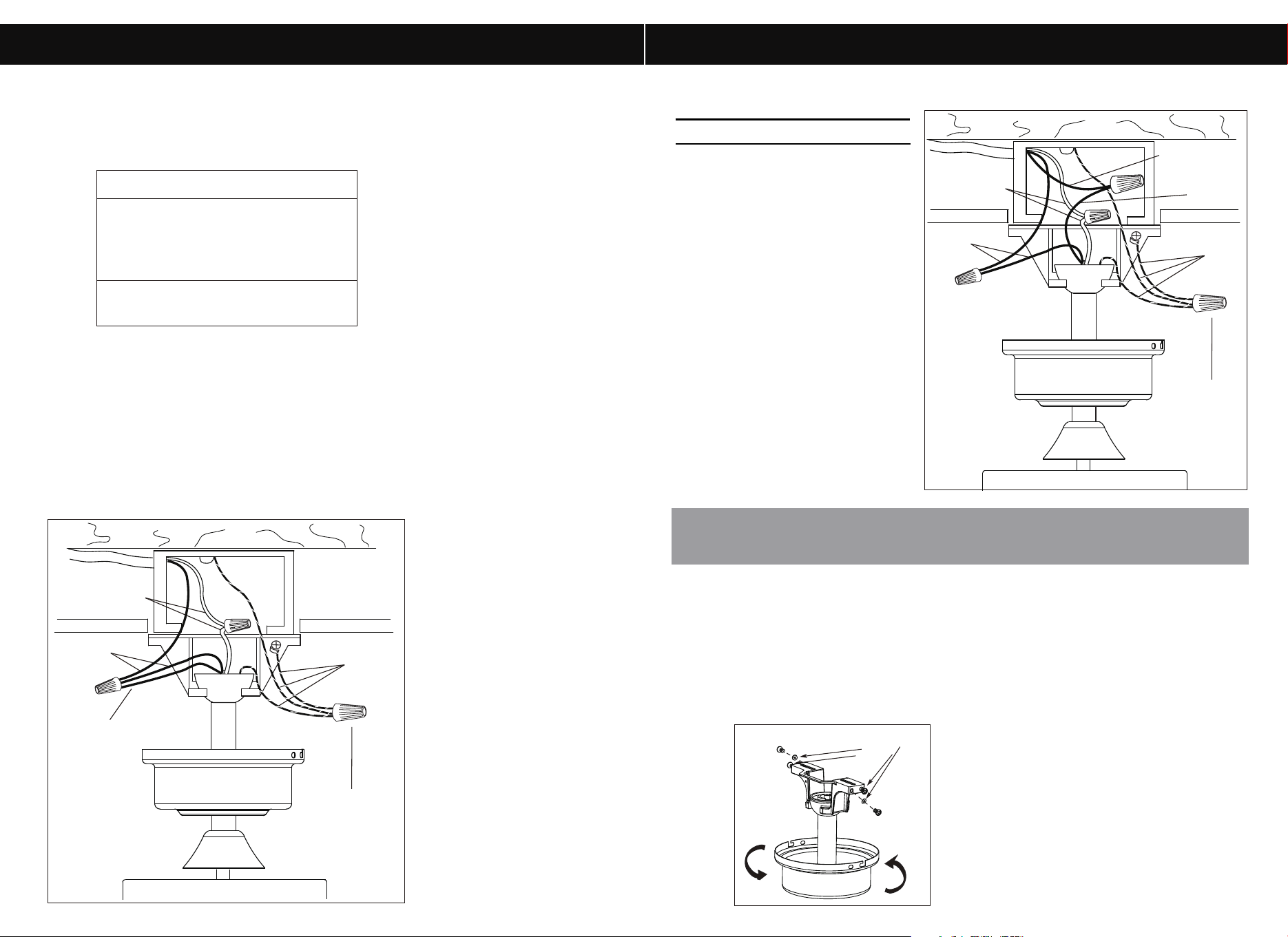

5. ELECTRICAL HOOK-UP
5. ELECTRICAL HOOK-UP - OPTIONAL
CAUTION
SEE SAFETY PRECAUTIONS ON
PG. #4 BEFORE WIRING
Green Wire - GROUND
Black Wire (Fan) - POWER
White Wire (Fan) - COMMON
Red or Blue Wire (Light Kit) - POWER
- There are several different wiring combinations that can be used in
controlling your ceiling fan to meet your specific requirements. Should
the following method not meet your requirements call or visit your nearest
distributor for a full list of fan accessories.
- Connect ground wire from outlet box to green wire from mounting bracket
and downrod using a wire nut.
- Connect white wire from outlet box to white wire from fan using wire nut.
- Connect black wire from outlet box to black wire from fan plus
red or blue wire using a wire nut.
- After making the wire connections, ensure the wires are spread
apart with the grounded conductor and the equipment-grounding
conductor on one side of the outlet box and the ungrounded conductor
on the other side of the outlet box.
15
- Ensure the splices after being made are turned upward and pushed
carefully up into the outlet box.
16
NOTE: Once wires are connected, carefully tuck wires and wire nuts into the outlet
box making sure that the wires are clear of the hemisphere and downrod when
positioned in mounting bracket (Downrod Mount Only).
White wire
Red or Blue
Wire
Black wire
Wire Nut
17
Green
- Place two screws and washers on mounting plate (marked B on diagram) which
correspond with slots in canopy. Screw in two turns.
- Position canopy to mounting plate aligning slots to screws (marked B on diagram)
then turn to lock.
- Position and tighten the two screws and washers (marked A on diagram) then tighten
the two screws (marked B on diagram).
6. MOUNTING FAN ASSEMBLY
(B)
(B)
(A)
Washers
(A)
DUAL SWITCH HOOK UP
- Connect ground wire from outlet box
to green wire from mounting bracket
and downrod using a wire nut.
- Connect white wire from outlet box to
white wire from fan using a wire nut.
- Connect black load wire from outlet
box to black wire from fan using a
wire nut.
- Connect second load wire from outlet
box(generally Red) to blue wire from
fan using a wire nut (not supplied).
- After making the wire connections,
ensure the wires are spread apart
with the grounded conductor and the
equipment-grounding conductor on
one side of the outlet box and the
unground conductors on the other
side of the outlet box.
- Ensure the splices after being made
are turned up into the outlet box.
White wire
Red or Blue
Wire
Black wire
Wire Nut
Green
2nd load wire
(switched)
- Check wiring connections to fan.
- Check fuses and circuit breakers.
- Check wiring connections in switch housing.
CAUTION: Turn power off for last two items.
- Check to make sure that all screws in motor housing are snug.
- Check to make sure that blade bracket screws are tight.
- Check to make sure that wire nuts in switch housing
are not rattling against wall of switch housing.
- If fan has a light kit make sure switch housing
screws and set screws are tight.
- Some fan motors are sensitive to signals from solid state
variable controls. If solid state controller is used, change to
an alternative control. (See a representative for a list of
available controls.)
- Allow a 24 hour break in period to eliminate most noises.
- Check that all blades are screwed firmly into blade brackets.
- Check that blade brackets are secured firmly to motor.
- Check distance from tip of blades to ceiling.
- Check distance between blade tip to blade tip. All
measurements should be equal. Loosen blade screws and
position blade until even then re-tighten.
- Check that the downrod hemisphere notch is engaged in canopy.
- Check to make sure that jam screws in downrod are tightened.
- Make sure canopy and mounting bracket are tightened securely
to wooden joist.
- Make sure warpage has not occurred in wooden blades. If so,
contact the customer service department for replacement parts.
TROUBLE SUGGESTIONS
1. Fan will not start
2. Fan sounds noisy
3. Fan wobbles or
shakes excessively.
PAGE: 11 / 14
PAGE: 12 / 14
ASSEMBLY INSTRUCTIONS (continued)
TROUBLESHOOTING
- Remove light kit screws and washers.
- Connect polarized connectors of light kit to corresponding connectors
found in switch housing.
- Secure the light kit with three light kit screws and washers.
- Install proper wattage and type of bulb identied on light kit.
- Attach the pull chain extensions to the light pull chain and fan
pull chain.
- Remove the light kit shade screws and washers on the motor.
- Install the light kit shade with the screws and washers removed in the
previous step.
WARNING: BE SURE TO TURN OFF POWER BEFORE INSTALLATION

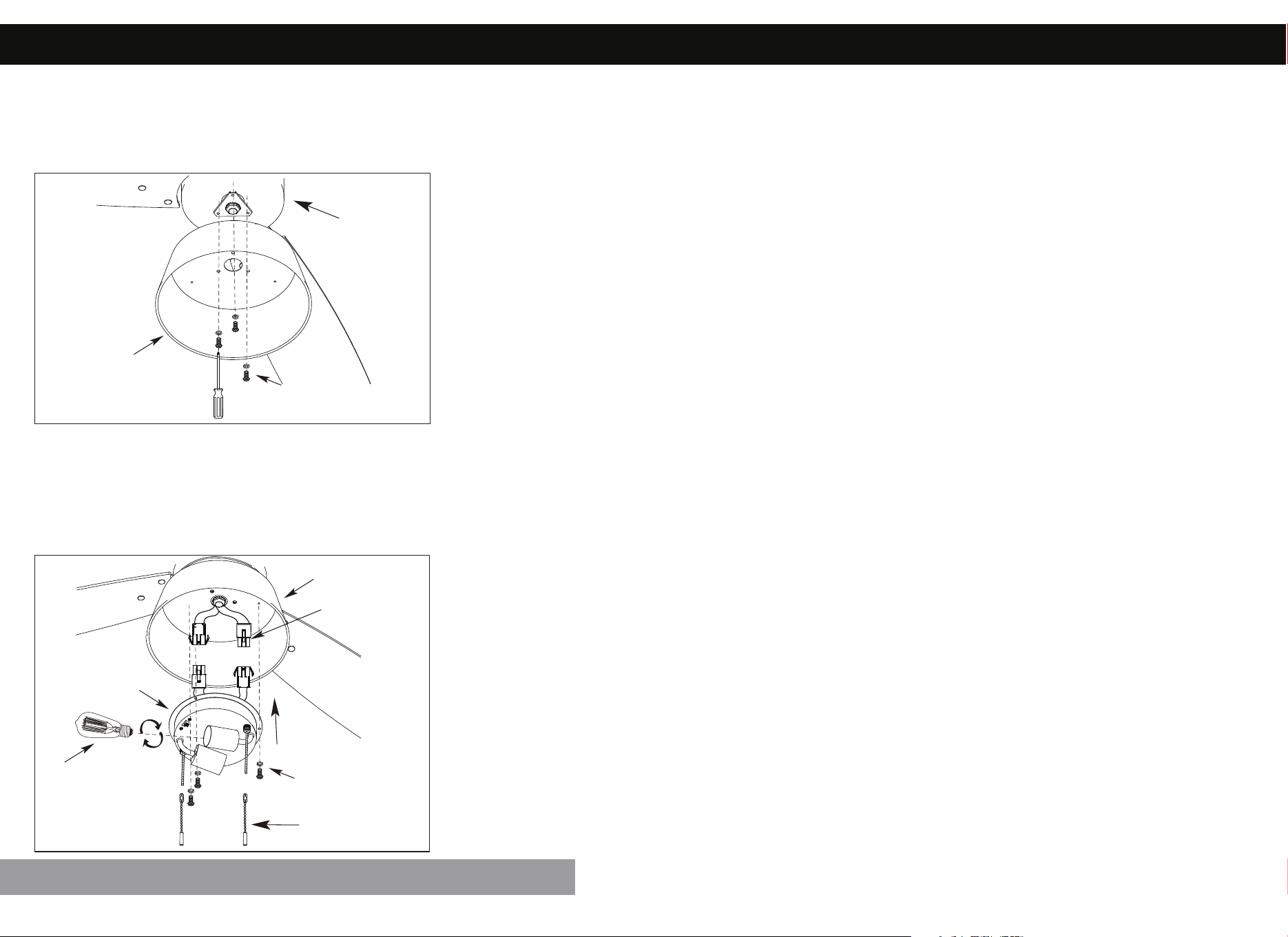

7. LIGHT KIT
WARNING: Check all connections, set screws and screws are securely tightened
before the next step.
Pull chain
Blub
b.
Light Kit
Screw and
Washers
Light Kit Shade
a.
Screw and
Washers
Motor
Diffuser
Polarized
connectors
DATE INSTALLED:
Visible Vibration
Check Every
3 Months
Support Mechanism
Refer to Installation
Instructions
(Every 3 Months)
Screws
Refer to Installation
Instructions
(Every 3 Months)
- When properly maintained, fans can be expected to give years of trouble
free operation.
- Properly maintained fans must be inspected every 3 months for
vibration and wear on the support mechanism and that all screws, nuts,
etc. are tight.
4
- To clean the fixture, turn off the power, wait for it to cool, and wipe the fixture with a
clean, soft cloth.
- The replacement of parts of the safety suspension system device shall be performed
by the manufacturer, its service agent or suitably qualified persons.
6
- WARNING: If unusual oscillating movement is observed, immediately stop
using the ceiling fan and contact the manufacturer, its service agent or suitably
qualified persons.
3
- Refer below for maintenance schedule
PAGE: 13 / 14 PAGE: 14 / 14
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee
of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This device contains licence-exempt transmitter(s)/receiver(s)
that comply with Innovation, Science and Economic Development
Canada’s licence-exempt RSS(s). Operation is subject to the
following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference
that may cause undesired operation of the device.
Supplier's Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Unique Identifier: PATRIOT
Responsible Party
CanarmInc.
709 East Main Street, Teutopolis, Illinois, USA 62467
1.800.267.4427
CARE AND MAINTENANCE
