PAGE: 1 / 12
LIMITED LIFETIME WARRANTY
Model No.: #
355-0701,355-0702
1-800-267-4427, 8am to 5pm Eastern Time.
PAGE: 2 / 12
Unpack your fan and check the contents. You should have the following items.
A. 16 1/2 in. B. 9 3/4 in. C. 52 in. D. 5 1/8 in.
Package Contents:
Dimension Reference (Installed with 4” Downrod):
11
12
5
6 8
13
14 15
9
3
4
2
1
10
1.) Mounting Bracket
2.) Canopy
3.) Downrod Assembly (Includes
Hanger Ball, 4” Downrod, Hanger Pin
4.) Yoke Cover
5.) Light Kit
& Lock Pin)
A
D
B
C
16
To obtain Service, please contact or call Patriot Lighting Service Department:
05-20
The limited lifetime warranty covers this ceiling fan, for residential use by the original purchaser, against defects in
material or workmanship as follows:
If your Patriot Lighting Ceiling Fan motor fails at any time during the lifetime of the original purchaser due to defects in
material or workmanship, we will provide a replacement part free of charge.
If your Fan motor fails at any time within one year after the original date of sale to the original purchaser due to defects
in material or workmanship, we will provide labor to repair the defect, with the exception of take down/reinstallation,
free of charge. The original purchaser will be responsible for all labor costs after this one year period.
If no replacement parts are provided for any part of your Fan motor that fails at any time during your lifetime due to
defects in material or workmanship, we will refund the original purchase price of your Fan.
If your Fan blades, remote controller / pull chain switch, reverse switch, or any accessory, except glass globes and light
bulbs, fails at any time within one year after the original date of purchase due to a defect in material and workmanship,
we will repair or, if we choose, replace the defective blades, switch, or accessory free of charge, with the exception of
take down/reinstallation services.
If the original purchaser ceases to own the Fan, this warranty and any implied warranty, including but not limited to any
implied warranty of merchantability or fitness for a particular purpose, become void. This warranty and any implied
warranty, including but not limited to any implied warranty of merchantability or fitness for a particular purpose, do not
cover glass globes, light bulbs, or finish on any metal portions of the Fan.
This warranty is in lieu of express warranties. The duration of any implied warranty of merchantability or fitness for a
particular purpose, with respect to any Patriot Lighting Ceiling Fan motor, blades, switch, or accessories, is expressly
limited to the period of the express warranty set forth above for such motor, blades, switch, or accessories.
This warranty excludes defects, malfunctions, or failures of any Patriot Lighting Fan that are caused by repairs by
persons not authorized by us, use of parts or accessories not authorized by us, mishandling, improper installation,
modifications or damage to the Fan while in your possession, or unreasonable use, including failure to provide
necessary maintenance.
To obtain service, contact Patriot Lighting Service Department at 1-800-887-6326, 9AM-5PM CST. You will be responsible
for all insurance and freight or other transportation charges to our factory or service center. A copy of sales
receipt is required in order to obtain service. We will return your Fan freight prepaid. Your Fan should be properly
packed to avoid damage in transit, for we will not be responsible for any such damages.
In no event shall Patriot Lighting Fan be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in which case the above
limitation or exclusion may not apply.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
7
17
6.) Fan Motor Assembly
7.) Glass Cover
8.) Fan Blades (3 pcs)
9.) Bulbs (2 pcs)
10.) Rubber Bushing
13.) Fiber Washer
14.) Metal Washer
15.) Blade Bracket Screw
16.) Temporary Hook
12.) J-Hook
11.) Rubber Gasket
17.) Chain (2 pcs)
PAGE: 1 / 12
LIMITED LIFETIME WARRANTY
Model No.: #
355-0701,355-0702
1-800-267-4427, 8am to 5pm Eastern Time.
PAGE: 2 / 12
Unpack your fan and check the contents. You should have the following items.
A. 16 1/2 in. B. 9 3/4 in. C. 52 in. D. 5 1/8 in.
Package Contents:
Dimension Reference (Installed with 4” Downrod):
11
12
5
6 8
13
14 15
9
3
4
2
1
10
1.) Mounting Bracket
2.) Canopy
3.) Downrod Assembly (Includes
Hanger Ball, 4” Downrod, Hanger Pin
4.) Yoke Cover
5.) Light Kit
& Lock Pin)
A
D
B
C
16
To obtain Service, please contact or call Patriot Lighting Service Department:
05-20
The limited lifetime warranty covers this ceiling fan, for residential use by the original purchaser, against defects in
material or workmanship as follows:
If your Patriot Lighting Ceiling Fan motor fails at any time during the lifetime of the original purchaser due to defects in
material or workmanship, we will provide a replacement part free of charge.
If your Fan motor fails at any time within one year after the original date of sale to the original purchaser due to defects
in material or workmanship, we will provide labor to repair the defect, with the exception of take down/reinstallation,
free of charge. The original purchaser will be responsible for all labor costs after this one year period.
If no replacement parts are provided for any part of your Fan motor that fails at any time during your lifetime due to
defects in material or workmanship, we will refund the original purchase price of your Fan.
If your Fan blades, remote controller / pull chain switch, reverse switch, or any accessory, except glass globes and light
bulbs, fails at any time within one year after the original date of purchase due to a defect in material and workmanship,
we will repair or, if we choose, replace the defective blades, switch, or accessory free of charge, with the exception of
take down/reinstallation services.
If the original purchaser ceases to own the Fan, this warranty and any implied warranty, including but not limited to any
implied warranty of merchantability or fitness for a particular purpose, become void. This warranty and any implied
warranty, including but not limited to any implied warranty of merchantability or fitness for a particular purpose, do not
cover glass globes, light bulbs, or finish on any metal portions of the Fan.
This warranty is in lieu of express warranties. The duration of any implied warranty of merchantability or fitness for a
particular purpose, with respect to any Patriot Lighting Ceiling Fan motor, blades, switch, or accessories, is expressly
limited to the period of the express warranty set forth above for such motor, blades, switch, or accessories.
This warranty excludes defects, malfunctions, or failures of any Patriot Lighting Fan that are caused by repairs by
persons not authorized by us, use of parts or accessories not authorized by us, mishandling, improper installation,
modifications or damage to the Fan while in your possession, or unreasonable use, including failure to provide
necessary maintenance.
To obtain service, contact Patriot Lighting Service Department at 1-800-887-6326, 9AM-5PM CST. You will be responsible
for all insurance and freight or other transportation charges to our factory or service center. A copy of sales
receipt is required in order to obtain service. We will return your Fan freight prepaid. Your Fan should be properly
packed to avoid damage in transit, for we will not be responsible for any such damages.
In no event shall Patriot Lighting Fan be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in which case the above
limitation or exclusion may not apply.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
7
17
6.) Fan Motor Assembly
7.) Glass Cover
8.) Fan Blades (3 pcs)
9.) Bulbs (2 pcs)
10.) Rubber Bushing
13.) Fiber Washer
14.) Metal Washer
15.) Blade Bracket Screw
16.) Temporary Hook
12.) J-Hook
11.) Rubber Gasket
17.) Chain (2 pcs)
PAGE: 3 / 12 PAGE: 4 / 12
NOTE: FOR OPTIMUM QUIETNESS, FULLY ASSEMBLE FAN AND RUN 24 HOURS
TOOLS AND MATERIALS REQUIRED
-
-
- Step Ladder
- Wire Cutters
- Wiring supplies as required by electrical code.
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
INSTALLATION AND WIRING TO BE IN ACCORDANCE WITH CEC,
NEC, LOCAL ELECTRICAL CODES and ANSI/NFPA 70.
Consult a qualified electrician if you are not familiar with wiring.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
1. Turn off power at main electrical service box before starting installation.
2. Electrical connections must comply with local code ordinances, national electrical
codes, CEC, NEC and ANSI/NFPA 70.
3. Make sure the installation site you choose allows the fan blades to rotate freely
without any obstructions.
4. When mounting the fan on a ceiling outlet box, use an approved (CSA for Canada
and UL for U.S.) ceiling fan box marked "FOR FAN SUPPORT". Ensure the outlet
box is securely installed in place such that it is able to support at least the fan weight.
5. Total Fan Weight For Reference: 48"approximate 8.3 kgs (18.30 lbs).
1. To reduce the risk of fire or electrical shock, ONLY use model CQ005 remote
control for optional remote control adaptability.
2. TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL
INJURY, MOUNT TO OUTLET BOX MARKED ACCEPTABLE FOR FAN SUPPORT
AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX. Most outlet
boxes commonly used for the support of lighting fixtures are not acceptable for fan
support and may need to be replaced. Consult a qualified electrician if in doubt.
3. Mount with the lowest moving parts at least 2.10 Meters (7 Feet) above floor or
grade level.
4. DO NOT operate reversing switch while fan blades are in motion. Fan must be
turned off and rotating blades stopped, reverse chain pulled, the speed chain
pulled again to start in the opposite direction.
Exploded View Detail
Glass
Mounting Bracket
Canopy
Downrod
Yoke Cover
Fan Motor
Fan Blades
Light Kit
INSTRUCTIONS
1st Pull will give fan High Speed
2nd
Pull
will
give
fan
Medium
Speed
3rd
Pull
will
give
fan
Low
Speed
4th
Pull
will
Shut
Fan
Off
A ceiling fan has a completely internal switching system for total
operation by way of pull chains. On a fan/light combination, three pull chains
will exist: One for light,on and off. The second is for fan speeds. This will
be marked (SPEED) on the fan switch housing.
The third pull chain is for Forward/Reverse (Note:Some models come with
a slide switch insteadof a pull chain). This setting would usually be changed
twice per year. Downdraft in summer to create a wind chill to give a cooling
effect. Up draft in winter to circulate the hot air off the ceiling and back down
to the floor without creating a wind chill.
Phillips Screwdriver
Blade Screwdriver
Chain
PAGE: 3 / 12 PAGE: 4 / 12
NOTE: FOR OPTIMUM QUIETNESS, FULLY ASSEMBLE FAN AND RUN 24 HOURS
TOOLS AND MATERIALS REQUIRED
-
-
- Step Ladder
- Wire Cutters
- Wiring supplies as required by electrical code.
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
INSTALLATION AND WIRING TO BE IN ACCORDANCE WITH CEC,
NEC, LOCAL ELECTRICAL CODES and ANSI/NFPA 70.
Consult a qualified electrician if you are not familiar with wiring.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
1. Turn off power at main electrical service box before starting installation.
2. Electrical connections must comply with local code ordinances, national electrical
codes, CEC, NEC and ANSI/NFPA 70.
3. Make sure the installation site you choose allows the fan blades to rotate freely
without any obstructions.
4. When mounting the fan on a ceiling outlet box, use an approved (CSA for Canada
and UL for U.S.) ceiling fan box marked "FOR FAN SUPPORT". Ensure the outlet
box is securely installed in place such that it is able to support at least the fan weight.
5. Total Fan Weight For Reference: 48"approximate 8.3 kgs (18.30 lbs).
1. To reduce the risk of fire or electrical shock, ONLY use model CQ005 remote
control for optional remote control adaptability.
2. TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL
INJURY, MOUNT TO OUTLET BOX MARKED ACCEPTABLE FOR FAN SUPPORT
AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX. Most outlet
boxes commonly used for the support of lighting fixtures are not acceptable for fan
support and may need to be replaced. Consult a qualified electrician if in doubt.
3. Mount with the lowest moving parts at least 2.10 Meters (7 Feet) above floor or
grade level.
4. DO NOT operate reversing switch while fan blades are in motion. Fan must be
turned off and rotating blades stopped, reverse chain pulled, the speed chain
pulled again to start in the opposite direction.
Exploded View Detail
Glass
Mounting Bracket
Canopy
Downrod
Yoke Cover
Fan Motor
Fan Blades
Light Kit
INSTRUCTIONS
1st Pull will give fan High Speed
2nd
Pull
will
give
fan
Medium
Speed
3rd
Pull
will
give
fan
Low
Speed
4th
Pull
will
Shut
Fan
Off
A ceiling fan has a completely internal switching system for total
operation by way of pull chains. On a fan/light combination, three pull chains
will exist: One for light,on and off. The second is for fan speeds. This will
be marked (SPEED) on the fan switch housing.
The third pull chain is for Forward/Reverse (Note:Some models come with
a slide switch insteadof a pull chain). This setting would usually be changed
twice per year. Downdraft in summer to create a wind chill to give a cooling
effect. Up draft in winter to circulate the hot air off the ceiling and back down
to the floor without creating a wind chill.
Phillips Screwdriver
Blade Screwdriver
Chain
PAGE: 5 / 12 PAGE: 6 / 12
ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS (continued)
1. ATTACH THE FAN BLADES
NOTE: All set screws must be checked and retightened where necessary,
before and after installation.
2. MOUNTING
DOWNROD MOUNT
a.
b.
c.
e.
- Take out fan motor housing.
- Separate mounting bracket from Canopy by removing 4 screws (if shipped assembled),
save screws for installation.
- Remove cotter pin, washer and bolt from yoke as shown in figure (a.).
- Loosen jam screws in yoke until it is flush with the inside surface.
- Obtain downrod, canopy and yoke cover.
- Place downrod through canopy and yoke cover.
- Route wires exiting motor through yoke cover, canopy and downrod, and screw downrod into
yoke as shown below in figure (d.).
- Insert bolt through hole in shaft and downrod. Be careful not to damage or cut the fan wires.
- Add washer and secure with cotter pin as shown in figure (a.). Secure with cotter pin
through hole in the end of the bolt.
- Secure downrod in position by tightening jam screws. Slide yoke cover down so it is flush
with the motor housing.
A
Motor
Yoke
Jam
Screw
Jam
Screw
Downrod
Canopy
Yoke
Cover
Bolt
Flat
Washer
Cotter Pin
Yoke
Jam
Screw
d.
Bolt
Cotter
Flat
Washer
Pin

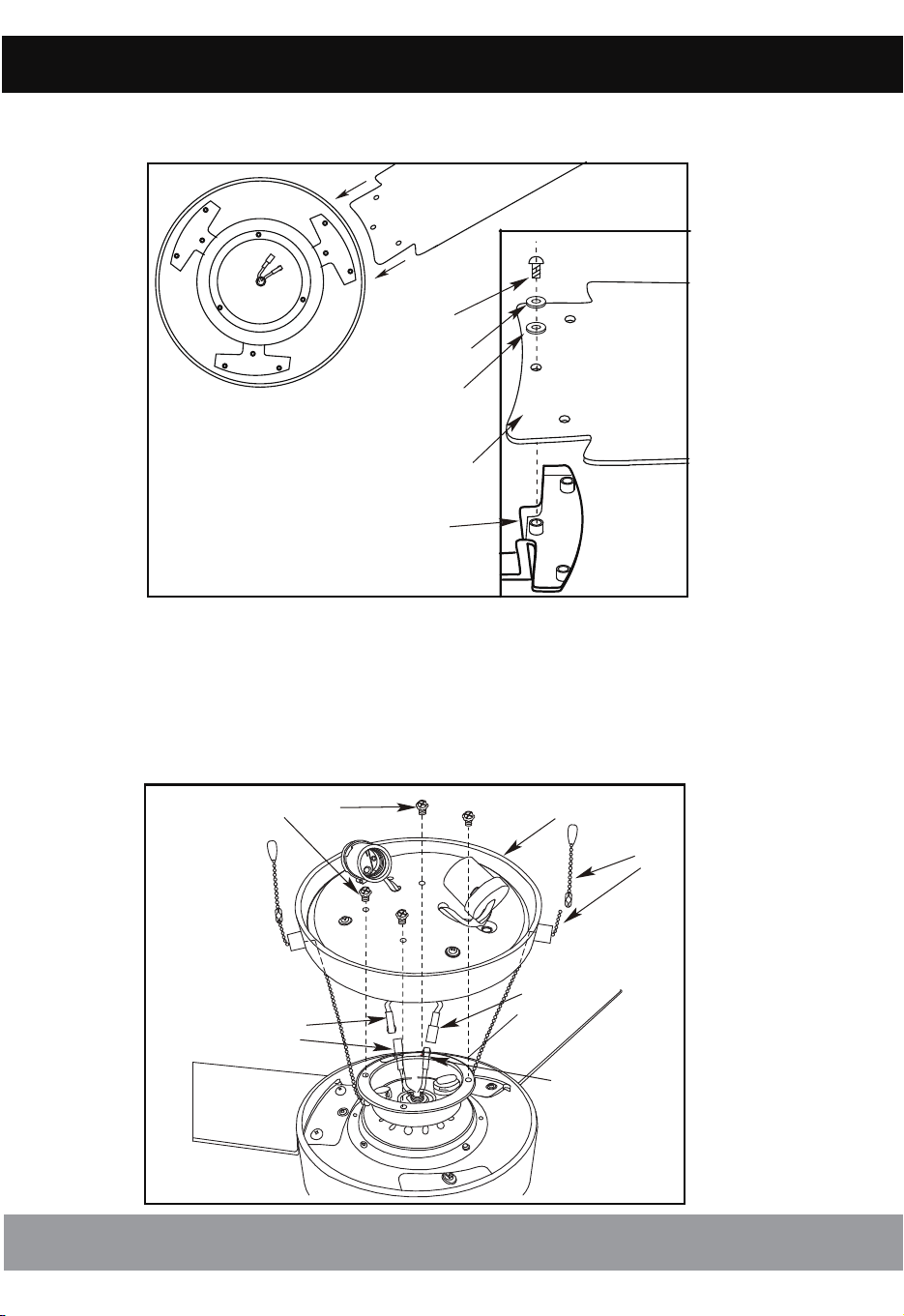

- Attach the blades to the fan motor assembly using the screws and flat washers.
a.
Fiber Washer
Metal Washer
Blade
Bracket Screw
Blade
Blade Bracket
- Remove the 4 Light Kit screws from fan switch housing.
- Connect polarized connectors of Light Kit to corresponding connectors
found in fan switch housing.
- Align holes in base of light kit (below side chain bushings) with chains
exiting switch housing and route through as shown.
- Install Light Kit with 4 screws previously removed and tighten.
- Attach supplied decorative chain extensions.
Chain
Light Kit
Black or
Blue Wires
Red or Blue
Wires
White Wires
Light Kit Screw
b.
PAGE: 5 / 12 PAGE: 6 / 12
ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS (continued)
1. ATTACH THE FAN BLADES
NOTE: All set screws must be checked and retightened where necessary,
before and after installation.
2. MOUNTING
DOWNROD MOUNT
a.
b.
c.
e.
- Take out fan motor housing.
- Separate mounting bracket from Canopy by removing 4 screws (if shipped assembled),
save screws for installation.
- Remove cotter pin, washer and bolt from yoke as shown in figure (a.).
- Loosen jam screws in yoke until it is flush with the inside surface.
- Obtain downrod, canopy and yoke cover.
- Place downrod through canopy and yoke cover.
- Route wires exiting motor through yoke cover, canopy and downrod, and screw downrod into
yoke as shown below in figure (d.).
- Insert bolt through hole in shaft and downrod. Be careful not to damage or cut the fan wires.
- Add washer and secure with cotter pin as shown in figure (a.). Secure with cotter pin
through hole in the end of the bolt.
- Secure downrod in position by tightening jam screws. Slide yoke cover down so it is flush
with the motor housing.
A
Motor
Yoke
Jam
Screw
Jam
Screw
Downrod
Canopy
Yoke
Cover
Bolt
Flat
Washer
Cotter Pin
Yoke
Jam
Screw
d.
Bolt
Cotter
Flat
Washer
Pin
- Attach the blades to the fan motor assembly using the screws and flat washers.
a.
Fiber Washer
Metal Washer
Blade
Bracket Screw
Blade
Blade Bracket
- Remove the 4 Light Kit screws from fan switch housing.
- Connect polarized connectors of Light Kit to corresponding connectors
found in fan switch housing.
- Align holes in base of light kit (below side chain bushings) with chains
exiting switch housing and route through as shown.
- Install Light Kit with 4 screws previously removed and tighten.
- Attach supplied decorative chain extensions.
Chain
Light Kit
Black or
Blue Wires
Red or Blue
Wires
White Wires
Light Kit Screw
b.
B
FLUSH MOUNT
Canopy
Rubber Ring
Motor
Canopy
Yoke Screws
& Washers
Rubber
f.
g.
Bushing
- Place canopy on Motor housing, align the 3 smaller holes on canopy to
holes on Motor housing.
- Secure Canopy to the Motor housing by replacing 3 screws and washers in
the 3 smaller holes in canopy.
- Remove rubber ring from canopy.
- Remove the 3 screws from the Motor cover housing.
- Place rubber bushing on Motor housing while aligning the 3 smaller holes.
PAGE: 7 / 12 PAGE: 8 / 12
ASSEMBLY INSTRUCTIONS (continued) ASSEMBLY INSTRUCTIONS (continued)
3. INSTALL MOUNTING BRACKET
- Install J-Hook through center of outlet box and into the wooden joist.
- Secure mounting bracket and rubber gaskets to outlet box.
- Hang downrod mount, fan on mounting bracket by aligning tab on mounting bracket
figure (b.) with groove in hanger ball on downrod.
- For flush mount, hang fan using supplied temporary hook, figure(c.).
- Hang the safety cable onto the J-hook.
Diagram b is for Downrod Mount.
Diagram c is for Flush Mount.
WARNING: To Reduce The Risk Of Fire, Electric Shock, Or Personal Injury, Mount
To UL/CSA Listed Outlet Box Marked Acceptable For Fan Support And Use Mounting
Screws Provided With The Outlet Box.
Wood
Joist
Outlet
Box
Rubber
Gasket
Mounting
Bracket
Outlet box screws
(not provided)
Ceiling
J-Hook
4. ELECTRICAL HOOK-UP
A
a.
Canopy
Safety
Cable
c.
Temporary
Hook
CAUTION
SEE SAFETY PRECAUTIONS ON
PG. #4 BEFORE WIRING

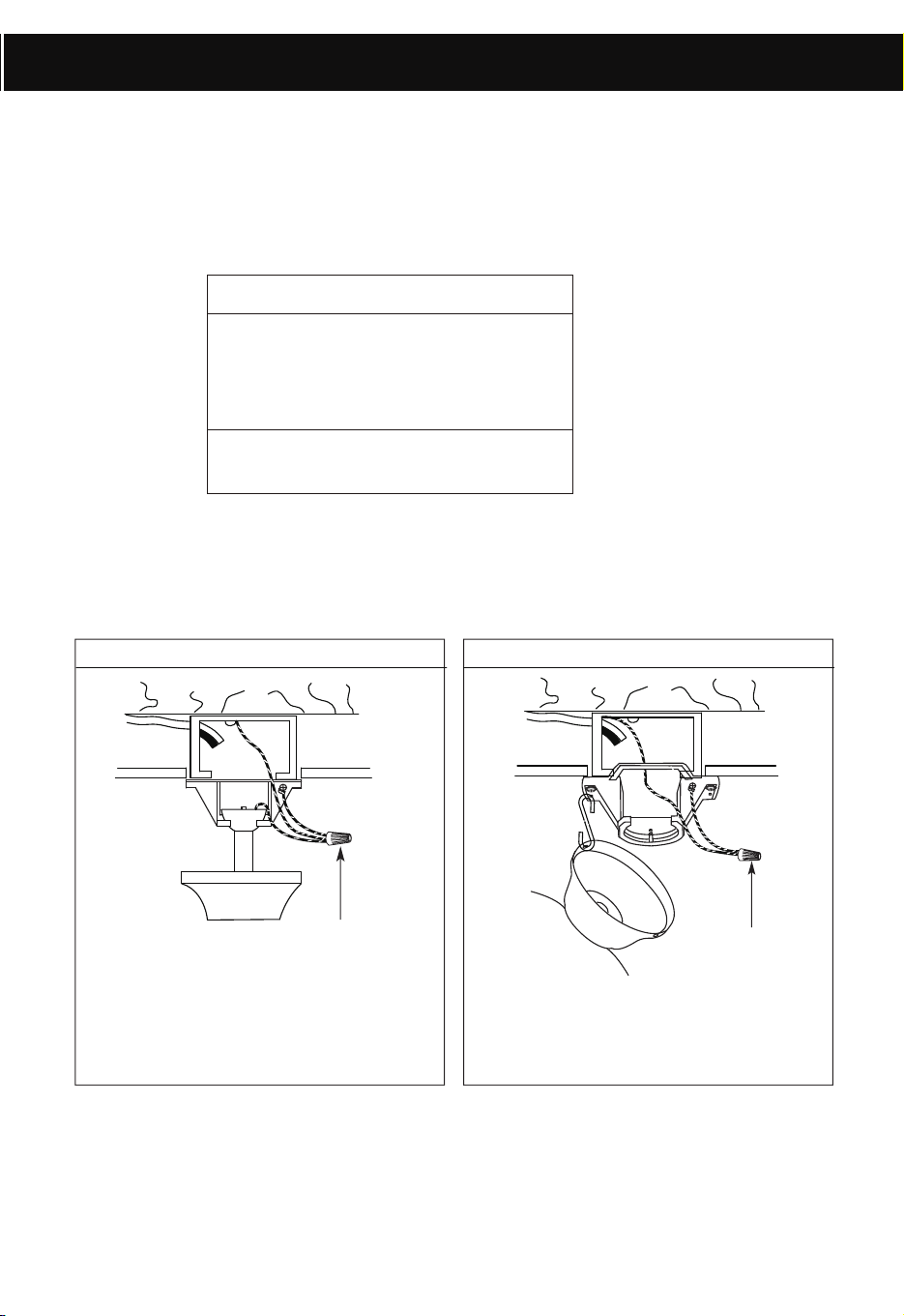

Green Wire - GROUND
Black Wire (Fan) - POWER
White Wire (Fan) - COMMON
Red or Blue Wire (Light Kit) - POWER
- There are several different wiring combinations that can be used in
controlling your ceiling fan to meet your specific requirements. Should
the following method not meet your requirements call or visit your nearest
distributor for a full list of fan accessories.
- Connect ground wires as shown in the figure below (A). Ensure the splices after
being made are turned upward and pushed carefully up into the outlet box.
NOTE: Once ground wires are connected, carefully tuck wires and into the
outlet box making sure that the wires are clear of the hemisphere and
downrod when positioned in mounting bracket (Downrod Mount Only).
wire nuts
DOWNROD MOUNT
FLUSH MOUNT
- Connect ground wire from outlet box
to green wire from mounting bracket
and downrod using a wire nut
(not supplied).
-
Connect ground wire from outlet box
to green wire from mounting bracket
using a (not supplied).
wire nut
Wire Nut
A
a.
b.
CONNECTING THE (GREEN) GROUND WIRE
Canopy
J-Hook
Safety
Cable
b.
Wire Nut
B
FLUSH MOUNT
Canopy
Rubber Ring
Motor
Canopy
Yoke Screws
& Washers
Rubber
f.
g.
Bushing
- Place canopy on Motor housing, align the 3 smaller holes on canopy to
holes on Motor housing.
- Secure Canopy to the Motor housing by replacing 3 screws and washers in
the 3 smaller holes in canopy.
- Remove rubber ring from canopy.
- Remove the 3 screws from the Motor cover housing.
- Place rubber bushing on Motor housing while aligning the 3 smaller holes.
PAGE: 7 / 12 PAGE: 8 / 12
ASSEMBLY INSTRUCTIONS (continued) ASSEMBLY INSTRUCTIONS (continued)
3. INSTALL MOUNTING BRACKET
- Install J-Hook through center of outlet box and into the wooden joist.
- Secure mounting bracket and rubber gaskets to outlet box.
- Hang downrod mount, fan on mounting bracket by aligning tab on mounting bracket
figure (b.) with groove in hanger ball on downrod.
- For flush mount, hang fan using supplied temporary hook, figure(c.).
- Hang the safety cable onto the J-hook.
Diagram b is for Downrod Mount.
Diagram c is for Flush Mount.
WARNING: To Reduce The Risk Of Fire, Electric Shock, Or Personal Injury, Mount
To UL/CSA Listed Outlet Box Marked Acceptable For Fan Support And Use Mounting
Screws Provided With The Outlet Box.
Wood
Joist
Outlet
Box
Rubber
Gasket
Mounting
Bracket
Outlet box screws
(not provided)
Ceiling
J-Hook
4. ELECTRICAL HOOK-UP
A
a.
Canopy
Safety
Cable
c.
Temporary
Hook
CAUTION
SEE SAFETY PRECAUTIONS ON
PG. #4 BEFORE WIRING
Green Wire - GROUND
Black Wire (Fan) - POWER
White Wire (Fan) - COMMON
Red or Blue Wire (Light Kit) - POWER
- There are several different wiring combinations that can be used in
controlling your ceiling fan to meet your specific requirements. Should
the following method not meet your requirements call or visit your nearest
distributor for a full list of fan accessories.
- Connect ground wires as shown in the figure below (A). Ensure the splices after
being made are turned upward and pushed carefully up into the outlet box.
NOTE: Once ground wires are connected, carefully tuck wires and into the
outlet box making sure that the wires are clear of the hemisphere and
downrod when positioned in mounting bracket (Downrod Mount Only).
wire nuts
DOWNROD MOUNT
FLUSH MOUNT
- Connect ground wire from outlet box
to green wire from mounting bracket
and downrod using a wire nut
(not supplied).
-
Connect ground wire from outlet box
to green wire from mounting bracket
using a (not supplied).
wire nut
Wire Nut
A
a.
b.
CONNECTING THE (GREEN) GROUND WIRE
Canopy
J-Hook
Safety
Cable
b.
Wire Nut
B

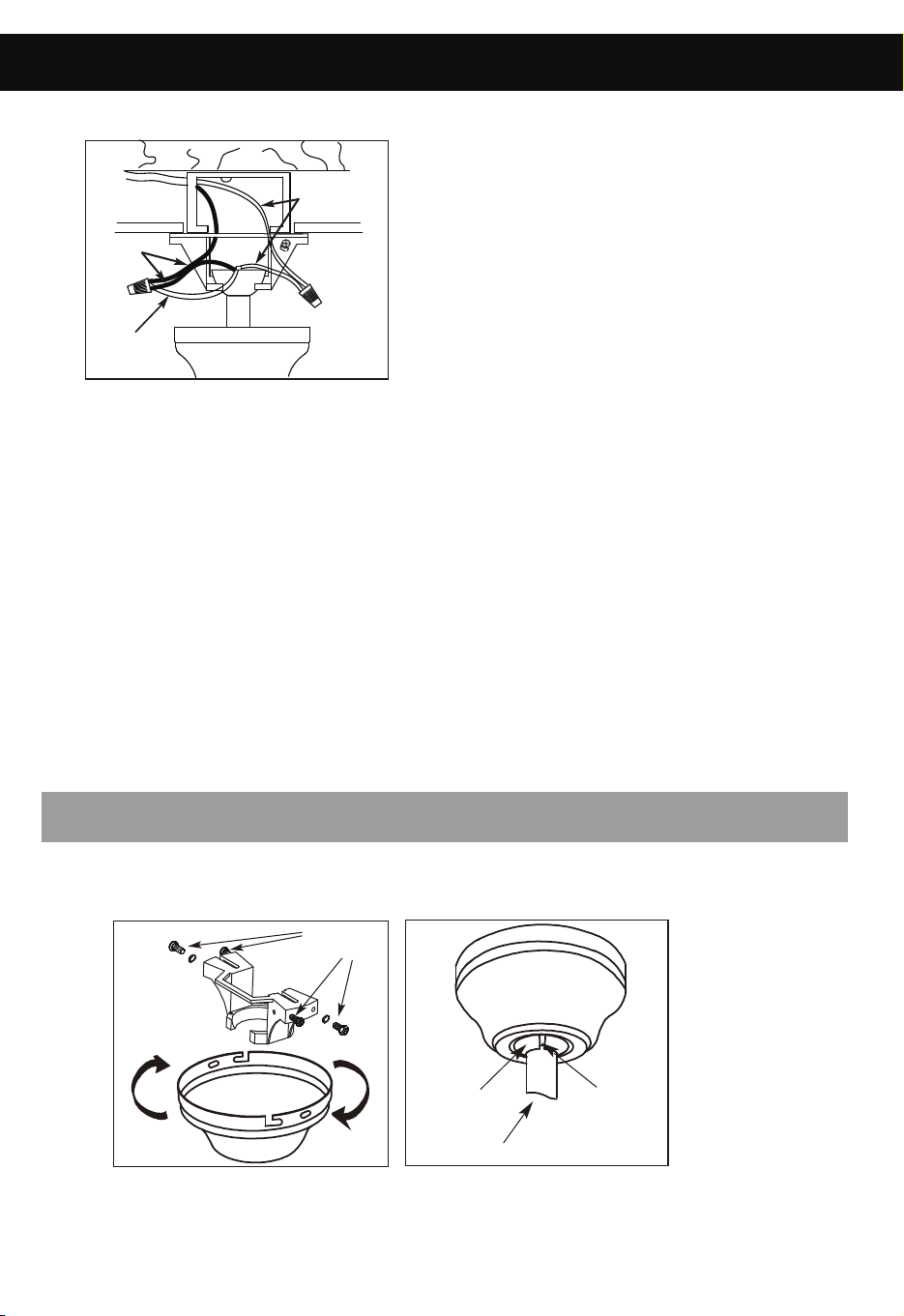

- Place two screws and washers on mounting plate (marked B on diagram) which
correspond with slots in canopy. Screw in two turns.
- Position canopy to mounting plate aligning slots to screws (marked B on diagram)
then turn to lock.
- Position and tighten the two screws and washers (marked A on diagram) then tighten
the two screws (marked B on diagram).
5. MOUNTING FAN ASSEMBLY
NOTE: Once wires are connected, carefully tuck wires and wire nuts into the
outlet box making sure that the wires are clear of the hemisphere
and downrod when positioned in mounting bracket
(Downrod Mount Only).
- Connect white wire from outlet box to white
wire from fan using wire nut (not supplied).
- Connect black wire from outlet box to black
wire from fan plus (red or blue wire) using
a wire nut.
NOTE: A r
ed or blue wire would be power
for a light kit if applicable.
CONNECTING BLACK,WHITE AND (RED OR BLUE) WIRES
Black Wire
White Wire
Red or Blue
Wire
PAGE: 9 / 12 PAGE: 10 / 12
ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS (continued) ASSEMBLY INSTRUCTIONS (continued)
6. ENGAGE HEMISPHERE (Downrod Mount Only)
- Carefully rotate fan assembly until groove in hemisphere locks over tab of canopy assembly.
WARNING: Failure to seat tab in groove could cause damage to electrical wires and
possible shock or fire hazard.
Downrod
Hemisphere
Groove
NOTE: When installing fan on sloped ceiling, make sure tab on hanger bracket faces towards
the top of the slope. Depending on the slope, a longer downrod may be required to prevent
fan blades from hitting the ceiling.
7. LIGHT KIT
WARNING: Ensure that all connections, set screws and screws are securely tightened
before the next step.
WARNING: BE SURE TO TURN OFF POWER BEFORE INSTALLING
a.
b.
- Install supplied led lamps.
- Secure the glass cover to the light kit as shown in diagram below.
(A)
(B)
(B)
Washers
(A)
Bulb
Glass
Light Kit
Motor
B
- Place two screws and washers on mounting plate (marked B on diagram) which
correspond with slots in canopy. Screw in two turns.
- Position canopy to mounting plate aligning slots to screws (marked B on diagram)
then turn to lock.
- Position and tighten the two screws and washers (marked A on diagram) then tighten
the two screws (marked B on diagram).
5. MOUNTING FAN ASSEMBLY
NOTE: Once wires are connected, carefully tuck wires and wire nuts into the
outlet box making sure that the wires are clear of the hemisphere
and downrod when positioned in mounting bracket
(Downrod Mount Only).
- Connect white wire from outlet box to white
wire from fan using wire nut (not supplied).
- Connect black wire from outlet box to black
wire from fan plus (red or blue wire) using
a wire nut.
NOTE: A r
ed or blue wire would be power
for a light kit if applicable.
CONNECTING BLACK,WHITE AND (RED OR BLUE) WIRES
Black Wire
White Wire
Red or Blue
Wire
PAGE: 9 / 12 PAGE: 10 / 12
ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS (continued) ASSEMBLY INSTRUCTIONS (continued)
6. ENGAGE HEMISPHERE (Downrod Mount Only)
- Carefully rotate fan assembly until groove in hemisphere locks over tab of canopy assembly.
WARNING: Failure to seat tab in groove could cause damage to electrical wires and
possible shock or fire hazard.
Downrod
Hemisphere
Groove
NOTE: When installing fan on sloped ceiling, make sure tab on hanger bracket faces towards
the top of the slope. Depending on the slope, a longer downrod may be required to prevent
fan blades from hitting the ceiling.
7. LIGHT KIT
WARNING: Ensure that all connections, set screws and screws are securely tightened
before the next step.
WARNING: BE SURE TO TURN OFF POWER BEFORE INSTALLING
a.
b.
- Install supplied led lamps.
- Secure the glass cover to the light kit as shown in diagram below.
(A)
(B)
(B)
Washers
(A)
Bulb
Glass
Light Kit
Motor
To clean the fixture, turn off the power, wait for it to cool, and wipe the fixture
with a clean, soft cloth.
TROUBLESHOOTING
- Check wiring connections to fan.
- Check fuses and circuit breakers.
- Check wiring connections in switch housing.
CAUTION: Turn power off for last two items.
- Check to make sure that all screws in motor housing are snug.
- Check to make sure that blade bracket screws are tight.
- Check to make sure that wire nuts in switch housing
are not rattling against wall of switch housing.
- If fan has a light kit make sure switch housing
screws and set screws are tight.
- Some fan motors are sensitive to signals from solid state
variable controls. If solid state controller is used, change to
an alternative control. (See a representative for a list of
available controls.)
- Allow a 24 hour break in period to eliminate most noises.
- Check that all blades are screwed firmly into blade brackets.
- Check that blade brackets are secured firmly to motor.
- Check distance from tip of blades to ceiling.
- Check distance between blade tip to blade tip. All
measurements should be equal. Loosen blade screws and
position blade until even then re-tighten.
- Check that the downrod hemisphere notch is engaged in canopy.
- Check to make sure that jam screws in downrod are tightened.
- Make sure canopy and mounting bracket are tightened securely
to wooden joist.
- Make sure warpage has not occurred in wooden blades. If so,
contact the customer service department for replacement parts.
TROUBLE SUGGESTIONS
1. Fan will not start
2. Fan sounds noisy
3. Fan wobbles or
shakes excessively.
PAGE: 11 / 12 PAGE: 12 / 12
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee
of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This device contains licence-exempt transmitter(s)/receiver(s)
that comply with Innovation, Science and Economic Development
Canada’s licence-exempt RSS(s). Operation is subject to the
following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference
that may cause undesired operation of the device.
Supplier's Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Unique Identifier: PATRIOT
Responsible Party
CanarmInc.
808 Commerce Park Drive, Ogdensburg, New York, USA 13669
1-800-267-4427
CARE AND MAINTENANCE
To clean the fixture, turn off the power, wait for it to cool, and wipe the fixture
with a clean, soft cloth.
TROUBLESHOOTING
- Check wiring connections to fan.
- Check fuses and circuit breakers.
- Check wiring connections in switch housing.
CAUTION: Turn power off for last two items.
- Check to make sure that all screws in motor housing are snug.
- Check to make sure that blade bracket screws are tight.
- Check to make sure that wire nuts in switch housing
are not rattling against wall of switch housing.
- If fan has a light kit make sure switch housing
screws and set screws are tight.
- Some fan motors are sensitive to signals from solid state
variable controls. If solid state controller is used, change to
an alternative control. (See a representative for a list of
available controls.)
- Allow a 24 hour break in period to eliminate most noises.
- Check that all blades are screwed firmly into blade brackets.
- Check that blade brackets are secured firmly to motor.
- Check distance from tip of blades to ceiling.
- Check distance between blade tip to blade tip. All
measurements should be equal. Loosen blade screws and
position blade until even then re-tighten.
- Check that the downrod hemisphere notch is engaged in canopy.
- Check to make sure that jam screws in downrod are tightened.
- Make sure canopy and mounting bracket are tightened securely
to wooden joist.
- Make sure warpage has not occurred in wooden blades. If so,
contact the customer service department for replacement parts.
TROUBLE SUGGESTIONS
1. Fan will not start
2. Fan sounds noisy
3. Fan wobbles or
shakes excessively.
PAGE: 11 / 12 PAGE: 12 / 12
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee
of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This device contains licence-exempt transmitter(s)/receiver(s)
that comply with Innovation, Science and Economic Development
Canada’s licence-exempt RSS(s). Operation is subject to the
following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference
that may cause undesired operation of the device.
Supplier's Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Unique Identifier: PATRIOT
Responsible Party
CanarmInc.
808 Commerce Park Drive, Ogdensburg, New York, USA 13669
1-800-267-4427
CARE AND MAINTENANCE
