PAGE: 1 / 9
191101
1-6W E26 (M) Base A15 Type LED Bulb
PAGE: 2 / 9
191101
PAGE: 3 / 9
191101
PAGE: 4 / 9
191101
PAGE: 5 / 9
191023

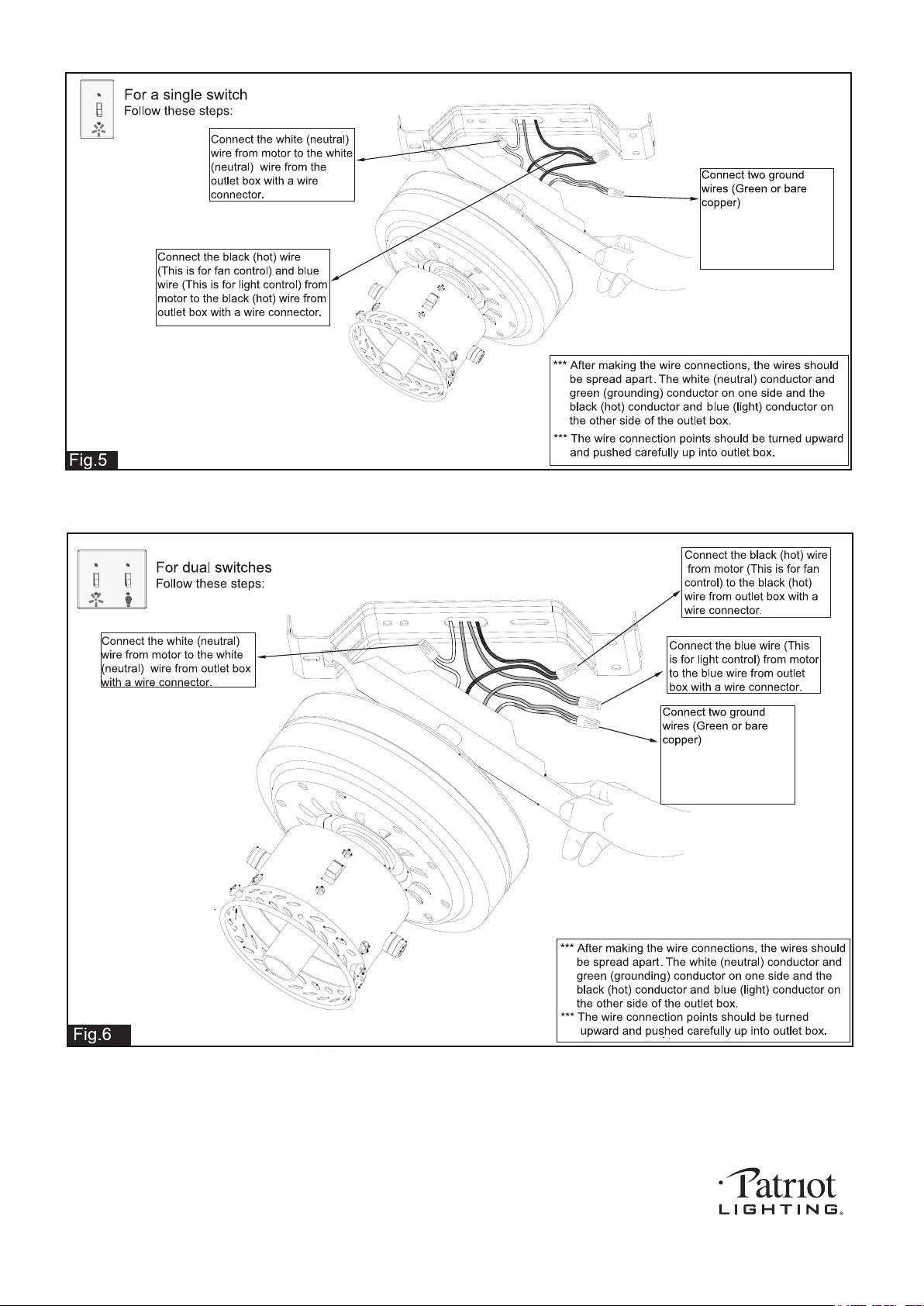

using a wire
connector. One ground
wire will come from
outlet box and one from
the mounting bar.
using a wire
connector. One ground
wire will come from
outlet box and one from
the mounting bar.
PAGE: 6 / 9
191101

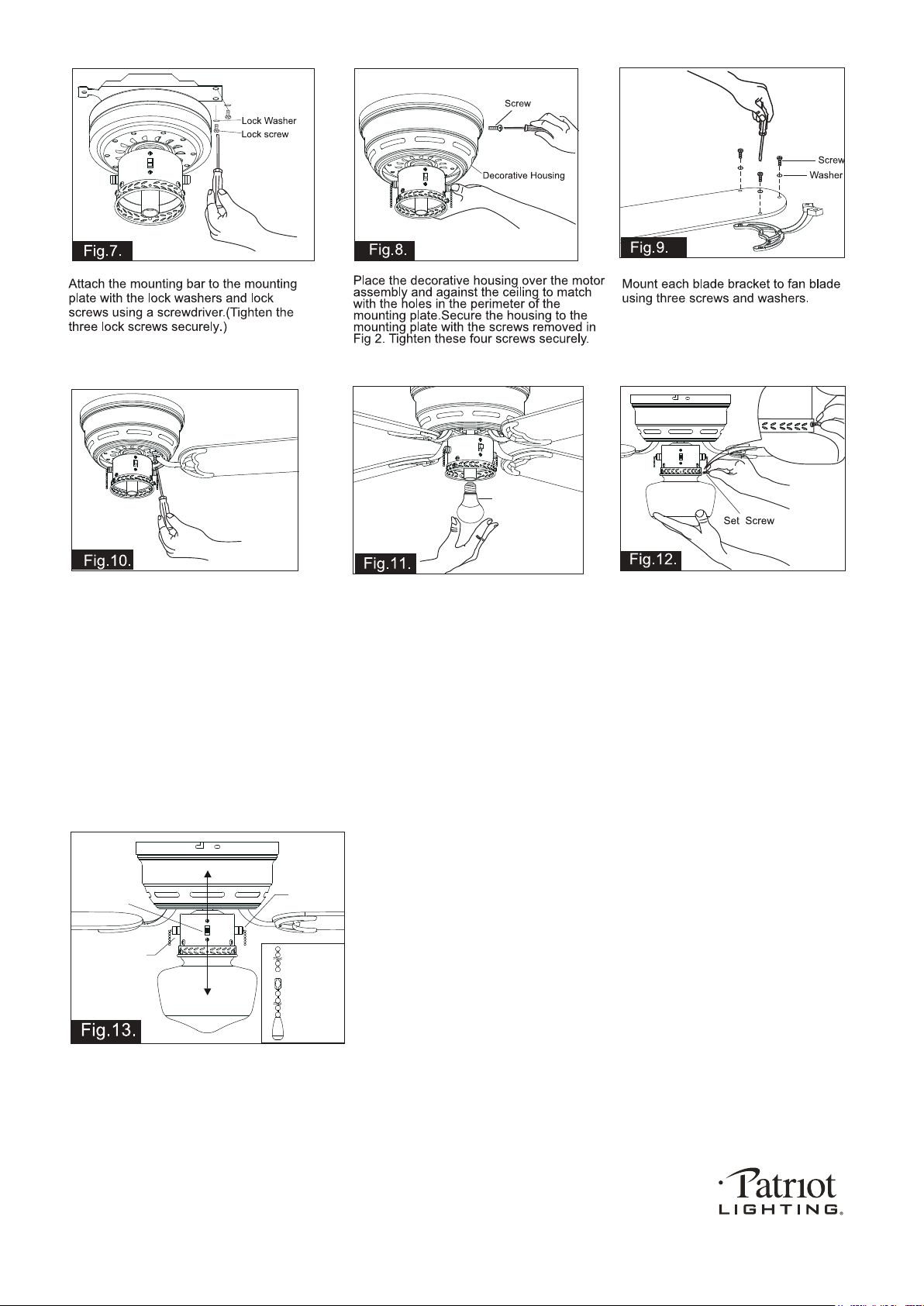

Remove screws and washers from motor
first and then secure the blade brackets to
the motor with motor screws and washers.
Install LED bubls(included).
See relamping label at socket area or
packaging for maximum wattage allowed.
Use fingers to screw glass shade into place.
CAUTION: Over tightening the set screws
could result in breakage of the glass shade.
CAUTION: To reduce the risk of electrical
shock, disconnect the eletrical supply
circuit to the fan before installing light kit.
1-6W E26 (M) A15
LED Bulb (included)
E26 A15 Bulb Max.
60W
The slide switch on switch box sets direction of fan rotation. Select the
desired direction of fan rotation.
Push the slide switch down for " Forward" and up for "Reverse".
Note: Wait for fan to stop before reversing the direction of
blade rotation.
Install two pull chains and drops onto the pull chains located in
the switch box and light kit.
The pull chain controls the fan speed as follows:
1 pull – High, 2 pull – Medium, 3 pull – Low, and 4 pull – Off.
To turn the light kit “ON” or “OFF”, pull the chain that is attached
to the light kit.
Caution:
1. If you install a wall control for this fan, pull the pull chains
to “high speed” of the fan motor and “on” of the fan light.
2. Compatible wall switch model No.: Menards SKU# 3632615
/ 3635815.
Fan Switch
Fan Light
Switch
Reverse
Forward
Slide Switch
Install pull
chains and
drops
191101
