Operating instructions
for washing machines
To avoid the risk of accidents or damage to the machine, it is essen-
tial to read these instructions before it is installed and used for the
first time.
en-GB M.-Nr. 11 672 970
Contents
2
Warning and Safety instructions ..................................................................... 5
Operating the washing machine ...................................................................... 12

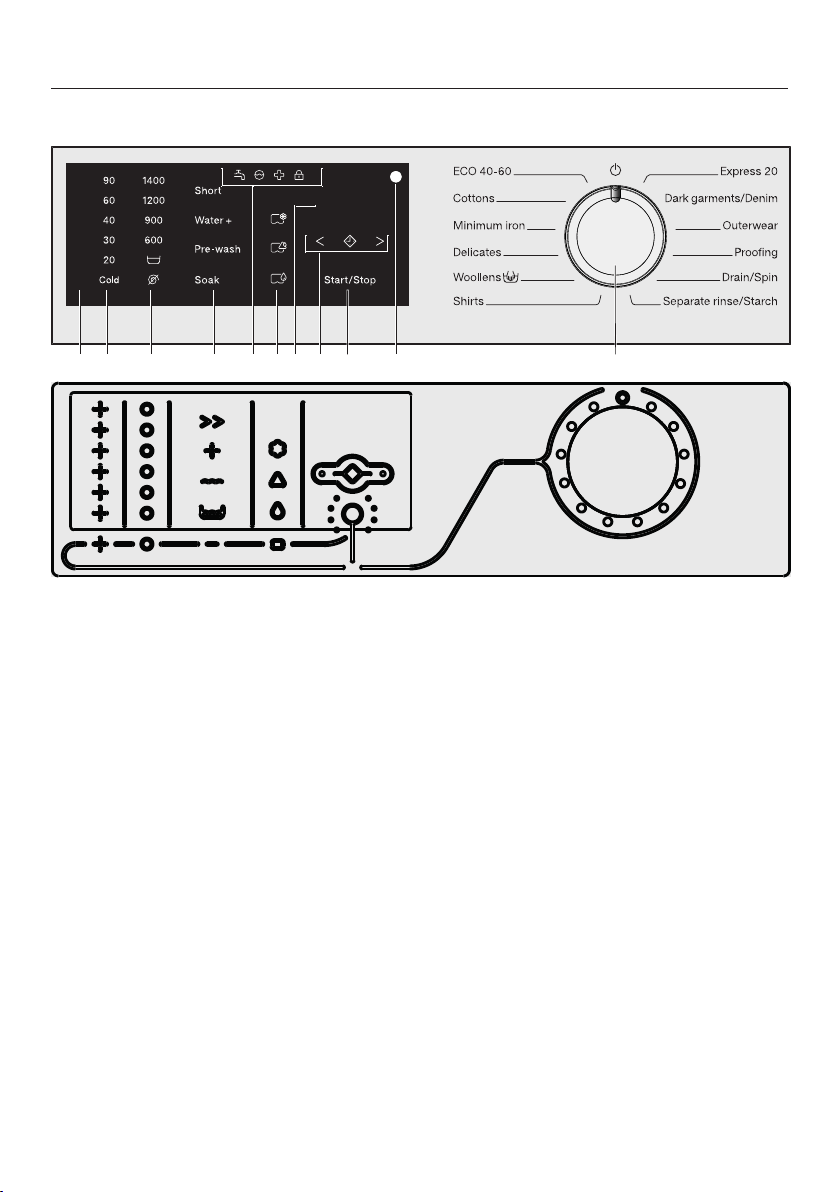

Control panel....................................................................................................... 12
How the control field works................................................................................. 13
GuideLine ........................................................................................................... 14
Caring for the environment .............................................................................. 16
Before using for the first time .......................................................................... 17
Washing environmentally and economically .................................................. 19
1. Prepare the laundry....................................................................................... 20
2. Load the washing machine........................................................................... 21
3. Select a programme...................................................................................... 22
4. Add detergent ................................................................................................ 24
Detergent dispenser drawer ................................................................................ 24
CapDosing........................................................................................................... 26
5. Start the programme..................................................................................... 28
6. End of programme - unload the drum......................................................... 29
Spinning.............................................................................................................. 30
Delay start .......................................................................................................... 31
Programme chart .............................................................................................. 32
Extra options...................................................................................................... 35
Short.................................................................................................................... 35
Water + ................................................................................................................ 35
Pre-wash ............................................................................................................. 35
Soak .................................................................................................................... 35
The following extras can be selected in addition to the programmes................. 36
Garment care label symbols............................................................................. 37
Programme sequence....................................................................................... 38
Changing the programme sequence .............................................................. 40
Changing a programme or adding/removing laundry ......................................... 40
Interrupting a programme.................................................................................... 40
Contents
3
Garment care label symbols............................................................................. 41
Detergent ........................................................................................................... 42
The correct detergent.......................................................................................... 42
Water softeners ................................................................................................... 42
Dispensing aids ................................................................................................... 42
Fabric conditioner and liquid starch.................................................................... 42
Recommended Miele detergents ........................................................................ 44
Recommended detergents in accordance with Directive (EU) Nr. 1015/2010.... 45
Cleaning and care ............................................................................................. 46
Cleaning the external casing and the control panel ............................................ 46
Cleaning the detergent dispenser drawer ........................................................... 46
Hygiene info(Cleaning the drum) ......................................................................... 48
Cleaning the water inlet filter............................................................................... 48
Problem solving guide ...................................................................................... 49
The programme does not start............................................................................ 49
The programme is cancelled and a fault indicator light lights up
in the control panel.............................................................................................. 50
During the programme, a symbol appears in the time display ........................... 51
At the end of the programme, an indicator light lights up in the control panel ... 51
General problems with the washing machine ..................................................... 52
An unsatisfactory wash result ............................................................................. 54
The door will not open......................................................................................... 55
Opening the door in the event of a blocked drain outlet and/or power cut ........ 56
After sales service............................................................................................. 58
Repairs ................................................................................................................ 58
Warranty: U.K. ..................................................................................................... 58
Warranty: Other countries ................................................................................... 58
EPREL database ................................................................................................. 58
Optional accessories........................................................................................... 58
Installation.......................................................................................................... 59

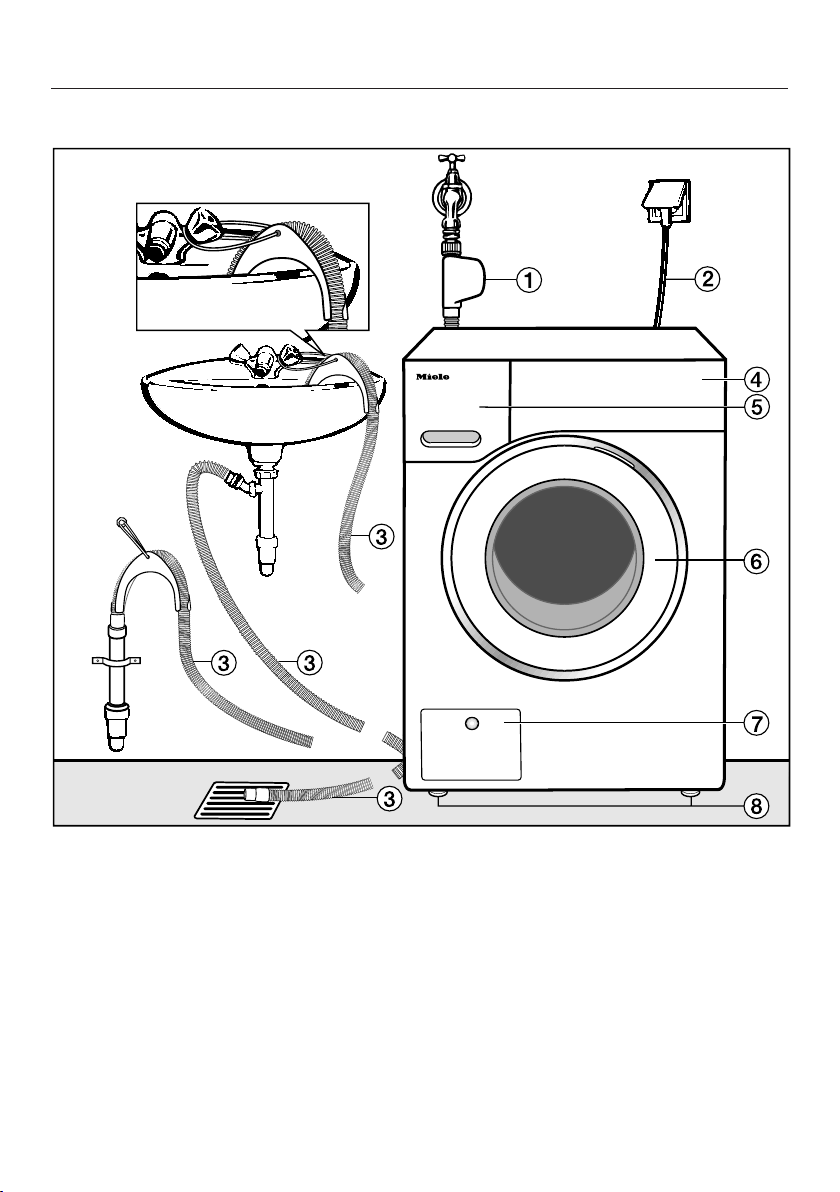

Front view ............................................................................................................ 59

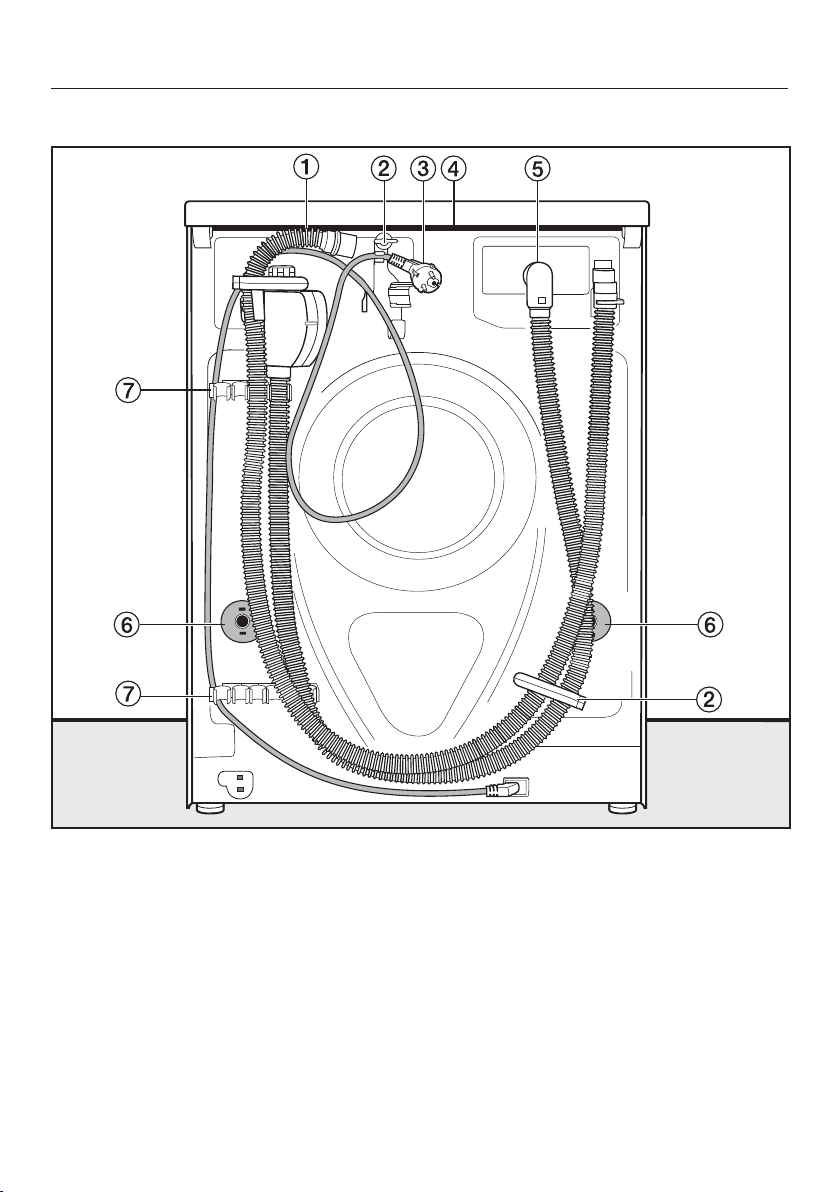

Rear view............................................................................................................. 60
Installation surface .............................................................................................. 61
Transporting the washing machine to its installation site.................................... 61

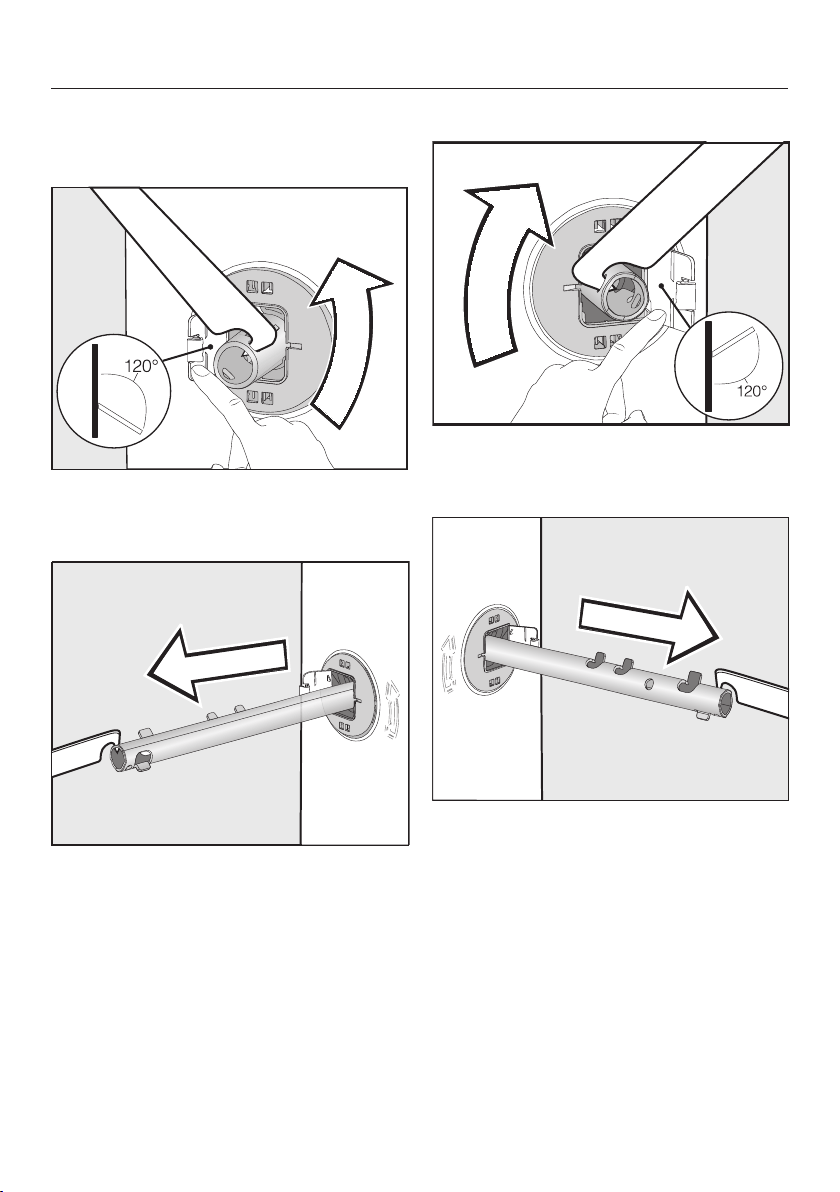

Removing the transit bars ................................................................................... 62
Fitting the transit bars ......................................................................................... 64
Contents
4
Levelling the machine.......................................................................................... 65
Screwing out and adjusting the feet............................................................... 65
Installing under a continuous worktop ........................................................... 66
Washer-dryer stack ........................................................................................ 66
The water protection system............................................................................... 67
Connection to the water supply .......................................................................... 69
Water drainage .................................................................................................... 71
Fitting the elbow............................................................................................. 71
Direct connection to a sink drain outlet.......................................................... 72
Electrical connection .......................................................................................... 73
Technical data.................................................................................................... 74
Consumption data............................................................................................. 75
Programmable functions .................................................................................. 76
Choosing and selecting a programmable function ............................................. 76
Editing and saving a programmable function...................................................... 77
Exit programming level........................................................................................ 77
Buzzer............................................................................................................
77
Sensor tone ...................................................................................................
77
Lock code......................................................................................................
78
Switch-off tone volume .................................................................................
78
Control panel switch-off status ....................................................................
78
Memory ........................................................................................................
79
Longer pre-wash Cottons ............................................................................
79
Soak duration ...............................................................................................
79
Gentle action ................................................................................................
79
Reduce temperature.....................................................................................
80
Water plus.....................................................................................................
80
Water plus level .............................................................................................
80
Maximum rinse level.....................................................................................
80
Suds cooling .................................................................................................
81
Anti-crease ...................................................................................................
81
Low water pressure......................................................................................
81
Backlight brightness dimmed ......................................................................
81
Welcome tone...............................................................................................
82
Optional accessories ........................................................................................ 83
Detergent............................................................................................................. 83
Specialist detergents........................................................................................... 83
Fabric care........................................................................................................... 84
Additive ............................................................................................................... 84
Machine care....................................................................................................... 84
Warning and Safety instructions
5
This washing machine complies with all current local and national
safety requirements. However, inappropriate use can lead to per-
sonal injury and damage to property.
Read the operating instructions carefully before using the washing
machine. They contain important information on safety, installa-
tion, use and maintenance. This prevents both personal injury and
damage to the washing machine.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow the instructions in the
chapter on installing the washing machine as well as the safety in-
structions and warnings.
Miele cannot be held liable for damage caused by non-compliance
with these instructions.
Keep these operating instructions in a safe place and pass them
on to any future owner.
Correct application
This washing machine is intended for use in domestic households
and similar working and residential environments.
The washing machine is not intended for outdoor use.
It must be used only as a domestic appliance to wash items which
are specified by the manufacturer as being washable on the wash
care label. Miele cannot be held liable for damage resulting from in-
correct or improper use or operation.
The washing machine can only be used by people with reduced
physical, sensory or mental capabilities, or lack of experience or
knowledge, if they are supervised whilst using it or have been shown
how to use it safely and recognise and understand the con-
sequences of incorrect operation.
Warning and Safety instructions
6
Safety with children
Children under 8 years of age must be kept away from the wash-
ing machine unless they are constantly supervised.
Children 8 years and older may only use the washing machine un-
supervised if they have been shown how to use it safely and recog-
nise and understand the consequences of incorrect operation.
Children must not be allowed to clean or maintain the washing
machine unsupervised.
Please supervise children in the vicinity of the washing machine
and do not let them play with it.
Technical safety
Please observe the instructions in “Installation” and “Technical
data”.
Before setting up the washing machine, check it for any externally
visible damage. Do not install or use a damaged machine.
Before connecting the washing machine, ensure that the connec-
tion data on the data plate (fuse rating, voltage and frequency) match
the mains electricity supply. If in any doubt, consult a qualified elec-
trician.
Warning and Safety instructions
7
Temporary or permanent operation on an autonomous power sup-
ply system or a power supply system that is not synchronised with
the mains power supply (e.g. island networks, back-up systems) is
possible. A prerequisite for operation is that the power supply sys-
tem complies with the specifications of EN50160 or an equivalent
standard.
The function and operation of the protective measures provided in
the domestic electrical installation and in this Miele product must
also be maintained in isolated operation or in operation that is not
synchronised with the mains power supply, or these measures must
be replaced by equivalent measures in the installation. As described,
for example, in the current version of BS OHSAS 18001–2 ISO
45001.
The electrical safety of this washing machine can only be guaran-
teed when correctly earthed.
It is essential that this standard safety requirement is met. If in any
doubt, please have the wiring system of the building tested by a
qualified electrician.
Miele cannot be held liable for the consequences of an inadequate
earthing system (e.g. electric shock).
Do not connect the washing machine to the mains electricity sup-
ply by a multi-socket adapter, extension lead or similar. These do not
guarantee the required safety of the machine (fire hazard due to the
risk of overheating).
Faulty components must only be replaced by genuine Miele ori-
ginal spare parts. Only when these parts are fitted can Miele guaran-
tee the safety standards of the machine.
The electrical socket must be easily accessible after installation so
that the machine can be disconnected from the electricity supply if
necessary.
Warning and Safety instructions
8
Unauthorised repairs could result in unforeseen dangers for the
user, for which the manufacturer cannot accept liability. Repairs
should only be undertaken by a Miele authorised service technician,
otherwise any subsequent damage will not be covered by the war-
ranty.
While the washing machine is under warranty, repairs should only
be undertaken by a Miele authorised service technician. Otherwise
the warranty will be invalidated.
If the electrical connection cable is faulty it must only be replaced
by a Miele authorised service technician to protect the user from
danger.
The machine must be isolated from the electricity supply when
cleaning and maintaining the machine and in the event of a fault.
The Miele “Water protection system” protects from water damage
provided the following conditions are met:
- the machine is correctly plumbed in and connected to the electri-
city supply.
- if a fault or damage has been identified, the machine must be ex-
amined by a competent person before further use, and repaired if
necessary.
The water flow pressure must be at least 100kPa and should not
exceed 1000kPa.
In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the machine and its
surroundings in a clean condition at all times. Any damage which
may be caused by cockroaches or other vermin will not be covered
by the warranty.
The machine must not be used in a non-stationary location (e.g.
on a ship).
Do not make any alterations to the machine, unless authorised to
do so by Miele.
Warning and Safety instructions
9
Correct use
Do not install the washing machine in a room where there is a risk
of frost. Frozen hoses may burst or split. The reliability of the elec-
tronic control unit may be impaired at temperatures below freezing
point.
Before using the machine for the first time, check that the transit
bars at the rear of the machine have been removed (see “Installation
- Removing the transit bars”). During spinning, a transit bar which is
still in place may result in damage to both the machine and adjacent
furniture or appliances.
Turn off the stopcock if the machine is to be left for any length of
time (e.g. holiday), especially if there is no floor drain (gully) in the im-
mediate vicinity.
Flooding danger.
If hooking the drain hose into a wash basin, check that the water can
drain off quickly enough to prevent the sink from overflowing. Make
sure the drain hose is secure, so that the force of the water flowing
out of the hose does not dislodge it.
Take care to ensure that foreign objects (e.g. nails, pins, coins, pa-
per clips) do not find their way into the machine with the laundry.
These may damage components of the machine (e.g. suds con-
tainer, drum), which in turn can result in damage to the laundry.
Warning and Safety instructions
10
Take care when opening the drum door after using the steam
function. Danger of burning due to escaping steam and the high
temperature of the surface of the drum as well as the porthole glass.
Stand back away from the machine and wait until the steam has dis-
sipated.
The maximum load for this washing machine is 8.0 kg (dry
weight). See the “Programme chart” for the maximum recommended
loads for individual programmes.
If the correct amount of detergent is dispensed, the machine
should not need to be descaled. If, however, you do wish to descale
it, only use a proprietary natural citric acid based descaling agent.
Miele recommends using Miele descaling agent which is available to
order online at www.miele.co.uk or from Miele. Strictly observe the
instructions on the packaging.
Textiles which have been pre-treated in solvent based cleaning
agents must be thoroughly rinsed in clean water before being
washed in the machine.
Do not use solvent based cleaning agents, e.g. those containing
benzine, in this machine, as this may result in damage to component
parts and create toxic fumes. Such agents also pose a fire and ex-
plosion hazard.
Do not use solvent based cleaning agents, e.g. those containing
benzine, to clean the surfaces of the machine. They can cause dam-
age to plastic surfaces.
Only use dyes specified by the manufacturer as being suitable for
use in a domestic washing machine. Always observe the manufac-
turer's instructions carefully.
Warning and Safety instructions
11
Colour run and dye removers contain sulphur compounds which
can cause damage such as corrosion. Do not use these products in
this machine.
If detergent comes into contact with the eyes, rinse them thor-
oughly with lukewarm water immediately. If swallowed, seek medical
assistance immediately and retain the packaging or label for refer-
ence. Those with skin problems or sensitive skin should avoid their
skin coming into contact with detergent.
Accessories and spare parts
Only use original Miele accessories. If other parts are used, war-
ranty, performance and product liability claims will be invalidated.
A Miele tumble dryer can be stacked on top of a Miele washing
machine using the appropriate stacking kit (available as an optional
accessory). Please make sure you order the correct one for the Miele
washing machine and Miele tumble dryer.
If installing the machine on a Miele plinth, (available as an optional
accessory, depending on country), please make sure you order the
correct one for this washing machine.
Miele will guarantee to supply functional spare parts for a min-
imum of 10years and up to 15years following the discontinuation of
your washing machine.
Miele cannot be held liable for damage caused by non-compliance
with these Warning and Safety instructions.
Operating the washing machine
12
Control panel
a
Control field
The control field consists of a time
display and various sensor controls.
The individual sensor controls are
explained in the following sections.
b
Sensor controls – temperature
for selecting the temperature.
c
Sensor controls – spin speeds
for selecting the spin speed.
d
Sensors for extra options
You can supplement wash pro-
grammes with extra options.
If a wash programme has been se-
lected, the sensor controls for the
possible Extras light up dimly.
e
Indicator lights
lights up if there are faults af-
fecting the water inlet and
drainage
lights up if excess detergent
was used
lights up as a reminder about
hygiene information
flashes for as long as it is pos-
sible to add laundry, lights up
when the door of the washing
machine is locked
Operating the washing machine
13
f
Sensor controls – CapDosing
CapDosing of fabric care
products (e.g. fabric condi-
tioner, proofing agent)
CapDosing of additives (e.g.
detergent enhancer)
CapDosing of detergent (for the
main wash only)
g
Time display
After the programme has started, the
programme duration will appear in
the display in hours and minutes.
When Delay start is being used, the
programme duration will appear after
the Delay start time has elapsed.
h
Sensor controls
The Delay start time selected will ap-
pear in the time display.
After the programme has started, the
Delay start time will begin to count
down.
Once the Delay start time has
elapsed, the programme begins and
the estimated programme duration
appears on the time display.
After touching the sensor
control, a later start time for the
programme (Delay start) can be
selected. Once selected,
lights up brightly.
The duration of the Delay start
period is increased by touching
the sensor control.
The duration of the Delay start
period is reduced by touching
the sensor control.
i
Start/Stop sensor
Touching the Start/Stop sensor
starts the selected programme or
cancels a programme that has
already been started. The sensor
flashes slowly as soon as it is pos-
sible for a programme to be started
and then lights up constantly after
the programme has started.
j
Optical interface
This is used by the Service depart-
ment as a transmission point.
k
Programme selector
for selecting programmes and for
switching off the appliance. The
washing machine is switched on
when you select a programme, and
switched off by turning the pro-
gramme selector to the position.
How the control field works
The , , , , and sensor con-
trols react to fingertip contact. If a
sensor control is illuminated, it can be
selected.
If a sensor is brightly lit, this means:
currently selected
If a sensor is dimly lit, this means: it can
be selected
GuideLine
14
This washing machine is designed for
blind and visually impaired people and
is equipped with a special user inter-
face. In addition, an acoustic signal
sounds each time the sensor controls
are operated.
The control panel is made up of 2 parts.
The programme selector is located on
the right and the control field is located
in the centre.
Programme selector
The 12 wash programmes surround the
round programme selector. The setting
for switching off the washing machine is
located at the 12 o’clock position.
When the programme selector is turned
to a wash programme, the washing ma-
chine switches on automatically and
this is indicated by a corresponding
melody. The individual programmes are
indicated with a dot.
Clockwise, the following programmes
are included on the programme se-
lector:
- Express 20
- Dark garments/Denim
- Outerwear
- Proofing
- Drain/Spin
- Separate rinse/Starch
- Shirts
- Woollens
- Delicates
- Minimum iron
- Cottons
- ECO 40-60
Control field
The control field consists of sensor con-
trols. The sensor controls react to
touch. A confirmation signal sounds
when a sensor is touched. The control
field is explained from right to left be-
low.
Start/Stopsensor control
TheStart/Stopsensor control is marked
with a large circle surrounded by
dots. To start a wash programme,
touch the middle of this circle. A brief
signal sounds to confirm the pro-
gramme has been started and the door
can be heard locking into place.
Delay start sensor controls
These 3 sensor controls are located
above the Start/Stopsensor control.
The middle sensor control, marked
with dash – diamond – dash, switches
Delay start on or off. A brief signal
sounds to confirm Delay start has been
switched on. A signal will sound twice
in quick succession to indicate that
Delay start has been switched off.
The sensor control on the right ,
marked with a dot, increases the delay
start period by 1hour with every touch.
Each hour is indicated with a higher
pitch signal. A period of up to 7hours
can be selected. The sensor control on
the left , marked with a dot, reduces
the delay start period by 1hour with
every touch.
GuideLine
15
Capsules sensor controls
There are 3 sensor controls for cap-
sules. The sensor controls are marked
differently depending on the capsule.
The explanation follows the order from
top to bottom.
- The (fabric care products) sensor
control is marked with a flower.
- The (additives) sensor control is
marked with a triangle.
- The (detergent) sensor control is
marked with a droplet.
A brief signal sounds to indicate that a
capsule has been selected. The upper
capsule is indicated using a higher
pitch signal; the lower capsule is in-
dicated using a lower pitch signal. A
signal will sound twice in quick succes-
sion to indicate that a capsule has been
deselected.
Extra options sensor controls
There are 4 sensor controls for extra
options. The sensor controls are
marked differently depending on the ex-
tra option. The explanation follows the
order from top to bottom.
- The Shortsensor control is marked
with a double arrow pointing to the
right.
- The Water +sensor control is marked
with a plus.
- The Pre-washsensor control is
marked with a wavy line.
- The Soaksensor control is marked
with a washing up bowl.
A brief signal sounds to indicate that an
extra option has been selected. A signal
will sound twice in quick succession to
indicate that an extra option has been
deselected.
Spin speed sensor controls
There are 6 sensor controls for the spin
speed. The sensor controls are marked
with a small circle. The highest spin
speed (1400rpm) is at the top. The low-
est spin speed(no spin) is at the bot-
tom. A different confirmation signal
sounds depending on the spin speed
selected. The higher in pitch the sound
is, the higher the selected spin speed.
Temperature sensor controls
There are 6 sensor controls for the tem-
perature. The sensor controls are
marked with a plus. The highest tem-
perature (90°C) is at the top. The low-
est temperature (cold) is at the bottom.
A different confirmation signal sounds
depending on the temperature selected.
The higher in pitch the sound is, the
higher the selected temperature.
Additional tools
Audio operating instructions
The washing machine is supplied with
audio operating instructions. The audio
operating instructions explain the most
important steps and wash programmes.
Caring for the environment
16
Disposing of the packaging
material
The packaging material is used for
handling and protects the appliance
from transport damage. The packaging
material used is selected from materials
which are environmentally friendly for
disposal and can generally be recycled.
Recycling the packaging material re-
duces the use of raw materials. Use
material-specific collection points for
valuable materials and take advantage
of return options. Your Miele dealer will
take the packaging material away.
Disposing of your old appli-
ance
Electrical and electronic appliances
contain many valuable materials. They
also contain certain materials, com-
pounds and components which were
essential for their correct functioning
and safety. These could be hazardous
to human health and to the environment
if disposed of with household waste or
if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with household waste.
Instead, please make use of officially
designated collection and disposal
points to dispose of and recycle elec-
trical and electronic appliances in your
local community, with your dealer or
with Miele, free of charge. By law, you
are solely responsible for deleting any
personal data from the old appliance
prior to disposal. You are legally obliged
to remove any old batteries which are
not securely enclosed by the appliance
and to remove any lamps without des-
troying them, where this is possible.
These must be taken to a suitable col-
lection point where they can be handed
in free of charge. Please ensure that
your old appliance poses no risk to chil-
dren while being stored for disposal.
Before using for the first time
17
Damage resulting from incorrect
installation and connection.
Installing and connecting the wash-
ing machine incorrectly will cause
serious property damage.
See “Installation”.
Removing the protective foil
and stickers
Remove:
- Any protective film from the door
- Any stickers from the front and the lid
Please do not remove any labels
(e.g. the data plate) which are visible
when you open the door.
Remove the drain hose elbow
from the drum
An elbow piece for the drain hose is
stored in the drum.
Reach under the door grip and pull
the door open.
Remove the elbow piece.
Shut the door with a gentle swing.
This washing machine has undergone
a complete functional test at the fact-
ory and there will be some residual
water in the drum from this process.
Before using for the first time
18
Running the first programme
For optimum water and energy con-
sumption and excellent wash results, it
is important to calibrate the washing
machine.
To do this, the Cottonsprogramme
must be run without laundry and
without detergent.
Open the stopcock.
Turn the programme selector to Cot-
tons.
The washing machine is now switched
on and in the control panel, the temper-
ature 40°C lights up.
Touch the Start/Stop sensor.
The programme will start and the
symbol lights up in the control panel.
After 10minutes, the indicators dim
and the Start/Stop sensor starts flash-
ing.
At the end of the programme
At the end of the programme, the Anti-
crease function is switched on. The
symbol lights up in the control panel;
: appears in the time display and
the drum occasionally rotates.
Touch the Start/Stop sensor.
The door will unlock.
Reach under the door grip and pull
the door open.
Tip: Leave the door slightly open to al-
low the drum to dry.
When the programme has ended,
turn the programme selector to.
The washing machine is switched off
and is now ready for use.
Washing environmentally and economically
19
Energy and water consumption
- To get the most out of your machine,
load the maximum dry load size for
the wash programme you are using.
This will keep the energy and water
consumption to a minimum in relation
to the size of the load.
- Programmes that are more efficient
with regard to energy and water con-
sumption generally have a longer run-
ning time. By extending the pro-
gramme running time, the wash tem-
perature that is actually reached can
be reduced while still providing the
same wash results.
For example, the
ECO 40-60programme has a longer
running time than the Cottons40°C
or 60°C programme. The
ECO 40-60programme is more effi-
cient in terms of energy and water
consumption but has a longer run-
ning time.
- Use the Express 20programme for
small, lightly soiled loads.
- Modern detergents make it possible
to wash at lower temperatures (e.g.
20°C). Using lower temperature set-
tings will save energy.
Hygiene in the washing ma-
chine
Washing at low temperatures and/or us-
ing liquid detergents can cause bacteria
and odours to build up in the washing
machine. Miele therefore recommends
cleaning the washing machine once
every month.
When the indicator light appears in
the control field, the washing machine
must be cleaned.
Information about subsequent
tumble drying
The spin speed selected affects the re-
sidual moisture in the laundry and the
sound emissions of the washing ma-
chine.
The higher the spin speed, the lower
the residual moisture in the laundry.
However, the sound emissions of the
washing machine will increase.
Select the highest possible spin speed
for the wash programme to save energy
in the subsequent tumble dryer cycle.
Detergent
- Do not exceed the amounts of deter-
gent recommended by the manufac-
turer on the packaging.
- Adjust the dosage to the degree of
soiling of the laundry.
- Reduce the amount of detergent with
smaller loads (approx. ⅓ less than
the amount recommended can be
used when washing a half load).
1. Prepare the laundry
20
Empty all pockets.
Damage due to foreign objects.
Nails, coins, paper clips, and so on
can cause damage to garments and
components in the machine.
Check the laundry before washing
and remove any foreign objects.
Sort the laundry
Sort the laundry by colour and by
care label. Most garments have a tex-
tile care label in the collar or side
seam.
Tip: Dark textiles often contain excess
dye and should be washed separately
several times before being included in a
mixed load. Always wash whites and
coloureds separately.
Pre-treating stains
Badly soiled areas and stains should
be cleaned as soon as possible,
preferably whilst still fresh. Spillages
should be carefully dabbed off using
a soft, colourfast cloth. Do not rub.
Tip: Stains (e.g. blood, egg, coffee, tea)
can be pre-treated using some handy
tricks which can be found in the Miele
guide to laundry care.
Damage due to solvent-based
cleaning agents
Cleaning agents containing benzine,
stain remover, etc., can damage
plastic parts.
When pre-treating textiles, make sure
that any plastic parts (e.g. buttons)
do not come into contact with clean-
ing agent.
Risk of explosion due to solvent-
based cleaning agents.
When using solvent-based cleaning
agents, an explosive mixture may
develop.
Never use solvent-based cleaning
agents in the washing machine.
General tips
- Curtains: Remove lead weights first
or place in a laundry bag.
- Underwiring and collar stiffeners: Any
loose wiring in bras, shirt collar
stiffeners, etc. should be removed or
sewn in.
- Close any zips, attach velcro fasten-
ers, fasten hooks and eyes etc. be-
fore washing.
- Fasten duvet covers, pillow cases
etc. to prevent small items from being
rolled up inside them.
Do not wash any items in this washing
machine which are specified by the
manufacturer as not washable on the
care label ( symbol).
2. Load the washing machine
21
Open the door
Reach under the door grip and pull
the door open.
Check the drum for pets or foreign
objects before loading it with laun-
dry.
The most efficient use of energy and
water is achieved when a full load is
washed. However, do not overload as
this reduces cleaning efficiency and
causes creases.
Unfold the laundry and load loosely
into the drum.
Mixing both large and small items
gives better wash results and also
helps distribute the load evenly during
spinning.
Tip: Please note the maximum load for
different wash programmes.
Close the door
Make sure that no items are caught
between the door and the seal.
Shut the door with a gentle swing.
3. Select a programme
22
Programme selection
The washing machine is switched on by
turning the programme selector to a
wash programme.
Turn the programme selector to the
required programme.
The likely wash time is shown in the
time display and the pre-set temperat-
ure and spin speed light up in the con-
trol panel.
Selecting a temperature and spin
speed
The wash programme’s preset tem-
perature and spin speed light up
brightly. The choice of available tem-
peratures and spin speeds for the
wash programme light up dimmed.
The temperatures reached inside the
washing machine might not be the
same as the temperatures selected.
Perfect wash results are achieved
through a combination of energy use
and wash duration.
Touch the sensor for the desired tem-
perature. It will then light up brightly.
Touch the sensor for the desired spin
speed. It will then light up brightly.
3. Select a programme
23
Selecting Extras
The selection of extras available for
the wash programme lights up dimly.
Touch the sensor for the extra you
want. It then lights up brightly.
Tip: You can select multiple extras for a
wash programme.
Please refer to “Extras” for more in-
formation.
4. Add detergent
24
Detergent dispenser drawer
Any detergent suitable for automatic
front loading washing machines can be
used. Please observe the instructions
for use and dosage on the detergent
packaging.
Adding detergent
Pull out the detergent drawer and add
detergent to the compartments.
Detergent for the pre-wash
Detergent for the main wash and
soaking
Fabric softener, liquid starch, or
capsules
Adding fabric conditioner
Add fabric conditioner or liquid starch
to the compartment. Do not ex-
ceed the maximum level mark.
It will be automatically dispensed in the
final rinse. At the end of the programme
a small amount of water remains in the
compartment.
If starching frequently, thoroughly
clean the dispenser compartment,
especially the siphon tube, regularly.
4. Add detergent
25
Tips on dosing
Adjust the detergent dosage to the level
of soiling of the laundry and the size of
the load. Reduce the amount of deter-
gent with smaller loads (e.g. reduce the
amount of detergent by ⅓ when wash-
ing a half load).
Too little detergent:
- Results in laundry not being cleaned
properly and may cause it to become
grey and hard to the touch over time.
- Can lead to a build-up of mould in
the washing machine.
- Results in grease not being com-
pletely removed from the laundry.
- Can lead to limescale deposits on the
heater elements.
Too much detergent
- Causes poor wash, rinse, and spin
results.
- Causes higher water consumption as
an extra rinse cycle is automatically
activated.
- Is a greater burden on the environ-
ment.
Using liquid detergent with a pre-
wash
Liquid detergent cannot be used for the
main wash if the pre-wash has been se-
lected.
Use powder detergent for the main
wash.
Using detergent tablets or pods
Always put detergent tablets or pods
directly in the drum with the laundry.
They cannot be added via the detergent
dispenser drawer.
See “Detergent” for further information.
4. Add detergent
26
CapDosing
Three different types of capsule are
available:
= Fabric care (e.g. fabric condi-
tioner, proofing agent)
= Additives (e.g. detergent en-
hancer)
= Detergent (for the main wash
only)
Each capsule contains the correct
amount for one wash cycle.
Caps are available to order from Miele
or from the Miele online shop (see the
end of this booklet for contact details).
Capsules pose a health risk.
The ingredients of capsules can be
hazardous to health if they are swal-
lowed or come into contact with
skin.
Keep capsules out of the reach of
children.
Activating CapDosing
Touch the sensor for the capsule you
want to use.
Sensor control Capsule
for
for
for
Inserting a capsule
Open the detergent dispenser drawer.
Open the lid of the / compart-
ment.
Press the capsule in firmly.
4. Add detergent
27
Close the lid and press it firmly shut.
Close the detergent dispenser
drawer.
The capsule is opened by the act of
inserting it in the detergent dispenser
drawer. The contents can run out of
the capsule if you then remove it
from the drawer before it is used.
Dispose of opened capsules.
The wash programme will dispense the
contents of the capsule at the correct
time.
Water intake to the compartment
is solely via the capsule.
Do not add any additional fabric con-
ditioner to the compartment.
Remove the empty capsule at the
end of the programme.
For technical reasons a small amount
of water will remain in the capsule.
Switching off/changing Cap-
Dosing
In order to switch off CapDosing,
touch the brightly lit sensor.
In order to change CapDosing, touch
one of the other capsule sensors.
5. Start the programme
28
To start a programme
Touch the flashing Start/Stop sensor.
The door will lock (the symbol will
appear in the control panel to show this)
and the programme will start.
If a delay start time has been selected,
then this will count down in the time
display. At the end of the delay start
time or immediately after the pro-
gramme has started (if no delay start
time has been selected), the pro-
gramme duration will appear in the time
display.
Energy savings
After 10minutes, the indicators dim and
the Start/Stop sensor starts flashing.
Touch the Start/Stop sensor to switch
the indicators on again (this does not
have any effect on a running pro-
gramme).
6. End of programme - unload the drum
29
End of programme
The time display shows 0:00. The
symbol will remain lit up in the control
panel. The door is locked in the anti-
crease phase.
Touch the Start/Stop sensor.
The door will unlock and the symbol
appears in the control panel.
Pull open the door.
Remove the laundry.
Energy savings
- Ten minutes after the beginning of the
anti-crease phase, the indicators dim
and the Start/Stop sensor starts
flashing.
- Fifteen minutes after completion of
the anti-crease phase, the washing
machine is completely switched off
and the door lock lifted.
Items left in the drum could discolour
other items in the next wash or be-
come discoloured themselves.
Remove all items from the drum.
Check the folds in the door seal for
any small articles, e.g. buttons, which
might be lodged there.
Tip: Leave the door slightly open to al-
low the drum to dry.
Turn the programme selector to the
position. This switches the washing
machine off.
If applicable, remove the used cap-
sule from the detergent dispensing
drawer.
Tip: Leave the detergent dispenser
drawer slightly open to allow it to dry.
Spinning
30
Final spin speed in wash pro-
grammes
When a programme is selected, the
sensor control for the optimum spin
speed for that programme will be
brightly lit up in the control field.
A faster spin speed can be selected for
certain wash programmes.
The highest selectable spin speed is in-
dicated in the table.
Programme rpm
ECO 40-60 1400
Cottons 1400
Minimum iron 1200
Delicates 900
Woollens 1200
Shirts 900
Express 20 1200
Dark garments/Denim 1200
Outerwear 900
Proofing 1200
Drain/Spin 1400
Separate rinse/Starch 1200
Rinse and interim spin
There is a spin after the main wash and
between the rinses. A reduction in the
final spin speed will also reduce the in-
terim spin speed. If a spin speed of less
than 700 rpm is selected for the Cot-
tons programme, an additional rinse is
introduced.
To omit the final spin (Rinse
hold)
Touch the sensor (rinse hold).
The laundry is not spun after the final
rinse and remains in the final rinse wa-
ter. This helps prevent creasing if the
laundry is not going to be removed from
the drum immediately after the end of
the programme.
After the end of a programme
The sensor for the optimum spin
speed lights up in the control panel.
You can change the spin speed. The
Start/Stop sensor lights up, flashing.
Start the final spin:
touch the flashing Start/Stop sensor
once.
The final spin is carried out.
End the programme:
touch the flashing Start/Stopsensor
twice.
The water will drain away.
To omit rinse and interim spin
and the final spin
Touch the sensor.
After the last rinse, the water will be
pumped away and the anti-crease
phase will switch in.
In some programmes an additional rinse
is introduced with this setting.
Delay start
31
With Delay start, you can delay the start
of a programme from 1hour up to a
maximum of 7hours. This allows you to
make use of night-time economy elec-
tricity rates, for example.
Selecting Delay start
Delay start is not possible in the Drain/
Spin and Proofingprogrammes.
Select the programme required.
Touch the sensor control.
The sensor control lights up brightly.
Touch the or sensor control re-
peatedly until the required delay start
time appears in the time display.
Each time the sensor control is
touched, the time increases or de-
creases by 1hour.
To begin delay start
Touch the flashing Start/Stop sensor.
The delay start process starts and
counts down in the time display.
To alter delay start
Touch the Start/Stop sensor.
The delay start process stops and the
symbol lights up in the control panel.
Touch the or sensor repeatedly
until the required delayed start time
appears in the time display.
Touch the flashing Start/Stop sensor.
To cancel a delay start that has
already started
Touch the Start/Stop sensor.
The delay start process stops and the
symbol lights up in the control panel.
Touch the brightly lit sensor.
The delay start period is deleted and
the sensor switches off. The pro-
gramme duration appears in the time
display.
Touch the flashing Start/Stop sensor
in order to start the wash programme.
Programme chart
32
ECO 40-60 Max. load 8.0kg
Items For normally soiled cotton garments
Tip A laundry load consisting of mixed cottons that are intended for
washing at 40°C or 60°C can be washed in the same wash cycle.
This programme is the most efficient in terms of energy and water
consumption for washing cottons.
Note for test institutes:
Test programme for compliance with EU legislation regarding ecodesign
No. 2019/2023 and energy labelling in accordance with Regulation
No. 2019/2014.
Cottons 90°C to cold Max. load 8.0kg
Items Cotton, linen or mixed fibre fabric, e.g. table linen, underwear, T-
shirts, etc.
Tip Where particularly high levels of hygiene are required, please select
a temperature of 60°C or higher.
Minimum iron Cold to 60°C Max. load 3.5kg
Items Synthetic and mixed fibre textiles as well as easy care cotton
Tip Reduce the spin speed for fabric that creases easily.
Programme chart
33
Delicates Cold to 40°C Max. load 2.0kg
Items Delicate garments made from synthetic fibre, mixed fibre and vis-
cose
Curtains specified as machine-washable by the manufacturer
Tip - Dust in curtains usually means that a programme with Pre-wash is
advisable.
- Deselect the spin for items which crease easily.
Woollens Cold to 40°C Max. load 2.0kg
Items Wool or wool blend fabric
Tip Reduce the spin speed for fabric that creases easily.
Shirts Cold to 60°C Max. load 2.0kg
Items Shirts and blouses made of cotton and mixed fibre
Tip - Pre-treat collars and cuffs depending on the level of soiling.
- Wash silk shirts and blouses in the Delicatesprogramme.
Express 20 Cold to 40°C Max. load 3.5kg
Items Cotton garments that have hardly been worn or are only very lightly
soiled
Tip The Shortextra option is activated automatically.
Dark garments/Denim Cold to 60°C Max. load 3.0kg
Items Black and dark items made of cotton, mixed fibre or denim
Tip - Wash inside out.
- Denim often contains excess dye and may run during the first few
washes. Therefore, wash light and coloured items separately.
Programme chart
34
Outerwear Cold to 40°C Max. load 2.5kg
Items Performance outerwear (e.g. jackets and trousers) made from mem-
brane fabric such as Gore-Tex®, SYMPATEX®, WINDSTOPPER®,
etc.
Tip - Zip up or close any jackets with Velcro before washing.
- Do not use fabric conditioner.
- If required, these items can also be re-proofed using the Proof-
ingprogramme. Proofing after each wash cycle is not recommen-
ded.
Proofing 40°C Max. load 2.5kg
Items Treating microfibre fabric, ski wear or table linen made from mainly
synthetic fibres to provide a finish which is resistant to water and dirt
Tip - The items must be freshly laundered and spun or dried before
proofing.
- For best results, the items should be heat-treated afterwards. This
can be achieved by drying them in the tumble dryer or ironing
them.
Drain/Spin –
Tip - Drain only: Set spin speed to.
- Make sure you select the appropriate spin speed.
Separate rinse/Starch Max. load 8.0kg
Items - Rinsing hand-washed items
- Table cloths, serviettes and workwear requiring starching
Tip - Reduce the spin speed for fabric that creases easily.
- Laundry that is to be starched should be washed but not treated
with fabric conditioner.
- Items will be rinsed very effectively with 2 rinses by activating the
Water +extra.
Extra options
35
You can use the extra options buttons
to augment the wash programmes.
Extras are selected and deselected us-
ing the relevant sensors on the control
panel.
Touch the sensor for the extra you
want.
The relevant sensor will light up brightly.
Not all the extra options are suitable for
use with every programme.
An extra that is not permitted for the
wash programme is not lit dimly and
cannot be activated by touch.
Short
For textiles with light soiling with no vis-
ible staining.
The wash duration is reduced.
Water +
The water level in the main wash and
the rinses will be increased. A second
rinse cycle is carried out in the Separate
rinse/Starchprogramme.
You can select other functions for the
Water +sensor control. These are de-
scribed under “Programmable func-
tions”.
Pre-wash
For laundry with large amounts of dirt,
e.g. dust and sand.
Soak
For cleaning heavily soiled and stained
items with protein stains.
- A duration of between 30minutes
and 2hours can be programmed in
30minute increments for the soak
process.
- The factory default setting is
30minutes.
See “Programmable functions – Soak”
for instructions on how to programme a
different soak period.
Extra options
36
The following extras can be selected in addition to the pro-
grammes
Short
Water +
Pre-wash
Soak
ECO 40-60
Cottons
Minimum iron
Delicates
Shirts
Express 20 – – –
Dark garments/Denim
Outerwear
Separate rinse/Starch – – –
= can be selected = activated automatically
– = cannot be selected
Garment care label symbols
37
Washing
The figure quoted in the bucket is the
maximum temperature at which the
garment can be washed.
Normal agitation
Reduced agitation
Much reduced agitation
Hand wash
Do not wash
Programme selection examples
Programme Garment care label
symbols
Cottons
Minimum iron
Delicates
Woollens
Express 20
Drying
Normal temperature
Low temperature
Do not tumble dry
Ironing
Approx. 200°C
Approx. 150°C
Approx. 110°C
Ironing with steam can cause ir-
reversible damage.
Ironing/rotary ironing prohibited
Professional cleaning
Dry clean only. The letters indic-
ate the type of cleaning agent
required.
Wet cleaning
Dry cleaning prohibited
Bleaching
Any oxidation bleach can be
used
Use oxygen bleach only
Do not bleach
Programme sequence
38
Main wash Rinses Spinning
Water
level
Wash
rhythm
Water
level
Rinses
ECO 40-60
2–3
2
Cottons
2-5
1,2,3
Minimum iron
2-4
2,3
Delicates
2-4
2,3
Woollens 2
Shirts
3-4
3
Express 20 1
Dark garments/Denim
3-5
2,3
Outerwear
3-4
3
Proofing – 1
Drain/Spin – – – –
Separate rinse/Starch
0-1
5
Please see the next page for a description of the symbols.
Programme sequence
39
= low water level
= medium water level
= high water level
= intensive rhythm
= normal rhythm
= sensitive rhythm
= handwash rhythm
= carried out
– = not carried out
This washing machine has fully elec-
tronic controls with automatic load con-
trol. The washing machine takes in the
right amount of water required for the
programme depending on the amount
of laundry and its absorbency rate.
The programme sequences outlined in
the chart are based on the basic pro-
gramme with a full load.
Special features in the pro-
gramme sequence
Anti-crease:
At the end of the programme, the drum
continues to turn at intervals for up to
30minutes to help prevent creasing.
Exception: there is no anti-crease
phase in the Woollensprogramme.
The washing machine can be opened at
any time.
1)
If a temperature of 60°C or higher is
selected, two rinses are carried out. If
a temperature of less than 60°C is
selected, three rinses are carried out.
2
An additional rinse is carried out if:
- there is too much foam in the drum
- a spin speed lower than 700rpm has
been selected.
3
An additional rinse is carried out if:
- the Water +extra option has been se-
lected and the optionsor have
been activated in Programmable
functions.
5
An additional rinse is carried out if:
theWater +extra option has been se-
lected.
Changing the programme sequence
40
Changing a programme or
adding/removing laundry
After the successful start of a pro-
gramme it is no longer possible to se-
lect a different programme.
After the start of a programme it is no
longer possible to open the door.
If you would like to change the pro-
gramme or add/remove laundry, you
must cancel the programme.
Cancelling a programme
You can cancel a programme at any
time after it has started:
Touch the Start/Stop sensor.
The water is pumped out, the time dis-
play changes to :. As soon as the
symbol goes out in the control panel,
the programme has been cancelled and
the door can be opened.
Selecting a different programme after
cancelling the programme
Open the door.
Close the door.
Check that there is still detergent in
the dispenser drawer. Add more de-
tergent if necessary.
Turn the programme selector to the
programme you want and start it by
pressing the Start/Stop sensor.
Removing laundry after cancelling
the programme
If you want to remove the laundry when
it is dripping wet:
Open the door.
Remove the laundry.
If you want to remove the laundry after
it has been spun (damp):
Open the door.
Close the door.
Turn the programme selector to
Drain/Spin.
Tip: Select an appropriate spin speed.
Touch the Start/Stop sensor.
The laundry is spun and after spinning,
it can be removed, damp.
Interrupting a programme
Turn the programme selector to the
position.
The washing machine switches off.
To continue: turn the programme se-
lector to the position of the wash pro-
gramme that was started.
Tip: If appears in the time display,
the programme selector is in the incor-
rect position.
Garment care label symbols
41
Washing
The figure quoted in the bucket is the
maximum temperature at which the
garment can be washed.
Normal agitation
Reduced agitation
Much reduced agitation
Hand wash
Do not wash
Programme selection examples
Programme Garment care label
symbols
Cottons
Minimum iron
Delicates
Woollens
Express 20
Drying
Normal temperature
Low temperature
Do not tumble dry
Ironing
Approx. 200°C
Approx. 150°C
Approx. 110°C
Ironing with steam can cause ir-
reversible damage.
Ironing/rotary ironing prohibited
Professional cleaning
Dry clean only. The letters indic-
ate the type of cleaning agent
required.
Wet cleaning
Dry cleaning prohibited
Bleaching
Any oxidation bleach can be
used
Use oxygen bleach only
Do not bleach
Detergent
42
The correct detergent
All detergents produced for automatic
washing machines are suitable. Follow
the manufacturer's instructions and
dosage recommendations on the pack-
aging.
For users in Asia:
please use a low foaming detergent
suitable for use in front-loading ma-
chines
The right amount to dispense
will depend on the following:
- the soiling level of the load
- the quantity of the laundry
- the water hardness level.
Check with your local water supplier
if you do not know the hardness level
in your area.
Water softeners
A water softener can be used to cut
down on the use of detergents in areas
with water hardness levels II and III.
Dispense according to the amount spe-
cified on the packaging. First add deter-
gent and then the water softener.
You can then use the recommended
amount of detergent for water hardness
level I.
Water hardness levels
Hardness
scale
Hardness level
in mmol/l
German scale
°d
I (soft) 0 – 1.5 0 – 8.4
II (medium) 1.5 – 2.5 8.4 – 14
III (hard) above 2.5 above 14
Dispensing aids
Use dispensing aids, (e.g. balls) if these
are supplied with the detergent, particu-
larly when using liquid detergent.
Refill packs of detergent
When purchasing detergent buy refill
packs wherever possible. This helps re-
duce the amount of waste packaging.
Fabric conditioner and liquid
starch
Fabric conditioner
makes garments soft to handle and
helps prevent static cling when tumble
drying.
Starch
stiffens and gives body to items of laun-
dry, e.g. shirts, tablecloths and bed
linen.
Detergent
43
Adding fabric conditioner or li-
quid starch separately
Prepare the starch in accordance with
the manufacturer's instructions on the
packaging.
Tip: When adding fabric softener, activ-
ate the Water plus extra.
Add fabric conditioner to the com-
partment or insert the appropriate
capsule.
Add liquid starch to the compart-
ment and powder or viscous starch to
the compartment.
Select the Separate rinse/Starch pro-
gramme.
Change the spin speed if necessary.
Activate the Cap sensor if using a
capsule.
Touch the Start/Stop sensor.
Colour run and dye removers/
dyes
Damage due to colour run/dye
removers.
Colour run and dye removers can
cause corrosion in the washing ma-
chine.
Do not use colour run or dye re-
movers in this washing machine.
Dyes suitable for use in domestic wash-
ing machines can be used. However,
please note that the salt used in the
dyeing process can cause corrosion to
stainless steel components in the ma-
chine if you use dye frequently. Always
observe the dye manufacturer's instruc-
tions carefully.
Detergent
44
Recommended Miele detergents
Miele detergents have been specially designed for day-to-day use in Miele wash-
ing machines. See “Detergents and care products” for more information about
these detergents.
Miele detergents Miele capsules
UltraWhite UltraColor
ECO 40-60 –
Cottons –
Minimum iron – –
Delicates – –
Woollens – – – –
Shirts –
Express 20 – – –
Dark garments/Denim – –
Outerwear – – – –
Proofing – – – –
Separate rinse/Starch –/– –/– –/– /– –/–
Recommendation Specialist detergents (e.g. WoolCare)
– No recommendation Fabric care (e.g. fabric conditioner)
Additive (e.g. booster)
Detergent
45
Recommended detergents in accordance with Directive
(EU) Nr. 1015/2010
The recommendations apply to the temperature ranges given in the Programme
chart.
Universal Coloureds Delicates and
woollens
Specialist
detergent
ECO 40-60 – –
Cottons – –
Minimum iron – – –
Delicates – – –
Woollens – –
Shirts – –
Express 20 –
1
– –
Dark garments/Denim –
1
–
Outerwear – –
Recommendation
1
Liquid detergent
– No recommenda-
tion
2
Powder detergent
Cleaning and care
46
Cleaning the external casing
and the control panel
Risk of electric shock!
Mains voltage is present when the
washing machine is switched off
Disconnect the machine from the
electricity supply before cleaning or
maintenance.
Risk of damage due to ingress of
water.
The pressure of a water jet can
cause water to get into the washing
machine, resulting in damage to
components.
Do not spray the washing machine
with a water jet.
Clean the casing and control panel
with a mild cleaning agent or soap
and water and dry both with a soft
cloth.
The drum can be cleaned using a
suitable stainless steel cleaning agent
following the manufacturer's instruc-
tions on the packaging.
Damage caused by cleaning
agents.
Solvent based cleaning agents, ab-
rasive cleaners, glass cleaners or
multi-purpose cleaning agents can
cause damage to plastic surfaces
and other parts.
Do not use any of these cleaning
agents.
Cleaning the detergent dis-
penser drawer
Washing at low temperatures and the
use of liquid detergent can lead to a
build-up of mould and bacteria in the
detergent dispenser drawer.
For hygiene reasons, clean the entire
drawer at regular intervals.
Removing the dispenser drawer
Pull out the detergent dispenser
drawer until a resistance is felt. Press
down the release button and at the
same time pull the drawer right out of
the machine.
Clean the detergent drawer with
warm water.
Cleaning and care
47
Cleaning the siphon and the /
compartment channel
Liquid starch results in clogging. If
clogged, the siphon in the /
compartment will not work and the
compartment can overflow.
Clean the siphon particularly thor-
oughly after using liquid starch a few
times.
1. Remove the siphon from com-
partment and clean under warm run-
ning water. Clean the siphon tube in
the same way.
2. Replace the siphon.
Clean the fabric conditioner channel
using a brush and warm water.
Cleaning the detergent dispenser
drawer compartment
Use a bottle brush to remove deter-
gent residues and limescale from the
jets inside the detergent dispenser
drawer compartment.
Replace the detergent dispenser
drawer.
Tip: Leave the detergent dispenser
drawer slightly open to allow it to dry.
Cleaning and care
48
Hygiene info
(Cleaning the drum)
Washing at low temperatures and/or us-
ing liquid detergent can cause bacteria
and unpleasant odours to build up in
the washing machine. Use the Cot-
tons90°Cprogramme to clean the
washing machine. Clean the drum when
the indicator light comes on at the
latest.
Cleaning the water inlet filter
The washing machine has a filter to pro-
tect the water inlet valve. The access-
ible filter in the union at the open end of
the inlet hose should be checked every
six months or so, or more often if there
are frequent interruptions to the water
supply.
First turn off the stopcock.
Unscrew the inlet hose from the stop-
cock.
Remove the rubber seal 1 from the
recess.
Using pointed pliers, take hold of the
plastic filter bar 2 and remove it.
Clean the plastic filter.
Put the filter and seal back in the re-
verse order and reconnect the hose.
Turn on the stopcock and check the
connection is watertight. If water
drips out, tighten the connection.
The filter must be put back in place
after cleaning.
Problem solving guide
49
Minor faults in the performance of the washing machine, some of which may result
from incorrect operation, can be put right without contacting the Service Depart-
ment.
The following guide may help you to find the reason for a fault, and to correct it.
You should, however, note the following:
Repair work to electrical appliances should only be carried out by a suitably
qualified person in strict accordance with current local and national safety regu-
lations. Repairs and other work by unqualified persons could be dangerous. The
manufacturer cannot be held liable for unauthorised work.
The programme does not start
Problem Cause and remedy
The control panel re-
mains dark.
There is no power to the machine.
Check whether the mains plug is plugged in and
switched on.
Check whether the fuse or circuit breaker has
tripped.
The washing machine has switched off automatically
to save energy.
Switch the washing machine on again by turning
the programme selector.
and alternately ap-
pear in the time display.
The door is not closed properly. The door lock could
not engage.
Close the door again.
Start the programme again.
If the fault message appears again, contact the
Service Department.
Problem solving guide
50
The programme is cancelled and a fault indicator light lights up
in the control panel
Problem Cause and remedy
The fault indicator light
lights up, and ap-
pear alternately in the
time display and the
buzzer sounds.
The water inlet is blocked or restricted.
Check whether the stopcock is opened properly.
Check whether the inlet hose is kinked.
Check whether the water pressure is too low.
The filter in the water inlet is blocked.
Clean the filter.
The fault indicator light
lights up, and ap-
pear alternately in the
time display and the
buzzer sounds.
The water outlet is blocked or restricted.
The drain hose has been fixed too high.
Clean the drain filter and the drain pump.
The maximum delivery head is 1m.
The fault indicator light
lights up, and
appear alternately in the
time display and the
buzzer sounds.
The water protection system has reacted.
Close the stopcock.
Call the Service Department.
and appear altern-
ately on the time display
and the buzzer sounds.
There is a fault.
Disconnect the washing machine from the electri-
city supply. Switch off at the wall and withdraw the
plug from the socket, or disconnect the fuse.
Wait at least 2minutes before reconnecting the
washing machine to the electricity supply.
Switch the washing machine on again.
Restart the programme.
If the fault message appears again, contact the
Miele Customer Service Department.
Problem solving guide
51
During the programme, a symbol appears in the time display
Message Cause and remedy
lights up The programme selector was moved to a different
position after the programme had started.
Turn the programme selector back to the original
position.
The programme has been interrupted.
Open the door.
Close the door.
At the end of the programme, an indicator light lights up in the
control panel
Problem Cause and remedy
The indicator light
lights up.
Excessive foam has built up during washing.
Use less detergent next time, and follow the man-
ufacturer's recommended dosage amounts on the
packaging.
The indicator light
lights up.
When washing, a wash programme using a temperat-
ure above 60°C has not been run for a long time.
Run the Cottons90°C programme using Miele
machine cleaner or a universal powder detergent.
This will clean the washing machine and prevent a
build-up of bacteria and odours.
Problem solving guide
52
General problems with the washing machine
Problem Cause and remedy
The washing machine
smells.
The indicator light was ignored. A wash pro-
gramme using a temperature above 60°C has not
been run for a long time.
In order to prevent bacteria and unpleasant odours
building up in the washing machine, run the Cot-
tons 90°C programme using Miele machine
cleaner or a universal powder detergent.
The door and the detergent dispenser drawer were
left shut after washing.
Leave the door and the detergent dispenser
drawer slightly open to allow them to dry.
The machine shakes
during the spin cycle.
The machine feet are not level.
Level the machine and adjust the feet correctly.
The laundry has not
been spun properly and
is still wet.
The machine detected an imbalance during the final
spin cycle and reduced the spin speed automatically.
Include both large and small items in the load as
this will give better distribution during spinning.
Strange pump noises
can be heard.
This is not a fault.
These slurping noises occur at the end of the pump
sequence as a normal part of operation.
Large amounts of deter-
gent residue remain in
the detergent dispenser
drawer.
The water pressure is too low.
Clean the water inlet filter.
It may be useful to select the Water + extra option.
Powder detergent used in conjunction with water
softeners tends to become sticky.
In future, add washing powder into the dispenser
drawer first, and then add the water softener.
Problem solving guide
53
General problems with the washing machine
Problem Cause and remedy
Fabric conditioner is not
completely dispensed
or too much water re-
mains in the com-
partment.
The siphon tube is not correctly positioned or is
clogged.
Clean the siphon, see “Cleaning and care - Clean-
ing the detergent dispenser drawer”.
At the end of the pro-
gramme there is still li-
quid in the capsule.
The small pipe in the detergent dispenser drawer
onto which the capsule is placed is blocked.
Clean the small pipe.
This is not a fault.
For technical reasons a small amount of water will
remain in the capsule.
There is water next to
the capsule in the fabric
conditioner compart-
ment
The sensor control was not activated.
Make sure that you remember to activate the
sensor control the next time you insert a cap-
sule.
An empty capsule was not removed at the end of the
last wash programme.
Remove and dispose of the empty capsule at the
end of each programme.
There is a blockage in the small pipe in the detergent
drawer onto which the capsule is placed.
Clean the small pipe.
Problem solving guide
54
An unsatisfactory wash result
Problem Cause and remedy
Liquid detergent does
not give the required
result.
Liquid detergents usually contain no bleaching
agents. They do not remove fruit, coffee and tea
stains.
Use a general purpose powder detergent contain-
ing a bleaching agent.
Use the appropriate capsule or add stain removers
to the compartment.
Never put stain removers and liquid detergent to-
gether in the dispenser drawer.
White residues which
look like powder deter-
gent are seen on dark
textiles after washing.
The detergent contained compounds (zeolites) to aid
water softening which are not soluble in water. These
have ended up on the laundry.
Try and brush off the residues with a soft brush
once the laundry is dry.
Wash dark textiles using a detergent which con-
tains no zeolites. Liquid detergents usually contain
no zeolites.
Use the Dark garments/Denim programme for dark
coloured laundry.
White residues which
look like powder deter-
gent are seen on dark
textiles after washing.
The detergent contained compounds (zeolites) to aid
water softening which are not soluble in water. These
have ended up on the laundry.
Try and brush off the residues with a soft brush
once the laundry is dry.
Wash dark textiles using a detergent which con-
tains no zeolites. Liquid detergents usually contain
no zeolites.
Use the Dark garments / Denim programme for
dark coloured laundry.
Problem solving guide
55
The door will not open
Problem Cause and remedy
The door cannot be
pulled open during a
programme.
The door is locked during a programme.
Touch the Start/Stop sensor to cancel the pro-
gramme.
The programme is cancelled, the door will unlock and
you will be able to pull it open.
There is still water in the drum and the machine is un-
able to drain.
Clean the drain filters and the drain pump as de-
scribed in “Opening the door in the event of a
blocked drain outlet and/or power failure”.
After the programme is
cancelled, flashing bars
......... appear
in the time display.
For safety reasons the drum door cannot be opened
if the suds temperature is higher than 55°C.
Wait until the temperature in the drum has de-
creased and the bars have stopped flashing in the
display.
and alternately ap-
pear in the time display.
The door lock has jammed.
Call the Service Department.
Problem solving guide
56
Opening the door in the event
of a blocked drain outlet and/
or power cut
Switch off the washing machine.
Open the drain pump access panel.
Blocked drain outlet
If the drain outlet is blocked, there may
be a large quantity of water left behind
in the washing machine.
Risk of scalding due to hot suds.
Escaping suds will be hot if laundry
has been washed at high temperat-
ures!
Carefully allow all suds to drain off.
Draining the washing machine
Remove the drain filter, though not
completely.
Place a suitable container under the
access panel, e.g. a universal oven
tray.
Slowly unscrew the drain filter to let
the water out.
Tighten the drain filter back up again
if you need to interrupt the flow of
water.
Once the flow of water ceases:
Remove the drain filter completely.
Problem solving guide
57
Clean the drain filter thoroughly.
Remove any foreign objects (e.g.,
buttons, coins etc.) and clean the in-
terior. Turn the impellers by hand to
check that they rotate freely.
Replace the drain filter correctly and
tighten it securely.
Close the drain pump access panel.
Risk of water damage.
Make sure the drain filter is securely
tightened. Otherwise there is a risk of
water leakage during use.
Replace the drain filter correctly and
tighten it securely.
Open the door
Danger of injury due to rotating
drum!
Reaching into a moving drum is ex-
tremely dangerous.
Always make sure that the drum is
stationary before reaching in to re-
move laundry.
Use a screwdriver to unlock the door.
Pull open the door.
After sales service
58
Repairs
In the event of any faults which you
cannot remedy yourself, please contact:
- your Miele Dealer, or
- Miele (Contact details for Miele are
given at the end of this booklet).
When contacting your Dealer or Miele,
please quote the model and serial num-
ber of your machine, both of which are
shown on the data plate visible above
the porthole glass when the door is
open.
N.B. A call-out charge will be applied
for service visits where the problem
could have been resolved as de-
scribed in these instructions.
Warranty: U.K.
In the U.K, the washing machine warranty is
valid for 2 years from the date of purchase.
In the U.K. you must activate your cover
by calling 0330 160 6640 or registering
online at www.miele.co.uk.
Warranty: Other countries
For information on the appliance war-
ranty specific to your country please
contact Miele. See end of this booklet
for contact details.
EPREL database
From 1 March 2021, information on en-
ergy labelling and ecodesign require-
ments will be available in the European
Product Database (EPREL). You can find
the product database at the following
link https://eprel.ec.europa.eu/. You will
be asked to enter the model identifier.
The model identifier can be found on
the data plate.
Made in xxx
Mod.: XXXxxx
Miele Service
www.miele.com/service
M-Nr.: xxxxxxxx
Type: XXxx-X
Nr.:/ xxxxxxxxx
Optional accessories
Optional spare parts and accessories
for this washing machine are available
from your Miele Dealer, the Miele Spare
Parts Department or via the internet at
www.miele.co.uk.
Please note that telephone calls may
be monitored and recorded for training
purposes.
Installation
*INSTALLATION*
59
Front view
a
Inlet hose with Waterproof system
b
Mains connection cable
c
Flexible drain hose (with detachable
swivel elbow)
d
Control panel
e
Detergent dispenser drawer
f
Door
g
Access to drain filters, drain pumps
and emergency release
h
Four height-adjustable feet
Installation
*INSTALLATION*
60
Rear view
a
Drain hose
b
Transport clips for inlet and drain
hoses and mains connection cable
c
Mains connection cable
d
Protruding lid for holding when mov-
ing the machine
e
Inlet hose with Waterproof system
f
Safety caps for transit bars
g
Transport clips for inlet and drain
hoses and for storing transit bars
when not in use
Installation
*INSTALLATION*
61
Installation surface
A concrete floor is the most suitable in-
stallation surface. It is far less prone to
vibration during the spin cycle than
wooden floorboards or a carpeted sur-
face.
Please note:
The machine must be level and se-
curely positioned.
To avoid vibrations during spinning,
the machine should not be installed
on soft floor coverings.
If installing on a wooden joist floor:
Install the machine on a plywood
base (at least 59x52x3cm). The
base should span several joists and
be bolted to the joists and not only to
the floorboards. Check for the pres-
ence of pipes and cables first.
Tip: If possible, install the machine in a
corner. This is usually the most stable
part of the floor.
Injury can occur if the washing
machine has not been adequately
secured.
During installation, the washing ma-
chine must be secured on a plinth to
be made available on site (concrete
or brick), in order to ensure it cannot
fall or slip.
Secure the washing machine using a
clamp/fastening bracket (MTS floor
mounting kit – available from your
Miele dealer or Miele spare parts de-
partment).
Transporting the washing ma-
chine to its installation site
Danger of injury due to unsecure
lid.
Make sure the fixings at the back of
the lid are secure. Otherwise there is
a danger of the lid being pulled off
when carrying the machine.
Before carrying the machine check
that the lid is secure where it pro-
trudes at the back of the machine.
Carry the washing machine by the
front feet and by the lid where it pro-
trudes at the back of the appliance.
Installation
*INSTALLATION*
62
Removing the transit bars
Removing the left-hand transit bar
Push the cover out and turn the left-
hand transit bar 90° using the span-
ner supplied.
Withdraw the transit bar.
Removing the right-hand transit bar
Push the cover out and turn the left-
hand transit bar 90° using the span-
ner supplied.
Withdraw the transit bar.
Installation
*INSTALLATION*
63
Covering holes
Risk of injury from sharp edges.
There is a risk of injury from reaching
into holes that are not covered.
Cover the holes for the transit bars
after they have been removed.
Push the covers in firmly until they
engage in position.
Securing the transit bars
Secure the transit bars to the back of
the washing machine. Make sure that
the top catch is located above the
holder.
Risk of damage from incorrect
transport.
The washing machine may become
damaged if moved without the transit
bars in place.
Keep the transit bars in a safe place.
Fit them again if the machine is to be
moved (e.g. when moving house).
Installation
*INSTALLATION*
64
Fitting the transit bars
Opening the covers
Press against the retainer with a
sharp object (a narrow screwdriver,
for example).
The cover opens.
Fitting the transit bars
To fit the bars, follow the instructions
for removing them in reverse order.
Tip: The bars will slide in more easily if
you lift the drum slightly.
Installation
*INSTALLATION*
65
Levelling the machine
The washing machine must stand per-
fectly level on all four feet to ensure
safe and proper operation.
Incorrect installation may increase elec-
tricity and water consumption and may
cause the machine to move about.
Screwing out and adjusting the feet
The four adjustable screw feet are used
for levelling the washing machine. The
machine is supplied with all four feet
are screwed in.
Using the spanner supplied, turn
counter nut 2 in a clockwise direction.
Then turn counter nut 2 together with
foot 1 to unscrew.
Use a level to check that the washing
machine is standing level.
Hold foot 1 securely with a pipe
wrench. Turn counter nut 2 again us-
ing the spanner supplied until it sits
firmly up against the housing.
Risk of damage due to incor-
rectly aligned washing machine.
There is a danger of the washing ma-
chine moving about if the feet are not
secured.
Turn all four counter nuts for the feet
until they sit firmly up against the
housing. Please also check this for
the feet which did not need adjust-
ment.
Installation
*INSTALLATION*
66
Installing under a continuous work-
top
Risk of electric shock due to ex-
posed cables
There is a risk of coming into contact
with live parts while the lid is re-
moved.
Do not remove the washing machine
lid.
This washing machine (with lid intact)
can be pushed under a countertop if
there is space to do so.
Washer-dryer stack
The washing machine can be combined
with a Miele tumble dryer in a washer-
dryer stack. The appropriate “WTV”
stacking kit* to match your dryer is re-
quired.
All parts marked* are available from
your Dealer or Miele.
Please note:
a = at least 2cm
b = WTV without drawer: 172cm
WTV with drawer: 181cm
c = 68cm
Installation
*INSTALLATION*
67
The water protection system
The Miele water protection system pro-
tects all parts of the washing machine
from water damage.
The system consists of three main com-
ponents:
- the inlet hose
- the electronic unit and drainage and
overflow protection
- the drain hose
The Waterproof System (WPS)
a
Two solenoid valves
b
Double-skinned inlet hose
c
Sump
d
Float switch
e
Electronic unit
f
Drain pump
Inlet hose
- The casing on the inlet hose contains
two solenoid valves , which cut off
the water intake directly at the stop-
cock. These valves provide two-fold
protection. In the event that one of
the valves is faulty, the other valve
will cut off the water intake.
Blocking the water intake at the stop-
cock means that the inlet hose is only
under pressure whilst water is being
taken into the machine. For the re-
mainder of the time, pressure on the
inlet hose is negligible.
- Protection against the solenoid
valves bursting
The solenoid valves are pressure
tested to between 7,000kPa and
10,000kPa against bursting.
- The double-skinned inlet hose has
a pressure-resistant inner hose and a
protective sleeve. Any leaking water
is fed into the sump through this
protective sleeve. A float switch
closes the solenoid valves, prevent-
ing any more water flowing into the
machine and water in the suds con-
tainer is pumped away.
Installation
*INSTALLATION*
68
The electronic unit and drainage
and overflow protection
- Drainage protection
Any leaking water is collected in the
sump in the base of the machine.
A float switch closes the solenoid
valves , preventing any more water
from flowing into the machine and
water in the suds container is
pumped away.
- Overflow protection
If the water level exceeds a certain
level, the drain pump switches in
and pumps the excess water away in
a controlled manner.
Should the water level rise repeatedly
in an uncontrolled way, the drain
pump will switch on continuously,
the washing machine will indicate
that there is a fault and a tone will
sound.
Drain hose
The drain hose is protected by a ventila-
tion system which prevents the washing
machine from being emptied com-
pletely.
Installation
*INSTALLATION*
69
Connection to the water supply
Health risk and risk of damage
due to contaminated incoming water.
The quality of the incoming water
must correspond to the drinking wa-
ter specification of the country in
which the washing machine is being
operated.
Always connect the washing ma-
chine to the mains water supply.
Risk of electric shock!
There are electrical wires in the water
inlet hose.
The inlet hose must not be connec-
ted in an area subject to spray water,
e.g. in a bathroom or shower room.
The washing machine should be con-
nected to the mains water supply in ac-
cordance with current local and national
safety regulations. The German author-
ities do not require it to have a non-re-
turn valve as the washing machine has
been designed to comply with DIN reg-
ulations.
The water-connection pressure needs
to be between 100kPa and 1000kPa. If
the water-connection pressure exceeds
1000kPa, a pressure reducing valve
must be installed.
A stopcock with a ¾ inch threaded
union is required for the connection. If
this is not available, only a qualified in-
staller may connect the washing ma-
chine to the mains water supply.
The connection point is subject to
mains water pressure.
Turn on the stopcock slowly and
check for leaks. Correct the position
of the washer and the threaded
union if necessary.
The washing machine is not suitable
for connection to a hot water supply.
The washing machine must not be
connected to a hot water supply.
Installation
*INSTALLATION*
70
Maintenance
Only use a Miele Waterproof system
hose should you need a replacement.
Damage caused by dirty water.
This washing machine has a filter in
the hose connection to the casing to
protect the solenoid valve.
This filter must not be removed.
Hose extension
A 1.5 metre long (metal) extension hose
is available from your Miele dealer or
the Miele Spare Parts Department as an
optional extra.
This hose is tested to withstand pres-
sures of up to 14,000 kPa and can be
used as a flexible extension to the water
supply.
Installation
*INSTALLATION*
71
Water drainage
The suds are drained through a drain
pump with a 1m delivery head. For the
water to drain freely, the hose must be
free of kinks.
If required, the hose can be extended to
a length of up to 5m. Accessories are
available from Miele or from your Miele
dealer.
For a delivery head of more than 1m
(up to a max. of 1.8m) a replacement
drain pump will need to be fitted.
Please contact Miele for advice.
For a delivery head of 1.8 m the hose
can be extended to a length of up to
2.5m. Accessories are available from
Miele or from your Miele dealer.
Drainage options:
1. Directed into a sink or basin:
Please note:
– Hook the hose over the edge and
secure it.
– If the water is pumped into a
washbasin, make sure that it can
drain away freely. Otherwise there
is a risk of water overflowing or of
some of the drained water being
sucked back into the machine.
2. Connected securely to a plastic drain
pipe with a rubber nipple (there is no
need to use a siphon).
3. Connected securely to a floor drain
(gully).
4. Connected securely to a washbasin
with plastic nipple.
Fitting the elbow
Use the elbow supplied to stop the
drain hose from slipping.
Attach the elbow to the drain
hose.
Place the end of the drain hose in a
sink.
Use a strap and the eye to stop
the elbow from slipping.
Installation
*INSTALLATION*
72
Direct connection to a sink drain out-
let
a
Adapter
b
Spigot nut
c
Hose clip
d
End of the hose
Fit adapter to the sink drain outlet
using nut .
Attach the end of hose to adapter
.
Use a screwdriver to tighten hose clip
up close to the nut.
Installation
*INSTALLATION*
73
Electrical connection
The washing machine is supplied with
an electrical connection cable with
moulded plug ready for connection to a
switched socket.
The socket must be easily accessible
after the washing machine has been in-
stalled. If that is not possible, ensure
that a suitable means of disconnection
is provided on the installation side for
each pole.
Risk of fire from overheating.
Connecting the washing machine to
a multi-socket plug adapter or to an
extension lead can overload the
cable.
Do not use an extension lead or
multi-socket plug adapter.
The electrical system must comply with
local and national safety regulations
(BS7671 in the UK). We recommend
the use of a suitable RCD .
If the connection cable is damaged, it
must only be replaced with a specific
connection cable of the same type
(available from the Miele Customer Ser-
vice Department). For safety reasons,
such replacement may only be carried
out by a qualified technician or the
Miele Customer Service Department.
The data plate indicates the nominal
power consumption and the appropri-
ate fuse rating. Compare the specifica-
tions on the data plate with those of the
electricity supply and make sure that
they match.
If in any doubt, consult a qualified elec-
trician.
Temporary or permanent operation on
an autonomous power supply system or
a power supply system that is not syn-
chronised with the mains power supply
(e.g. island networks, back-up systems)
is possible. A prerequisite for operation
is that the power supply system com-
plies with the specifications of
EN50160 or an equivalent standard.
The function and operation of the pro-
tective measures provided in the do-
mestic electrical installation and in this
Miele product must also be maintained
in isolated operation or in operation that
is not synchronised with the mains
power supply, or these measures must
be replaced by equivalent measures in
the installation. As described, for ex-
ample, in the current version of BS OH-
SAS 18001–2 ISO 45001.
Technical data
74
Height 850mm
Width 596mm
Depth 636mm
Depth with door open 1054mm
Height for building under 850mm
Width for building under 600mm
Weight Approx. 90kg
Capacity 8.0kg dry laundry
Supply voltage See data plate
Rated load See data plate
Fuse rating See data plate
Consumption data See “Consumption data”
Minimum water flow pressure 100kPa (1bar)
Maximum water flow pressure 1000kPa (10bar)
Water inlet hose length 1.60m
Drain hose length 1.50m
Connection cable length 2.00m
Maximum delivery head 1.00m
Maximum drainage length 5.00m
LEDs Class1
Test certifications awarded See data plate
Power rating in off mode 0.30W
Consumption data
75
Programme Load Energy Water
Running
time
Temperature
1
Residual
moisture Speed
kg kWh Litres h:min °C % rpm
ECO 40-60* 8.0 0.77 60 3:39 42 51 1400
4.0 0.40 52 2:39 31 51 1400
2.0 0.20 28 2:39 25 54 1400
Cottons 60 8.0 1.35 49 2:29 52 53 1400
20 8.0 0.35 69 2:39 20 53 1400
Minimum iron 30 3.5 0.45 52 1:59 30 30 1200
Express 20
2
40 3.5 0.34 30 0:20 26 60 1200
Woollens 30 2.0 0.23 35 0:39 – – 1200
*
Test programme for compliance with EU legislation regarding ecodesign 2019/2023 and energy labelling in accordance with Regulation
No. 2019/2014
1
Maximum laundry temperature reached in main wash.
2
Short extra option activated
Information for customers
Consumption data can vary from the nominal values given depending on water pressure, water hardness, water inlet temperature, room tem-
perature, type and volume of load, fluctuations in the mains voltage and any extra options selected.
Programmable functions
76
The programmable functions are used
to alter the machine's electronics to
suit changing requirements. Program-
mable functions can be altered at any
time.
The programming is carried out in eight
steps (, , ... ) using the sensor
controls.
Accessing the programming level
Pre-requisites:
- The washing machine is switched on
(the programme selector is pointing
to a wash programme).
- The washing machine door is open.
Touch the Start/Stop sensor and
leave your finger on it whilst carrying
out steps -.
Close the washing machine door.
Wait until the Start/Stop sensor lights
up constantly ...
... and then take your finger off the
Start/Stop sensor.
After approx. four seconds, will light
up in the time display.
Choosing and selecting a pro-
grammable function
The number of the programmable
function will appear in the time display
as and a number: e.g..
Touch the or sensor control to
scroll to the next or previous pro-
grammable function:
Programmable functions
Buzzer
Keypad tone
PIN code
Switch-off tone volume
Control field switch-off behaviour
Memory
Additional long pre-wash – Cottons
Soak duration
Gentle action
Reduced temperature
Water plus
Water plus level
Maximum rinse level
Suds cooling
Anti-crease
Low water pressure
Display brightness dimmed
Welcome tone volume
Confirm the selected programmable
function by touching theStart/Add
laundry sensor control.
Programmable functions
77
Editing and saving a program-
mable function
You can either switch a programmable
function on/off or select different op-
tions.
Touch the or sensor control to
switch the programmable function
on/off or to select an option:
Programmable function
Available options
–
= Can be selected
= Factory default setting
Confirm the chosen selection with
the Start/Add laundry sensor control.
The number of the programmable func-
tion, e.g., will then light up again.
Exit programming level
Turn the programme selector to .
The option you have selected is now
stored in memory. You can change it
again at any time.
Buzzer
The buzzer sounds to let you know the
programme has finished.
Selection
= Buzzer is switched off
= Buzzer is set to normal volume
(factory default setting)
= Buzzer is set to loud volume
Sensor tone
Each touch of a sensor control is con-
firmed with an audible tone.
Selection
= Sensor tone is switched off
= Sensor tone is set to normal
volume (factory default set-
ting)
= Sensor tone is set to loud
volume
Programmable functions
78
Lock code
The lock code prevents the washing
machine being used without your
knowledge.
When the code has been activated, you
have to enter a code after switching the
washing machine on. Otherwise the
washing machine cannot be operated.
Options
= Lock code switched off (fact-
ory default setting)
= Lock code is switched on
Using the washing machine with a
lock code
The code is 125 and cannot be altered.
Switch on the washing machine.
appears in the time display and
the and sensors light up.
Touch the sensor.
appears in the time display.
Confirm the number with the Start/
Stop sensor.
The first number was saved and you
can now enter the second number us-
ing the and sensors.
Also enter the second and third num-
bers and confirm the numbers with
the Start/Stop sensor.
The lock is released and a wash pro-
gramme can now be selected and star-
ted.
Switch-off tone volume
An audible tone sounds to confirm
when the washing machine is
switched off.
Options
= Switch-off tone is set to nor-
mal volume (factory default
setting)
= Switch-off tone is set to loud
volume
Control panel switch-off
status
To save energy the time display and
sensors will go out after 10minutes,
and only the Start/Stop sensor will
flash slowly.
Options
= Off
The time display and sensors
will remain lit up while the
washing machine is switched
on
= On (factory default setting)
The time display and sensors
will switch off after 10minutes
if the programme is started.
However; the time display and
sensors will remain lit up for
10minutes after a delay start
time has elapsed, after the end
of the programme or at the end
of the anti-crease phase.
Programmable functions
79
Memory
The washing machine will save the
last settings (temperature, spin speed
and some of the extras) selected for a
programme after the programme has
started.
When this programme is chosen again,
these saved settings will appear in the
display.
Options
= Memory is switched off (fact-
ory default setting)
= Memory is switched on
Longer pre-wash Cottons
If you require a longer pre-wash you
can extend the pre-wash time.
Options
= No increase in the pre-wash
time (factory default setting)
= + 6minutes increase in the
pre-wash time
= + 9minutes increase in the
pre-wash time
= + 12minutes increase in the
pre-wash time
Soak duration
You can set a duration for the soak
process of between 30minutes and
twohours.
You can select the duration in 30minute
increments. When the Soak Extra option
is selected the laundry will be soaked
for the duration selected.
Options
= 30minutes soak duration
(factory default setting)
= 1 hour soak duration
= 1 hour 30minutes soak dura-
tion
4 = 2 hours soak duration
Gentle action
Activating gentle action reduces the
drum action and is suitable for wash-
ing lightly soiled items more gently.
Gentle action can be activated for the
Cottons and Minimum iron pro-
grammes.
Options
= Gentle action is switched off
(factory default setting)
= Gentle action rhythm is
switched on
Programmable functions
80
Reduce temperature
The boiling point for water is lower at
high altitudes. In order to avoid water
boiling, Miele recommend activating
the reduce temperature setting at alti-
tudes of more than 2000m above sea
level. The maximum temperature is re-
duced to 80°C even when a higher
temperature is selected.
Options
= The reduce temperature setting
is switched off (factory default
setting)
= The reduce temperature setting
is turned on
Water plus
You can determine the amount of wa-
ter used if the Water plus extra is se-
lected.
Options
= More water is used in the wash
and rinse stages (factory de-
fault setting)
= An extra rinse is carried out
= The water level is increased in
the wash and rinse stages and
an additional rinse is carried
out
Water plus level
There are three different water levels
which can be selected by activating
the Water plus extra.
Options
= No higher water level (factory
default setting)
= Water level increase by 1level
when washing and rinsing
= Water level increase by 2levels
when washing and rinsing
= Water level increase by 3levels
when washing and rinsing
Maximum rinse level
The water level in the rinse cycle can
be permanently set to the highest
value.
This function is useful for allergy suffer-
ers as it achieves an excellent rinse res-
ult. Water consumption will increase.
Options
= Maximum rinse level is
switched off (factory default
setting)
= Maximum rinse level is
switched on
Programmable functions
81
Suds cooling
When this is activated, additional wa-
ter flows into the drum at the end of
the main wash to cool the suds down.
Hot suds can damage plastic drainage
pipes.
Suds cooling takes place when a tem-
perature of 70°C or higher is selected
for the Cottons programme.
Suds cooling should be activated:
- to prevent the danger of scalding if
the drain hose is hooked over the
edge of a sink or basin.
- where drainage pipes do not comply
with DIN 1986.
Options
= Suds cooling is switched off
(factory default setting)
= Suds cooling is switched on
Anti-crease
The anti-crease function helps prevent
creasing if laundry is not going to be
removed immediately after the end of
the programme.
The drum continues to turn at intervals
for up to 30minutes at the end of the
programme. The door can be opened at
any time.
Options
= The anti-crease function is
switched off
= The anti-crease function is
switched on (factory default
setting)
Low water pressure
If the water pressure is below 100kPa
(1bar), the washing machine cancels
the programme and the fault mes-
sage appears.
If the water pressure cannot be in-
creased, activating this function will
prevent the programme from being can-
celled.
Options
= Low water pressure is
switched off (factory default
setting)
= Low water pressure is
switched on
Backlight brightness
dimmed
The brightness of the dimmed sensors
in the control panel can be set to one
of seven different levels.
The brightness changes as soon as you
select a different setting.
Options
= Darkest level
= Lightest level
= (Factory default setting)
Programmable functions
82
Welcome tone
The welcome tone sounds whenever
the washing machine is switched on.
You can activate or deactivate the wel-
come tone.
Selection
= Welcome tone is deactivated
= Welcome tone is switched on
at normal volume (factory de-
fault setting)
= Welcome tone is switched on
at loud volume
Optional accessories
83
Detergent, fabric care, additives and
machine care products are available for
this washing machine. All the products
have been designed for Miele washing
machines.
These and many other useful products
can be ordered via the internet at
www.miele.co.uk or from Miele (see end
of this booklet for contact details).
Detergent
UltraWhite
- Multi-purpose powder detergent
- For white and light-coloured laundry
as well as heavily soiled cotton items
- Effective stain removal even at low
temperatures
UltraColor
- Liquid detergent for coloured items
- For coloured and dark fabrics
- Protects bright colours from fading
- Effective stain removal even at low
temperatures
Wool and delicates detergent
- Liquid detergent for delicates
- Particularly suitable for woollen and
silk fabrics
- Cleans at temperatures as low as
20°C, helps retain the shape of delic-
ate items and protect colours
Specialist detergents
Specialist detergents are available as
capsules in convenient single dose
amounts or in a handy bottle.
Outerwear
- Liquid detergent for outerwear and
performance clothing
- Cleans with care and is gentle on col-
ours
- With lanolin to care for and condition
membrane fabric
Sport
- Liquid detergent for sportswear and
fleece garments
- Neutralises unpleasant odours
- Retains the shape of the items
Down
- Liquid detergent suitable for pillows,
sleeping bags, and down-filled items
- Retains the elasticity of down and
feather-filled items
- Retains the breathability of down-
filled items
- Prevents down filling clumping to-
gether
WoolCare
- Liquid detergent for woollens and
delicates
- Includes a special wheat protein con-
ditioning formula
- Helps prevent felting
- Gentle on colours
- Only available as capsules
Optional accessories
84
SilkCare
- Liquid detergent for silks
- Contains a special silk protein condi-
tioning formula
- Gentle on colours
- Only available as capsules
Fabric care
Fabric care is available as capsules
in convenient single dose amounts or in
a handy bottle.
Proofing agent
- For proofing microfibre fabrics, e.g.
rain coats
- Retains the breathability of fabrics
Fabric conditioner
- Fresh, natural fragrance
- Makes laundry soft to handle
Additive
Booster
- For removing stains
- For white and coloured laundry
- Available as capsules in conveni-
ent single dose amounts
Machine care
Machine cleaner
- For cleaning the washing machine
thoroughly and effectively
- Removes grease, bacteria, and asso-
ciated unpleasant odours
- Use 1–3 times per year
Descaling agent
- removes heavy limescale deposits
- Mild and gentle with natural citric
acid
Water softener tablets
- Reduces the amount of detergent
needed for hard water
- Less detergent residue in fabrics
- Less chemicals in waste water due to
reduced amount of detergent
United Kingdom:
Miele Co. Ltd.
Fairacres, Marcham Road
Abingdon, Oxon, OX14 1TW
Tel: 0330 160 6600
Internet: www.miele.com
Manufacturer:
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
M.-Nr. 11 672 970 / 02en-GB
WDD 131 WPS GuideLine
