Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
SKU Number: 356-9227
356-9228
2-LIGHT OUTDOOR SENSOR LIGHT
A
B
C
D
Model Number: OW9227W
OW9228BZ
200810
HARDWARE CONTENTS Note: Hardware not shown actual size.
PACKAGE CONTENTS
AA
BB
DD EE FF
CC
Mounting Screw
X2
Wire Connector
X3
Mounting Strap
X1
Decorative cover
X1
Fixture Mounting Screw
X1
Gasket
X1
Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape, Wire Cutters,
Safety Glasses, Ladder, Wire Stripper.

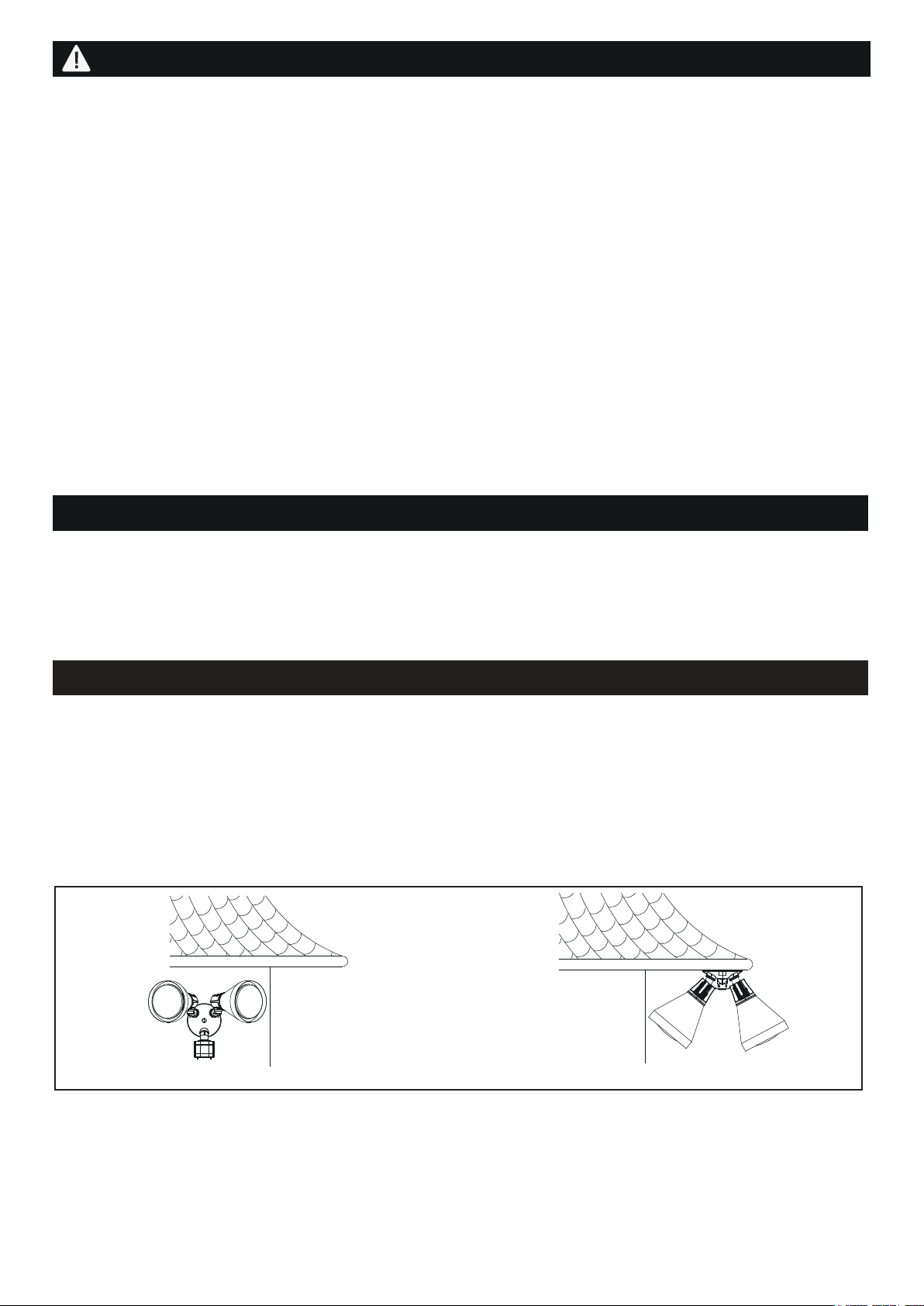

SAFETY INFORMATION
PREPARATION
Important to know
1. This fixture requires a 120 VAC, 60 Hz power source.
2. For general safety and to avoid any possible damage to the sensor, be sure the power is switched "off" before
adjustment.
3. Motion sensor: turns light ON automatically when motion is detected and turns light OFF automatically when motion
stops.
4. Photocell keeps the light OFF during daylight hours.
Page 2 of 7
200810
ASSEMBLY INSTRUCTIONS
• All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).
Contact your municipal building department to learn about your local codes, permits and/or inspections.
• Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified electrician
before installation
• Do not connect this fixture to an electrical system that does not provide a means for equipment grounding. Never use
a fixture in a two-wire system that is not grounded. If you are not sure your lighting system has a grounding means, do
not attempt to install this fixture. Contact a qualified, licensed electrician for information with regards to proper
grounding methods as required by the local electrical code in your area.
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
•
Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or switching
off circuit breaker).
• Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires to contact
any surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury
or death from electric shock.
CAUTION
Maximum Wattage: 2-150W
Work Temperature: - 4°F~113°F
Note: Fixture can be wall mounted or eave mounted.
Read notes section on page 4 for additional information about mounting location of fixture.
Light fixture and sensor should be mounted as shown above when installed (depending upon type of installation)
Wall Mounted
Eave Mounted

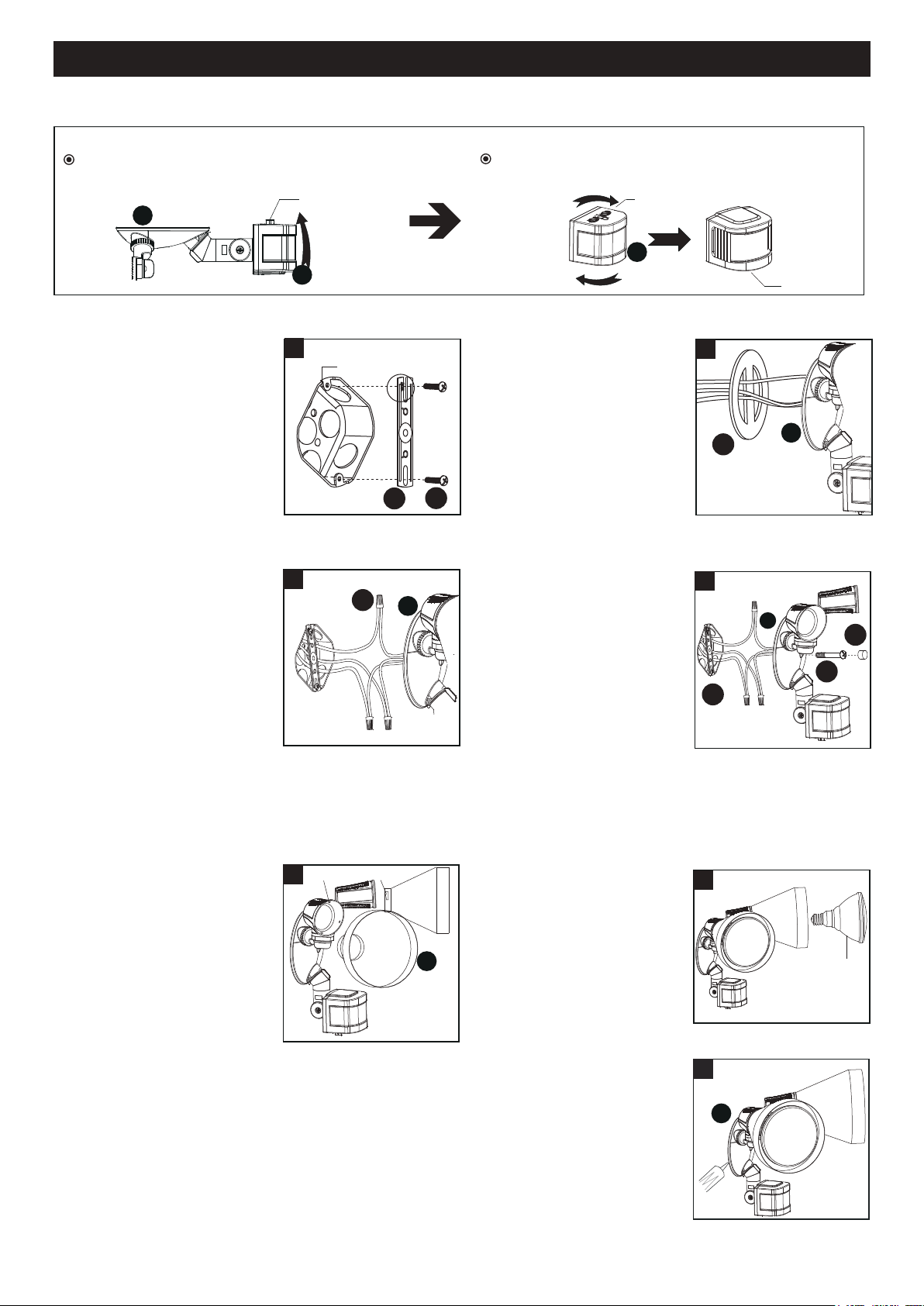

ASSEMBLY INSTRUCTIONS (continued)
Installation Steps
1.Install the mounting strap (BB)
to the outlet box with the
stamped word “FRONT” facing
away from the outlet box,
using two mounting screws
(AA) that best fit the outlet box.
Back plate should sit flush
against wall surface when
secured. (Choose one
matching pair of suitable
mounting screws (AA) from
the 3 pairs provided)
Outlet Box
2. Fixture wires thread through
gasket (FF), then attach the
gasket (FF) into backplate (A).
3. Pull out the source wires from
the outlet box. Make wire
connections using wire
connectors (EE) as follows:
---Connect the black wire from
the fixture to the “hot” wire
from the power source.
(usually black)
---Connect the white wire from
the fixture to the neutral wire
from the power source (usually white).
---Connect the grounding wire from the fixture to the
grounding wire from the power source (usually
green / yellow insulation).
Carefully tuck the wires back into the outlet box.
A
C
C
5. Align the three slots in the
decorative shell (B) with the
light head stoppers. Push the
shell (B) in and then twist
clockwise to lock. Repeat for
the other shell (B).
6. Install bulbs (not included).
See relamping label at
socket area or packaging
for maximum wattage
allowed.
Before installing the light fixture under an eave, the sensor head must be rotated as shown in the next two steps for
proper operation and to avoid the risk of electrical shock.
For eave mounted only:
Rotate the sensor head (C) towards the backplate (A)..
Rotate the sensor head (C) clockwise 180˚ so the controls face
down.
1
BB
AA
A
2
FF
4. Attach the backplate (A) of
the fixture to the mounting
strap (BB), secure it with the
fixture mounting screw (DD).
Push the decorative cover
(CC) firmly into the fixture
mounting screw (DD) hole
on the light.
Controls
Controls
Controls
A
4
BB
CC
DD
Max.150W PAR 38 Bulb
(not included)
6
B
Slot
Stopper
5
D2D
OFF
3MIN
5S
TEST
TIME
SENSITIVITY
LOW LEVEL
+
-
3H
6H
7
7. With silicone caulking compound (not included), caulk completely around where the
backplate (A) of the fixture meets the wall surface.
CAUTION: Be sure to caulk completely where the backplate meets the
wall surface to prevent water from seeping into the light fixture and /or
outlet box.
A
Page 3 of 7
200810
A
Outlet Box
EE
3
ASSEMBLY INSTRUCTIONS (continued)
ASSEMBLY INSTRUCTIONS (continued)
C
Page 4 of 7
200810

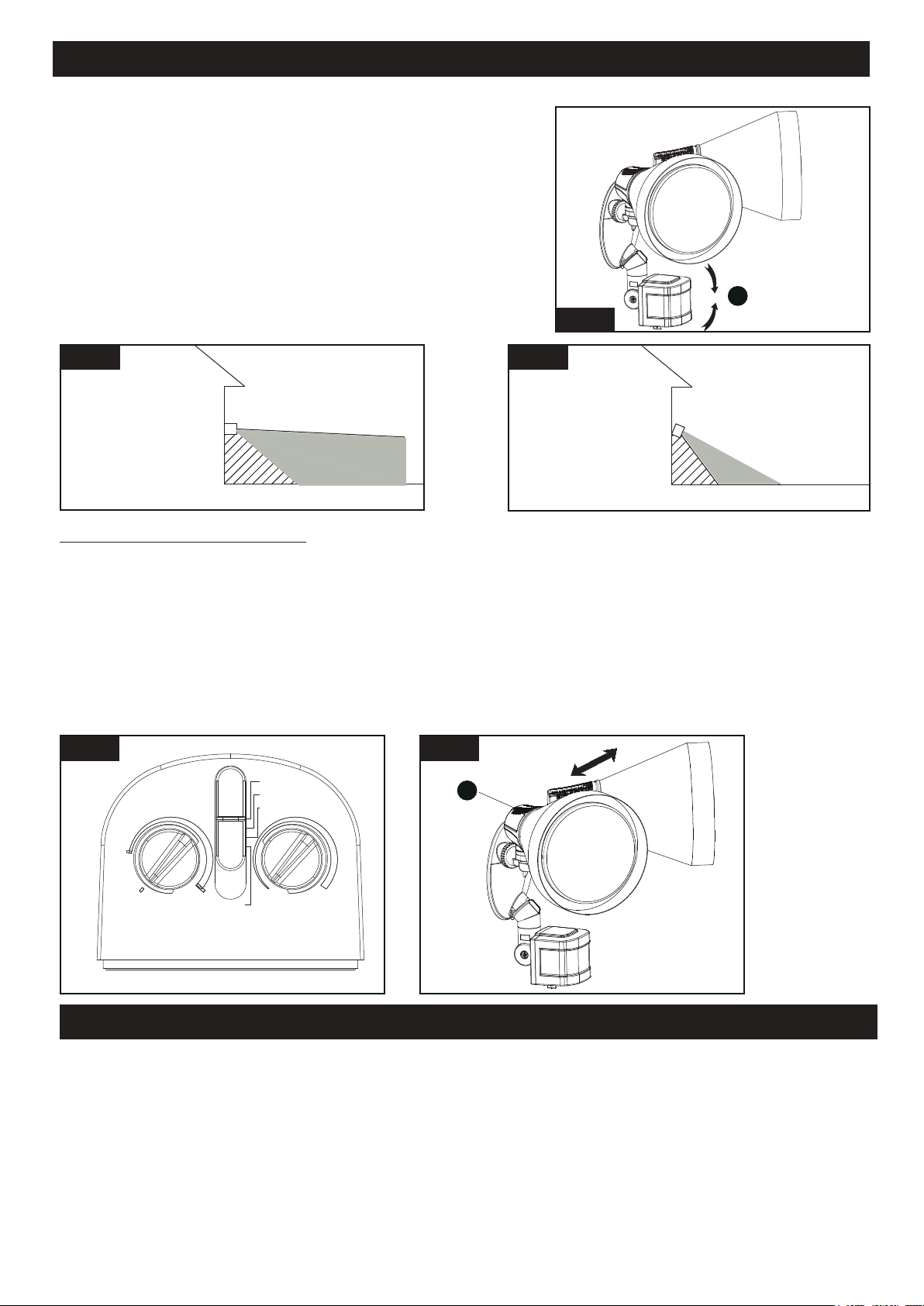

Sensor Adjustment Lower For Short Coverage
Sensor Adjustment Higher For Long Coverage
Fig. 5
Fig. 4
Fig. 2
Fig. 3
Adjusting the Light Head:
2. Keep the light heads (D) 30˚ below horizontal to avoid water damage and electrical shock.
Sensitivity of Motion Sensor
● You can adjust the sensitivity of the motion sensor by using the “SENSITIVITY” selector located on the right
side of the bottom surface of the sensor. (See Fig. 4)
● Adjust motion sensor sensitivity to achieve desired performance.
● Approximate range for each setting from 10ft to 70ft.
Choose a mode by sliding the switch on the bottom of the sensor of the fixture. (See Fig.4 )
Note: When power is first applied, the light will turn on immediately. Wait for 30 seconds to allow the sensor
to warm up.
1. TEST MODE (daytime and nighttime operation.)
● Rotate knob on the bottom of the sensor to the “TEST” position. (See Fig.4 )
Adjusting the Sensor Head (C):
1. Aim sensor head (C) toward desired detection area, maintaining a
5° - 40° downward angle to allow moisture to drain.
Note: Make sure sensor head (C) is positioned with controls facing
toward the ground.
2. You can move the sensor head (C) up and down to change the
coverage area. (See Fig. 1)
Note: Range set too high may increase false triggering.
(See Fig. 2 and Fig. 3 )
Fig. 1
1.Gently grasp the light heads (D) and tilt them left or right to adjust the light coverage area. Keep the light heads (D) at
least 1” (25mm) away from the sensor.(See Fig. 5)
D
D2D
OFF
3MIN
5S
TEST
TIME
SENSITIVITY
LOW LEVEL
+
-
3H
6H
ASSEMBLY INSTRUCTIONS (continued)
ASSEMBLY INSTRUCTIONS (continued)
ASSEMBLY INSTRUCTIONS (continued)
FUNCTION AND OPERATION (continued)
ASSEMBLY INSTRUCTIONS (continued)
ASSEMBLY INSTRUCTIONS (continued)
Page 5 of 7
200810
● The shut-off delay is the length of time the light will stay at brightness after motion is detected.
● You can set the shut-off delay by rotating the “TIME” knob arrow so it points to the desired time setting (from 5
seconds to 3 minutes). To increase the shut-off delay, turn the knob clockwise. To decrease the shut-off delay,
turn the knob counterclockwise.
Shut-off Delay
Customization Options
Note: To make sure the above functions operate properly, always keep the wall switch in the “ON” position
(including the daytime).
● When slide the mode selector to “OFF”, the light turns off automatically. It turns to high-level brightness
when motion is detected, and stays on as long as the motion continues. Then turns off about 5 seconds
after motion is no longer detected.
● When slide the mode selector to “3H” or “6H” or “D2D”, the light turns to low-level brightness automatically.
It turns to high-level brightness when motion is detected, and stays on as long as the motion continues.
Then reverts back to low-level brightness about 5 seconds after motion is no longer detected.
2. OFF MODE (nighttime operation only)
● To shift to the “OFF” mode, rotate “Time” knob arrow to the desired time setting (between 5 seconds and 3
minutes). At dusk, the light stays off, it turns on when motion is detected, and stays on as long as motion
continues. When the motion is no longer detected, it remains on for the predetermined time you set (5s ~ 3min),
and then turns off automatically.
● The light turns off automatically at dawn.
3. 3 HOUR MODE (nighttime operation only)
● To shift to the “3H” mode, place the slide switch to “3H” position, and rotate “Time” knob arrow to the desired time
setting (between 5 seconds and 3 minutes). At dusk, the light turns to low- level brightness automatically. From
this moment on, it will remain on for 3 hours. During this 3 hours, when motion is detected, it turns to high-level
brightness, and stays on as long as motion continues. When the motion is no longer detected, it remains high-
level brightness for the predetermined time you set (5s ~ 3min), and then turns to low-level brightness
automatically. After the 3 hours, it turns off. when motion is detected again, it turns to high-level brightness, and
stays on as long as motion continues. When the motion is no longer detected, it turns off after the predetermined
time you set (5s ~ 3min).
● The light turns off automatically at dawn.
4. 6 HOUR MODE (nighttime operation only)
● To shift to the “6H” mode, place the slide switch to “6H” position, and rotate “Time” knob arrow to the desired time
setting (between 5 seconds and 3 minutes). At dusk, the light turns to low- level brightness automatically. From
this moment on, it will remain on for 6 hours. During this 6 hours, when motion is detected, it turns to high-level
brightness, and stays on as long as motion continues. When the motion is no longer detected, it remains high-
level brightness for the predetermined time you set (5s ~ 3min), and then turns to low-level brightness
automatically. After the 6 hours, it turns off. when motion is detected again, it turns to high-level brightness, and
stays on as long as motion continues. When the motion is no longer detected, it turns off after the predetermined
time you set (5s ~ 3min).
● The light turns off automatically at dawn.
5. D2D MODE (nighttime operation only)
● To shift to the “D2D” mode, slide switch to “D2D” position, and rotate “Time” knob arrow to the desired time setting
(between 5 seconds and 3 minutes). At dusk, the light turns to low-level brightness automatically, it turns to high-
level brightness when motion is detected, and stays on as long as motion continues. When the motion is no
longer detected, it remains on for the predetermined time you set (5s ~ 3min), and then switch back to low level
brightness.
● The light turns off automatically at dawn.
FUNCTION AND OPERATION (continued)
ASSEMBLY INSTRUCTIONS (continued)
ASSEMBLY INSTRUCTIONS (continued)
Page 6 of 7
200810
FUNCTION AND OPERATION (continued)
10'
8.0'
12.0'
70'

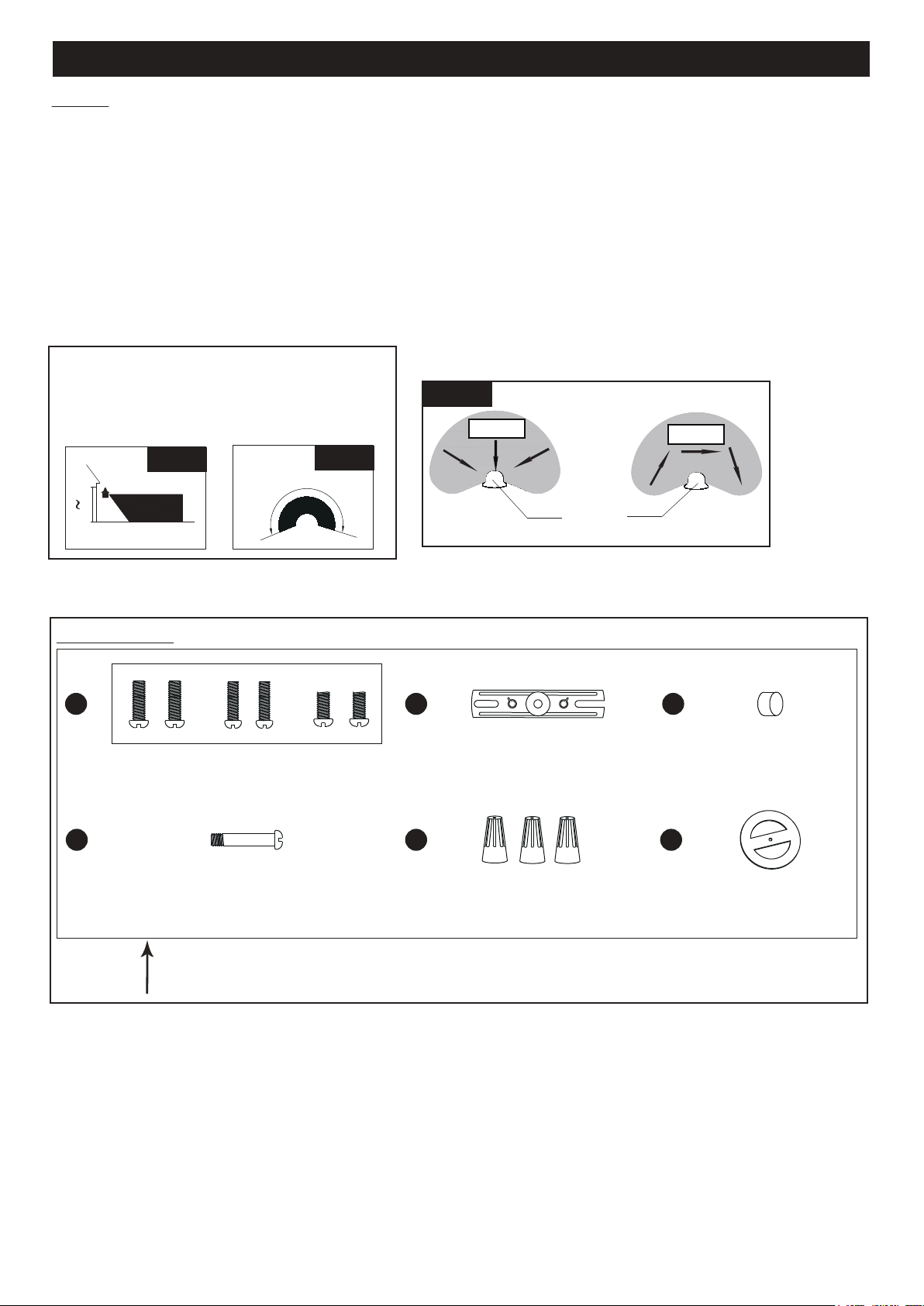

Where you install your fixture is important:
Be sure the light is mounted straight on the wall
or eave; otherwise, the detection distance may
be limited.
Fig. 6
Fig. 7
Fig. 8
Notes:
1. The sensitivity of the motion sensor will increase as the environmental temperature gets cooler. For best
performance, gently clean the lens with a soft cloth every 1 or 2 months to ensure maximum sensitivity.
2. For best performance, install fixture at least 8 feet above the ground. At such a height, the fixture will provide a
detection distance of up to 70 feet at 77 degrees Fahrenheit. (See Fig.6)
3. The sensor detects movement across a detection range of 240 degrees. (See Fig.7)
4. The sensor will be more sensitive to motion across its detection path than motion directly towards it. (See Fig.8)
5. To reduce possible nuisances, do not mount the fixture near a heat source like an air conditioner, vent or furnace
exhaust, or in a direction facing any reflective object or other nearby light source.
Motion
Least sensitive
Motion
Most sensitive
Sensor
Assembly Kit
5351MM (1 SET) FOR 356-9227
5352MM (1 SET) FOR 356-9228
Spare Parts List:
240'
AA
BB
DD EE FF
CC
Mounting Screw
X2
Wire Connector
X3
Mounting Strap
X1
Decorative cover
X1
Fixture Mounting Screw
X1
Gasket
X1
The following parts are available for reorder if damaged or missing. Call our toll free at 1-800-887-6326.
Page 7 of 7
200810
FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails due
to a defect in material workmanship within five (5) years from the date of original purchase, simply bring this lighting
fixture with the original sales receipt back to your nearest MENARDS retail store. At its discretion, PATRIOT
LIGHTING agrees to have the product or any defective part(s) repaired or replaced with the same or similar PATRIOT
LIGHTING product or part free of charge, within the stated warranty period, when returned by the original purchaser
with original sales receipt. This warranty; (1) excludes expendable parts including but not limited to light bulbs; (2) does
not cover damage that has resulted from abuse or misuse; and (3) does not cover any losses, labor, injuries to
persons/property or costs. This warranty does give you specific legal rights and you may have other rights, which vary
from state to state.
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
TROUBLESHOOTING
R
R
R
CARE AND MAINTENANCE
R
Clean the glass and coated metal surfaces with a non-abrasive cleaner. Do not use any cleaners with chemicals,
solvents or harsh abrasives, The motion detecting lens is coated with a specially painted finish and requires special
care when cleaning. Use only a soft dry cloth to dust or wipe the lens area.
If unable to fix any of the above issues, please consult a certified electrician.
---The light does not come on at all:
1. Make sure the wall switch and circuit breaker are on.
2. Make sure the wiring is correct.
3. Cover the sensor with dark color cloth to verify that the ambient light level is not too high.
---The light comes on for no apparent reason:
1. Re-aim the motion sensor.
2. Decrease the sensitivity setting.
3. Do not use a dimmer or timer to control the light fixture. Replace the dimmer or timer with a standard on/off wall
switch.
---The light flashes on and off:
1. Reposition the bulb away from the motion sensor.
2. Reposition the motion sensor.
3. The motion sensor is in “TEST” mode and warm up.
