42” Primo Hugger
Ceiling Fan
Owner’s Manual
Model #21400
Item # 355-1600
SAFETY INSTRUCTIONS
1
WARNING:
• To avoid risk of electrical shock, be sure to shut off power at the main fuse or circuit breaker
panel box before installing or servicing this fixture. Turning off the electrical power by using the
light switch only is not sufficient to prevent electrical shock hazard.
• To reduce the risk of fire, electric shock, or personal injury, mount to outlet box marked
“acceptable for fan support up to 35 lbs. (16 kg)” and use mounting screws provided with the
outlet box. The total weight of this fan is approximately 21 lbs. (9.5 kg).
• All wiring must be in accordance with the National Electrical Code ANSI/NFPA 70 and any
applicable local codes. Electrical installation should be performed by a qualified licensed
electrician.
• To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control
device.
• Do not bend the blade iron brackets when installing the brackets, balancing the blades, or
cleaning the fan. Do not insert foreign objects in between rotating fan blades.
CAUTION:
• To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 meters)
above the floor and at least 30 inches (0.76 meters) from the tip of the blades to the wall.
• Check and retighten all screws, nuts, and bolts to insure they are secured prior to operating the
fan.
• Be sure the outlet box is properly grounded and that a ground wire (green or bare) is present.
• When changing (reversing) the blade direction, turn off the fan and wait for the fan blades to
stop completely.
• To reduce the risk of serious bodily injury, do not use power tools to assemble any part of the
fan, including the blades.
• To reduce the risk of personal injury, use only parts provided with this fan. The use of parts
other than those provided with this fan will void the warranty.
• Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly
dampened cloth is recommended to prevent scratching and will be suitable for most cleaning.
• In case this fan needs to be returned to the factory for repairs, it must be shipped in its original
carton and foam inserts to insure proper protection against shipping damage that may exceed
the initial cause for return.
• Please read and understand these safety instructions and the installation guide before
attempting to assemble, install, or operate the fan.
2

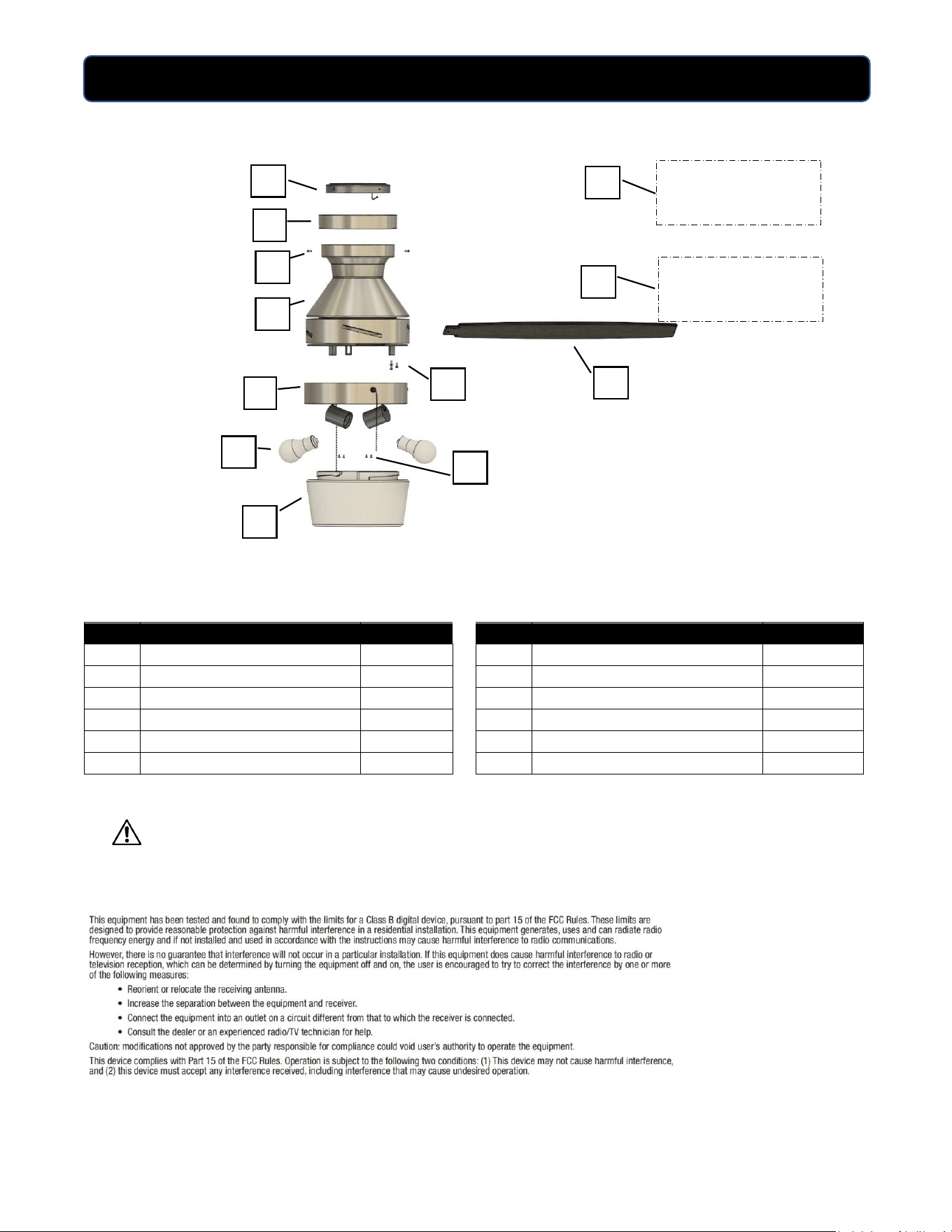

PACKAGE CONTENTS
FCC Notice:
PART
DESCRIPTION
QUANTITY
PART
DESCRIPTION
QUANTITY
A
Ceiling Mounting Bracket
1
G
Light Kit Housing
1
B
Canopy Trim Ring
1
H
LED Bulbs
2
C
Canopy Mounting Screws
4
I
Light Kit Housing Screws
3
D
Upper Motor Housing
1
J
Light Kit Glass
1
E
Blades
4
K
Hardware Kit
1
F
Blade Screws and Washers
12
L
Owner’s Manual
1
IMPORTANT REMINDER: You must use the parts provided
with this fan for proper installation and safety.
HARDWARE KIT
OWNER’S MANUAL
A
I
B
E
C
H
J
K
L
F
G
D
3

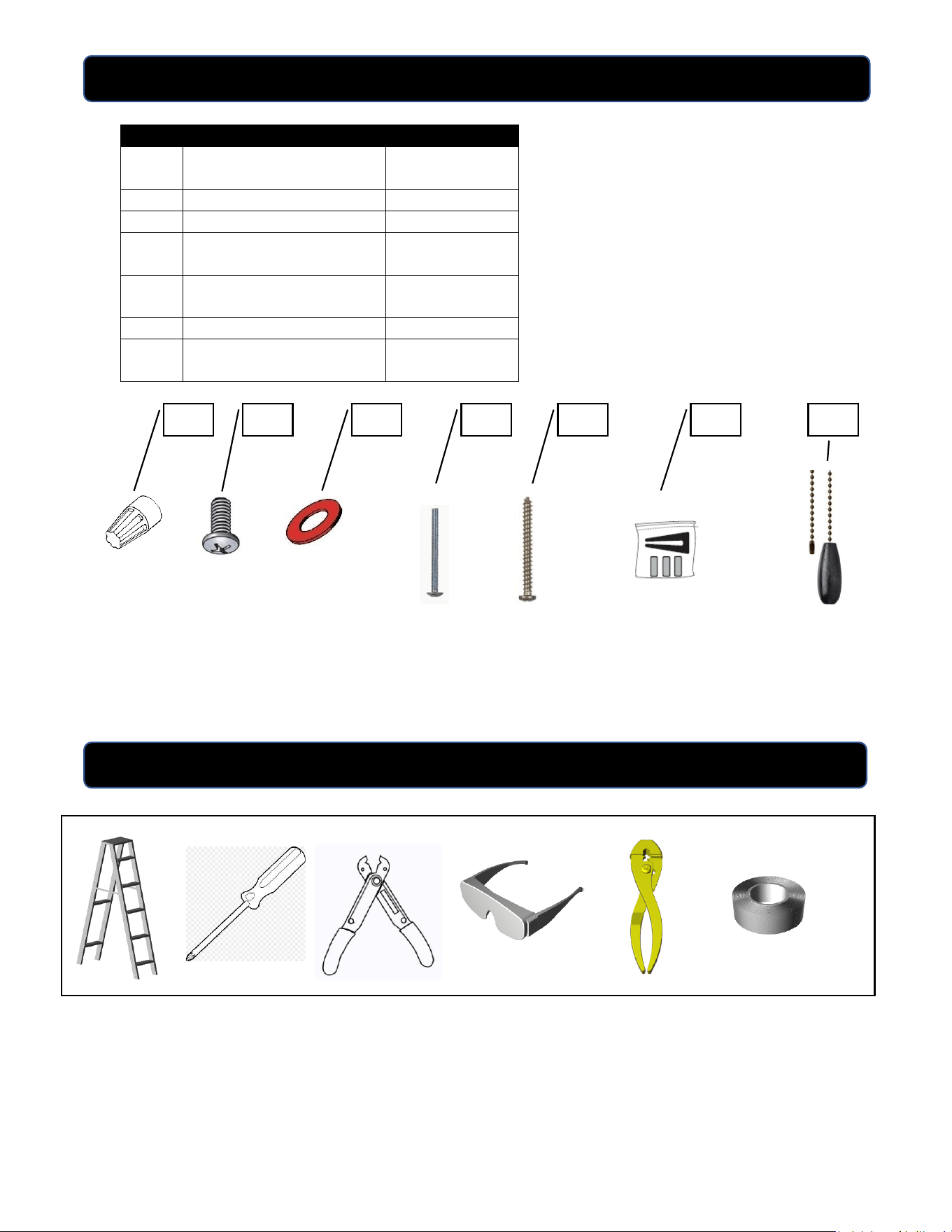

HARDWARE KIT CONTENTS
GG
NOTE: For your convenience some extra hardware may be included. The quantity listed
above is the number required for installation.
Tools required for assembly: Step Ladder, Phillips Screwdriver, Wire Strippers, Safety
Glasses, Pliers, and Electrical Tape.
Helpful Tools: AC Tester Light/Multimeter, Tape Measure, and Wiring Handbook
PART
DESCRIPTION
QUANTITY
AA
Wire Connectors for
House Wiring
3
BB
Blade screws
12
CC
Fiber Blade Washers
12
DD
Machine Screws and Lock
Washers
2 each
EE
Wood Screws and
Washers
2 each
FF
Balance Kit
1
GG
Pull Chain Extensions and
Fobs
2
TOOLS REQUIRED (not included)
AA
BB
FF
CC
DD
EE
4

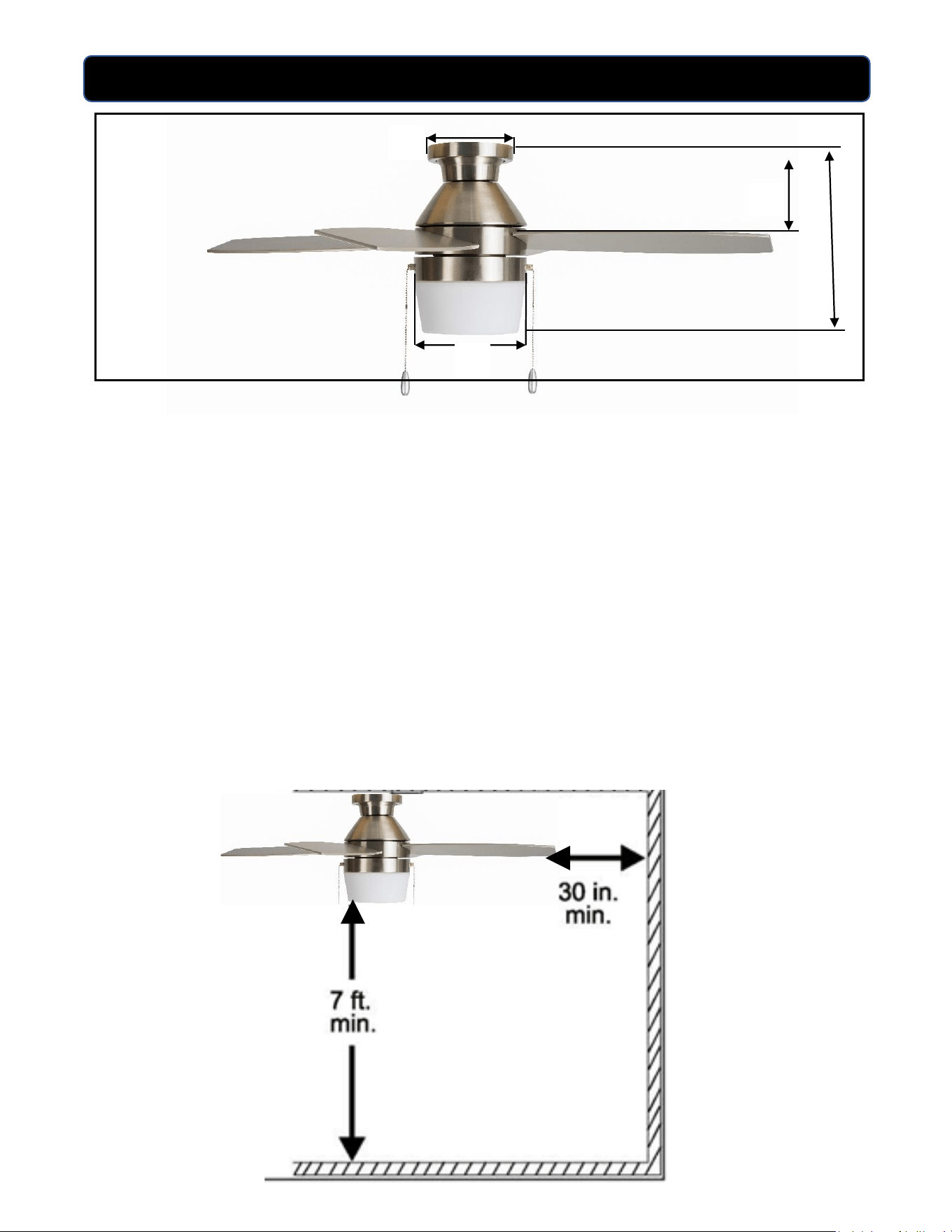

DIMENSION REFERENCE
A: 12.9 in.
B: 7.4 in.
C: 8.0 in.
D: 6.2 in.
NOTE: Make sure blades are at least 30 inches from any wall or obstruction and at least
7 feet above the floor.
A
B
N
C
D
5

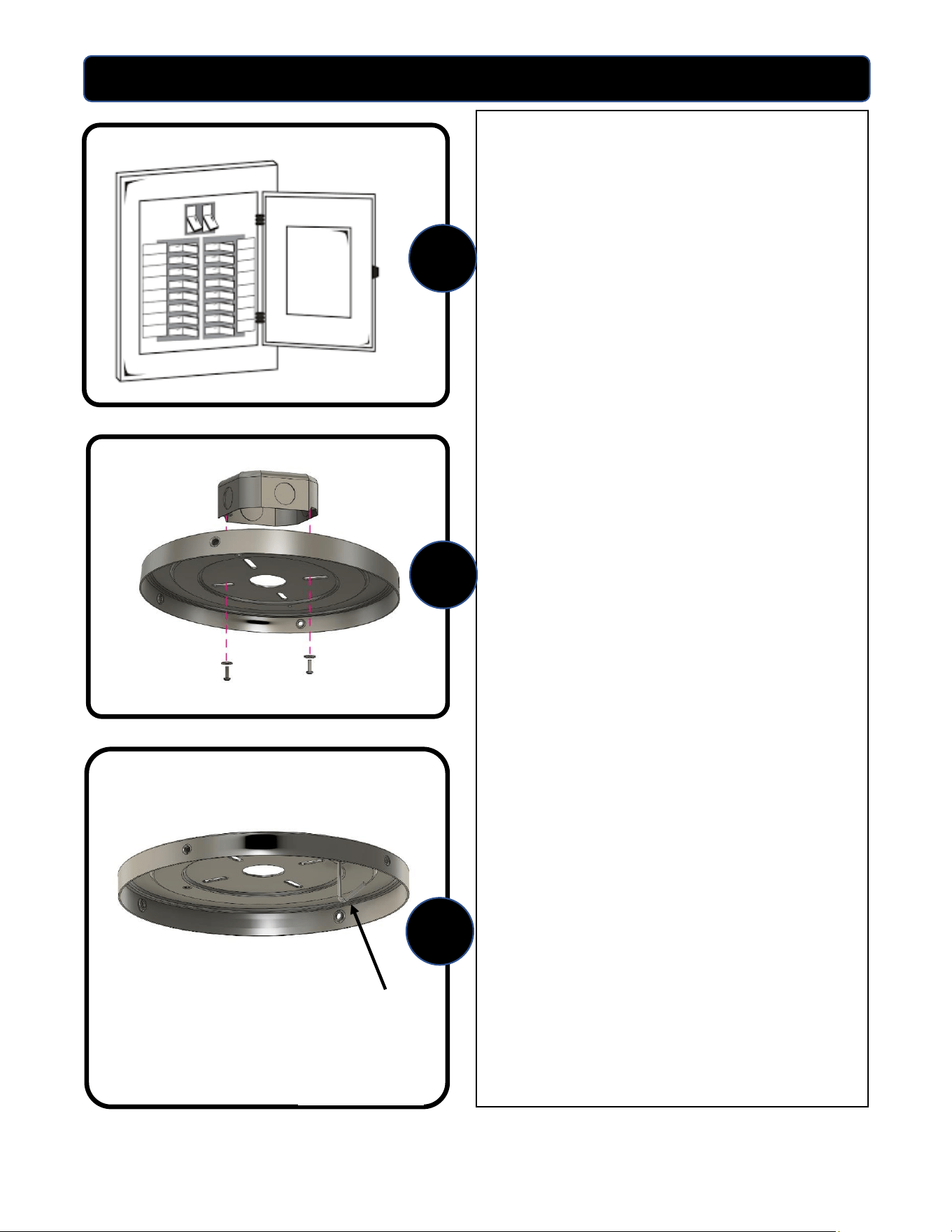

ASSEMBLY INSTRUCTIONS
1. Turn OFF the electrical power at the
main fuse or circuit breakers.
NOTE: Before continuing installation,
confirm that the power is still turned
off at the main circuit breaker or by
removing the correct fuse. Turning
the power off using a wall switch is
not sufficient to prevent electrical
shock.
2. Secure the mounting bracket to the
outlet box (not included) using the
screws and washers provided with the
outlet box. Feed the wires from the
ceiling box through the center hole of
the mounting bracket.
WARNING: To reduce the risk of fire
electrical shock, or personal injury,
mount to the outlet box marked
“acceptable for fan support” using the
mounting screws and washers
provided with the outlet box.
3. Note the hanging hook on the under-
side of the mounting bracket. The
upper motor housing will be
temporarily hung from this hanging
hook in the next step.
1
2
3
6
ASSEMBLY INSTRUCTIONS

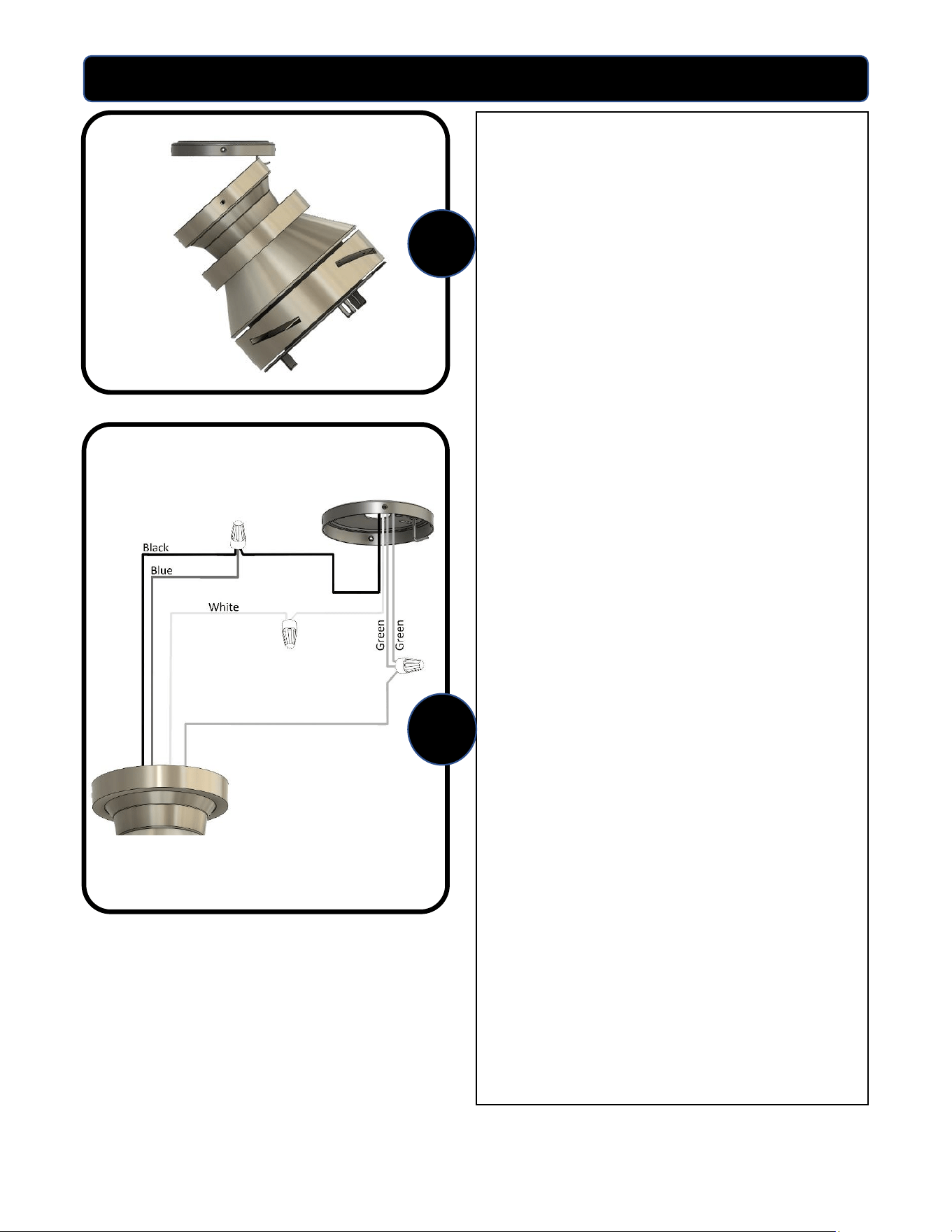

4. Utilizing one of the holes in the top
ring of the upper motor housing, hang
the housing from the mounting hook
as shown. This will allow for hands-
free wiring of the fan.
5. WIRING THE FAN:
Use the supplied wire connectors to connect
the fan wires to the power supply wires
according to the wiring diagram and
following instructions:
• Connect the WHITE wire from the fan to
the WHITE wire coming from the ceiling.
• Connect the BLACK and BLUE wires from
the fan to the BLACK wire coming from
the ceiling.
• Connect all GREEN (ground) wires
together: Connect the GREEN wire from
the fan to the GREEN wire from the
mounting bracket and the GREEN wire
from the ceiling.
NOTE: The BLACK wire is hot power for the
fan. The BLUE wire is hot power for the light
kit. The WHITE wire is common for the fan
and light kit. The GREEN (BARE) is ground.
IMPORTANT: After the connections have
been made, make sure all connections are
secure and the wires do not come loose
from the wire nuts. Be sure no bare wires or
wire strands are visible after making
connections.
6.
4
5
7
ASSEMBLY INSTRUCTIONS

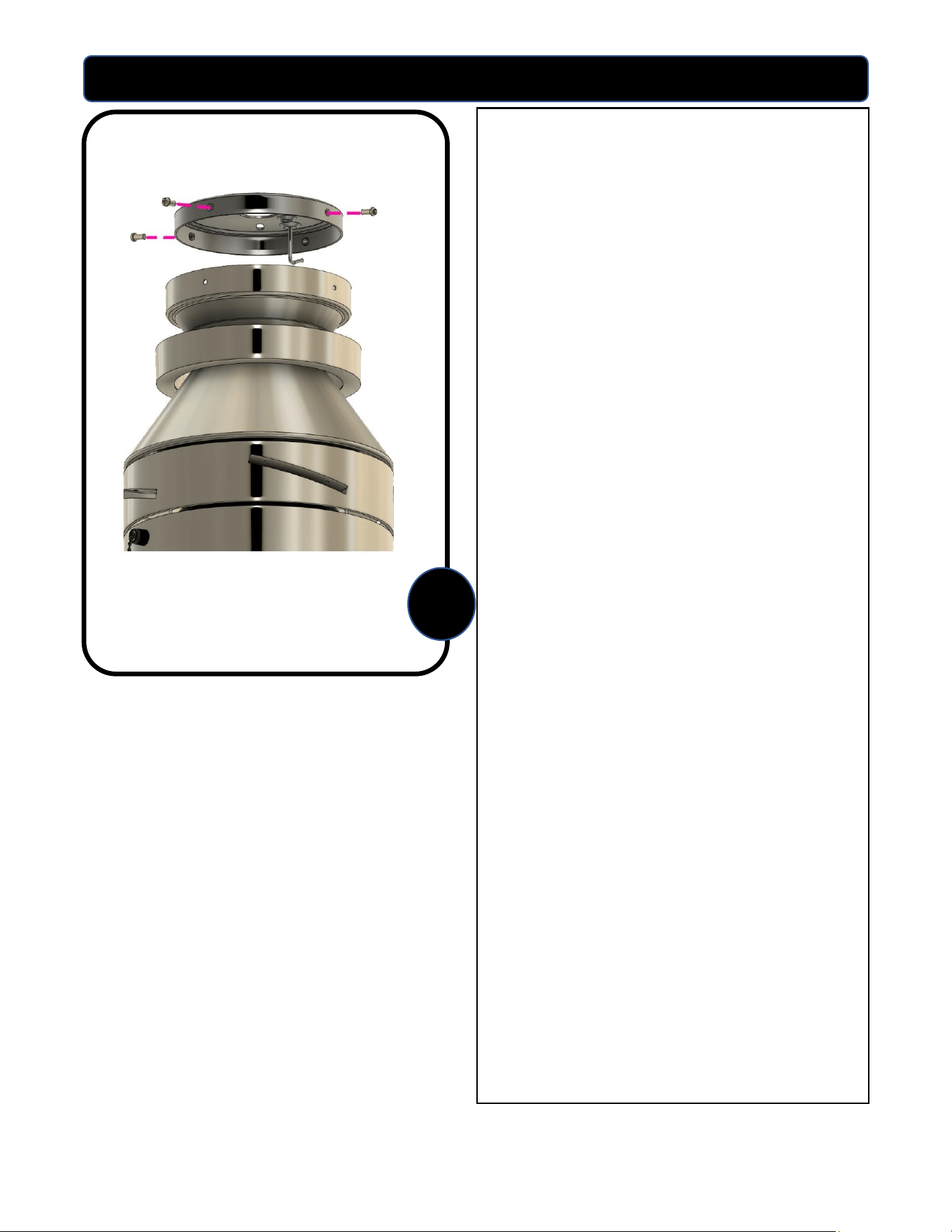

6. SECURING THE MOTOR HOUSING:
Remove the motor housing body from
the bracket hook and swing the fan up
into place onto the ceiling bracket.
Note: When swinging the fan up onto the
bracket, be sure that the mounting hook
does not interfere with any wiring.
Align the two keyhole screw openings
with two screws that should be partially
installed. Position the housing onto the
two screws, slide into place in the
keyhole slots, and tighten the screws.
Using the remaining two screws from the
mounting bracket, line up the other two
holes in the side of the motor housing,
insert screws, and tighten down. Confirm
that the upper housing is secure.

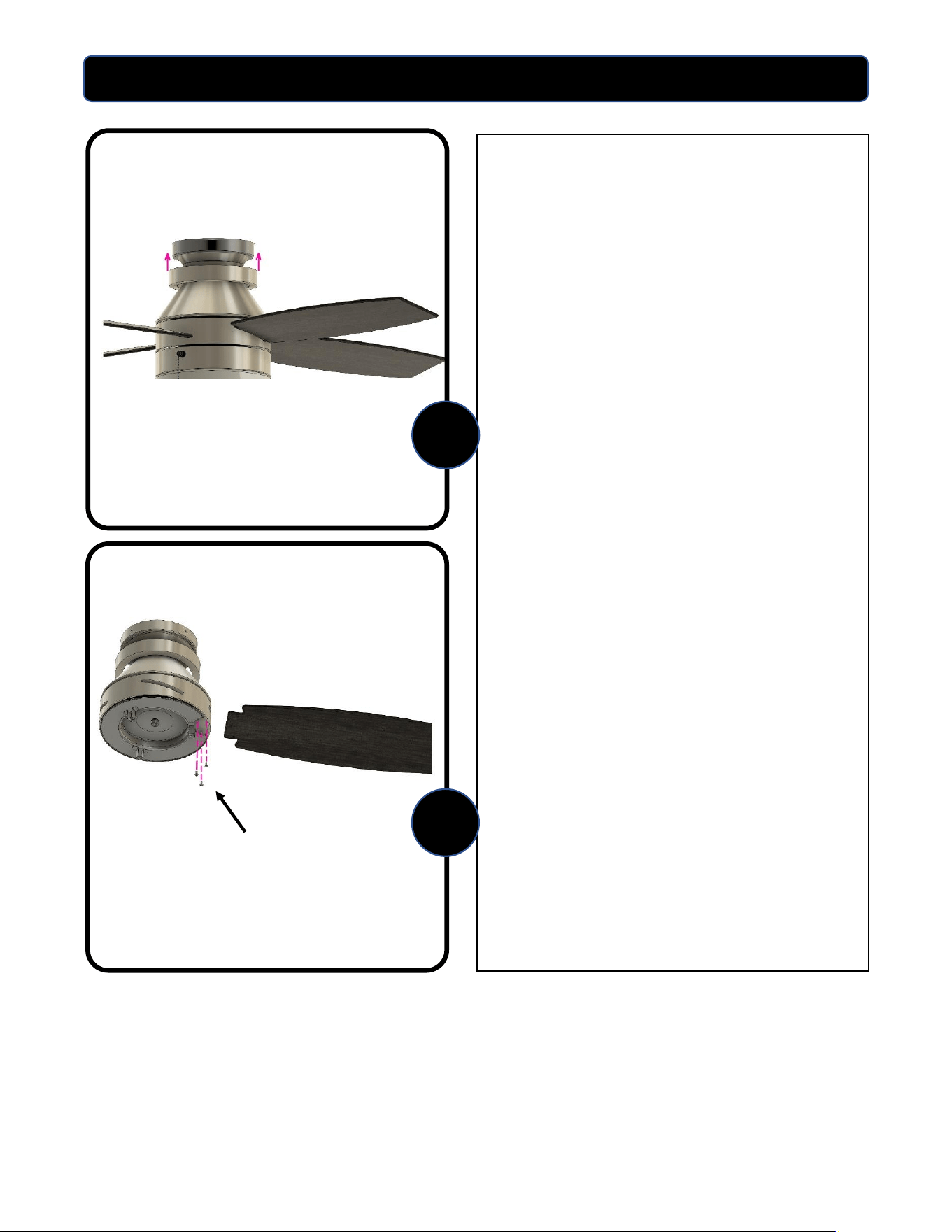

7. INSTALLING THE CANOPY TRIM RING
The trim ring provides a decorative
design touch to the top canopy and hides
the mounting screws.
6
8
ASSEMBLY INSTRUCTIONS
7. INSTALLING THE CANOPY TRIM RING
The trim ring provides a decorative
design touch to the top canopy and hides
the mounting screws.
Using both hands, push the trim ring up
to the top of the canopy where it meets
the ceiling. Line up the (4) screws slots
on the inside of the ring with the (4)
mounting screws. Gently give the trim
ring a slight turn to lock it into place.
Should you need to remove the trim ring,
using both hands gently turn the ring
slightly in the opposite direction to
release the ring from the (4) screws. The
ring will drop free.
8. INSTALLING THE BLADES:
Insert the blade into the blade slot
around the motor housing and line up
the three (3) holes at the end of the
blade with the 3 holes in the motor
housing. Secure the blade to the fan
using (3) blade screws and (3) fiber blade
washers.
Repeat for the remaining blades.
7
Blade Screws
and Washers
8
9
ASSEMBLY INSTRUCTIONS

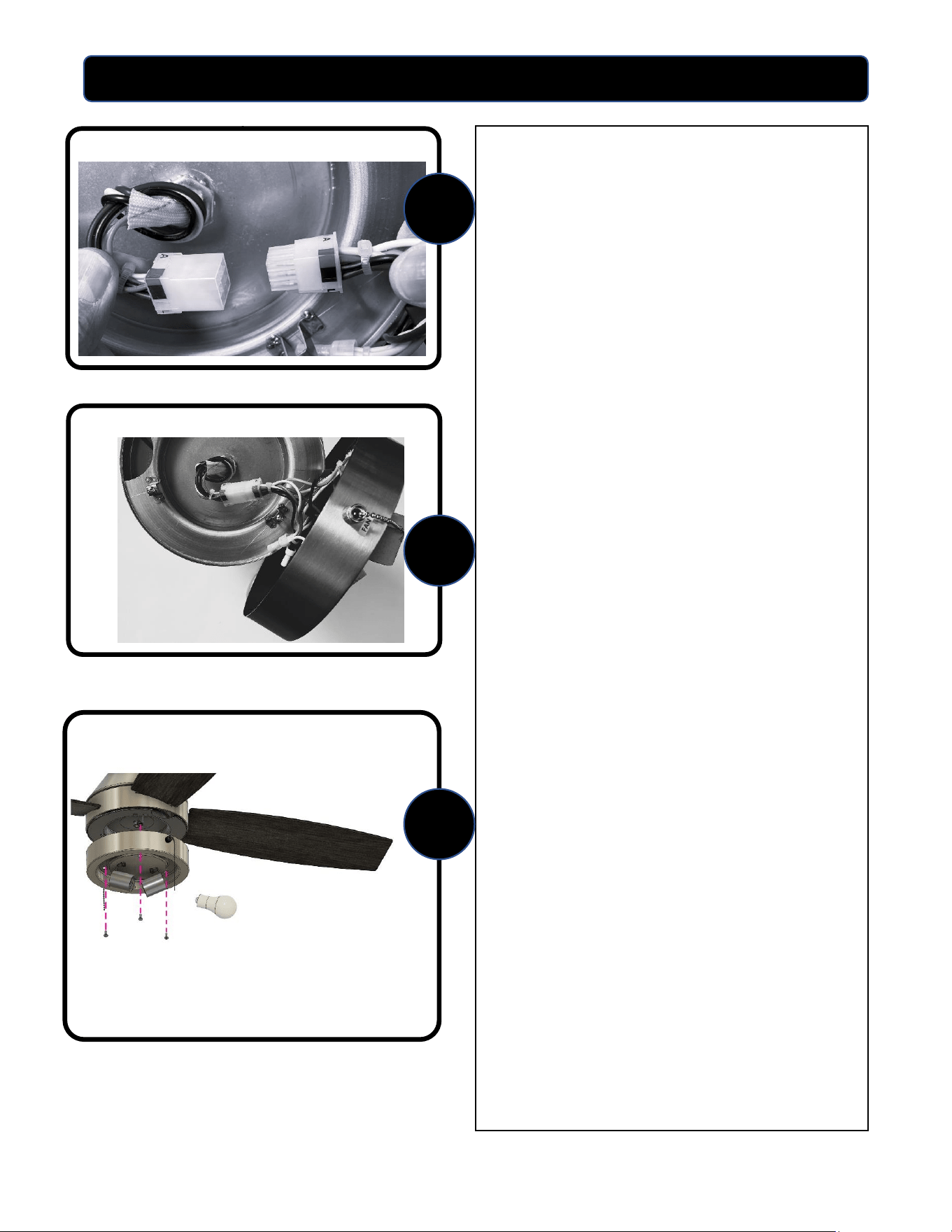

9. CONNECTING THE LIGHT KIT --
Position the light kit housing under the
fan. Connect the light kit wiring harness
by lining up the two 9-pin plug
connectors and inserting one into the
other. Line up the color-coded corners to
insure proper alignment. Be sure
connections are firmly inserted and
secure (Fig. A).
The wire harness should look like this
(Fig. B).
Align the (3) screw holes in the light kit
housing with the (3) pre-installed screws
on the mounting posts on the bottom of
the motor housing. Secure 2 of the
screws into the keyhole slots, lock them
into place, and secure the screws. Install
the last screw in the remaining screw
hole and tighten down all (3) screws.
Install the (2) LED bulbs.
9
9
9
Fig. B
Fig. A
10
ASSEMBLY INSTRUCTIONS

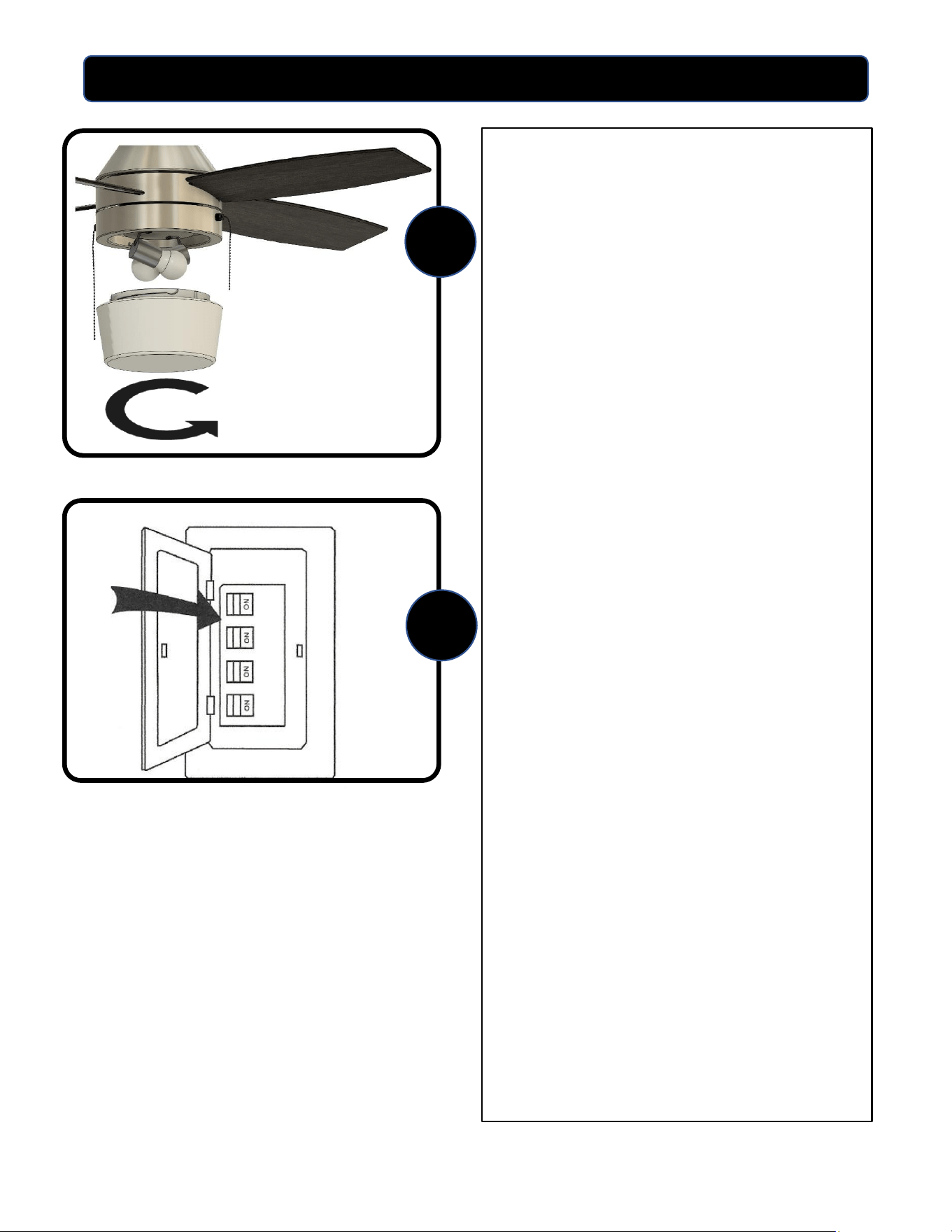

10. INSTALLING THE LIGHT KIT GLASS –
Position the glass bowl to line up with
the bottom of the light kit. While holding
the glass up to the bottom of the light
kit, turn the glass clockwise until the
notch in the glass slips into the light kit
channel. Continue to turn clockwise until
snug and tight. DO NOT OVERTIGHTEN.
Attach the (2) pull chain fobs.
Assembly complete.
11. Restore the power to the main fuse
or circuit breaker.
10
11
11

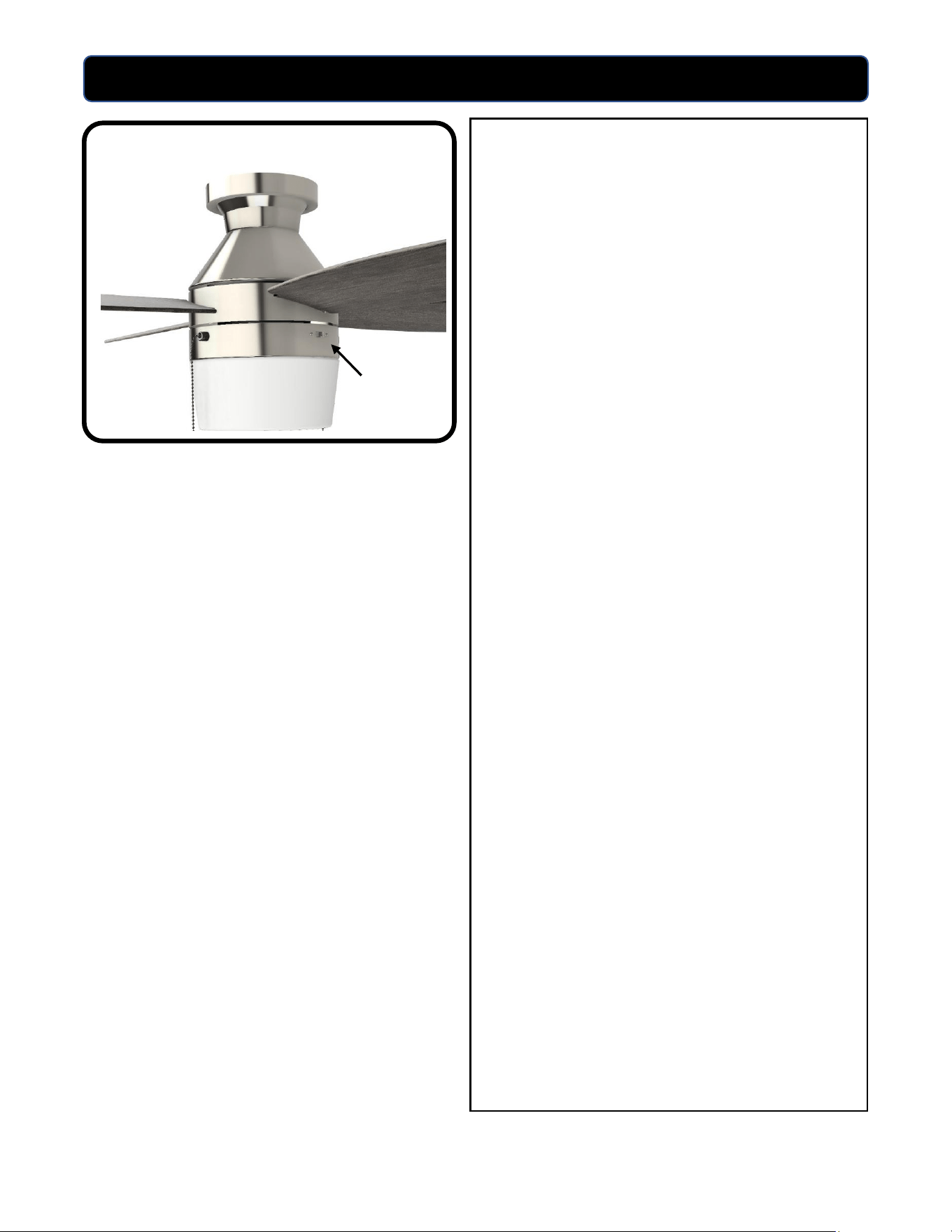

OPERATING INSTRUCTIONS
REVERSE SWITCH
Use the fan reverse switch, located on the
side of the light kit housing, to optimize
your fan for seasonal performance. Using
a ceiling fan will allow you to raise your
thermostat setting in summer and lower
your thermostat setting in winter without
feeling a difference in your comfort.
In warmer weather, move the reverse
switch to the left which will result in
downward airflow creating a wind chill
effect.
In cooler weather, move the reverse
switch to the right which will result in
upward flow that can help move
stagnant, hot air off the ceiling area.
IMPORTANT: Wait for fan to stop before
moving the reverse switch. The reverse
switch must be set either completely to
the left or right for the fan to function
correctly. If the reverse switch is set in
the middle position, the fan will not
operate.
MOTOR SPEED AND LIGHT
Fan speed: The pull chain has four
positions to control fan speed. One pull is
high, two is medium, three is low, and
four is off.
Light: One pull is on, and two is off.
Reverse Switch
12
TROUBLESHOOTING
FAN DOES NOT START:
• Check the circuit breaker and confirm the power is ON.
• Make sure the wall switch is ON.
• Pull the pull chain to make sure it is on. Typical pull chain operation is 1
st
pull – high
speed, 2
nd
pull – medium speed, 3
rd
pull – low speed, 4
th
pull OFF.
• Check that the motor reversing switch is correctly engaged and set to left or right
position. Fan will not run if switch is in the middle.
• Confirm that the blades spin freely and that there are no obstructions between the
blades or into the motor housing. Turn off power at circuit breaker and at wall switch,
loosen the canopy, and check that all wiring connections from the household supply
wires to the fan wires are secure.
FAN IS NOISY:
• Make sure all screws are snug and secure including blade screws into the blade irons,
blade irons onto the motor, and screws on canopy and switch housing cover.
• Make sure all blades and blade irons are properly installed.
• Some ceiling fan motors are sensitive to solid state variable speed controls. If the fan is
controlled by these types of controls remove the control and replace it with a control
specifically designed for use with ceiling fans.
FAN WOBBLES:
• Make sure fan mounting bracket is securely tightened to the ceiling outlet box and the
ceiling box is securely fastened to the ceiling joist or other adequate support structure.
• Confirm that the hanger ball is properly seated in the mounting bracket. The tab in the
mounting bracket should be seated in the slot in the downrod ball.
• Make sure all blades are installed correctly and all screws are secure. Also confirm that
the two set screws in the downrod are tight in the yoke.
• Balance the fan blades using the blade balancing kit included with the fan.
WARNING: Before beginning any troubleshooting or maintenance work always shut off
the power supply to avoid electrical shock hazard.
LIMITED LIFETIME WARRANTY
Model Name: 42” Primo Ceiling Fan
Model No: 21400 (SKU 355-1600) Brushed Nickel
13
The limited lifetime warranty covers this ceiling fan, for residential use by the original purchaser, against defects
in material or workmanship as follows:
If your Patriot Lighting Ceiling Fan motor fails at any time during the lifetime of the original purchaser due to
defects in material or workmanship, we will provide a replacement part free of charge.
If your fan motor fails at any time within one year after the original date of sale to the original purchaser due to
defects in material or workmanship, we will provide labor to repair the defect, with the exception of take
down/reinstallation, free of charge. The original purchaser will be responsible for all labor costs after this one-
year period.
If no replacement parts are provided for any part of your fan motor that fails at any time during your lifetime
due to defects in material or workmanship, we will refund the original purchase price of your fan.
If your fan blades, pull chain switch, reverse switch, or any accessory, except glass globes and light bulbs, fails at
any time within one year after the original date of purchase due to a defect in material and workmanship, we
will repair or, if we choose, replace the defective blades, switch, or accessory free of charge, with the exception
of take down/reinstallation services.
If the original purchaser ceases to own the fan, this warranty and any implied warranty, including but not limited
to any implied warranty of merchantability or fitness for a particular purpose, become void. This warranty and
any implied warranty, including but not limited to any implied warranty of merchantability or fitness for a
particular purpose, do not cover glass globes, light bulbs, or finish on any metal portions of the fan.
This warranty is in lieu of express warranties. The duration of any implied warranty of merchantability or fitness
for a particular purpose, with respect to any Patriot Lighting Ceiling Fan motor, blades, switch, or accessories, is
expressly limited to the period of the express warranty set forth above for such motor, blades, switch, or
accessories.
This warranty excludes defects, malfunctions, or failures of any Patriot Lighting Fan that are caused by repairs by
persons not authorized by us, use of parts or accessories not authorized by us, mishandling, improper
installation, modifications, or damage to the fan while in your possession, or unreasonable use, including failure
to provide necessary maintenance.
To obtain service, contact the service department. You will be responsible for all insurance and freight or other
transportation charges to our factory or service center. A copy of the sales receipt is required in order to obtain
service. We will return your fan freight prepaid. Your fan should be properly packed to avoid damage in transit,
for we will not be responsible for any such damages.
In no event shall Patriot Lighting Fan be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in which case the
above limitation or exclusion may not apply.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
To obtain Service, please contact the Service Department: 1-877-459-3257, 8 a.m. – 5 p.m. Central Time.
