LIMITED LIFETIME WARRANTY
The limited lifetime warranty covers this ceiling fan, for residential use by the original purchaser, against defects in
material or workmanship as follows:
If your PATRIOT LIGHTING Ceiling Fan motor fails at any time during the lifetime of the original purchaser due to
defects in material or workmanship, we will provide a replacement part free of charge.
®
Model No.: # 355-0792
To obtain Service, please contact or call PATRIOT LIGHTING Service Department:
®
1-800-887-6326, 9 a.m.- 5 p.m. central time.
If your Fan motor fails at any time within one year after the original date of sale to the original purchaser due to defects
in material or workmanship, we will provide labor to repair the defect, with the exception of take down/reinstallation,
free of charge. The original purchaser will be responsible for all labor costs after this one year period.
If no replacement parts are provided for any part of your Fan motor that fails at any time during your lifetime due to
defects in material or workmanship, we will refund the original purchase price of your Fan.
If your Fan blades, remote control / pull chain switch, reverse switch, or any accessory, except glass globes and light
bulbs, fails at any time within one year after the original date of purchase due to a defect in material and workmanship,
we will repair or, if we choose, replace the defective blades, switch, or accessory free of charge, with the exception of
take down/reinstallation services.
If the original purchaser ceases to own the Fan, this warranty and any implied warranty, including but not limited to any
implied warranty of merchantability or fitness for a paticular purpose, become void. This warranty and any implied
warranty, including but not limited to any implied warranty of merchantability or fitness for a particular purpose, do not
cover glass globes, light bulbs, or finish on any metal portions of the Fan.
This warranty is in lieu of express warranties. The duration of any implied warranty of merchantability or fitness for a
particular purpose, with respect to any PATRIOT LIGHTING Ceiling Fan motor, blades, switch, or accessories, is
expressly limited to the period of the express warranty set forth above for such motor, blades, switch, or accessories.
This waranty excludes defects, malfunctions, or failures of any PATRIOT LIGHTING® Fan that are caused by repairs
by persons not authorized by us, use of parts or accessories not authorized by us, mishandling, improper installation,
modifications or damage to the Fan while in your possession, or unreasonable use, including failure to provide
necessary maintenance.
To obtain service, contact PATRIOT LIGHTING Service Department at 1-800-887-6326, 9AM-5PM CST. You will be
responsible for all insurance and freight or other transportation charges to our factory or service center. A copy of sales
receipt is required in order to obtain service. We will return your Fan freight prepaid. Your Fan should be properly
packed to avoid damage in transit, for we will not be responsible for any such damages.
®
®
In no event shall PATRIOT LIGHTING Fan be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in which case the above
limitation or exclusion may not apply.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
®
PAGE: 1 / 10
241230
13
15
16
17
14
3
2
6
7
9
10
11
12
8
4
5

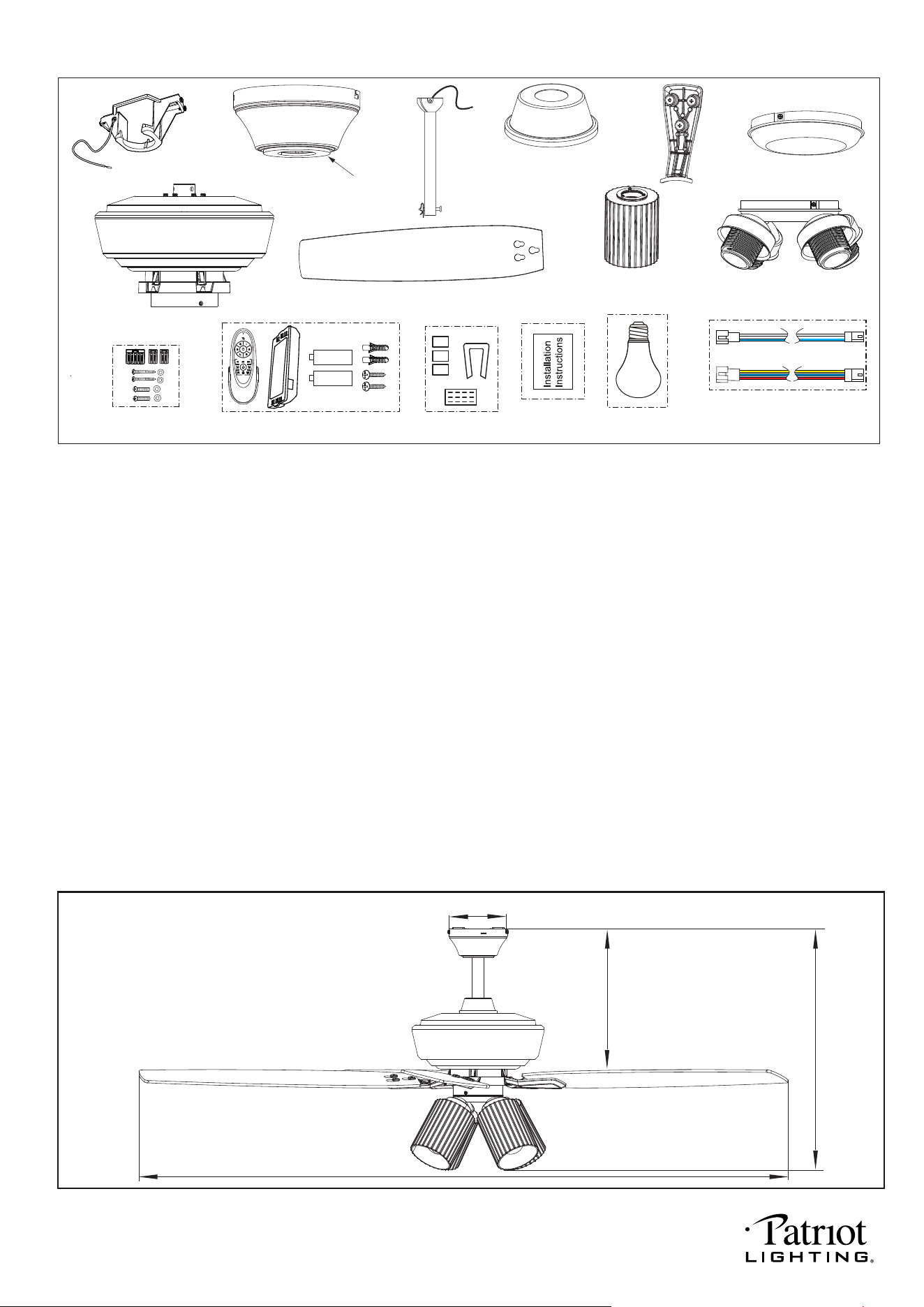

Unpack your fan and check the contents.
You should have the following items.
1.) Hanger Bracket
2.) Canopy
3.) Canopy Cover (Remove the Preassembled Canopy Cover from the Canopy Before Installation.）
4.) Downrod Set (Included Hanger Ball, 6” Downrod, Hanger Pin & Lock Pin)
5.) Downrod Stand Cover
6.) Blade Bracket (5 PCS)
7.) Switch Box Cover
8.) Fan Motor Assembly
9.) Blades (5 PCS)
10.) Glass Shade (4 PCS)
11.) Fan Light Kit
12.) Assembly Kit
13.) Remote Control Set (Included Receiver & Transmitter & Batteries & Screws)
14.) Blade Balancing Kit
15.) Installation Instructions
16.) 8W E26 (M) Base A19 Type LED Bulb (4 PCS)
17.) Lead Wires
Package Contents:
1
A. 21" B. 13" C. 60" D. 5"
Dimension Reference (Installed with 6" Downrod)
C
B
D
A
1.5V
1.5V
PAGE: 2 / 10
241230

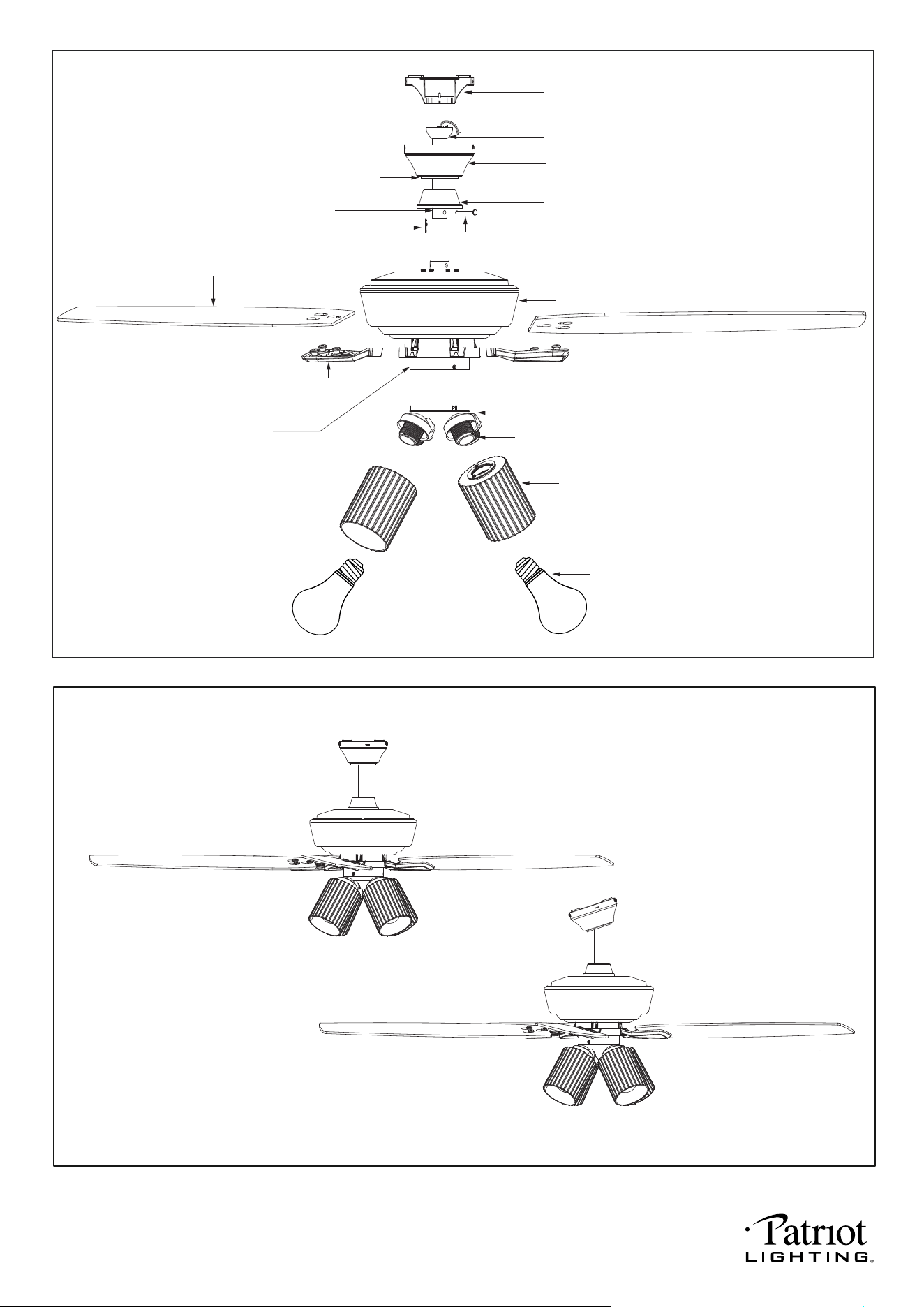

Downrod Mount
Sloped Ceiling Mount (Up to 23 degrees)
Dual Mount Drawing
Hanger Bracket
Hanger Ball
Canopy
Canopy Cover
Downrod Stand Cover
Lock Pin
Downrod
Hanger Pin
Fan Light Kit
Socket
Glass Shade
LED Bulb
Housing
Blade Bracket
Blade
Switch Box
PAGE: 3 / 10
241230
Safety Instructions
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN TO
INSTALL THE FAN AND SAVE INSTRUCTIONS.
•
All set screws of the fan must be checked and retightened where necessary before installation.
•
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets,
balancing the blades or cleaning the fan. Do not insert foreign objects between rotating fan blades.
•
Before changing the fan direction, turn off the fan and wait for the fan blades to stop completely.
•
The safeguards provided by these safety instructions and by the separate installation instructions
are not meant to cover all possible conditions and situations that may occur. It must be understood
that common sense, caution and care are factors which can not be built into this product. These
factors must be supplied by the person(s) installing, caring for and operating the fan.
WARNING
• TO AVOID RISK OF ELECTRIC SHOCK, BE SURE TO SHUT OFF POWER AT THE MAIN
FUSE OR CIRCUIT BREAKER BOX BEFORE INSTALLING OR SERVICING THIS
FIXTURE. TURNING OFF THE ELECTRICAL POWER BY USING THE LIGHT SWITCH
IS NOT SUFFICIENT TO PREVENT ELECTRICAL SHOCK.
•
TO REDUCE THE RISK OF INJURY, INSTALL THE FAN SO THAT THE BLADES ARE
AT LEAST 7 FEET (2.1 METERS) ABOVE THE FLOOR AND AT LEAST 18 INCHES
(0.5 METERS) FROM THE TIP OF THE BLADES TO THE WALL.
•
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED "ACCEPTABLE FOR FAN SUPPORT" AND USE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
•
THE INSTALLATION HAS TO BE IN ACCORDANCE WITH THE NATIONAL ELECTRICAL
CODE, ANSI/NFPA 70-1999 AND LOCAL CODES. IF YOU ARE UNFAMILIAR WITH THE
METHODS OF INSTALLING ELECTRICAL WIRING, SEEK THE SERVICES OF A
QUALIFIED LICENSED ELECTRICIAN.
PAGE: 4 / 10
241230

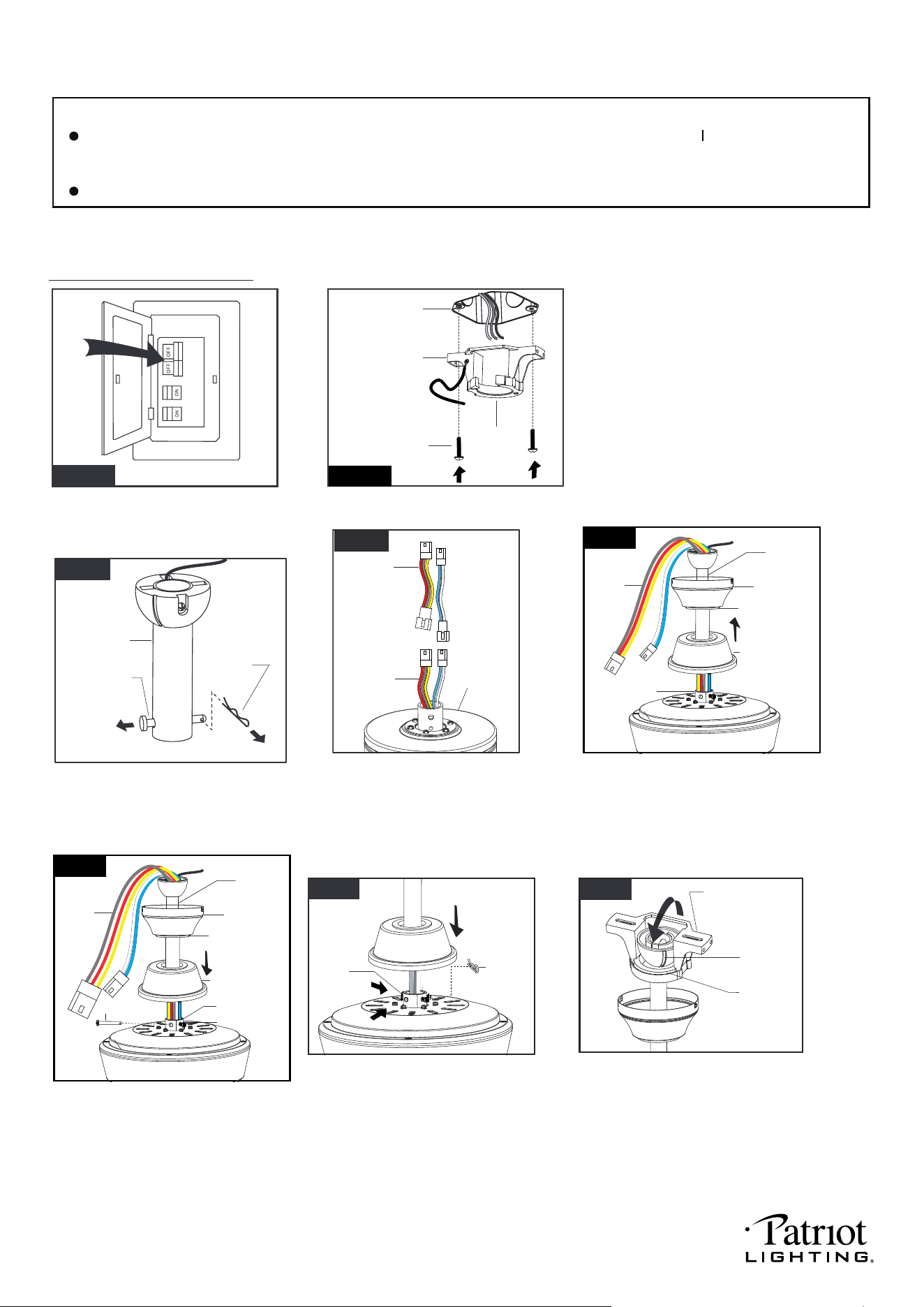

NOTE: The fan weight is 20.06 lbs (9.1 kg). Be sure the outlet box you are using is securely attached to the building
structure and can support the full weight of the fan. Failing to do so can result in serious injury.
Thread the motor wires through the
downrod stand cover, decorative
cap (Making sure the smooth side
of decorative cap is facing
downward.), canopy and downrod.
Loosen the collar screws out part
way. Insert the downrod into the
collar. Slide hanger pin through
holes of collar and downrod.
Hang the fan on hanger bracket, and
make sure the slot of hanger ball is
snapped into the chip of hanger
bracket exactly.
Note: For sloped ceiling installation,
make sure the slot of hanger ball and
the chip of hanger bracket face down.
Tighten the two collar screws.
Slide lock pin into hanger
pin until it is locked into position.
Installation Steps :
Fig.1
Turn OFF the electric circuit at the
main fuse or circuit breaker box.
Hanger Bracket
Fig.2
Outlet Box
Mounting Screw
Chip
Tighten the hanger bracket to the outlet
box with two mounting screws. (To reduce
the risk of fire, electric shock, or personal
injury, mount to an outlet box marked
"Acceptable for fan support" and use
mounting screws provided with the outlet
box.)
Note:
For sloped ceiling installation, make
sure that the chip of the hanger bracket
is toward the floor.
Fig.7
Lock Pin
Collar
Screws
Fig.8
Slot
Chip
Hanger Bracket
INSTALLATION INSTRUCTIONS
IMPORTANT:
BEFORE YOU BEGIN INSTALLING THE FAN, CAREFULLY READ ALL INFORMATION N THE SEPARATE
SHEET "SAFETY INSTRUCTIONS" AS WELL AS THE FOLLOWING "INSTALLATION INSTRUCTIONS". IF IN
DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
SAVE ALL INSTRUCTIONS.
Hanger Pin
Lock Pin
Fig.3
Downrod
Remove the lock pin from hanger
pin and remove the hanger pin
from the downrod.
Please connect the lead
wires when using over 6"
downrod.
Fig.4
Lead Wire
Motor Wire
Fan Motor
Assemly
Collar Screw
Fig.6
Motor
Wires
Downrod
Downrod Stand
Cover
Canopy
Decorative Cap
Collar
Hanger Pin
Collar
Fig.5
Motor
Wires
Downrod
Downrod Stand
Cover
Canopy
Decorative Cap
PAGE: 5 / 10
241230

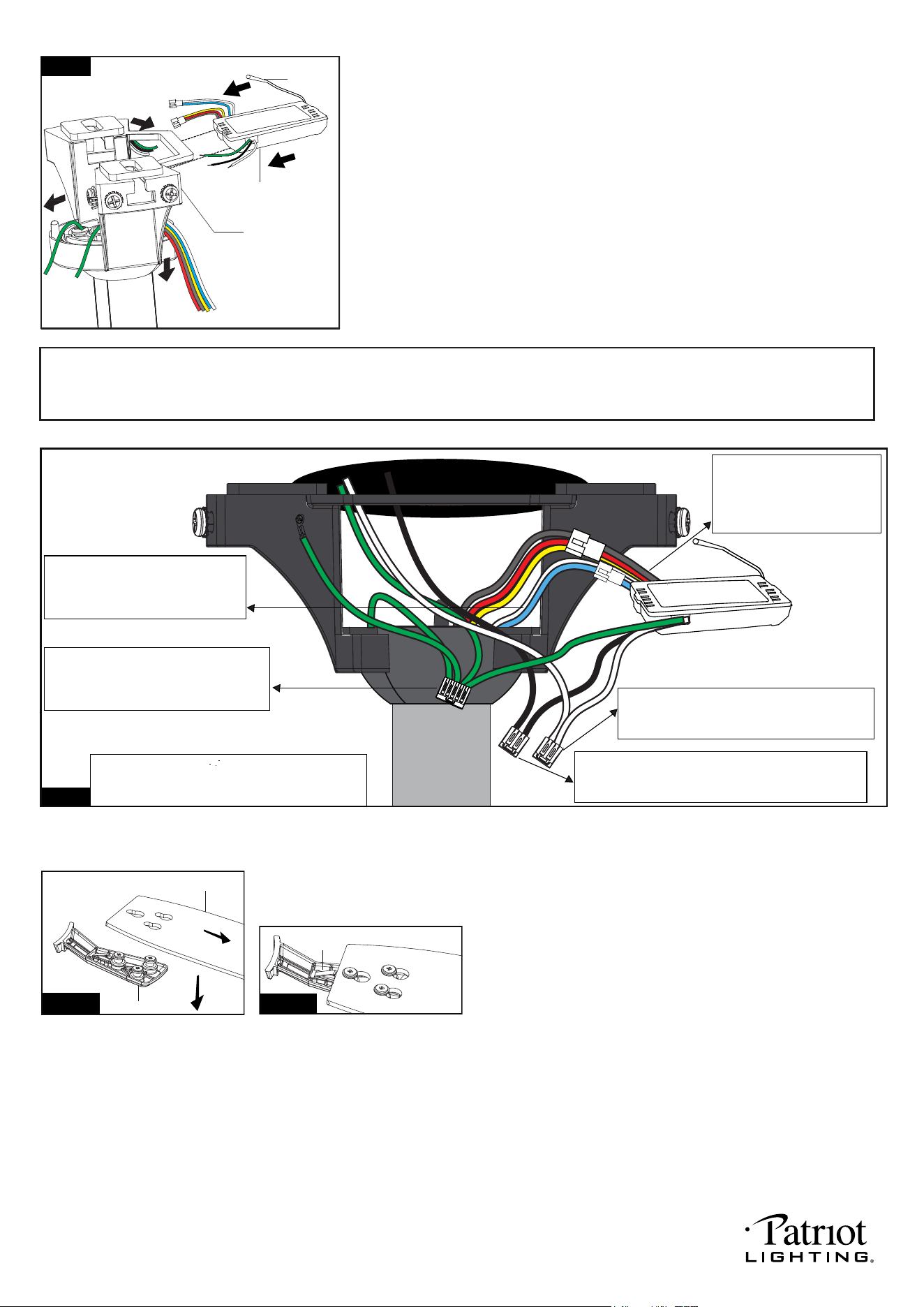

Note: Quick install feature: captured blade arms to motor slots and clips; turn-buckle blades;
lever wire connectors and twist-to-lock shades on the light kit. Ensure quick and simple
ceiling fan installation.
Connect the white (neutral) wire from receiver
to the white (neutral) wire from the outlet box
with a 2 pin lever wire connector.
Connect the black (hot) wire (This is for fan and light
control) from receiver to the black (hot) wire from
outlet box with a 2 pin lever wire connector.
Fig.10
*** The wire connection points should be turned
upward and pushed carefully up into outlet
box.
Connect the four ground wires (green or
bare copper) coming from outlet box,
receiver, downrod and hanging bracket
with a 5 pin lever wire connector.
Move ground wires (a), outlet box wires (b), and motor wires (c)
away from the center of the hanger bracket as shown.
Thread the antenna through the hanger bracket first, then thread
the receiver through the hanger bracket until it is placed in the center.
Connect the male terminal with two
wires from fan motor assembly to
the female terminal in receiver
(This is for light control).
Connect the male terminal
with three wires from fan
motor assembly to the female
terminal in receiver (This is
for motor control)
Receiver
a
c
b
Hanger Bracket
Antenna
Fig.9
Before install After install
Blade Bracket
Blade
Fig.11a
Fig.11b
Spring
Attach the blades to the blade brackets.
● Mount the fan blades to the blade brackets by aligning the three
key-slot holes in the blade with the three posts on the top of the
blade bracket.
● Hold the blade close to the blade bracket and press the blade
down firmly. Ensure key-slot holes are properly seated on the
blade bracket posts.
● While still holding the blade down, firmly slide the blade away
from the bracket side until the blade engages in the locking
mechanism. Make sure the locking mechanism at the rear
of the blade bracket springs upward and butts against the edge
of the blade indicating a secure connection.
● Repeat for the remaining blades.
PAGE: 6 / 10
241230
Install LED bulbs (included).
See relamping label at socket
area or packaging for maximum
wattage allowed.
Attach the glass shade onto
the socket, then rotate it
clockwise carefully until it
is locked in place. Repeat
for the remaining glass shades.
Fig.16
Socket
Glass Shade
4-8W A19 LED
Bulbs (included)
E26 A19 LED bulb
Max. 10W
Fig.17

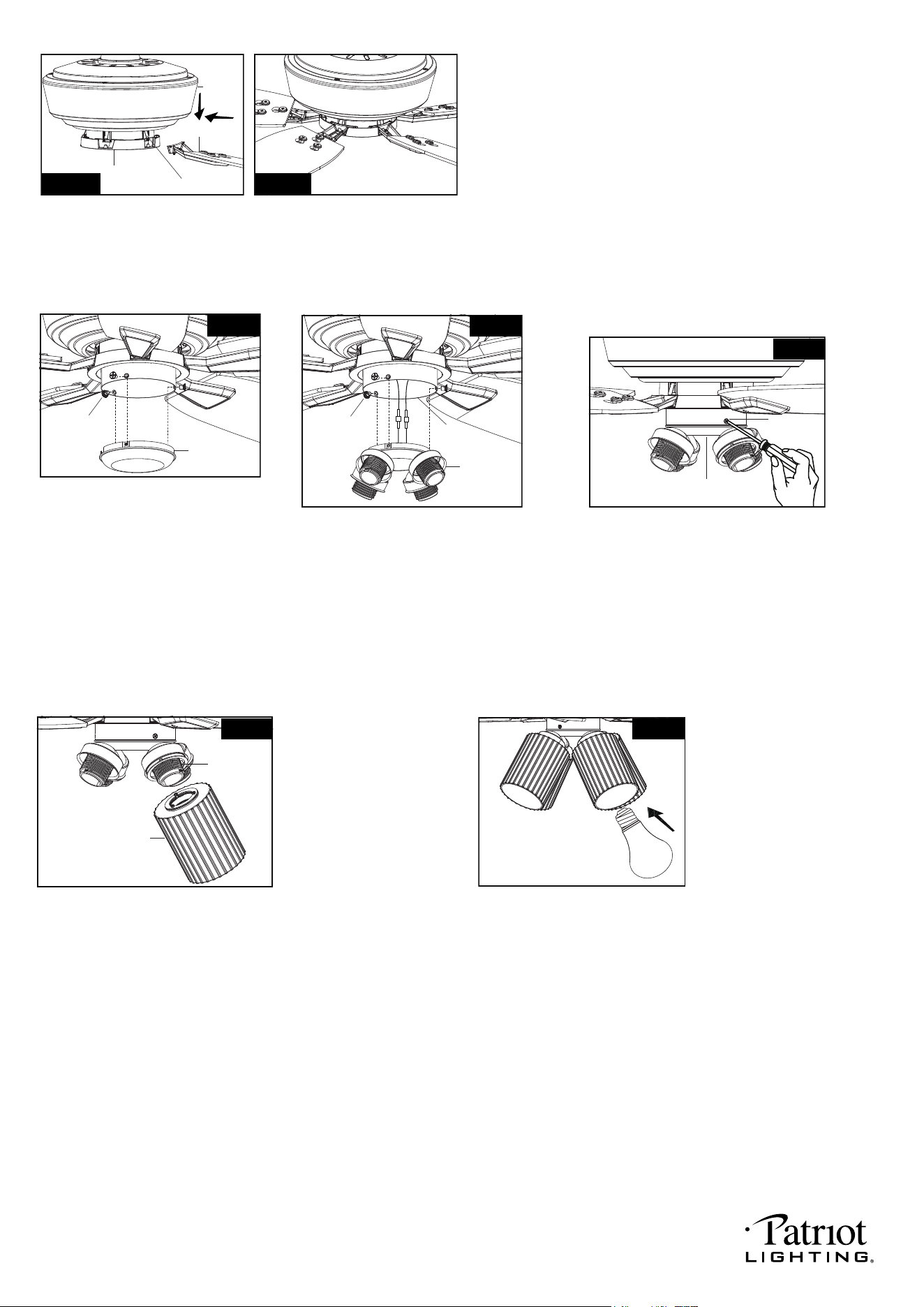

Unscrew the three switch box cover screws
from the fan light kit, then connect the
white (neutral) wire from the fan motor
assembly to white (neutral) wire from fan
light kit with a pin connector, connect the
blue (hot) wire from fan light to the
blue (hot) wire from fan motor assembly
with a pin connector.
Install without fan light Install fan light
Install the fan light kit onto the switch box with
the three switch box cover screws attached to
the fan light kit.
Unscrew the three switch box cover
screws from the switch box cover.
Secure the switch box cover into
switch box with the switch box cover
screws.
To install the fan light, skip this step
and proceed to Fig.14.
Switch Box
Cover
Switch Box
Cover Screw
Fig.13
Switch Box
Cover Screw
Fan Light
Kit
Fan Motor
Assembly
Fig.14
Switch Box
Cover Screw
Fig.15
Fan Light Kit
Before install After install
Blade Bracket
Spring
Blade
Bracket Ring
Housing
Fig.12a Fig.12b
Fasten the blade brackets to the motor.
Align and engage the blade bracket to the metal spring of
fan-motor assembly and then insert the blade bracket into
the slot of the blade bracket ring until the blade engages in
the locking mechanism. Make sure the locking mechanism
at the bottom side of the motor springs upward and butts
against the edge of the blade bracket indicating a secure
connection. Repeat this step for the remaining blade brackets
assemblies.
PAGE: 7 / 10
241230

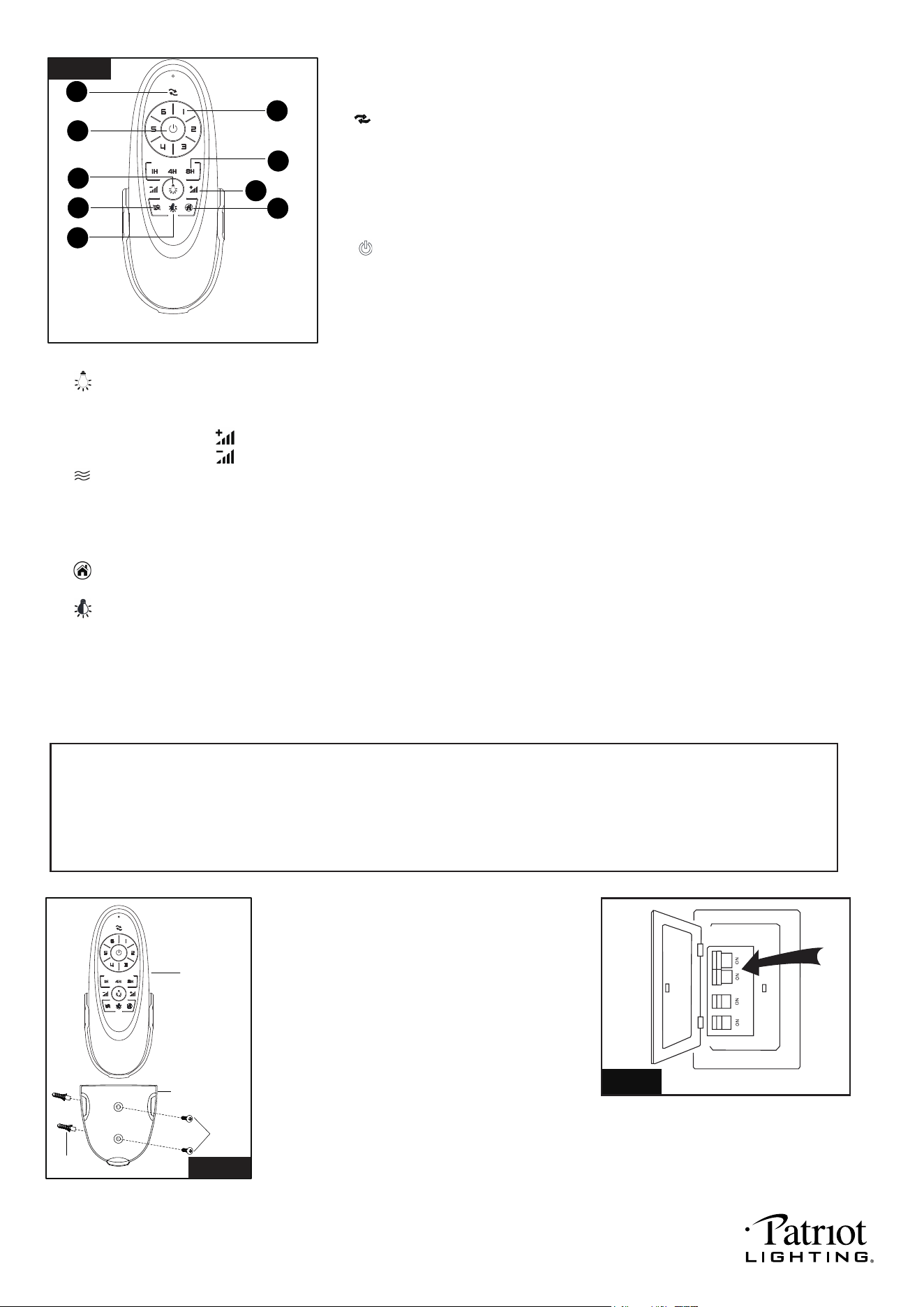

Transmitter
Wall Bracket
Anchor
Screw
Fig.19
Install the transmitter wall bracket on
the wall with two anchors and two screws
and place transmitter in it carefully.
Fig.20
Turn ON the electric power at the
main fuse or circuit breaker box.
Note:
1. This remote control has a memory function setting. The fan will operate at the same speed and the fan
light will stay at the same brightness-level as the last time the power supply was turned off.
2. Compatible with on/off function wall switch only.
Set the code:
Within the 10 second time frame after the main power is turned on, press and hold FAN OFF button for more than 3 seconds,
you will hear the indicator sound of swoosh from the receiver. Once the code is set successfully, the fan will turn off and the
light will turn on.
Note: The included transmitter was paired with the receiver at the factory with default settings, so no need to set
the code again. Go through these setup steps if you found your transmitter can’t communicate with the
receiver.
PAGE: 8 / 10
Remote control
Install two 1.5 volt batteries (type AAA, included) into the remote control.
The remote buttons function as below,
1. " " Reverse button:
Press this button to control fan direction.
Please wait, as the reverse function takes time to adjust.
2. Fan speed:
1 = minimum speed 2 = low speed
3 = medium low speed 4 = medium speed
5 = medium high speed 6 = high speed
3. " " Button:
Press this button to turn the fan off.
4. Timer Control:
Press the "1H", "4H" or "8H" timer button to turn off the fan and light for the selected
duration.
Press fan off button to stop the fan speed timer control. The fan will also turn off.
Press light off button to stop the lighting timer control. The light will also turn off.
Turn OFF the electric circuit at the main fuse or circuit breaker box to stop timer control.
1
3
7
5
2
4
6
8
9
Fig.18
Remote Control Transmitter
6. Dimmer Function
Press and hold the " " button to increase light to the desired level.
Press and hold the " " button to decrease light to the desired level.
7. " " Breeze button:
Press the breeze button to cycle the fan speed. The fan will cycle through all 6 speeds in 20 seconds. If the fan is off
the cycle will start at minimum "1" speed and increase until high speed "6" is reached, then cycle slowly back down to
minimum speed "1". Again, then repeat. If the fan is on then the breeze cycle will start at that speed. To stop this
function press any other fan speed or fan off button.
8. " " Vacation mode button:
Press the vacation mode button to turn on the light for 5 minutes every 2 hours. Any other button will turn off this function.
9. " " Light Off button.
Press this button quickly to turn off the light.
5. " " Light On button:
Press this button quickly to turn on the light.
241230
CAUTION: Make sure main power is turned off.
CAUTION: Make sure main power is turned off before entering switch box.
CAUTION: Make sure main circuit is turned off before entering switch box.
Troubleshooting Guide
PROBLEM
If you have diftficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation
or wiring. lf you experience any faults, please check this Troubleshooting Guide.lf a problem cannot be
remedied or you are experiencing dificulty in installation, please call our Customer Service Department
(1-800-887-6326).
SUGGESTED REMEDY
1. lf fan does not start:
1.Check main and branch circuit fuses or circuit breakers.
2. Make sure forward/reverse switch is firmly in bottom or top position. Fan will not
operate when switch is in the middle.
3. Make sure that the wall control is turned "ON".
4. Check line wire connections to fan and switch wire connections in switch box.
1. Make sure all screws in motor housing are snug. (not too tight)
2. Make sure the screws which attach the fan blade bracket to the motor are tight.
3. Make sure wire connectors in switch box are not rattling against each
other or against the interior wall of the switch box.
2. lf fan sounds noisy:
4. lf using an optional ceiling fan light kit, make sure the screws securing
the glassware are finger tight. Make sure light bulb is tight in socket and
not touching glass shade(s). lf vibration persists from glass, remove glass and
install a 1/4 in. wide rubber band on glass neck to act as an insulator. Replace
glass and tighten screws against rubber band.
5. Some fan motors are sensitive to signals from Solid State variable speed
controls. DO NOT USE a Solid State variable speed control.
6. Allow "break-in" period of 24 hours. Most noises associated with a new fan will
disappear after this period.
3. lf fan wobbles:
All blades are weighed and grouped by weight. Natural woods vary in density
which could cause the fan to wobble even though all blades are weight-matched.
The following procedures should eliminate most of the wobble. Check for wobble
after each step.
1. Check that all blades are screwed firmly into blade brackets.
2. Check that all blade brackets are tightened securely to motor.
3. Make sure that canopy and mounting plate are tightened securely to ceiling
junction box and junction box is mounted firmly to ceiling joist.
4. Most wobble problems of fan are caused when blades are not in equal level. To
check the blade levels, select a point on the ceiling above the tip of any blade.
Measure the distance from the ceiling to the blade tip, to an accuracy of 1/8
inch. Rotate the blades until the next blade is in the measuring position. Repeat
measurement for each blade. lf all blade levels are not equal, you can adjust
blade levels by the following procedure. To adjust a blade tip down, insert a
washer (not supplied) between the blade and blade bracket at the screw
closest to the motor. To adjust a blade tip up, insert washer (not supplied)
between the blade and blade bracket at the two screws farthest from the motor.
5. Interchanging two adjacent blades could redistribute the weight and possibly result
in smoother operation.
4. lf light does not work:
1. Check blue wire from fan to make sure it is connected to hot wire from supply wire
coming out of the ceiling.
2. Check for loose or disconnected wires in fan switch box.
3. Check for loose or disconnected wires in light kit.
4. Check for faulty light bulbs.
PAGE: 9 / 10
241230
DYNAMIC BLADE BALANCING KIT
PREFACE
Your ceiling fan may sometimes have wobbling problems when operating due to irregularity in the
blades or the blade brackets. Improper assembly in the mounting system may cause some additional
problems. This balancing kit can be used to fix wobbling problems.
DYNAMIC BLADE BALANCING KIT FOR CEILING FANS
1. Make sure that all blades are firmly screwed into the blade brackets.
2. Make sure that all blade brackets are firmly secured to the motor housing.
3. By looking up at the fan from below, check and be certain that none of the blade brackets are bent
and that none of the blades are out of position.

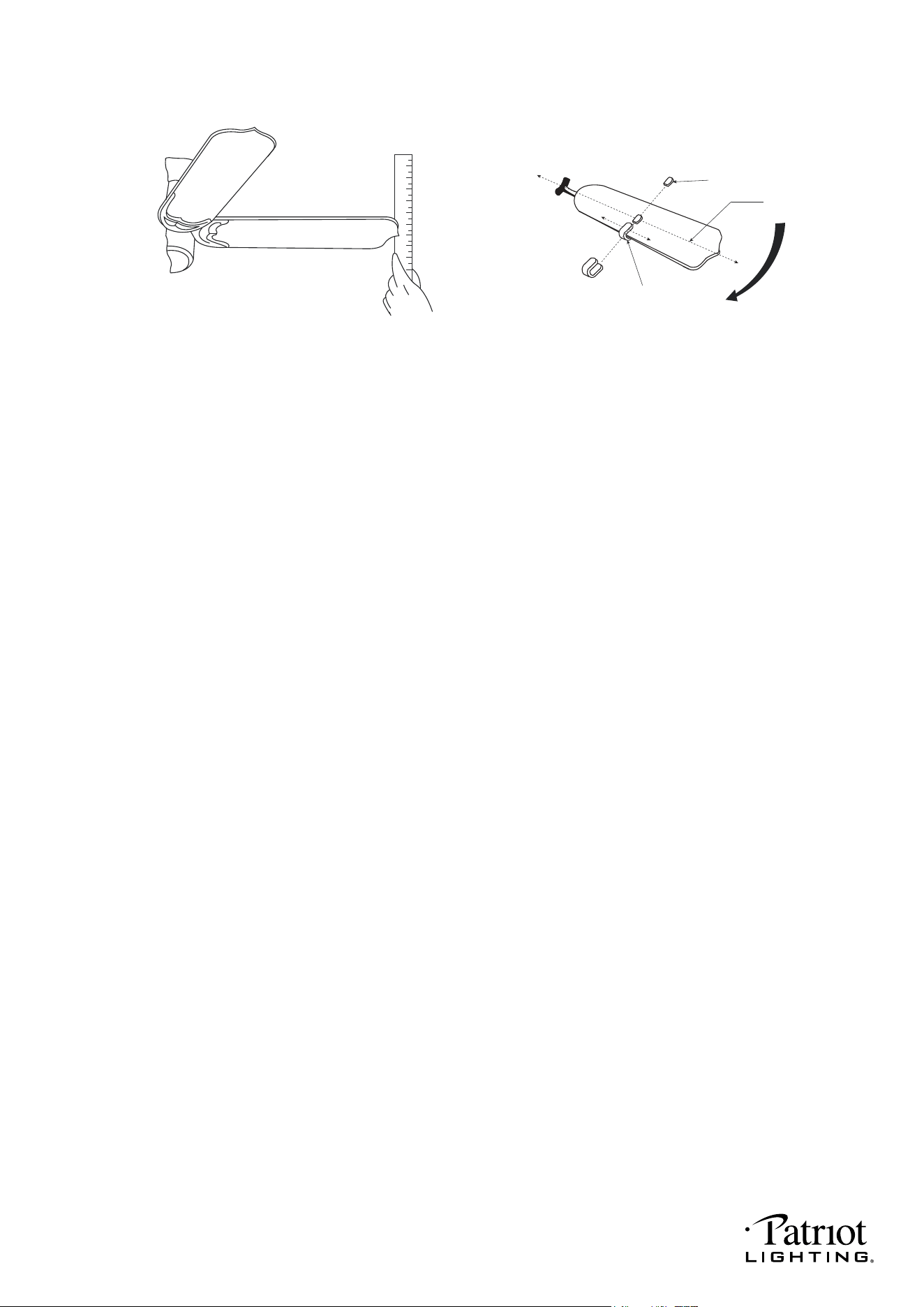

4. Use a yardstick to check the blade tracking. Put the yardstick up against the ceiling vertically and
against the outside leading edge of a blade. Note the distance of the edge of blade to the ceiling.
Carefully turn the blades slowly by hand to check the remaining blades. All distances should be
the same.
Operate the fan ten minutes. After following all the steps and if the wobbling problem is not solved, a
dynamic balancing needs to be done with balancing kit. Follow the procedure listed below:
● Turn the fan off. Select one blade and place the plastic clip on it, with the plastic clip located
halfway between the blade bracket and the blade tip on the edge of the blade.
Caution: The plastic clip should be placed on the windward edge of the blade for fear of
clip flying off.
● Turn the fan on (set the speed that causes the wobble most). Observe if the wobble is better or
worse. Turn the fan off and move the clip to the next blade. Do the same for all blades and note
on which blade the clip reduces the wobble most. Place the clip on the blade which showed the
most improvement. Move the clip inward and outward on this blade and operte the fan to find
the position where the clip gives the most improvement.
Caution: Stay clear of the blades. If the clip, for any reason, is not secure, injury could result.
● Once the exact position is determined, place a weight on the top of the blade, on its centerline and
as close as possible to the clip. Peel the paper off of the back of the weight and press firmly to
ensure that it is securely attached to the blade. Remove the clip.
Caution: Clean the surface of fan blade before placing the balancing weight so that the
balancing weight will be firmly attached to it.
BALANCING WEIGHT
MEASURING
POINT
YARDSTICK
PLASTIC CLIP
CENTERLINE
COUNTER-
CLOCKWISE
1
2
3
4
5
6
7
8
9
PAGE: 10 / 10
241230
