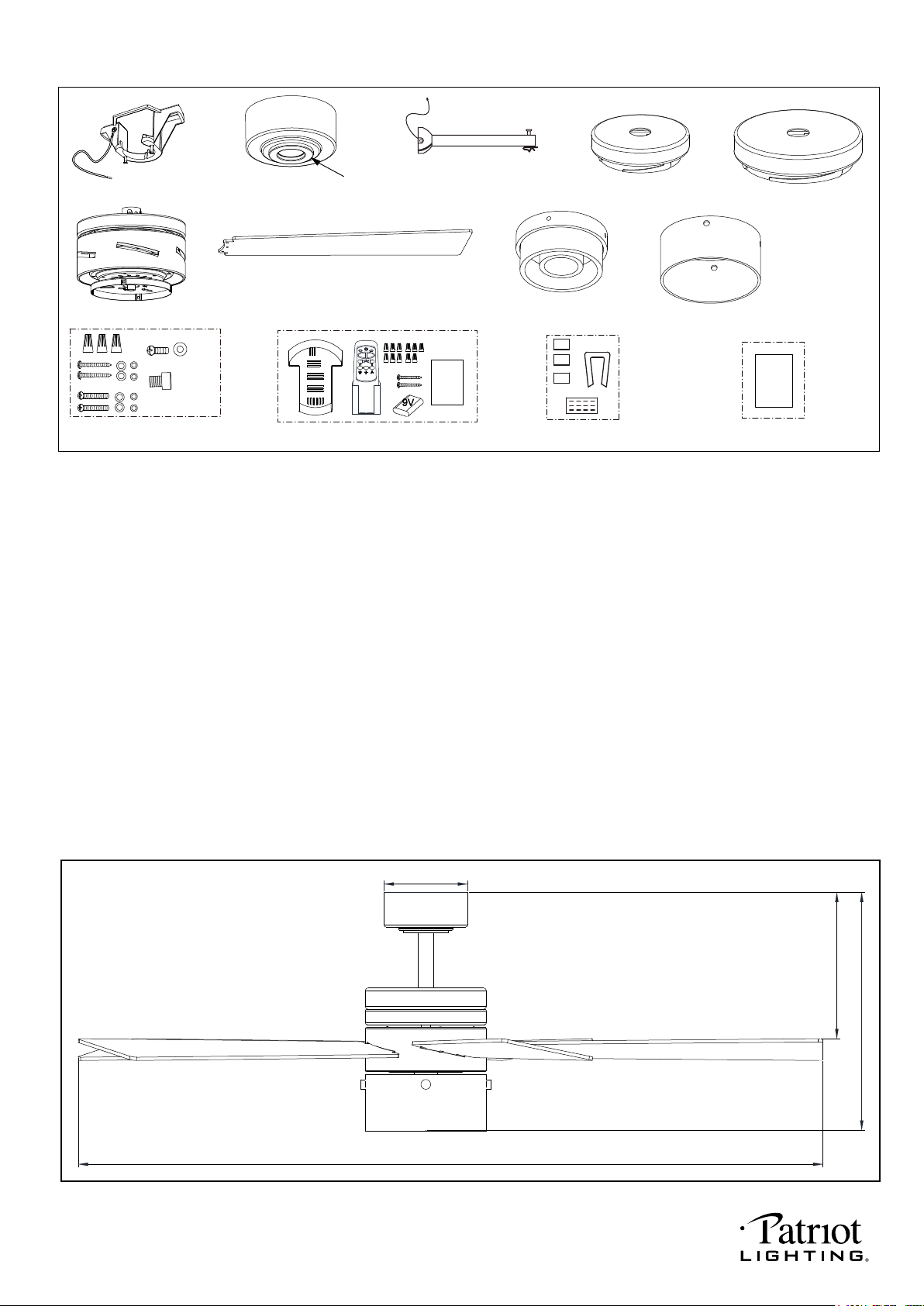

Unpack your fan and check the contents. You should have the following items.
1.) Hanger Bracket
2.) Canopy
3.) Decorative Cap (Remove the Preassembled Decorative Cap from the Canopy Before Installation.)
4.) Downrod Set (Included Hanger Ball, 6” Downrod, Hanger Pin & Lock Pin)
5.) Uplight Inner Shade
6.) Uplight Outer Shade
7.) Fan Motor Assembly
8.) Fan Blades (5 PCS)
9.) Light Kit with LED Module
11.) Assembly Kit
10.) Downlight Outer Shade
12.) Remote Control Set (Includes Receiver & Transmitter & Wire Connectors & Battery
& Screws & Remote Control Instructions)
1
3.) Blade Balancing Kit
14.) Installation Instructions
Package Contents:
1
Dimension Reference (Installed with 6” Downrod):
A. 15-1/2” B. 10-1/4” C.52” D. 5-1/2”
Installation
Instructions
PAGE: 2 / 9
X 16
X 4
Remote
Control
Instructions
C
B
A
D
220411
Downrod Mount
Sloped Ceiling Mount (Up to 23 degrees)
Dual Mount Drawing
PAGE: 3 / 9

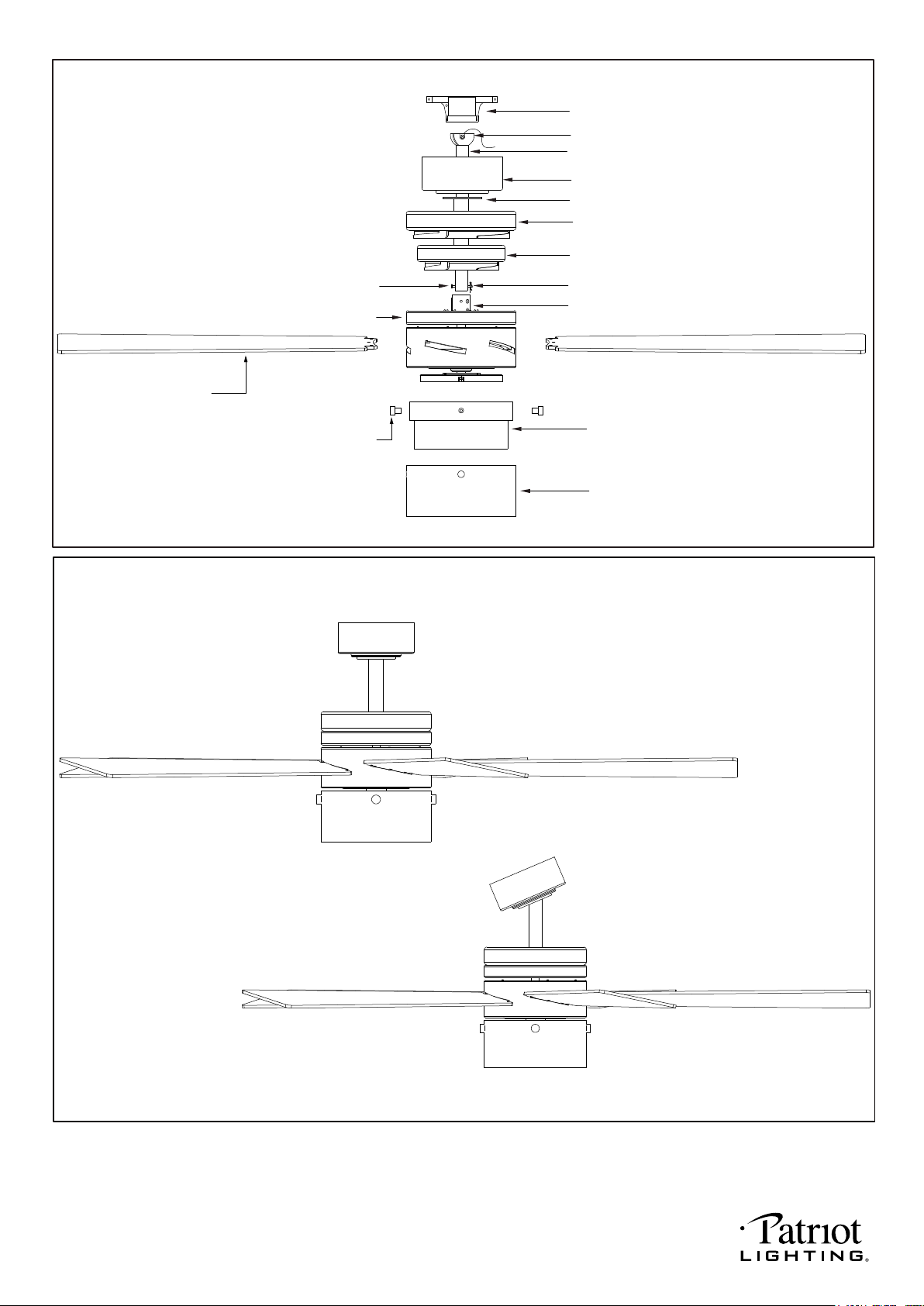

Exploded View Detail
Hanger Bracket
Hanger Ball
Downrod
Light Kit with LED Module
Canopy
Decorative Cap
Uplight Outer Shade
Downlight Outer Shade
Uplight Inner Shade
Lock Pin
Collar
Hang Pin
Fan Motor Assembly
Fan Blade
Decorative Screw
220411
PAGE: 4 / 9
Safety Instructions
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN TO
INSTALL THE FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets,
balancing the blades or cleaning the fan. Do not insert foreign objects between rotating fan blades.
The fan blades must be turned on and spinning. Then press reverse button on remote control to
change the fan direction.
The safeguards provided by these safety instructions and by the separate installation instructions are
not meant to cover all possible conditions and situations that may occur. It must be understood that
common sense, caution and care are factors which can not be built into this product. These factors
must be supplied by the person(s) installing, caring for and operating the fan.
TO AVOID RISK OF ELECTRIC SHOCK, BE SURE TO SHUT OFF POWER AT THE MAIN
FUSE OR CIRCUIT BREAKER BOX BEFORE INSTALLING OR SERVICING THIS
FIXTURE. TURNING OFF THE ELECTRICAL POWER BY USING THE LIGHT SWITCH
IS NOT SUFFICIENT TO PREVENT ELECTRICAL SHOCK.
TO REDUCE THE RISK OF INJURY, INSTALL THE FAN SO THAT THE BLADES ARE
AT LEAST 7 FEET (2.1 METERS) ABOVE THE FLOOR AND AT LEAST 18 INCHES
(0.5 METERS) FROM THE TIP OF THE BLADES TO THE WALL.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED "ACCEPTABLE FOR FAN SUPPORT" AND USE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
THE INSTALLATION HAS TO BE IN ACCORDANCE WITH THE NATIONAL ELECTRICAL
CODE, ANSI/NFPA 70-1999 AND LOCAL CODES. IF YOU ARE UNFAMILIAR WITH THE
METHODS OF INSTALLING ELECTRICAL WIRING, SEEK THE SERVICES OF A
QUALIFIED LICENSED ELECTRICIAN.
WARNING
220411
NOTE: The fan weight is 17.42 lbs (7.9 kg). Be sure the outlet box you are using is securely attached to the building
structure and can support the full weight of the fan. Failing to do so can result in serious injury.
INSTALLATION INSTRUCTIONS
IMPORTANT:
BEFORE YOU BEGIN INSTALLING THE FAN, CAREFULLY READ ALL INFORMATION IN
SAVE ALL INSTRUCTIONS.
Secure the uplight outer shade onto
fan motor assembly by aligning studs
and slots, and turn clockwise until it is
locked in place.
Secure the uplight inner shade
onto fan motor assembly by
aligning studs and slots, and
turn clockwise until it is locked
in place.
Tighten the two collar screws.
Slide lock pin into hanger pin until
it is locked into position.
Installation Steps:
THE SAFETY
INSTRUCTIONS AND INSTALLATION INSTRUCTIONS. IF IN DOUBT, CONSULT A QUALIFIED
ELECTRICIAN.
PAGE: 5 / 9
Thread the motor wires through the
uplight inner shade, uplight outer
shade, decorative cap (Making sure
the smooth side of decorative cap is
facing downward.), canopy and
downrod.
Loosen the collar screws out part way.
Insert the downrod into the collar.
Slide hanger pin through holes of
collar and downrod.
Fig.1

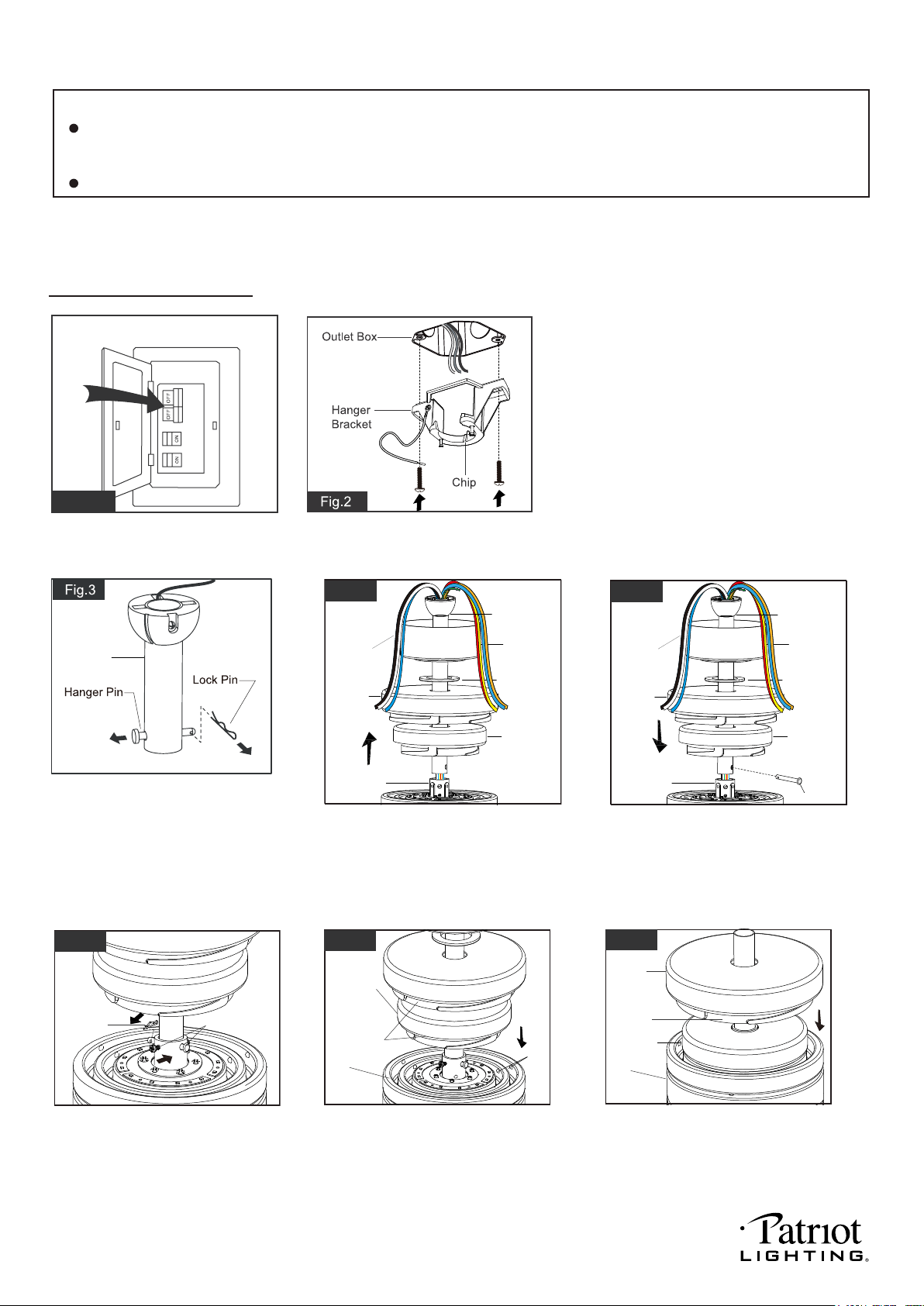

Turn OFF the electric circuit at the
main fuse or circuit breaker box.
Canopy
Uplight
Outer
Shade
Decorative
Cap
Collar
Fig.4
Downrod
Uplight
Inner
Shade
Motor Wires
Canopy
Uplight
Outer
Shade
Decorative
Cap
Collar
Fig.5
Downrod
Uplight
Inner
Shade
Motor Wires
Hanger Pin
Lock Pin
Collar Screws
Fig.6
Slot
Stud
Uplight
Inner
Shade
Fig.7
Fan
Motor
Assembly
Slot
Stud
Fig.8
Uplight
Outer
Shade
Fan
Motor
Assembly
Fan
Motor
Assembly
Remove the lock pin from the
hanger pin and remove the
hanger pin from the downrod.
Downrod
220411
Note: For sloped ceiling installation, make
sure that the chip of the hanger bracket
is toward the floor.
Separate the hanger bracket from the decorative
cap and canopy by rotating counterclockwise.
Attach the hanger bracket to the outlet box with
two mounting screws. (To reduce the risk of fire,
electric shock, or personal injury, mount to an
outlet box marked "Acceptable for fan support"
and use mounting screws provided with the
outlet box.)
Fig.9
Slot
Hanger
Bracket
Chip
Move ground wires (a), outlet
box wires (b), and motor
wires (c) away from the center
of the hanger bracket as shown.
Thread the antenna through the
hanger bracket first, then thread
the receiver through the hanger
bracket until it is placed in the
center. Finally, cut motor
wires (c) to length needed for
connections.
Black
Black
Black
Black

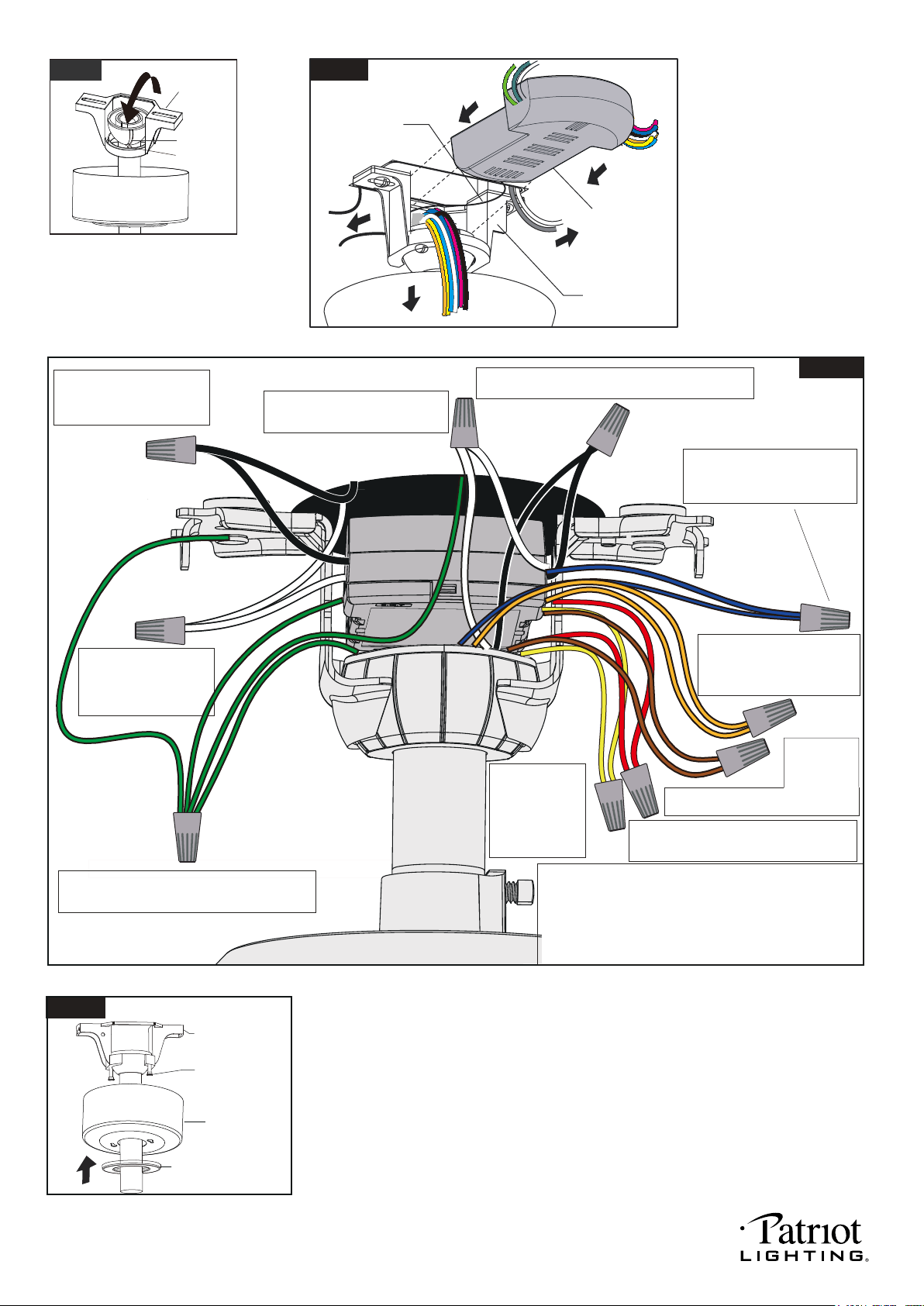

Connect the white wire from receiver
to the white wire from motor with a
wire connector.
Connect the black wire from receiver to the black wire
from motor (This is for fan control) with a wire connector.
White
White
White
White
Connect the blue wire from receiver
to the blue wire from motor (This is
for downlight control) with a wire
connector.
Connect the orange wire from
receiver to the orange wire from
motor (This is for reversible .
function) with a wire connector.
Connect the red wire from receiver to the red
wire from motor (This is for uplight control) with
a wire connector.
Connect the
brown wire
from receiver
to the brown
Connect the yellow
wire from receiver
to the yellow wire
from motor (This
is for reversible
function) with a
wire connector.
Connect four ground wires (Green or bare copper)
coming from outlet box, downrod, hanging bracket
and receiver of remote control with a wire connector.
Connect the white (neutral)
wire from receiver to the
white (neutral) wire from
the outlet box with a
wire connector.
Connect the black (hot) wire
from receiver to the black (hot)
wire from outlet box with a wire
connector.
*** After making the wire connections, the wires should be spread
apart. The white (neutral) conductor from receiver and outlet
box with green (grounding) conductor on one side; the black
(hot) conductor from receiver and outlet box with the white,
black, blue, orange, brown, red and yellow conductor from
receiver and motor on the other side of the outlet box.
*** The wire connection points should be turned upward and
pushed carefully up into outlet box.
Fig.11
Slide the canopy up to ceiling and over the two canopy screws on hanger
bracket. Rotate canopy clockwise, next, while holding the canopy with one
hand, slide the decorative cap over the screws and rotate clockwise until tight.
Note: Adjust the canopy screws as necessary until the canopy and
canopy cover are snug.
Fig.12
Canopy Screw
Hanger Bracket
Canopy
Decorative Cap
Green
Green
Blue
Blue
Orange
Brown
Red
Yellow
Fig.10
Antenna
Receiver
Hanger Bracket
a.
c.
b.
Hang the fan on hanger bracket, and
make sure the slot of hanger ball is
snapped into the chip of hanger
bracket exactly.
Note: For sloped ceiling installation,
make sure the slot of hanger ball and
the chip of hanger bracket face down.
PAGE: 6 / 9
wire from motor (Both for uplight and
downlight control) with a wire connector.
220411

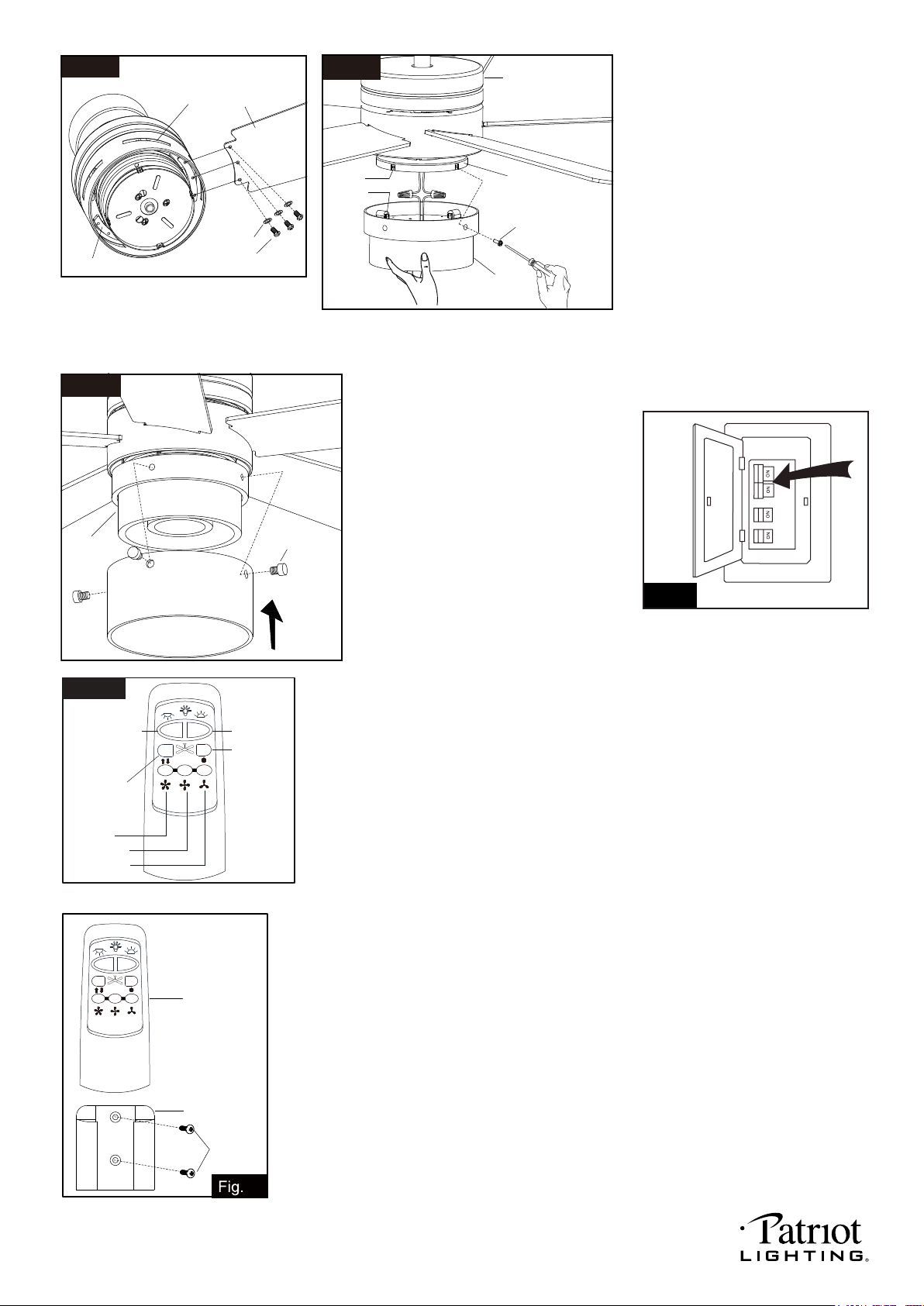

Insert the blade into blade holder
according slot then tighten blade to
blade holder by using blade screws
and washers.
Repeat to other blades.
Remove four screws from connect plate
of light kit first. Then connect the white
(neutral) wire from the light kit to white
(neutral) wire from connect plate of light
kit with a wire connector; connect the
black (hot) wire from light kit to blue (hot)
wire fromconnect plate of light kit with a
wire connector. Carefully put the wires
into the connect plate of light kit. Align
and engage the side studs of light kit to
the side slots of connect plate of light kit
then fix them together with the pre-installed
connect plate screws provided. In order to
adjust the light kit, the connect plate screws
can’t be tightened.
PAGE: 7 / 9
Fig.16
Turn ON the electric circuit at the
main fuse or circuit breaker box.
Install the battery (9V, included) into the transmitter.
* Press "HI" button to turn on the fan at high speed.
* Press "MED" button to turn the fan in medium speed.
* Press "LOW" button to turn the fan in low speed.
* Press "FAN OFF" button to turn off the fan.
* Press "REVERSE" button to set direction of fan rotation.
The fan speed will slow down until the fan is turned off and it will restart by spinning in
the reverse direction and resume the previously selected speed setting.
* Press "UPLIGHT ON/OFF/DIMMER " button to turn on or turn off the uplight, and hold
this button to dim or brighten lights to the desired level and release, and the brightness
level will be memorized. Turn on the light again, then up fan light will be restored to the
brightness-level at which it was dimmed last time.
* Press "DOWNLIGHT ON/OFF/DIMMER " button to turn on or turn off the downlight, and
hold this button to dim or brighten lights to the desired level and release, and the
brightness level will be memorized. Turn on the light again, then down fan light will be
restored to the brightness-level at which it was dimmed last time.
Note:
1. This remote controller has a memory function setting. The fan will operate at the same
speed and the fan light will stay at the same brightness-level as the last time the power
supply was turned off.
2. The uplight and downlight can work independently of each other.
3. This ceiling fan can not be used along with a solid-state speed control whether the fan light
will be burnout.
Set the code:
Within the 10 seconds time frame after the main power is turned on, press and hold FAN
OFF button more than 3 seconds. The downlight will begin to flash. Once set code
successful, the fan turned off and the light turned on.
Note: Included transmitter matched with receiver was the factory default Settings, no need to
set the code again. Go through these setup steps if you found your transmitter can’t match
with receiver.
Transmitter
Wall Bracket
Screw
18
Fig.17
HI
MED
DOWNLIGHT
ON/OFF
/DIMMER
REVERSE
UPLIGHT
ON/OFF
/DIMMER
FAN OFF
LOW
Align and engage the hole of downlight outer
shade to the side hole of light kit, then secure
them together with the decorative screws
which provided in assembly kit by your hand.
Blade
Fig.13
Blade Screws
Blade Holder
Slot
Washers
Light Kit
Decorative
Screw
Downlight Outer Shade
Fig.15
Connect Plate
of Light Kit
Connect Plate
Screws
Fan Motor
Assembly
Stud
Slot
Fig.14
Light Kit with
LED Module
Install the transmitter wall bracket on the wall with two screws
and place transmitter in it carefully.

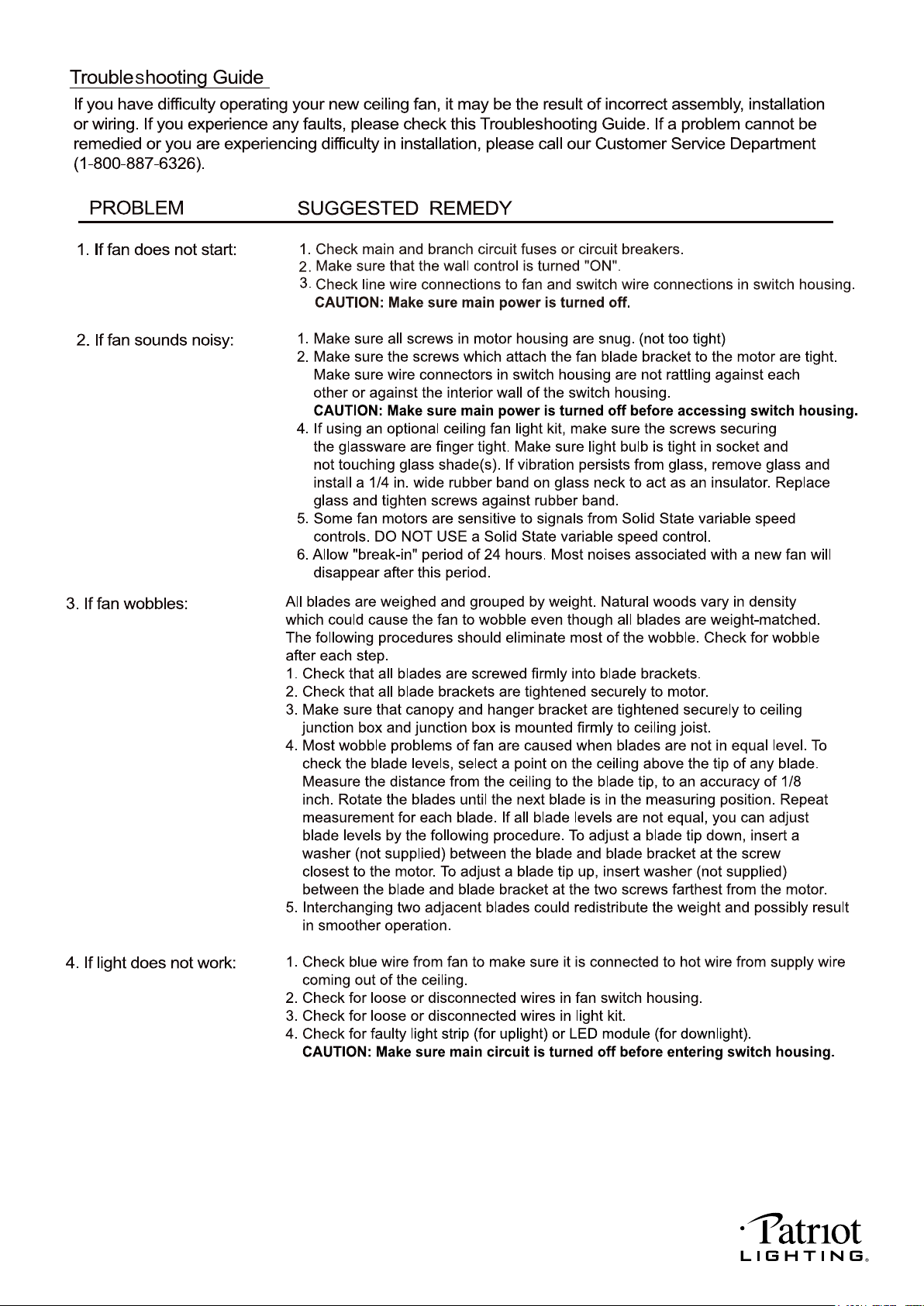

220411
PAGE: 8 / 9

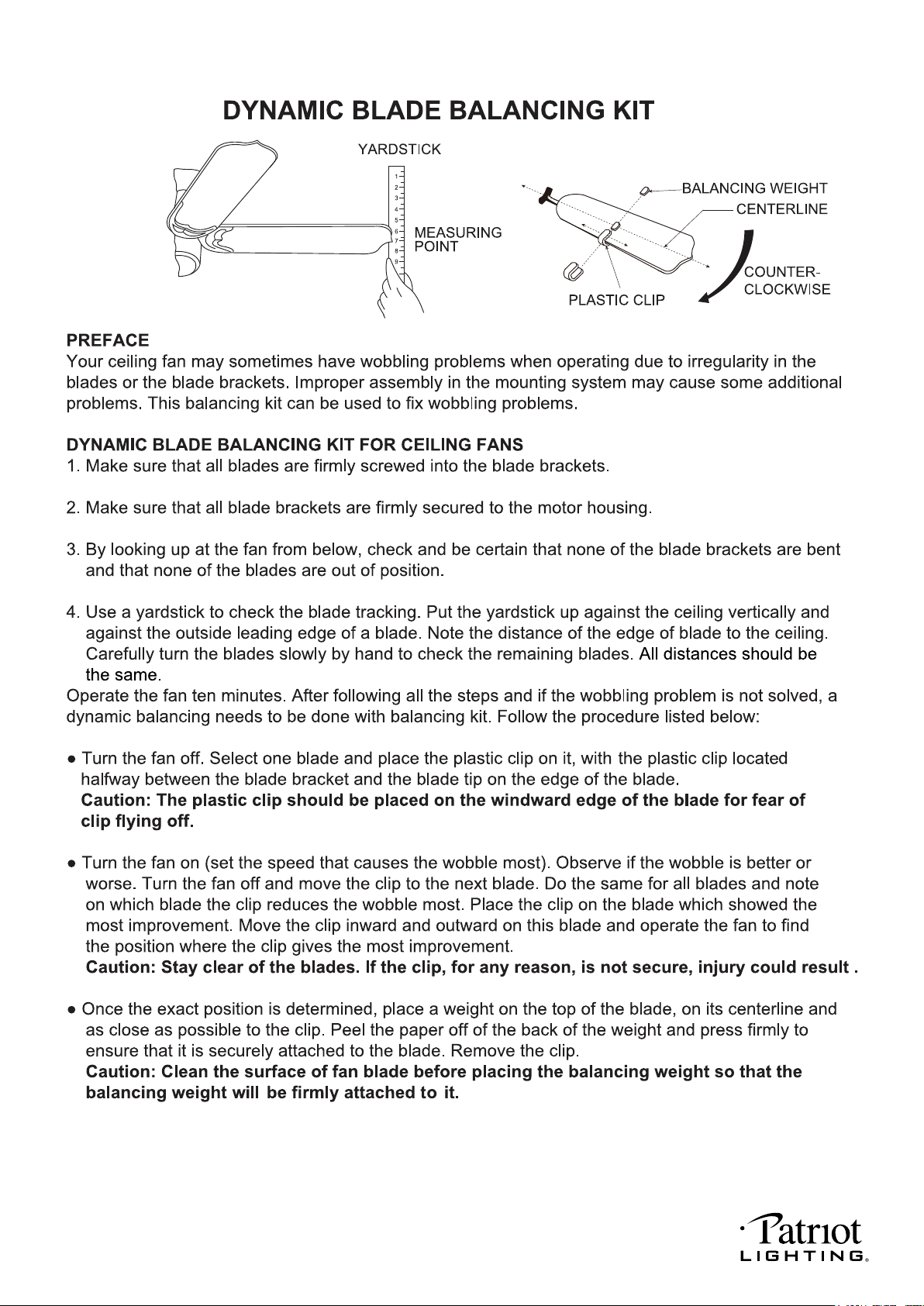

220411
PAGE: 9 / 9
220411
