PACKAGE CONTENTS
SAFETY INFORMATION
• WARNING: Failure to install and wire fixture in accordance with the National Electrical Codes (NEC), all applicable Federal, State and Local
electrical codes, as well as specific U.L. safety standards for the intended working environment (location/application), may cause serious
personal injury, death and/or property damage. This product must be installed by a person familiar with the construction and operation of the
product and the hazards involved.
• WARNING: Risk of fire and electrical shock. The lights installation requires knowledge of luminaires electrical systems. If not qualified, do
not attempt installation.Contact a qualified electrician.
• WARNING: Risk of fire or electric shock. Do not alter, relocate or remove wiring, power supply or any other electrical components.
• WARNING: To prevent electrical shock, please wear rubber shoes and work gloves when installing the lights.
• WARNING: Risk of electric shock. Disconnect power at fuse or circuit breaker before installing or servicing.
• WARNING: Risk of fire. Keep the lamp heads at least 3 in. (76mm) from combustible materials.
• CAUTION: Burn hazard. Allow the light fixture to cool before touching.
• CAUTION: For wall mount installation only.
• CAUTION: Suitable for wet locations.
• CAUTION: Do not use this fixture with a dimmer switch.
• CAUTION: Minimum 90°C supply conductors.
• CAUTION: Fixture designed for wall mount above 4 ft. only. Mount fixture to a grounded standard junction box marked for use in wet
locations.
Important Note: The safeguards and instructions are not meant to cover all possible conditions and situations that may occur. It may be
understood that common sense, cautions and care, are factors which cannot be built into any product. The person(s) installing, operating and
responsible for the light fixture must execute these factors.
G
H
Screw
x 2
Waterproof Ring
x 1
Wire Nut
x 2
Read all instructions before installation, then store in a safe place for future reference. Failure to do so
may result in faulty assembly and potential injury.
D
Threaded Tube
x 1
Light Fixture Nut
x 1
A
Light Fixture
x 1
B
Junction Box Bracket
x 1
C
Screw
x 2
E
F
Sku Number: 356-9451 / 356-9452
LED Wall Light
Model Number: ES00997G - Bronze / ES00998G - White
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 855-232-6423
Monday – Friday 8:00 a.m. – 8:00 p.m. (EST)
1
CAUTION: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limited for Class B digital device, pursuant to Part 15 of the FCC Rules.
Their limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If the equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and the receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
2
8. Turn on the power and check
the light function.
5. Remove the light shade from the
light towards anti-clockwise
direction.
OPERATIONAL INSTRUCTIONS
Dusk-to-dawn operation enables the light fixture to automatically turn ON when dark outside and turn OFF when the sun rises, thus saving you
energy.
TIP: To test if the light fixture and photocell works properly run power to the fixture and cover the photocell to turn fixture ON. Shine a light into
the photocell to see if fixture turns OFF.
Note: If photocell on the top of the light fixture is located in an area under heavy shade the photocell may not detect enough light and turn the
light fixture on.
6. Place all power cords into the
junction box, insert the back hole of
the light into the Threaded Tube,
then screw the Light Fixing Nut (D)
with Waterproof Ring (E) tightly.
7. Clip the light shade into the
groove of the light and rotate it
towards clockwise direction to
tighten it. Caulk around the light
base and mounting surface with
silicone sealant (not included).
FEATURES:
Photocell control: At night,turns light ON automatically and turns light OFF automatically when the sun rises.
Lumens output: 1,000 lumens / 5,000K .
Note: Photocell may have a few minutes delay, to reduce it's sensitivity to sudden light changes. When testing shine a light/cover the photocell
for a few minutes to check if fixture functions properly.
INSTALLATION AND OPERATION INSTRUCTIONS
2. Place the Threaded Tube (C)
clockwise into the Junction Box
Bracket (B).
CLEANING AND MAINTENANCE
• CAUTION: Before attempting to clean the fixture, disconnect the power to the fixture by turning the breaker off or removing the fuse from the
fuse box.
• Clean the fixture with a soft, dry cloth.
• Do not use any cleaners with chemicals, volatile solvent or harsh abrasives.
• Non-professional Do not attempt to take apart and repair the fixture .
• Please use the constant-current driver exclusively adaptive to the troffer, do not change the driver without permission .
PREPARATION: Tools required for assembly (not included): Philips screwdriver, hammer, safety goggles, power drill, silicone sealant and
ladder.
LOCATION: Fixture can be wall mounted.
Fixture designed for wall mount above 4 ft. only. Mount fixture to a grounded standard junction box marked for use in wet locations. Suggest to
install the light fixture between 5 ft. and 8 ft.above the ground.
INSTALLATION
• Before installing the light fixture, ensure that all parts are present. Compare parts with the Hardware Included and Package Contents
sections. If any part is missing or damaged, do not attempt to assemble, install, or operate this light fixture.
• Turn off the power before installation,remove the old light fixture if necessary.Open the hole on the mounting surface according to the size of
fixture.
• When mounting fixture, for Dusk to Dawn operation, make sure the photocell orientation is at the top for wall mount, in an area that receives
daylight and not too close to reflective surfaces.
Estimated installation time: 10 minutes.

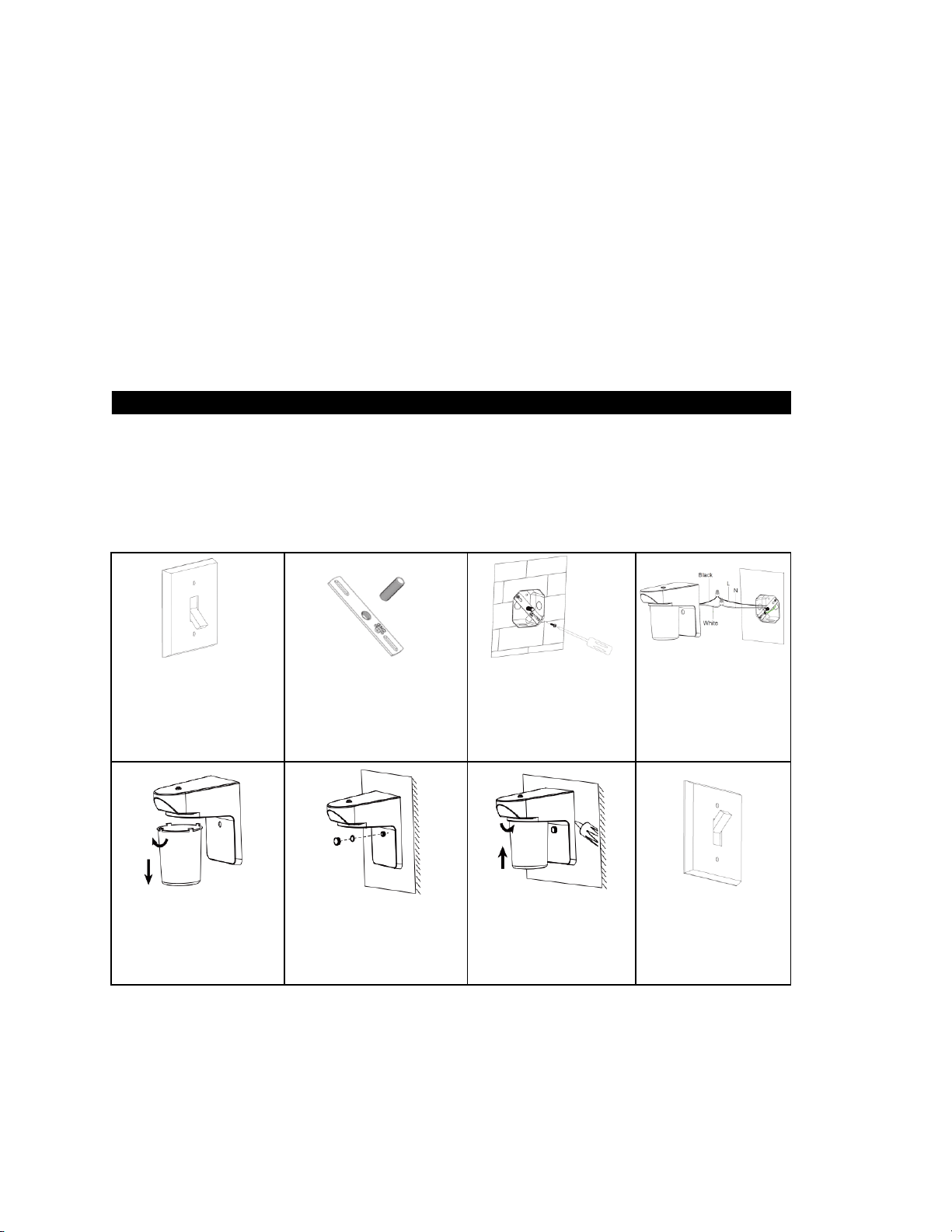

1. Turn off the power and take off
the original light fixture.
3. Line up the holes on the
Junction Box Bracket (B) with the
holes on your junction box. Using
the two screws (G or H) that best
fit the outlet box attach the
Junction Box Bracket (B) to your
junction box and fix tightly.
4. Making the electrical connections
using attached two
Wire Nuts (F). Make sure the wire
connection polarity is correct.
* White to white
* Black to black
* Ground on Junction Box Bracket
to house ground
3
4
Light stays ON
The light fixture is wired through an unsuitable
dimmer.
Light sensor is in a shaded area.
Replace the dimmer switch to a standard
ON/OFF wall switch.
Shine a flashlight into the light sensor and wait
a couple minutes. If the light turns OFF, the
fixture should be moved to a location with
enough light in the daylight hours for the light
sensor to work.
TROUBLESHOOTING
Light cycles ON and OFF
continuously
Photocell light sensor is sensing reflected light.
Relocate light fixture to a location where there is
no reflected light.
Light FLICKERS
Problem
Possible Cause
Solution
Light does not
turn ON
No power to the fixture.
Check if circuit breaker is tripped and confirm
wall switch is ON.
Verify wiring to fixture is correct (turn power off
to fixture beforehand).
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 855-232-6423
Monday – Friday 8:00 a.m. – 8:00 p.m. (EST)
5
