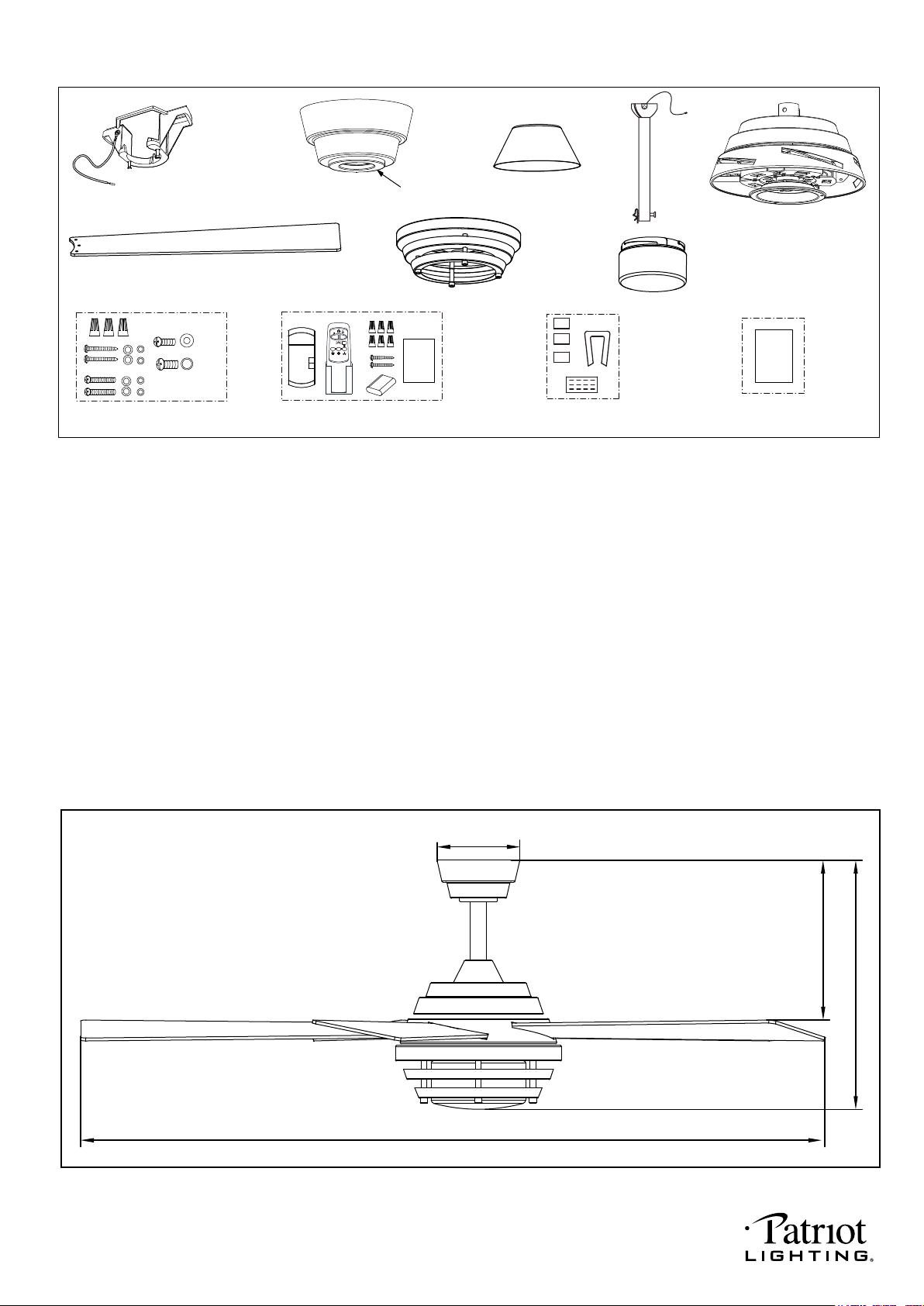

Unpack your fan and check the contents. You should have the following items.
1.) Hanger Bracket
2.) Canopy
3.) Decorative Cap (Remove the Preassembled Decorative Cap from the Canopy Before Installation.)
4.) Downrod Stand Cover
5.) Downrod Set (Included Hanger Ball, 6” Downrod, Hanger Pin & Lock Pin)
6.) Fan Motor Assembly
7.) Fan Blades (5 PCS)
8.) Light Kit with LED Module
9.) Glass Shade
10.) Assembly Kit
11.) Remote Control Set (Includes Receiver & Transmitter & Wire Connectors & Battery
& Screws & Remote Control Instructions)
1
2.) Blade Balancing Kit
13.) Installation Instructions
Package Contents:
1
Dimension Reference (Installed with 6” Downrod):
A. 15-3/4” B. 10-5/8” C.52” D. 5-1/8”
Installation
Instructions
PAGE: 2 / 11
Remote
Control
Instructions
9V
C
D
B
A
X 16
220322

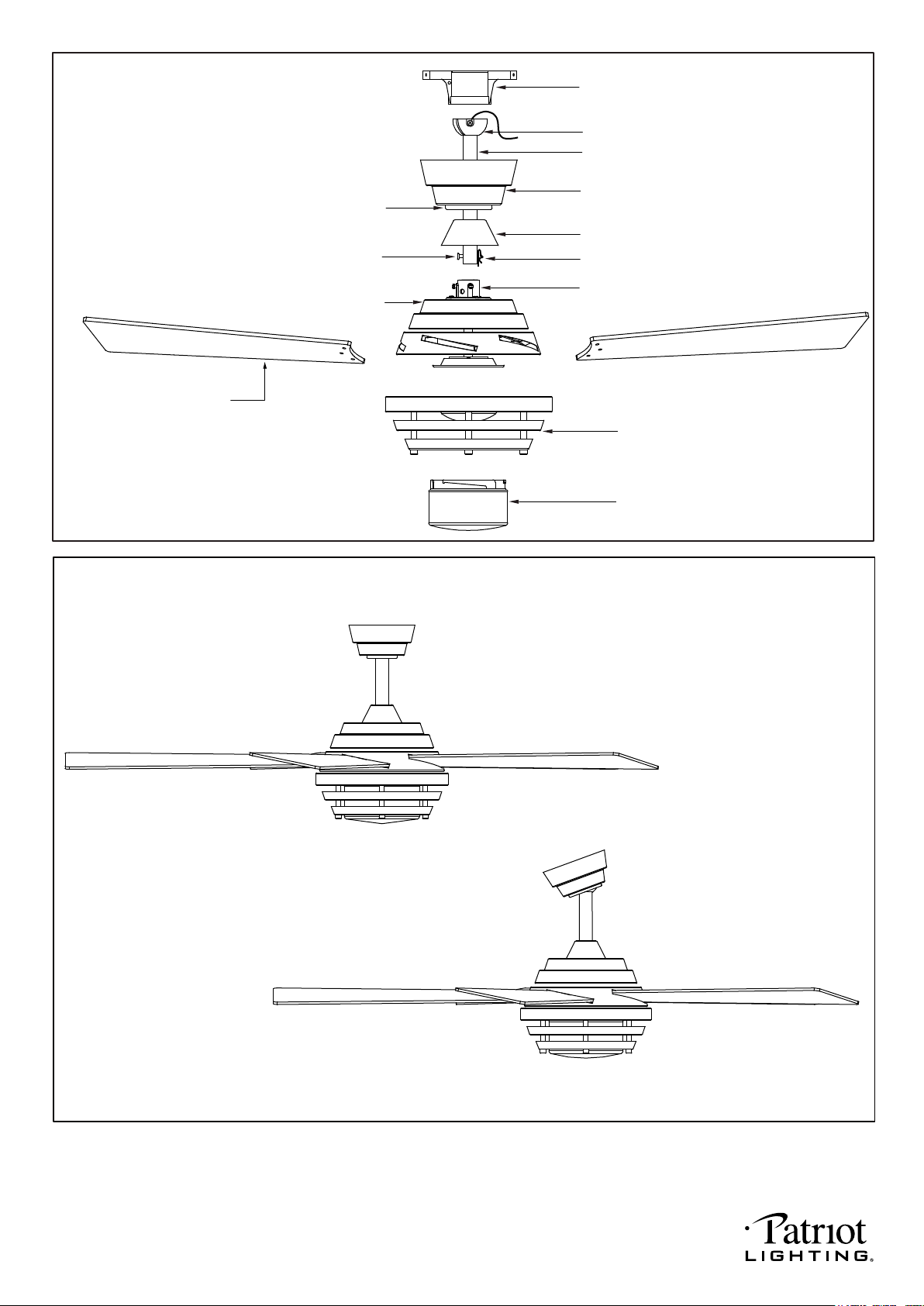

Exploded View Detail
Downrod Mount
Sloped Ceiling Mount (Up to 23 degrees)
Dual Mount Drawing
PAGE: 3 / 11
Hanger Bracket
Hanger Ball
Fan Blade
Downrod
Canopy
Decorative Cap
Downrod Stand Cover
Lock Pin
Collar
Light Kit with LED Module
Glass Shade
Hang Pin
Fan Motor Assembly
220322
Safety Instructions
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN TO
INSTALL THE FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets,
balancing the blades or cleaning the fan. Do not insert foreign objects between rotating fan blades.
Before changing the fan direction, turn off the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are
not meant to cover all possible conditions and situations that may occur. It must be understood that
common sense, caution and care are factors which can not be built into this product. These factors
must be supplied by the person(s) installing, caring for and operating the fan.
TO AVOID RISK OF ELECTRIC SHOCK, BE SURE TO SHUT OFF POWER AT THE MAIN
FUSE OR CIRCUIT BREAKER BOX BEFORE INSTALLING OR SERVICING THIS
FIXTURE. TURNING OFF THE ELECTRICAL POWER BY USING THE LIGHT SWITCH
IS NOT SUFFICIENT TO PREVENT ELECTRICAL SHOCK.
TO REDUCE THE RISK OF INJURY, INSTALL THE FAN SO THAT THE BLADES ARE
AT LEAST 7 FEET (2.1 METERS) ABOVE THE FLOOR AND AT LEAST 18 INCHES
(0.5 METERS) FROM THE TIP OF THE BLADES TO THE WALL.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED "ACCEPTABLE FOR FAN SUPPORT" AND USE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
THE INSTALLATION HAS TO BE IN ACCORDANCE WITH THE NATIONAL ELECTRICAL
CODE, ANSI/NFPA 70-1999 AND LOCAL CODES. IF YOU ARE UNFAMILIAR WITH THE
METHODS OF INSTALLING ELECTRICAL WIRING, SEEK THE SERVICES OF A
QUALIFIED LICENSED ELECTRICIAN.
WARNING
PAGE: 4 / 11
220322
NOTE: The fan weight is 15.21 lbs (6.9 kg). Be sure the outlet box you are using is securely attached to the building
structure and can support the full weight of the fan. Failing to do so can result in serious injury.
INSTALLATION INSTRUCTIONS
IMPORTANT:
BEFORE YOU BEGIN INSTALLING THE FAN, CAREFULLY READ ALL INFORMATION IN
SAVE ALL INSTRUCTIONS.
Hanger Pin
Downrod
Lock Pin
Fig.3
Hang the fan on hanger bracket, and
make sure the slot of hanger ball is
snapped into the chip of hanger
bracket exactly.
Note: For sloped ceiling installation,
make sure the slot of hanger ball and
the chip of hanger bracket face down.
Tighten the two collar screws.
Slide lock pin into hanger pin until
it is locked into position.
Fig.7
Slot
Chip
Hanger Bracket

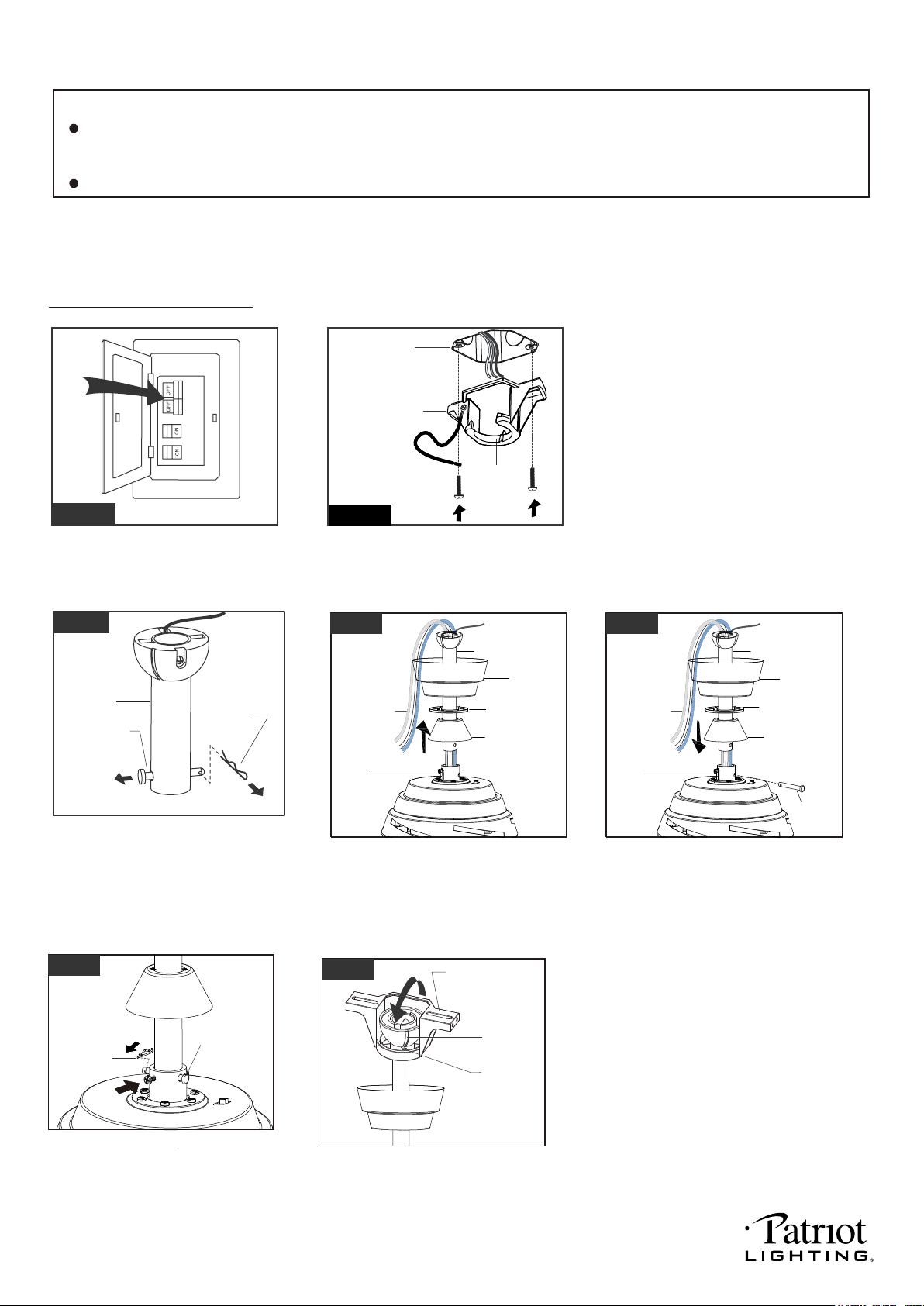

Installation Steps :
Fig.1
Turn OFF the electric circuit at the
main fuse or circuit breaker box.
THE SAFETY
INSTRUCTIONS AND INSTALLATION INSTRUCTIONS. IF IN DOUBT, CONSULT A QUALIFIED
ELECTRICIAN.
PAGE: 5 / 11
Canopy
Downrod Stand
Cover
Decorative Cap
Downrod
Motor Wires
Collar
Fig.4
Canopy
Downrod Stand
Cover
Decorative Cap
Hanger Pin
Motor Wires
Collar
Downrod
Fig.5
Fig.6
Lock Pin
Collar Screws
Thread the motor wires through the
downrod stand cover, decorative
cap (Making sure the smooth side
of decorative cap is facing
downward.), canopy and downrod.
Separate the hanger bracket from the
decorative cap and canopy by rotating
counterclockwise. Attach the hanger
bracket to the outlet box with two
mounting screws. (To reduce the risk
of fire, electric shock, or personal injury,
mount to an outlet box marked "Acceptable
for fan support" and use mounting screws
provided with the outlet box.)
Note: For sloped ceiling installation, make
sure that the chip of the hanger bracket is
toward the floor.
Remove the lock pin from the hanger
pin and remove the hanger pin from
the downrod.
Loosen the collar screws out part way.
Insert the downrod into the collar.
Slide hanger pin through holes of
collar and downrod.
Hanger Bracket
Fig.2
Outlet Box
Chip
220322
PAGE: 6 / 11

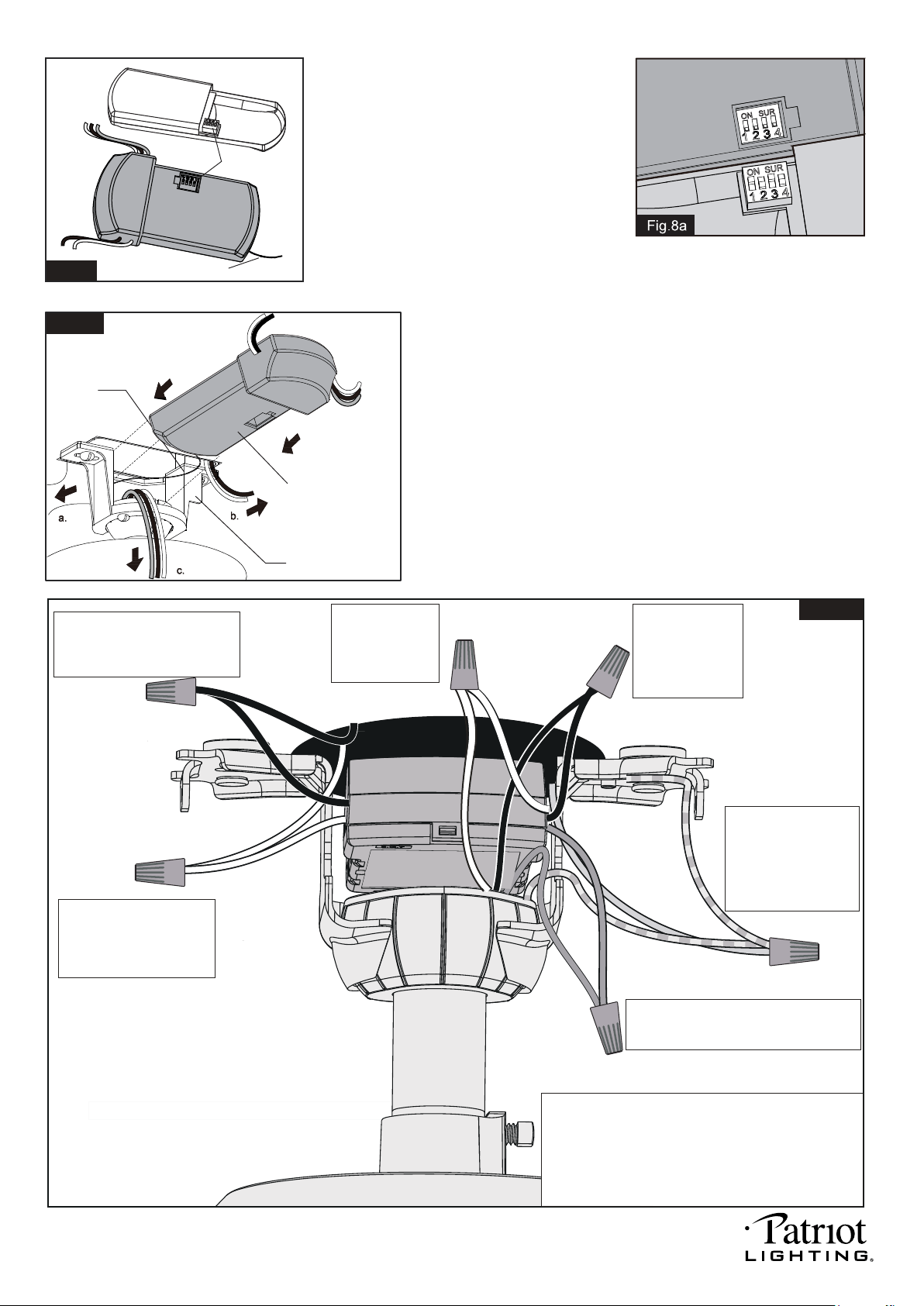

Move ground wires (a), outlet box wires (b), and
motor wires (c) away from the center of the hanger
bracket. Then slide receiver through hanger
bracket as shown. Antenna end first, until it is
placed in the center. Finally, cut motor wires (c)
to length needed for connections.
Code example:
1-ON 2-OFF 3-ON 4-OFF on both
SUR Switches.
Note: If you have two ceiling
fans with 2 remote control units,
set 2 different codes for each
set of transmitter / receiver.
Grounding
Green
Green
Black
Black
Black
Black
Connect the white
wire from receiver
to the white wire
from motor with a
wire connector.
Connect the black
wire from receiver
to the black wire
from motor (This is
for fan control) with
a wire connector.
White
White
White
White
Blue
Blue
Connect the blue wire from receiver to the
blue wire from motor (This is for light
control) with a wire connector.
Connect three
ground wires (Green
or bare copper) coming
from outlet box,
downrod and hanging
bracket with a wire
connector.
Connect the white (neutral)
wire from receiver to the
white (neutral) wire from the
outlet box with a wire
connector.
Connect the black (hot) wire
from receiver to the black (hot)
wire from outlet box with a wire
connector.
*** The wire connection points should be turned upward
and pushed carefully up into outlet box.
*** After making the wire connections, the wires should
be spread apart. The white (neutral) conductor and
green (grounding) conductor on one side and the
black (hot) conductor and blue (light) conductor on
the other side of the outlet box.
Fig.10
Both the transmitter and receiver have a 4-key
unit code on each SUR Switch (Fig.8) and by
default, all keys are pre-set to the "off" position.
This means that the transmitter and receiver are
already paired together. However, if you have
multiple fans and remote controls and want to
avoid interference between them, you can "pair"
other transmitters and receivers together by
adjusting the SUR switches, so the same
numbered keys are in the "ON" position
on both (Fig.8a).
Note: The ceiling fan may work abnormally
if there is interference from other remote
controls.
Fig.8
Antenna
SUR Switch
Transmitter
Receiver
SUR
ON
ON SUR
Fig.9
Hanger Bracket
Receiver
Antenna
220322
Insert the blade into blade holder
according slot then tighten blade to
blade holder by using blade screws
and washers.
Repeat to other blades.
PAGE: 7 / 11
Fig.16

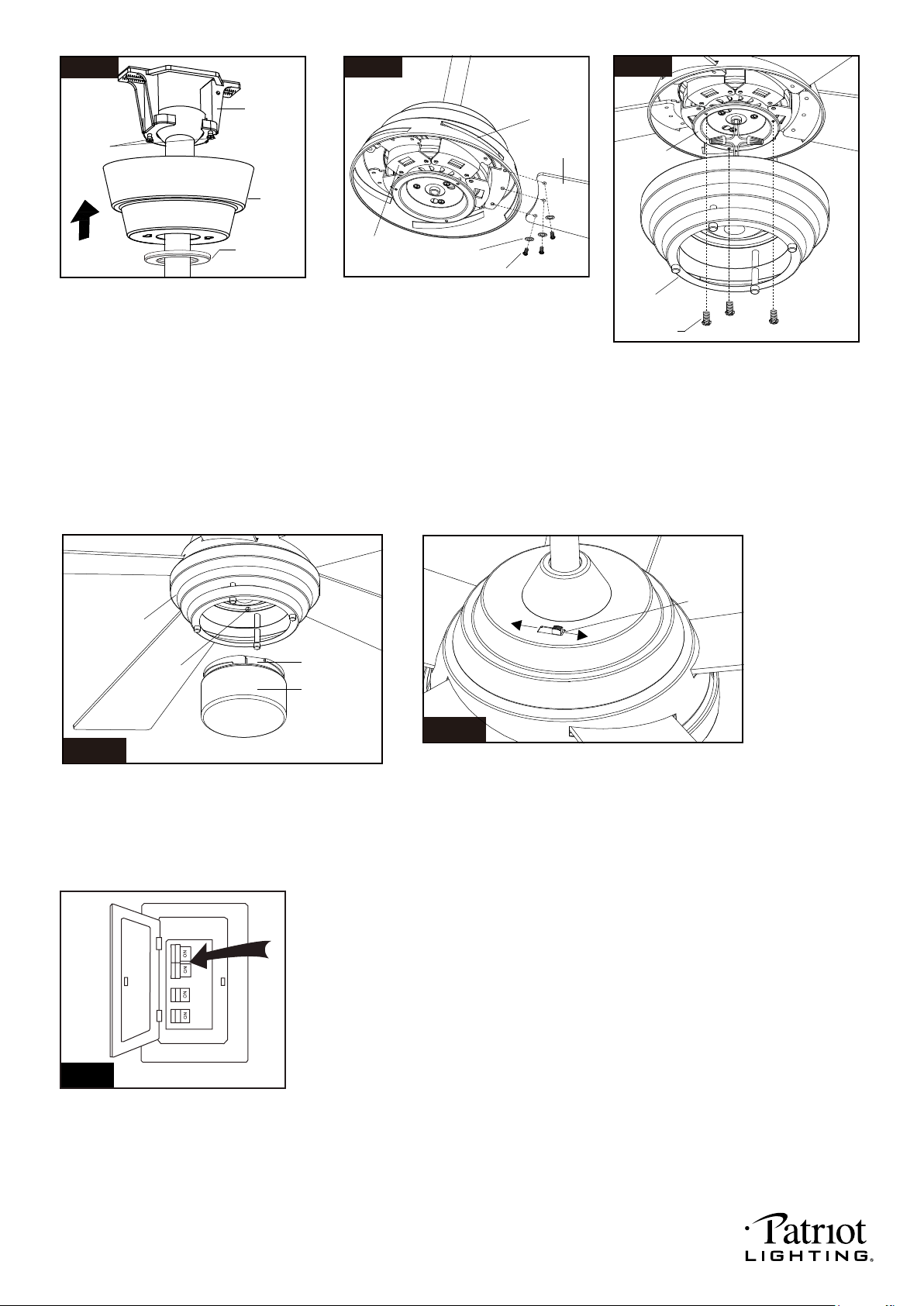

Attach the glass shade to light kit by aligning
studs and slots, and then turn it clockwise until
it is locked in place.
Turn ON the electric circuit at the
main fuse or circuit breaker box.
The slide switch on motor assembly sets direction
of fan rotation. Select the desired direction of fan
rotation. Push the slide switch left for “Forward”
and right for “Reverse”.
Note: Wait for fan to stop before reversing the
direction of blade rotation.
Slide the canopy up to ceiling and over
the two canopy screws on hanger
bracket. Rotate canopy clockwise,next,
while holding the canopy with one hand,
slide the canopy cover over the screws
and rotate clockwise until tight.
Note: Adjust the canopy screws as
necessary until the canopy and
canopy cover are snug.
Fig.11
Hanger
Bracket
Canopy
Canopy
Screw
Decorative
Cap
Fig.12
Blade Screw
Washer
Blade
Blade Holder
Slot
Fig.13
Fix Screw
Light Kit
Connect
Plate of
Light Kit
Light Kit
Stud
Slot
Fig.14
Glass Shade
Fig.15
Slide Switch
Reverse
Forward
Remove three fix screws from connect plate
of light kit first (for later use). Connect the
blue wire from motor to the black wire from
light kit by wire connector. And connect the
white wire from motor to the white wire from
light kit by wire connector. Secure the light
kit to connect plate of light kit with previous
three fix screws.
220322
PAGE: 8 / 11
Fig.19
Fig.20
19
20
Note: 1. Remote controller can not be used along with a solid-state speed control at the same time.
2. The temperature and brightness of light can not be set without remote controller.
Transmitter
Wall Bracket
Screw
18
Fig.17
HI
MED
LIGHT
0N/0FF
DIMMER
FAN OFF
LOW

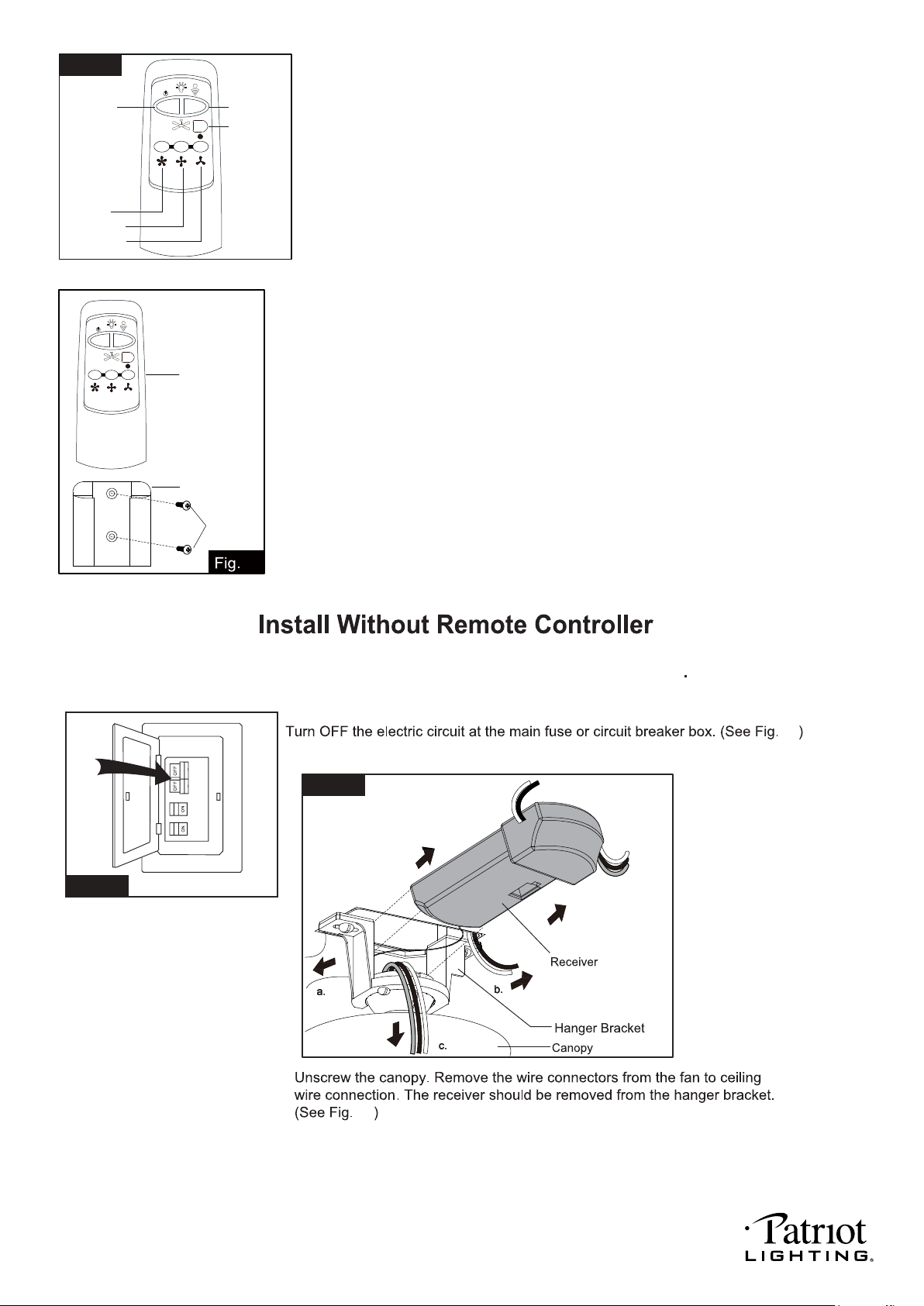

Install the battery (9V, included) into the transmitter.
* Press "HI" button to turn on the fan at high speed.
* Press "MED" button to turn the fan in medium speed.
* Press "LOW" button to turn the fan in low speed.
* Press "FAN OFF" button to turn off the fan.
* Press "LIGHT ON /OFF" button to turn on or turn off the light.
* Press and hold the "DIMMER" button to dim or brighten lights to the desired level and
release, and the brightness level will be memorized. Turn on the light again, then fan
light will be restored to the brightness-level at which it was dimmed last time.
* Press "DIMMER" button to change color temperature of fan light. There are a total of 5
levels of color changing from 2700K,3000K,3500K,4000K to 5000K.
Note:
1. This remote controller has a memory function setting. The fan will operate at the same
speed and the fan light will stay at the same brightness-level as the last time the power
supply was turned off.
2. Compatible wall switch: Menards SKU# 363-5580.
a. Warning: This wall switch is not capable of changing the temperature and brightness
of the light. Therefore, it’s important to set your preferred color temperature and
brightness before removing the remote-control receiver from the fan.
b. This LED module has a memory function setting. The fan light will stay at the same
brightness and temperature as the last time of remote control setting. To proceed
with installation without remote control, please start from Fig.19.
Install the transmitter wall bracket on the wall with two screws
and place transmitter in it carefully.
220322
PAGE: 9 / 11
Fig.21

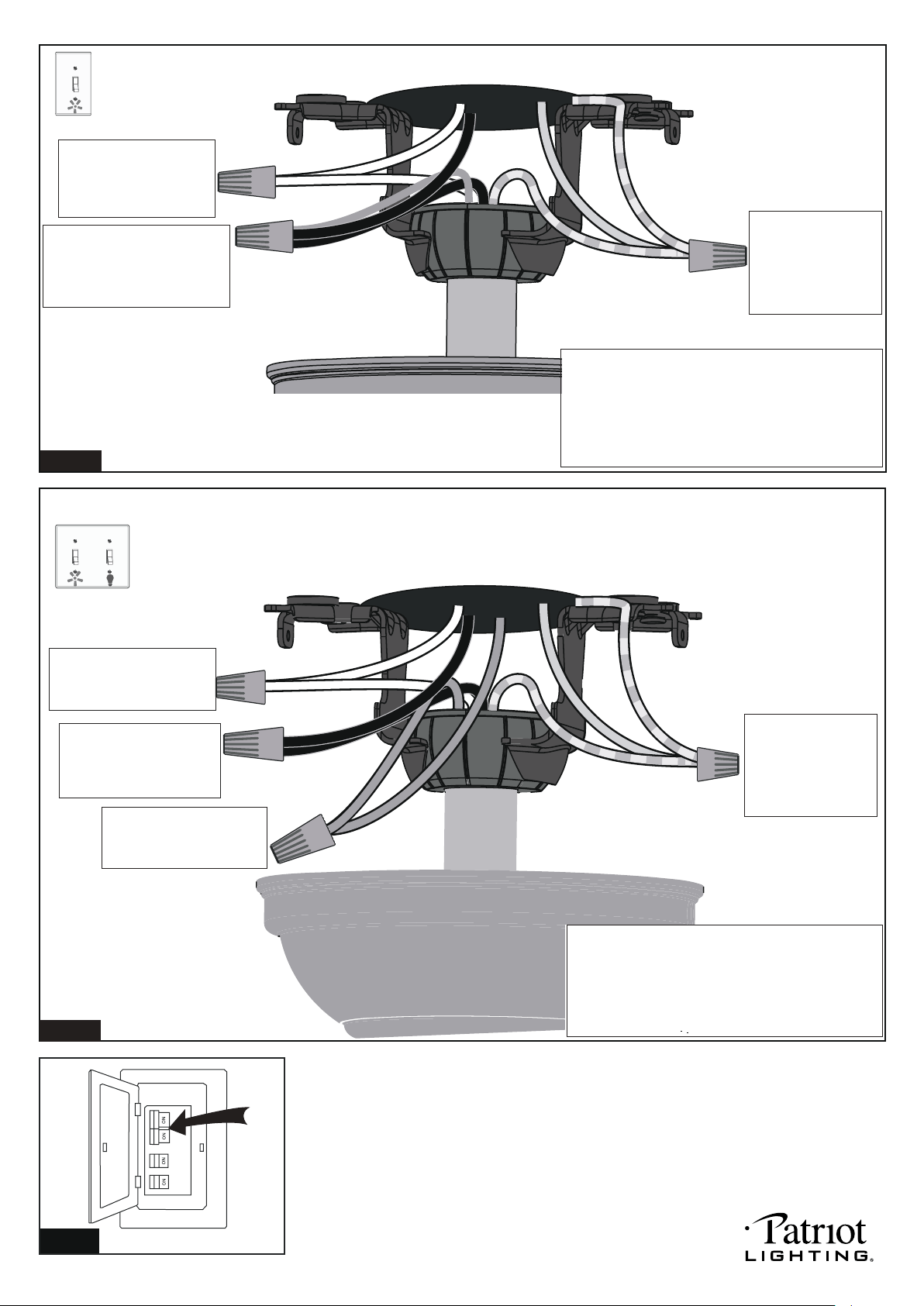

Connect the white (neutral)
wire from motor to the white
(neutral) wire from the
outlet box with a wire
connector.
Connect the black (hot) wire
(This is for fan control) and blue
wire (This is for light control) from
motor to the black (hot) wire from
outlet box with a wire connector.
Bla
Black
ck
Blue
Green
White
White
Grounding
Green
*** After making the wire connections, the wires should
be spread apart. The white (neutral) conductor and
green (grounding) conductor on one side and the
black (hot) conductor and blue (light) conductor on
the other side of the outlet box.
*** The wire connection points should be turned upward
and pushed carefully up into outlet box.
Connect three
ground wires (Green
or bare copper) coming
from outlet box,
downrod and hanging
bracket with a wire
connector.
For a single switch
Follow these steps:
Connect three
ground wires (Green
or bare copper) coming
from outlet box,
downrod and hanging
bracket with a wire
connector.
Connect the black (hot) wire
from motor (This is for fan
control) to the black (hot)
wire from outlet box with a
wire connector.
Green
Black
Blue
Green
White
Black
Blue
(light)
White
Grounding
Connect the white (neutral)
wire from motor to the white
(neutral) wire from outlet box
with a wire connector.
Connect the blue wire (This
is for light control) from motor
to the blue wire from outlet
box with a wire connector.
*** The wire connection points should be turned
upward and pushed carefully up into outlet box.
Fig.23
Turn ON the electric circuit at the main fuse or circuit breaker box.
For dual switches
Follow these steps:
*** After making the wire connections, the wires should
be spread apart. The white (neutral) conductor and
green (grounding) conductor on one side and the
black (hot) conductor and blue (light) conductor on
the other side of the outlet box.
Fig.22
220322
PAGE:10 / 11

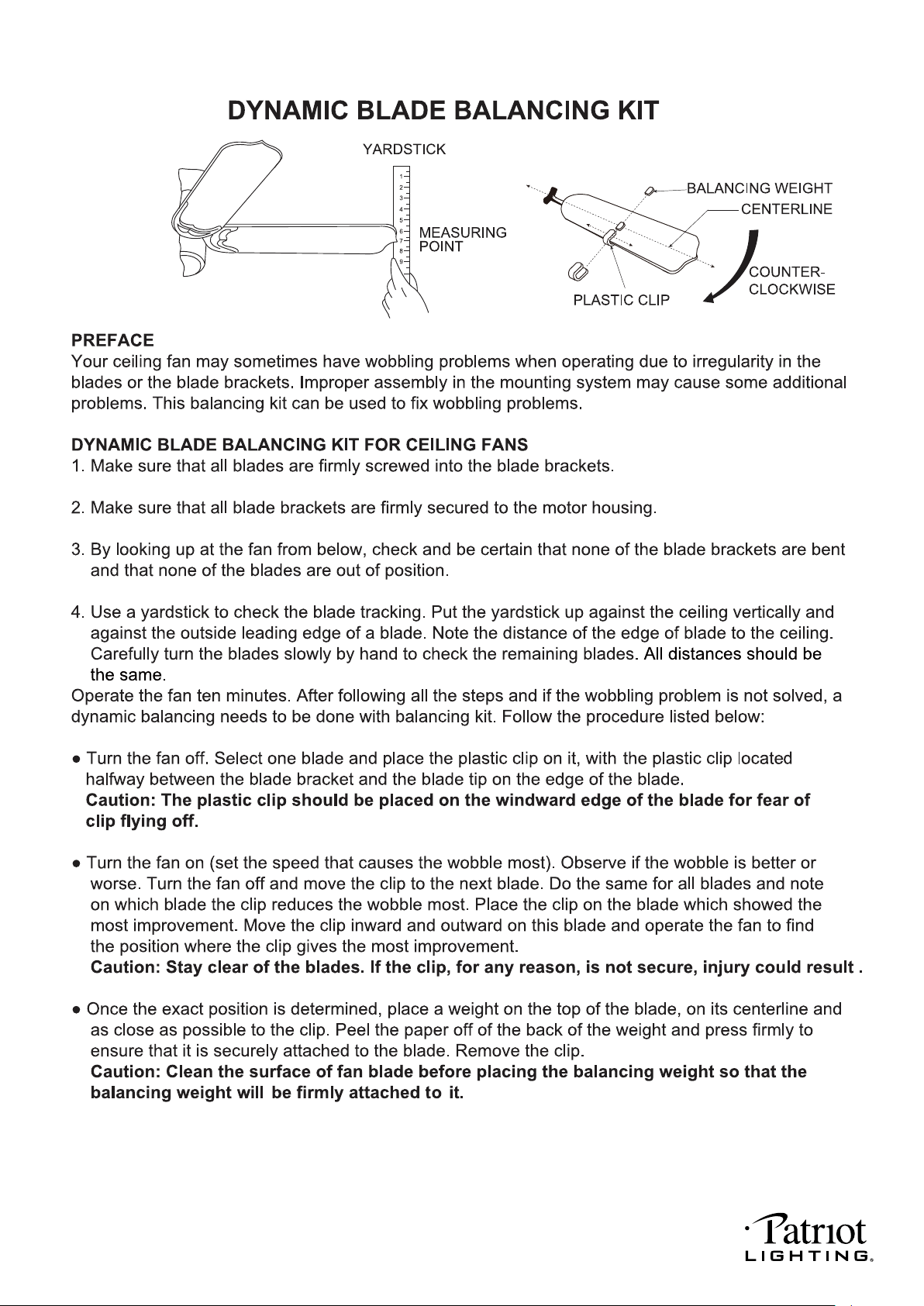

(not too tight)
220322

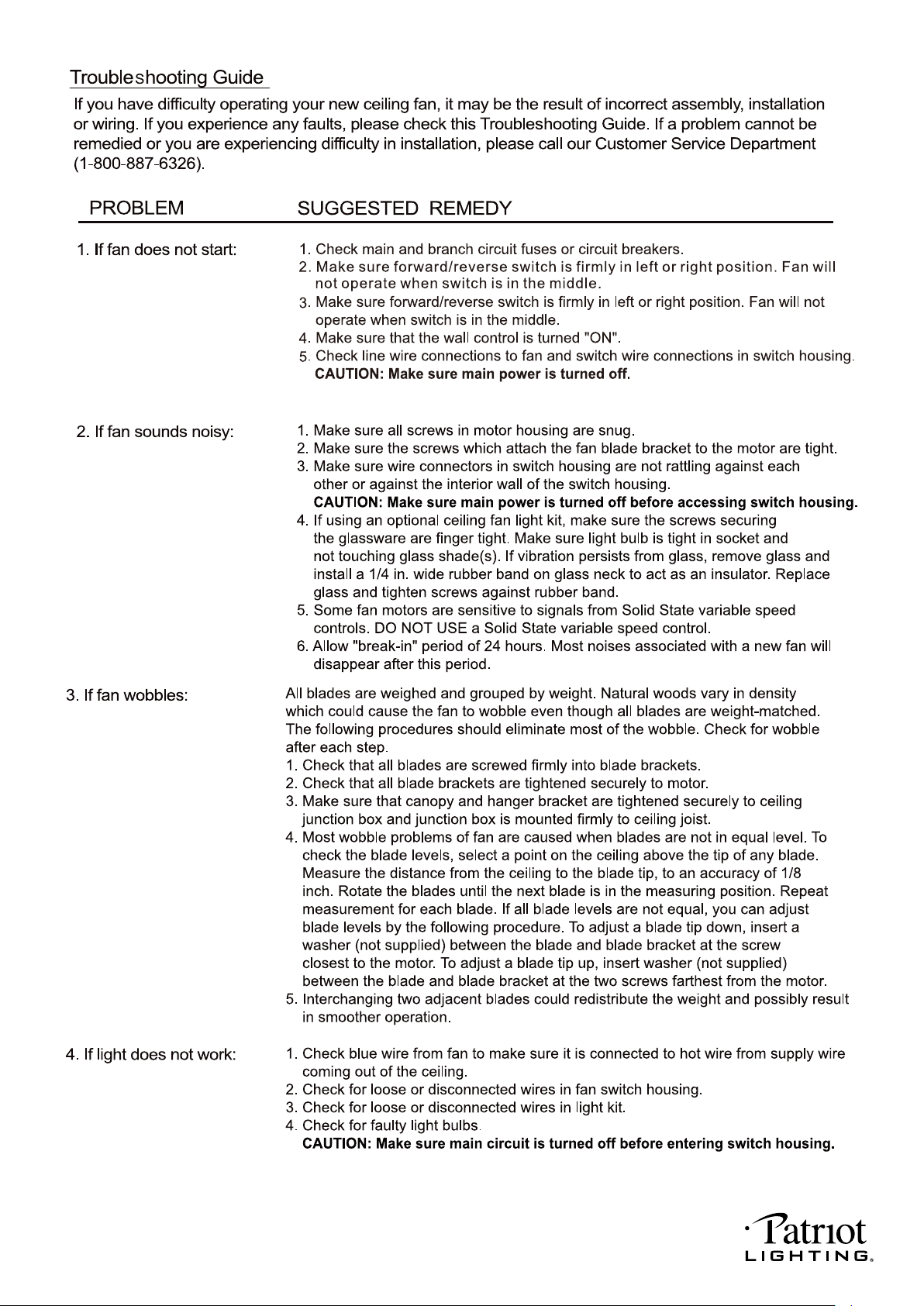

PAGE: 11 / 11
220322
