56” REGENCY PARK
CEILING FAN
Owner’s Manual
Model #20790
SKU # 355-2010
If a problem cannot be remedied or you are experiencing diculty in installation, please contact
the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
RATED
FOR DAMP
LOCATIONS

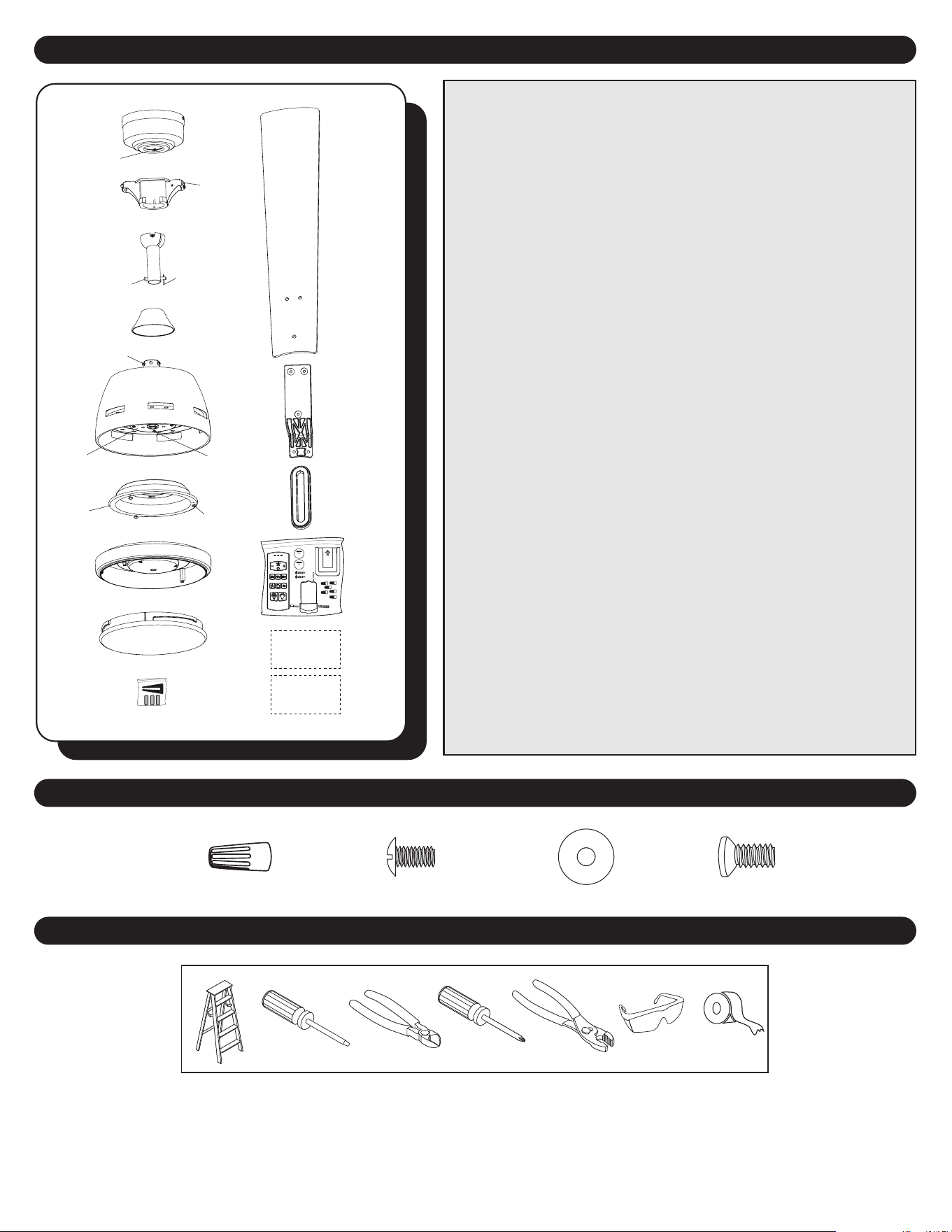

PACKAGE CONTENTS
2
HARDWARE CONTENTS
1. Canopy
2. Canopy Cover
3. Mounting Bracket
4. Mounting Bracket Screw
(x4)
5. Downrod
6. Downrod Pin
7. Downrod Clip
8. Yoke Cover
9. Set Screw (x2)
10. Motor Assembly
11. Fitter Plate Screw (x4)
12. Fitter Plate
13. Light Pan
14. Light Pan Screw (x3)
15. Light Kit
16. Glass Bowl
17. Blade Balancing Kit
18. Blade (x7)
19. Blade Arm (x7)
20. Medallion (x7)
21. Remote Pack
22. Hardware Kit
23. Owner’s Manual
AA. Wire Connector
BB. Blade Screw (x21)
CC. Blade Washer (x21)
XX. Motor Screw (x14)
Unpack your fan and check the contents. You should
have the following items:
PACKAGE CONTENTS
HARDWARE CONTENTS
Note: Some extra hardware has been included. The quantity
listed above is the number required for installation.
TOOLS REQUIRED (not included)
Tools required for assembly: Electrical tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, Wire Cutters
and Wire Strippers
Helpful Tools: AC Tester Light, Tape Measure, and Wiring Handbook
AA BB CC XX
Hardware
Kit
Owner’s
Manual
1
2
3
4
5
6
7
9
10
11
12
13
18
17
14
16
15
19
20
21
22
23
8

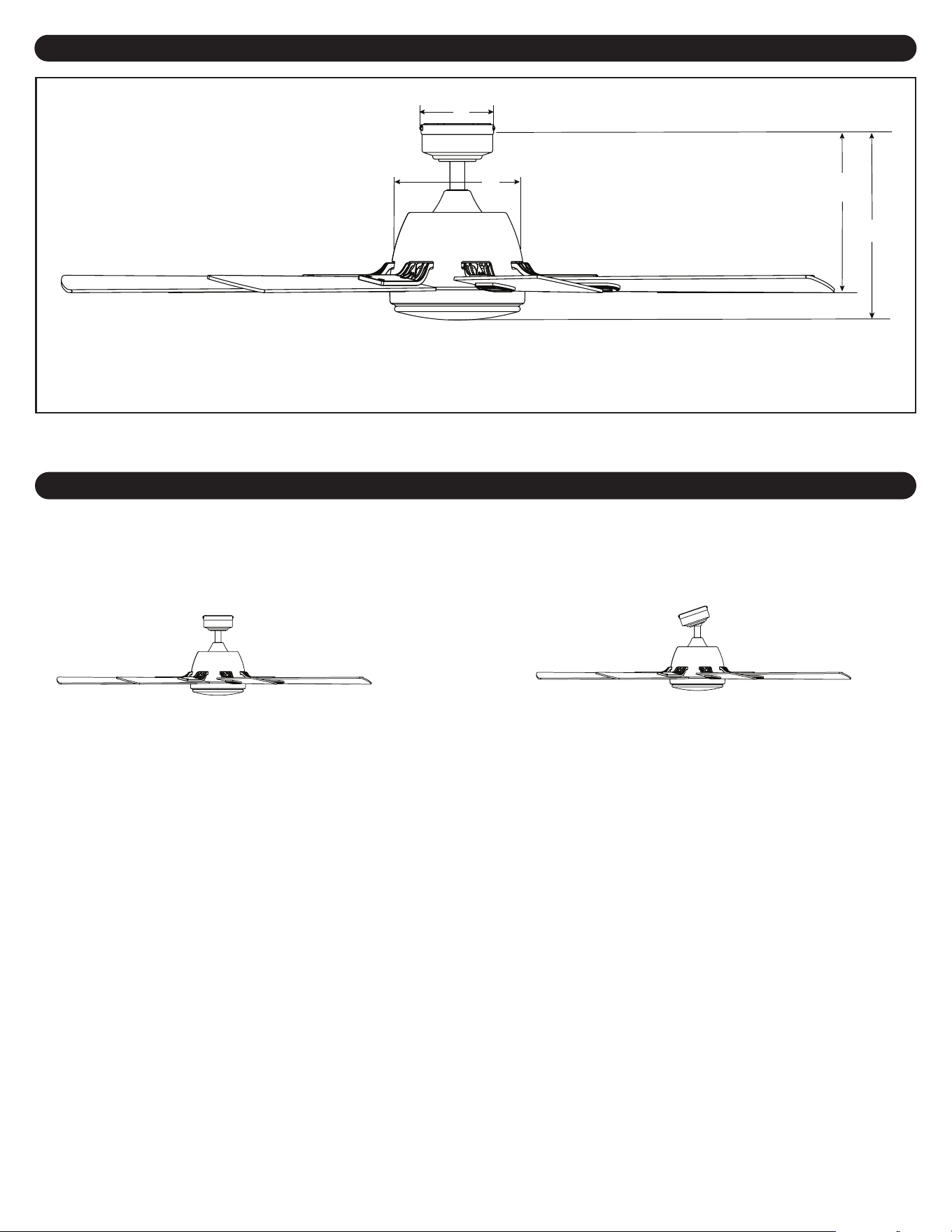

MOUNTING OPTIONS
3
Two Mounting Options
Downrod Mount
Angled Ceiling Mount (Up to 10 degrees)
A. 13.88 in. B. 11.95 in. C. 9.53 in. D. 5.13 in.
DIMENSION REFERENCE
C
D
B
A
Choose one of the following mounting options:.
Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer downrod
(not included).
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to
ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle is not
steeper than 10°.
4
WARNING:
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing
the blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are not
meant to cover all possible conditions and situations that may occur. It must be understood that common
sense, caution and care are factors which can not be built into this product. These factors must be supplied
by the person(s) installing, caring for and operating the fan.
The fan weight is Net Weight: 26.61 lbs (12,07 kg). Be sure the outlet box (not included) is securely attached
to the building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious
injury.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
HKC-US, 3350 Players Club Pkwy. #225, Memphis, TN 38125, 1-877-459-3267
To avoid risk of electric shock, be sure to shut o power at the main fuse or circuit breaker box before
installing or servicing this xture. Turning o the electrical power by using the light switch is not sucient
to prevent electrical shock.
To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the oor
and at least 18 inches (0.5 Meters) from the tip of the blades to the wall.
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for fan
support” and use mounting screws provided with the outlet box.
The installation has to be in accordance with the National Electrical Code, ANSI/NFPA 70-1999 and local
codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a qualied
licensed electrician.
Using a full-range dimmer switch to control fan speed will cause a loud humming noise from the fan. To
reduce the risk of re or electric shock, do NOT use a full-range dimmer switch to control the fan speed.
SAFETY INSTRUCTIONS
CAUTION:
5
ASSEMBLY INSTRUCTIONS
2
1

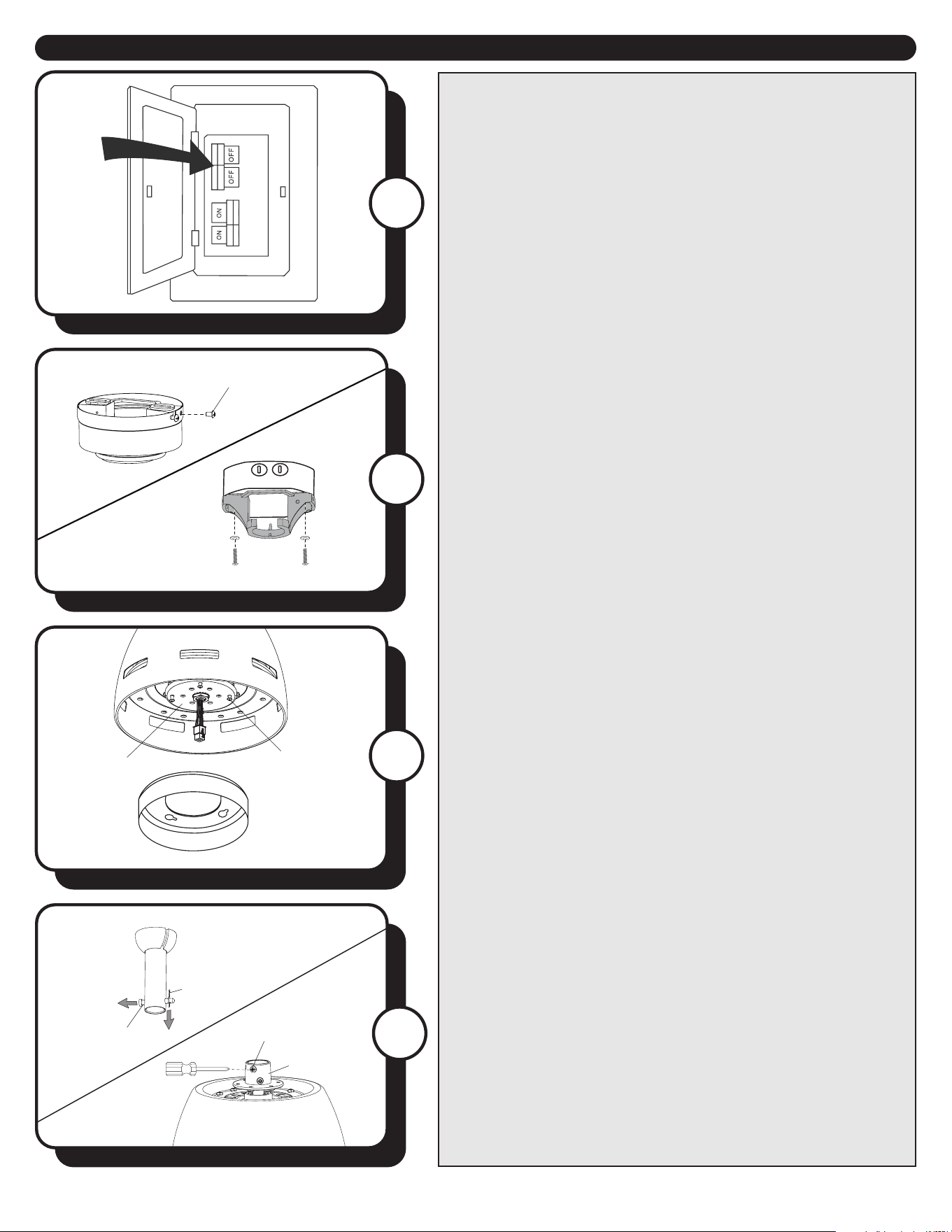

2. Loosen all four mounting bracket screws located on the
mounting bracket and completely remove the two screws
from the round holes in the canopy. Save the screws for
later. Remove the canopy from the mounting bracket.
Then, install the mounting bracket to the outlet box (sold
separately) using the screws and washers provided with
the outlet box.
WARNING: To reduce the risk of re, electric shock,
or personal injury, mount to the outlet box marked
“acceptable for fan support” and use the mounting screws
and washers provided with the outlet box.
For downrod installation, skip to Step 4.
Mounting Bracket Screw
Shipping Block
Fitter Plate
Fitter Plate Screw
3. Loosen the four tter plate screws preassembled to
the tter plate. Then, turn the orange shipping block
counterclockwise and remove. Discard the shipping block.
1. Turn OFF the electrical power at the main fuse or circuit
breaker.
DANGER: Failure to disconnect the power supply prior to
installation may result in serious injury or death.
3
Downrod
Clip
Set Screw
Yoke
Downrod
Pin
4. Remove the downrod clip and downrod pin from the
downrod. Then loosen, but don’t remove the two set
screws in the yoke.
4
6
Downrod
Canopy
Yoke Cover
Yoke
Tab
Slot
Downrod
Mounting
Bracket
ASSEMBLY INSTRUCTIONS
7
6
5

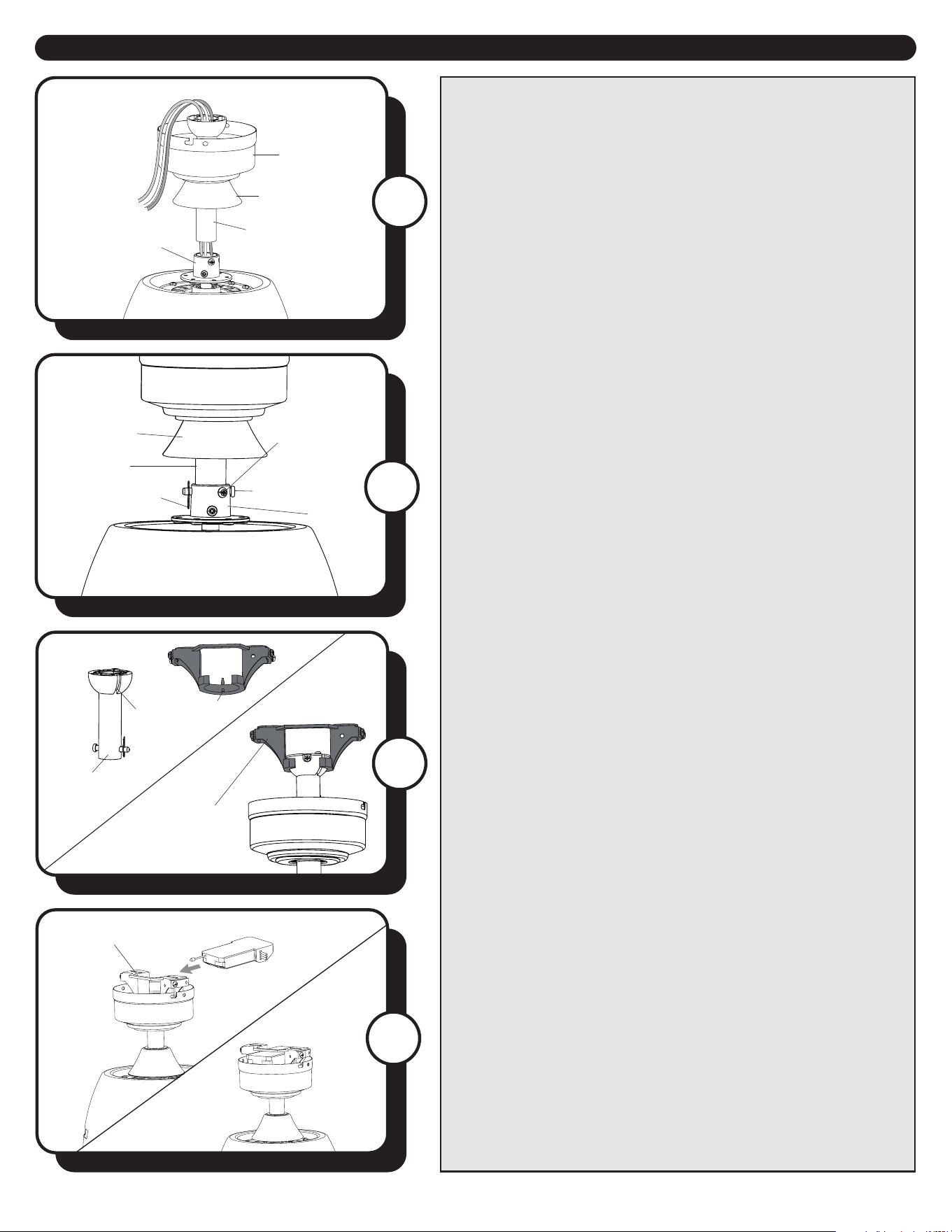

5. Insert the downrod through the canopy and yoke cover.
Feed the wires from the fan through the downrod.
6. Slide the downrod into the yoke of the motor assembly,
align the holes, then re-install the downrod pin and
downrod clip. Secure with the two set screws and slide the
yoke cover down until it rests on top of the
motor assembly.
Note: With wiring extending out of the downrod, measure
8 inches of lead wire and cut the excess wire with wire
cutters (not included). Then strip 1/2” of insulation from
the end of each wire.
Downrod Pin
Yoke
Downrod
Downrod Clip
Yoke Cover
Set Screw
7. Lift the downrod into the mounting bracket. Rotate the
downrod until the tab in the mounting bracket is seated
in the slot in the downrod ball.
WARNING: The fan and/or downrod should not rotate in
the mounting bracket if installed correctly. Failure to align
the slot in the downrod ball with the tab in the mounting
bracket may result in fan falling causing serious injury or
death.
8. Insert the receiver, antenna rst, into the mounting
bracket with the at side facing the ceiling.
Note: The receiver will rest directly on top of the
downrod.
Mounting Bracket
Receiver
8
7
Blade Arm
Blade Screw
Blade Washer
Blade
Medallion
ASSEMBLY INSTRUCTIONS
11
10

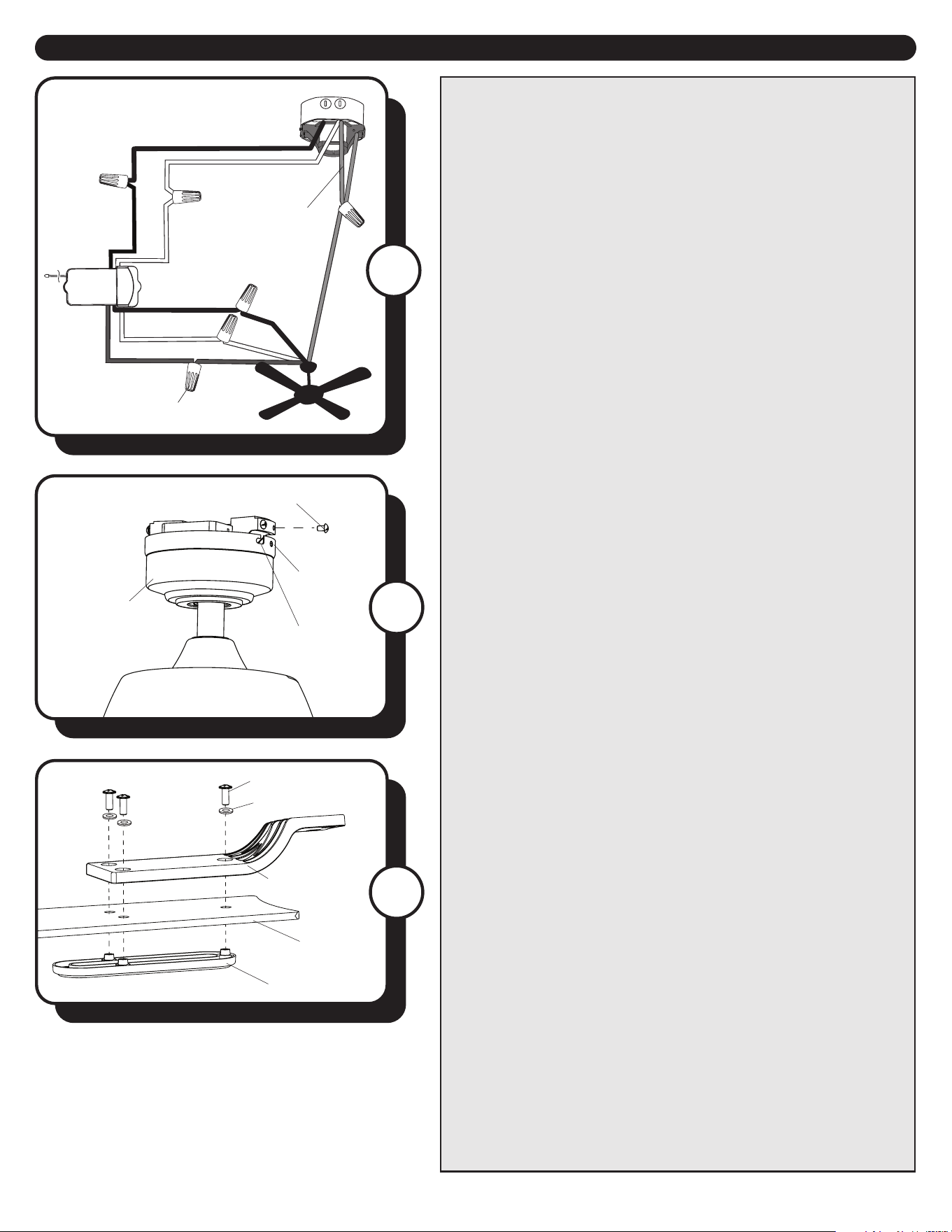

9. Secure all wiring connections together with wire
connector from hardware bag and the wire connectors
from remote pack according to the diagram and these
steps:
• Connect the Green wires from the downrod and the
mounting bracket to the Bare/Green (ground) supply wire.
• Connect the Blue wire (FOR LIGHT) from the receiver to
the Blue fan wire.
• Connect the Black wire (TO MOTOR L) from the receiver
to the Black fan wire.
• Connect the White wire (TO MOTOR N) from the receiver
to the White fan wire.
• Connect the Red wire (AC IN L) from the receiver to the
Black (hot/power) supply wire.
• Connect the White (AC IN N) from the receiver to the
White (neutral) supply wire.
Important: After the connections have been made, the
connected wires should be turned upward and pushed
carefully up into the outlet box. Place the black and white
wire connections on opposite sides of the outlet box.
10. Raise the canopy, ensure the two mounting bracket
screws are aligned with the J-shaped slots in the canopy.
Then turn the canopy clockwise until the mounting
bracket screws are completely engaged in the J-shaped
slots. Install the two previously removed mounting
bracket screws in the round holes. Securely tighten all four
mounting bracket screws.
11. Partially insert three blade screws along with blade
washers through the blade, blade arm, and into the
medallion. Tighten each blade screw starting with the one
in the middle. Repeat this step for the remaining blades.
Canopy
Round
Hole
Mounting Bracket Screw
J-shaped Slot
Black (hot/power)
Wire Connector
White (neutral)
Bare/Green
(ground)
White
White
Black
Blue
Blue
Black
Green
Green
Receiver
Red
White
9
8
Motor Screw
Blade Arm
Slot
ASSEMBLY INSTRUCTIONS
14
15

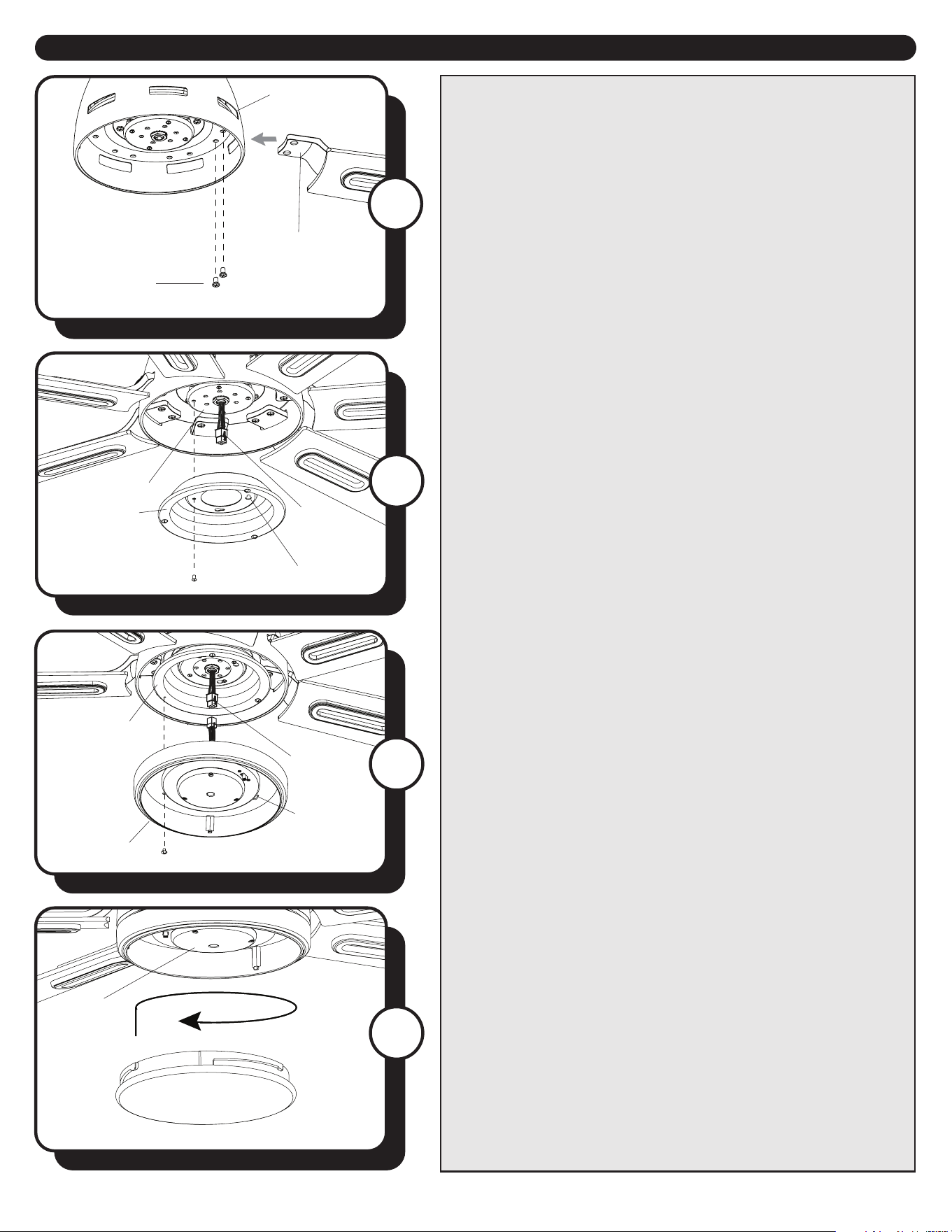

13. Remove one of the four tter plate screws
preassembled to the tter plate and loosen the other
three but do not remove. Feed the 9-pin connectors
through the center hole in the light pan. Align the keyhole
slots in the light pan with the loosened screws in the tter
plate. Turn light pan clockwise and replace the previously
removed tter plate screw. Tighten all screws.
14. Remove one of the three light pan screws from the
light pan and loosen the other two but do not remove.
Connect the 9-pin connector from the light pan to the
9-pin connector from the light kit. Lift the two keyhole
slots in the light kit over the two loosened light pan screws
and turn in a clockwise direction. Then, use the previously
removed light pan screw to secure the light kit to the light
pan. Tighten all screws.
15. Attach the glass bowl to the light kit by twisting the
glass bowl rmly in a clockwise direction until it is secure.
CAUTION: Avoid cross-threading the glass during
installation. Improper installation could cause the glass
bowl to be dicult to remove or fall, which could cause
serious injury.
Turn on the circuit breakers and the wall switch to the fan
supply lead lines.
Assembly is complete.
Light Kit
Light Kit
Glass Bowl
12. Insert blade arm through slot in the motor assembly.
Align the holes of blade arm with the two motor screw
holes in the underside of the motor assembly. Secure with
motor screws from the hardware kit. Repeat this step for
the remaining blade arms.
9-pin
Connector
9-pin
Connector
Keyhole
Slot
Keyhole
Slot
Light Pan Screw
Light Pan
Light Pan
12
Fitter Plate Screw
Fitter Plate
13
9

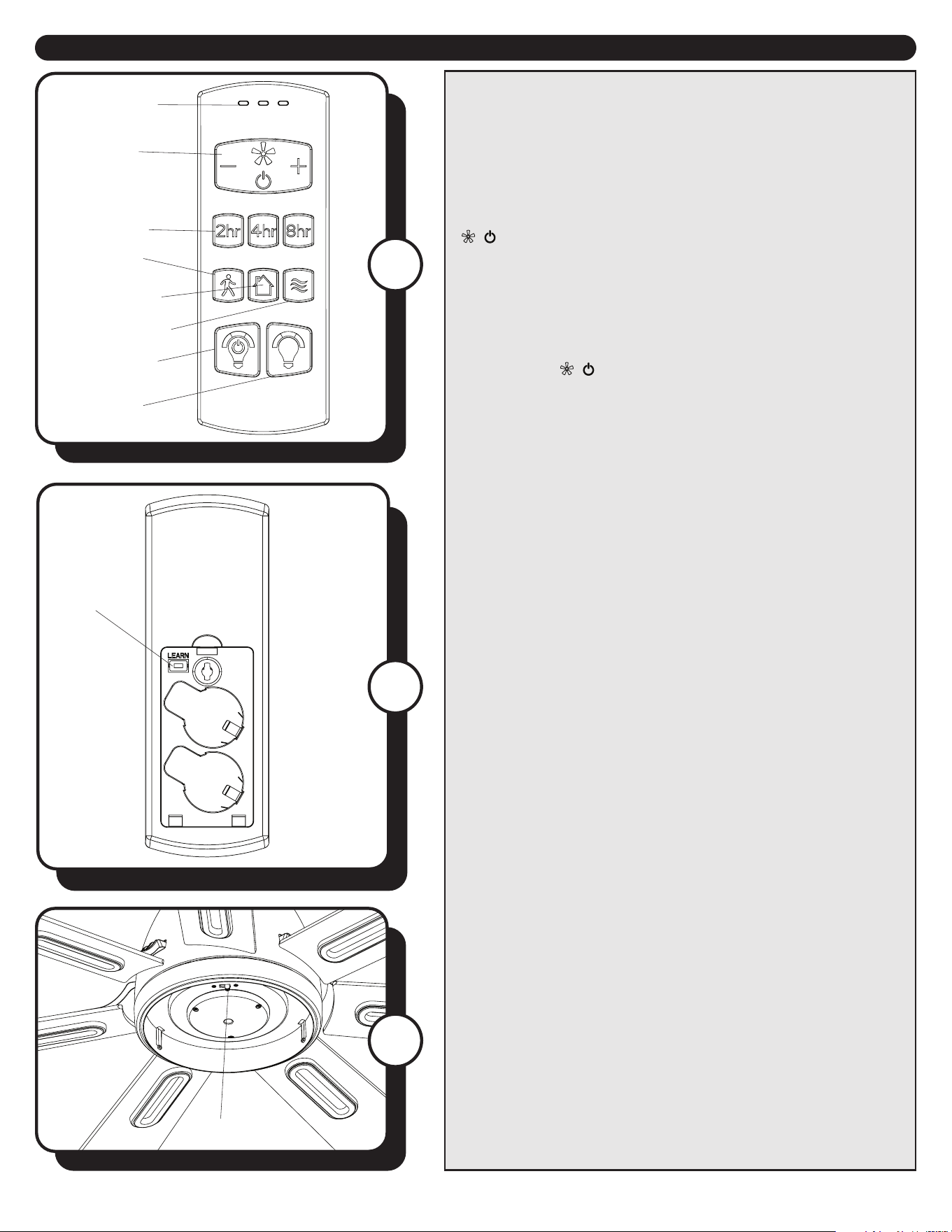

OPERATING INSTRUCTIONS
Sleep Timer
Fan Power
Light Color
LED Indicator
Light Control
Light Delay
Variable Breeze
LEARN
Button
Battery
Compartment
(battery door
removed)
Home Shield™
2. LEARN - Syncs remote control to receiver (see
troubleshooting for instructions).
1. To operate the fan using the remote, press and release
the following buttons:
LED Indicator - Indicates the three speeds of the fan. It
should illuminate when any remote button is pressed. If
not, replace the DC3V, CR2032 batteries.
Fan Power has three options:
( / ) - Turns the fan o or turns on at previously selected
speed.
( + ) - Increases fan speed
( - ) - Lower fan speed
Sleep Timer - Turns o fan after 2 hours (2hr), 4 hours
(4hr), or 8 hours (8hr). Light dims to conrm function is
active. Press ( / ) to deactivate.
Light Delay - Delays turning o light for one minute
which allows safe exit from room. Light blinks to conrm
function is active. Press Light Control to deactivate and
turn light o.
Home Shield™ - Simulates occupancy while away from
home. Fan remains o and the light randomly turns on for
a minimum of ve minutes and a maximum of 20 minutes.
The light remains o for 60 minutes between events.
Press and hold button to activate. Light will blink twice to
conrm Home Shield is active. Press any button to cancel.
Variable Breeze - Simulates a natural breeze, as if you
were outside.
Light Control - Tap button to turn the light on and o.
Press and hold button to dim or brighten the lights.
Light Color – Press and hold button to cycle through the
color temperatures from 2200K (warm white) to 6500K
(daylight).
1
2
3
Reverse Switch
3. Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your thermostat
setting in winter without feeling a dierence in your
comfort.
In warmer weather, push the reverse switch to the left
for downward airow creating a wind chill eect.
In cooler weather, push the reverse switch to the right
for upward airow that can help move stagnant, hot air
o the ceiling area.
Important: Wait for the fan to stop before moving the
reverse switch. The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle position,
the fan will not operate.
10
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
PROBLEM SUGGESTED REMEDY
1. Fan does not start 1. Make sure that the wall switch is turned ON.
2. Check main and branch circuit fuses or circuit breakers.
3. Check all wire connections from household supply wires to the fan.
4. Make sure forward/reverse switch is pushed completely left or right. Fan will not
operate when switch is in the middle.
1. Make sure all screws in motor assembly are snug, but not overtightened.
2. Make sure the screws that attach the blade arms to the motor are tight.
3. Make sure wire connectors are not rattling against each other or against the
interior wall of the canopy.
4. Some fan motors are sensitive to signals from Solid State variable speed controls.
DO NOT USE a Solid State variable speed control.
5. Ensure fan does not wobble excessively (see Fan wobbles solutions below).
1. Ensure the mounting bracket is tightened securely to outlet box and outlet box is
mounted rmly to ceiling joist.
2. Ensure all blades are screwed rmly into blade arms.
3. Ensure all blade arms are tightened securely to motor.
4. Switch one blade with a blade from the opposite side. Or balance the fan using
the blade balancing kit.
5. If blade wobble is still noticeable, interchanging two adjacent (side by side)
blades can redistribute the weight and possibly result in smoother operation.
1. Check for loose or disconnected 9-pin and/or single-pin connectors in switch
housing or light kit.
2. Ensure the black wire from fan is connected to hot power supply wire.
3. Check for faulty light bulbs.
4. Ensure total wattage of bulbs does not exceed 180 watts (for incandescent bulbs
only).
1. To re-sync REMOTE to the fan - Turn o the power at the breaker box for at least
10 seconds and then turn the power back on. Within 30 seconds, press and hold
the “LEARN” button on the back of the remote for 3 seconds. The fan will turn on
and the light will blink twice and stay on, signaling a successful synchronization.
2. Insert new CR2032 batteries in battery compartment of the wall control.
3. If there are several fans in close proximity, turn power o to other fans and re-
sync the remote (see Corrective Action 1 above).
2. Fan is noisy
3. Fan wobbles
4. Light does not work:
TROUBLESHOOTING
5. Remote control does
not work:
WARNING: To reduce the risk of re, electrical shock or personal injury, shut o the power supply to fan before
you begin any maintenance tasks.
LIMITED LIFETIME WARRANTY
To obtain Service, please contact the Service Department:
1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
.
Model Name: 56” Regency Park Ceiling Fan
Model No: 20790 - Matte Black (SKU: 355-2010)
11
The limited lifetime warranty covers this ceiling fan, for residential use by the original purchaser, against
defects in material or workmanship as follows:
If your Patriot Lighting Ceiling Fan motor fails at any time during the lifetime of the original purchaser
due to defects in material or workmanship, we will provide a replacement part free of charge.
If your fan motor fails at any time within one year after the original date of sale to the original purchaser
due to defects in material or workmanship, we will provide labor to repair the defect, with the exception
of take down/reinstallation, free of charge. The original purchaser will be responsible for all labor costs
after this one year period.
If no replacement parts are provided for any part of your fan motor that fails at any time during your
lifetime due to defects in material or workmanship, we will refund the original purchase price of your fan.
If your fan blades, pull chain switch, reverse switch, or any accessory, except glass globes and light
bulbs, fails at any time within one year after the original date of purchase due to a defect in material and
workmanship, we will repair or, if we choose, replace the defective blades, switch, or accessory free of
charge, with the exception of take down/reinstallation services.
If the original purchaser ceases to own the fan, this warranty and any implied warranty, including but not
limited to any implied warranty of merchantability or tness for a particular purpose, become void. This
warranty and any implied warranty, including but not limited to any implied warranty of merchantability
or tness for a particular purpose, do not cover glass globes, light bulbs, or nish on any metal portions
of the fan.
This warranty is in lieu of express warranties. The duration of any implied warranty of merchantability
or tness for a particular purpose, with respect to any Patriot Lighting Ceiling Fan motor, blades, switch,
or accessories, is expressly limited to the period of the express warranty set forth above for such motor,
blades, switch, or accessories.
This warranty excludes defects, malfunctions, or failures of any Patriot Lighting Fan that are caused by
repairs by persons not authorized by us, use of parts or accessories not authorized by us, mishandling,
improper installation, modications or damage to the fan while in your possession, or unreasonable use,
including failure to provide necessary maintenance.
To obtain service, contact the service department. You will be responsible for all insurance and freight or
other transportation charges to our factory or service center. A copy of sales receipt is required in order
to obtain service. We will return your fan freight prepaid. Your fan should be properly packed to avoid
damage in transit, for we will not be responsible for any such damages.
In no event shall Patriot Lighting Fan be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in which
case the above limitation or exclusion may not apply.
This warranty gives you specic legal rights and you may also have other rights which vary from state to
state.
