LIMITED LIFETIME WARRANTY
Model No.: # 355-0607
To obtain Service, please contact or call Turn of the Century Service Department:
1-800-887-6326, 9 a.m.- 5 p.m. central time.
The limited lifetime warranty covers this ceiling fan, for residential use by the original purchaser, against defects in
material or workmanship as follows:
If your Turn of the Century Ceiling Fan motor fails at any time during the lifetime of the original purchaser due to
defects in material or workmanship, we will provide a replacement part free of charge.
If your Fan motor fails at any time within one year after the original date of sale to the original purchaser due to defects
in material or workmanship, we will provide labor to repair the defect, with the exception of take down/reinstallation,
free of charge. The original purchaser will be responsible for all labor costs after this one year period.
If no replacement parts are provided for any part of your Fan motor that fails at any time during your lifetime due to
defects in material or workmanship, we will refund the original purchase price of your Fan.
If your Fan blades, remote controller / pull chain switch, reverse switch, or any accessory, except glass globes and light
bulbs, fails at any time within one year after the original date of purchase due to a defect in material and workmanship,
we will repair or, if we choose, replace the defective blades, switch, or accessory free of charge, with the exception of
take down/reinstallation services.
If the original purchaser ceases to own the Fan, this warranty and any implied warranty, including but not limited to any
implied warranty of merchantability or fitness for a particular purpose, become void. This warranty and any implied
warranty, including but not limited to any implied warranty of merchantability or fitness for a particular purpose, do not
cover glass globes, light bulbs, or finish on any metal portions of the Fan.
This warranty is in lieu of express warranties. The duration of any implied warranty of merchantability or fitness for a
particular purpose, with respect to any Turn of Century Ceiling Fan motor, blades, switch, or accessories, is expressly
limited to the period of the express warranty set forth above for such motor, blades, switch, or accessories.
This warranty excludes defects, malfunctions, or failures of any Turn of Century Fan that are caused by repairs by
persons not authorized by us, use of parts or accessories not authorized by us, mishandling, improper installation,
modifications or damage to the Fan while in your possession, or unreasonable use, including failure to provide
necessary maintenance.
To obtain service, contact Turn of Century Service Department at 1-800-887-6326, 9AM-5PM CST. You will be
responsible for all insurance and freight or other transportation charges to our factory or service center. A copy of sales
receipt is required in order to obtain service. We will return your Fan freight prepaid. Your Fan should be properly
packed to avoid damage in transit, for we will not be responsible for any such damages.
In no event shall Turn of Century Fan be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in which case the above
limitation or exclusion may not apply.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
171210
Turn of the Century
TM
PAGE: 2 / 9
10
12
14
4
5
7
6
8
3
13
9
11
Unpack your fan and check the contents. You should have the following items.
1.) Hanger Bracket
2.) Canopy
3.) Downrod Set (Included Hanger Ball, 6” Downrod, Hanger Pin & Lock Pin)
4.) Downrod Stand Cover
5.) Fan Motor Assembly
6.) Fan Blades (5PCS)
7.) Blade Bracket (5 PCS)
8.) Light Kit
9.) Metal Frame
10.) Glass Shade
11.) Remote Controller Set (Includes Receiver & Transmitter & wire connectors & Battery)
12.) Assembly Kit
13.) Blade Balancing Kit
14.) Installation Instructions
Package Contents:
Installation
Instruction
Dimension Reference (Installed with 6” Downrod):
A. 18-3/4” B. 10-1/8” C. 54” D. 5”
1 2
A
B
C
D
9V
Hanger Bracket
Canopy
Downrod
Downrod Stand Cover
Hanger Ball
Hanger Pin
Metal Frame
Collar
Lock Pin
Light Kit
Glass Shade

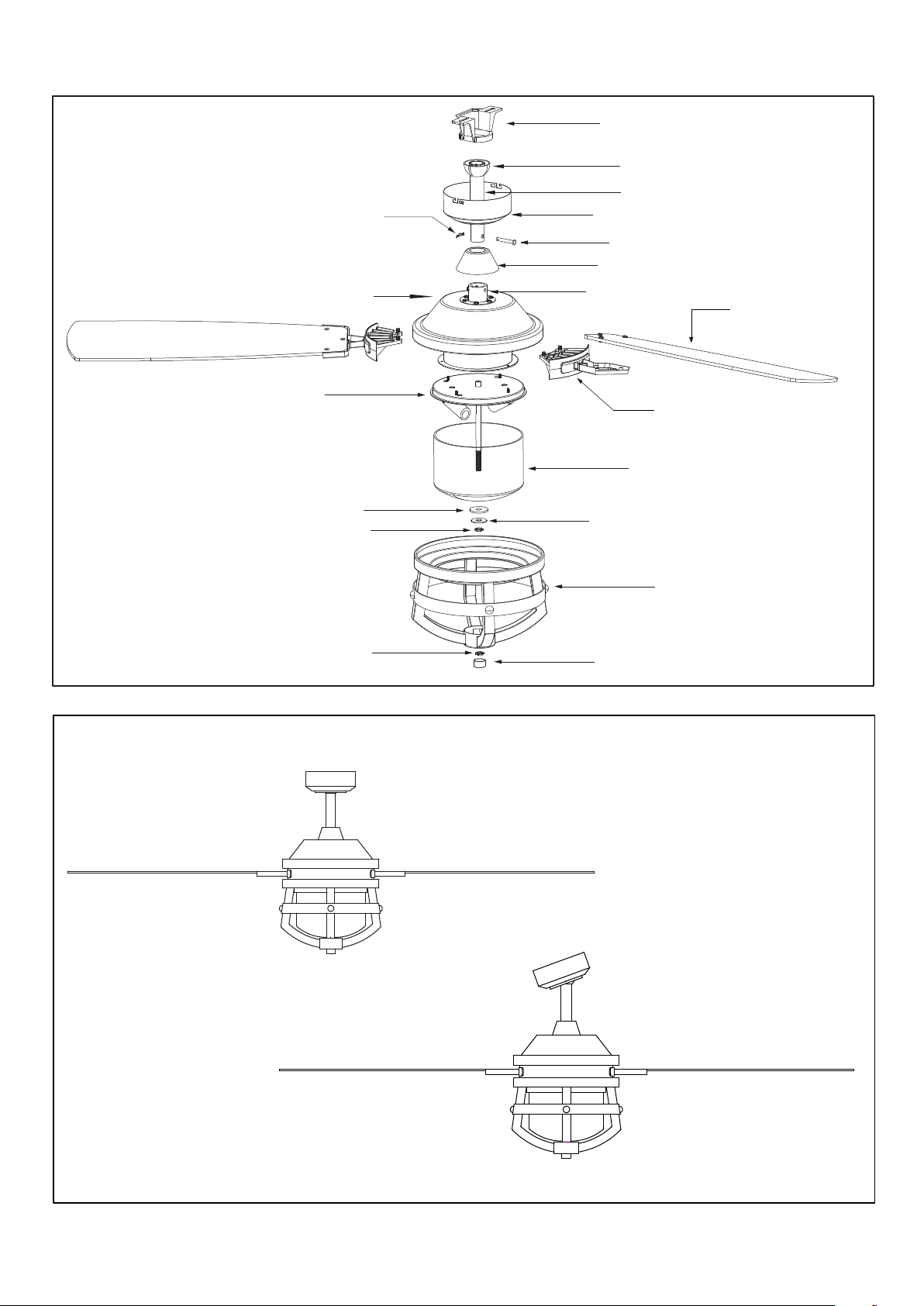

Exploded View Detail
PAGE: 3 / 9
171210
Turn of the Century
TM
Downrod Mount
Slope Ceiling Mount (Up to 23 degrees)
Dual Mount Drawing
Metal Pad
Rubber Pad
Hex Nut
Hex Nut
Finial
Fan Blade
Fan Motor Assembly
Blade Bracket
PAGE: 4 / 9
171210
Turn of the Century
TM
Safety Instructions
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN TO
INSTALL THE FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets,
balancing the blades or cleaning the fan. Do not insert foreign objects between rotating fan blades.
Before changing the fan direction, turn off the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation
instructions are not meant to cover all possible conditions and situations that may occur. It must be
understood that common sense, caution and care are factors which can not be built into this product.
These factors must be supplied by the person(s) installing, caring for and operating the fan.
TO AVOID RISK OF ELECTRIC SHOCK, BE SURE TO SHUT OFF POWER AT THE MAIN
FUSE OR CIRCUIT BREAKER BOX BEFORE INSTALLING OR SERVICING THIS
FIXTURE. TURNING OFF THE ELECTRICAL POWER BY USING THE LIGHT SWITCH
IS NOT SUFFICIENT TO PREVENT ELECTRICAL SHOCK.
TO REDUCE THE RISK OF INJURY, INSTALL THE FAN SO THAT THE BLADES ARE
AT LEAST 7 FEET (2.1 METERS) ABOVE THE FLOOR AND AT LEAST 18 INCHES
(0.5 METERS) FROM THE TIP OF THE BLADES TO THE WALL.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED "ACCEPTABLE FOR FAN SUPPORT" AND USE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
THE INSTALLATION HAS TO BE IN ACCORDANCE WITH THE NATIONAL ELECTRICAL
CODE, ANSI/NFPA 70-1999 AND LOCAL CODES. IF YOU ARE UNFAMILIAR WITH THE
METHODS OF INSTALLING ELECTRICAL WIRING, SEEK THE SERVICES OF A
QUALIFIED LICENSED ELECTRICIAN.
WARNING
171210
Turn of the Century
TM
PAGE: 5 / 9
Hanger
Bracket
Chip
Fig.2
Outlet Box
Collar
Lock Pin
Thread the motor wires through the
downrod stand cover,canopy and
downrod.

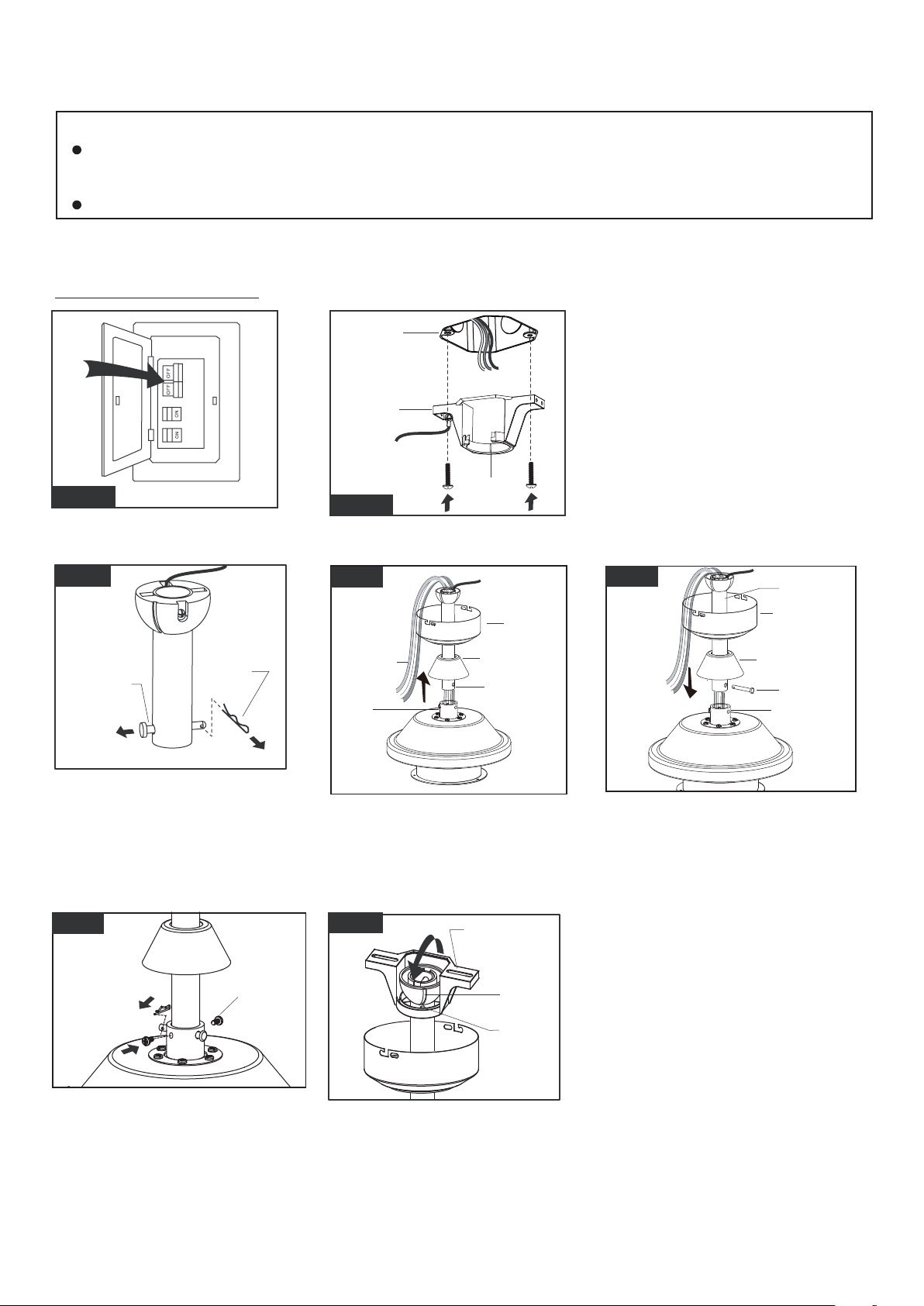

Installation Steps :
Hanger Pin
Lock Pin
Hang the fan on hanger bracket, and
make sure the slot of hanger ball is
snapped into the chip of hanger
bracket exactly.
Note: For slope ceiling installation,
make sure the slot of hanger ball and
the chip of hanger bracket face down.
Fig.1
Turn OFF the electric circuit at the
main fuse or circuit breaker box.
Remove the Lock Pin and take off
the Hanger Pin.
Fig.3
Loosen the collar screws in part way.
Insert the downrod into the collar.
Slide hanger pin through holes of
collar and downrod.
Fig.4
Motor Wires
Downrod
Downrod Stand
Cover
Canopy
Downrod
Collar
Hanger Pin
Canopy
Fig.5
Fig.6
Collar Screws
Insert and tighten the two collar
screws. slide lock pin into hanger
pin until it is locked into position.
Decorative Cap
NOTE: The fan weight is 18.5 lbs (8.4 kgs). Be sure the outlet box you are using is securely attached to the building
structure and can support the full weight of the fan. Failing to do so can result in serious injury.
INSTALLATION INSTRUCTIONS
IMPORTANT:
BEFORE YOU BEGIN INSTALLING THE FAN, CAREFULLY READ ALL INFORMATION ON THE SEPARATE
SHEET "SAFETY INSTRUCTIONS" AS WELL AS THE FOLLOWING "INSTALLATION INSTRUCTIONS". IF IN
DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
SAVE ALL INSTRUCTIONS.
Tighten the hanger bracket to the outlet
box with 2 mounting screws. (To reduce
the risk of fire, electric shock, or personal
injury, mount to the outlet box marked
"Acceptable for fan support" and use
mounting screws provided with the outlet
box.)
Note: For slope ceiling installation, make
sure that the chip of the hanger bracket
is toward the floor.
Fig. 7
Slot
Chip
Hanger Bracket
Fig.12
Tighten blades to blade brackets by
using blade screws and washers.
Attach the canopy to the hanger bracket,
and then secure it with four screws and
washers.
Blade Screw
Washer
Blade
Blade Bracket
Screw
Hanger Bracket
Washer
Canopy
Fig.11
171210
Turn of the Century
TM
PAGE: 6 / 9
Fig.10
Hanger
Bracket
Hanger
Ball
Receiver
1.
4.
5.
6.
2.3.
Antenna:
DO NOT CUT
OR SPLICE

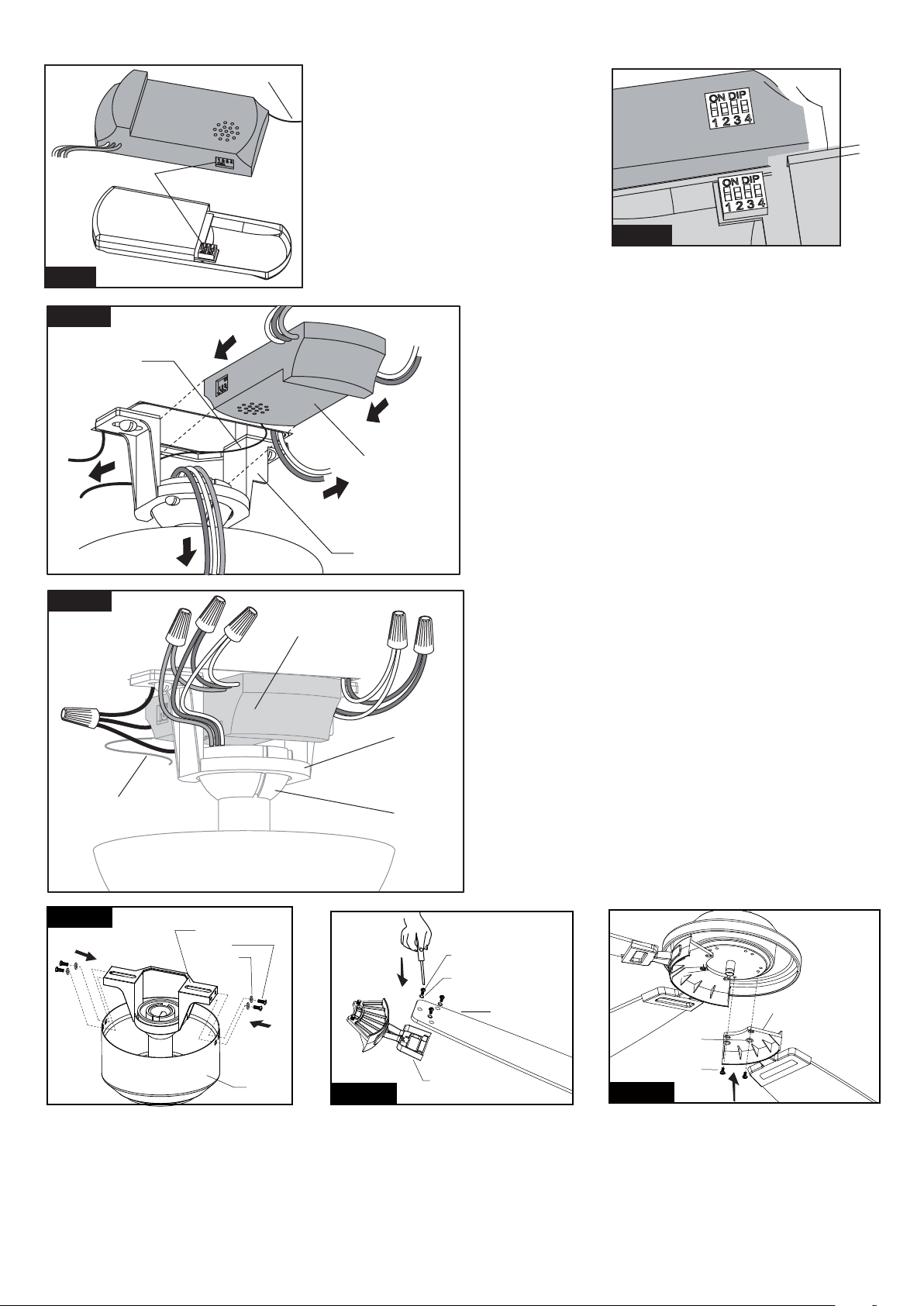

Connect wires:
1) The white wire from motor to the white "To Motor N" wire from
Receiver with a wire connector.
2) The black wire from motor to the black "To Motor L" wire from
Receiver with a wire connector.
3) The blue wire from motor to the blue "For Light" wire from
Receiver with a wire connector.
4) The white wire from Outlet Box to the red "AC in N" wire from
Receiver with a wire connector.
5) The black (hot) wire from Outlet Box to the red "AC in L" wire
from Receiver with a wire connector.
6) The ground wire from Outlet Box to the green ground wire
from the Hanger Ball and the green ground wire from the
Hanger Bracket with a wire connector.
Make sure all of wire connectors are connected firmly.
*** Put all wire connectors and wires carefully up into the Outlet
Box, EXCEPT antenna, which should remain outside Outlet
Box.
Fig. 9
Move Ground Wires (a), Outlet Box wires (b), and Motor Wires (c)
away from the center of the Hanger Bracket. Then slide Receiver
through Hanger Bracket as shown, Antenna end first, until it is
centered. Finally, cut Motor Wires (c) to length needed for
connections.
Antenna
Receiver
Hanger Bracket
Fig.8a
There is a code switch in the transmitter and
receiver. This "DIP Switch" is a 4 key units
(Fig.8). All keys were set at "ON" position in
the beginning. Set the keys to a different
code. Make sure the same numbered keys
are switched "ON" for both DIP switches
(Fig.8a). If the remote controlled fans are
installed than one or the frequency is
interfered, the fan may function abnormally.
Code example:
1-ON 2-OFF 3-ON 4-OFF on both DIP
Switches.
Note: If you have two ceiling fans with 2
remote control units, set 2 different
codes for each set of transmitter / Receiver.
a.
b.
c.
Fig. 8
Antenna
DIP Switch
Transmitter
Receiver
Fig.13
Blade Bracket
Remove the motor screws and washers from
the motor assembly. Secure blade brackets
to the motor with washers and motor screws.
Washer
Motor Screw
171210
Turn of the Century
TM
PAGE: 7 / 9
WARNING:
As per EPACT 2005 requirements, this fan light has a built-in current limiting device to conserve energy. The fan light
will not operate if the combined wattage of the installed bulbs exceeds 190 Watts. If the fan light shuts off shortly after
being switched on, it may be due to excessive current demand. You should replace the light bulbs with lower wattage
bulbs.
Metal Frame
Metal Pad
Rubber Pad
Hex Nut
Hex Nut
Finial
Fig.17
Fig.18

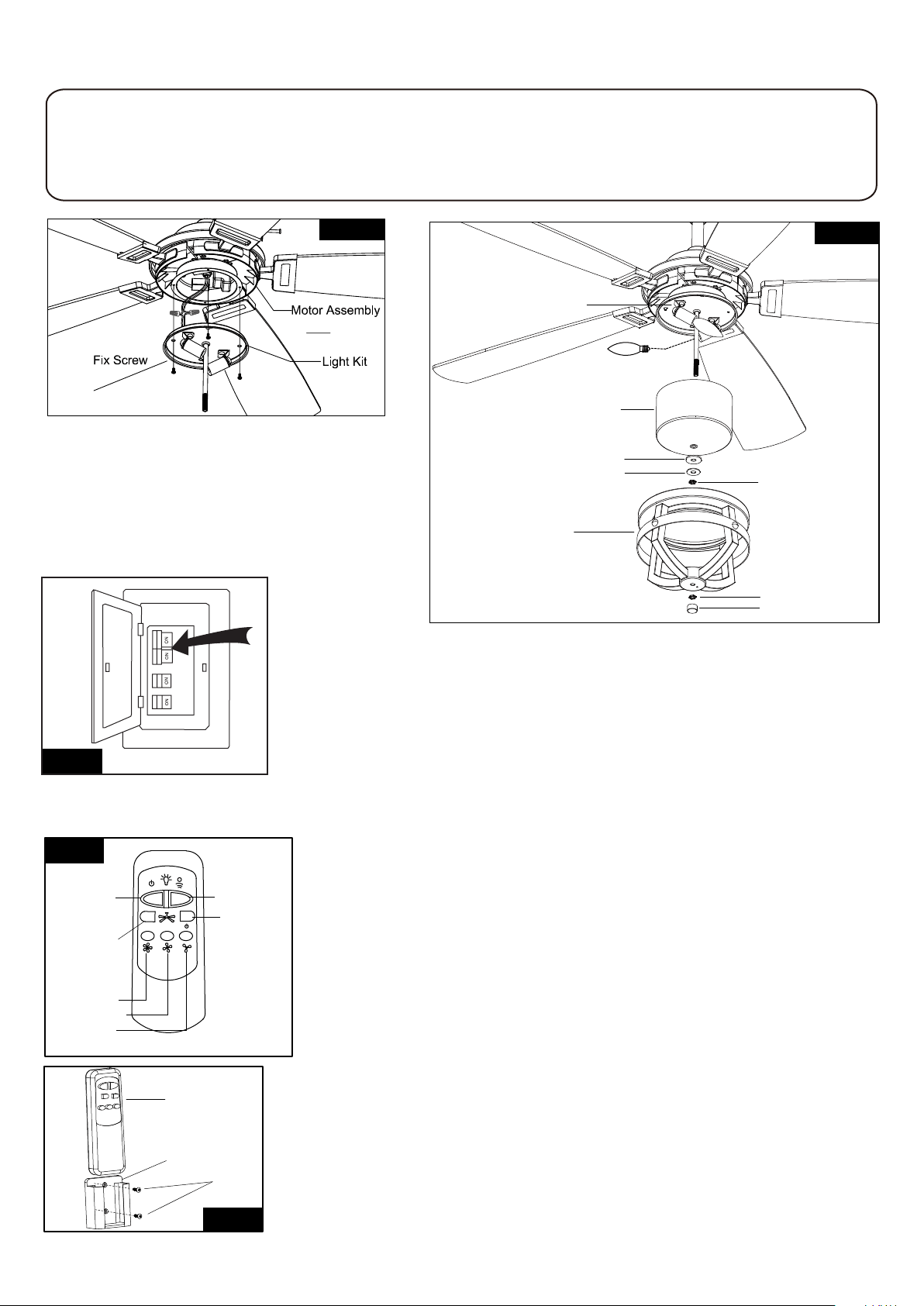

Install the battery (9V, included) to the transmitter.
* Press "HI" button to turn on the fan at high speed.
* Press "MED" button to turn the fan in medium speed.
* Press "LOW" button to turn the fan in low speed.
* Press "FAN OFF" button to turn off the fan.
* Press "LIGHT ON /OFF" button to turn on or turn off the light.
* Press "REVERSE" button to set direction of fan rotation.
* Press and hold the "DIMMER" button to dim or brighten lights to the desired level and
release, and the brightness level will be memorized. Turn on the light again, then fan light
will restore on of the brightness level which was dimmed last time.
Note:
1.This remote controller has memory function setting. The fan will operate at the same
speed and the fan light will stay at the same brightness as the last time the power
supply was turned off.
2.Compatible wall switch model No.:Harbor Breeze/745362.
3.Compatible B type LED bulb model No.: Luminus /3530150 and Maxlite/3531919.
Install the transmitter wall bracket in wall by two screws
and hang transmitter in it carefully.
Wall Bracket
Screw
Transmitter
HI
MED
LOW
FAN OFF
DIMMERLIGHT
ON/OFF
REVERSE
Light Kit
Glass Shade
Fig.14
Install bulbs (included). See relamping label at socket area or
packaging for maximum wattage.
Attach the glass shade upward to the light kit, then secure it with
a rubber pad, metal pad and hex nut.
Attach the metal frame upward to the glass shade carefully by
inserting the nipple, and then secure it with a hex nut and finial.
Connect the blue wire from motor to the black wire
from light kit by wire connectors. And connect the
white wire from motor to the white wire from light
kit by wire connectors. Remove one fix screw from
bottom of motor assembly (for later use), and loosen
the other two fix screws. Secure the light kit to motor
assembly with previous fix screw and tighten the
other two fix screws.
Fig.16
Turn ON the electric circuit at the
main fuse or circuit breaker box.
Install fan light
Fig.15
LED Bulb Type B Max.4W
(included)
171210
Turn of the Century
TM
PAGE: 8 / 9
Trouble Shooting Guide
If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation
or wiring. If you experience any faults, please check this Trouble Shooting Guide. If a problem cannot be
remedied or you are experiencing difficulty in installation, please call our Customer Service Department
(1-800-887-6326).
PROBLEM
1. If fan does not start:
2. If fan sounds noisy:
3. If fan wobbles:
4. If light does not work:
1. Check main and branch circuit fuses or circuit breakers.
2. Make sure forward/reverse switch is firmly in bottom or top position. Fan will not
operate when switch is in the middle.
3. Make sure that the wall control is turned "ON".
4. Check line wire connections to fan and switch wire connections in switch housing.
CAUTION: Make sure main power is turned off.
1. Make sure all screws in motor housing are snug. (not over tightened)
2. Make sure the screws which attach the fan blade bracket to the motor are tight.
3. Make sure wire connectors in switch housing are not rattling against each
other or against the interior wall of the switch housing.
CAUTION: Make sure main power is turned off before accessing switch housing.
4. If using an optional ceiling fan light kit, make sure the screws securing
the glassware are finger tight. Make sure light bulb is tight in socket and
not touching glass shade(s). If vibration persists from glass, remove glass and
install a 1/4 in. Wide rubber band on glass neck to act as an insulator. Replace
glass and tighten screws against rubber band.
5. Some fan motors are sensitive to signals from Solid State variable speed
controls. DO NOT USE a Solid State variable speed control.
6. Allow "break-in" period of 24 hours. Most noises associated with a new fan will
disappear after this period.
All blades are weighed and grouped by weight. Natural woods vary in density
which could cause the fan to wobble even though all blades are weight-matched.
The following procedures should eliminate most of the wobble. Check for wobble
after each step.
1. Check that all blades are screwed firmly into blade brackets.
2. Check that all blade brackets are tightened securely to motor.
3. Make sure that canopy and hanger bracket are tightened securely to ceiling
junction box and junction box is mounted firmly to ceiling joist.
4. Most wobble problems of fan are caused when blades are not in equal level. To
check the blade levels, select a point on the ceiling above the tip of any blade.
Measure the distance from the ceiling to the blade tip, to an accuracy of 1/8
inch. Rotate the blades until the next blade is in the measuring position. Repeat
measurement for each blade. If all blade levels are not equal, you can adjust
blade levels by the following procedure. To adjust a blade tip down, insert a
washer (not supplied) between the blade and blade bracket at the screw
closest to the motor. To adjust a blade tip up, insert washer (not supplied)
between the blade and blade bracket at the two screws farthest from the motor.
5. Interchanging two adjacent blades could redistribute the weight and possibly result
in smoother operation.
1. Check blue wire from fan to make sure it is connected to hot wire from supply wire
coming out of the ceiling.
2. Check for loose or disconnected wires in fan switch housing.
3. Check for loose or disconnected wires in light kit.
4. Check for faulty light bulbs.
CAUTION: Make sure main circuit is turned off before entering switch housing.
SUGGESTED REMEDY
DYNAMIC BLADE BALANCING KIT
PREFACE
Your ceiling fan may sometimes have wobbling problems when operating due to irregularity in the
blades or the blade brackets. Improper assembly in the mounting system may cause some additional
problems. This balancing kit can be used to fix wobbling problems.
DYNAMIC BLADE BALANCING KIT FOR CEILING FANS
1. Make sure that all blades are firmly screwed into the blade brackets.
2. Make sure that all blade brackets are firmly secured to the motor housing.
3. By looking up at the fan from below, check and be certain that none of the blade brackets are bent
and that none of the blades are out of position.
4. Use a yardstick to check the blade tracking. Put the yardstick up against the ceiling vertically and
against the outside leading edge of a blade. Note the distance of the edge of blade to the ceiling.
Carefully turn the blades slowly by hand to check the remaining blades. All distances should be
the same.
Operate the fan ten minutes. After following all the steps and if the wobbling problem is not solved, a
dynamic balancing needs to be done by balancing kit. Follow the procedure listed below:
● Turn the fan off. Select one blade and place the plastic clip on it, where the plastic clip locates is
halfway between the blade bracket and the blade tip on the edge of the blade.
Caution: The plastic clip should be placed on the windward edge of the blade for fear of
clip’s flying off.
● Turn the fan on (set the speed that causes the wobble most). Observe if the wobble is better or
worse. Turn the fan off and move the clip to the next blade. Do the same for all blades and note
on which blade the clip reduces the wobble most. Place the clip on the blade which showed the
most improvement. Move the clip inward and outward on this blade and operate the fan to find
the position where the clip gives the most improvement.
Caution: Stay clear of the blades. If the clip, for any reason, is not secure, injury could result .
● Once the exact position is determined, place a weight on the top of the blade, on its centerline and
most close to the clip. Peel the paper off of the back of the weight and press firmly to ensure that
it is securely attached to the blade. Remove the clip.
Caution: Clean the surface of fan blade before placing the balancing weight so that the
balancing weight can be firmly attached on it.
BALANCING WEIGHT
MEASURING
POINT
YARDSTICK
PLASTIC CLIP
CENTERLINE
COUNTER-
CLOCKWISE
1
2
3
4
5
6
7
8
9
171210
Turn of the Century
TM
PAGE: 9 / 9
