Model No.: # 355-0656
PAGE: 1 / 10
230208

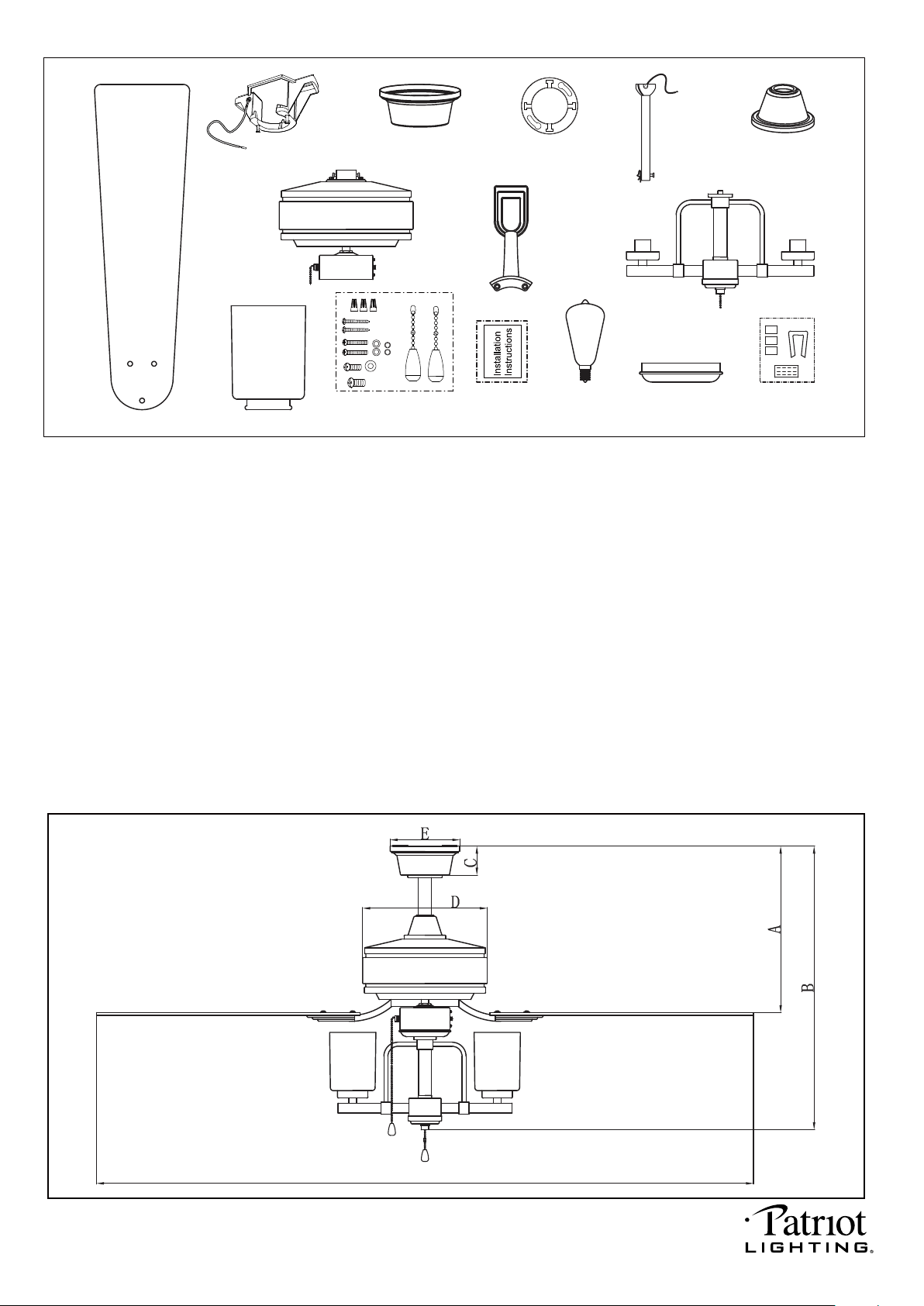

Unpack your fan and check the contents. You should have the following items.
1.) Hanger Bracket
2.) Canopy
3.) Canopy Cover (Comes in a Separate Bag)
4.) Downrod Set (Included Hanger Ball, 6” Downrod, Hanger Pin & Lock Pin)
5.) Downrod Stand Cover
6.) Fan Blade (5 PCS)
7.) Fan Motor Assembly
8.) Blade Bracket (5 PCS)
9.) Fan Light
10.) Glass Shade (3 PCS)
11.) Assembly Kit
12.) Installation Instructions
13.) 5W E12 (C) Base ST15 Type LED Bulb (3PCS)
14.)
15.) Blade Balancing Kit
Switch Box Cover
Package Contents:
Dimension Reference (Installed with 6” Downrod)
A. 13-1/5” B. 22-1/2” C. 2-2/7” D. 9-9/10” E. 5-1/2” F.52”
PAGE: 2 / 10
1 2 3 4 5
6 9
11
8
10
7
141312
15
F
X 16
230208
Downrod Mount
Sloped Ceiling Mount (Up to 23 degrees)
Exploded View Detail
Dual Mount Options
Hanger Bracket
Downrod
Housing
Hanger Ball
Hanger Pin
Collar
Downrod Stand Cover
Lock Pin
Fan Light
Fan Light Switch
Glass Shade
Blade Bracket
Switch Box
Switch Box Cover
LED Bulb
Blade
Canopy
PAGE: 3 / 10
Canopy Cover
230208
PAGE: 4 / 10
Safety Instructions
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN TO
INSTALL THE FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets,
balancing the blades or cleaning the fan. Do not insert foreign objects between rotating fan blades.
Before changing the fan direction, turn off the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation
instructions are not meant to cover all possible conditions and situations that may occur. It must be
understood that common sense, caution and care are factors which can not be built into this product.
These factors must be supplied by the person(s) installing, caring for and operating the fan.
TO AVOID RISK OF ELECTRIC SHOCK, BE SURE TO SHUT OFF POWER AT THE MAIN
FUSE OR CIRCUIT BREAKER BOX BEFORE INSTALLING OR SERVICING THIS
FIXTURE. TURNING OFF THE ELECTRICAL POWER BY USING THE LIGHT SWITCH
IS NOT SUFFICIENT TO PREVENT ELECTRICAL SHOCK.
TO REDUCE THE RISK OF INJURY, INSTALL THE FAN SO THAT THE BLADES ARE
AT LEAST 7 FEET (2.1 METERS) ABOVE THE FLOOR AND AT LEAST 18 INCHES
(0.5 METERS) FROM THE TIP OF THE BLADES TO THE WALL.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED "ACCEPTABLE FOR FAN SUPPORT" AND USE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
THE INSTALLATION HAS TO BE IN ACCORDANCE WITH THE NATIONAL ELECTRICAL
CODE, ANSI/NFPA 70-1999 AND LOCAL CODES. IF YOU ARE UNFAMILIAR WITH THE
METHODS OF INSTALLING ELECTRICAL WIRING, SEEK THE SERVICES OF A
QUALIFIED LICENSED ELECTRICIAN.
WARNING
230208
Thread the motor wires through the
downrod stand cover, canopy cover
(Making sure the smooth side of
canopy cover is facing downward.)
canopy and downrod.
PAGE: 5 / 10
Installation Steps :
Hanger Pin
Downrod
Lock Pin
INSTALLATION INSTRUCTIONS
IMPORTANT:
NOTE: The fan weight is 19.18 lbs (8.7 kgs). Be sure the outlet box you are using is securely attached to the building
structure and can support the full weight of the fan. Failing to do so can result in serious injury.
Tighten the hanger bracket to the outlet
box with two mounting screws. (To reduce
the risk of fire, electric shock, or personal
injury, mount to an outlet box marked
"Acceptable for fan support" and use
mounting screws provided with the outlet
box.)
Note: For sloped ceiling installation, make
sure that the chip of the hanger bracket
is toward the floor.
Hang the fan on hanger bracket,
and make sure the slot of hanger
ball is snapped into the chip of
hanger bracket exactly.
Note: For sloped ceiling installation,
make sure the slot of hanger ball
and the chip of hanger bracket
face down.
Turn OFF the electric circuit at the
main fuse or circuit breaker box.
Tighten the two collar screws.
Slide lock pin into hanger pin
until it is locked into position.
Loosen the collar screws out part way.
Insert the downrod into the collar.
Slide hanger pin through holes of
collar and downrod.
Lock Pin
Collar Screws
Slot
Chip
Hanger Bracket
BEFORE YOU BEGIN INSTALLATION, CAREFULLY READ ALL INFORMATION PROVIDED IN THE SAFETY
INSTRUCTIONS AND INSTALLATION INSTRUCTIONS. IF IN DOUBT, CONSULT A QUALIFIED
ELECTRICIAN.
SAVE ALL INSTRUCTIONS.
Hanger
Bracket
Outlet Box
Chip
Hanger Pin
Collar
Downrod
Canopy
Motor Wires
Downrod Stand
Canopy Cover
Cover
Downrod
Canopy
Motor Wires
Downrod Stand
Canopy Cover
Cover
Remove the lock pin from hanger
pin and remove the hanger pin
from the downrod.
Fig.1
Fig.2
Fig.3
Fig.4 Fig.5
Fig.6
Fig.7
230208
PAGE: 6 / 10
Fig.8
Connect the white (neutral)
wire from motor to the white
(neutral) wire from the outlet
box with a wire connector.
Connect the black (hot) wire
(This is for fan control) and blue
wire (This is for light control) from
motor to the black (hot) wire from
outlet box with a wire connector.
Bla
Black
ck
Blue
Green
White
White
Grounding
Green
*** After making the wire connections, the wires should
be spread apart. The white (neutral) conductor and
green (grounding) conductor on one side and the
black (hot) conductor and blue (light) conductor on
the other side of the outlet box.
*** The wire connection points should be turned upward
and pushed carefully up into outlet box.
Connect three
ground wires (Green
or bare copper) coming
from outlet box,
downrod and hanging
bracket with a wire
connector.
Connect three
ground wires (Green
or bare copper) coming
from outlet box,
downrod and hanging
bracket with a wire
connector.
For a single switch
Follow these steps:
Connect the black (hot) wire
from motor (This is for fan
control) to the black (hot)
wire from outlet box with a
wire connector.
Green
Black
Blue
Green
White
Black
Blue
(light)
White
Grounding
For dual switches
Follow these steps:
Connect the white (neutral)
wire from motor to the white
(neutral) wire from outlet box
with a wire connector.
Connect the blue wire (This
is for light control) from motor
to the blue wire from outlet
box with a wire connector.
*** After making the wire connections, the wires should
be spread apart. The white (neutral) conductor and
green (grounding) conductor on one side and the
black (hot) conductor and blue (light) conductor on
the other side of the outlet box.
*** The wire connection points should be turned
upward and pushed carefully up into outlet box.
Fig.9
230208
Tighten blades to blade brackets by
using blade screws and washers.
NOTE: Before installing blade
brackets to the motor, please
remove the plastic inserts.
Remove the motor screws and washers
from the fan motor assembly.
Secure blade brackets to the motor with
washers and motor screws.
PAGE: 7 / 10
Fig.11
Blade Screw
Washer
Blade Bracket
Blade
Fan Light Installation:
Hex Nut
Washer
Switch Box
Cover
Plug
Fan Light
Threaded Pipe
Fig.14
Remove the plug from the switch box cover. Remove the nut and lock washer
from fan light. Attach the fan light to the switch box cover by threading the fan
light wires (black and white) and remove the threaded pipe through the hole of
switch box cover and then secure them onto the switch box cover with nut and
lock washer. Be sure it is tight enough to prevent light kit from vibrating loose.
Note: The glass shades of light kit and fan switch chain should be
staggered to avoid the fan switch chain and glass shades from getting
stuck or scratched.
Assembly without fan light
Make sure the lead wire of fan light
in switch box is sealed with a wire
connector exactly. Secure the switch
box cover into switch box with the
switch box cover screws.
Note: To install the fan light, skip this
step and proceed to Fig.14.
Remove the switch box cover screws
from the switch box cover first.
Switch Box
Screw
Fig.13
Slide the canopy up to ceiling and over
the two canopy screws on hanger
bracket. Rotate canopy counterclockwise,
next, while holding the canopy with one
hand, slide the canopy cover over the
screws and rotate counterclockwise until tight.
Note:Adjust the canopy screws as
necessary until the canopy and
canopy cover are snug.
Switch Box
Switch Box
Cover
Fig.12
Motor Screw
Blade Bracket
Plastic Insert
Washer
Fig.10
Canopy Screw
Canopy Screw
Key Hole
Slot
Hanger Bracket
Canopy
Canopy Cover
230208
PAGE: 8 / 10
Attach the glass shade onto the glass holder,
repeat until all of glass shades are fixed.
Install LED bulbs (included). See relamping
label at socket area or packaging for
maximum allowed wattage.
The slide switch on switch box sets direction of fan rotation. Select the
desired direction of fan rotation.
Push the slide switch down for "Forward" and up for "Reverse".
Note: Wait for fan to stop before reversing the direction of blade rotation.
Install two pull chains and drops onto the pull chains located in the switch
box and light kit.
The pull chain controls the fan speed as follows:
1 pull – High, 2 pull – Medium, 3 pull – Low, and 4 pull – Off.
To turn the light kit “ON” or “OFF”, pull the chain that is attached to the
light kit.
Caution: 1. If you install a remote control or a wall control for this fan,
pull the pull chains to "high speed" of the fan motor and
"on" of the fan light.
2. Compatible Wall Switches:
Menards SKU# 363-2615 / 363-5815.
Fig.19
Turn ON the electric power at the
main fuse or circuit breaker box.
Fig.18
Install pull
chains and
drops
Slide Switch
Forward
Switch Box
Reverse
Make wire connection:
-- Connect the blue wire from
the switch box to black wire
from the fan light with wire
connector.
-- Connect the white wire from
the switch box to white wire
from the fan light with wire
connector.
Fig.17
Glass Shade
Glass Holder
3-5W E12 Base ST15 Type LED
Bulbs (included)
E12 Base ST15 Type
bulbs Max.60W
Fan Light
Wire Connector
Fig.15
Switch Box
Fig.16
Light Kit Switch
Set Screw
Fan Light
Remove the switch box screws from the switch box
cover first. Carefully put the wires into the switch box,
then attach the fan light into the switch box with the
switch box screws.
230208
PAGE: 9 / 10
Troubleshooting Guide
If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation
or wiring. If you experience any faults, please check this Troubleshooting Guide. If a problem cannot be
remedied or you are experiencing difficulty in installation, please call our Customer Service Department
(1-800-887-6326).
PROBLEM
1. If fan does not start:
2. If fan sounds noisy:
3. If fan wobbles:
4. If light does not work:
1. Check main and branch circuit fuses or circuit breakers.
2. Make sure forward/reverse switch is firmly in bottom or top position. Fan will not
operate when switch is in the middle.
3. Make sure that the wall control is turned "ON".
4. Check line wire connections to fan and switch wire connections in switch box.
CAUTION: Make sure main power is turned off.
1. Make sure all screws in motor housing are snug. (not too tight)
2. Make sure the screws which attach the fan blade bracket to the motor are tight.
3. Make sure wire connectors in switch box are not rattling against each
other or against the interior wall of the switch box.
CAUTION: Make sure main power is turned off before accessing switch box.
4. If using an optional ceiling fan light kit, make sure the screws securing
the glassware are finger tight. Make sure light bulb is tight in socket and
not touching glass shade(s). If vibration persists from glass, remove glass and
install a 1/4 in. wide rubber band on glass neck to act as an insulator. Replace
glass and tighten screws against rubber band.
5. Some fan motors are sensitive to signals from Solid State variable speed
controls. DO NOT USE a Solid State variable speed control.
6. Allow "break-in" period of 24 hours. Most noises associated with a new fan will
disappear after this period.
All blades are weighed and grouped by weight. Natural woods vary in density
which could cause the fan to wobble even though all blades are weight-matched.
The following procedures should eliminate most of the wobble. Check for wobble
after each step.
1. Check that all blades are screwed firmly into blade brackets.
2. Check that all blade brackets are tightened securely to motor.
3. Make sure that canopy and hanger bracket are tightened securely to ceiling
junction box and junction box is mounted firmly to ceiling joist.
4. Most wobble problems of fan are caused when blades are not in equal level. To
check the blade levels, select a point on the ceiling above the tip of any blade.
Measure the distance from the ceiling to the blade tip, to an accuracy of 1/8
inch. Rotate the blades until the next blade is in the measuring position. Repeat
measurement for each blade. If all blade levels are not equal, you can adjust
blade levels by the following procedure. To adjust a blade tip down, insert a
washer (not supplied) between the blade and blade bracket at the screw
closest to the motor. To adjust a blade tip up, insert washer (not supplied)
between the blade and blade bracket at the two screws farthest from the motor.
5. Interchanging two adjacent blades could redistribute the weight and possibly result
in smoother operation.
1. Check blue wire from fan to make sure it is connected to hot wire from supply wire
coming out of the ceiling.
2. Check for loose or disconnected wires in fan switch box.
3. Check for loose or disconnected wires in light kit.
4. Check for faulty light bulbs.
CAUTION: Make sure main circuit is turned off before entering switch box.
SUGGESTED REMEDY
230208
PAGE:
10 / 10
DYNAMIC BLADE BALANCING KIT
PREFACE
Your ceiling fan may sometimes have wobbling problems when operating due to irregularity in the
blades or the blade brackets. Improper assembly in the mounting system may cause some additional
problems. This balancing kit can be used to fix wobbling problems.
DYNAMIC BLADE BALANCING KIT FOR CEILING FANS
1. Make sure that all blades are firmly screwed into the blade brackets.
2. Make sure that all blade brackets are firmly secured to the motor housing.
3. By looking up at the fan from below, check and be certain that none of the blade brackets are bent
and that none of the blades are out of position.

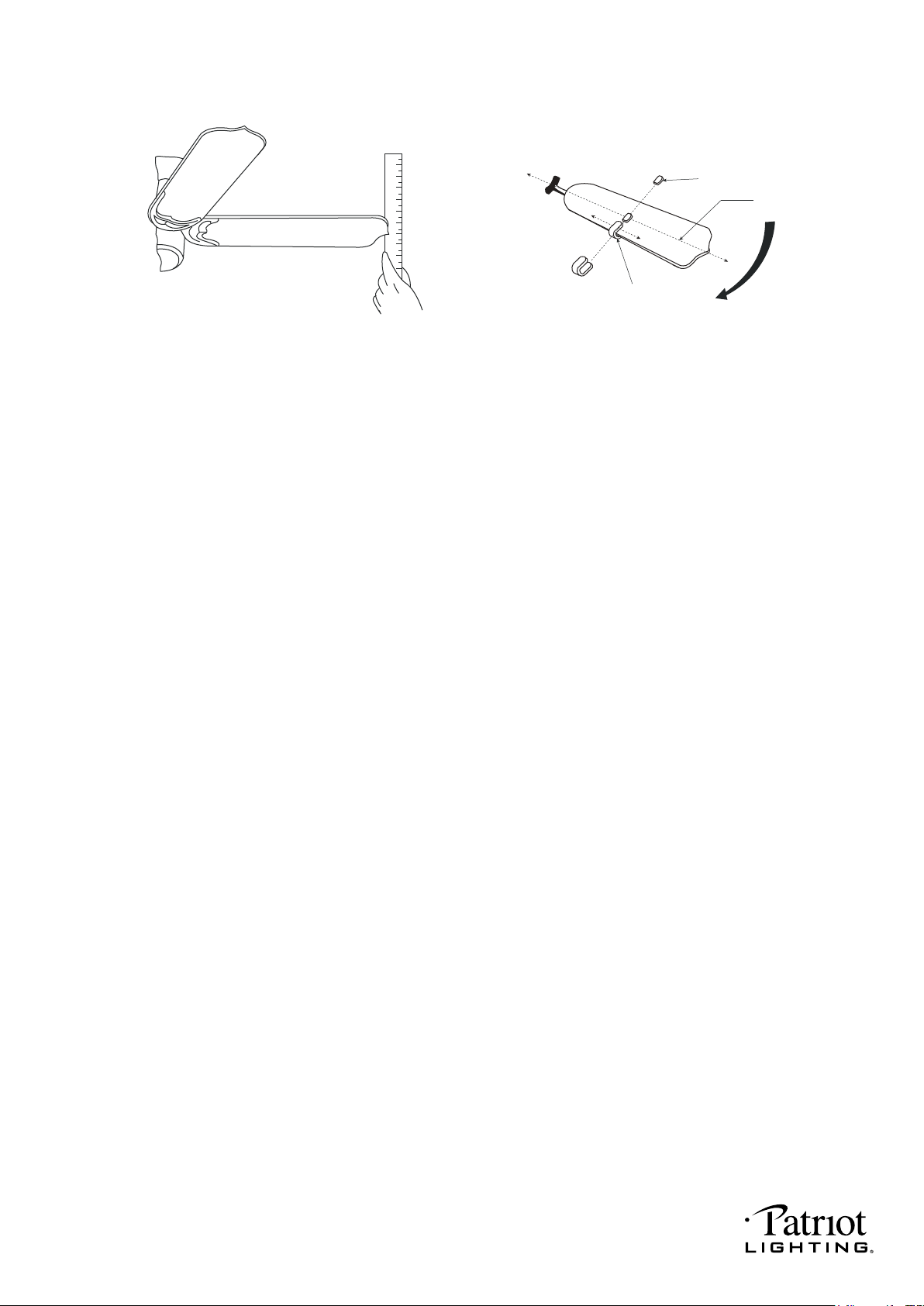

4. Use a yardstick to check the blade tracking. Put the yardstick up against the ceiling vertically and
against the outside leading edge of a blade. Note the distance of the edge of blade to the ceiling.
Carefully turn the blades slowly by hand to check the remaining blades. All distances should be
the same.
Operate the fan ten minutes. After following all the steps and if the wobbling problem is not solved, a
dynamic balancing needs to be done with balancing kit. Follow the procedure listed below:
● Turn the fan off. Select one blade and place the plastic clip on it, with the plastic clip located
halfway between the blade bracket and the blade tip on the edge of the blade.
Caution: The plastic clip should be placed on the windward edge of the blade for fear of
clip flying off.
● Turn the fan on (set the speed that causes the wobble most). Observe if the wobble is better or
worse. Turn the fan off and move the clip to the next blade. Do the same for all blades and note
on which blade the clip reduces the wobble most. Place the clip on the blade which showed the
most improvement. Move the clip inward and outward on this blade and operte the fan to find
the position where the clip gives the most improvement.
Caution: Stay clear of the blades. If the clip, for any reason, is not secure, injury could result.
● Once the exact position is determined, place a weight on the top of the blade, on its centerline and
as close as possible to the clip. Peel the paper off of the back of the weight and press firmly to
ensure that it is securely attached to the blade. Remove the clip.
Caution: Clean the surface of fan blade before placing the balancing weight so that the
balancing weight will be firmly attached to it.
BALANCING WEIGHT
MEASURING
POINT
YARDSTICK
PLASTIC CLIP
CENTERLINE
COUNTER-
CLOCKWISE
1
2
3
4
5
6
7
8
9
230208
