BULLETIN NO.

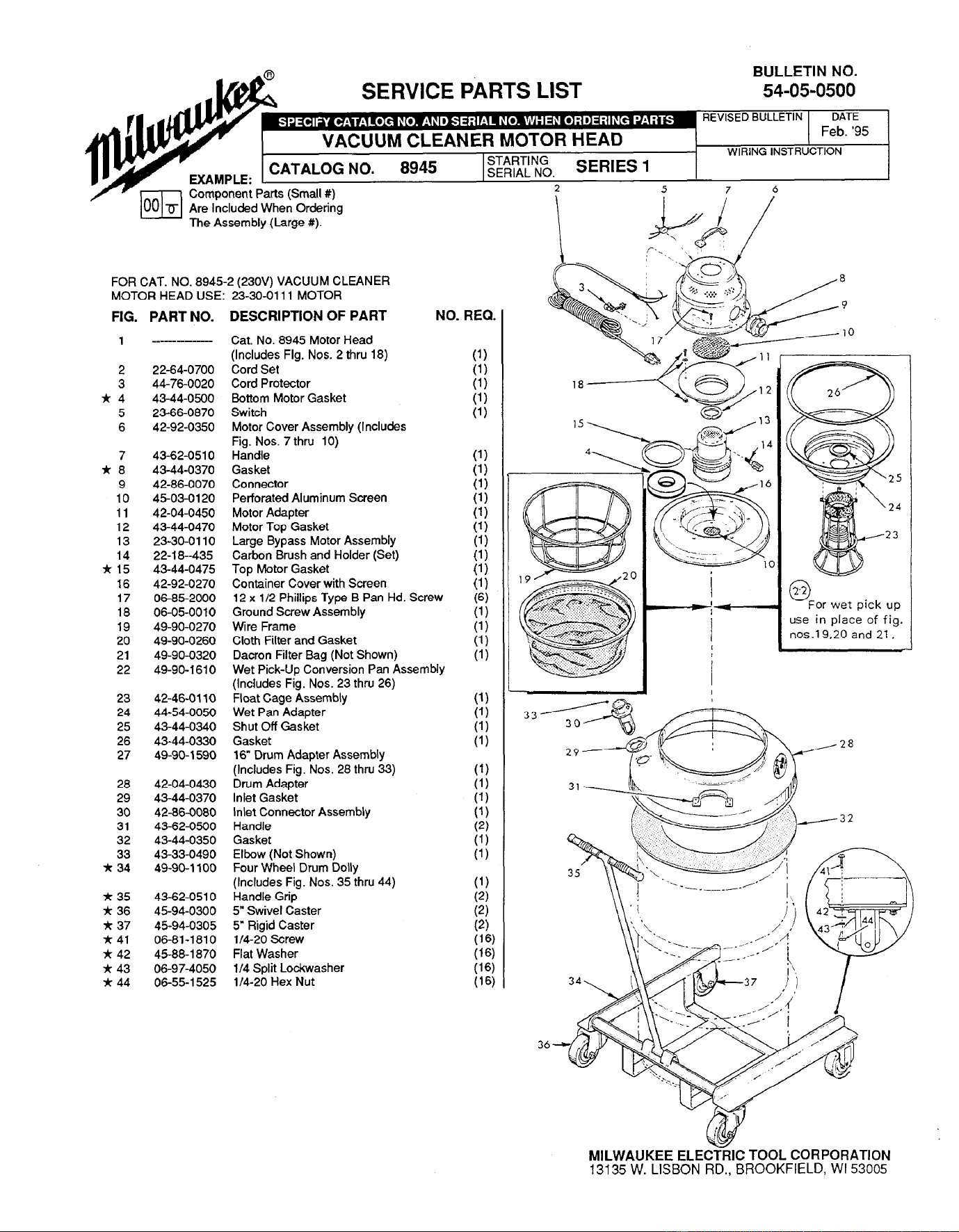

SERVICE PARTS LIST
v,v , v,, , LAD
!,T;‘N,lj, SERIES 1
CATALOG NO.
8945
&If% I.“.
54-05-0500
REVISED BULLETIN
DATE
Feb. ‘95
WIRING INSTRUCTION
Component Parts (Small a)
Are Included When Ordering
The Assembly (Large #).
FOR CAT. NO. 8945-2 (230V) VACUUM CLEANER
MOTOR HEAD USE: 23-30-0111 MOTOR
FIG. PART NO.
DESCRIPTION OF PART
NO. REQ.
1 ___-_--_-
2 22-64-0700
3 44-76-0020
*4 43-44-0500
5 23-66-0870
6 42-92-0350
Cat. No. 8945 Motor Head
(Includes Flg. Nos. 2 thru 18)
Cord Set
(1)
(1)
(1)
(1)
(1)
7 43-62-0510
k8 43-44-0370
9 42-86-0070
10 46-03-o 120
11 42-04-0450
12 43-44-0470
13 23-30-o 110
14 22-l 8--435
* 15 43-44-047s
16 42-92-0270
17 06-85-2000
18 06-05-0010
19 49-90-0270
20 49-90-0260
21 49-90-0320
22 49-90-l 610
Cord Protector
Bottom Motor Gasket
Switch
Motor Cover Assembly (Includes
Fig. Nos. 7 thru 10)
Handle
Gasket
Connector
Perforated Aluminum Screen
Motor Adapter
Motor Top Gasket
Large Bypass Motor Assembly
Carbon Brush and Holder (Set)
Top Motor Gasket
Container Cover with Screen
12 x l/2 Phillips Type B Pan Hd. Screw
Ground Screw Assembly
Wire Frame
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(6)
(1)
(1)
(1)
(1)
23 42-46-0110
24 44-54-0050
25 43-44-0340
26 43-44-0330
27 49-90-I 590
Cloth Filter and Gasket
Dacron Filter Bag (Not Shown)
Wet Pick-Up Conversion Pan Assembly
(Includes Fig. Nos. 23 thru 26)
Float Cage Assembly
Wet Pan Adapter
Shut Off Gasket
Gasket
(1)
(1)
(1)
(1)
28 42-04-0430
29 43-44-0370
30 42-86-0080
31 43-62-0500
32 43-44-0350
33 43-33-0490
* 34 49-90-l 100
(1)
(1)
(1)
(1)
(2)
(1)
(1)
* 35 43-62-0510
* 36 45-94-0300
* 37 45-94-0305
* 41 06-81-1810
* 42 45-88-l 870
* 43 06-97-4050
* 44 06-55-l 525
16” Drum Adapter Assembly
(Includes Fig. Nos. 28 thru 33)
Drum Adapter
Inlet Gasket
Inlet Connector Assembly
Handle
Gasket
Elbow (Not Shown)
Four Wheel Drum Dolly
(Includes Fig. Nos. 35 thru 44)
Handle Grip
5” Swivel Caster
5” Rigid Caster
l/4-20 Screw
Flat Washer
l/4 Split Lockwasher
l/4-20 Hex Nut
(1)
(2)
(2)
(2)
;I:;
(16)
(16)
8
@For wet pick up
use in place of fig.
nos.1 9.20 and 21
MILWAUKEE ELECi=iilC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
