MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. Lisbon Road, Brookfield, WI 53005
Drwg. 2
FIG. PART NO. DESCRIPTION OF PART QTY.
1 14-20-0465 Heating Element (1)
2 14-50-0635 Motor (1)
3 23-66-2055 Switch Assembly (1)
4 31-15-0025 LCD Display Cover (1)
5 31-84-0010 Switch Cap - Temperature (Red) (1)
6 31-84-0015 Switch Cap - Power (Blue) (1)
7 22-64-0830 Cord (1)
8 44-76-0165 Strain Relief (1)
9 14-46-8988 Air Filter Kit (1)
10 --------------- Air Filter (2)
11 --------------- Rubber Pad (2)
8988-20
54-05-0825
199A - 1001
3 - STAGE HEAT GUN with DISPLAY
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
REVISED BULLETIN
DATE
SERVICE PARTS LIST
BULLETIN NO.
WIRING INSTRUCTION
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
STARTING
SERIAL NUMBER
Dec. 2000
0
00
FIG. PART NO. DESCRIPTION OF PART QTY.
12 14-46-8986 Repair Kit (1)
13 --------------- Housing Screws (5)
14 --------------- Cord Screws (2)
15 --------------- Cord Clamp (1)
16 --------------- Rubber Support (1)
17 14-38-0575 Housing Kit (1)
18 --------------- Housing Halves (2)
19 31-55-0165 Nose Guard (1)
-- 12-20-8988 Service Nameplate Kit (not shown) (1)
-- --------------- Milwaukee Label (not shown) (1)
-- --------------- Caution Label (not shown) (1)
-- --------------- Nameplate (not shown) (1)
1
2
4
5
6
7
8
10
11
13
14
15
16
18
19
1717
18
9
10
11
12
13
14
15
16
17
9
12
18
3
See Reverse Side

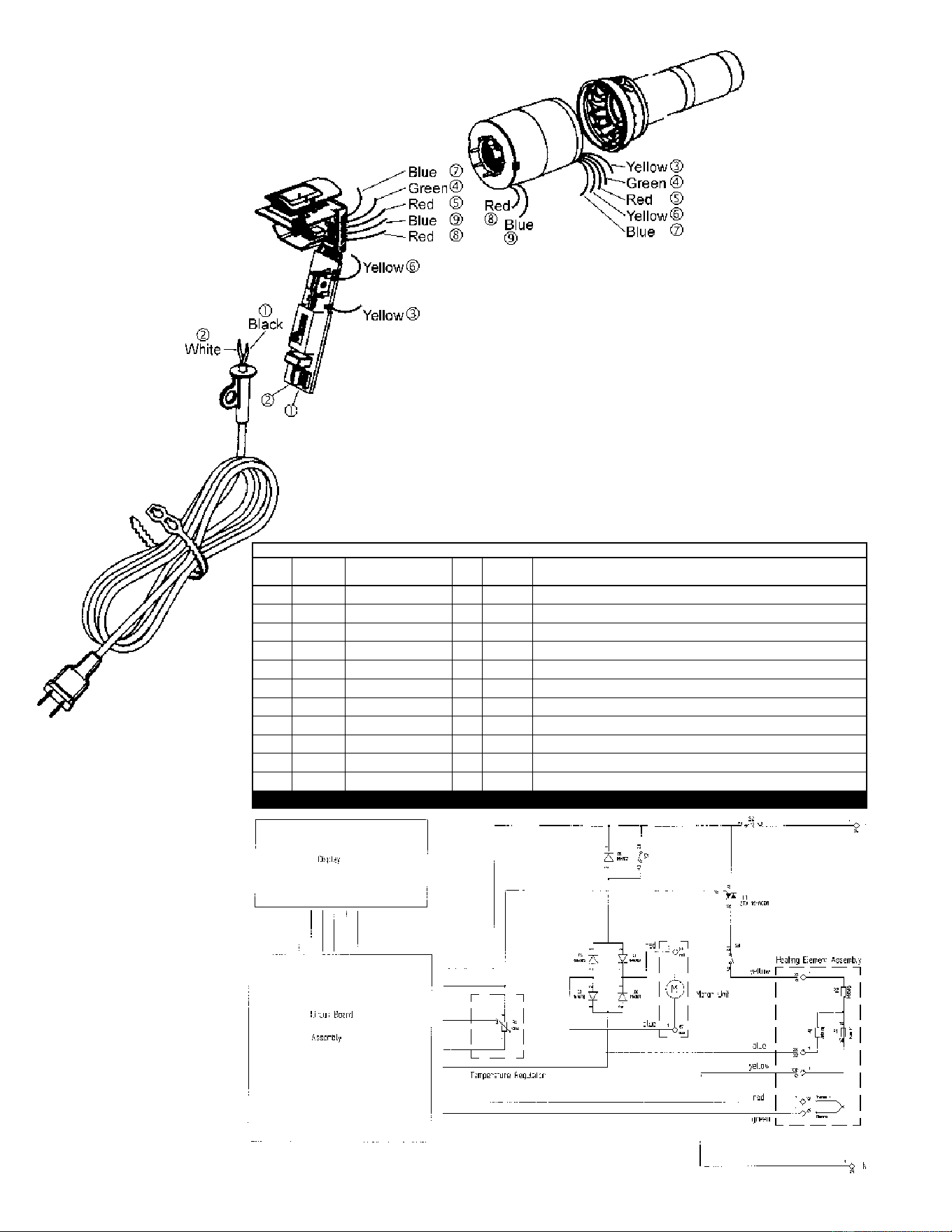

WIRING SPECIFICATIONS
Wire Wire Origin or
No. Color Part No. Ga. Length Terminals, Connectors and End Wire Preparation
1 Black Cord Set -- 1.25 Strip .31 for switch assembly
2 White Cord Set -- 1.25 Strip .31 for switch assembly
3 Yellow -- -- -- Component of the motor
4 Green -- -- -- Component of the motor
5 Red -- -- -- Component of the motor
6 Yellow -- -- -- Component of the motor
7 Blue -- -- -- Component of the motor
8 Red -- -- -- Component of the motor
9 Blue -- -- -- Component of the motor
BULK LEAD WIRE - BULLETIN 58-01-0003
