VARI-TEMP. D.I. HEAT GUN
8978 786-1001
54-05-0660
July '99
SEE REVERSE SIDE

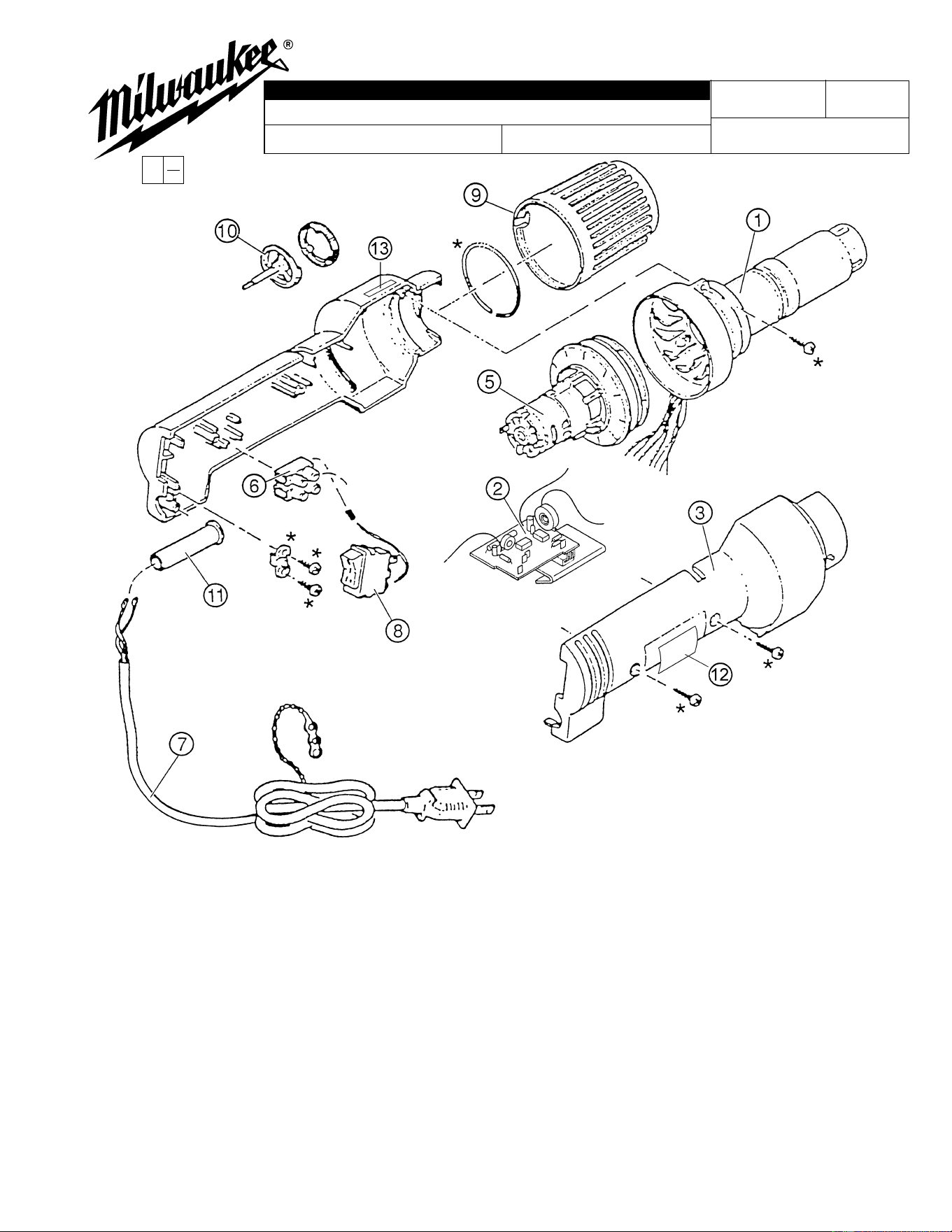

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 14-20-0450 Heating Element (1)
2 14-20-0460 Electronic Module (1)
3 14-38-0570 Housing Assembly (1)
(Includes Fig. 4, 9 & 12)
4 14-46-8978 Service Parts Kit (1)
(Includes All (*) Items)
5 14-50-0630 Motor Assembly (1)
6 22-56-0625 Terminal Block (1)
7 22-64-0830 Cord Set (1)
8 23-66-2050 Switch Assembly (1)
9 31-55-0160 Nose Guard (1)
10 43-98-0360 Heat Adjusting Knob (1)
11 44-76-0135 Strain Relief (1)
12 12-20-8978 Service Nameplate (1)
13 10-98-6000 Caution Label (1)
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 2
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
CATALOG NO.
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
SERIAL
NUMBER

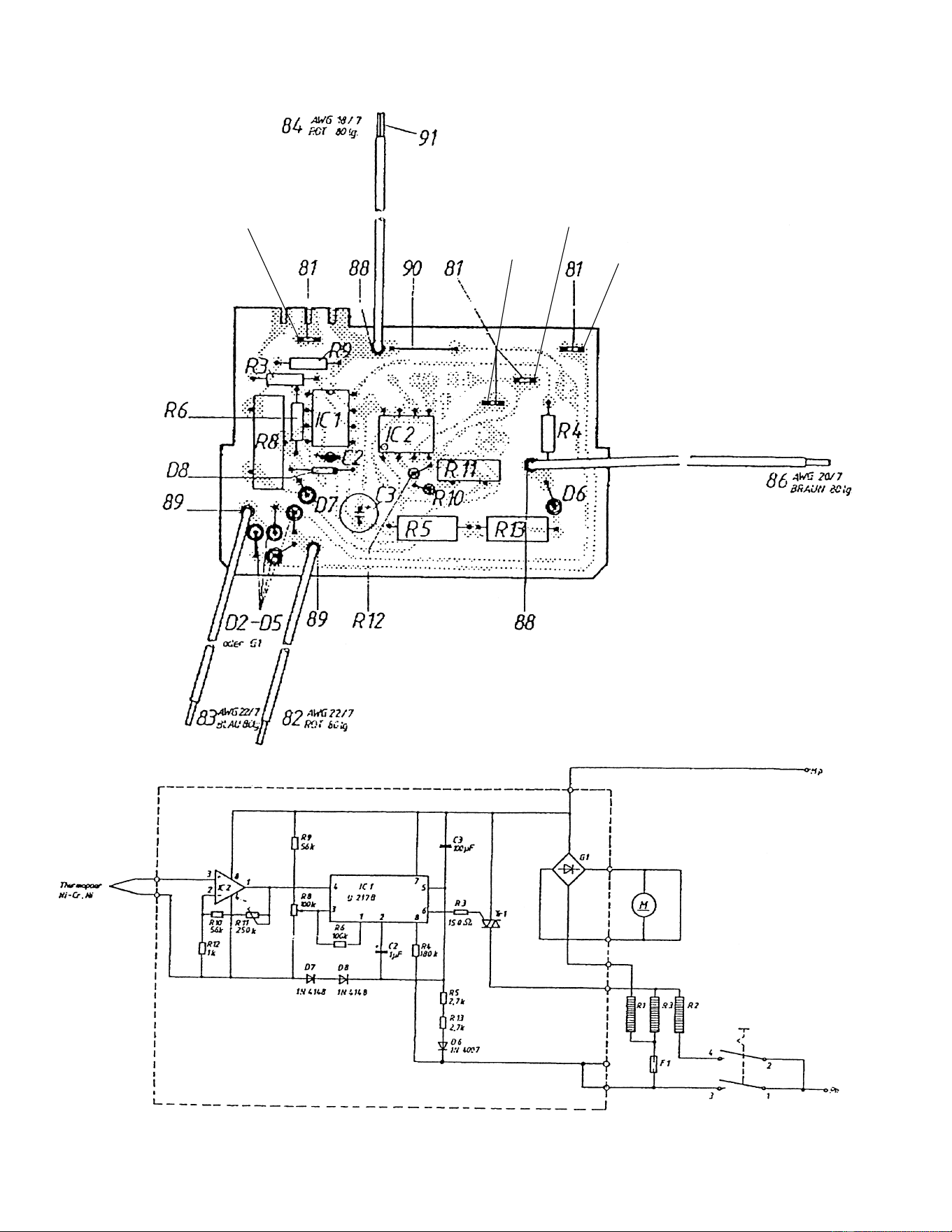

WIRING INSTRUCTION
DATE
Yellow Element
Red to Cord Terminal Block
Red
Element
Green
Element
Blue
Element
Brown to Switch
Red to MotorBlue to Motor
