FIG. PART NO. DESCRIPTION OF PART QTY.
1 06-81-5010 1/4 x 3/4 Type AB Screw 2
2 43-62-1185 Handle 1
3 06-81-5390 8 x 1/2 Type AB Screw 3
4 31-15-0532 Motor Housing Cover 1
5 22-64-0910 Cord 1
6 44-76-0300 Cord Retainer 1
7 43-84-0880 Cover Insert 1
8 31-50-1460 Motor Housing 1
9 43-76-0630 Inner Form Insert 1
10 43-44-1050 Upper Motor Gasket 1
11 06-95-4000 10-24 x 1/2 Ground Screw 1
12 43-76-0640 Outer Form Insert 1
13 23-30-0340 Motor 1
15 42-46-0100 Ball Float 1
16 43-44-0010 Lower Motor Gasket 1
17 42-68-0690 Lid Latch 3
18 31-15-0540 Lid Cage Assembly 1
19 06-95-4010 10 x 24 Type AB Screw 10
20 49-90-1830 Cartridge Filter 1
21 42-51-0450 Tank Assembly 1
22 49-90-0445 High Effi ciency Filter (5) Pack
23 42-36-1840 Caster Bracket 2
24 45-94-0420 Caster 4
25 42-51-0255 Tool Basket 1
26 23-66-2552 Switch 1
27 42-92-1210 Switch Cover 1
28 22-36-0210 Circuit Breaker 1
29 23-33-0490 Receptacle 1
30 22-09-0760 Circuit Board Assembly 1
31 06-81-8705 10-24 x 1/2 Nylon Screw 1
32 06-55-1050 10-24 Hex Nut 1
Items Not Shown
10-20-8936 French Warning Label 1
10-20-8938 Spanish Warning Label 1
10-20-9000 Auto Label 1
10-20-9010 Receptacle Label 1
10-20-9020 Circuit Breaker Label 1
10-20-9030 Switch Label 1
12-99-8936 Service Nameplate 1
22-18-0195 Carbon Brush Assembly 1
49-90-0155 Hose Adapter 1
49-90-0286 Poly Filter 1
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
REVISED BULLETIN DATE
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS

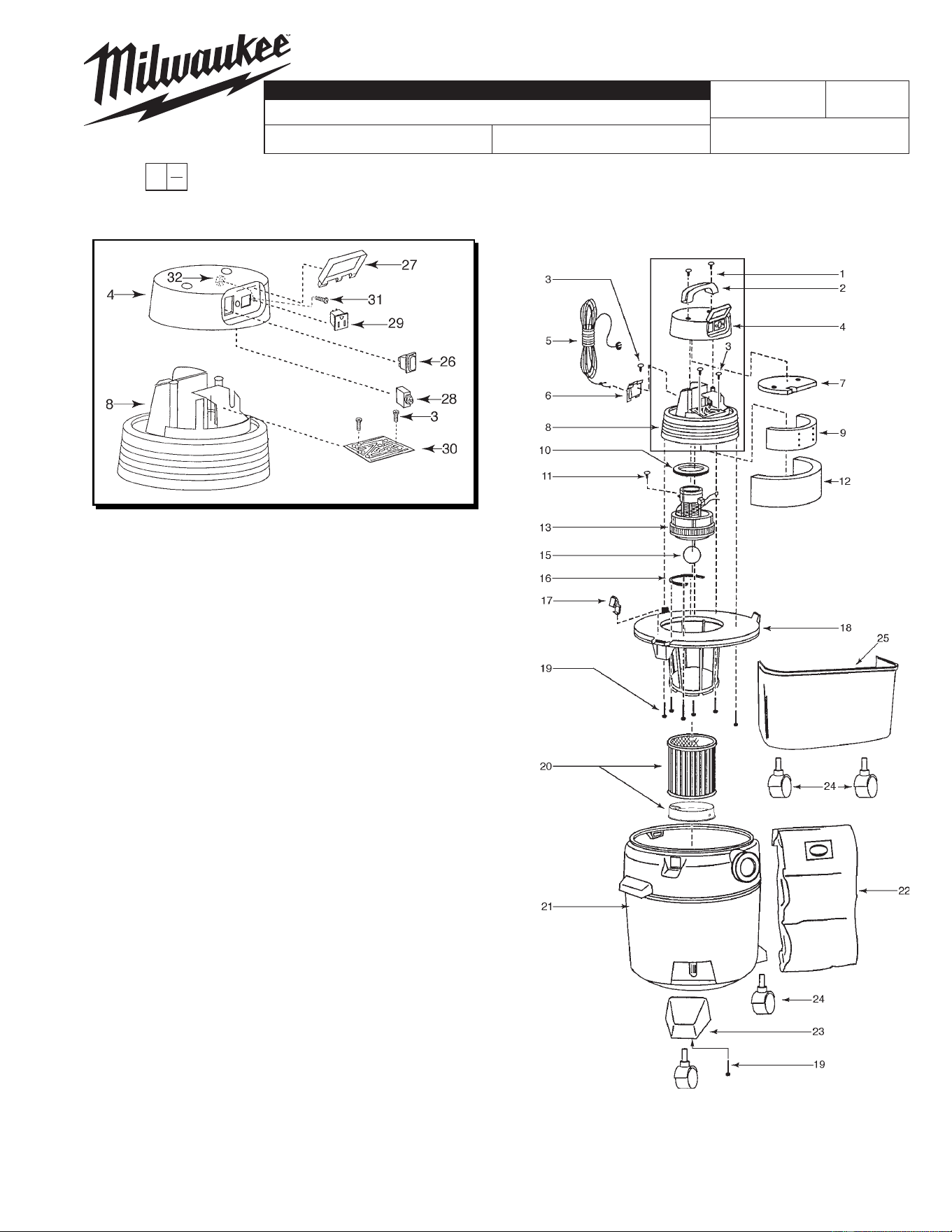

SERVICE PARTS LIST
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 2
WIRING INSTRUCTION
54-05-0076
Nov. 2014
BULLETIN NO.
SERIES S-2
STARTING
SERIAL NO.
8936-20
CATALOG NO.
7.5 GALLON WET OR DRY VACUUM CLEANER
58-01-1161
SEE DETAIL DRAWING
= Part number change from
previous service parts list.
54-05-0075
