EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
REVISED BULLETIN DATE
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERVICE PARTS LIST
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 1
WIRING INSTRUCTION
54-05-0558
Sept. 2014
54-05-0557
BULLETIN NO.
SERIES S10
STARTING
SERIAL NO.
8955
CATALOG NO.
10 GALLON WET OR DRY VACUUM CLEANER

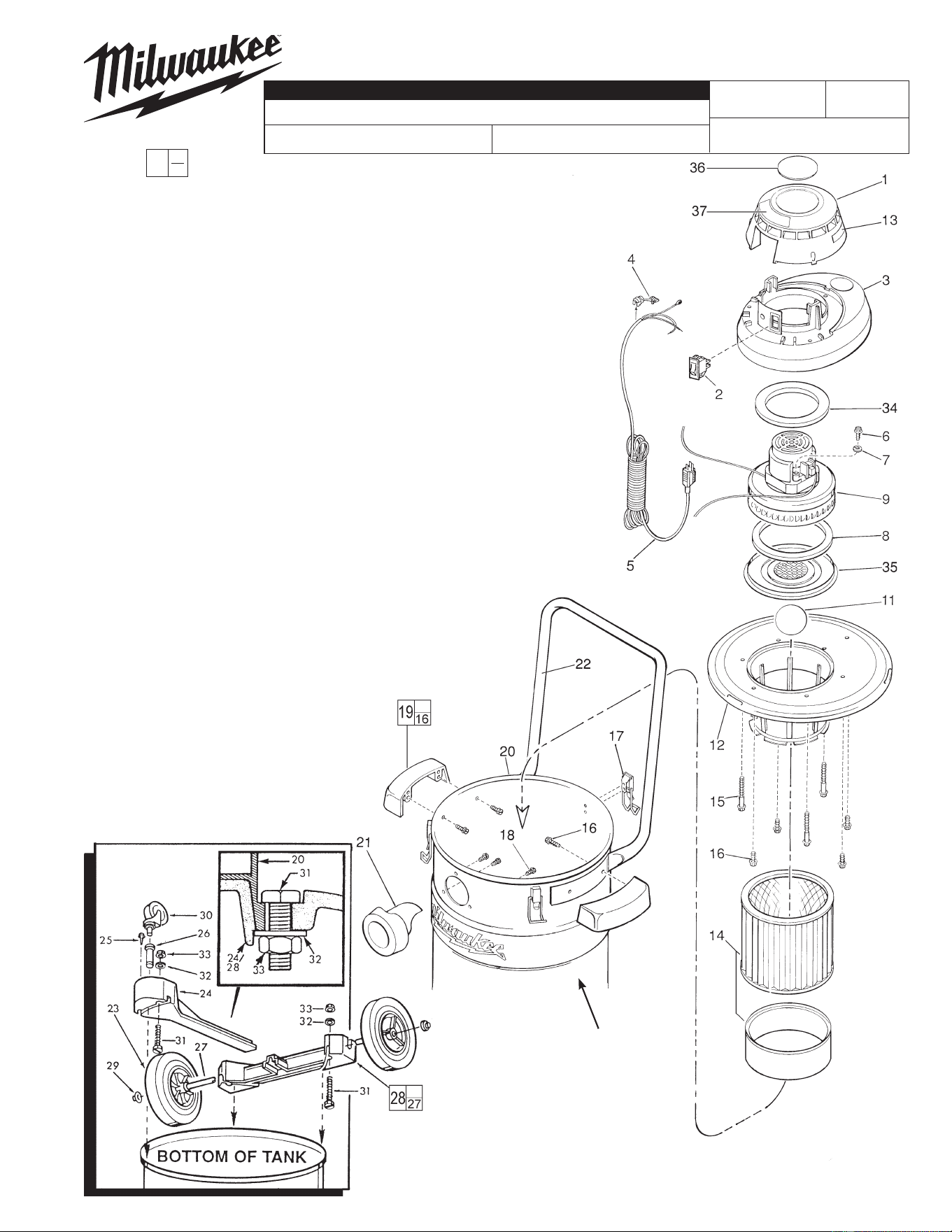

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 31-15-0136 Housing Cap (1)
2 23-66-2545 Switch (1)
3 31-50-0182 Motor Housing (1)
4 22-90-0145 Strain Relief Bushing (1)
5 22-64-0147 Power Cord (1)
6 06-95-5319 #10 x 3/8" Slt. Hex Hd. Ground Screw (1)
7 06-97-3400 #10 Split Ring Lockwasher (1)
8 43-44-0555 Motor Bottom Gasket (1)
9 23-30-0165 Motor (1)
11 42-46-0100 Ball Float (1)
12 31-15-0145 Plastic Cover Lid (1)
13 12-99-8957 Service Nameplate (1)
14 49-90-1830 Cartridge Filter (1)
15 06-95-5391 #10 x 3" Self-Tapping Slt. Hex Hd. Screw (3)
16 06-95-5330 #10 x 3/4" Self-Tapping Slt. Hex Hd. Screw (8)
17 42-68-0410 Buckle (3)
18 06-95-5320 #10 x 1/2" Slt. Hex Hd. Screw (3)
19 14-34-0440 Handle Package (2 Handles and 4 Screws) (1)
20 44-66-0086 Tank (Painted metal design shown) (1)
21 42-86-0120 Inlet Fitting (1)
22 43-62-1040 Metal Handle (1)
23 45-94-0295 Wheel (2)
24 43-40-0280 Front Frame (1)
25 06-81-4960 #8 x 1/2" Type A Phillips (1)
26 44-66-0870 Caster Socket (1)
27 --------------- Axle (1)
28 43-40-0300 Rear Frame (1)
29 42-52-0270 Hub Cap (2)
30 45-94-0290 Caster (1)
31 06-75-0100 1/4-20 x 3/4" Hex Hd. Mach. Screw (4)
32 45-88-7500 1/4" Flatwasher (4)
33 06-55-1525 1/4"-20 Hex Nut (4)
34 43-44-0540 Motor Top Gasket (1)
35 44-66-5365 Motor Plate (1)
36 10-20-8950 Warning Label (1)
37 10-20-8955 French/Spanish Label (1)
22-18-0195 Carbon Brush Set (1)
= Part number change from
previous service parts list.
Original tank design was
painted metal -- new service
replacement is stainless steel.
