REVISED BULLETIN DATE
SERVICE PARTS LIST
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 1
BULLETIN NO.
WIRING INSTRUCTION
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
CATALOG NO.
STARTING
SERIAL NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
0
54-05-0526 Jan. 2001
54-05-0527
8912
635A
HEAVY-DUTY VACUUM CLEANER

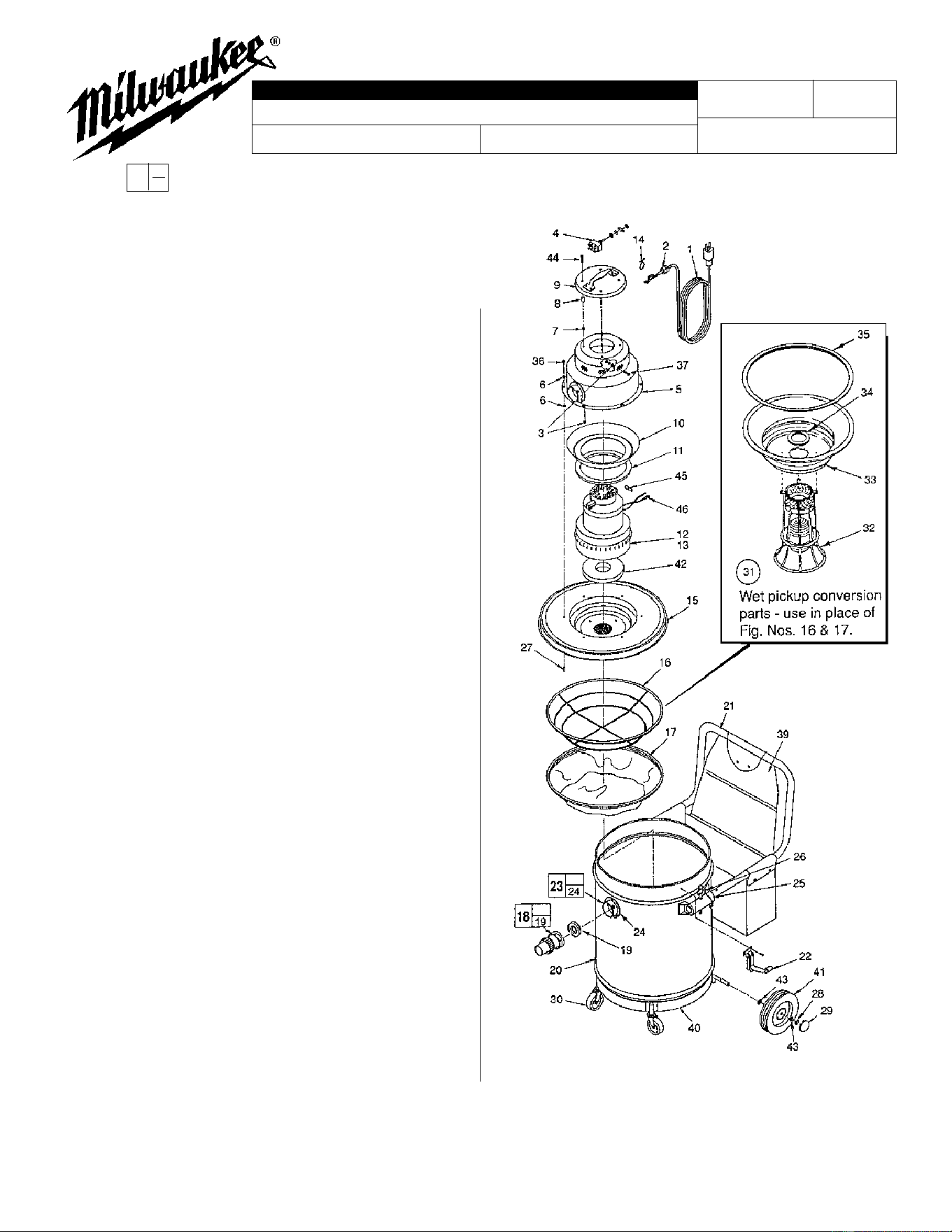

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 22-64-0700 Cord Set (1)
2 44-76-0020 Strain Relief (1)
3 06-55-3800 10-24 Hex Nut (7)
4 23-66-0870 Switch (1)
5 42-92-1055 Dome Assembly (1)
6 45-88-8680 #12 Internal Tooth Lockwasher (2)
7 45-88-8695 .37 Dia. x .18 Nylon Spacer (4)
8 45-88-8700 .37 Dia. x .56 Nylon Spacer (4)
9 44-66-6175 Dome Cap With Handle (1)
10 42-04-3595 Baffle (1)
11 43-44-1025 Top Motor Gasket (1)
12 23-30-0305 3 Stage Motor (1)
13 22-18-0905 Carbon Brush and Holder (Set) (1)
14 22-38-0170 Wire Tie (1)
15 42-92-1060 Cover Assembly (1)
16 49-90-0275 Wire Frame (1)
17 49-90-0265 Cloth Filter and Gasket (1)
18 49-90-0150 Swivel End Connector (1)
19 43-44-0275 Fitted Gasket (1)
20 42-51-0350 Steel Dust Container Assembly (1)
(Incl. Fig. Nos. 21 thru 26)
21 43-62-0920 Push Handle (1)
22 42-68-0291 Holddown Clamp (3)
23 42-86-0080 Inlet Connector Assembly (1)
24 43-44-0370 Gasket (1)
25 42-36-1550 Handle Bracket (2)
26 44-60-0860 Pin and Ring Assembly (2)
27 44-76-0275 Screw Tip Protector (6)
28 06-57-7505 Pal Nut (2)
29 42-52-0220 Hub Cap (2)
30 45-94-0140 Swivel Bearing Caster (2)
31 49-90-1610 Wet Pick-up Conversion Pan Assembly (1)
(Incl. Fig. Nos. 32 thru 35)
32 42-46-0110 Float Cage Assembly (1)
33 44-54-0050 Wet Pan Adapter (1)
34 43-44-0340 Shut Off Gasket (1)
35 43-44-0330 Gasket (1)
36 06-81-1815 12 x 1/2 Phillips Type B Pan Hd. Screw (6)
37 06-81-1812 10-24 x 3/4" Phlp. Screw (1)
38 49-90-0302 Filter Bags (Package of Five) Not Shown
39 49-90-0250 Tool Caddy Bag (1)
40 43-08-0195 Dolly Ring Body (1)
41 45-94-0130 Wheel (2)
42 43-44-1030 Bottom Motor Gasket (1)
43 45-88-5253 Washer (4)
44 06-81-1825 10-24 x 1" Round Hd. Phlp. Screw (4)
45 23-71-0010 Wire Nut (4)
46 23-74-1280 Terminal (1)
12-20-8900 Service Nameplate Kit (1)
10-20-8900 Warning Label (1)
10-05-5050 Conversion Label (1)
SEE REVERSE SIDE
«
«
«
«
«
«
«
«
«
«
«
«
«
«
«
«
«
«
«
«
«
«
«
«
«
«
