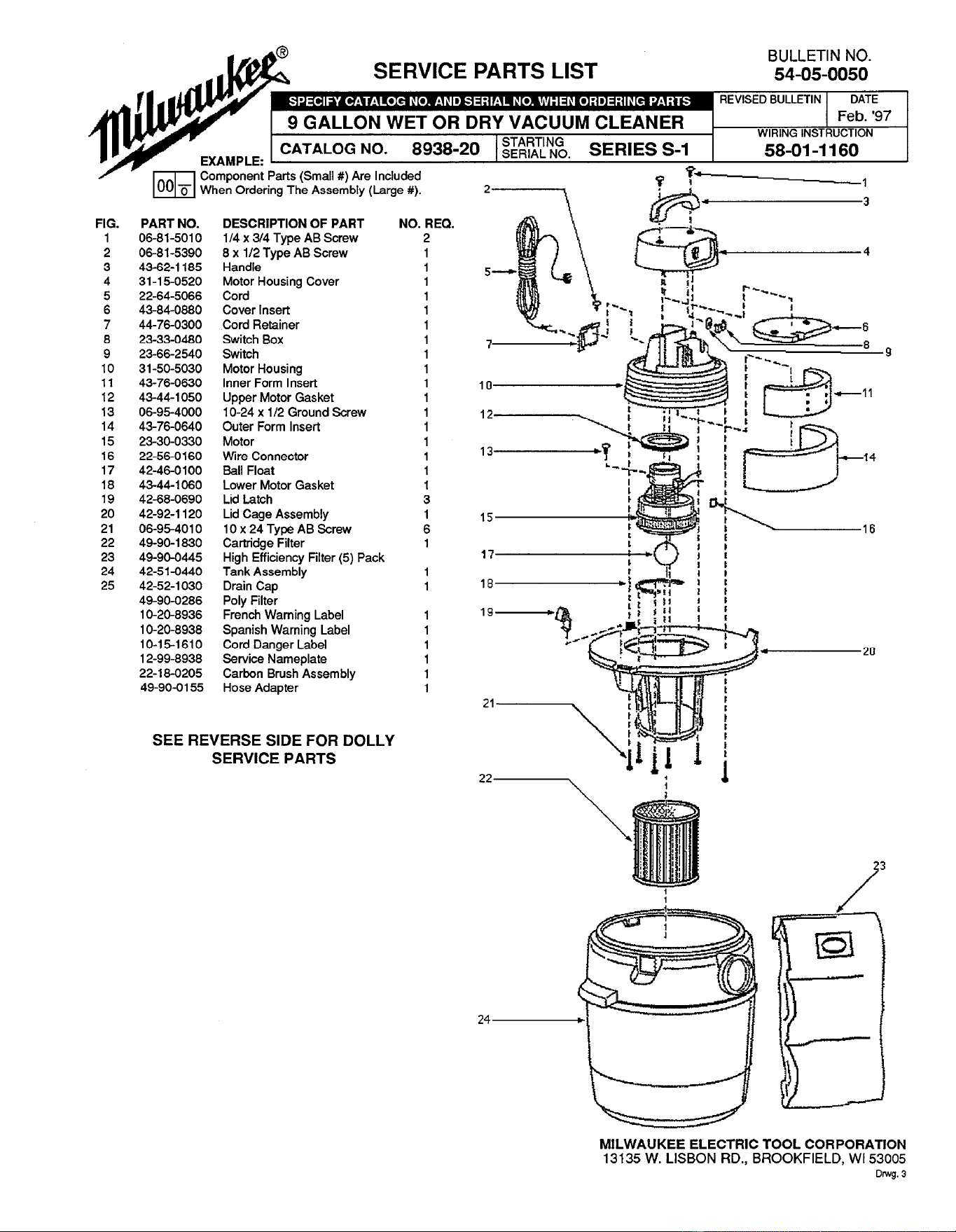

SERVICE PARTS LIST
BULLETIN NO.
54-05-0050
REVISED BULLETIN
DATE
Feb. ‘97
. __. -.
--.--...-
CATALOG NO.
8938-I
WIRING INSTRUCTION
20 1 ::ARpAT:NNGo. SERIES S-l
58-01-I 160
I’
m
Component Parts (Small #) Are Included
00 B When Ordering The Assembly (Large #).
FIG. PART NO.
1 06-81-5010
2 06-81-5390
3 43-62-l 185
4 31-15-0520
5 22-64-5066
6 43-84-0880
7 44-76-0300
8 23-33-0480
9 23-66-2540
10 31-50-5030
11 43-76-0630
12 43-44-l 050
13 06-95-4000
14 43-76-0640
15 23-30-0330
16 22-56-0160
17 42-46-0100
18 43-44-l 060
19 42-68-0690
20 42-92-l 120
21 06-95-4010
22 49-90-l 830
23 49-90-0445
24 42-51-0440
25 42-52-l 030
49-90-0286
1 o-20-8936
1 o-20-8938
10-15-1610
12-99-8938
22-18-0205
49-90-015s
l/4 x 3/4 Type AB Screw
B x l/2 Type AB Screw
Handle
Motor Housing Cover
Cord
Cover Insert
Cord Retainer
Switch Box
Switch
Motor Housing
Inner Form Insert
Upper Motor Gasket
1 O-24 x l/2 Ground Screw
Outer Form Insert
Motor
Wire Connector
Ball Float
Lower Motor Gasket
Lid Latch
Lid Cage Assembly
10 x 24 Type AB Screw
Cartridge Filter
High Efficiency Filter (5) Pack
Tank Assembly
Drain Cap
Poly Filter
French Warning Label
Spanish Warning Label
Cord Danger Label
Service Nameplate
Carbon Brush Assembly
Hose Adapter
DESCRIPTION OF PART NO. REQ.
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
3
1
6
1

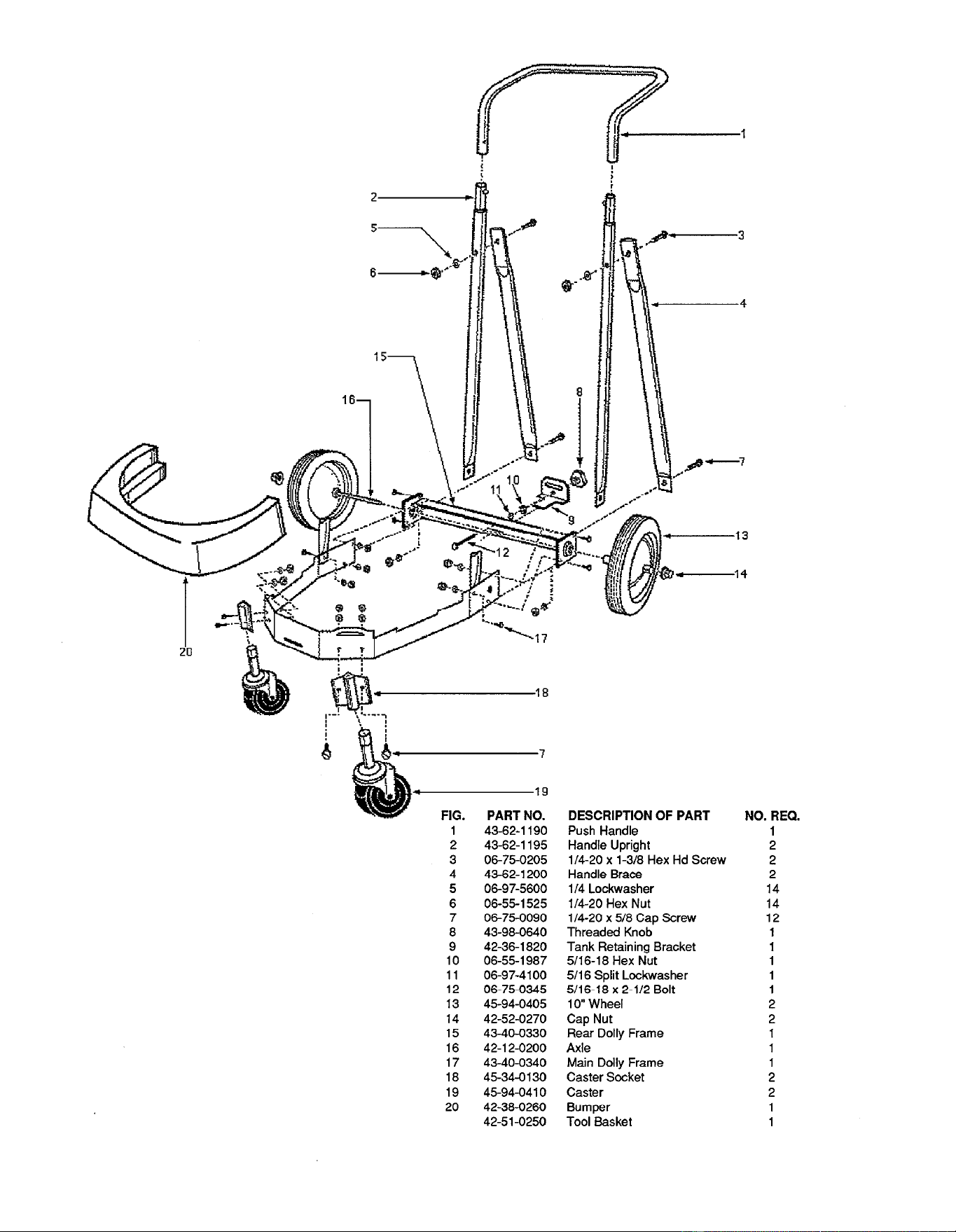

SEE REVERSE SIDE FOR DOLLY
SERVICE PARTS
2 ? , ?------1
@- 3
.A
m
% .=
4
5
L $1
7
9
IO
24
23
/
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
Dwg. 3
1 43-62-l 190
2 43-62-l 195
3 06-75-0205
4 4362-l 200
5 06-97-5600
6 06-55-l 525
7 06-75-0090
8 43-98-0640
9 42-36-l 820
10 06-55-l 987
11 06-97-4 100
12 06-75-0345
13 45-94-0405
14 42-52-0270
15 43-40-0330
16 42-l 2-0200
17 43-40-0340
18 45-34-O 130
19 45-94-0410
20 42-38-0260
42-51-0250
DESCRIPTION OF PART
NO. REQ.
Push Handle 1
Handle Upright 2
l/4-20 x l-318 Hex Hd Screw
2
Handle Brace 2
l/4 Lockwasher 14
l/4-20 Hex Nut
14
l/4-20 x 518 Cap Screw 12
Threaded Knob
1
Tank Retaining Bracket 1
5/16-18 Hex Nut 1
5/16 Split Lockwasher 1
5/16-18 x 2-l/2 Bolt 1
10” Wheel
2
Cap Nut 2
Rear Dolly Frame 1
Axle 1
Main Dolly Frame 1
Caster Socket 2
Caster 2
Bumper 1
Tool Basket 1
