Apply a drop (.05 ML) of
Red Loctite
®
263 onto
threads of gauge nut (16)
prior to installation
Apply a drop
(.05 ML) of
Red Loctite
®
263 to threads
of screws (2)
prior to
installation
Apply a drop (.05 ML)
of Red Loctite
®
263
to Universal Fitting (12)
prior to installation
LUBRICATION
= 263 Red Loctite
®
5(x4)
4(x4)
3(x4)
2(x4)
1(x4)
15
16
17
13
14
9
10
11
6
6
22
21
8
20
23
7
8
18
(x8)
12
24
19
9 10
32
15 16
17
33
19 20
21
34
1 2
3
31
1 2
3 4
5
30
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 1

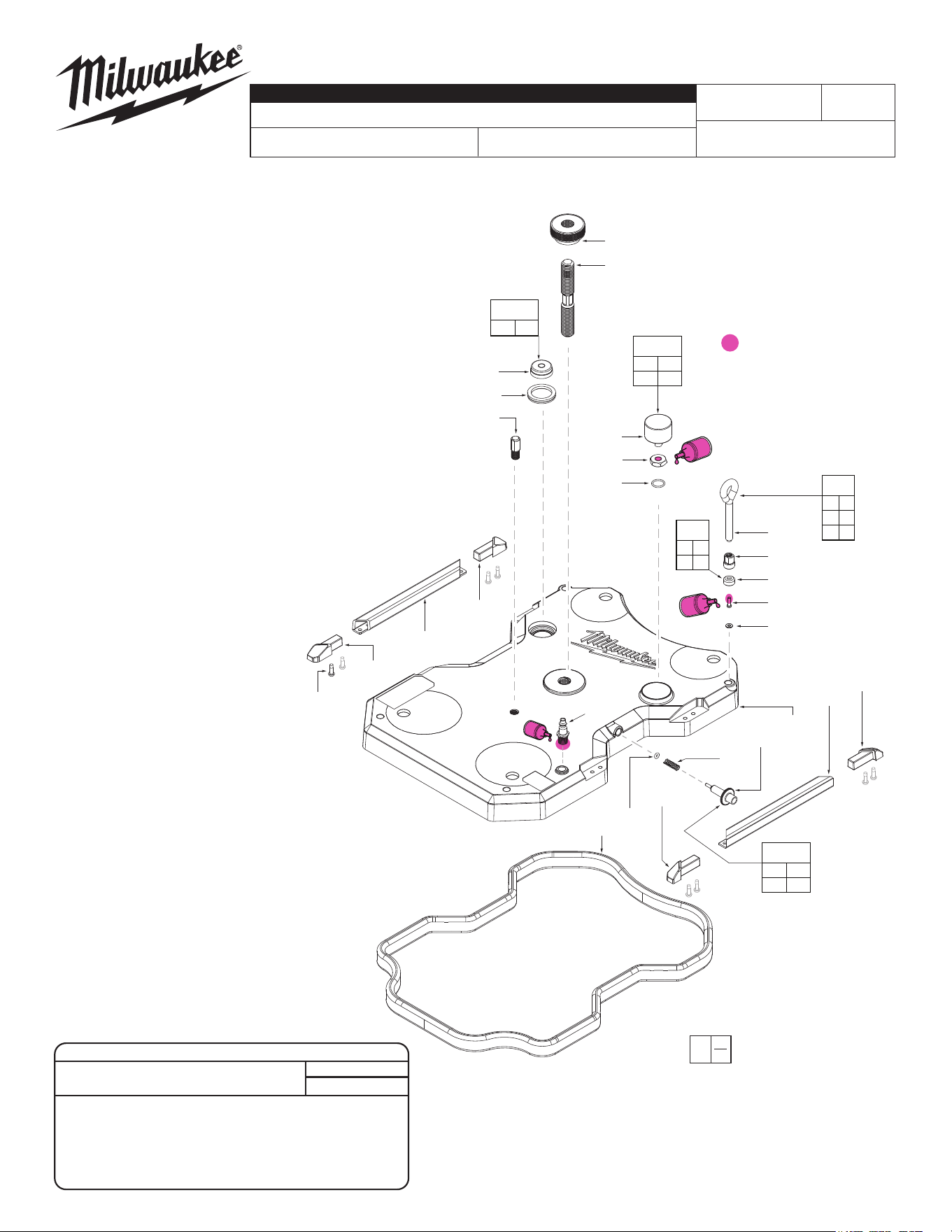

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- Flat Washer (4)
2 --------------- M4 x 14mm Pan Hd. Torx T-20 Screw (4)
3 --------------- Bottom Board (4)
4 --------------- M10 Sleeve Screw (4)
5 --------------- Eye Bolt (4)
6 42-52-0023 Left Handle Cap (2)
7 43-62-0031 Right Base Handle (1)
8 42-52-0024 Right Handle Cap (2)
9 --------------- Vial for Core Drill Stand (1)
10 --------------- Vial Holder (1)
11 06-65-7560 Location Pin, Short (1)
12 42-90-0115 Universal Fitting (1)
13 05-55-3170 Hold Down Nut (1)
14 05-74-7150 Anchor Bolt (1)
15 43-46-0012 Vacuum Gauge (1)
16 --------------- Gauge Nut (1)
17 --------------- O-Ring (1)
18 06-82-0029 M5 x 16mm Pan Hd. Torx T-25 Screw (8)
19 --------------- Seal Ring (1)
20 --------------- Vacuum Release Spring (1)
21 --------------- Vacuum Release Pin (1)
22 43-62-0033 Left Base Handle (1)
23 34-40-9045 Seal (1)
24 28-30-0225 Vacuum Pad (1)
30 14-34-7065 Leveling Bolt Kit (1)
31 14-34-7060 Leveling Bolt Feet Kit (1)
32 44-08-0250 Base Vial Kit (1)
33 43-46-0013 Vacuum Gauge Kit (1)
34 44-20-0014 Vacuum Release Kit (1)
BULLETIN NO.
54-46-0020
SERVICE PARTS LIST
CATALOG NO. 3314
REVISED BULLETIN
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
Core Rig VACUUM PAD
SERIAL NO.
DATE
Oct. 2023
WIRING INSTRUCTION
N45A
0
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
SCREW TORQUE SPECIFICATIONS
SEAT TORQUE
FIG. PART NO. WHERE USED
(kgf-cm) (lb-in)
2 --------------- Eye Bolt 20±2 17±1.7
11 --------------- Vacuum Pad 200±20 173±17
12 --------------- Vacuum Pad 200±20 173±17
14 --------------- Vacuum Pad 200±20 173±17
16 --------------- Vacuum Gauge 200±20 173±17
18 --------------- Base Handle 15±2 13±1.7
