10193 • 100924
52” TISBURY III
CEILING FAN
Owner’s Manual
Model #20853, 20854, 20855
SKU #355-2100, 355-2104, 355-2102
If a problem cannot be remedied or you are experiencing diculty in installation,
please contact the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time.

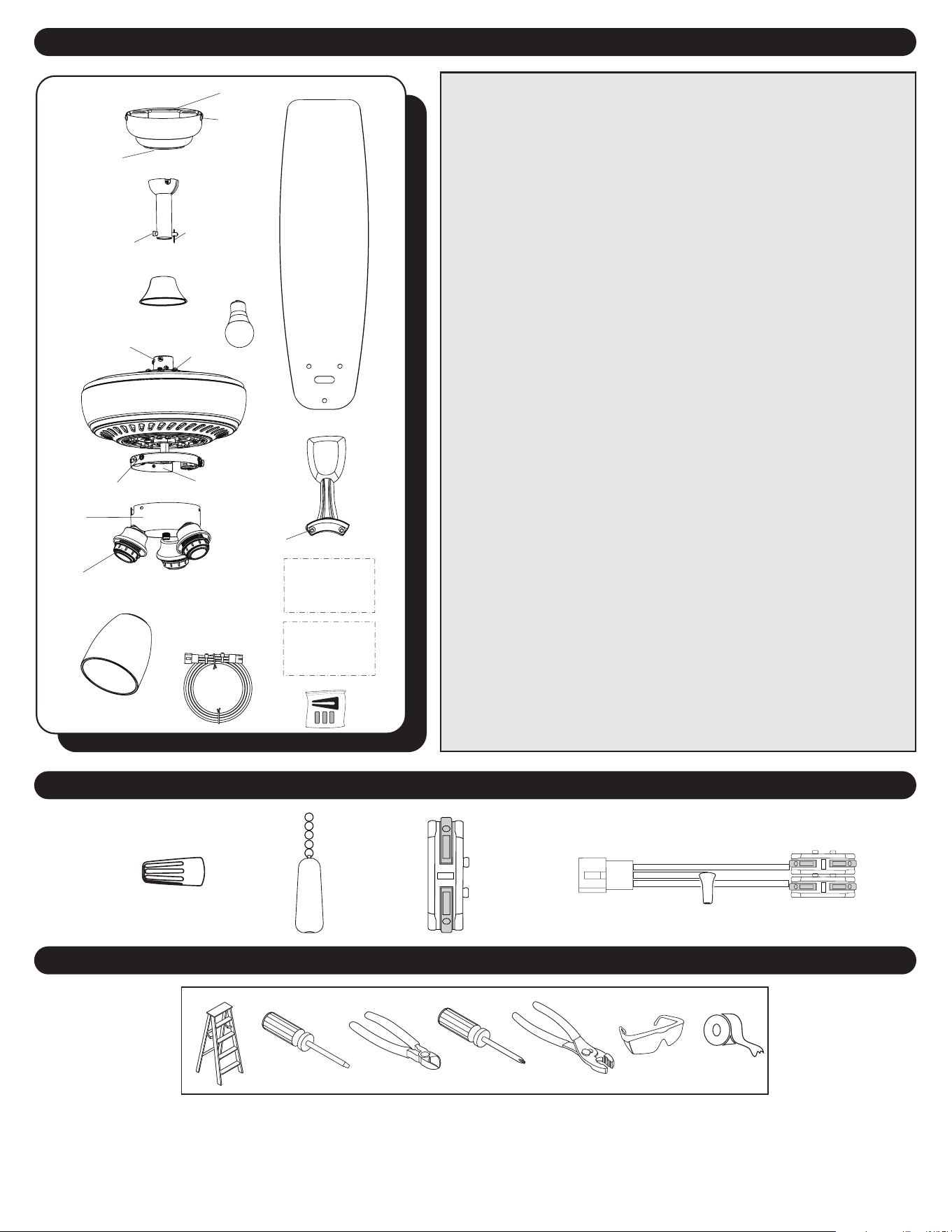

PACKAGE CONTENTS
2
1. Canopy
2. Canopy Cover
3. Mounting Bracket Screw
(x4)
4. Mounting Bracket
5. Downrod
6. Downrod Pin
7. Downrod Clip
8. Yoke Cover
9. Set Screw (x2)
10. Closemount Screw (x3)
11. Motor Assembly
12. Motor Screw (x10)
13. Fitter Plate
14. Fitter Plate Screw (x3)
15. Light Kit
16. Socket Ring (x3)
17. Glass Shade (x3)
18. E26-Base LED Bulb (x3)
19. Blade (x5)
20. Blade Arm (x5)
21. Hardware Kit
22. Owner’s Manual
23. 36-inch Lead Wire
24. Blade Balancing Kit
AA. Wire Connector
DD. Pull Chain Extension (x2)
FF. Push-In Connector
AI. Lead Wire
Unpack your fan and check the contents. You should
have the following items:
PACKAGE CONTENTS
HARDWARE CONTENTS
HARDWARE CONTENTS
Note: Some extra hardware has been included. The quantity
listed above is the number required for installation.
AA DD FF AI
TOOLS REQUIRED (not included)
Tools required for assembly: Electrical tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, Wire Cutters
and Wire Strippers
Helpful Tools: AC Tester Light, Tape Measure, and Wiring Handbook
Hardware
Kit
Owner’s
Manual
1
2
3
4
5
6
7
8
16
14
11
10
9
12
13
15
17
18
19
20
21
22
23
24
3

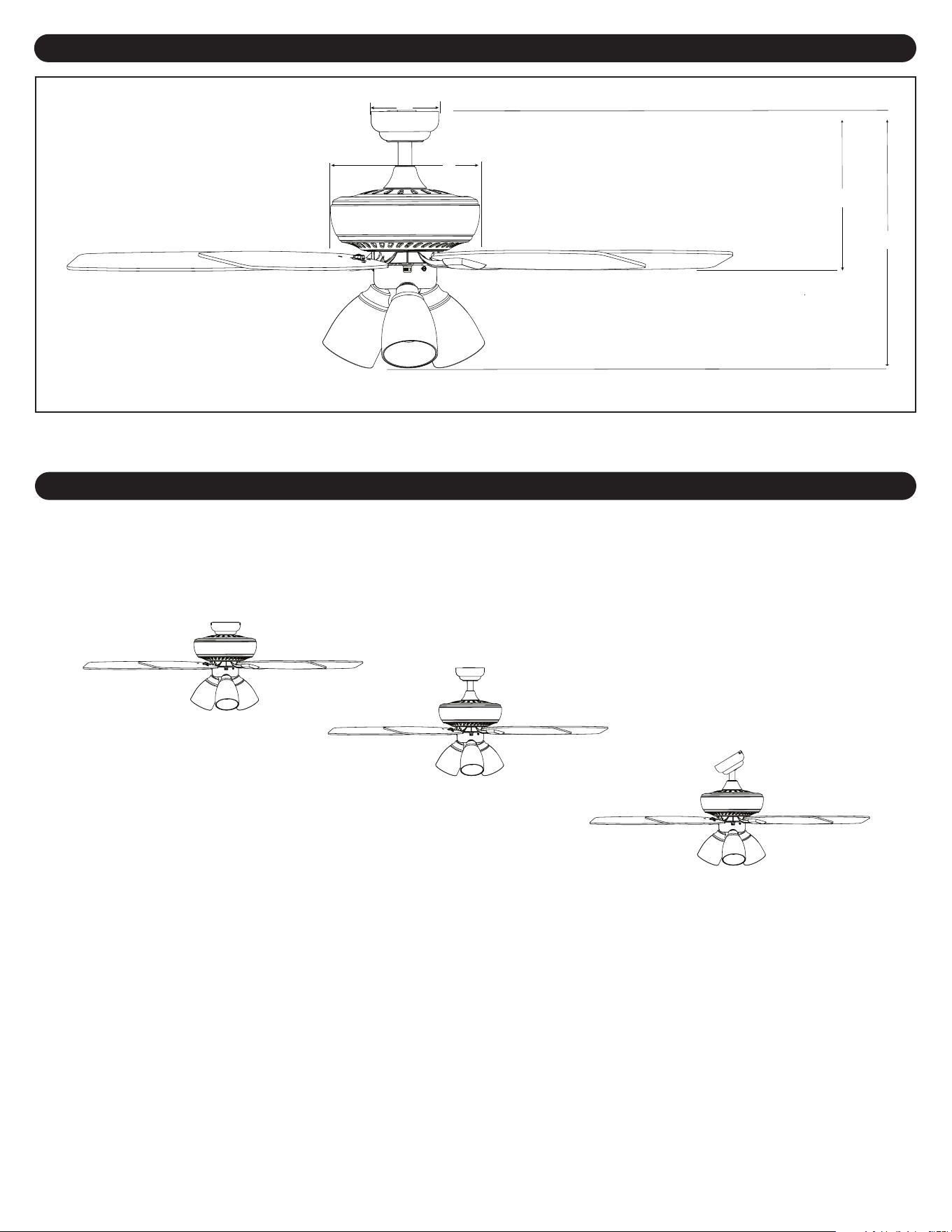

A. 19.35 in. B. 11.99 in. C. 11.26 in. D. 5.13 in.
DIMENSION REFERENCE
C
D
B
A
MOUNTING OPTIONS
Three Mounting Options
Closemount
Downrod Mount
Angled Ceiling Mount (Up to 16 degrees)
Choose one of the following mounting options:
Closemount is best suited for ceilings lower than 8 feet. It does not utilize the downrod.
Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer downrod
(not included).
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to
ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle is not
steeper than 16°.
4
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
This fan is not suitable for damp or outdoor locations.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing
the blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are not
meant to cover all possible conditions and situations that may occur. It must be understood that common
sense, caution and care are factors which can not be built into this product. These factors must be supplied
by the person(s) installing, caring for and operating the fan.
The fan weight is Net Weight: 18.81 lb (8,55 kg). Be sure the outlet box (not included) is securely attached
to the building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious
injury.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
HKC-US
3350 Players Club Pkwy. #225
Memphis, TN 38125
1-877-459-3267
SAFETY INSTRUCTIONS
CAUTION:
5
WARNING:
To avoid risk of electric shock, be sure to shut o power at the main fuse or circuit breaker box before
installing or servicing this xture. Turning o the electrical power by using the light switch is not
sucient to prevent electrical shock.
To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the
oor and at least 18 inches (0.5 Meters) from the tip of the blades to the wall.
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for
fan support” and use mounting screws provided with the outlet box.
The installation has to be in accordance with the national electrical code, ANSI/NFPA 70-1999 and
local codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a
qualied licensed electrician.
Using a full-range dimmer switch to control fan speed will cause a loud humming noise from the fan. To
reduce the risk of re or electric shock, do NOT use a full-range dimmer switch to control the fan speed.
SAFETY INSTRUCTIONS
CARE AND MAINTENANCE
At least twice each year, lower the canopy to check the downrod assembly, and then tighten all screws on the fan.
Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching the nish. Clean the blades
with a lint-free cloth.
Bulb Replacement: Use 40-watt max. E26-base LED, CFL or incandescent bulbs. Halogen bulbs are not
recommended for this item.
Important: Shut o the main power supply before you begin any maintenance tasks. Do not use water or a damp
cloth to clean the ceiling fan.
6

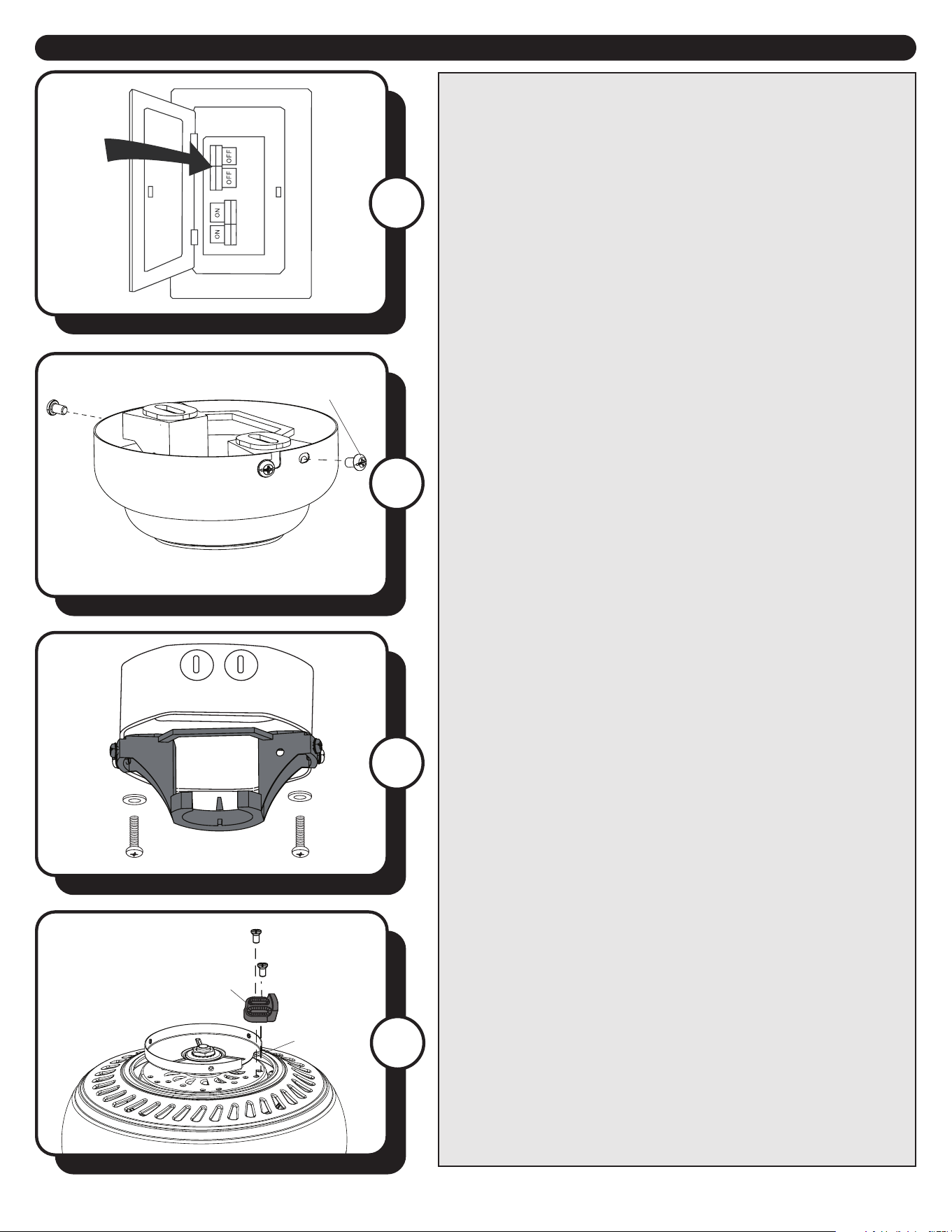

ASSEMBLY INSTRUCTIONS
1
2. Loosen all four mounting bracket screws located on the
mounting bracket and completely remove the two screws
from the round holes in the canopy. Save the screws for
later. Remove the canopy from the mounting bracket.
3. Install the mounting bracket to the outlet box (not
included) using the screws and washers provided with the
outlet box.
Warning: To reduce the risk of re, electric shock,
or personal injury, mount to the outlet box marked
“acceptable for fan support” and use the mounting screws
and washers provided with the outlet box.
4. Remove the ten screws and ve motor blocks from the
underside of the motor. Discard the motor blocks and the
10 screws holding them in place.
Note: The notch in the tter plate allows a Phillips
screwdriver access to the motor screws.
Motor Block
Notch
4
3
Mounting
Bracket Screw
2
1. Turn OFF the electrical power at the main fuse or circuit
breaker.
DANGER: Failure to disconnect the power supply prior to
installation may result in serious injury or death.
Outlet
Box
Mounting
Bracket
7
ASSEMBLY INSTRUCTIONS

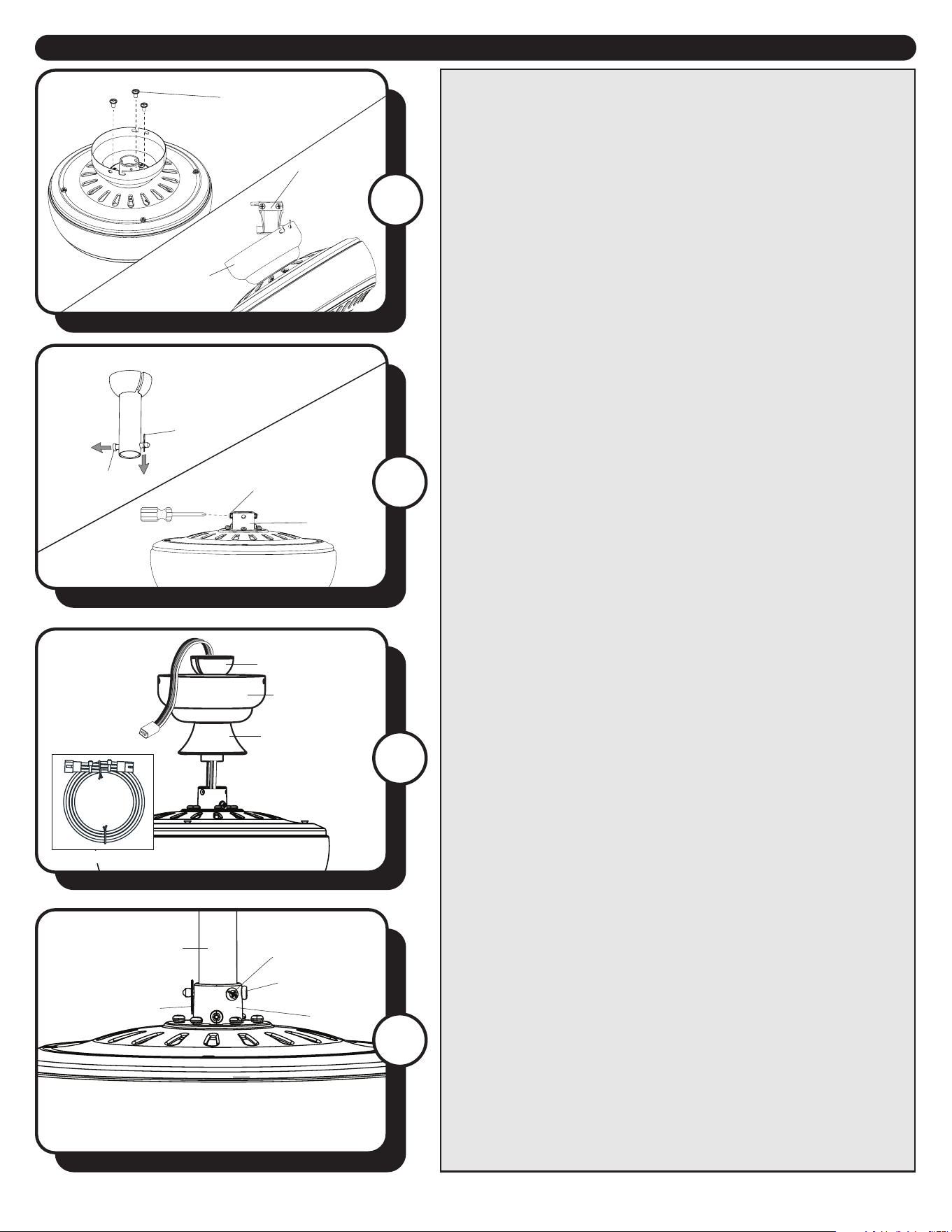

5. CLOSEMOUNT INSTALLATION (Optional) -
a. Remove the three Phillips-head closemount screws
from the top of the motor assembly.
b. Remove the canopy cover from the bottom of the
canopy.
c. Align the holes in the bottom of the canopy with
the screw holes in the top of the motor assembly. The
larger holes in the canopy will encompass the three pre-
installed screws.
d. Secure the canopy to the top of the motor assembly
with the three closemount screws.
e. Hang the fan on the hook of the mounting bracket.
Proceed to Step 9.
6. DOWNROD MOUNT - Remove the downrod clip and
downrod pin from the downrod. Then, loosen but don’t
remove the two set screws at the top of the yoke.
7. Insert the downrod -- or longer downrod (not
included), if required -- through the canopy and yoke
cover. Feed the wires from the fan through the downrod.
Note: Depending on the length of downrod you
use, you may need to use the 36-inch lead wire to
accommodate a 36 or 48-inch downrod (sold separately).
When necessary, connect the 3-pin connector extending
from the center of the downrod to one end of the 36-
inch lead wire. The downrod included with this fan will
not utilize the 36-inch lead wire.
8. Slide the downrod into the yoke of the motor
assembly, align the holes, then re-install the downrod
pin and downrod clip. Secure with the two set screws
and slide the yoke cover down until it rests on top of the
motor assembly.
Canopy
Yoke Cover
Downrod Pin
Downrod Clip
Yoke
Downrod
Downrod
Set Screw
7
8
Downrod
Clip
Set Screw
Yoke
Downrod
Pin
Downrod
6
5
Closemount
Screw
Canopy
Mounting
Bracket
36-Inch Lead Wire
8
ASSEMBLY INSTRUCTIONS

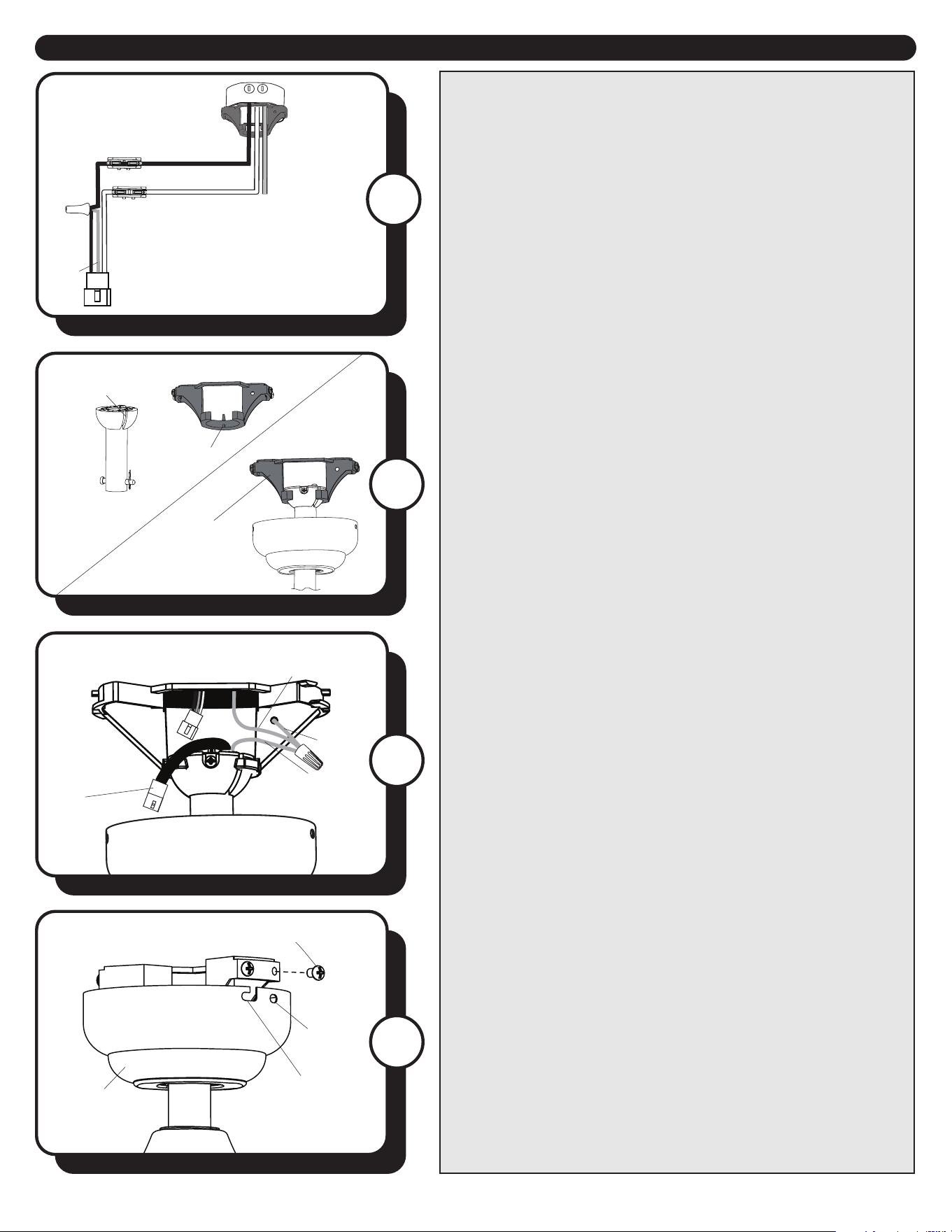

9. Make the following wire connections according to the
diagram and these steps:
• Lift the lever and then push the White (neutral) supply
wire into the empty hole of the push-in connector
preassembled to the white wire of lead wire (AI) and
then lower the lever to secure wire.
• Lift the lever and then push the Black (hot) supply
wire into the empty hole of the push-in connector
preassembled to the black wire of lead wire (AI) and then
lower the lever to secure wire.
Note: The lead wire (AI) and ground wire will be
connected later.
Important: If household supply wires are dierent colors
than referred to above, a professional electrician should
determine proper wiring.
12. Raise the canopy, ensure the two mounting bracket
screws are aligned with the J-shaped slots in the canopy.
Then turn the canopy in a clockwise direction until the
mounting bracket screws are completely engaged in
the J-shaped slots. Install the two previously removed
mounting bracket screws in the round holes. Securely
tighten all mounting bracket screws.
11. Connect the 3-pin connector extending from the
downrod to the 3-pin connector on lead wire. Then,
connect the green/bare (ground) supply wire to the green
wires from the downrod and the mounting bracket.
10. Install the ball end of the downrod into the opening
of the mounting bracket. Rotate the downrod until the
tab in the mounting bracket is seated in the slot in the
downrod ball.
WARNING: The fan and/or downrod should not rotate
in the mounting bracket, if installed correctly. Failure
to align the slot in the downrod ball with the tab on
the mounting bracket may result in fan falling causing
serious injury or death.
Canopy
Round
Hole
Mounting Bracket Screw
J-shaped Slot
Black (hot)
Bare (ground)
White (neutral)
White
Blue
Black
Black
WARNING: Do NOT
wire the fan motor to a
variable-speed (dimmer)
wall control.
Tab
Slot
Downrod
Mounting
Bracket
9
12
10
11
3-Pin
Connector
Bare/Green
(ground)
Green
Green
9
ASSEMBLY INSTRUCTIONS
15

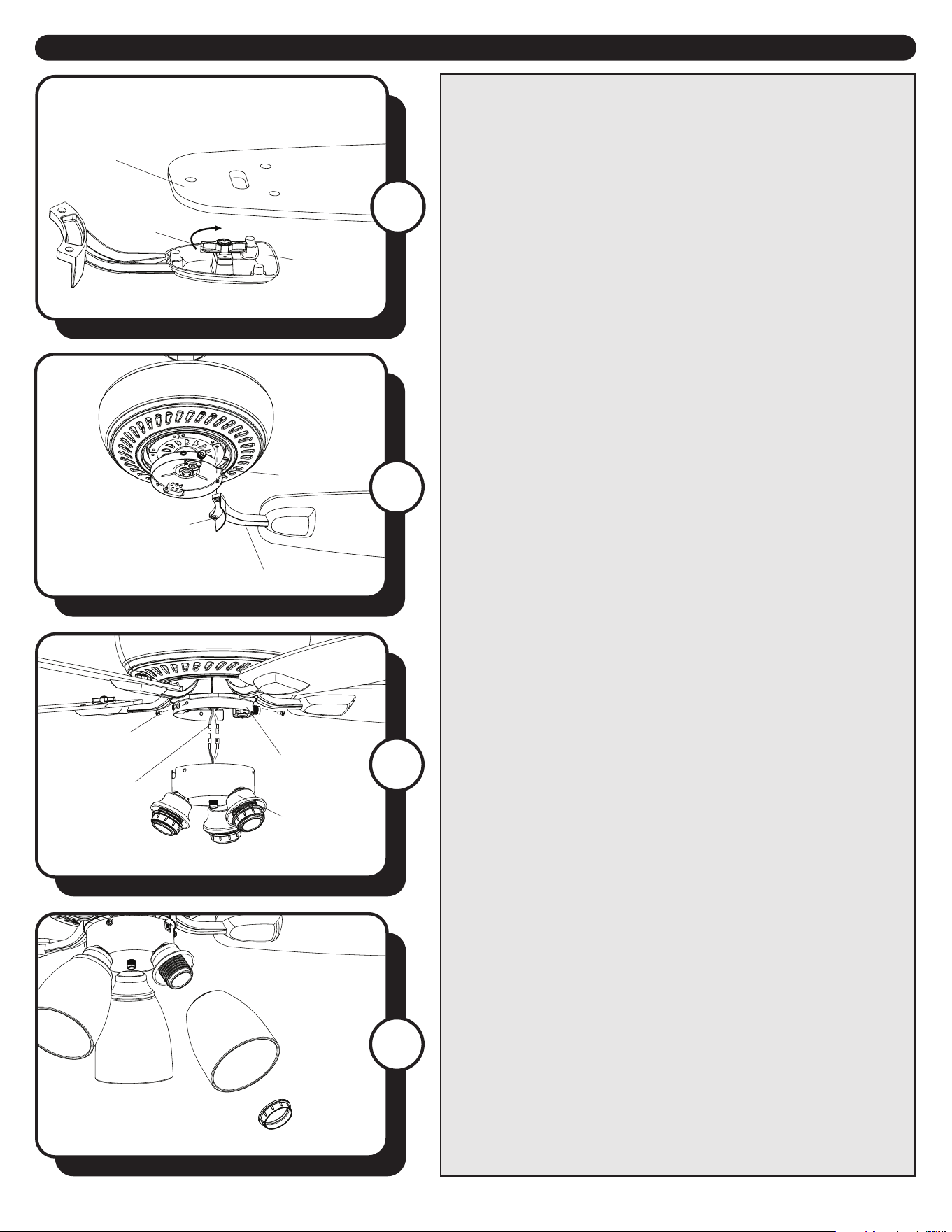

14. Install the blade arm to the underside of the motor
assembly with previously removed motor screws.
Tighten each blade arm completely before moving to
the next.
Note: The notch in the tter plate allows a Phillips
screwdriver access to the motor screws.
15. Remove the three tter plate screws preassembled to
the tter plate. Connect the single-pin connector from
the tter plate to the single-pin connector from the light
kit--blue to blue and white to white. Secure the light kit
with the tter plate screws.
16. Remove the socket ring from each socket. Raise the
glass shade over the socket of the light kit. Secure the
glass shade by twisting the socket ring clockwise. Repeat
for each socket.
Fitter Plate
Socket Ring
Glass Shade
Fitter Plate
Screw
Motor Screw
Blade Arm
Notch
Light Kit
Single-pin
Connector
16
14
Blade
Blade Arm
Twist-Lock
Connector
13
13. Align the twist-lock connector in the direction of its
corresponding hole in the blade. Place the blade over
the twist-lock connector. Rotate the twist-lock connector
so that it is perpendicular to the hole in the blade.
Repeat for the remaining blades.
10
ASSEMBLY INSTRUCTIONS
19

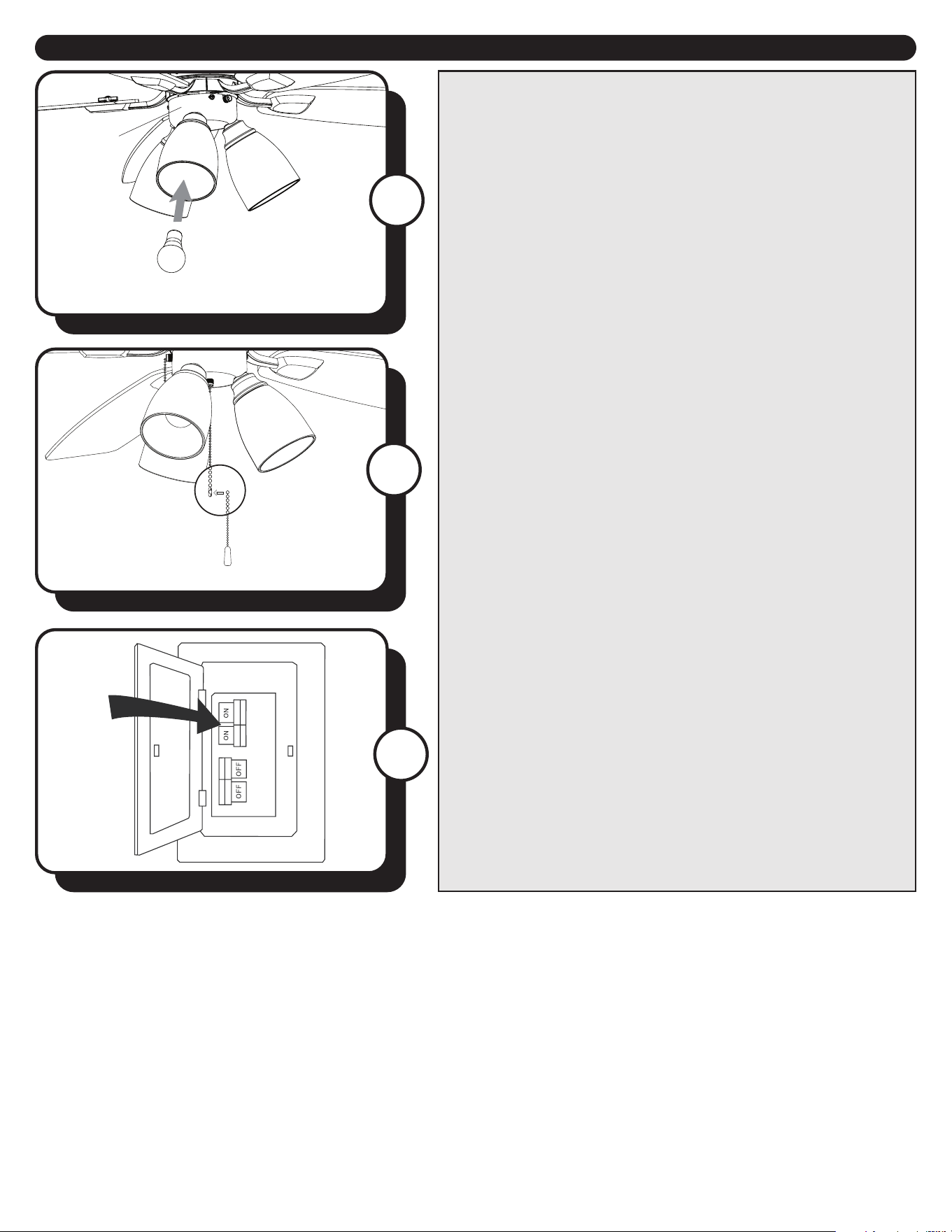

18. Attach the pull chain extensions to the pull chains.
Note: The pull chain in the center of the light kit controls
the light.
19. Turn ON the electrical power at the main fuse or circuit
breaker and the wall switch.
Assembly is complete.
Pull Chain Extension
18
Bulb
Light Kit
17
17. Install the E26-base LED bulb into the socket of the
light kit.
Important: Make sure you allow the bulb and light kit to
cool before you replace the bulb.
11

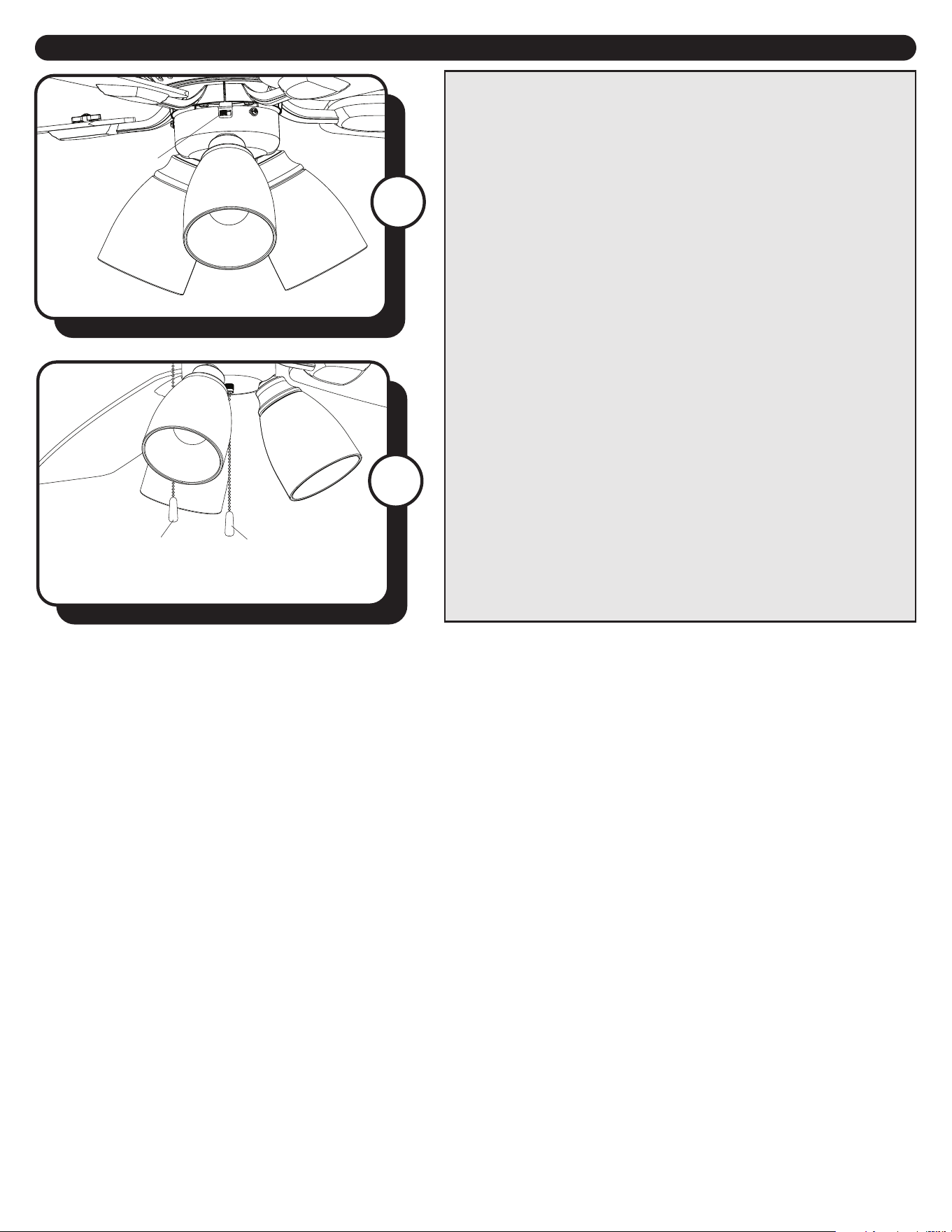

OPERATING INSTRUCTIONS
1
2. The fan pull chain has four positions to control fan
speed. One pull is HIGH, two is MEDIUM, three is LOW
and four turns the fan OFF. The light pull chain has two
positions -- OFF and ON.
1. Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your
thermostat setting in winter without feeling a dierence
in your comfort.
In warmer weather, push the reverse switch to the left
for downward airow creating a wind chill eect.
In cooler weather, push the reverse switch to the right
for upward airow that can help move stagnant, hot air
o the ceiling area.
Important: Wait for the fan to stop before moving the
reverse switch. The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate.
2
Fan Pull Chain
Reverse Switch
Light Pull Chain
12
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time.
TROUBLESHOOTING
PROBLEM SUGGESTED REMEDY
WARNING: To reduce the risk of re, electrical shock or personal injury, shut o the power supply to fan before
you begin any maintenance tasks.
1. Fan does not start:
1. Make sure that the wall switch is turned ON.
2. Check main and branch circuit fuses or circuit breakers.
3. Check all wire connections from household supply wires to the fan.
4. Make sure forward/reverse switch is pushed completely left or right. Fan will not operate
when switch is in the middle.
1. Make sure all screws in motor assembly are snug, but not overtightened.
2. Make sure the screws that attach the blade arms to the motor are tight.
3. Make sure wire connectors are not rattling against each other or against the interior wall
of the light kit.
4. Make sure wire connectors are not rattling against each other or against the interior wall
of the canopy.
5. Some fan motors are sensitive to signals from Solid State variable speed controls. DO NOT
USE a Solid State variable speed control.
6. Ensure fan does not wobble excessively (see Fan wobbles solutions below).
1. Ensure the mounting bracket is tightened securely to outlet box and outlet box is
mounted rmly to ceiling joist.
2. Ensure all blades are screwed rmly into blade arms.
3. Ensure all blade arms are tightened securely to motor.
4. Switch one blade with a blade from the opposite side. Or balance the fan using the blade
balancing kit.
5. If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
1. Check for loose or disconnected 9-pin and/or single-pin connectors in switch housing or
light kit.
2. Ensure the blue wire from fan is connected to hot power supply wire.
3. Check for faulty light bulbs.
2. Fan is noisy:
3. Fan wobbles:
4. Light does not work:
LIMITED LIFETIME WARRANTY
To obtain Service, please contact the Service Department:
1-877-459-3267, 8 a.m. - 5 p.m. Central Time.
Model Name: 52” Tisbury III Ceiling Fan
Model No: 20853 - (SKU: 355-2100) Matte White
20854 - (SKU: 355-2104) Bronze
20855 - (SKU: 355-2102) Brushed Nickel
13
Set forth below, the manufacturer warrants the fan motor for this Patriot Lighting ceiling fan to be free
from defects in workmanship and material for the life of the product. Also, subject to the limitations
below, the manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts
made in whole or in part with glass) to be free from defects in workmanship and material for a period of
one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser from an authorized dealer, whether such purchaser
purchased the product through a store or contractor. Ceiling fan part defects must be reported within the
rst year from the date of purchase. Parts made in whole or in part with glass and the nishes of metal
and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by
this warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the
terms stated above. The manufacturer shall not be liable for any loss or damage of any kind, including any
incidental or consequential damages resulting directly or indirectly, from any breach of warranty, express
or implied, or any other failure of this product. Some states do not allow the exclusion or limitation of
incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior
model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of tness for a particular purpose and the implied warranty of merchantability is disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
