9279 • 091124
1
52” GILFORD
CEILING FAN
Owner’s Manual
Model #20200, 20201, 20815
SKU #355-0603, 355-0605, 355-2014
If a problem cannot be remedied or you are experiencing diculty in installation, please contact
the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.

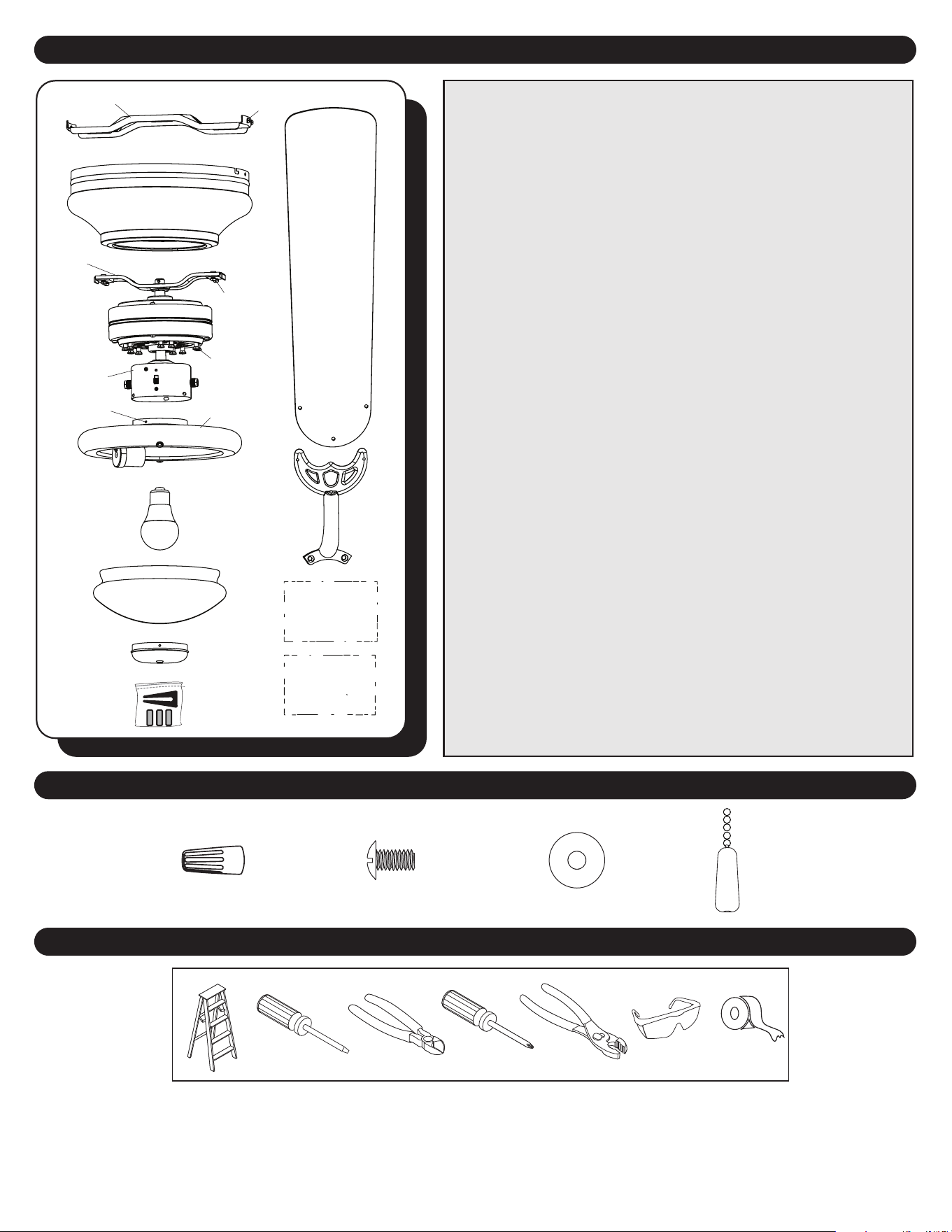

PACKAGE CONTENTS
2
HARDWARE CONTENTS
1. Upper Mounting Bracket
2. Motor Housing Screw (x4)
3. Motor Housing
4. Lower Bracket
5. Mounting Bracket Screw
(x4)
6. Motor
7. Motor Screw (x10)
8. Switch Housing
9. Switch Housing Screw
(x3)
10. Light Kit
11. E26-base LED Bulb
12. Glass Bowl
13. Switch Housing Cap
14. Blade Balancing Kit
15. Blade (x5)
16. Blade Arm (x5)
17. Hardware Kit
18. Owner’s Manual
AA. Wire Connector (x3)
BB. Blade Screw (x15)
CC. Blade Washer (x15)
DD. Pull Chain Extension (x2)
Unpack your fan and check the contents. You should
have the following items:
PACKAGE CONTENTS
HARDWARE CONTENTS
14
BBAA DDCC
Note: Some extra hardware has been included. The quantity
listed above is the number required for installation.
TOOLS REQUIRED (not included)
Tools required for assembly: Electrical tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, Wire Cutters
and Wire Strippers
Helpful Tools: AC Tester Light, Tape Measure, and Wiring Handbook
Hardware Kit
Owner’s
Manual
1
2
3
15
14
17
18
4
5
6
7
8
9
10

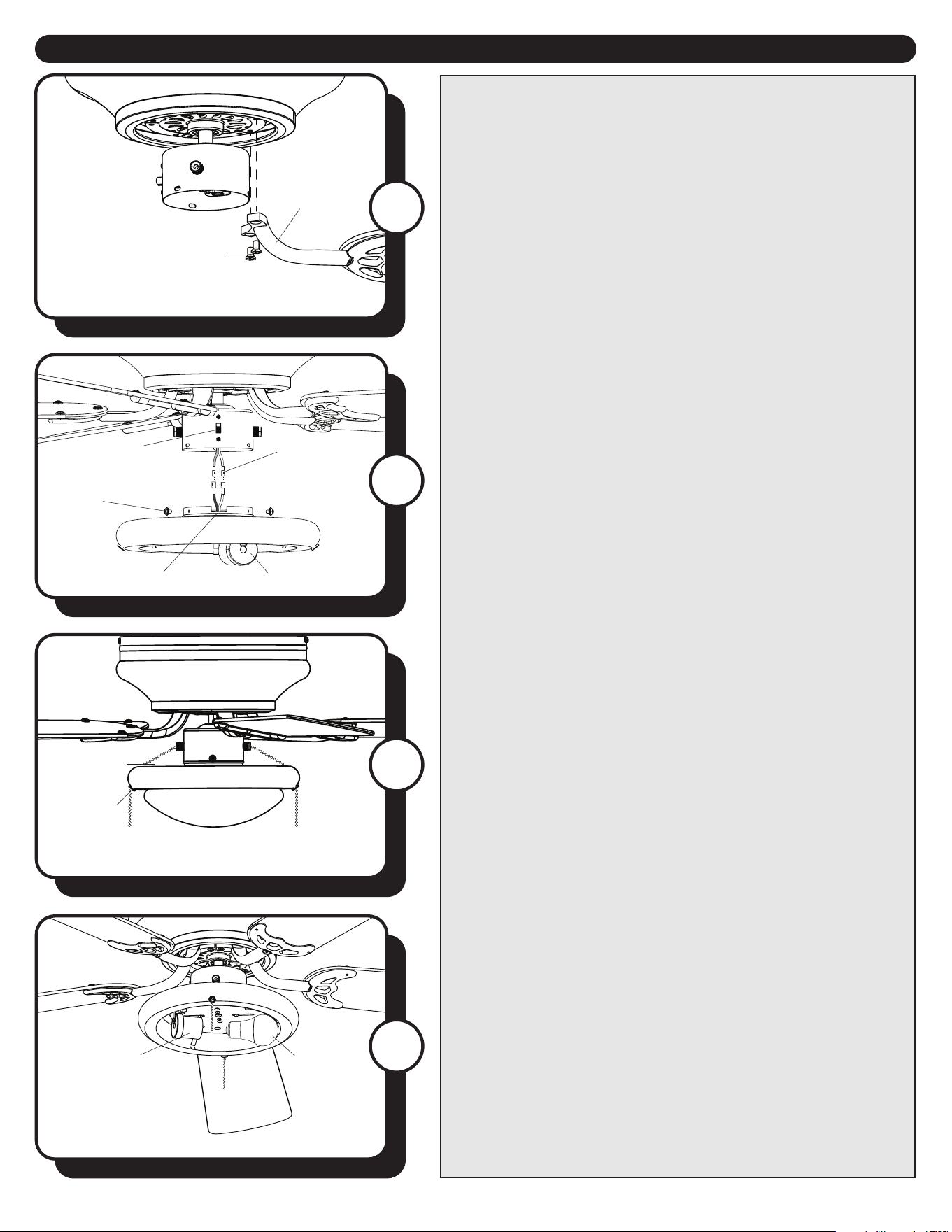

11
12
16
13
3

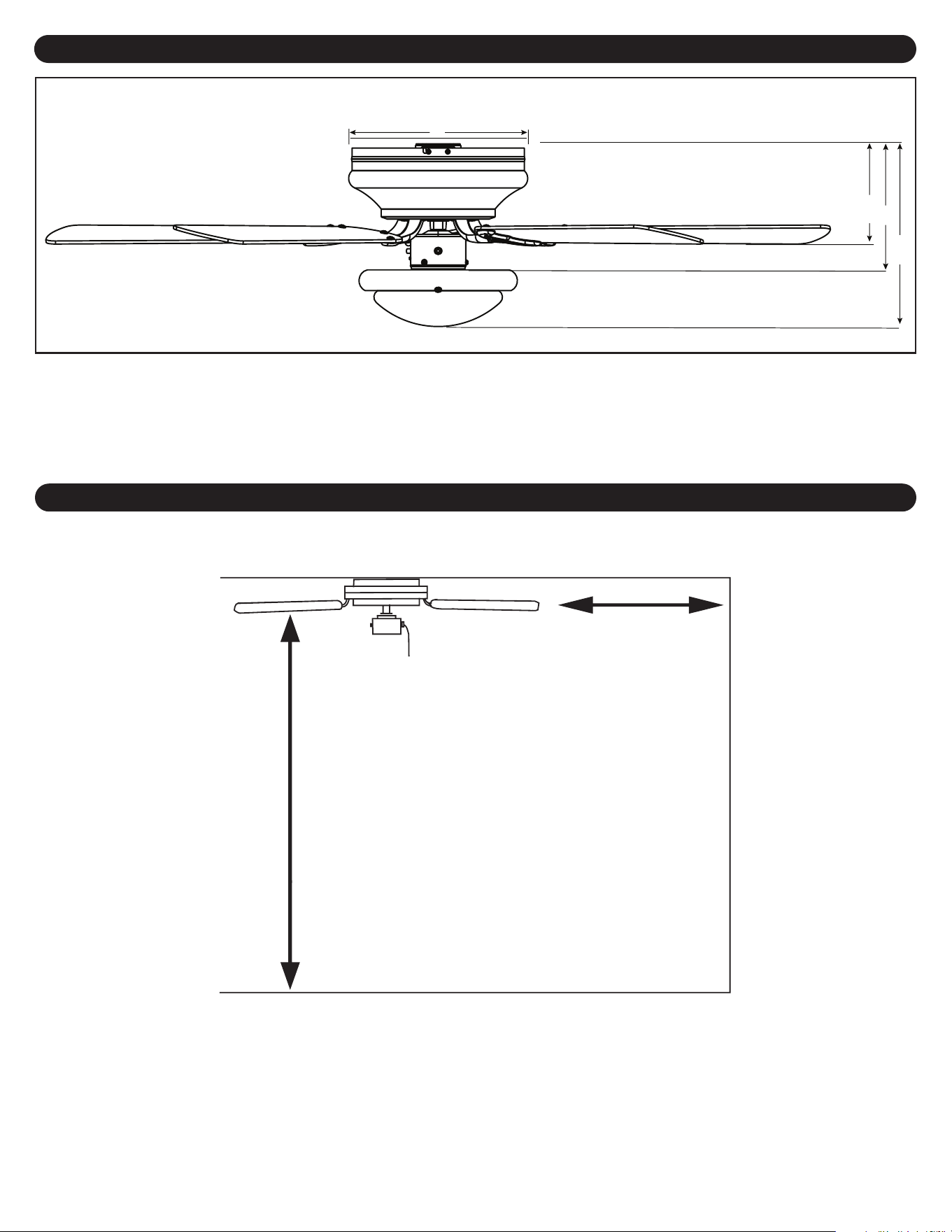

A. 11.9 in. B. 6.6 in. C. 8.3 in. D. 11.5 in.
DIMENSION REFERENCE
D
B
A
C
LOCATION FOR INSTALLATION
When selecting a location for installation, ensure the blades will be at least 30 inches from any wall or obstruction
and at least 7 feet above the oor.
7 ft. Min
30 in. Min
Wall
Ceiling
Floor
4
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
This fan is not suitable for damp or outdoor locations.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing
the blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are not
meant to cover all possible conditions and situations that may occur. It must be understood that common
sense, caution and care are factors which can not be built into this product. These factors must be supplied
by the person(s) installing, caring for and operating the fan.
The fan weight is Net Weight: 14.21 lb (6,46 kg). Be sure the outlet box (not included) is securely attached
to the building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious
injury.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
HKC-US
3350 Players Club Pkwy. #225
Memphis, TN 38125
1-877-459-3267
SAFETY INSTRUCTIONS
CAUTION:
WARNING:
To avoid risk of electric shock, be sure to shut o power at the main fuse or circuit breaker box before
installing or servicing this xture. Turning o the electrical power by using the light switch is not sucient
to prevent electrical shock.
To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the oor
and at least 30 inches (0.76 Meters) from the tip of the blades to the wall.
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for fan
support” and use mounting screws provided with the outlet box.
The installation has to be in accordance with the national electrical code, ANSI/NFPA 70-1999 and local
codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a qualied
licensed electrician.
Using a full-range dimmer switch to control fan speed will cause a loud humming noise from the fan. To
reduce the risk of re or electric shock, do NOT use a full-range dimmer switch to control the fan speed.
SAFETY INSTRUCTIONS
CARE AND MAINTENANCE
Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching the nish. Clean the blades
with a lint-free cloth.
Important: Shut o the main power supply before you begin any maintenance tasks. Do not use water or a damp
cloth to clean the ceiling fan.
Bulb Replacement: Use 60 watt max. E26-base LED, CFL or incandescent bulbs. Halogen bulbs are not
recommended for this item.
5
6
3
2
1

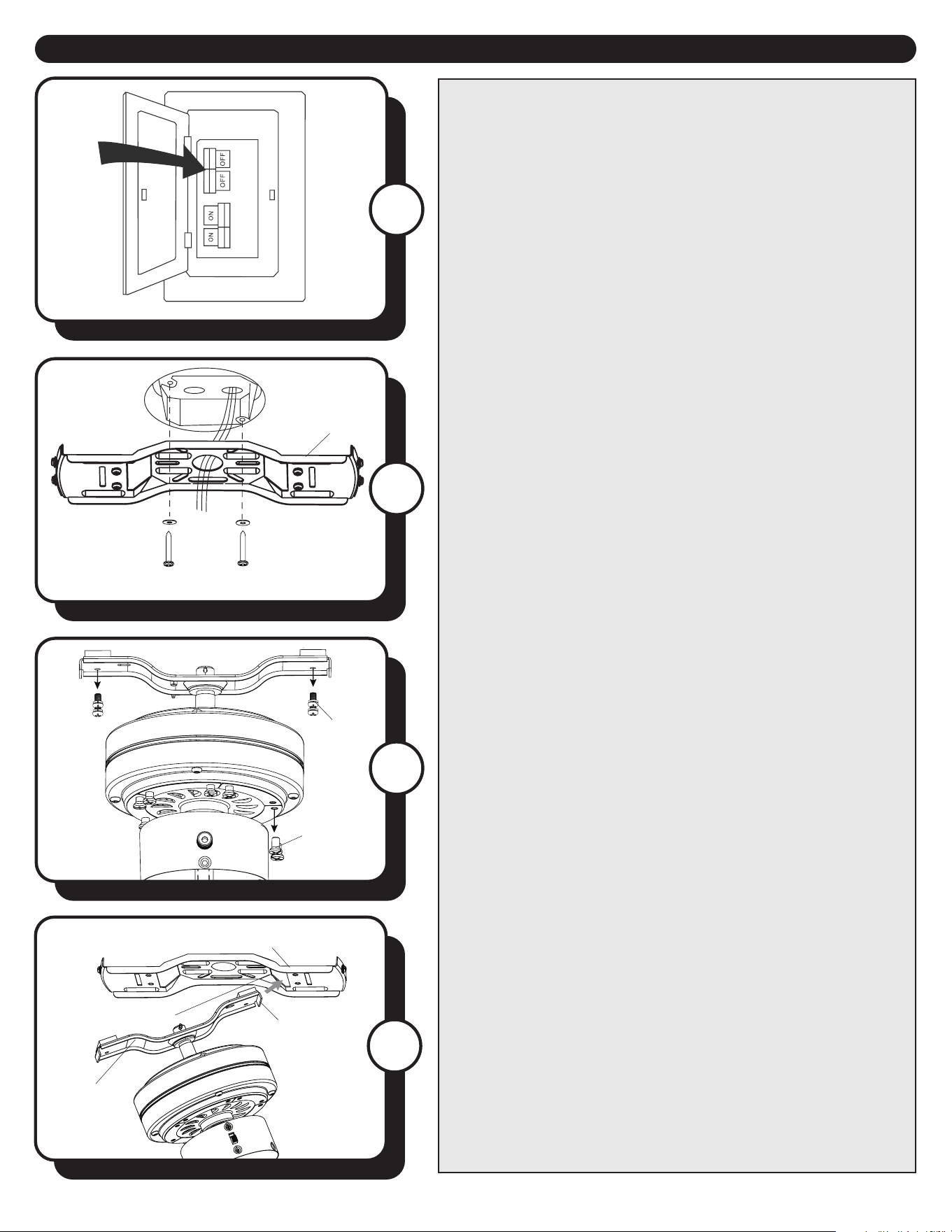

2. Secure the upper mounting bracket to the outlet box
using screws, spring washers, provided with the outlet
box (not included).
WARNING: To reduce the risk of re, electric shock,
or personal injury, mount to the outlet box marked
“acceptable for fan support” and use the mounting
screws and washers provided with the outlet box.
3. Remove the four mounting bracket screws from
underneath the lower mounting bracket. Then, remove
the ten motor screws and save for blade arm attachment.
Note: Remove the wire restraint from the wires on top of
the lower bracket.
4
4. Place one tab of the lower bracket into a large slot in
the upper mounting bracket. Then slide the second tab
of the lower mounting bracket into the second large slot
on the upper mounting bracket until all four holes are in
alignment.
1. Turn OFF the electrical power at the main fuse or circuit
breaker.
DANGER: Failure to disconnect the power supply prior to
installation may result in serious injury or death.
Upper
Mounting
Bracket
Outlet Box
Motor
Motor
Screw
Mounting
Bracket
Screw
Large Slot
Lower
Mounting
Bracket
Tab
Upper Mounting Bracket
ASSEMBLY INSTRUCTIONS
7
Black (live)
White (neutral)
Bare/Green (ground)
Black
Blue
White
Green
7
6

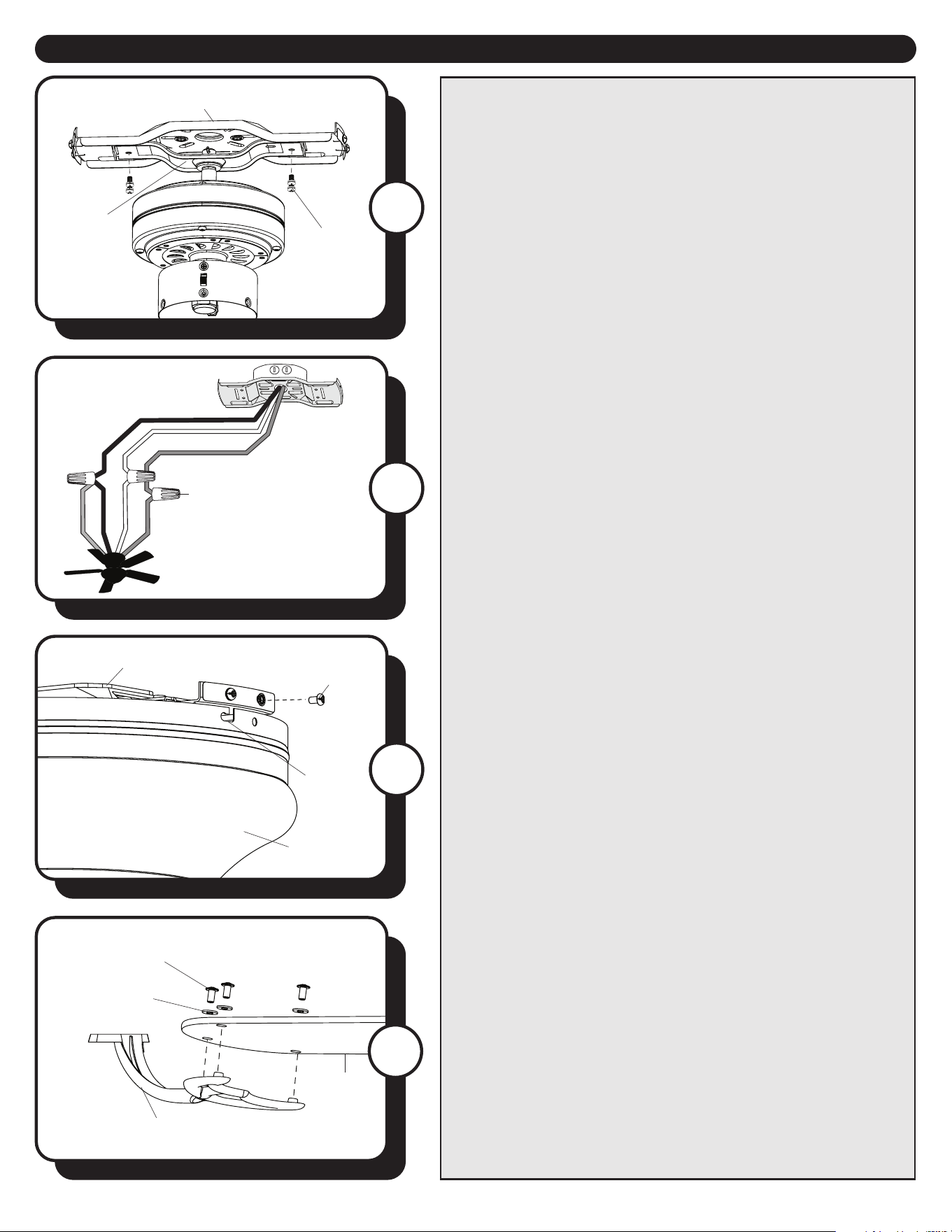

7. Temporarily lift the motor housing to the upper
mounting bracket to determine which two motor
housing screws in the sides of the upper mounting
bracket align with the slotted holes in the top edge
of the motor housing. Partially loosen the two motor
housing screws that align with the slotted holes.
Remove the other two motor housing screws from
opposite sides of the upper mounting bracket. Slide
the motor housing over the motor, aligning the slotted
holes in the motor housing with the loosened motor
housing screws in the upper mounting bracket. Twist
the motor housing in a clockwise direction. Then
re-insert the two previously removed motor housing
screws and securely tighten all screws.
8. Partially insert the blade screws along with the blade
washers through the blade and into the blade arm.
Tighten each blade screw with a Phillips screwdriver (not
included), starting with the one in the middle. Repeat
this step for the remaining blades and blade arms.
8
Blade
Blade Arm
Blade Washer
Motor Housing
Screw
Upper Mounting
Bracket
Slotted
Hole
Motor
Housing
Blade Screw
Wire Connector
WARNING: Do NOT use a
full-range dimmer switch to
control the fan speed.
Mounting
Bracket
Screw
Upper Mounting Bracket
Lower
Mounting
Bracket
5. Reinstall the four previously removed mounting
bracket screws underneath the lower mounting bracket
and into the upper mounting bracket. Securely tighten
the screws.
5
6. Use wire connectors to connect the fan wires to the
power supply wires according to the wiring diagram and
the following instructions:
• Connect the green wire from the lower mounting
bracket to the bare/green (ground) supply wire.
• Connect the white wire from the fan to the white
(neutral) supply wire.
• Connect the black and blue wires from the fan to the
black (hot) supply wire.
Note: If there is a second hot/power wire coming from
the outlet box, connect it to the blue (light power) fan
wire for separate light and fan control.
Important: After the connections have been made, the
wires should be turned upward and pushed carefully
up into the outlet box. Place the black and white wire
connections on opposite sides of the outlet box.
ASSEMBLY INSTRUCTIONS
8
11
12
10
10. Remove the three switch housing screws from
the top edge of the light kit. Connect the single-pin
connectors from the switch housing to the single-pin
connectors from the light kit -- Blue to Black and White
to White. Secure the light kit to the switch housing with
the three switch housing screws.
Note: Align the notch in the light kit with the reverse
switch on the switch housing.
11. Feed the two pull chains coming from the switch
housing down through the grommets in the light kit.
12. Install the E26-base LED bulb into the socket of the
light kit.
Important: Make sure you allow the bulb and light kit to
cool before you replace the bulb.
Single-pin
Connector
Light Kit
Grommet
Pull Chain
Light Kit
Switch
Housing
Screw
Bulb
9. Install the blade arm to the underside of the motor
assembly with previously removed motor screws.
Tighten each blade arm completely before moving to
the next.
To install the fan without the light kit, skip to Step 14.
Motor Screw
Blade Arm
9
Notch
Reverse
Switch
ASSEMBLY INSTRUCTIONS
9
Pull Chain Extension
Switch Housing Cap
Reverse Switch
Notch
Switch
Housing
Screw
Switch
Housing
ASSEMBLY INSTRUCTIONS

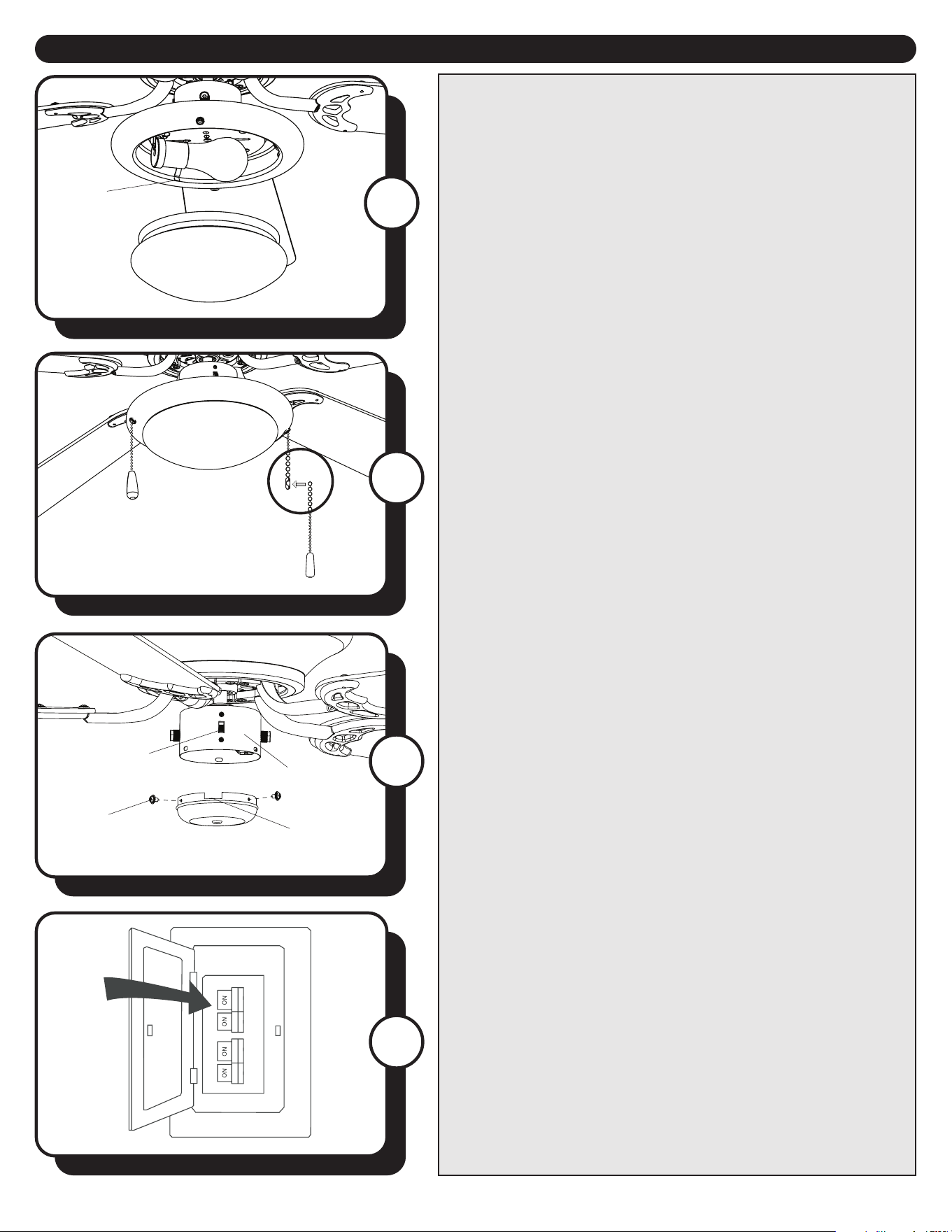

15
16. Restore the power at the main fuse or circuit breaker
and wall switch.
Assembly is complete.
15. NO LIGHT KIT OPTION (OPTIONAL)
a. Remove the three switch housing screws from the top
edge of the light kit.
b. Install the switch housing cap to the bottom of the
switch housing with the three switch housing screws.
Note: Align the notch in the switch housing cap with the
reverse swtich.
c. Attach the pull chains extension (Step 13).
16
14. Attach pull chain extensions to the pull chains.
Note: When facing the reverse switch, the fan pull chain
is on the right and the light pull chain is on the left.
14
Glass Bowl
Clip
13
13. Lift the glass bowl into the light kit. Ensure each of
the three clips are inside of the edge of the glass bowl
and lift the glass bowl until it is securely clipped into
place.
10

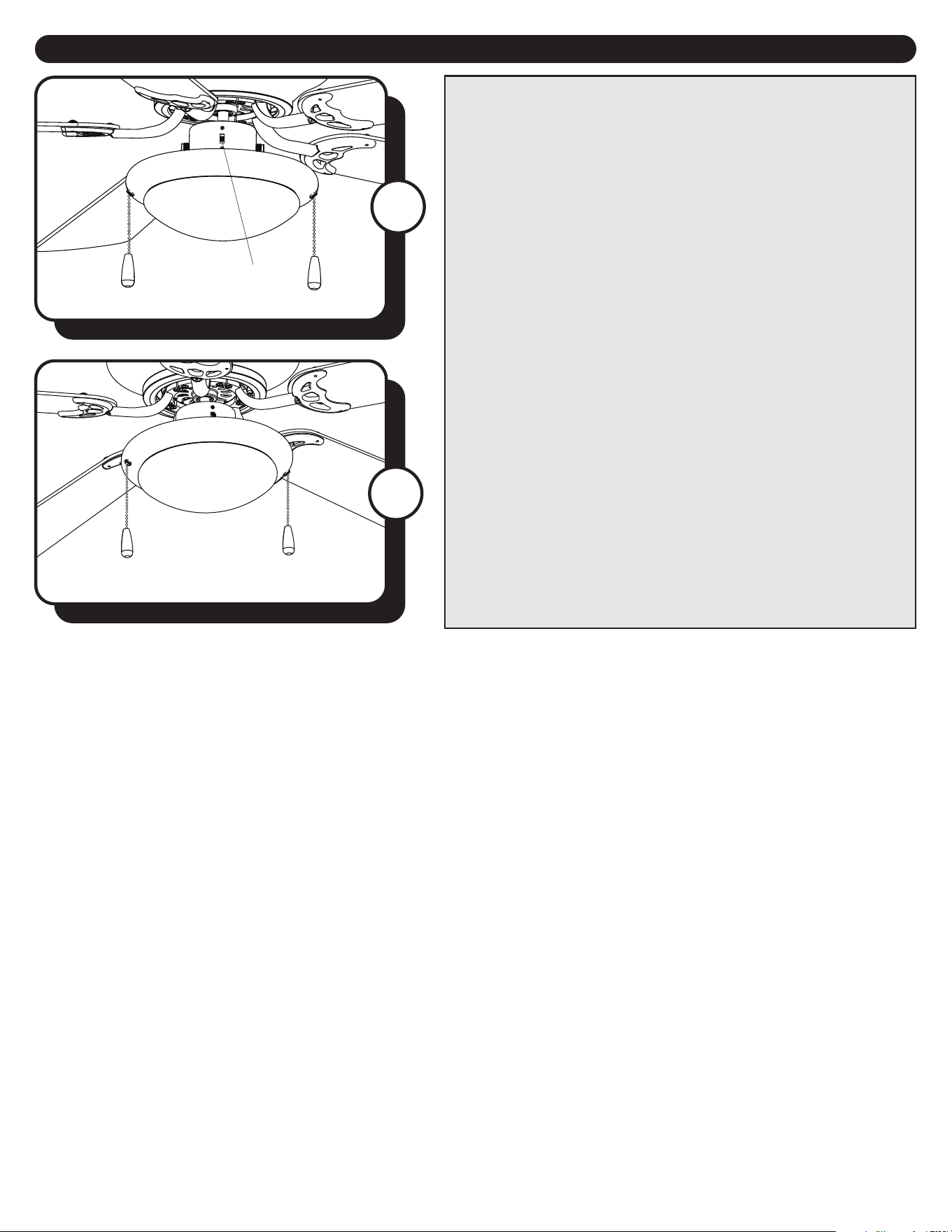

OPERATING INSTRUCTIONS
1
2. The fan pull chain has four positions to control fan
speed. One pull is HIGH, two is MEDIUM, three is LOW
and four turns the fan OFF. The light pull chain has two
positions -- OFF and ON.
2
1. Use the fan reverse switch, located on the switch
housing to optimize your fan for seasonal performance.
Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your
thermostat setting in winter without feeling a
dierence in your comfort.
In warmer weather, push the reverse switch down
which will result in downward airow creating a wind
chill eect. In cooler weather, push the reverse switch
up, which will result in upward airow that can help
move stagnant, hot air o the ceiling area creating a
warming eect.
Important: Wait for the fan to stop before moving the
reverse switch. The reverse switch must be set either
completely up or down for the fan to function correctly.
If the reverse switch is set in the middle position, the
fan will not operate.
Reverse
Switch
Fan Pull Chain
Light Pull Chain
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
TROUBLESHOOTING
11
PROBLEM SUGGESTED REMEDY
WARNING: To reduce the risk of re, electrical shock or personal injury, shut o the power supply to fan before
you begin any maintenance tasks.
1. Fan does not start:
2. Fan is noisy:
3. Fan wobbles:
4. Light does not work:
1. Make sure that the wall switch is turned ON.
2. Check main and branch circuit fuses or circuit breakers.
3. Check all wire connections from household supply wires to the fan.
4. Make sure forward/reverse switch is pushed completely up or down. Fan will not operate
when switch is in the middle.
1. Make sure all screws in motor assembly are snug, but not overtightened.
2. Make sure the screws that attach the blade arms to the motor are tight.
3. Make sure wire connectors are not rattling against each other or against the interior wall
of the switch housing.
4. Some fan motors are sensitive to signals from Solid State variable speed controls. DO NOT
USE a Solid State variable speed control.
5. Ensure fan does not wobble excessively (see Fan wobbles solutions below).
1. Ensure the mounting bracket is tightened securely to outlet box and outlet box is
mounted rmly to ceiling joist.
2. Ensure all blades are screwed rmly into blade arms.
3. Ensure all blade arms are tightened securely to motor.
4. Switch one blade with a blade from the opposite side. Or balance the fan using the blade
balancing kit.
5. If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
1. Check for loose or disconnected 9-pin and/or single-pin connectors in switch housing or
light kit.
2. Ensure the blue wire from fan is connected to hot power supply wire.
3. Check for faulty light bulbs.
LIMITED LIFETIME WARRANTY
To obtain Service, please contact the Service Department:
1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
Model Name: 52” Gilford Ceiling Fan
Model No: 20200 - (SKU: 355-0603) White
20201 - (SKU: 355-0605) Brushed Nickel
20815 - (SKU: 355-2014) Matte Black
12
Set forth below, the manufacturer warrants the fan motor for this Patriot Lighting ceiling fan to be free
from defects in workmanship and material for the life of the product. Also, subject to the limitations
below, the manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts
made in whole or in part with glass) to be free from defects in workmanship and material for a period of
one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser from an authorized dealer, whether such purchaser
purchased the product through a store or contractor. Ceiling fan part defects must be reported within the
rst year from the date of purchase. Parts made in whole or in part with glass and the nishes of metal
and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by
this warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the
terms stated above. The manufacturer shall not be liable for any loss or damage of any kind, including any
incidental or consequential damages resulting directly or indirectly, from any breach of warranty, express
or implied, or any other failure of this product. Some states do not allow the exclusion or limitation of
incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior
model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of tness for a particular purpose and the implied warranty of merchantability is disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
