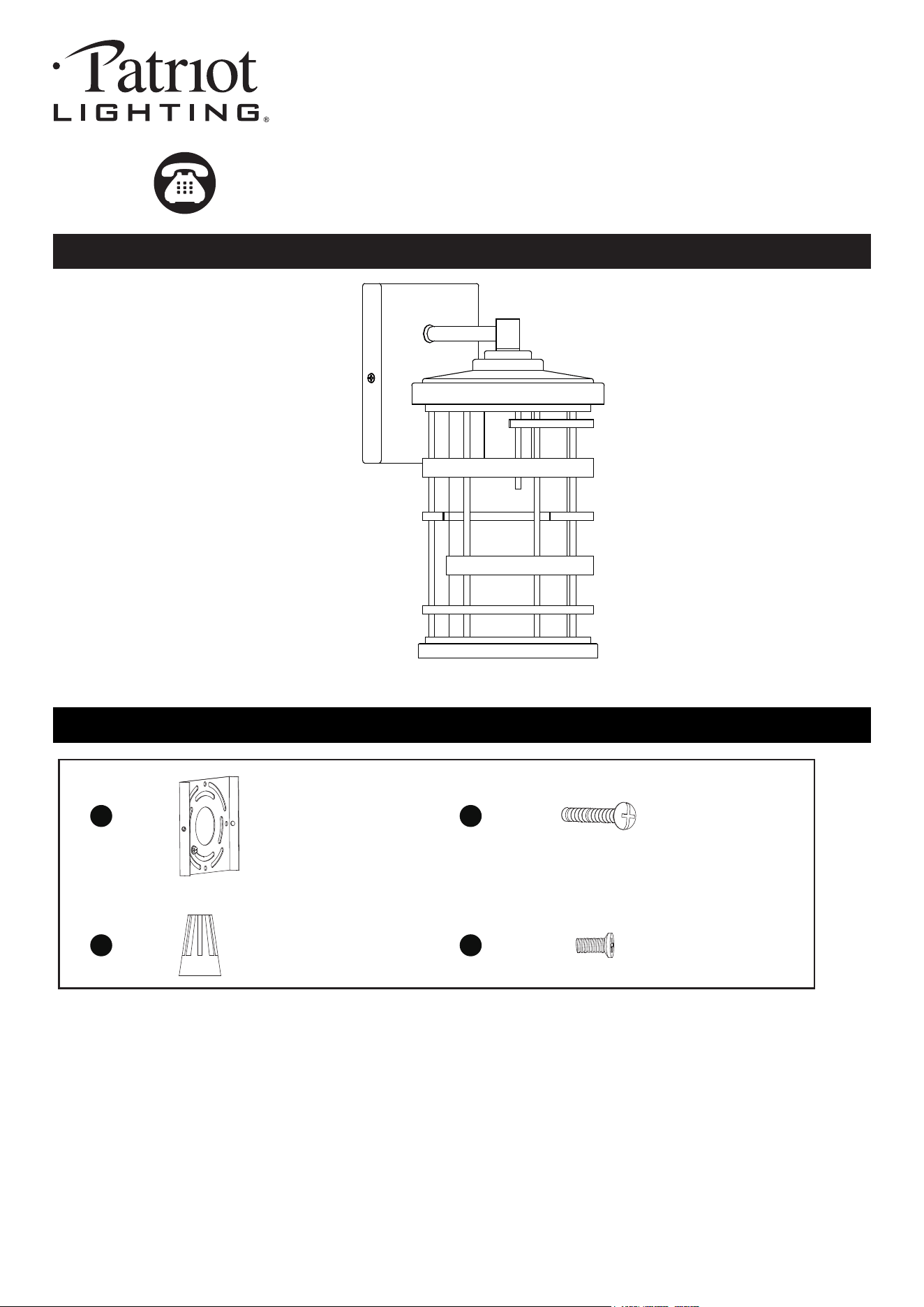

SKU Number: 356-1285
1-Light Outdoor Wall Light
Model Number: DJ2225 MBLK
PACKAGE CONTENTS
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
221025
Mounting Screw
X2
Wire Connector
X3
Set Screw
X2
AA BB
CC DD
HARDWARE CONTENTS Note: Hardware not shown actual size.
Mounting Plate Unit
X1
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
● Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or
switching off circuit breaker).
● Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires to contact
any surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury
or death from electric shock.
CAUTION
● All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).
Contact your municipal building department to learn about your local codes, permits and/or inspections.
● Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified electrician
before installation.
● Do not connect this fixture to an electrical system that does not provide a means for equipment grounding. Never use
a fixture in a two-wire system that is not grounded. If you are not sure your lighting system has a grounding means,
do not attempt to install this fixture. Contact a qualified, licensed electrician for information with regards to proper
grounding methods as required by the local electrical code in your area.
Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Slotted Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape, Wire
Cutters, Safety Glasses, Ladder, Wire Stripper, Silicone Caulk.
PREPARATION
Page 2 of 3
221025

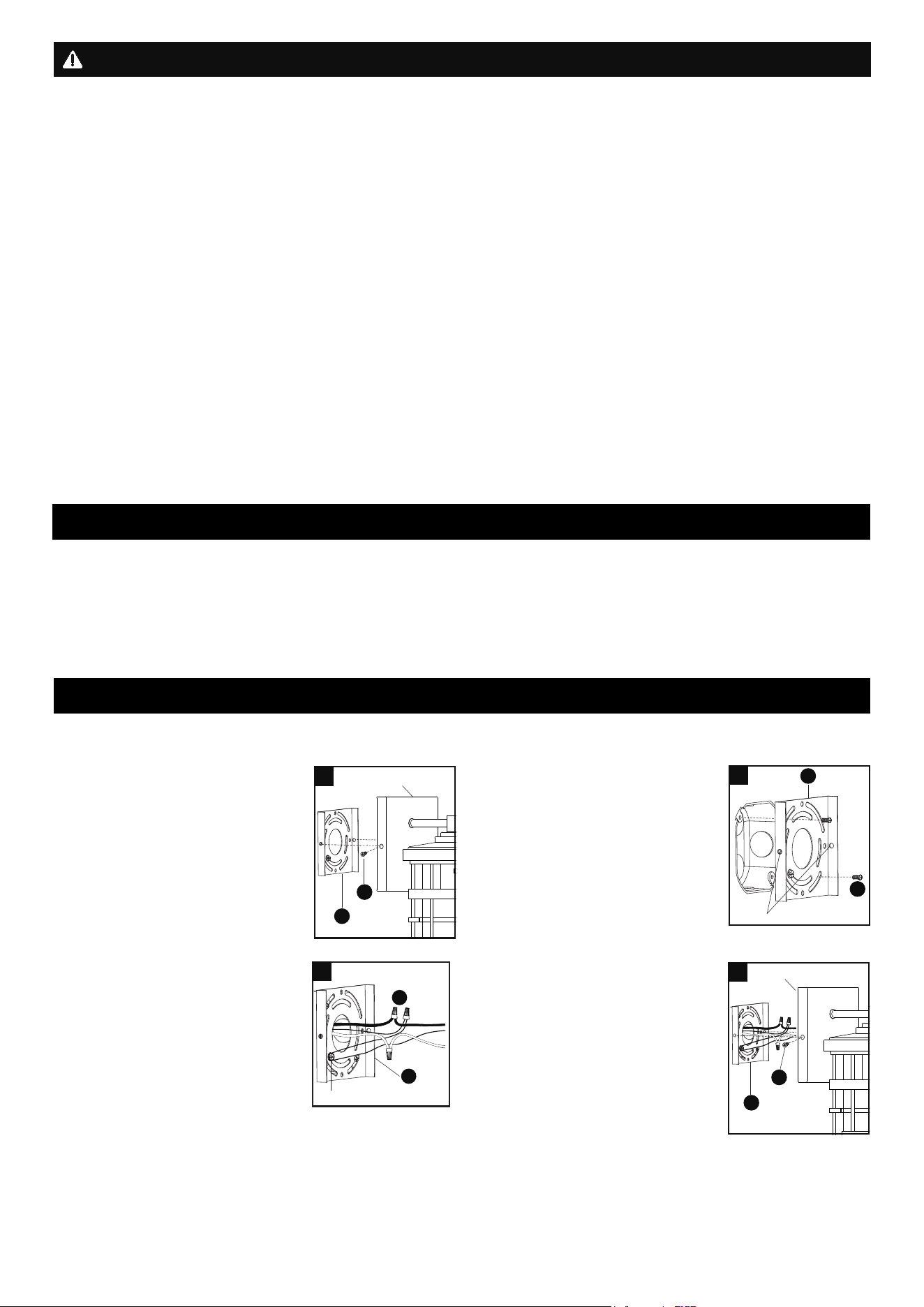

ASSEMBLY INSTRUCTIONS
Turn off the power at fuse or circuit box.
2. Attach the mounting plate unit (AA)
to the outlet box by using two
mounting screws (BB).
Note: Make sure that two set
holes are lined up horizontally
to make the fixture level.
4. Attach the backplate of the fixture
to the mounting plate unit (AA) by
aligning holes, then secure the two
set screws (DD) from the side hole
of the backplate.
Note: With silicone caulk
compound, caulk completely
around where the backplate
meets with the wall surface to
prevent water from seeping into
the outlet box.
1
SAFETY INFORMATION
BB
AA
2
Set Hole
1. Unscrew the two set screws (DD)
and remove the mounting plate
unit (AA) from the backplate.
4
DD
AA
Backplate
1
DD
Backplate
AA
CC
AA
3
Green Ground Screw
3. Pull out the source wires from the
outlet box. Make wire connections
using wire connectors (CC) as
follows:
• Connect the hot wire (black
insulation) from the fixture to the
black wire from the power source.
• Connect the neutral wire
(white insulation) from the fixture
to the white wire from the power source.
• Attach the fixture ground wire (green insulation or
bare wire) to the mounting plate unit (AA) with the
green ground screw, then depending on local code,
connect it to the house ground wire with the wire
connector (CC).
Carefully put all of the wires back into the outlet box.
● To clean, turn off and wipe with a damp, non-abrasive cloth.
1) The light does not work:
a) Make sure the wall switch and circuit breaker are on.
b) Make sure the wiring is correct.
2) Fuse blows or circuit trips when light is turned on.
Check for crossed wires, ensure wiring is correct.
If unable to fix any of the above issues, please consult a certified electrician.
CARE AND MAINTENANCE
TROUBLESHOOTING
FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails
due to a defect in material workmanship within five (5) years from the date of original purchase, simply bring this
lighting fixture with the original sales receipt back to your nearest MENARDS retail store. At its discretion, PATRIOT
LIGHTING agrees to have the product or any defective part(s) repaired or replaced with the same or similar PATRIOT
LIGHTING product or part free of charge, within the stated warranty period, when returned by the original purchaser
with original sales receipt. This warranty; (1) excludes expendable parts including but not limited to light bulbs; (2) does
not cover damage that has resulted from abuse or misuse; and (3) does not cover any losses, labor, injuries to
persons/property or costs. This warranty does give you specific legal rights and you may have other rights, which vary
from state to state.
R
R
R
R
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
Page 3 of 3
221025

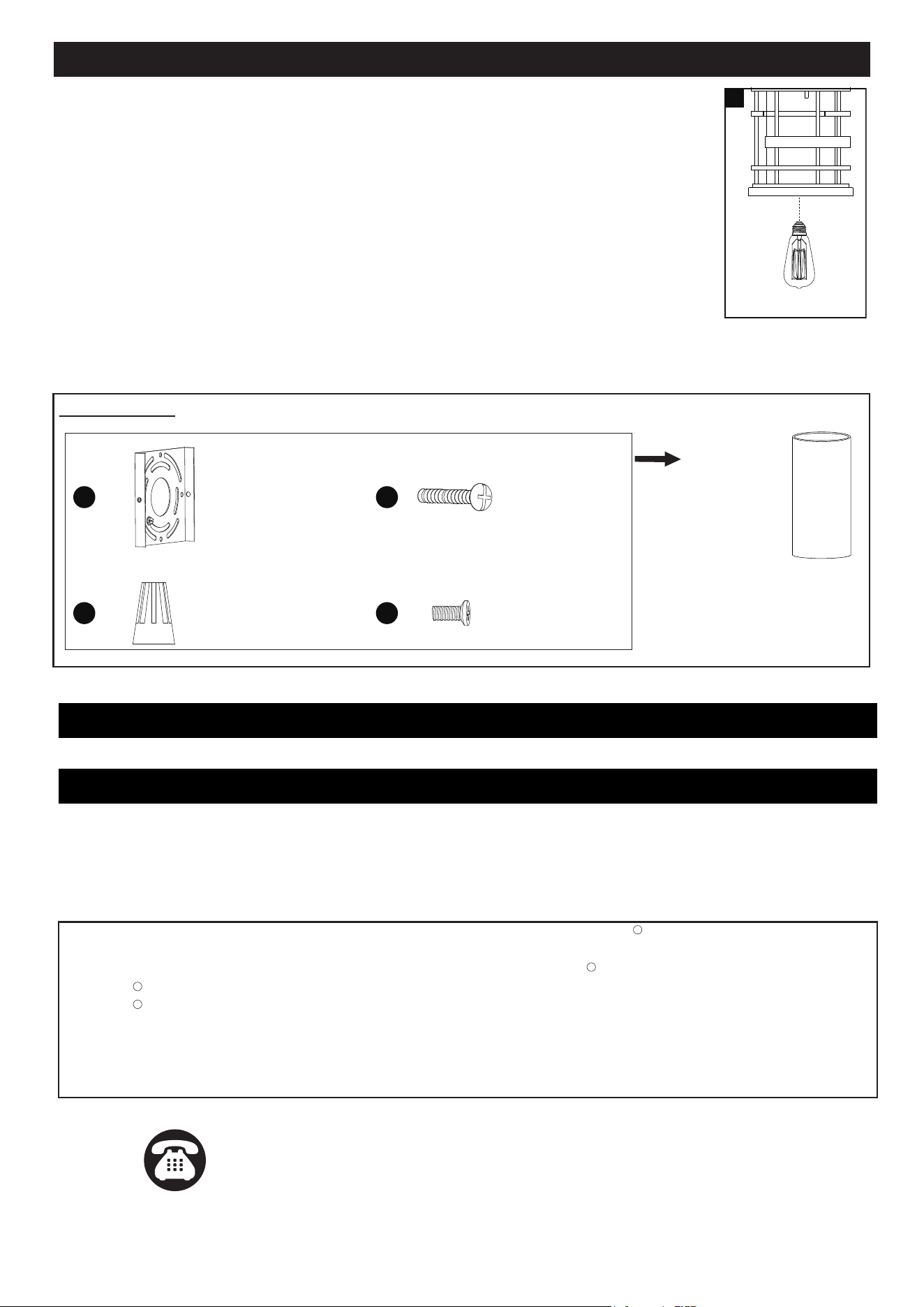

ASSEMBLY INSTRUCTIONS (continued)
Spare Parts List:
The following parts are available for re-order if damaged or missing. Call our toll-free at 1-800-887-6326
Assembly Kit
6570MM (1 SET)
Glass Shade
10325CG
5. Install the bulb (not included).
See relamping label at socket area or packaging for maximum wattage allowed.
Turn on the power at fuse or circuit box.
Mounting Screw
X2
Wire Connector
X3
Set Screw
X2
AA BB
CC DD
5
Max.60W Vintage Bulb
(not included)
Mounting Plate Unit
X1
