Outdoor Wall Light
Model Number: WSTD45-BK
PACKAGE CONTENTS
HARDWARE CONTENTS Note: Hardware not shown actual size.

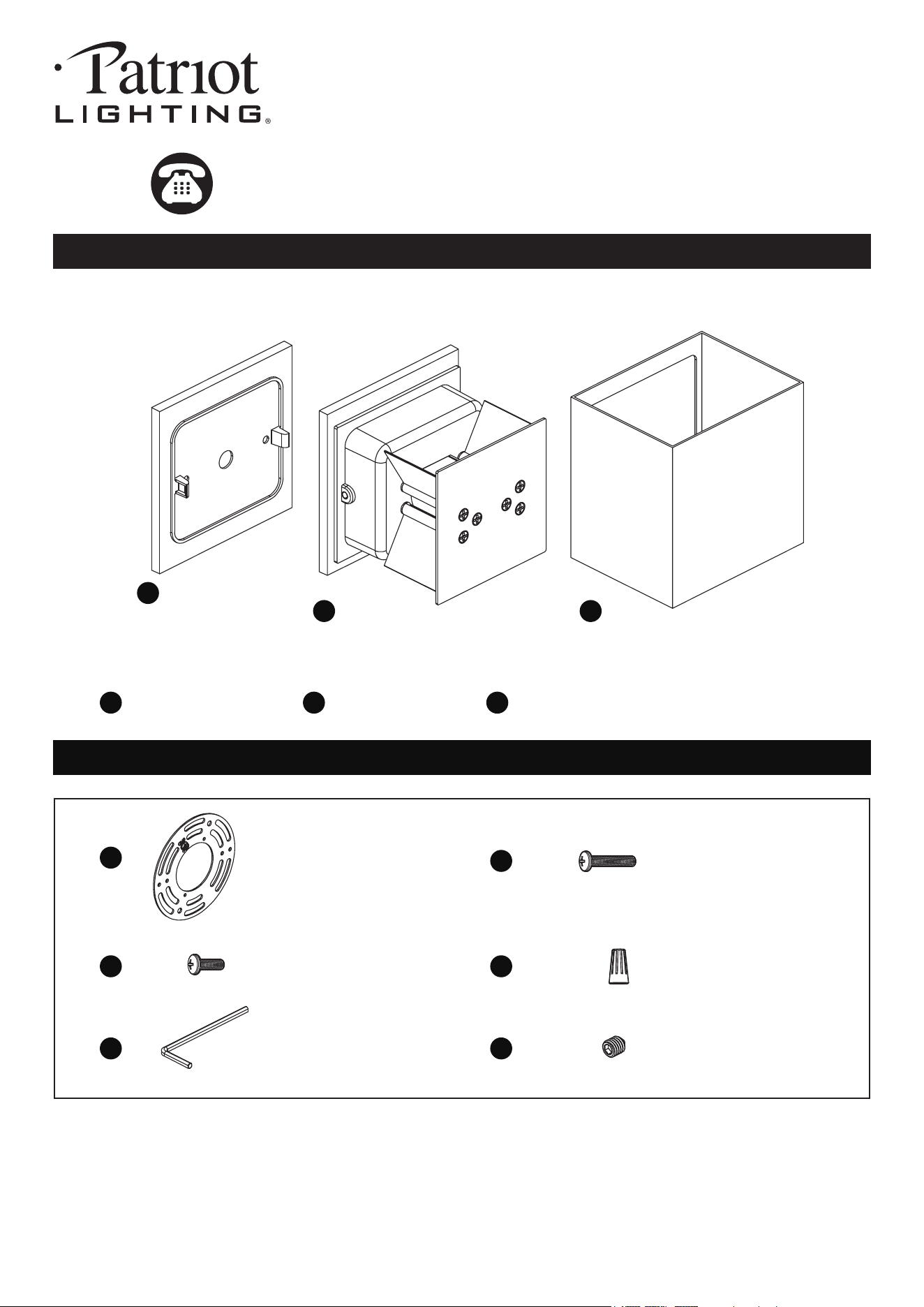

Square mounting plateA
A
Wall Light FixtureB Lamp ShadeC
B C
Round plate
X1
Mounting Screw
X2
Fixture Mounting Screw
X2
Wire Connector
X3
Hex Key
X1
Set Screw
X2
AA
BB
CC
EE
DD
FF
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
● Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or
switching off circuit breaker).
● Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires to contact
any surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury
or death from electric shock.
CAUTION
● All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).
Contact your municipal building department to learn about your local codes, permits and/or inspections.
● Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified electrician
before installation.
● Do not connect this fixture to an electrical system that does not provide a means for equipment grounding. Never use
a fixture in a two-wire system that is not grounded. If you are not sure your lighting system has a grounding means,
do not attempt to install this fixture. Contact a qualified, licensed electrician for information with regards to proper
grounding methods as required by the local electrical code in your area.
● If a dimmer control switch is used with this fixture, obtain professional advice to determine the correct type and
electrical rating required.
Page 2 of 3
ASSEMBLY INSTRUCTIONS
Turn off the power at fuse or circuit box.
SAFETY INFORMATION
3
CCT Switch
A

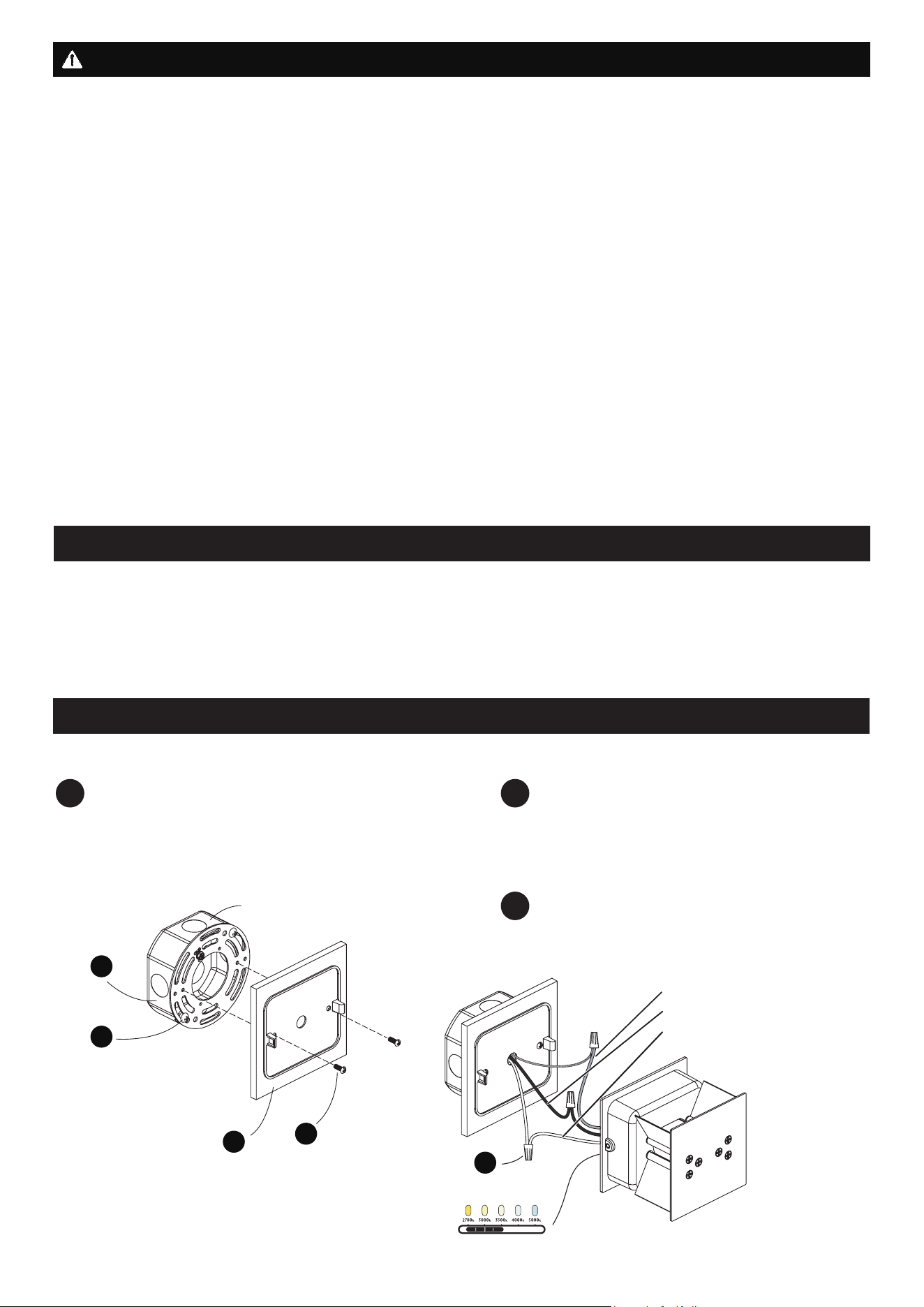

Install the round plate (AA) on the junction
box (not included) with the mounting screw
(BB).
Screw the square mounting plate (A) onto
the round plate with the fixture mounting
screws (CC).
1 2
To make the connections in the compartment:
use the included wire connectors (DD) to match
the white wire from the line feed with the white
wire from the fixture, repeat with black wire and
then connect copper wire (ground) to the green
wire.
To adjust the color temperature of light, use the
CCT switch on the fixture to switch between
2700K, 3000K, 3500K, 4000K and 5000K.
Ground Green
Neutral
Line
White
Black
Junction box (not included)
AA
BB
CC
DD
PREPARATION
Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Slotted Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape, Wire
Safety Glasses, Ladder, Wire Stripper, silicone caulk compound.
Page 3 of 3
● To clean, turn off and wipe with a damp, non-abrasive cloth.
1) The light does not work:
a) Make sure the wall switch and circuit breaker are on.
b) Make sure the wiring is correct.
2) Fuse blows or circuit trips when light is turned on.
Check for crossed wires, ensure wiring is correct.
If unable to fix any of the above issues, please consult a certified electrician.
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-877-430-1818
Monday – Friday 8:30 a.m. – 5:00 p.m. Eastern Time (EST)
CARE AND MAINTENANCE
TROUBLESHOOTING
FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails
due to a defect in material workmanship within five (5) years from the date of original purchase, simply bring this
lighting fixture with the original sales receipt back to your nearest MENARDS retail store. At its discretion, PATRIOT
LIGHTING agrees to have the product or any defective part(s) repaired or replaced with the same or similar PATRIOT
LIGHTING product or part free of charge, within the stated warranty period, when returned by the original purchaser
with original sales receipt. This warranty; (1) excludes expendable parts including but not limited to light bulbs; (2) does
not cover damage that has resulted from abuse or misuse; and (3) does not cover any losses, labor, injuries to
persons/property or costs. This warranty does give you specific legal rights and you may have other rights, which vary
from state to state.
R
R
R
R
6
Seal the fixture by putting silicon (not included)
around the canopy. Leave a gap toward the
bottom to prevent moisture build-up.
A
ASSEMBLY INSTRUCTIONS (continued)

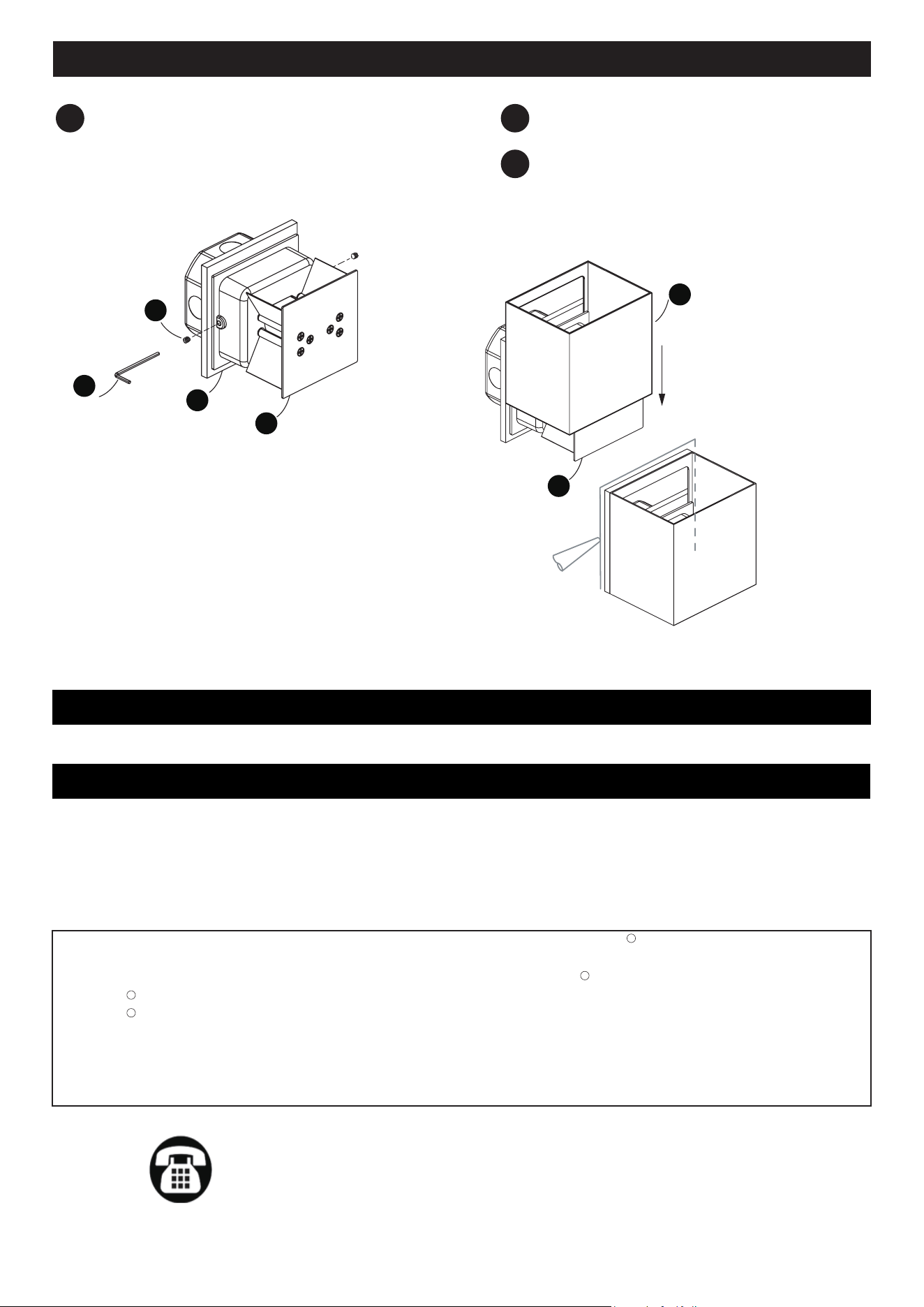

Insert all the wires inside the junction box and
align the fixture (B) on the square mounting plate
(A). Secure the set screws (FF) with the hex key
(EE).
Slide the lamp shadec(C) onto the fixture (B).
4 5
Silicon
(not included)
EE
B
C
FF
B
Turn on the power at fuse or circuit box.
