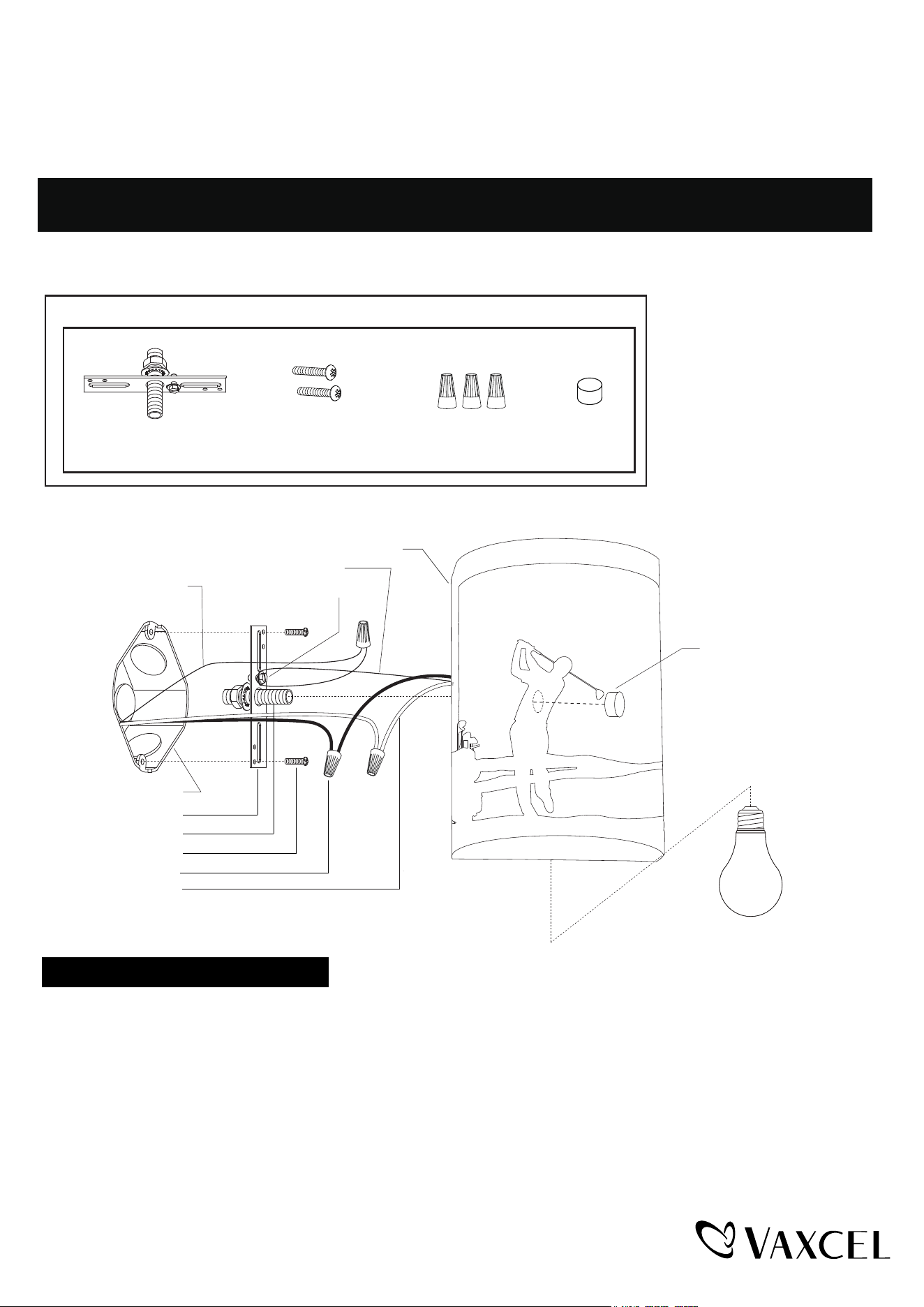

Backplate
Mounting Screw (B)
Fixture Wire
Mounting Strap Unit (A)
Wire Connector (C)
Fixture Ground Wire
Green Ground Screw
Outlet Box
House Ground Wire
Threaded pipe
Turn off the power at fuse or circuit box
Installation Steps
1. Remove the end cap (D) from mounting strap unit (A).
2. Attach the mounting strap unit (A) to the outlet box by using two mounting screws (B). Adjust the length of the
preinstalled threaded pipe if necessary.
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the mounting strap unit (A) with the green ground screw, then
depending on local code, connect it to the house grounding wire with the wire connector (C).
Carefully put all of the wires back into the outlet box.
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
T0795
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.
Hardware Package (included):
Mounting Screw (B) Wire Connector (C) End Cap (D)Mounting Strap Unit (A)
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
End Cap (D)
Max. 60W Type A Bulb
(not included)
Page 1 / 2
250304
Turn on the power at fuse or circuit box.
4. Attach the backplate of the fixture to the mounting strap unit (A) by inserting the threaded pipe, then secure it with
the end cap (D).
Note: With silicone caulk compound, caulk completely around where the backplate meets with the wall
surface to prevent water from seeping into the outlet box.
5. Install 1 x 60W max. medium base bulb (not included).
See relamping label at socket area or packaging for maximum wattage allowed.

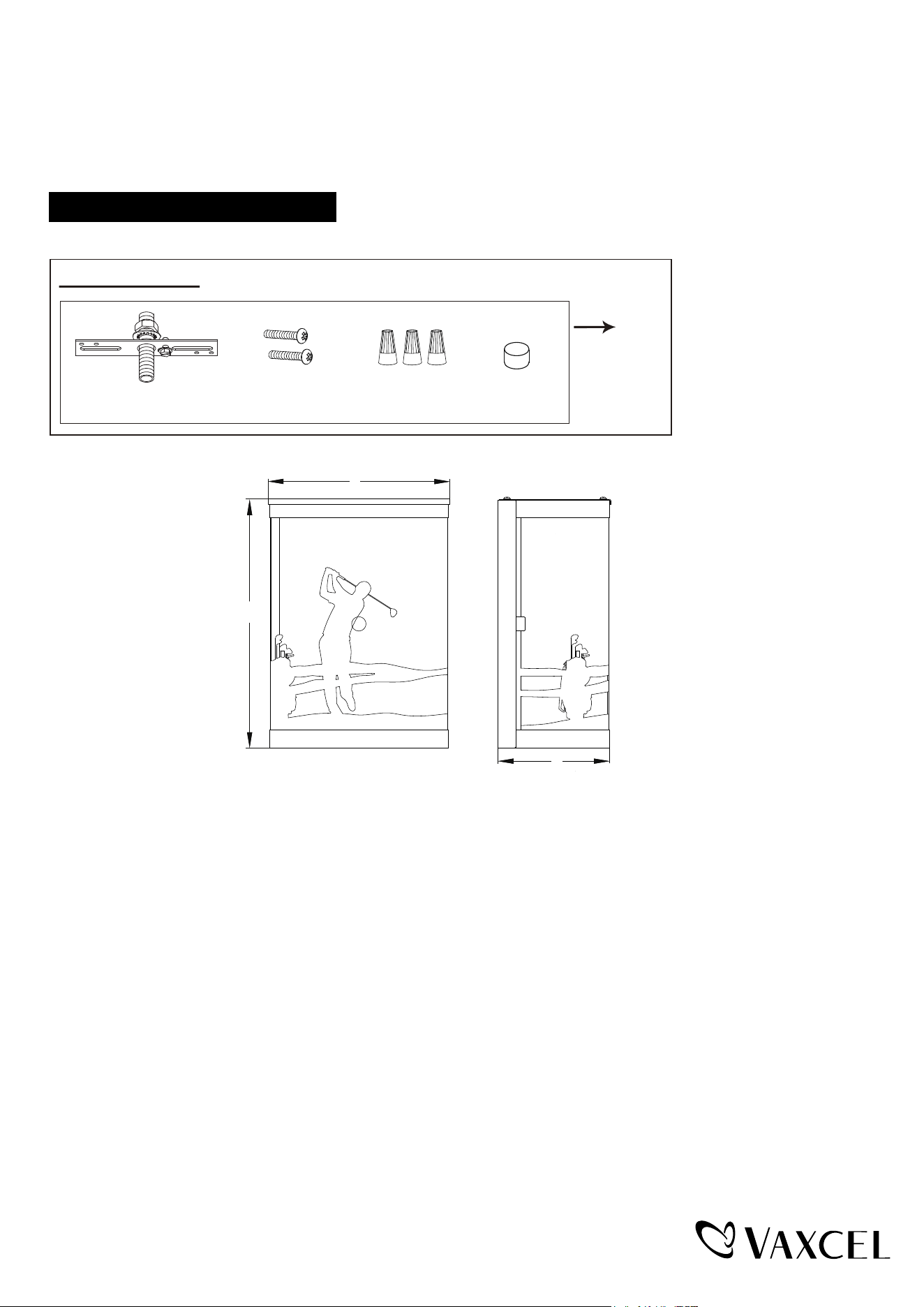

Spare Parts List:
Assembly Kit
7016MM (1 SET)
Mounting Screw (B) Wire Connector (C) End Cap (D)Mounting Strap Unit (A)
The following parts are available for reorder if damaged or missing.
Page 2 / 2
250304
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
A
B
C
A: 11"
B: 8"
C: 5"
