ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instruction.
CF33016NS
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box
Turn on the power at fuse or circuit box

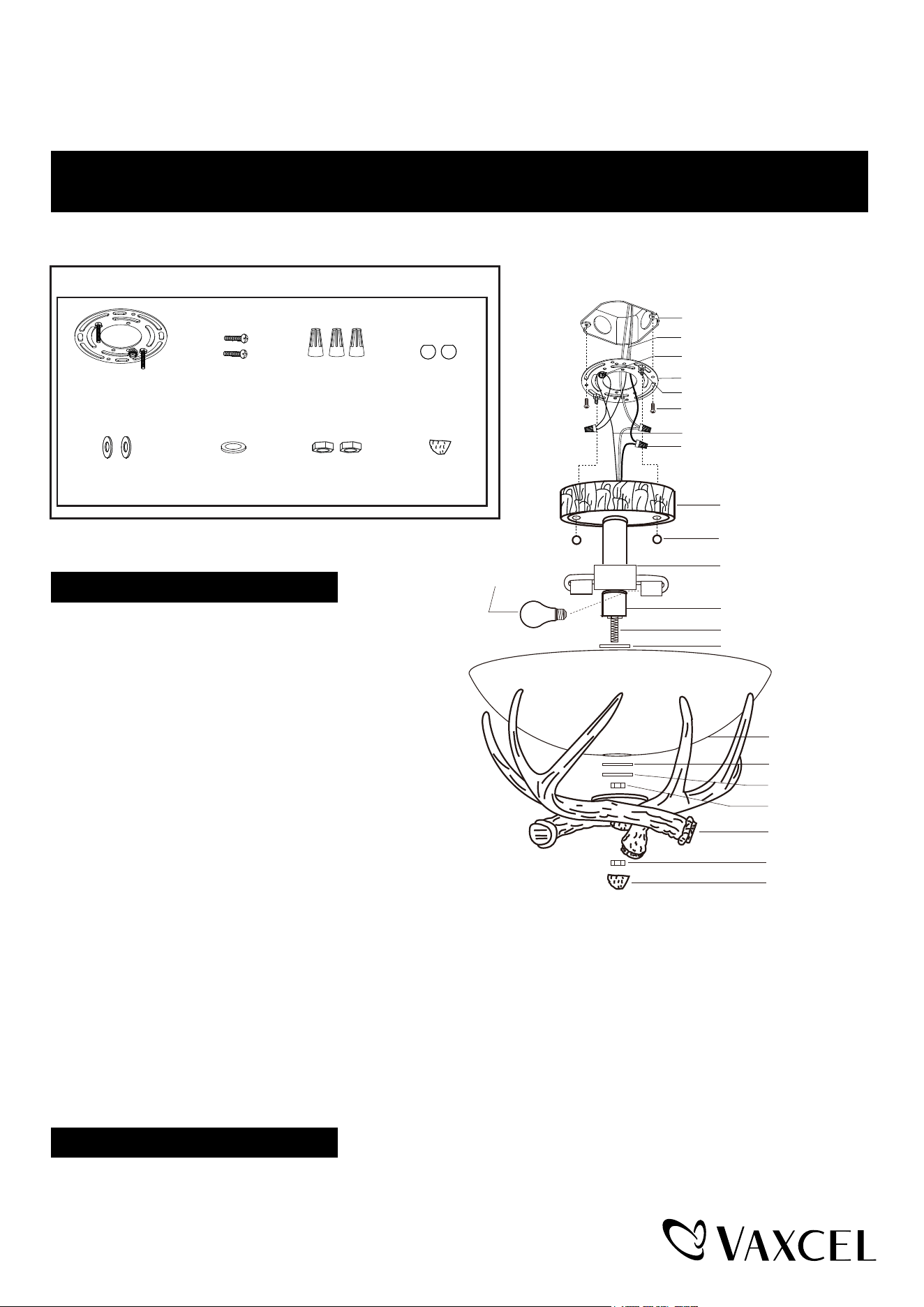

Installation Steps
1
. Attach the mounting plate unit (A) to the outlet box by
using two mounting screws (B).
2. Pull out the source wires from the outlet box.
Make wire connections using wire
connectors (C) as follows:
---Connect the hot wire (black insulation) from the
power source to the black wire from the fixture.
---Connect the neutral wire (white insulation)
from the power source to the white wire from the fixture.
---Attach the fixture ground wire (bare wire) to the mounting
plate unit (A) with the green ground screw, or connect to
the source ground wire if available.
Carefully put the wires back into the outlet box.
3. Attach the canopy to the mounting plate unit (A) by inserting the
fixture mounting screws, then secure it with two bolt nuts (D).
4. Install 2 x 60W max.medium base bulbs (not included). See relamping label at socket area or packaging for
maximum wattage allowed.
5. Attach the rubber pad
(E)
and glass shade upward to the box by inserting the threaded pipe, and then secure them
with a rubber pad
(E)
, metal pad (F) and hex nut
(G)
.
6. Attach the antler set upward to the glass shade carefully by inserting the threaded pipe, and then secure it with the
finial
(H)
.
Page 1 / 2
240118
Wire Connector (C)
Mounting Screw (B)Mounting Plate Unit (A) Bolt Nut (D)
Hex Nut (G)Metal Pad (F)Rubber Pad (E) Finial (H)
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Outlet Box
Glass Shade
Finial (H)
Hex Nut (G)
Threaded Pipe
Box
Rubber Pad (E)
Fixture
Antler Set
Hex Nut (G)
Metal Pad (F)
Rubber Pad (E)
Canopy
Bolt Nut (D)
Max. 60W Medium
Base Bulb (not included)
Page 2 / 2
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
240118

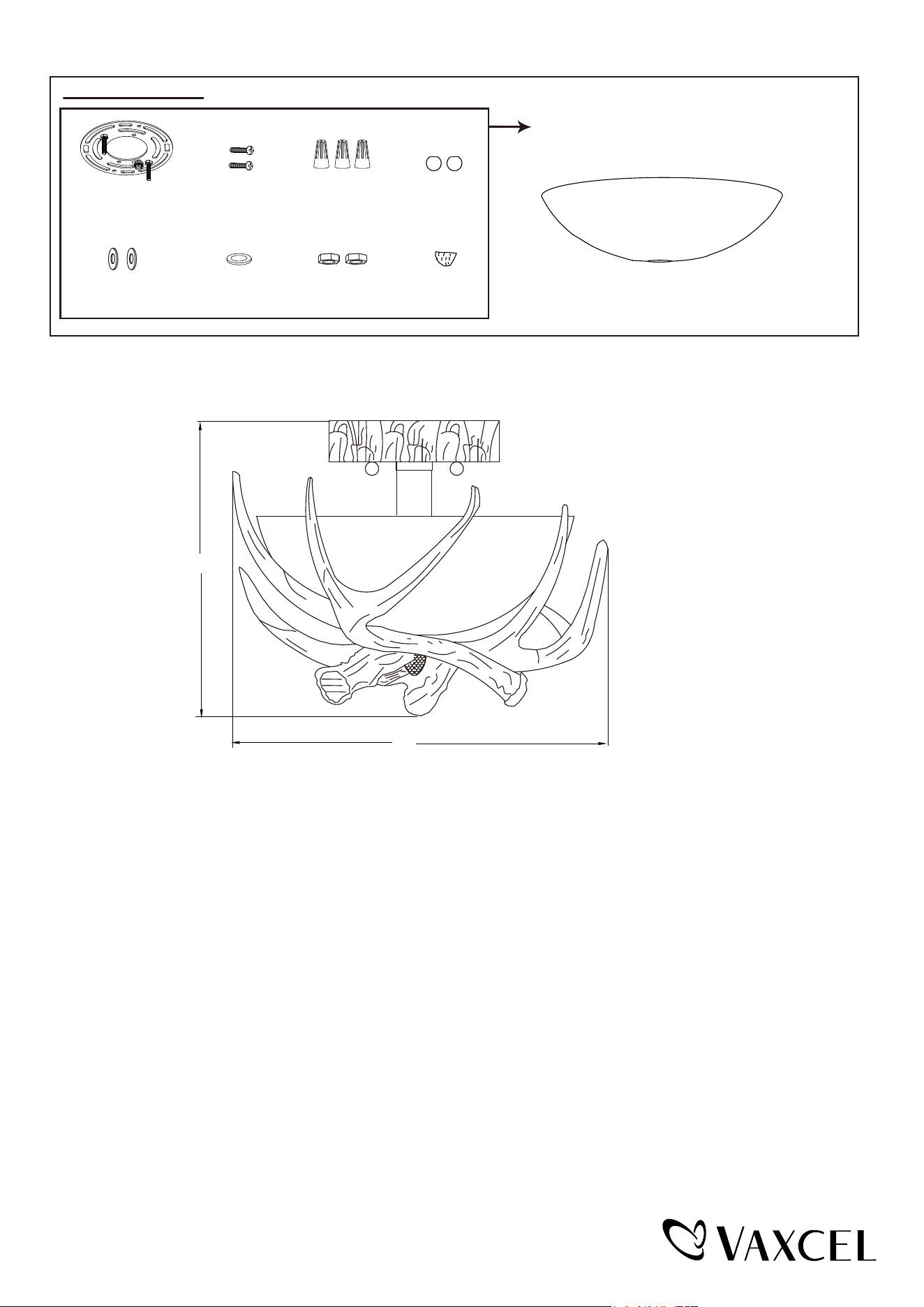

The following parts are available for reorder if damaged or missing.
Spare Parts List:
Mounting Hardware
6673MM (1SET)
Glass Shade
933016
Wire Connector (C)Mounting Screw (B)Mounting Plate Unit (A) Bolt Nut (D)
Hex Nut (G)Metal Pad (F)Rubber Pad (E) Finial (H)
A
B
A: 12-3/4"
B: 16"
