WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.

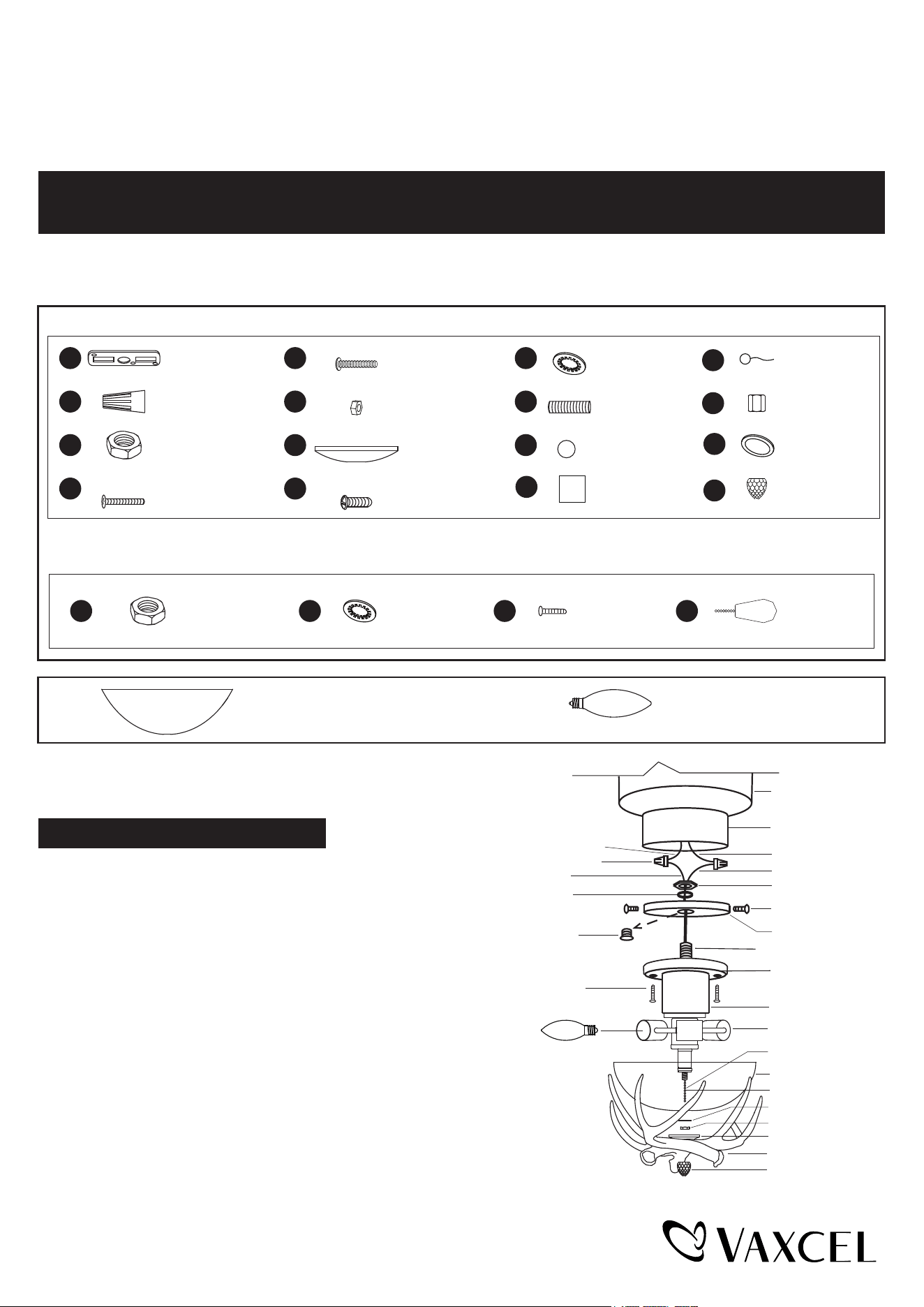

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
LK33012WP-C
Hardware Package (included): For Ceiling Light
Hardware Package (included): For Light Kit
Washer
X1
Hex Nut
X1
SS
RR
QQ
Set Screw
X2
Center Plug
Black or Blue Wire
Wire Connector (BB)
Black Wire
Washer (RR)
White W
Hex Nut (QQ)
ire
White Wire
Switch Box
Motor
Switch Box Cover
Switch Box Screw
(6 x 32 20mmL)
Set Screw (SS)
Light Kit
Threaded Pipe (-a)
Motor
Socket
Pull Chain
Glass Shade
Finial (PP)
Antler
Bottom Cap
Hex Nut (CC)
Washer (II)
Wood Bead (TT)
4W LED Candelabra Base Bulb
(included)
1. Remove the switch box cover from the switch box of
the fan by loosing the three switch box screws.
2. Unscrew the center plug from the switch box cover
and discard it.
3. Attach the threaded pipe (-a) of the light kit to the hole
of the switch box cover, then thread the wires through
the washer (RR) and hex nut (QQ), then secure them tightly.
4. Thread the fixture wire through the switch box cover.
Then attach the light kit to the switch box cover, then
secure it with two set screws (6x32 20mmL) (SS).
5. Pull out the wires from the switch box. Make wire
connections using the wire connectors (BB) .
---The black wire from light kit to the black or blue wire from the fan.
---The white wire from light kit to the white wire from the fan.
---Carefully put wires back into the switch box.
Turn off the power at fuse or circuit box.
Installation Steps
For Light Kit:
Mounting Screw
X2
Green Ground
Screw X1
Washer
X2
Lock Nut
X2
Hex Nut
X2
Threaded Pipe
X1
Mounting Strap
X1
AA
EE II
BB
FF
JJ
CC
GG KK
LL
DD
HH
Wire Connector
X3
Fixture Mounting
Screw X2
Canopy
X1
Bolt Nut
X2
MM
NN
Fixture Ground
Wire X1
Tube
X1
Coupling
X1
Ground Pad
X1
OO
PP
Finial
X1
TT
Glass Shade
10102FS
X1
Candelabra 4W LED Blub
8096LD
X2
Wood Bead
X1
Page 1 / 3
230519

6. Restore the switch box cover back to the switch box by using the three switch box screws.
7. Install 2 x 4W LED candelabra base bulbs (included). See relamping label at socket area or packaging for maximum
wattage allowed.
8. Thread the wood bead (TT) through the glass shade, then attach the glass shade to the socket , by securing the
washer (II) and hex nut (CC). Thread the wood bead (TT) through the antler and finial (PP), then attach the antler
to the glass shade by securing the finial (PP).
Turn on the power at fuse or circuit box.
Turn off the power at fuse or circuit box.
Turn on the power at fuse or circuit box.

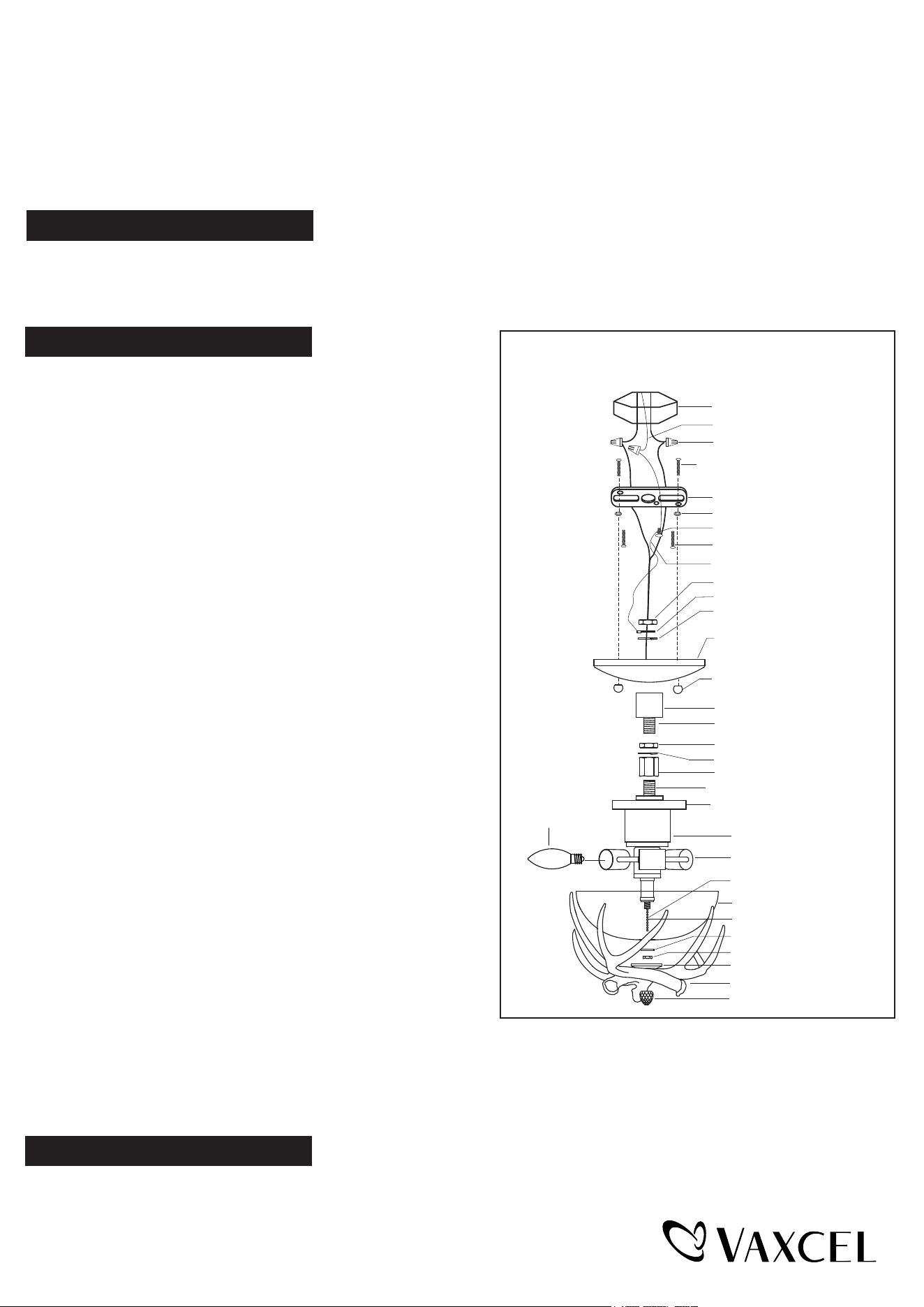

For Ceiling Light:
Outlet Box
House Ground Wire
Fixture Ground Wire (MM)
Wire Connector (BB)
Fixture Mounting Screw (EE)
Mounting Strap (AA)
Green Ground Screw (HH)
Lock Nut (FF)
Mounting Screw (DD)
Mounting Parts for Ceiling Light
Hex Nut (QQ)
Ground Pad (OO)
Washer (RR)
Canopy (GG)
Bolt Nut (KK)
Tube (LL)
Coupling (NN)
Fixture
Threaded Pipe (-a)
Threaded Pipe (JJ)
Hex Nut (CC)
Washer (RR)
Motor
Socket
Pull Chain
Glass Shade
Finial (PP)
Antler
Bottom Cap
Hex Nut (CC)
Washer (II)
Wood Bead (TT)
4W LED Candelabra
Base Bulb
(included)
1. Take out the washer (II), ground pad (OO), canopy (GG),
tube (LL), threaded pipe (JJ), two bolt nuts (KK) and two hex
nuts (CC) from the hardware package for ceiling light.
2. Secure the coupling (NN) onto threaded pipe (-a). Then
secure threaded pipe (JJ) into the other end of the coupling
(NN) and secure with a hex nut (CC) and washer (II).
3. Slip the tube (LL) and the canopy (GG) and through threaded
pipe (JJ), secure them together with a washer (RR), ground
pad (OO), fixture ground wire (MM) and hex nut (QQ).
4. Attach two fixture mounting screws (EE) to the mounting strap
(AA) , then secure them with two lock nuts (FF). Adjust the
length of the screws if necessary.
5. Attach the mounting strap (AA) to the outlet box by using two
mounting screws (DD).
6. Pull out the outlet wires and the house ground wire from the
outlet box.Make wire connections using the wire connectors (BB):
---The black wire from fixture to the black wire from the outlet box.
---The white wire from fixture to the white wire from the outlet box.
---Attach the fixture grounding wire to the mounting strap with the
green ground screw (HH). Then connect it to the house ground
wire with a wire connector (BB).
Carefully put the wires back into the outlet box.
7. Attach the canopy (GG) to the mounting strap (AA) by inserting
two fixture mounting screws (EE), then secure them with the
bolt nuts (KK).
8. Install 2 x 4W LED candelabra base bulbs (included). See
relamping label at socket area or packaging for maximum wattage
allowed.
9. Thread the wood bead (TT) through the glass shade, then attach the glass shade to the socket by securing the
washer (II) and hex nut (CC). Thread the wood bead through the antler and finial (PP), then attach the antler to
the glass shade by inerting securing the finial (PP).
Page 2 / 3
230519

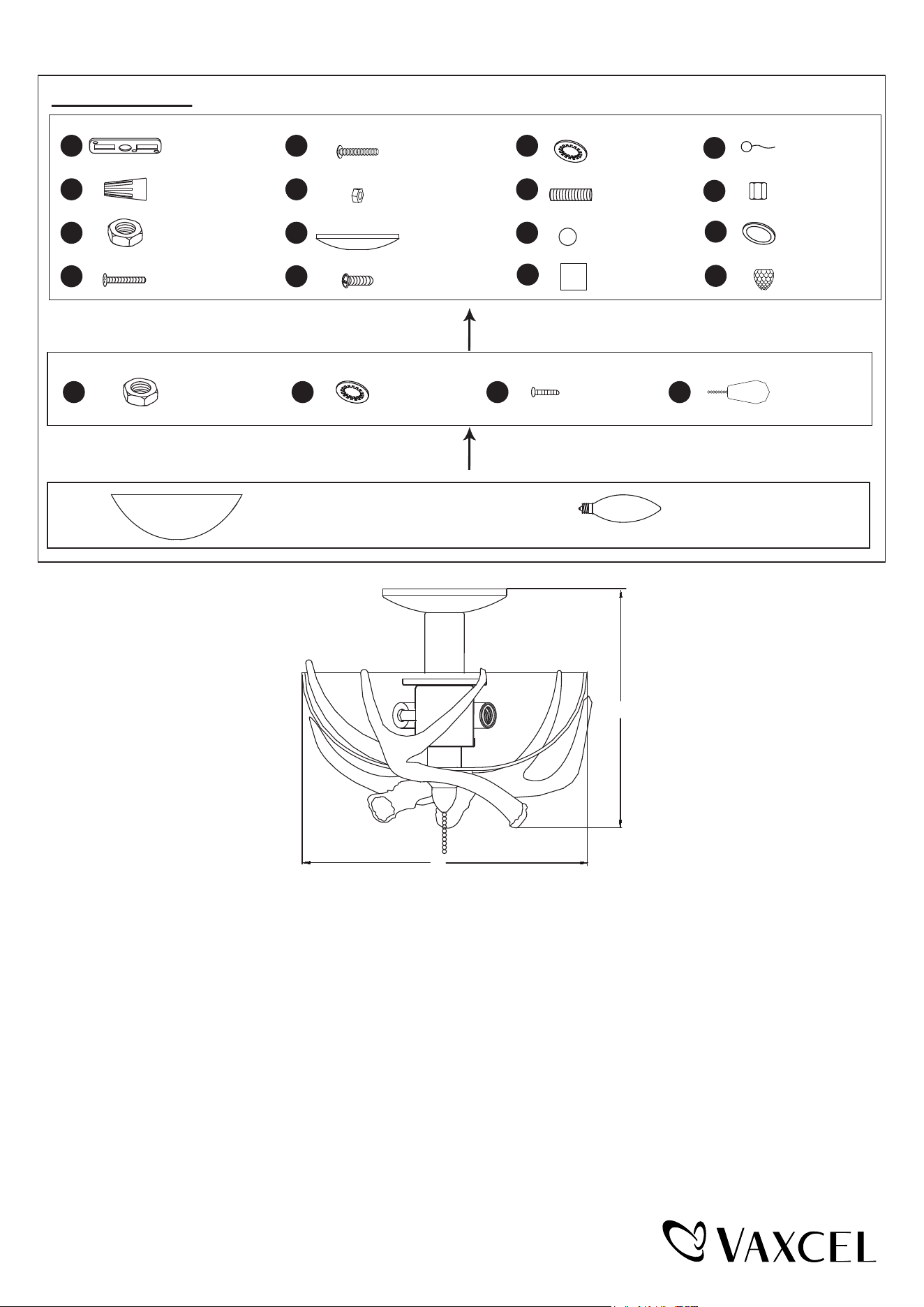

The following parts are available for reorder if damaged or missing.
Spare Parts List:
Assembly Kit
6124MM
(1 SET)
Assembly Kit
6126MM
(1 SET)
A : 12-1/2”
B: 8-1/2”
Mounting Screw
X2
Green Ground
Screw X1
Washer
X1
Lock Nut
X2
Hex Nut
X2
Threaded Pipe
X1
Mounting Strap
X1
AA
EE II
BB
FF
JJ
CC
GG KK
LL
DD
HH
Wire Connector
X3
Fixture Mounting
Screw X2
Canopy
X1
Bolt Nut
X2
MM
NN
Fixture Ground
Wire X1
Tube
X1
Coupling
X1
Ground Pad
X1
OO
PP
Finial
X1
B
A
Glass Shade
10102FS
X1
Candelabra 4W LED Blub
8096LD
X2
Washer
X1
Hex Nut
X1
SS
RR
QQ
Set Screw
X2
TT
Wood Bead
X1
Page 3 / 3
230519
