ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instruction.
CF35417A/C / CF35417BN / CF35417RBZ/B
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

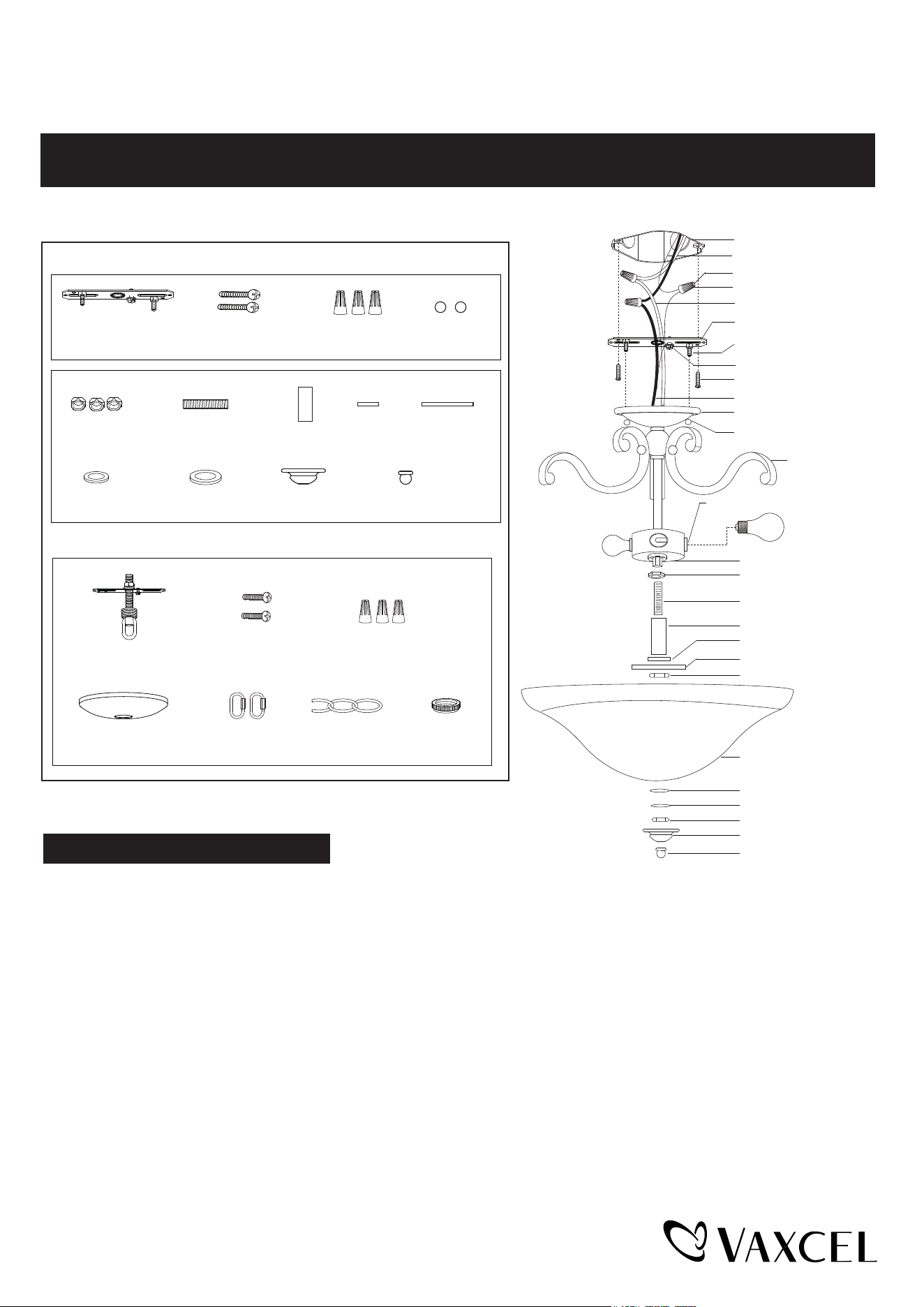

Hardware Package for Semi-Flush (included):
Hardware Package for Pendant (included):
Turn off the power at fuse or circuit box.
Installation Steps
Mounting Screw (B) Wire Connector (C)
Bolt Nut (D)
Mounting Strap Unit (A)
Stem (G) Cap-1 (H) Cap-2 (I)
Cap-3
(L)
Finial
(M)
Threaded Pipe (F)
Hex Nut (E)
Rubber Pad (J) Metal Pad (K)
Mounting Strap Unit (N) Wire Connector (P)Mounting Screw (O)
Canopy-2 (Q)
Quick Link (R)
Chain (S)
Collar (T)
For Semi-Flush
1. Attach the mounting strap unit (A) to the outlet box by using two mounting screws (B).
2. Cut the redundant wires if necessary, and make wire connections with wire connectors (C) :
---Connect the smooth wire (marked) from fixture to the black wire from power source.
---Connect the ridged wire(unmarked) from fixture to the white wire from power source.
---Attach the fixture ground wire to the mounting strap unit (A) with the green ground screw, then connect it to the house
ground wire with the wire connector (C).
Carefully tuck wires back into the ceiling box.
3. Attach the fixture canopy-1 to the mounting strap unit (A) by inserting the fixture mounting screws, then secure it with two
bolt nuts (D).
4. Attach the threaded pipe (F) to the coupling of the socket base, and secure with a hex nut (E). (You can adjust the
length of the threaded pipe.)
Page 1 / 3
Outlet Box
House Ground Wire
Wire Connector (C)
Mounting Strap Unit (A)
Green Ground Screw
Fixture Mounting Screw
Mounting Screw (B)
Fixture Wire
Fixture Mounting Screw
Fixture Ground Wire
Canopy-1
Bolt Nut (D)
Arm
Socket Base
Coupling
Hex Nut (E)
Threaded Pipe (F)
Stem (G)
Cap-1 (H)
Cap-2 (I)
Hex Nut (E)
Glass Shade
Rubber Pad (J)
Metal Pad (K)
Hex Nut (E)
Cap-3 (L)
Finial (M)
Max. 100W
Medium Base Bulb
(not included)
230511
Turn on the power at fuse or circuit box.
Turn off the power at fuse or circuit box.
Turn on the power at fuse or circuit box.
Quick Link
(R)
Quick Link (R)
Loop
Threaded Pipe-2
Canopy-1
Chain (S)
Canopy-2
(Q)
Outlet Box
Housing Ground Wire
Wire Connector (P)
Fixture Wire
Fixture Ground Wire
Mounting Strap Unit (N)
Green Ground Screw
Mounting Screw (O)
Threaded Pipe-1
Hex Nut
Washer
Top Loop
Collar (T)
Fixture Wire
For Pendant:
5. Attach the stem (G), cap-1 (H) and cap-2 (I) onto the coupling by inserting the threaded pipe (F), and secure
with a hex nut (E).
6.
Install 3 x 100W Max. Medium base bulbs (not included). See relamping label at socket area or packaging for
maximum wattage allowed.
7. Attach the glass shade to the fixture, secure with rubber pad (J) , metal pad (K) and hex nut (E) . Then attach the
cap-3 (L) onto the glass shade, and secure with finial (M).

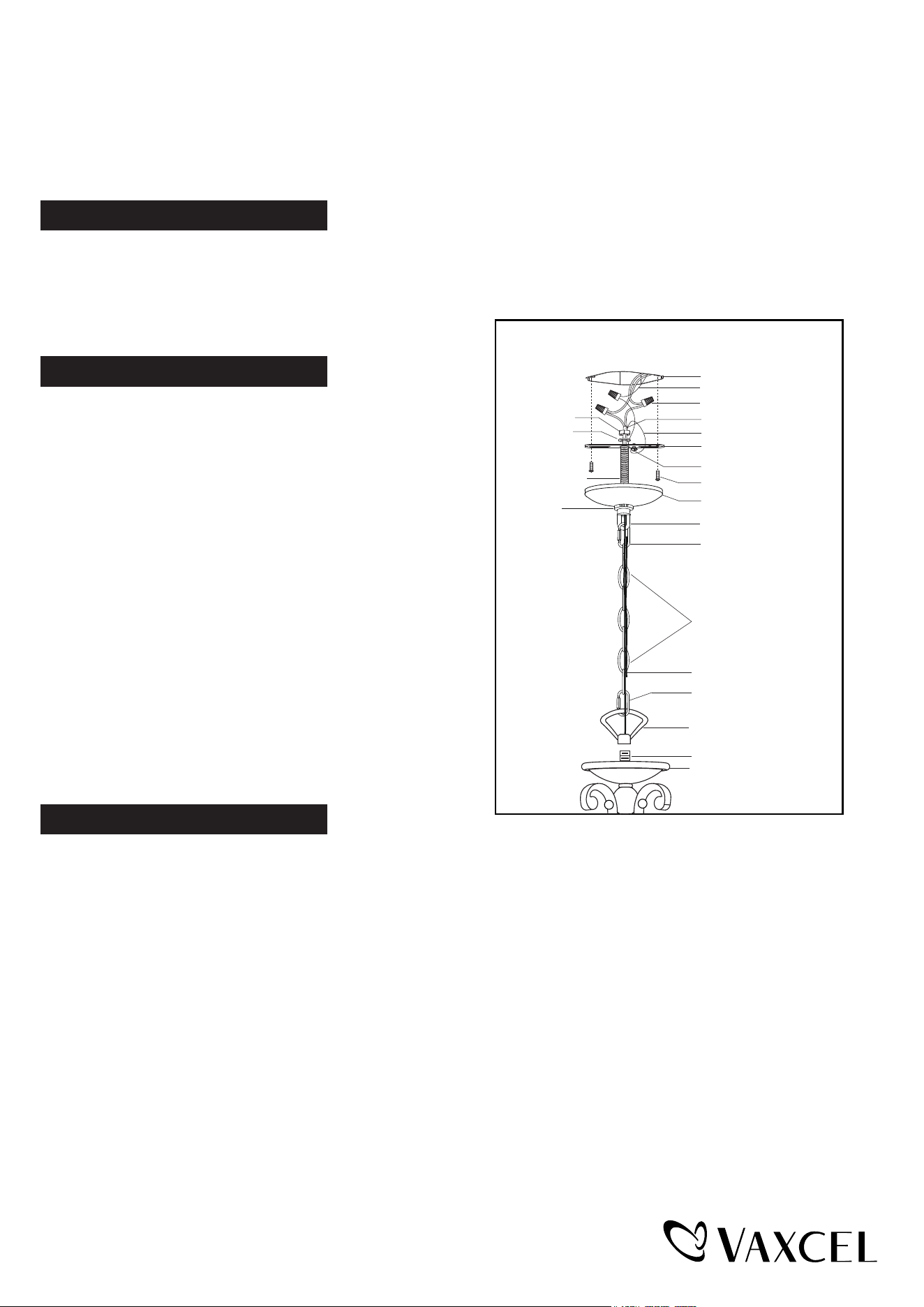

Mounting Parts For Pendant
1. Attach the mounting strap unit (N) to the outlet box by using two
mounting screws (O).
2. Thread the fixture wire and ground wite through the loop, and
secure the loop onto the threaded pipe-2.
3. Choose the length of the chain (S) you need, then weave the
fixture wire and the fixture ground wire through the chain (S) ,
collar (T) and canopy-2 (Q).
4. Connect the chain (S) to the loop and the top loop on mounting
strap unit (A) with two quick links (R).
5. Thread the fixture wire and fixture ground wire through the top
loop, threaded pipe-1 of the mounting strap unit (A).
6. Follow step 2 as for Semi-Flush.
7. Attach the canopy-2 (Q) to the mounting strap unit (N) by
inserting the top loop, and secure with the collar (T).
8. Follow steps 4~7 as for Semi-Flush.
Page 2 / 3
230511

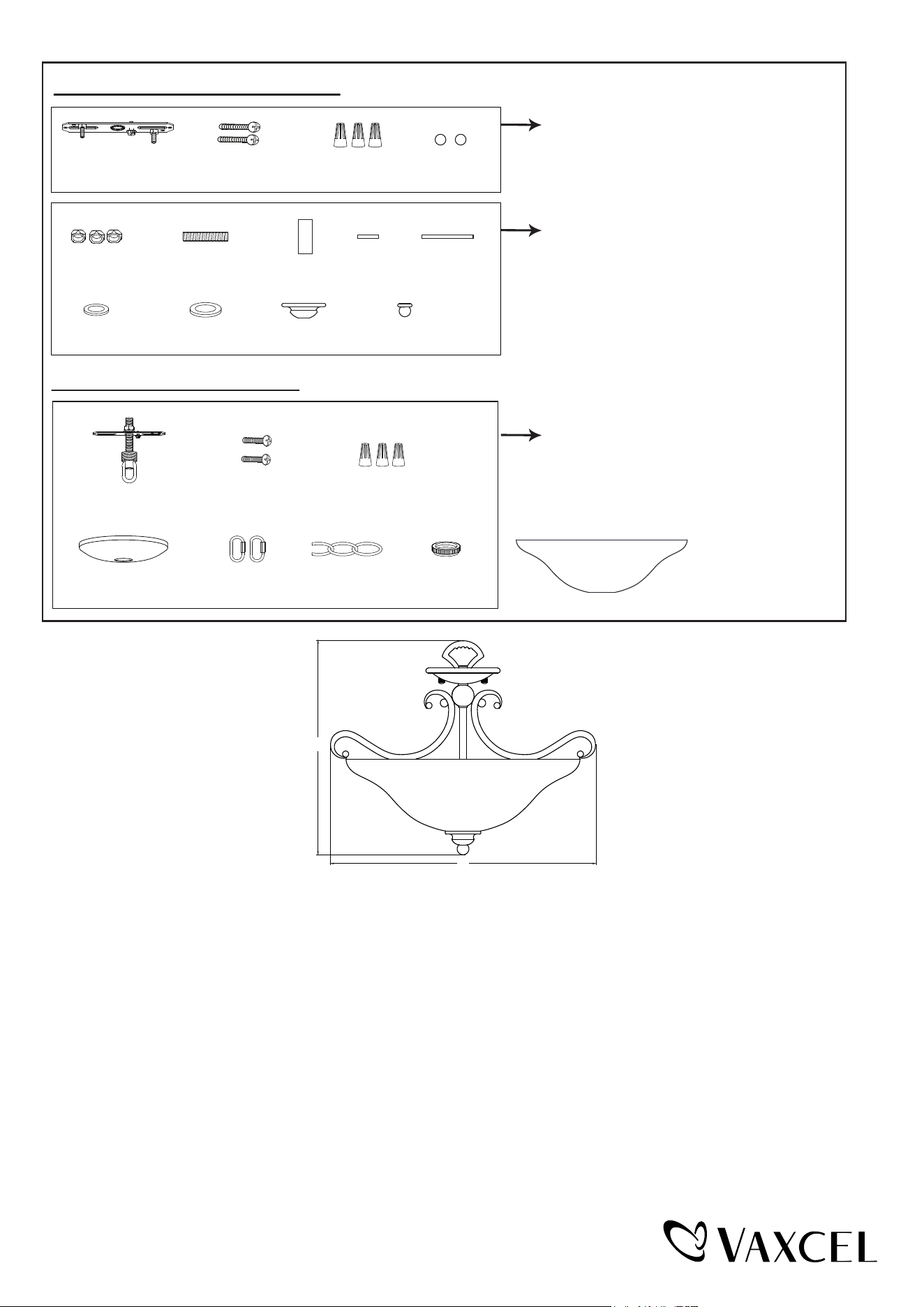

The following parts are available for reorder if damaged or missing.
Mounting Hardware
6696MM (1SET) for CF35417A/C
6697MM (1SET) for CF35417BN
6698MM (1SET) for CF35417RBZ/B
Mounting Hardware
6699MM (1SET) for CF35417A/C
6700MM (1SET) for CF35417BN
6701MM (1SET) for CF35417RBZ/B
Mounting Hardware
6702MM (1SET) for CF35417A/C
6703MM (1SET) for CF35417BN
6704MM (1SET) for CF35417RBZ/B
Glass Shade
935417C for CF35417A/C
935417FS for CF35417BN
935417B for CF3541RBZ/B
Spare Parts List
for Semi-Flush:
Spare Parts List
for Pendant:
Mounting Screw (B) Wire Connector (C)
Bolt Nut (D)
Mounting Strap Unit (A)
Stem (G) Cap-1(H) Cap-2 (I)
Cap-3
(L)
Finial
(M)
Threaded Pipe (F)
Hex Nut (E)
Rubber Pad (J) Metal Pad (K)
Mounting Strap Unit (N) Wire Connector (P)Mounting Screw (O)
Canopy-2 (Q)
Quick Link (R)
Chain (S)
Collar (T)
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
Page 3 / 3
230511
A
B
A: 13-3/4"
B: 17"
