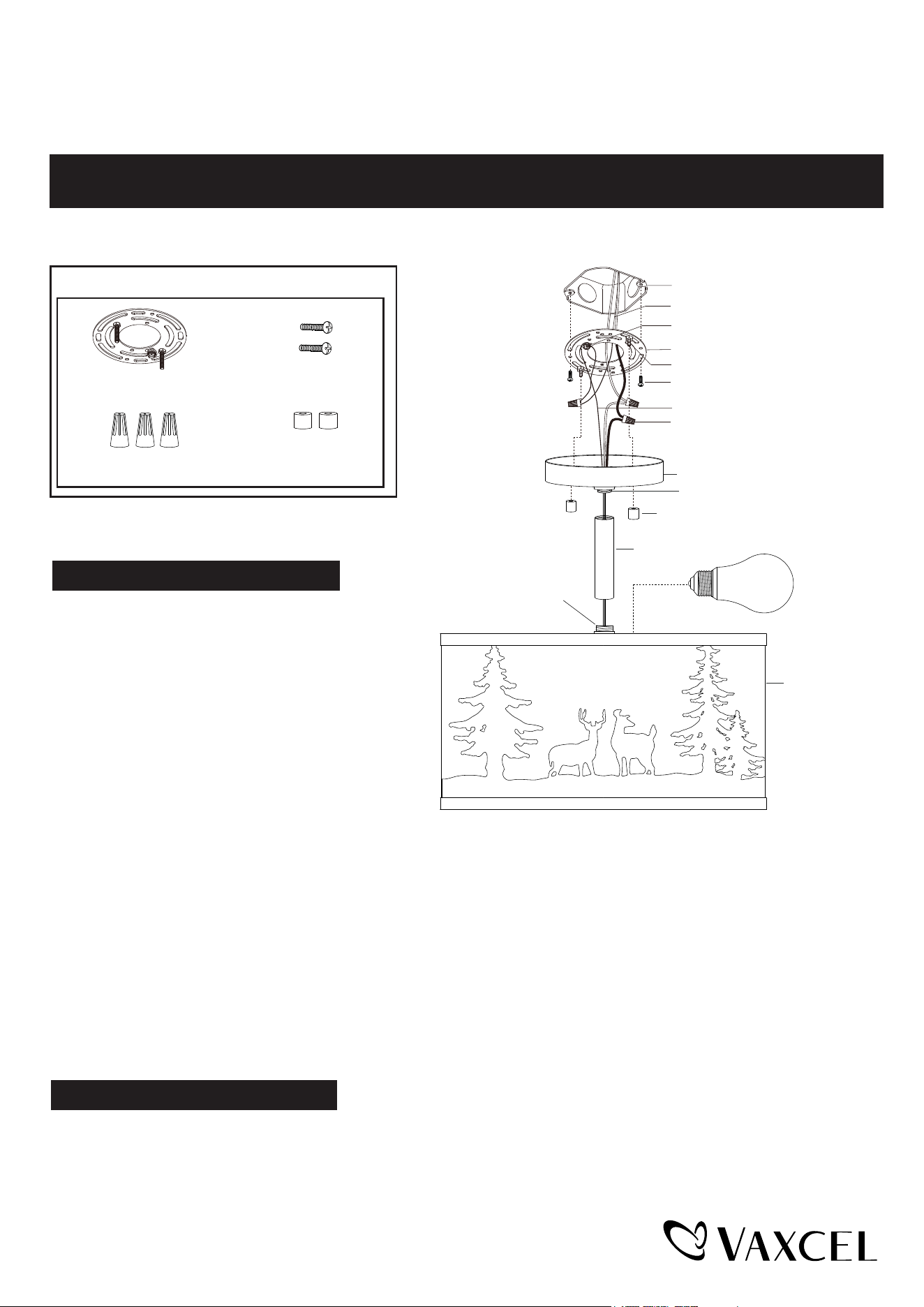

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
Bolt Nut (D)
Canopy
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
C0313
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Coupling
Rod
Fixture
Page 1 / 2
Coupling
Max. 60W Medium
Base Bulb (not included)
240507
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Outlet Box
Turn on the power at fuse or circuit box
1. Thread the fixture wire from the fixture through the
rod, then secure the rod onto fixture using the
coupling.
2
.
Thread the fixture wire through the canopy, then
secure the rod to the coupling of the canopy.
3. Attach the mounting plate unit (A) to the outlet
box by using two mounting screws (B).
4. Pull out the source wires from the outlet box. Make
wire connections using wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the
fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the mounting
plate
unit (A) with green ground screw,
then depending on local code, connect it to the house ground wire with the wire connector (C).
Carefully put all of the wires back into the outlet box.
5. Attach the canopy to the mounting
plate
unit (A) by inserting the fixture mounting screws, then secure it with
two bolt nuts (D).
6. Install 3 x 60W Max. Medium base bulbs (not included). See relamping label at socket area or packaging
for maximum wattage allowed.
Turn off the power at fuse or circuit box
Installation Steps
Hardware Package (included):
Wire Connector (C)
Mounting Screw (B)
Mounting Plate Unit (A)
Bolt Nut (D)
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
Page 2 / 2
240507

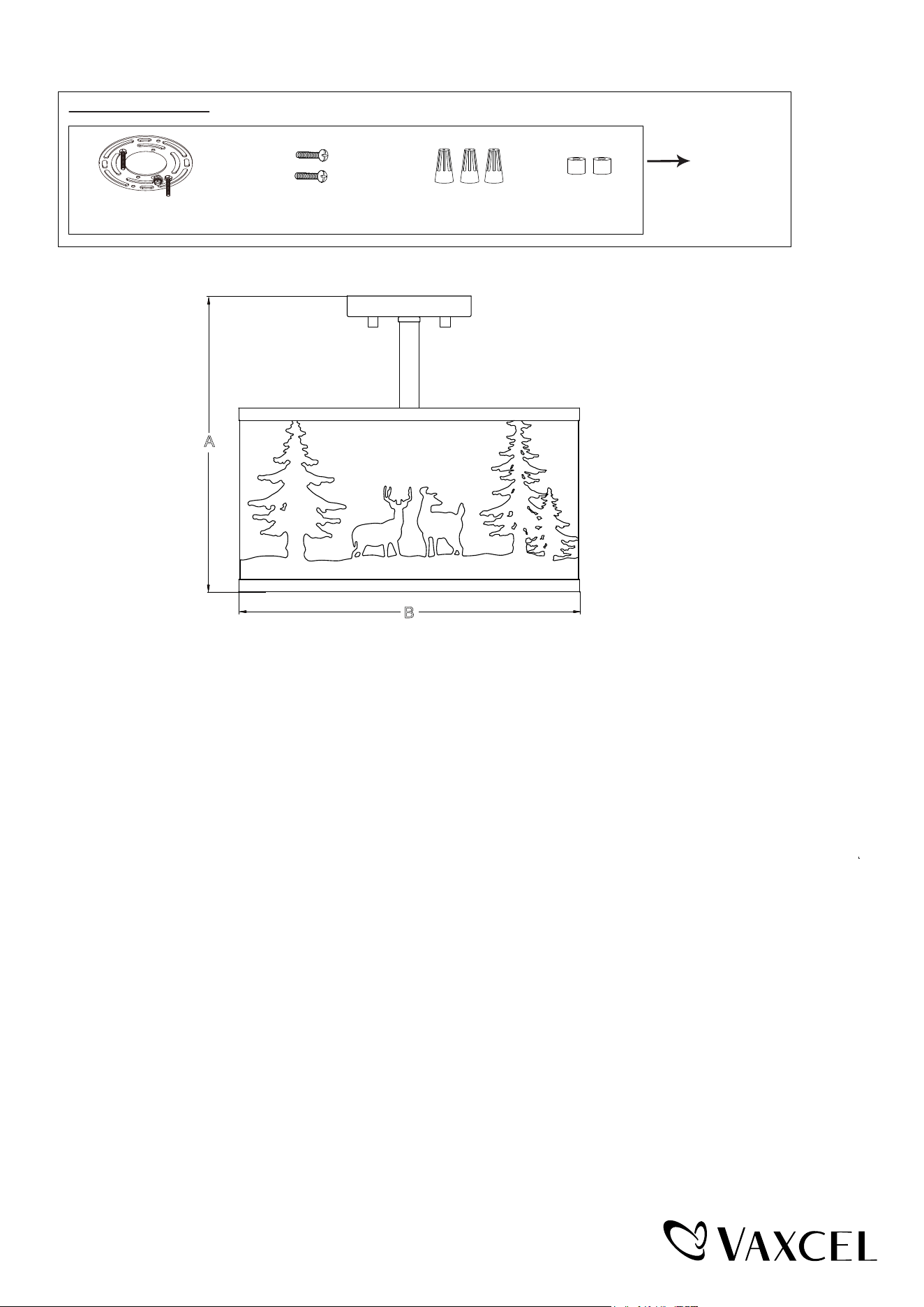

Spare Parts List:
Assembly Kit
6853MM (1SET)
The following parts are available for reorder if damaged or missing.
Wire Connector (C)Mounting Screw (B)
Mounting Plate Unit (A) Bolt Nut (D)
A
B
A: 11-1/4
"
B: 13
"
