ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instructions.
C0272
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

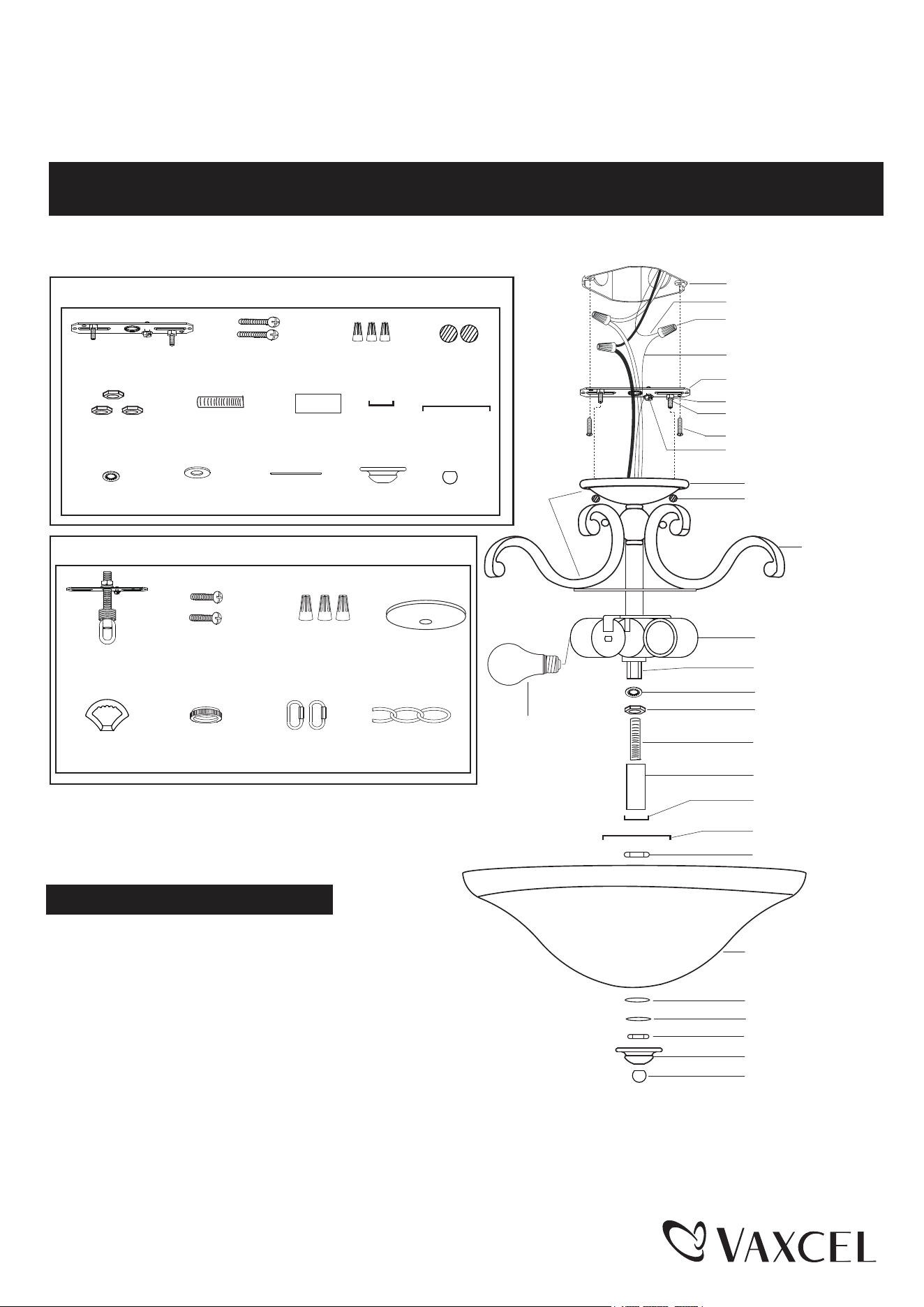

Hardware Package for Ceiling Light (included):
Turn off the power at fuse or circuit box.
Installation Steps
Outlet Box
House Ground Wire
Fixture Mounting Screw
Mounting Strap Unit (A)
Green Ground Screw
Lock Nut
Mounting Screw (B)
Fixture Ground Wire
Wire Connector (C)
1. Attach the mounting strap unit (A) to the outlet box by
using two mounting screws (B).
2. Screw the threaded pipe (F) into the coupling
on the socket base, then secure with a hex
nut (E) and washer (J).
3. Attach the tube (G) and cap-1 (H) to the coupling by
inserting the threaded pipe (F), then attach cap-2 (I)
to the hex nut (E).
Hardware Package for Pendant Light (included):
Canopy-1
Bolt Nut (D)
Arm
Fixture
Hex Nut (E)
Cap (M)
Metal Pad (L)
Rubber Pad (K)
Glass Shade
Socket Base
Coupling
Hex Nut (E)
Washer (J)
Threaded Pipe (F)
Tube (G)
Cap-1 (H)
Hex Nut (E)
Cap-2 (I)
Max. 100W Type A Bulb
(not included)
Finial (N)
Mounting Screw (B) Wire Connector (C)Mounting Strap Unit (A)
Hex Nut (E)
Cap-2
(I)
Rubber Pad (K)
Threaded Pipe
(F)
Tube
(G)
Cap-1
(H)
Bolt Nut (D)
Washer (J)
Metal Pad (L)
Cap (M)
Finial (N)
Mounting Strap
Unit (O)
Wire Connector (Q)
Collar (T)Loop (S)
Mounting Screw (P)
Canopy (R)
Quick Link (U)
Chain (V)
For Ceiling Light:
Page 1 / 4
230721
Turn on the power at fuse or circuit box.
4. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
---Connect the smooth-coated wire (marked) from the fixture to the black wire from the power source.
---Connect theribbed-coated wire (unmarked) from the fixture to the white wire from the power source.
---Attach the fixture ground wire to the mounting strap unit (A) with the green ground screw, then
connect it to the house ground wire with a wire connector (C).
Carefully put the wires back into the outlet box.
5. Unscrew two bolt nuts (D) from the canopy-1, attach the canopy-1 to the mounting strap unit (A), secure
with the bolt nuts (D).
6. Install 3 X 100W Max. medium base bulbs (not included). See relamping label at socket area or packaging for
maximum wattage allowed.
7. Attach the glass shade to the fixture, secure with the rubber pad (K), metal pad (L) and hex nut (E).
Then attach the cap (M) upward to the glass shade, then secure with the finial (N).
1. Attach the mounting strap unit (O) to the outlet box by using
two mounting screws (P).
2. Follow steps 2~3 as For ceiling light.
3. Install loop (S) on the threaded pipe-1 inside Canopy-1.
4. Adjust the length of the chain (V) you needed, then weave the fixture
wire and the fixture ground wire through the chain (V), collar (T) and
canopy (R).
5. Connect one end of the chain (V) with the loop by using a
quick link (U).
6. Connect the other end of the chain (V) with the top loop by using
another quick link (U).
7. Follow step 4 as For ceiling light.
8. Attach the canopy (R) to the mounting strap unit (O) by inserting the top loop, then secure it with the collar (T).
9. Follow steps 6~7 as For ceiling light.
Turn off the power at fuse or circuit
box.
Turn on the power at fuse or circuit
box.
Installation Steps

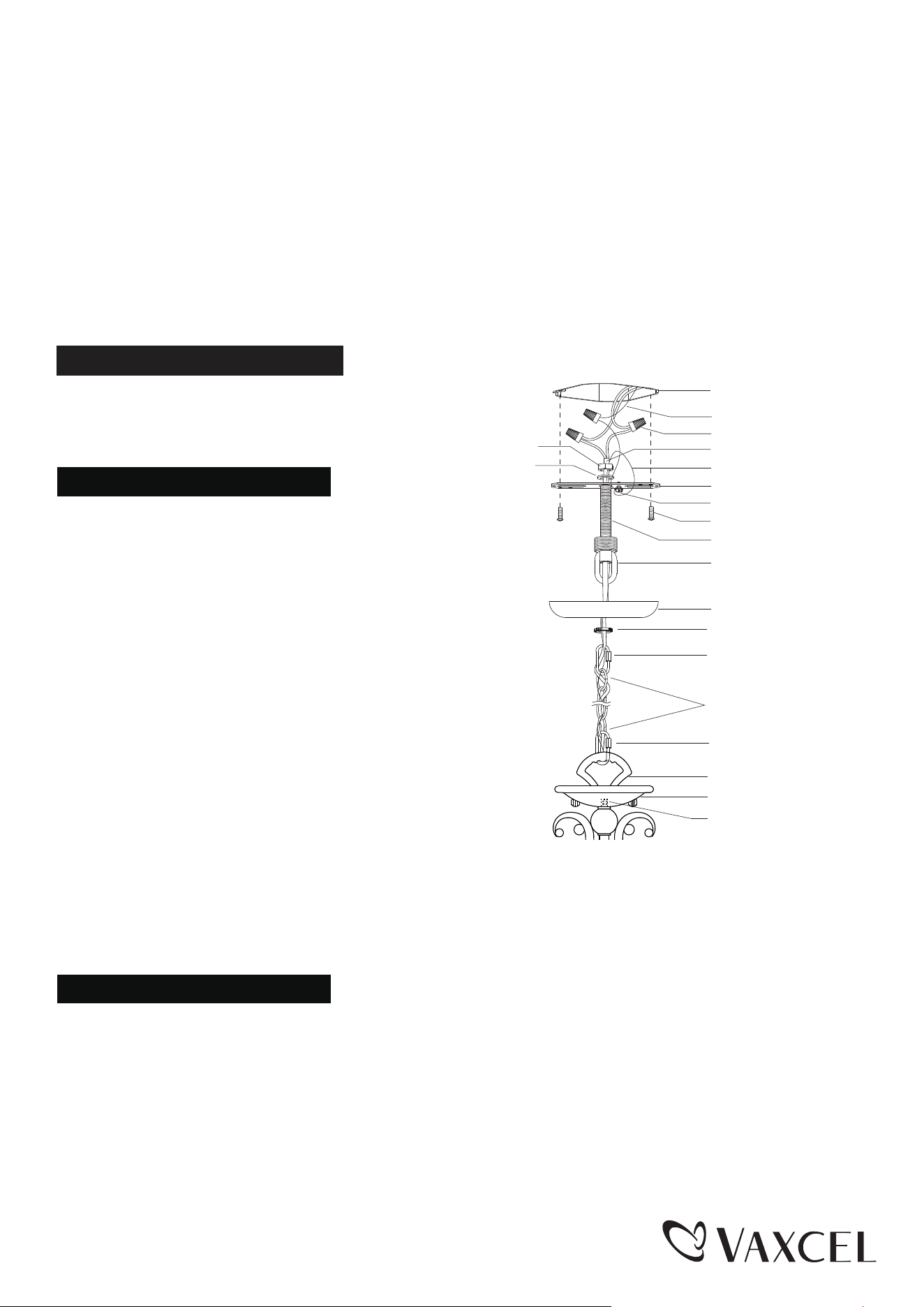

For Pendant Light:
Loop (S)
Canopy-1
Threaded Pipe-1
Outlet Box
Housing Ground Wire
Wire Connector (Q)
Fixture Wire
Fixture Ground Wire
Mounting Strap Unit (O)
Green Ground Screw
Mounting Screw (P)
Threaded Pipe
Hex Nut
Washer
Top Loop
Canopy (R）
Quick Link (U)
Quick Link (U)
Collar (T)
Chain (V)
Page 2 / 4
230721

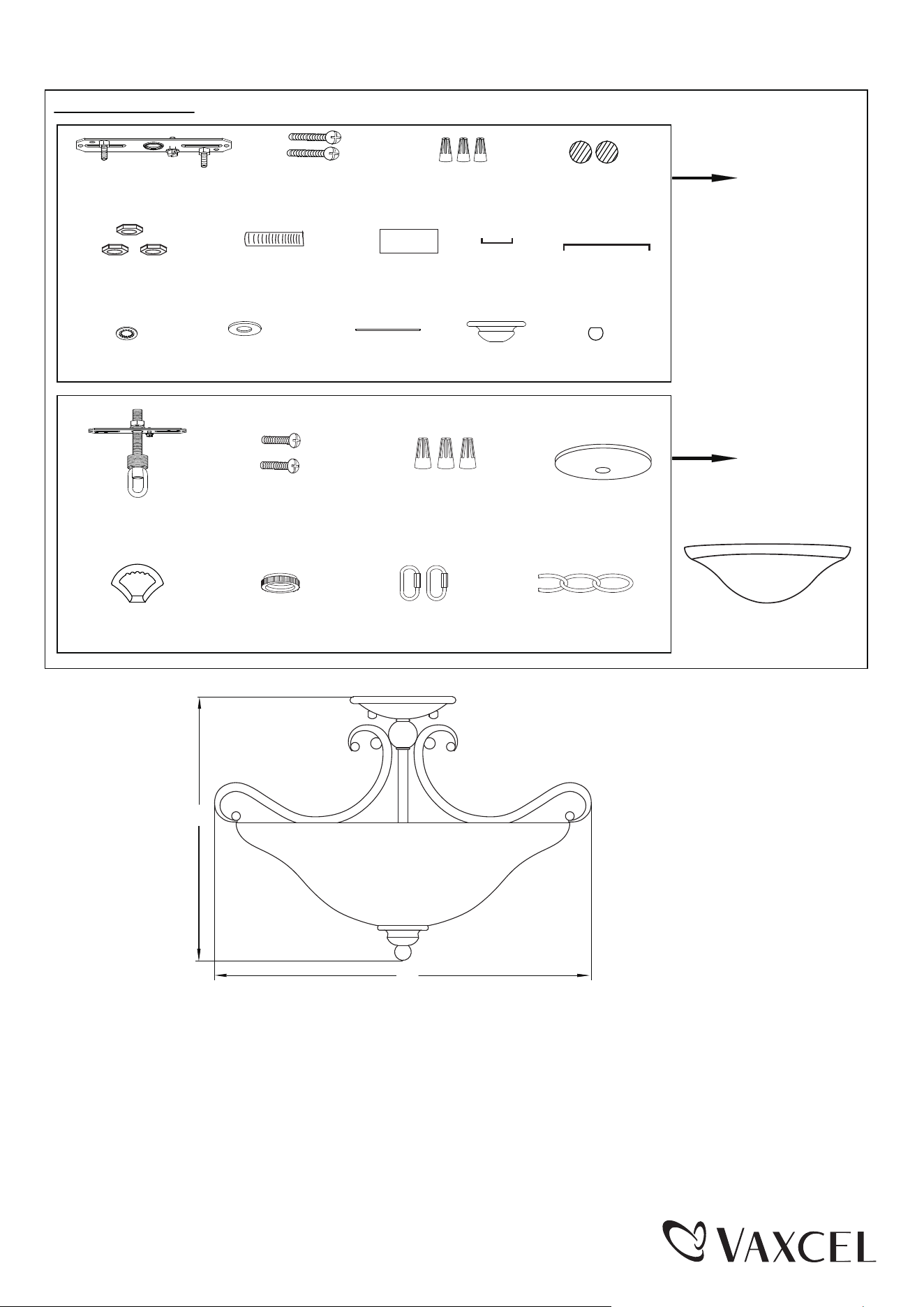

The following parts are available for re-order if damaged or missing.
Spare Parts List:
Assembly Kit
6517MM (1 SET)
Assembly Kit
6518MM (1 SET)
Glass Shade
10300CS
A
B
A: 12"
B: 17"
Page 3 / 4
Mounting Screw (B) Wire Connector (C)Mounting Strap Unit (A)
Hex Nut (E)
Cap-2
(I)
Rubber Pad (K)
Threaded Pipe
(F)
Tube
(G)
Cap-1
(H)
Bolt Nut (D)
Washer (J)
Metal Pad (L)
Cap (M)
Finial (N)
Mounting Strap
Unit (O)
Wire Connector (Q)
Collar (T)Loop (S)
Mounting Screw (P)
Canopy (R)
Quick Link (U)
Chain (V)
230721
Page 4 / 4
230721
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
