ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instruction.

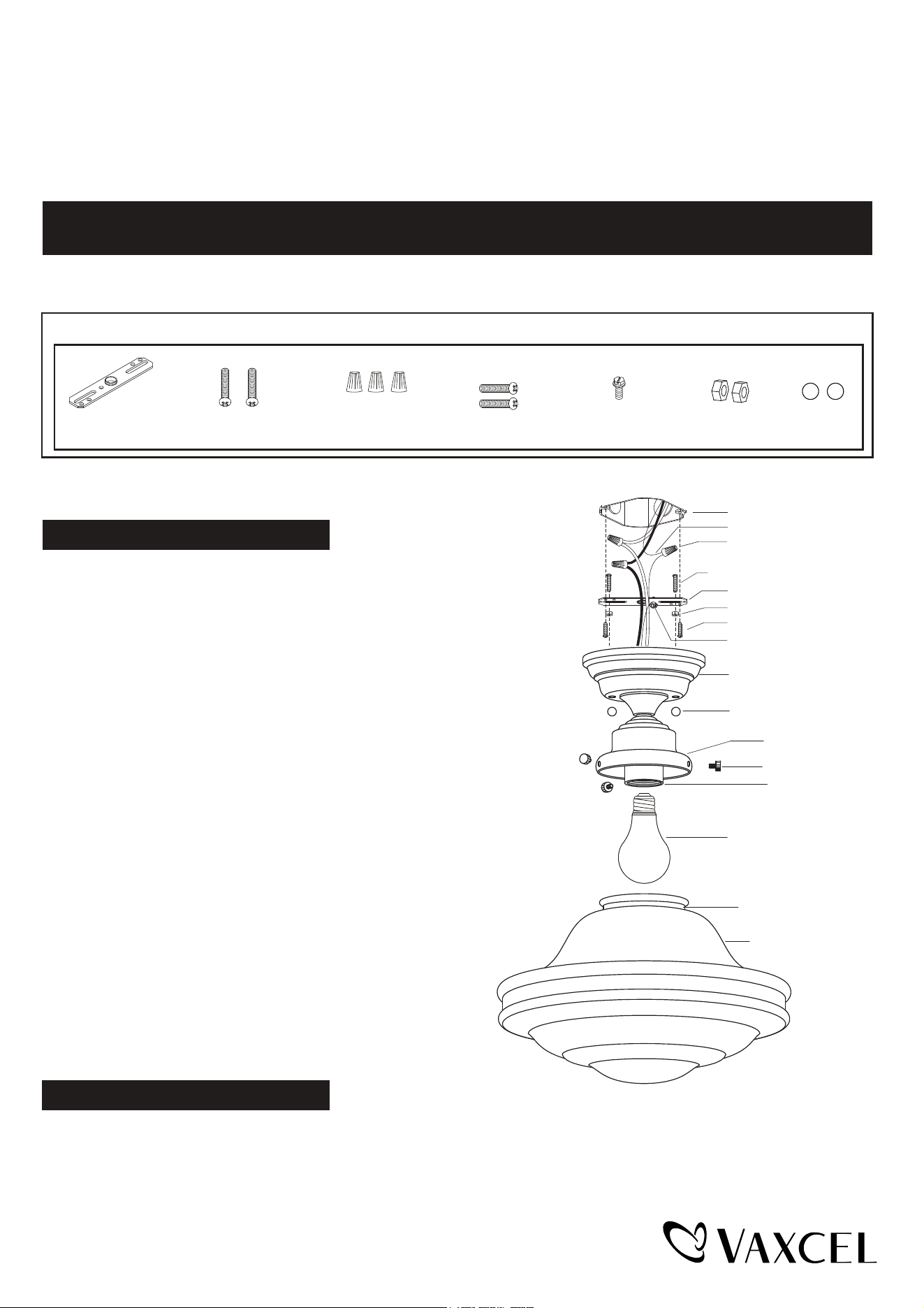

Fixture Canopy
Outlet Box
House Ground Wire
Wire Connector (C)
Mounting Strap (A)
Green Ground
Screw (E)
Lock Nut (F)
Mounting Screw (B)
Fixture Mounting Screw(D)
Socket Base
Glass Shade
Set Screw
Bolt Nut (G)
Glass Bracket
Glass Notche
C0261
Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box
Mounting Strap (A) Fixture Mounting
Screw (D)
Wire
Connector
(C)
Installation Steps
Lock Nut (F)
Bolt Nut (G)
Green Ground
Screw (E)
Mounting Screw (B)
Max. 60W Type A Bulb
(not included)
1. Thread two fixture mounting screws (D) through the mounting strap (A),
and then secure with two lock nuts (F). Adjust the length of the fixture
mounting screws (D) if necessary.
2. Attach the mounting strap (A) to the outlet box by using two mounting
screws (B).
3. Pull out the source wires from the outlet box. Make wire connections
using wire connectors (C) as follows:
---Connect the hot wire (usually black insulation) from the fixture to
the black wire from the power source.
---Connect the neutral wire (usually white insulation) from the fixture
to the white wire from the power source.
---Attach the fixture ground wire (usually green insulation or bare
wire) to the mounting strap (A) with the green ground screw (E). Then
connect it to the house ground wire with the wire connector (C).
Carefully put the wires back into the outlet box.
4. Attach the fixture canopy to the mounting strap (A) by inserting the
fixture mounting screws (D), and then secure it with two bolt nuts (G).
5. Install 1x60W Max medium base bulb (not included) to the socket.
Check relamping label at socket area or packaging for
maximum allowed wattage.
6. Attach the glass shade to the glass bracket by threading
set screws onto the glass notche. (Do not over tighten.)
Turn on the power at fuse or circuit box
Page 1 / 2
230518

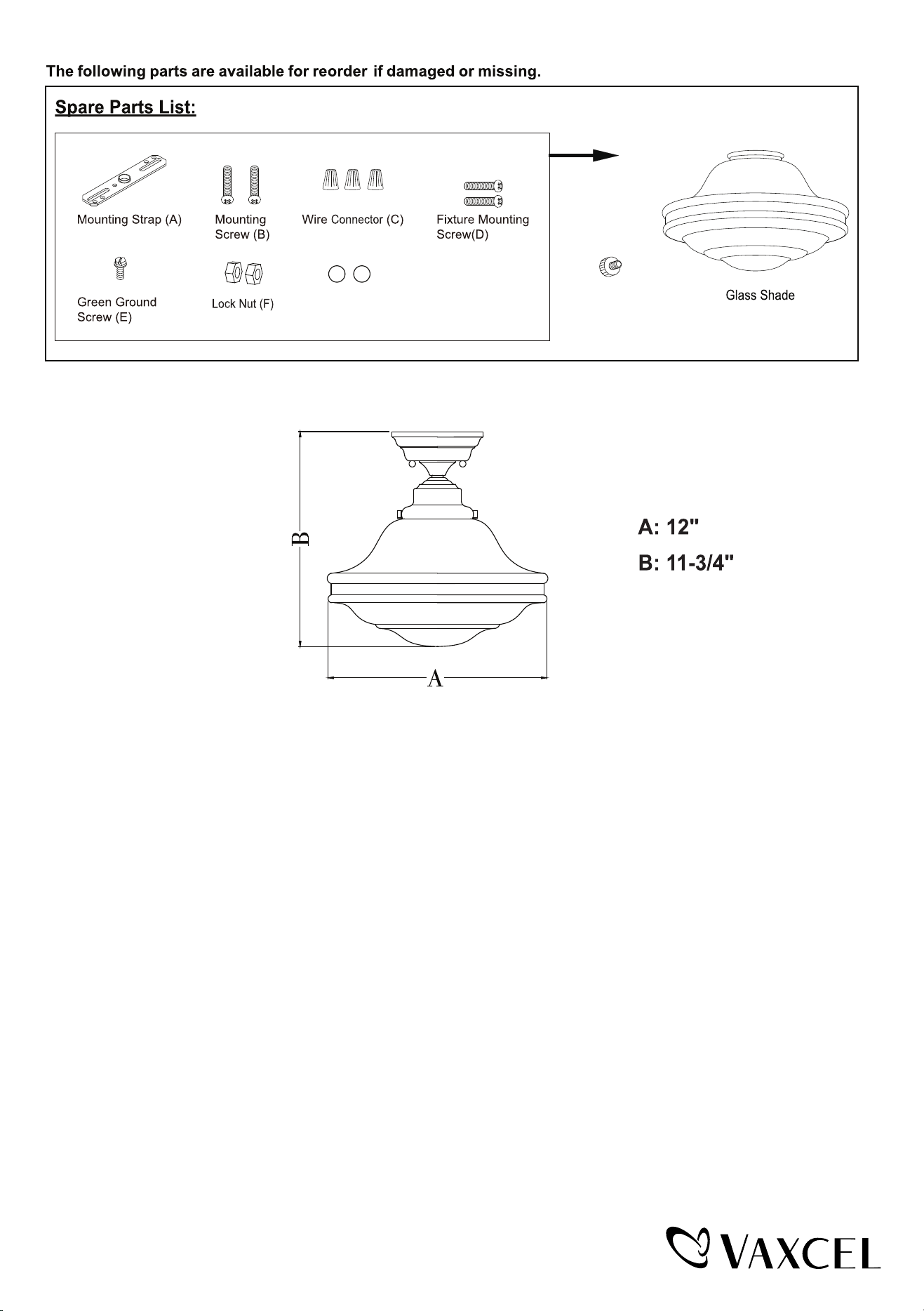

Assembly Kit
6484MM (1 SET)
Bolt Nut (G)
6488FS
Set Screw
10282CS
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
