ASSEMBLY AND INSTALLATION
INSTRUCTIONS
W0075
Turn off the power at fuse or circuit box
Installation Steps
1.
Unscrew the two bolt nuts (D), remove the mounting plate unit (A) from the backplate.
2.
Attach the mounting plate unit (A) to the outlet box by using two mounting screws (B).
Note: Make sure that two fixture mounting screws are vertical horizontally to make the fixture level.
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
Page 1 / 2

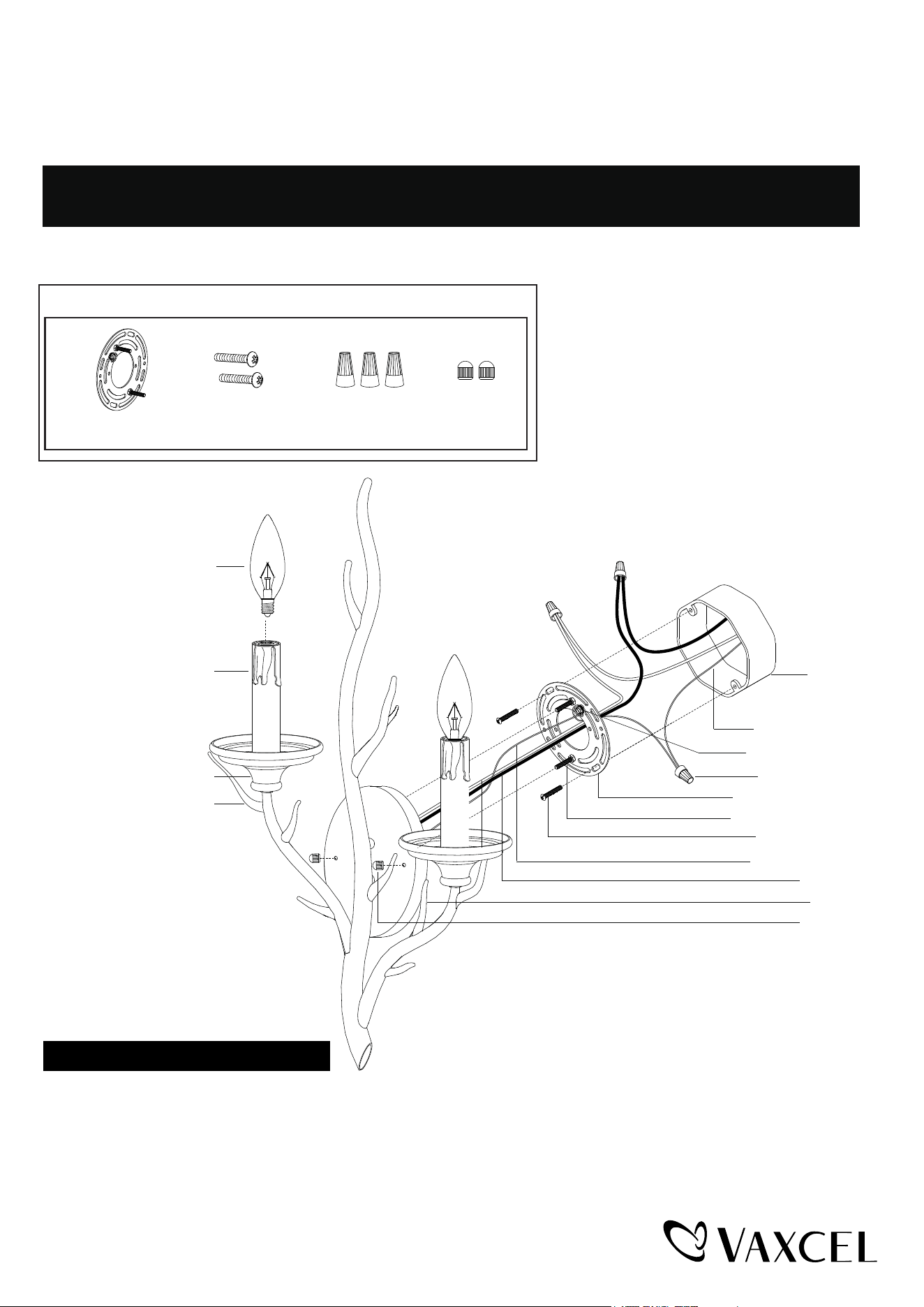

Mounting Plate Unit (A)
Wire Connector (C)
Mounting Screw (B)
Bolt Nut (D)
Hardware Package (included):
Fixture Ground Wire
Wire Connector (C)
Mounting Plate Unit (A)
House Ground Wire
Green Ground Screw
Fixture Wire
Backplate
Bolt Nut (D)
Mounting Screw (B)
Socket
Fixture
Glass Shade
Socket Ring
Outlet Box
Fixture Mounting Screw
Max. 60W Candelabra
Bulb (not included)
230718

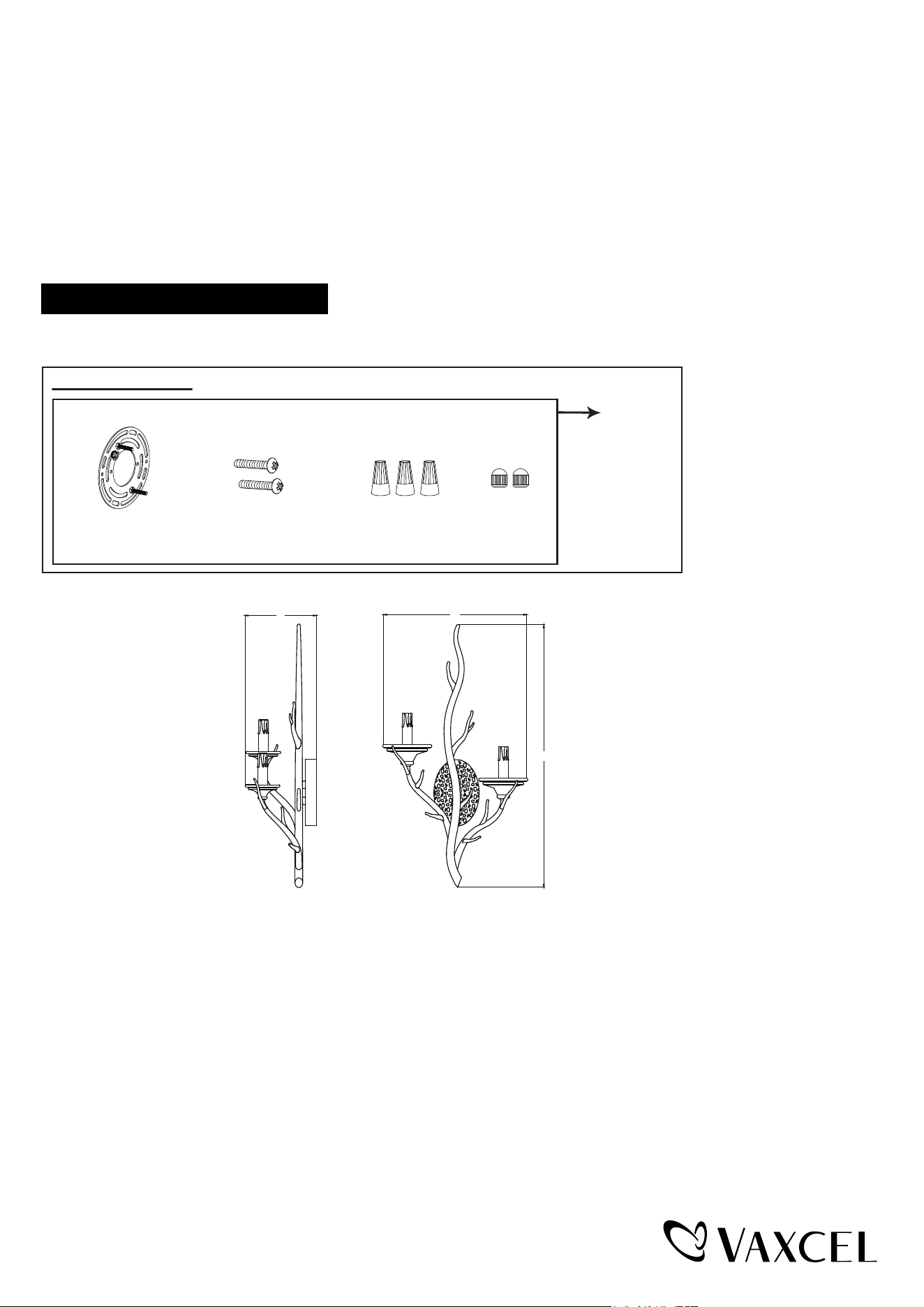

The following parts are available for reorder if damaged or missing.
Spare Parts List:
Mounting Plate Unit (A) Wire Connector (C)Mounting Screw (B)
Bolt Nut (D)
Mounting Hardware
6733MM (1SET)
Turn on the power at fuse or circuit box
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
• Connect the black (hot) wire from the fixture to the black (hot) wire from the power source.
• Connect the white (neutral) wire from the fixture to the white (neutral) wire from the power source.
• Attach the fixture ground wire to the mounting plate
unit (A)
with the green ground screw, then connect it
to the house grounding wire with a wire connector (C).
Carefully put all of the wires back into the outlet box.
4. Attach the backplate of the fixture to the mounting plate unit (A) by aligning and inserting the two fixture mounting
screws into set holes on backplate, then secure it with two bolt nuts (D).
5. Install 2 x 60W Max. candelabra bulbs (not included). See relamping label at socket area or packaging for maximum
wattage allowed.
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
Page 2 / 2
230718
A: 13"
B: 26-3/4"
C: 7-3/8"
A
B
C
