ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WL33042NS
T
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.
Hardware Package (included):
Mounting Screw (B) Wire Connector (C)
Bolt Nut (D)
Mounting Plate Unit (A)
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
1. Unscrew the two bolt nuts (D), remove the mounting plate unit (A) from the backplate.
2. Attach the mounting plate unit (A) to the outlet box by using two mounting screws (B). Adjust the length of
the preinstalled fixture mounting screws if necessary.
Note: Make sure that two fixture mounting screws are lined up horizontally to make the fixture level.
Turn off the power at fuse or circuit box.
Installation Steps
Page 1 / 2

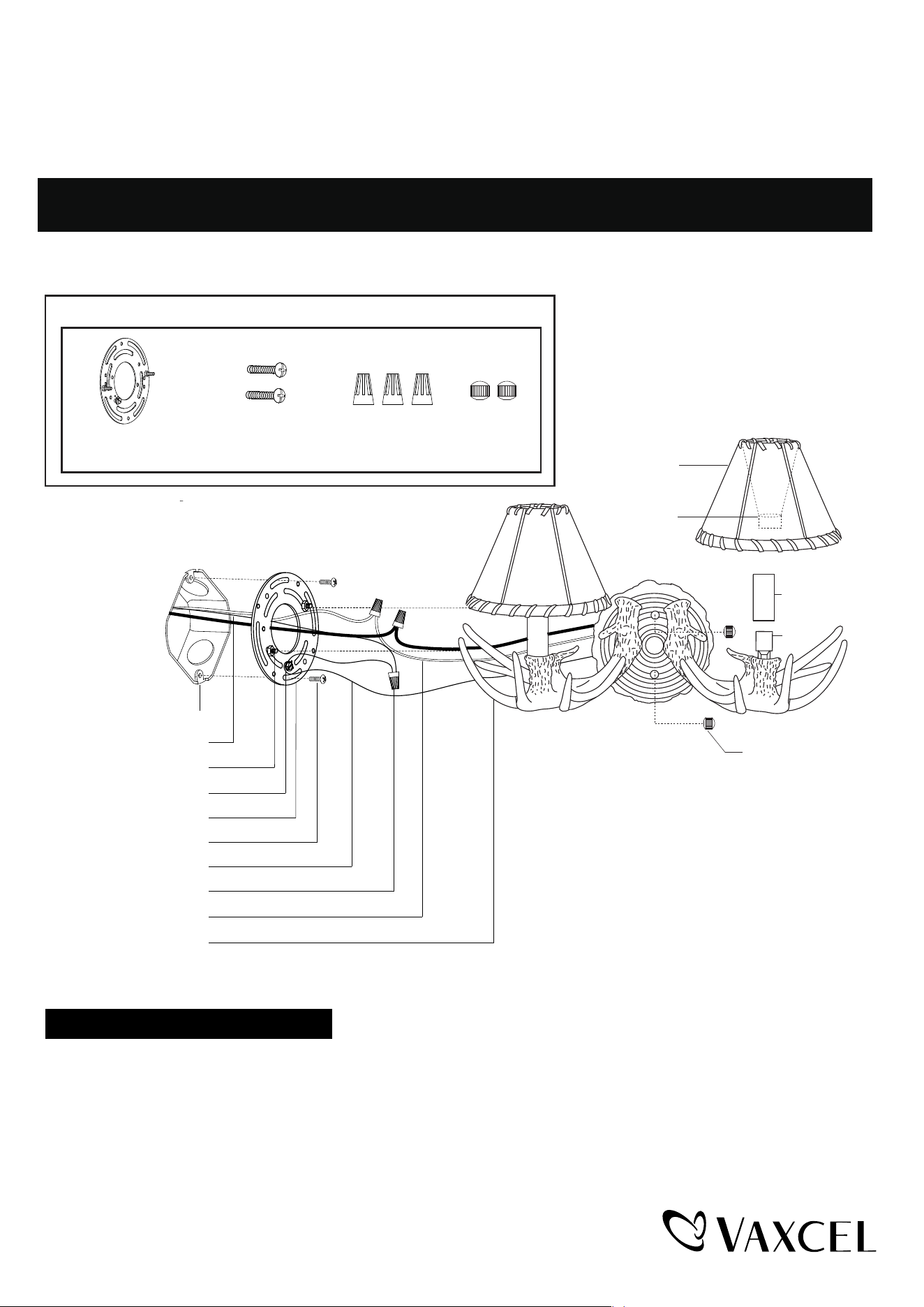

Fixture Wire
Backplate
Harp
Shade
Wire Connector (C)
House Ground Wire
Outlet Box
Mounting Screw (B)
Green Ground Screw
Mounting Plate Unit (A)
Bolt Nut (D)
Socket
Candle Tube
Fixture Ground Wire
Fixture Mounting Screw
230907
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with green ground screw, then
depending on local code, connect it to the house ground wire with the wire connector (C).
Carefully put all of the wires back into the outlet box.
4. Attach the backplate of the fixture to the mounting plate unit (A) by aligning and inserting the two fixture mounting
screws into set holes on backplate, then secure them with two bolt nuts (D).
5. Attach the candle tube onto the socket. Then attach the harp of the shade onto the candle tube.
6. Install 2 x 60W max. medium base bulbs (not included). Check relamping label at socket area or packaging for
maximum wattage allowed.
Turn on the power at fuse or circuit box.

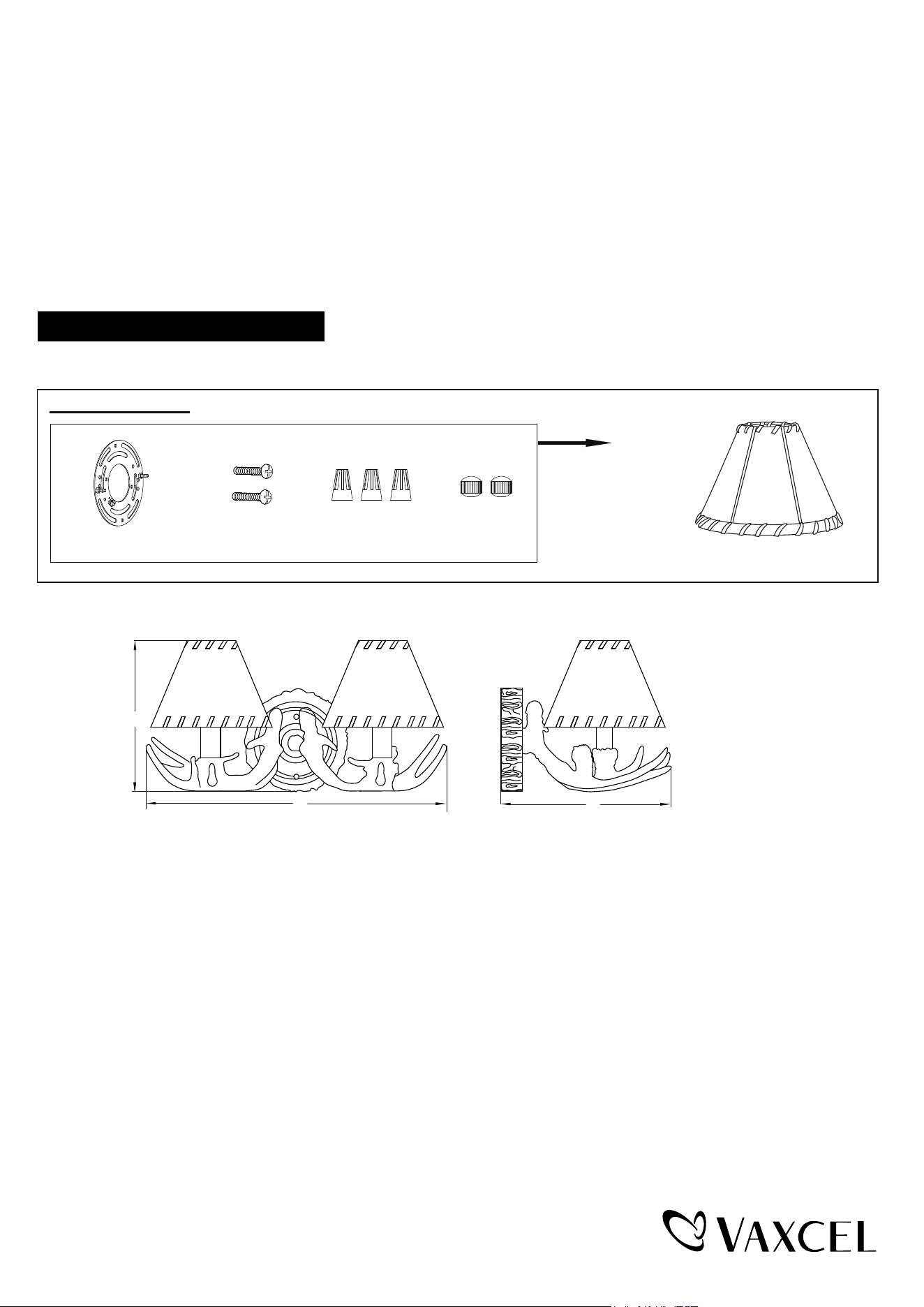

The following parts are available for reorder if damaged or missing.
Spare Parts List:
Assembly Kit
6714MM (1 SET)
Mounting Screw (B) Wire Connector (C) Bolt Nut (D)Mounting Plate Unit (A)
Page 2 / 2
230907
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
Shade
10378FR
A: 8-1/4"
B: 16-3/4"
C: 9-1/2"
B
A
C
