Max. 60W Type A Bulb
(not include)
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
T0331 / T0332
Turn off the power at fuse or circuit box.

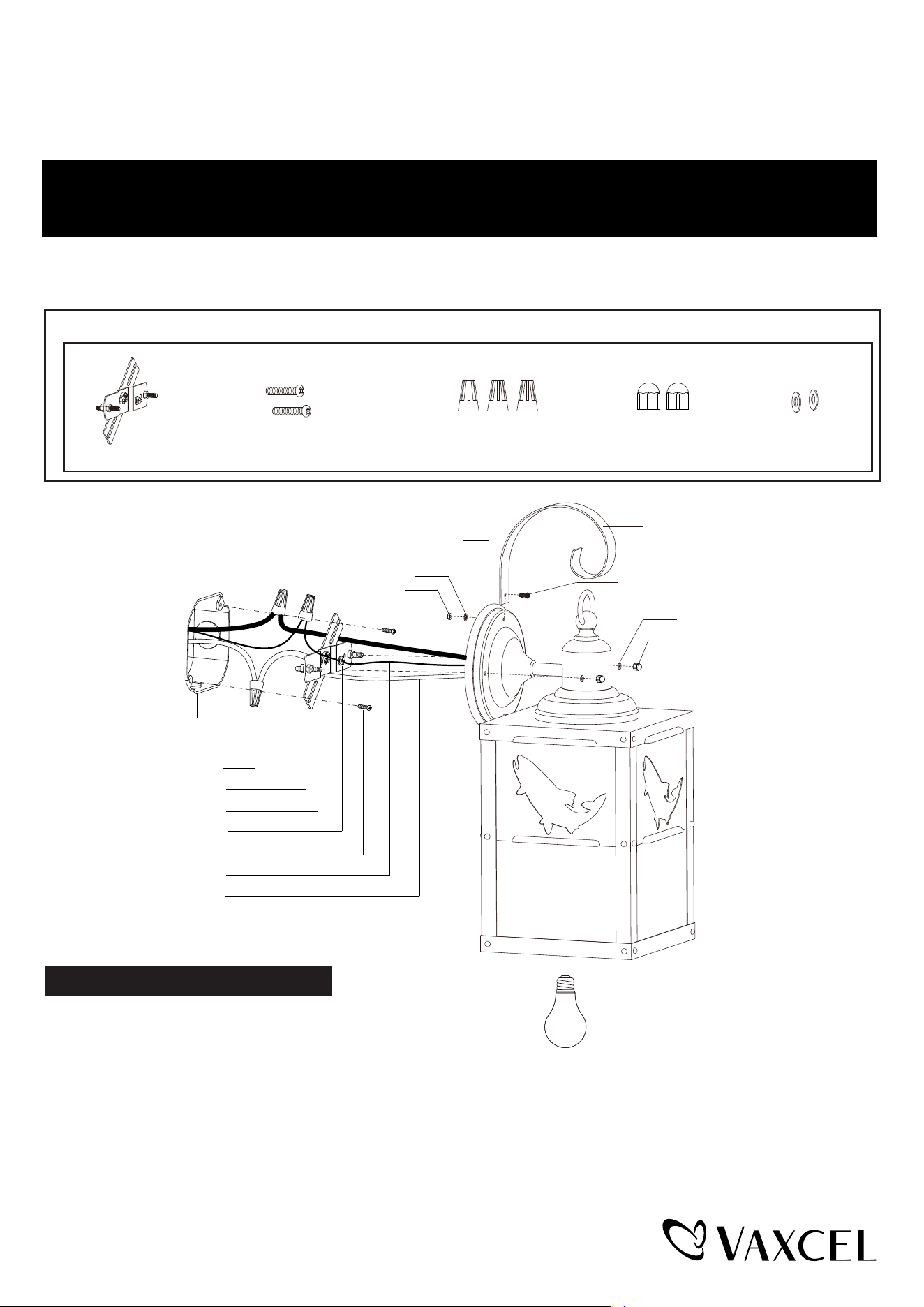

Installation Steps
Backplate
Set Screw
Loop
Curved Arm
Lock Nut-2
Washer
Rubber Pad (E)
Bolt Nut (D)
W
Hardware Package (included):
Mounting Screw (B) Wire Connector (C) Bolt Nut (D)
Rubber Pad (E)
Crossbar Unit (A)
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.
Wire Connector (C)
House Grounding Wire
Outlet Box
Mounting Screw (B)
Green Grounding Screw
Headless Screw
Crossbar Unit (A)
Fixture Wire
Fixture Grounding Wire
Page 1 / 2
230428
1. Attach the crossbar unit (A) to the outlet box by using two
mounting screws (B). Adjust the length of the preinstalled
fixture mounting screws if necessary.
Note: Make sure that the fixture mounting screws are l
ined up horizontally to make the fixture level.
2. Unscrew the set screw, lock nut-2 and washer from the curved arm.
3. Hook the curved arm to the loop, and then attach the curved arm to the back plate by using the set screw, washer
and lock nut-2.
230428
Turn on the power at fuse or circuit box
Curved Arm Set Screw Washer Lock Nut-2
4. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
---Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
---Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
---Attach the fixture ground wire (bare wire) to the crossbar unit (A)with the green ground screw, then connect
it to the house grounding wire with the wire connector (C).
Carefully put the wires back into the outlet box.
5. Attach the backplate to the crossbar unit (A) by inserting two headless screws, and then secure it with two rubber
pads (E) and two bolt nuts (D) .
NOTE: With silicone caulking compound, caulk completely around where the back plate meets with the wall
surface to prevent water from seeping into the outlet box.
6. Install the bulb (not included). Check relamping label at socket area or packaging for maximum wattage allowed.
Mounting Screw (B) Wire Connector (C) Bolt Nut (D)
Rubber Pad (E)
Crossbar Unit (A)
Page 2 / 2
The following parts are available for reorder if damaged or missing.

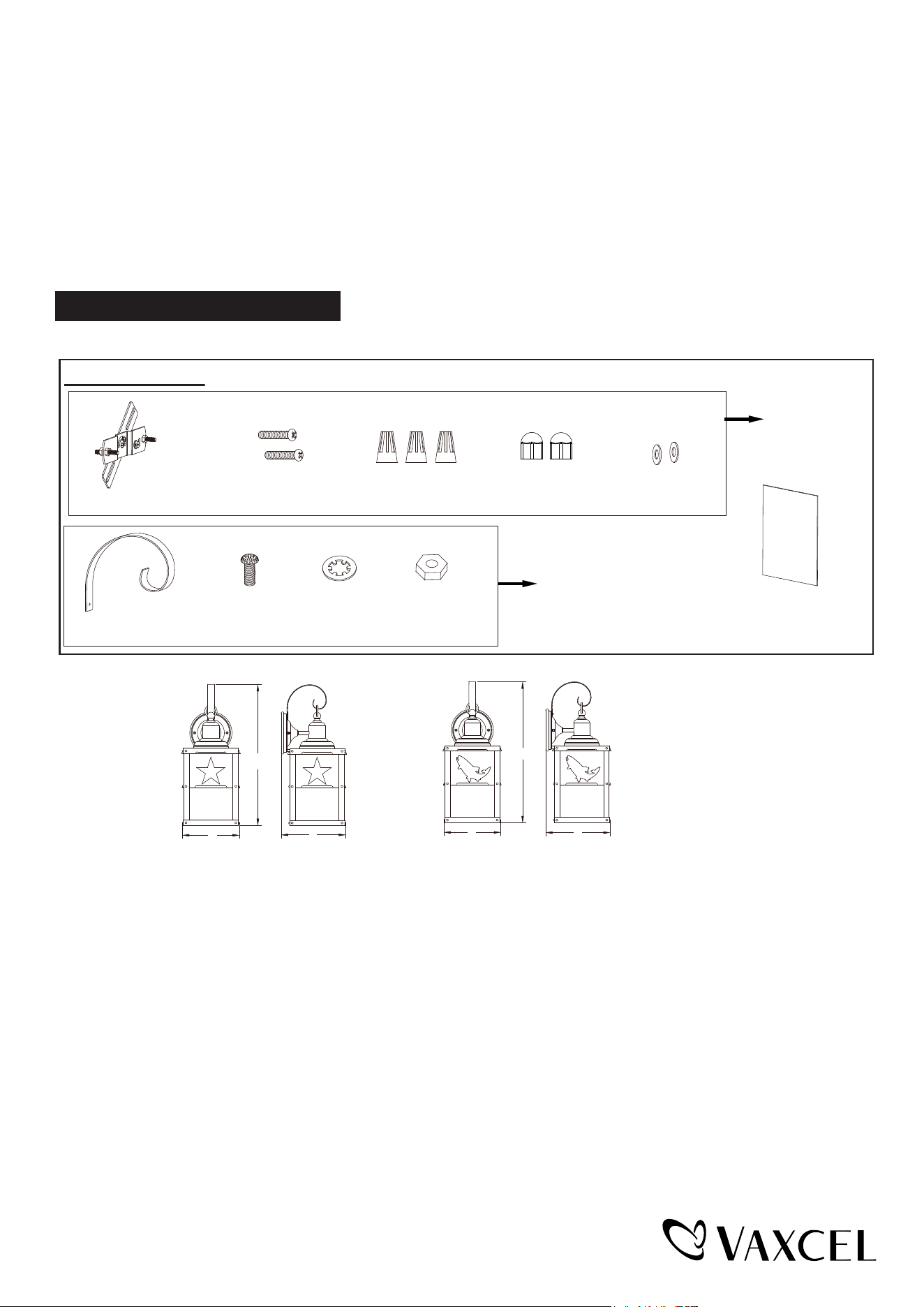

Spare Parts List:
Assembly Kit
5622MM (1 SET)
A
B
C
B
A
C
A: 13"
B: 5"
C: 6"
T0332
T0331
Glass Panel
9900CS
Mounting Hardware
3098CA
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
