IMPORTANT:
The sensor has an excellent photocell function
to enable the light to turn on at dusk and off at
dawn automatically.
W
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
Hardware Package (included):
T0285
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.

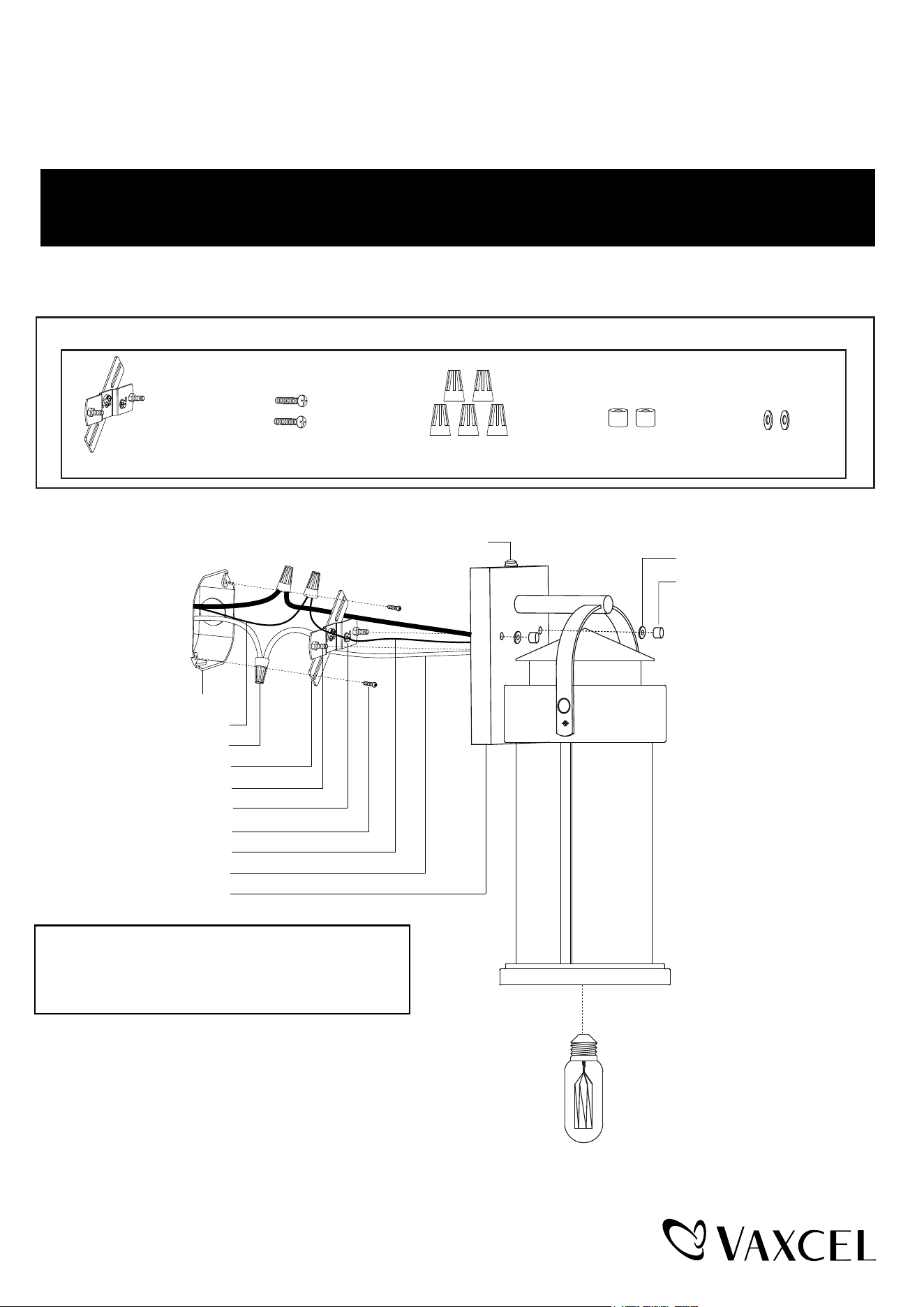

Mounting Screw (B)Crossbar Unit (A) Wire Connector (C) Bolt Nut (D) Rubber Pad (E)
Wire Connector (C)
House Ground Wire
Outlet Box
Mounting Screw (B)
Green Ground Screw
Fixture Mounting Screw
Crossbar Unit (A)
Fixture Wire
Rubber Pad (E)
Backplate
Bolt Nut (D)
Fixture Ground Wire
Photocell
Page 1 / 3
Max. 60W Type T Bulb
(not included)
231123
1. Attach crossbar unit (A) to the outlet box using two mounting screws (B). Adjust the length of the preinstalled
fixture mounting screws if necessary.
Note: Make sure that the fixture mounting screws are lined up horizontally to make the fixture level.
2. Pull out the wires and ground wire from the outlet box. Make wire connections using the wire connectors (C)
as follows:
---Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
---Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
---Attach the fixture ground wire (bare wire) to the crossbar unit (A) with the green ground screw, then connect
it to the house ground wire with the wire connector (C).
Carefully put the wires back into the outlet box.
3. Attach the backplate of the fixture to the crossbar unit (A) by inserting fixture mounting screws into set holes on
the backplate, then secure it with two rubber pads (E) and two bolt nuts (D).
Note: With silicone caulk compound, caulk completely around where the backplate meets with the wall
surface to prevent water from seeping into the outlet box.
4. Install the bulb (not included). Check relamping label at socket area or packaging for maximum wattage allowed.
Turn on the power at fuse or circuit box.

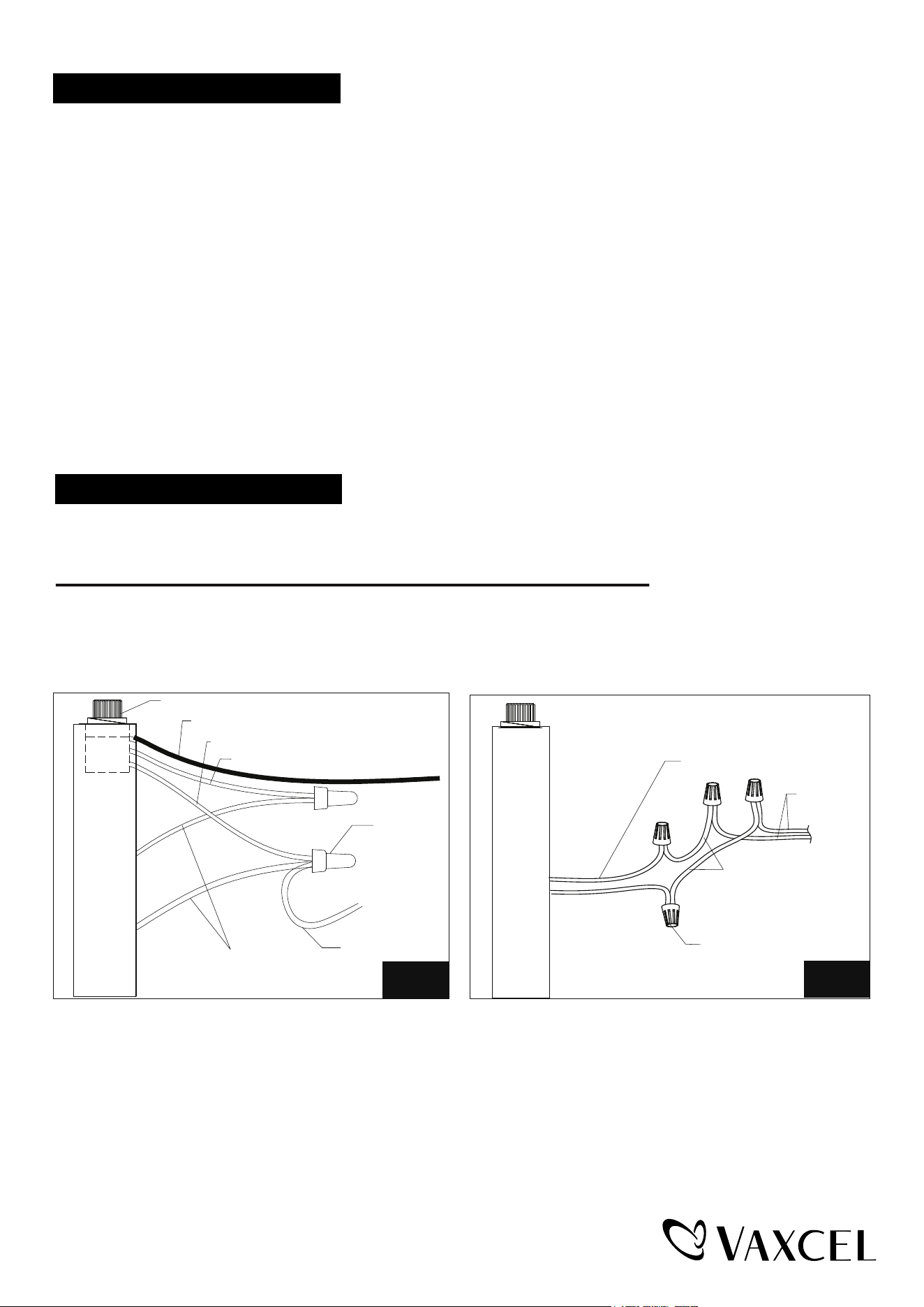

Photocell
White Wires From Photocell
Wire Connector
Wires From Fixture
Wires From Fixture
Wires From
Main Power
Wire Connector (F)
White Pigtail
Pigtail
Red Wires From Photocell
Black Wires From Photocell
Fig.
1
Fig
.
2
Optional Installation: Disconnect Dusk-to-Dawn Photocell
IMPORTANT:
Compatible with dimmer when photocell is disconnected.
* Requires dimmable bulb and compatible dimmer switch.
1. Turn off the power at the fuse or circuit box before starting installation.
2. Loosen the wire connectors connected with the wires from photocell. (See Fig.1)
Note: Do not remove the photocell to prevent water from seeping into the outlet box.
Turn off the power at fuse or circuit box.
Installation Steps
Page 2 / 3
231123
The following parts are available for reorder if damaged or missing.
Spare Parts List:
Assembly Kit
5603MM (1 SET)
Turn on the power at fuse or circuit box.
3. Take a white pigtail and black pigtail and make wire connections using wire connectors (C): (See Fig.2)
a. The black wire from the fixture to one end of the black pigtail.
b. The white wire from the fixture to one end of the white pigtail.
c. The other end of the black pigtail to the black wire from the power source.
d. The other end of the white pigtail to the white wire from the power source.
Put all wires back into the back plate of the fixture.
Mounting Screw (B)Crossbar Unit (A) Wire Connector (C) Bolt Nut (D) Rubber Pad (E)
Page 3 / 3

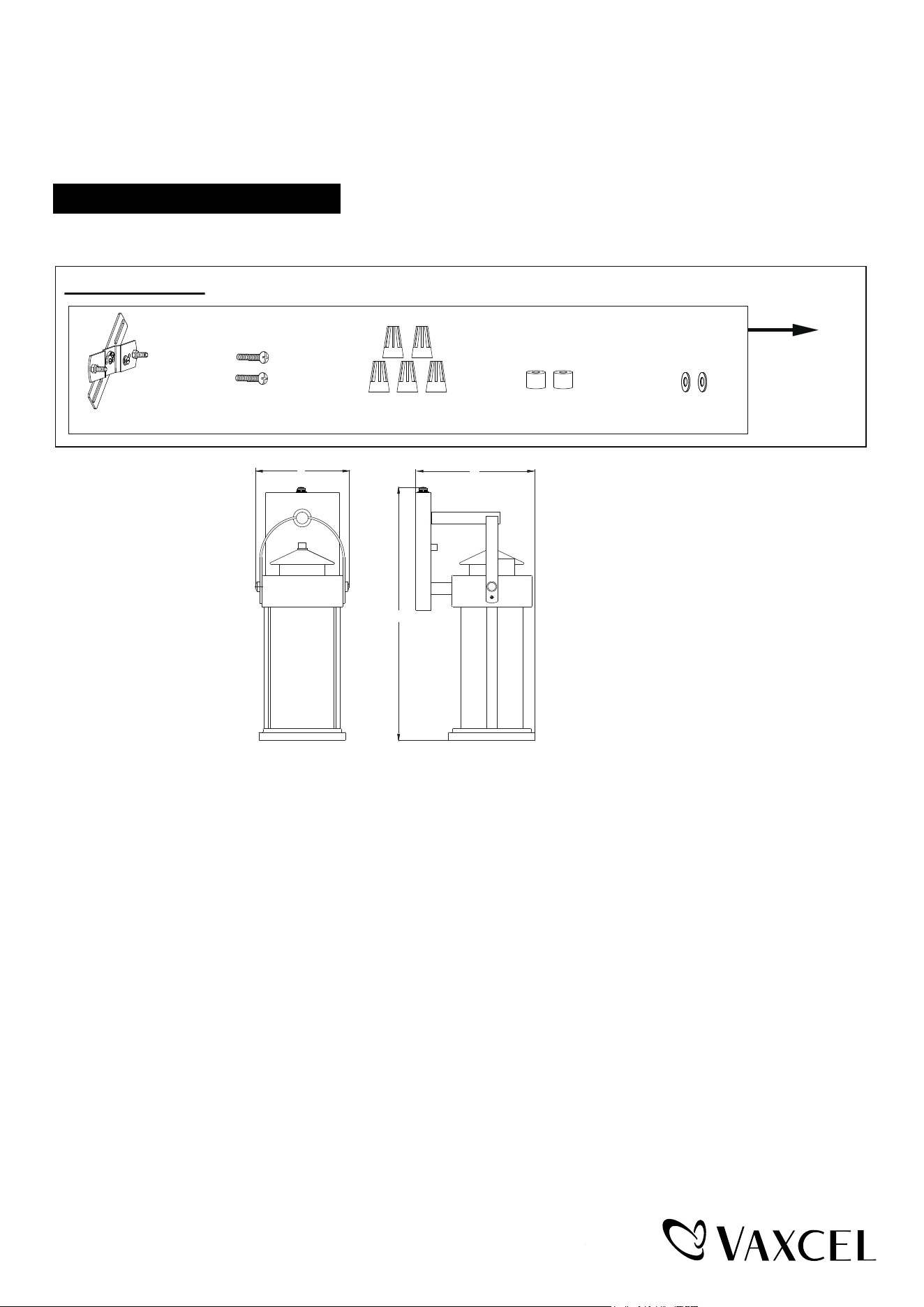

A: 16-1/4"
B: 6"
C: 7-3/4”
B
A
C
231123
5 Year Limited Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of shipment.
In addition:
● Any product with an integrated motion sensor or dusk-to-dawn photocell is supported by a 5-year warranty for the
functionality of the product.
● Any product with integrated LED modules is covered by a 5-year warranty on the LED functionality.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction manual;
usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered normal for
the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
